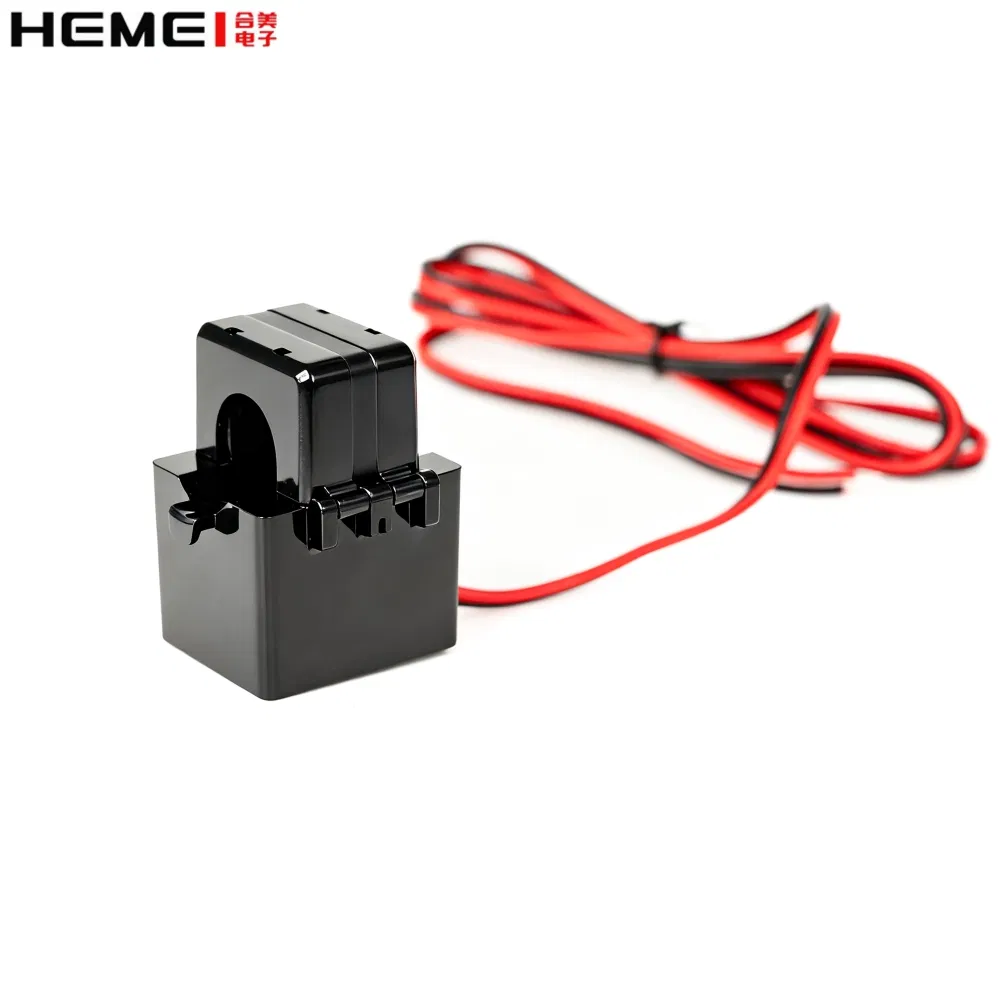

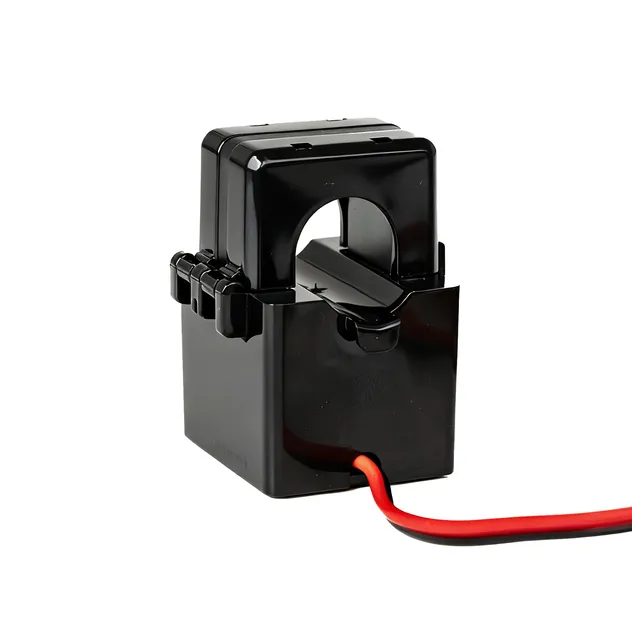

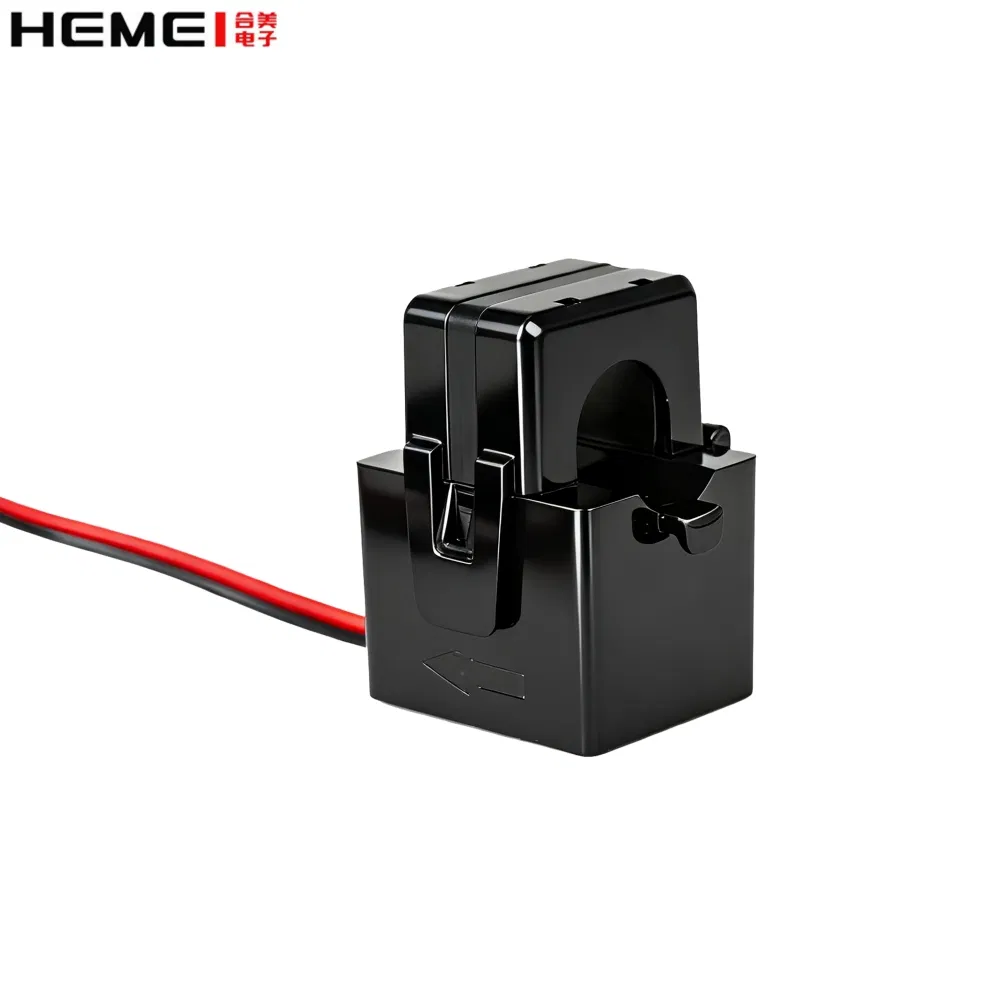

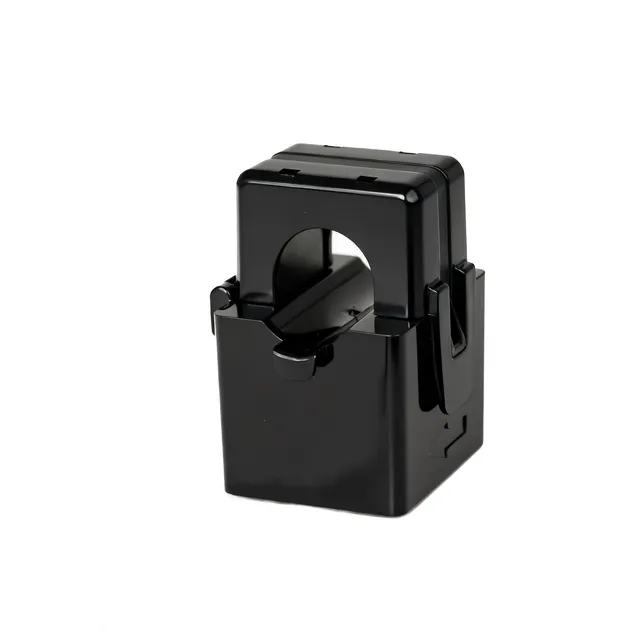

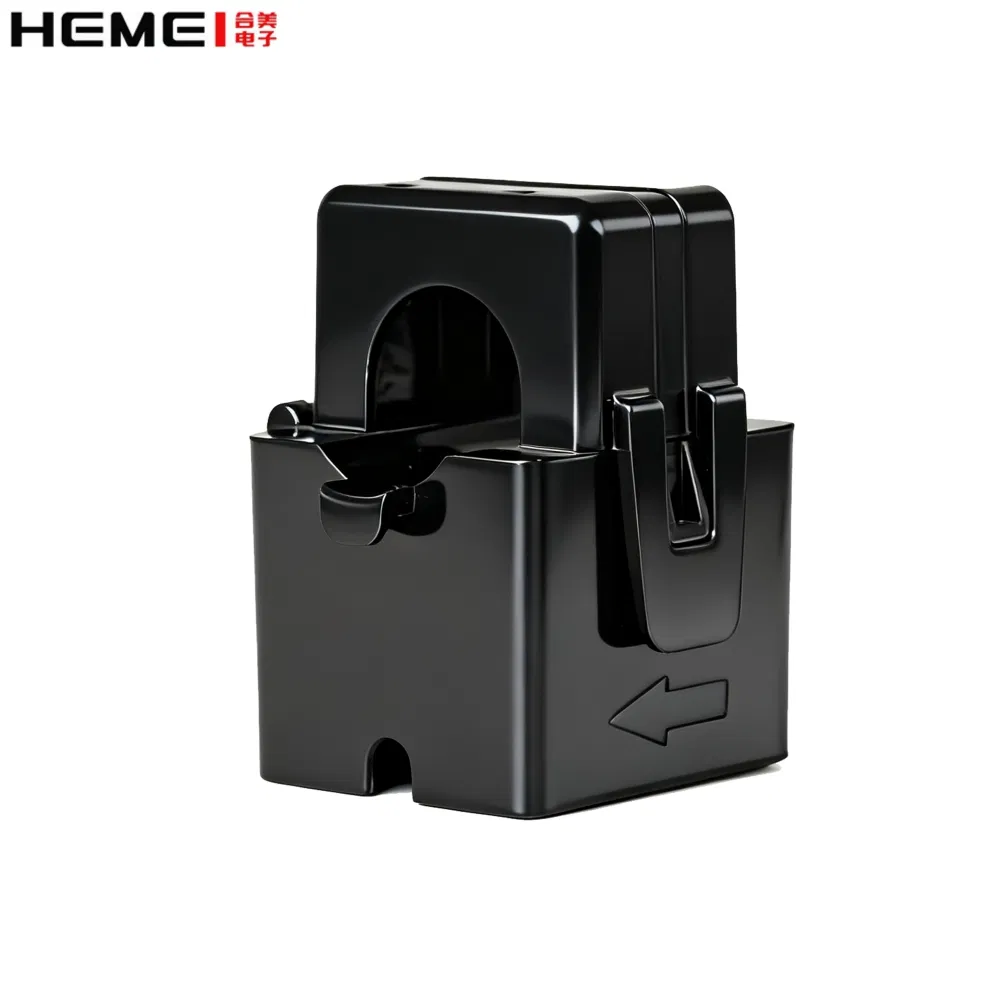

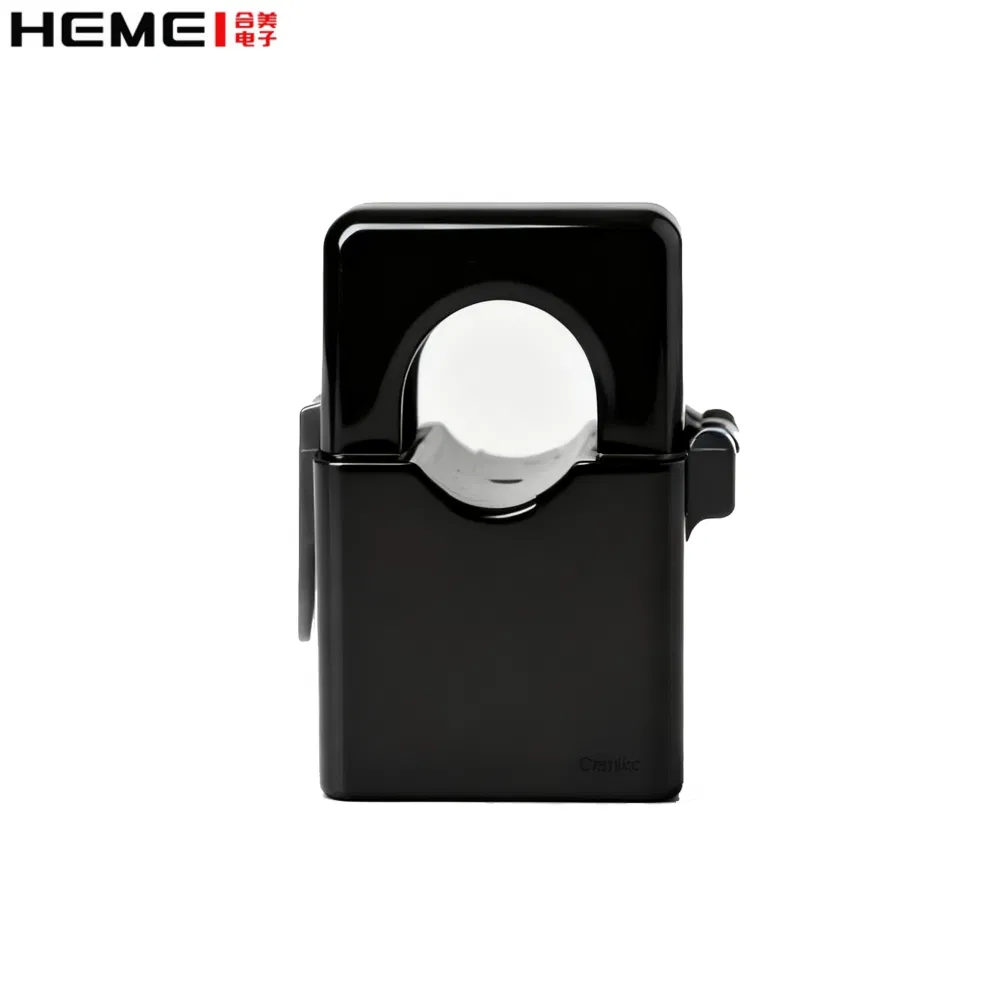

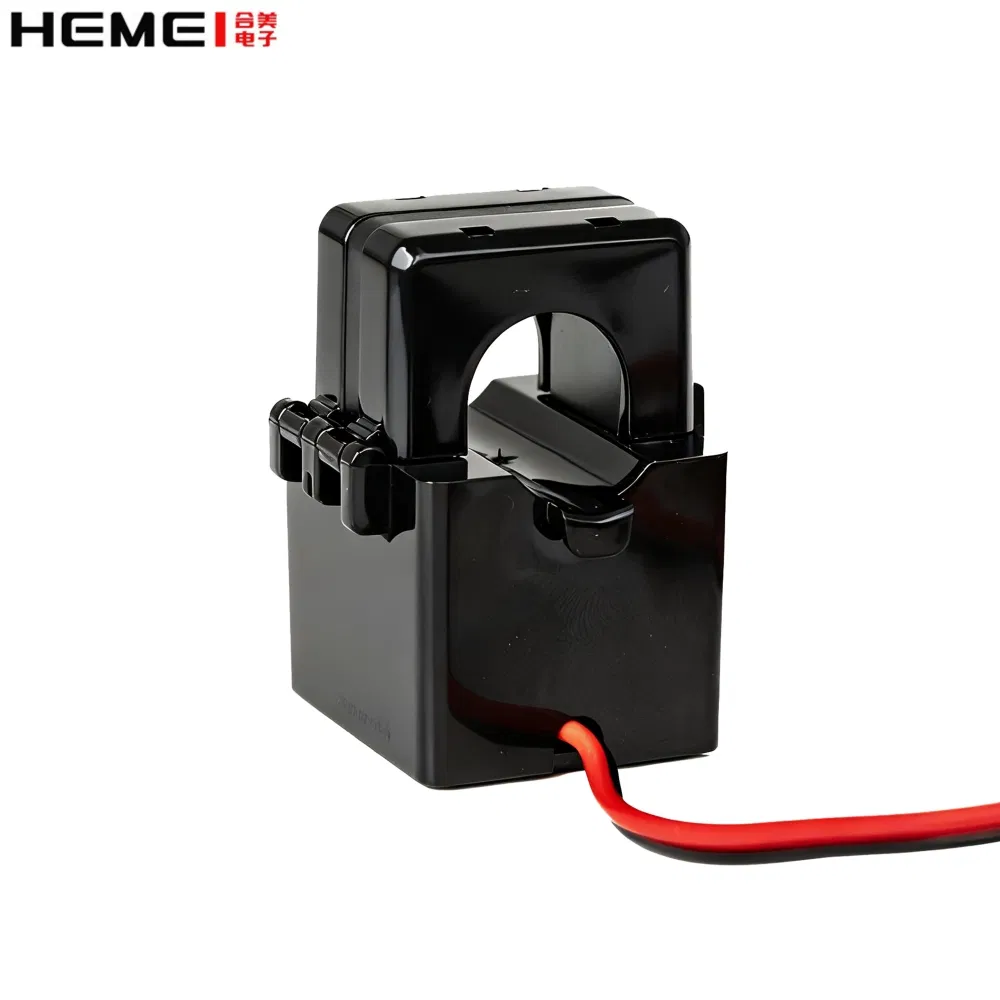

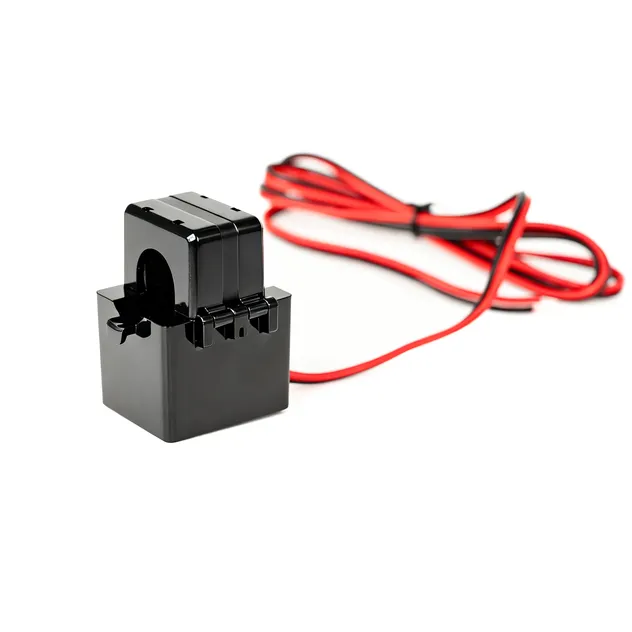

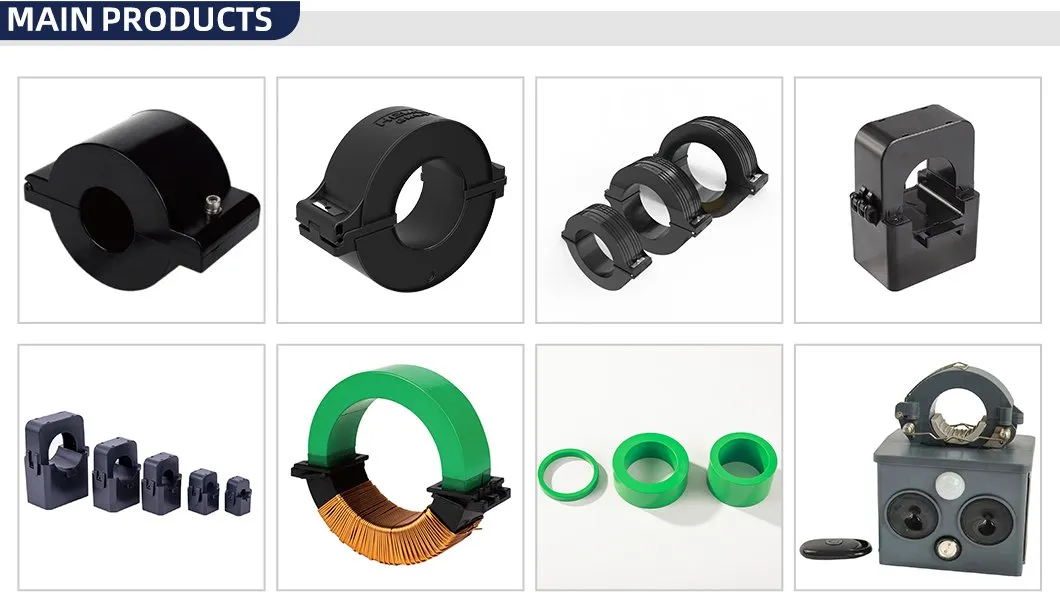

Split Core Current Transformer

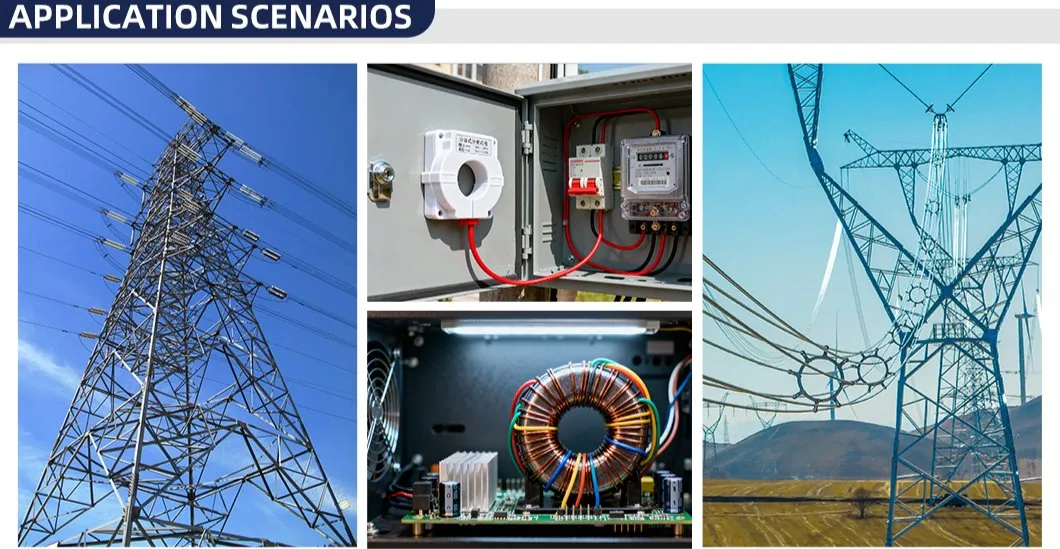

The split core current transformers are designed for fast and easy installation. They are ideal for installation on existing electrical cables by clamping on the conductor. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.
| Technical Indicators | Indicator Parameters |
|---|---|
| Operating voltage | ≤0.72KV |
| Operating frequency | 50Hz~1KHz |
| Rated accuracy level | 0.2%/0.5%/1.0% |
| Input current | 0A~600A |
| Rated short-time thermal current | 60 times rated current @1sec |
| Insulation resistance | ≥1M ohms@500Vdc |
| Power frequency withstand voltage | 3500V@2mA\1min\50Hz |
| Product flame retardant level | UL94-V0 |
| Insulation heat resistance level | E level |
| Phase linearity error | ≤20′ |
| Model | Inner Diameter | Turns Ratio | Input Current | Accuracy |
|---|---|---|---|---|
| HM-CTSC-10 | 10mm | 500/1 - 3000/1 | 0A~80A | 0.2% / 0.5% |
| HM-CTSC-16 | 16mm | 500/1 - 3000/1 | 0A~150A | 0.2% / 0.5% |
| HM-CTSC-24 | 24mm | 500/1 - 3000/1 | 0A~300A | 0.2% / 0.5% |
| HM-CTSC-35 | 35mm | 500/1 - 3000/1 | 0A~600A | 0.2% / 0.5% |
