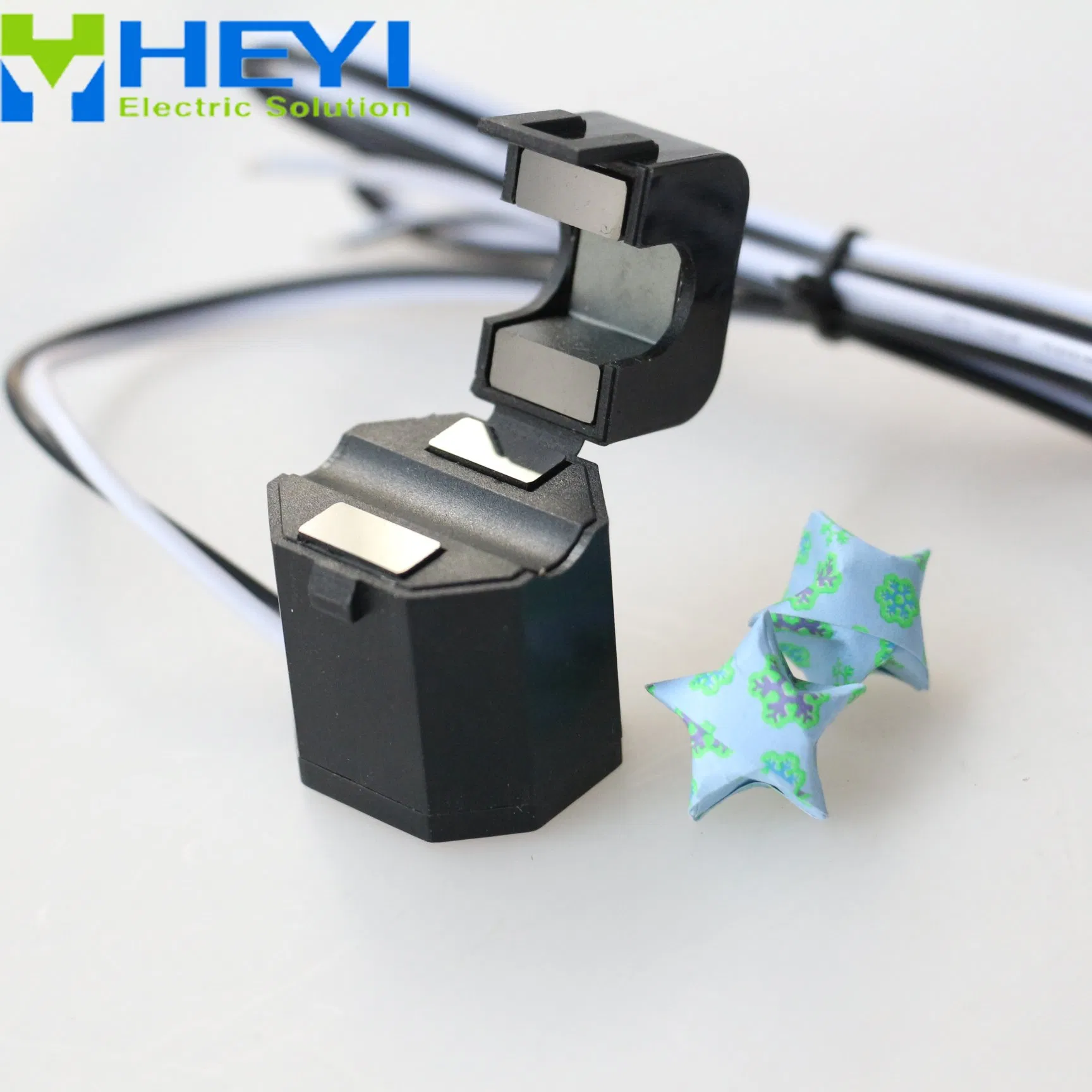

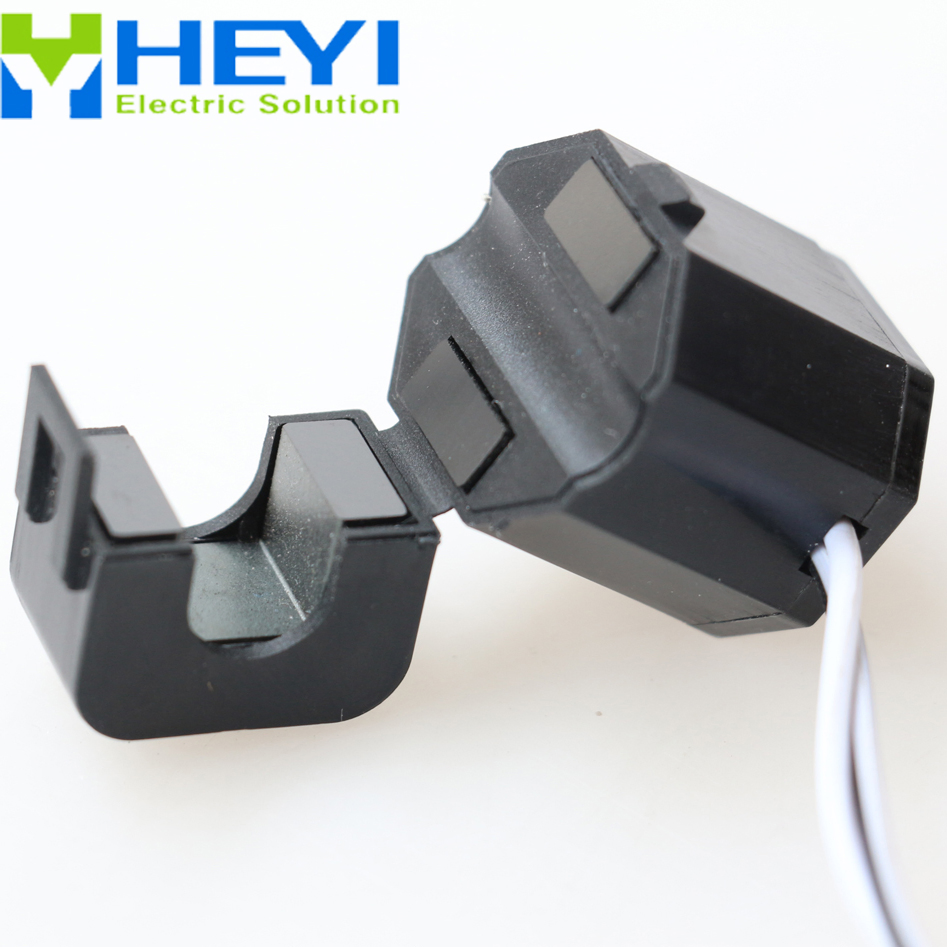

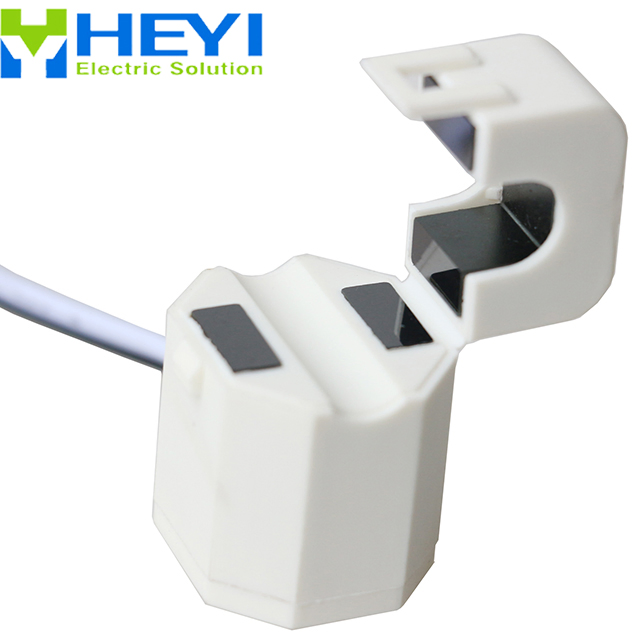

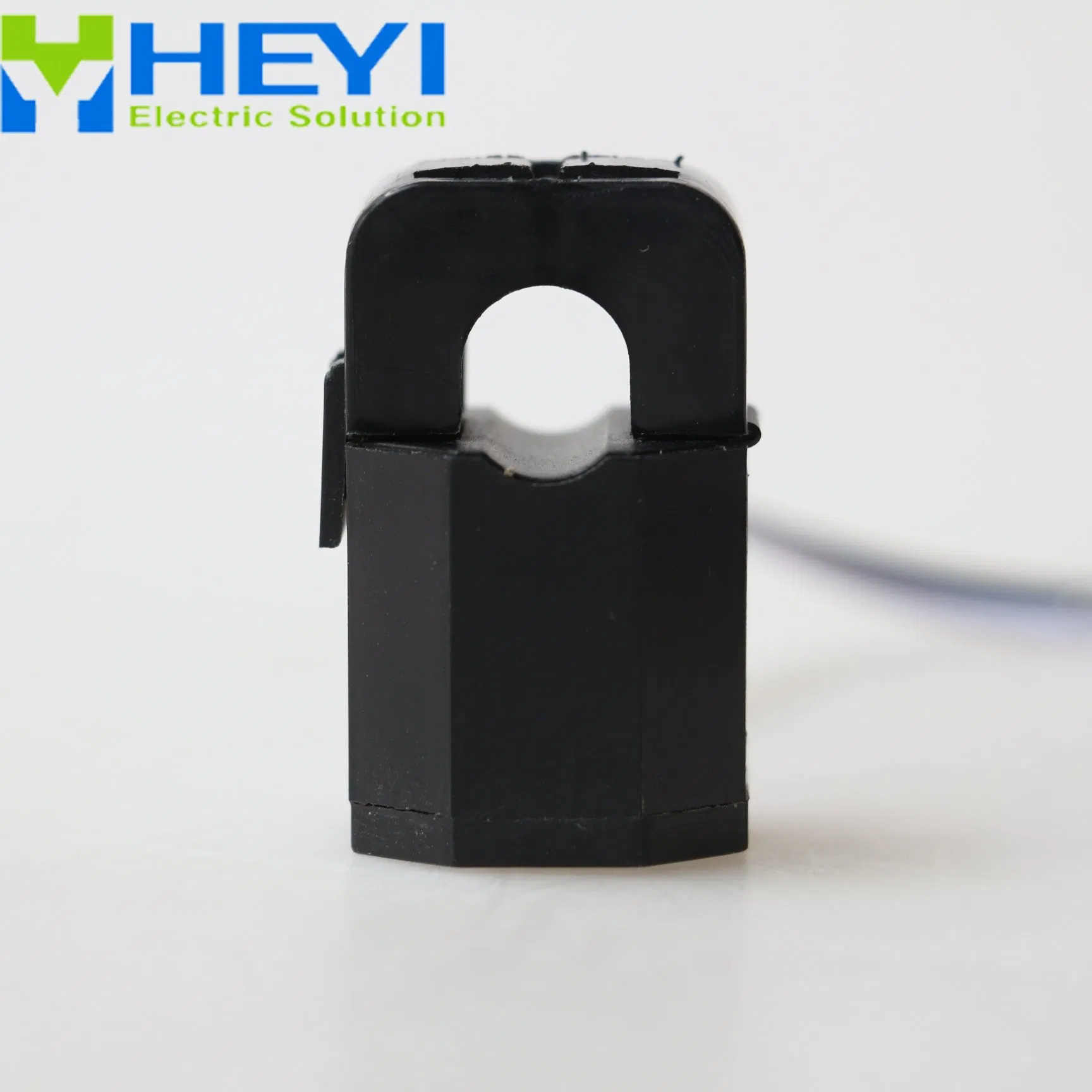

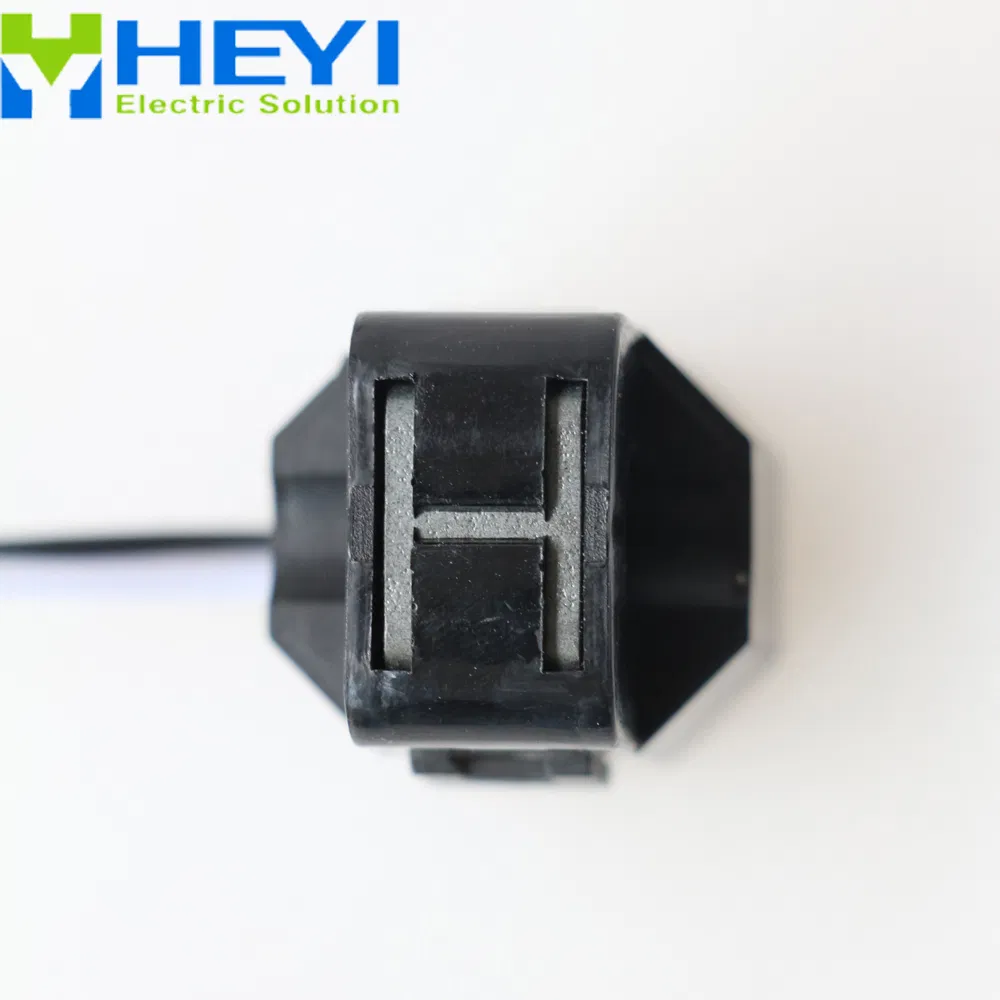

Kct-10 75A/3V Cl: 0.5 Heyi Asct Clamp on CT Power Monitoring Split Core Current Transformers

Still deciding? Get samples of $ !
Request Sample

Product Description

Technical Specifications
Model NO.
KCT-10 75A/3V
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Insulating Paper
Installation
Active Type
Magnetic Circuit
Single Stage Type
Principle
Electromagnetic Type
Color
Black
Product Name
Mini Split Core Current Transformers
Certification
CE RoHS
Rated Capacity
5A-630A
Material
Ferrite PC
Frequency
50-2kHz
Class
0.5
Specification
IEC 61010-1: 1990
HS Code
8504311000
Capacity
100000PCS/Year
Product Showcase
Split Core Current Transformer View 1
Split Core Current Transformer View 2
Split Core Current Transformer View 3

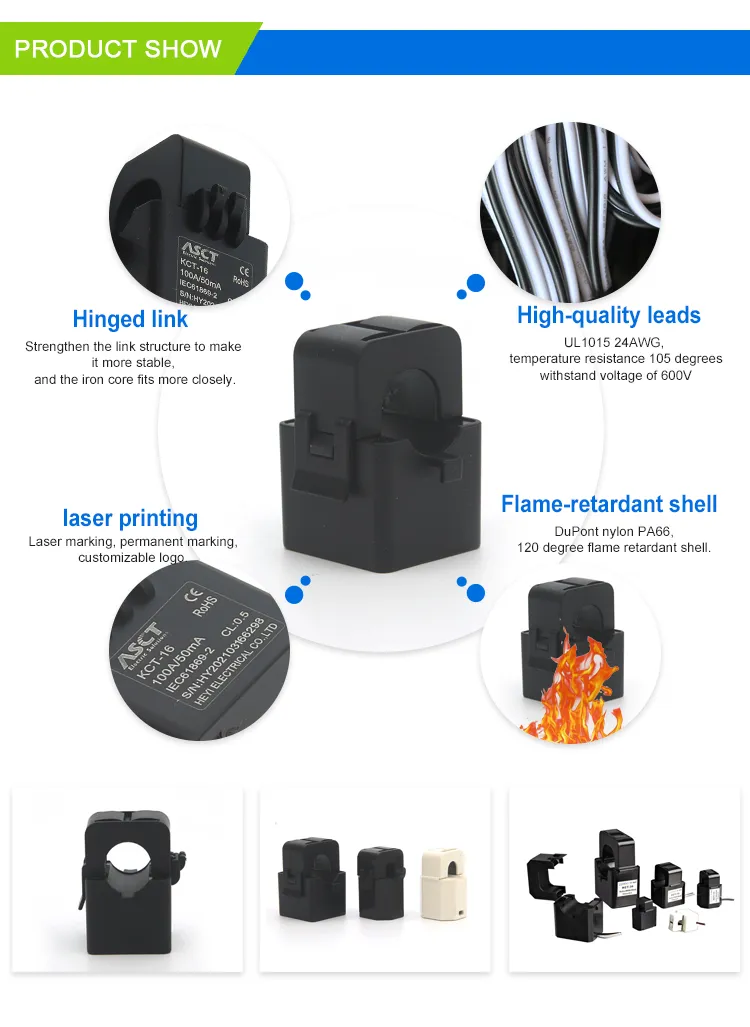

Split Core Current Transformer View 4

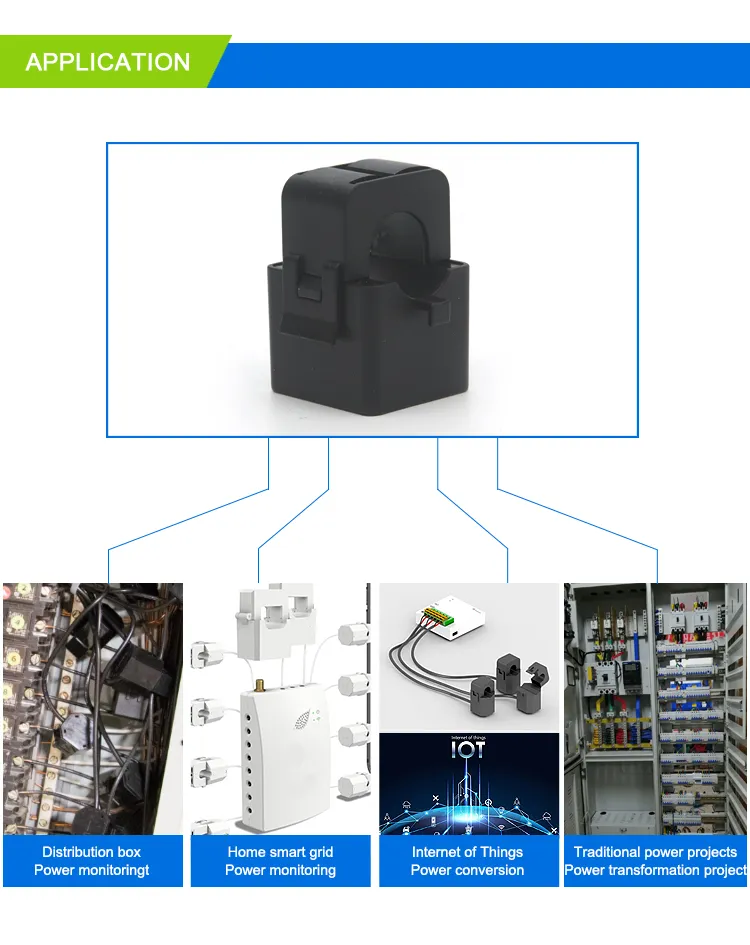

Split Core Current Transformer View 5

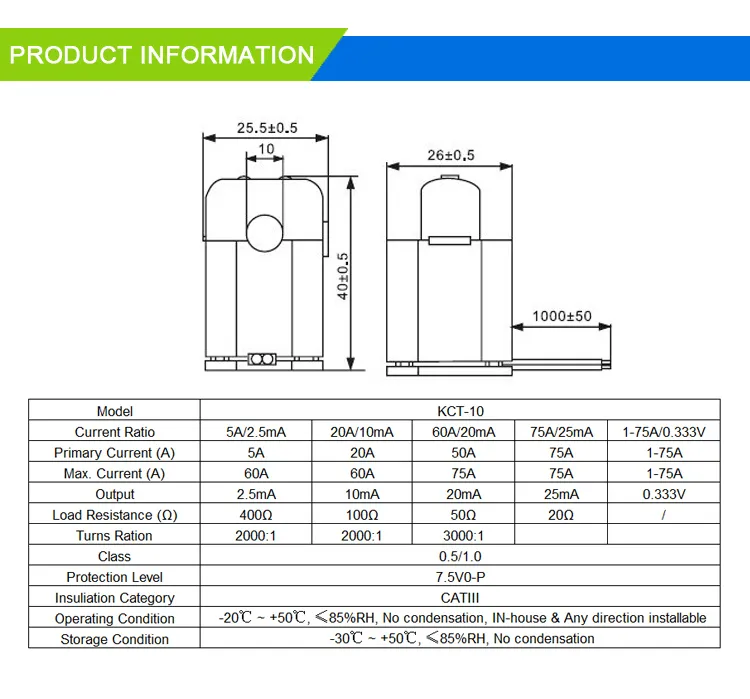

Split Core Current Transformer View 6

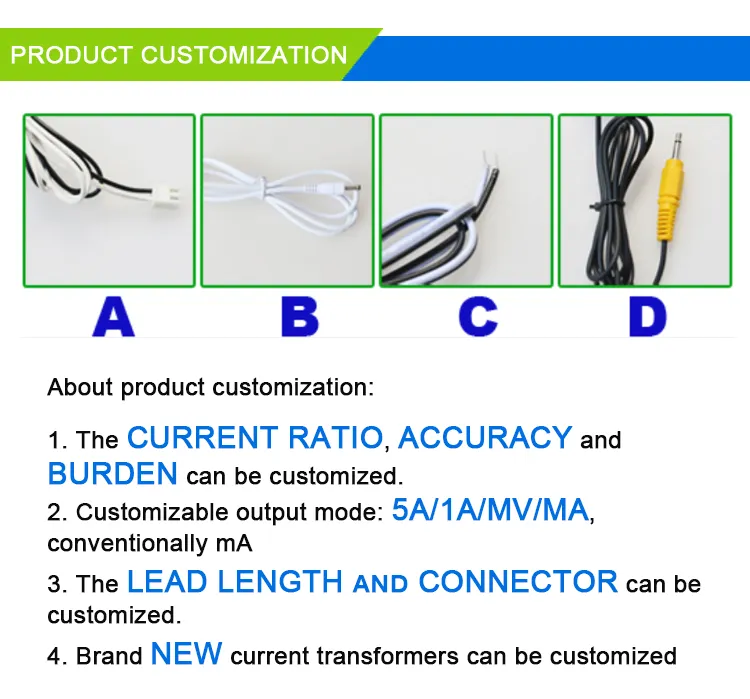

Split Core Current Transformer View 7
Split Core Current Transformer View 8

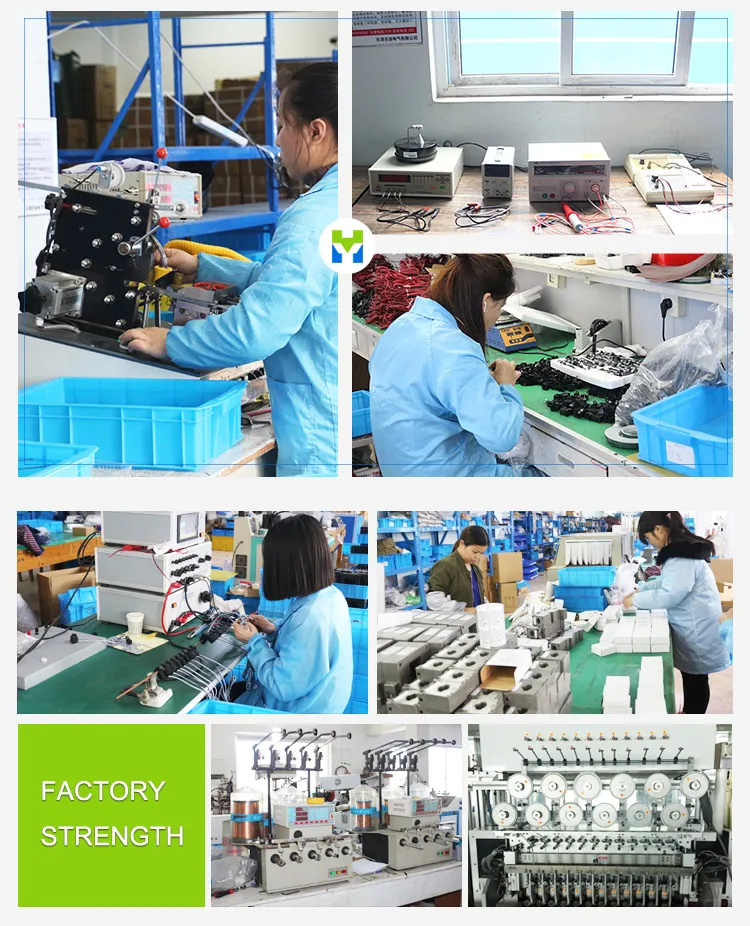

Split Core Current Transformer View 9
Split Core Current Transformer View 10
Split Core Current Transformer View 11
Split Core Current Transformer View 12
Applications
🔸 Current measurement, monitoring and protection for electrical wiring and equipment.
🔸 Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.
🔸 Current, power and energy monitoring device.
🔸 Relay protection device.
Ordering & Logistics
Order Process
1. Specify model, color, poles, and rated current.
2. Review the Proforma Invoice (PI) provided.
3. Confirm details and proceed with payment.
4. Goods are typically dispatched within 6-10 days after full payment.
5. OEM/ODM options are available (Free OEM for orders over 5000 sets).
Shipping & Payment

Shipping: Express delivery via UPS, DHL, EMS, FedEx, or TNT (Door-to-Door). Typical delivery time is 3-7 days depending on destination.

Payment Terms: We accept Western Union and T/T. Standard terms are 30% deposit and 70% balance before shipping.

Warranty: 1-year standard warranty. Defective products must be reported within 3 days of delivery for refund or exchange qualifications.

Frequently Asked Questions
What is the accuracy class of the KCT-10 transformer?
The KCT-10 model features a high-precision Class 0.5 rating, making it ideal for accurate power monitoring and measurement.
Can this split core transformer be used outdoors?
According to its standard operation conditions, this unit is designed for indoor use. Please ensure the installation environment is protected from direct weather exposure.
What is the main advantage of the split core design?
The split core design allows for "active type" installation, meaning you can install the transformer around existing wiring without disconnecting the main circuit, saving time and reducing downtime.
What materials are used for insulation?
The transformer utilizes high-quality insulating paper and Ferrite PC materials to ensure stable performance and safety according to IEC 61010-1 specifications.
What is the rated capacity range for this series?
The series covers a wide range of current ratings from 5A up to 630A, suitable for various industrial and commercial applications.
Is the product compliant with international standards?
Yes, the product is CE and RoHS certified, and manufactured according to the IEC 61010-1: 1990 specification.
