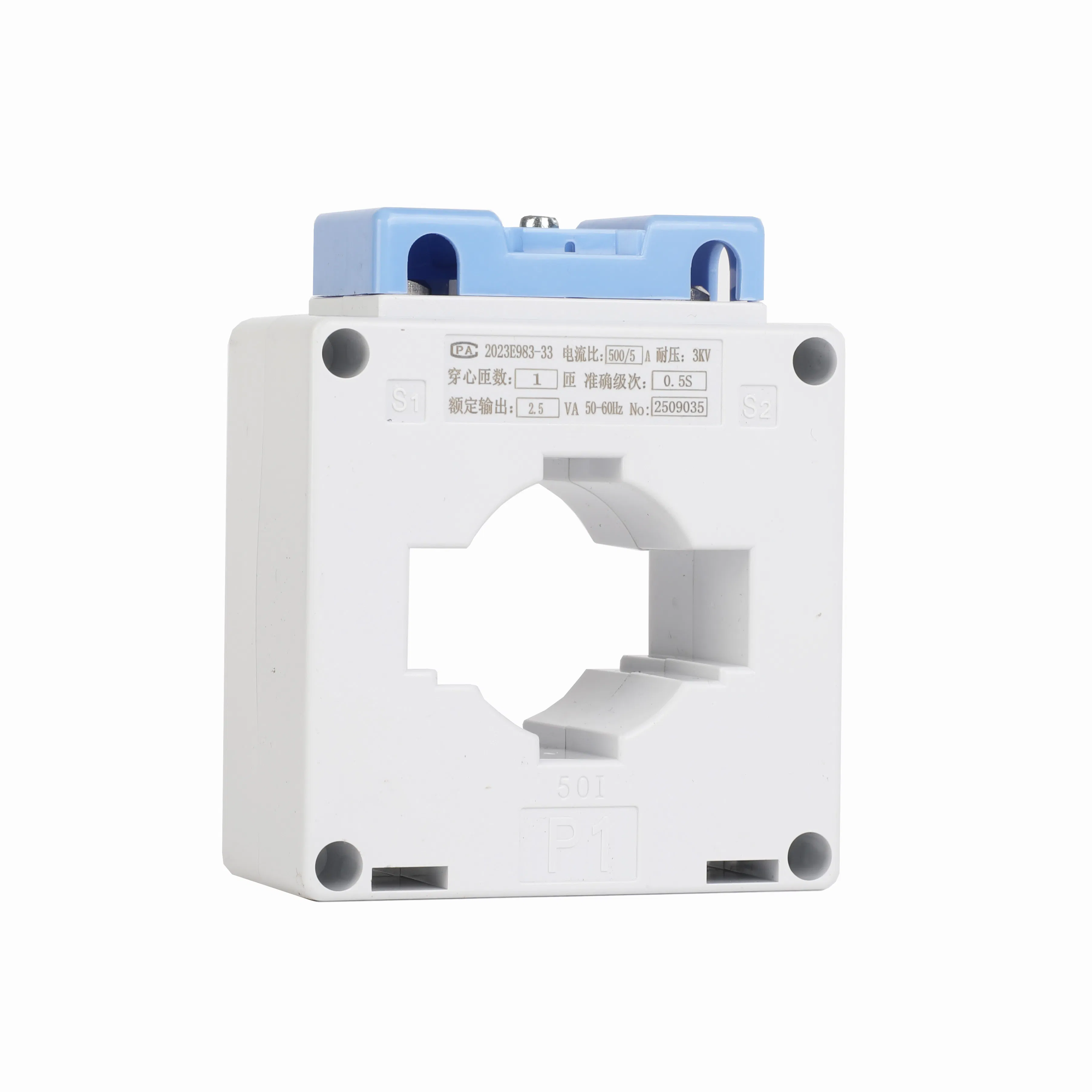

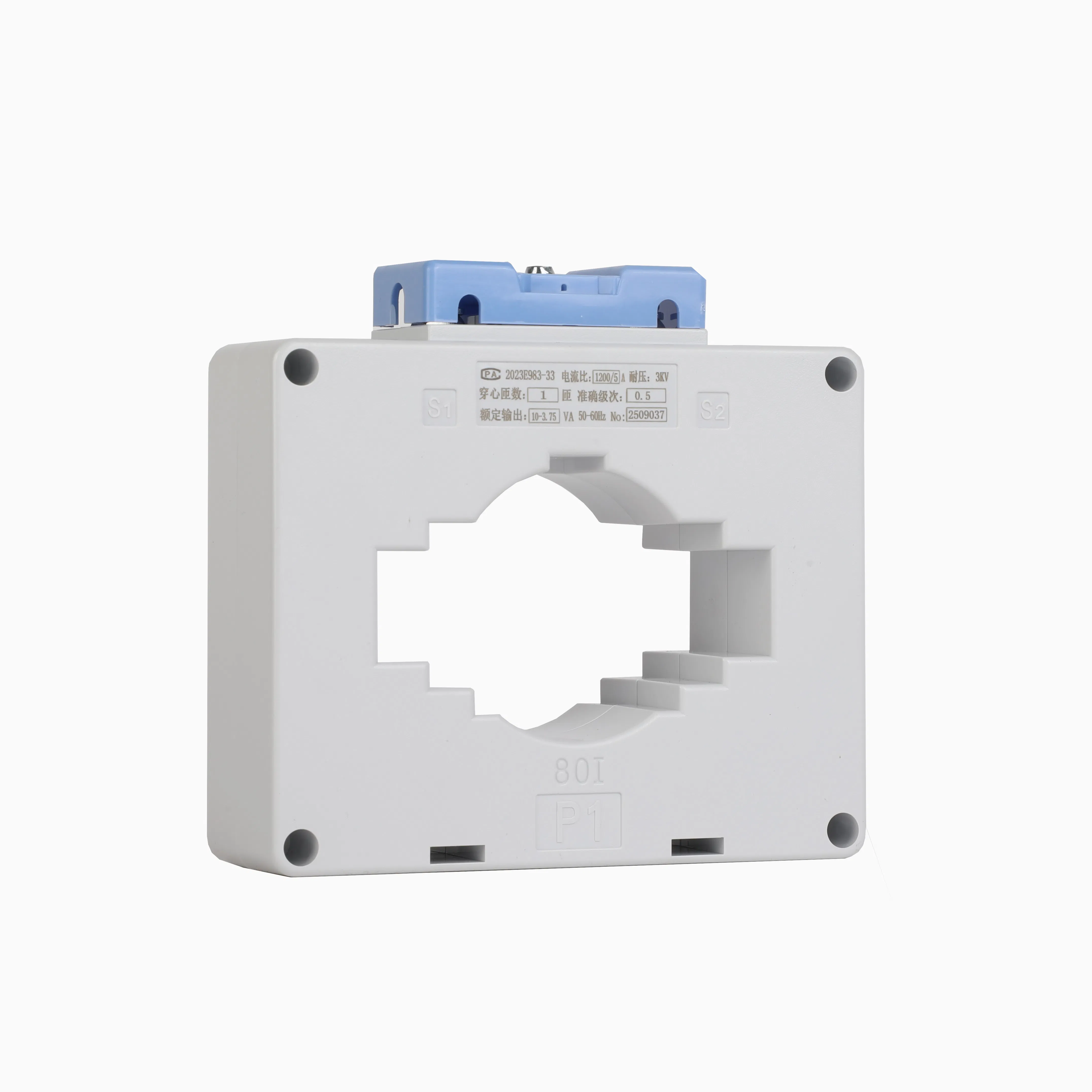

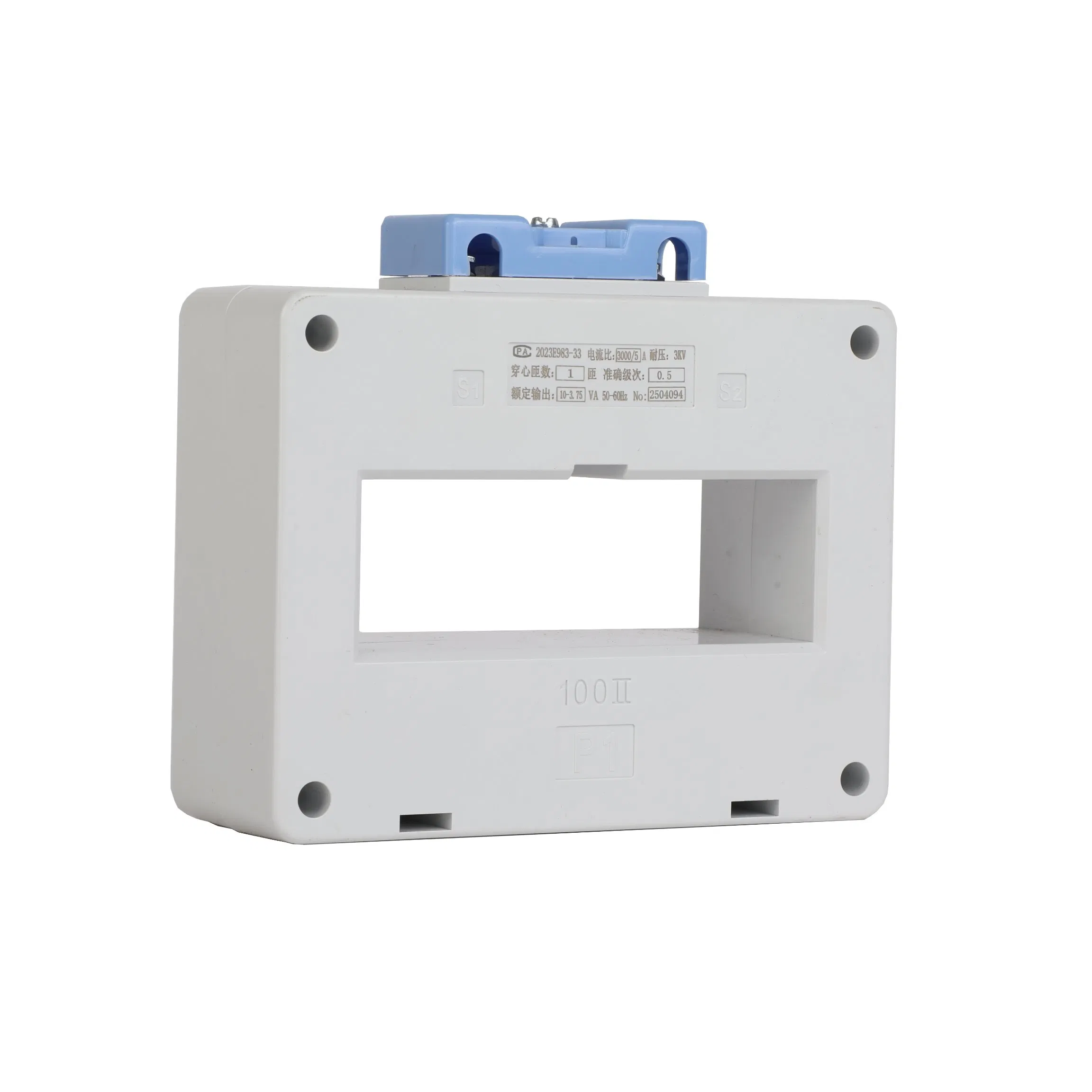

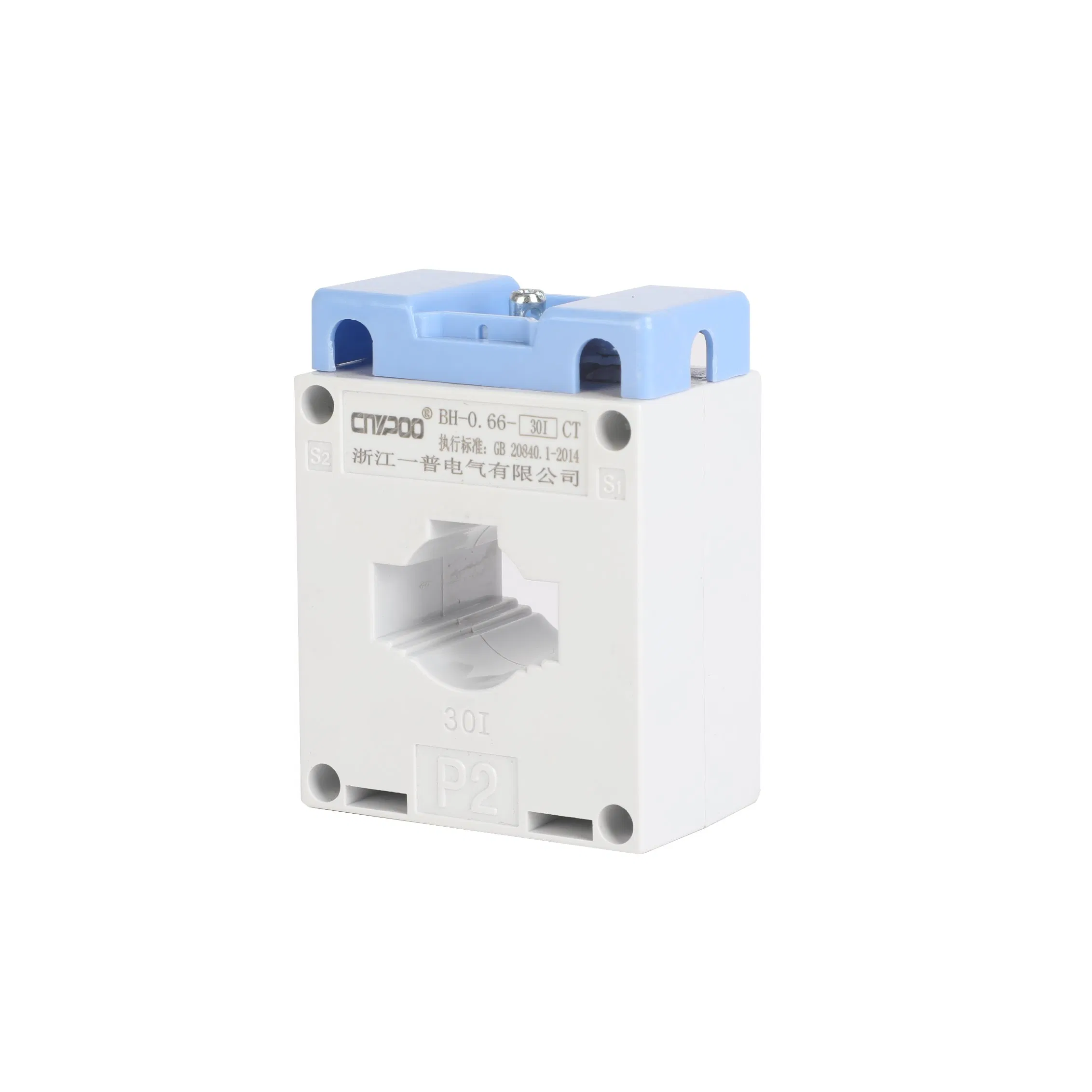

High Precision Low Voltage Mini Split Core Current Transformer for Accurate Measurements

Still deciding? Get samples of $ !
Order Sample

Product Description

High Precision Current Transformer
Basic Information
Model NO.
BH-0.66-50I
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Polycarbonate Plastic
Rated Secondary Current
5A or 1A
Rated Frequency
50Hz or 60Hz
Power Factor
Cosφ=0.8(Lag)
Ambient Temperature
-5℃~+40℃
Product Description
Model: BH-0.66
Compliance with standards: GB/T 20840.1 & 2 and IEC61869-1 & 2.
Insulating property: primary winding to secondary winding and ground, and secondary winding to ground can bear the power frequency withstand voltage 3kV for 1min.
Technical Specifications
Specifications Rated Primary/Secondary Current (A) Rated Loading Accuracy (VA) Accuracy Grade Primary Ampere-turn
BH-3015/52.515
BH-3020/52.514
BH-3025/52.513
BH-3050/52.512
BH-30100/52.511
BH-30300/550.51
Use Scenarios

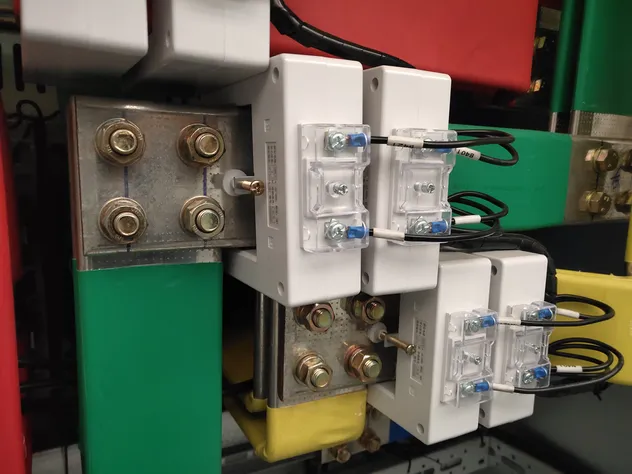

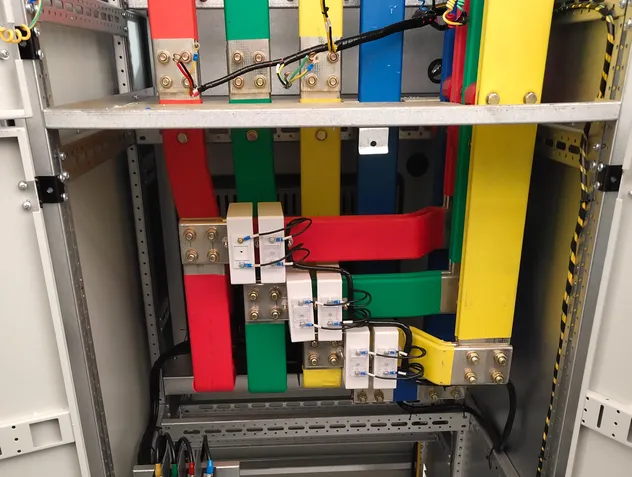

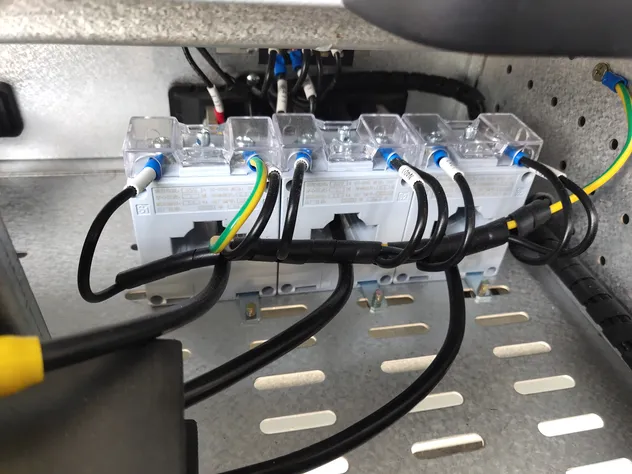

Application 1 Application 2 Application 3
Product Range

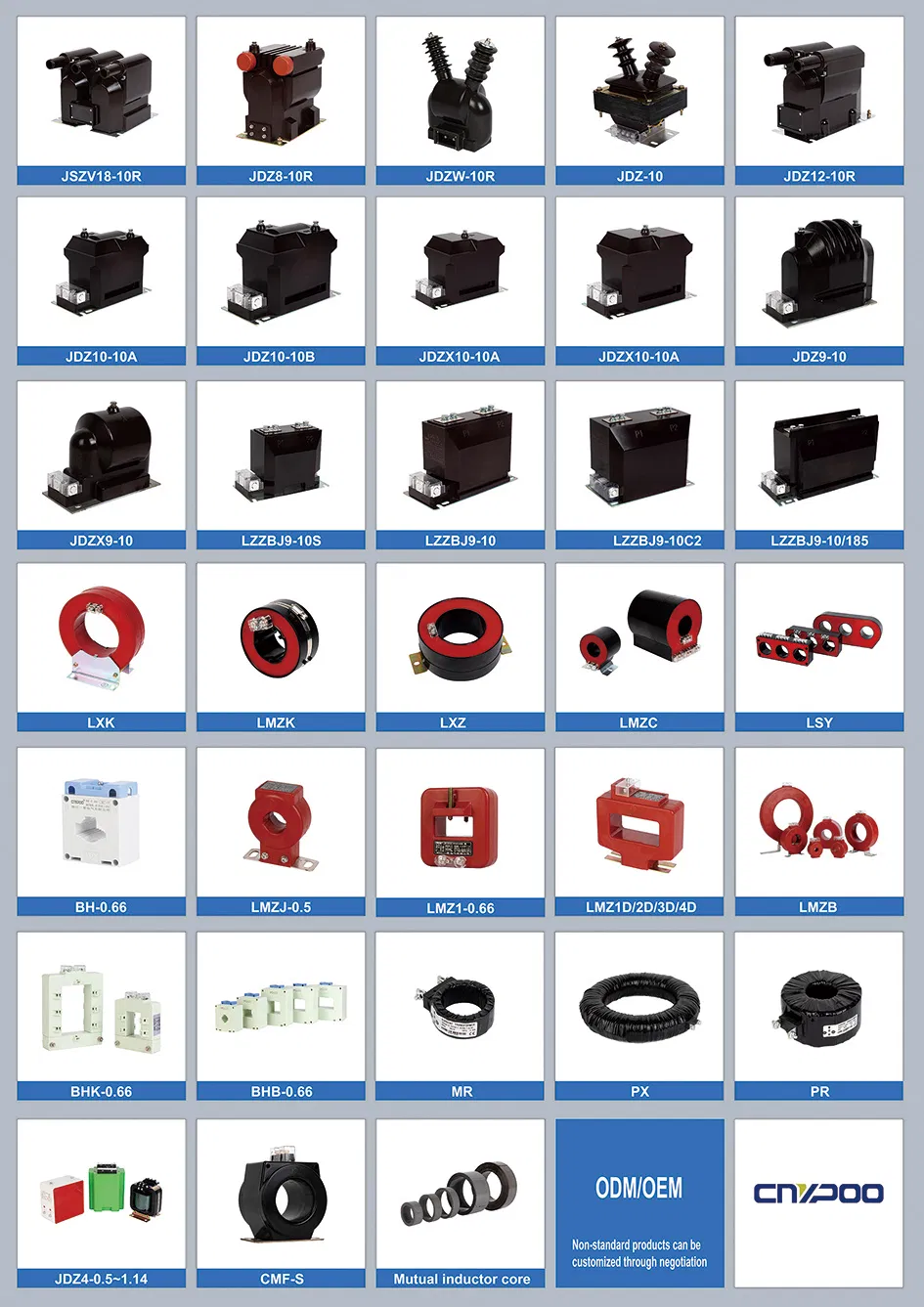

Product Catalog
Packing & Delivery
Packing 1 Packing 2 Packing 3
Manufacturing Capacity

A distinguished leader in the manufacturing of 0.5kV to 35kV current and voltage transformers. Driven by the principles of innovation and technology, the factory is committed to a people-centric management approach. We prioritize scientific development and align with market demands, ensuring excellence in every product with cutting-edge production facilities.

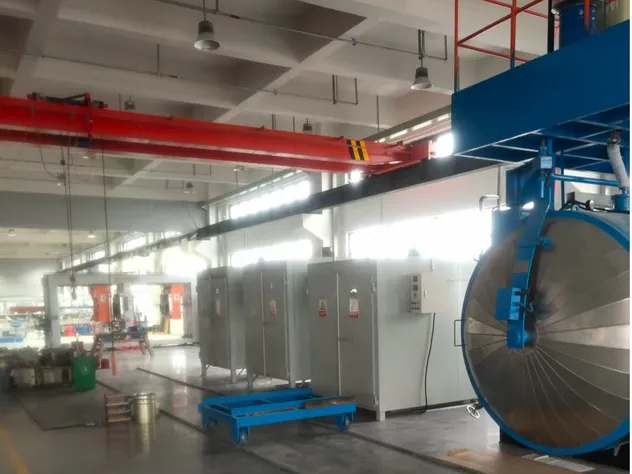

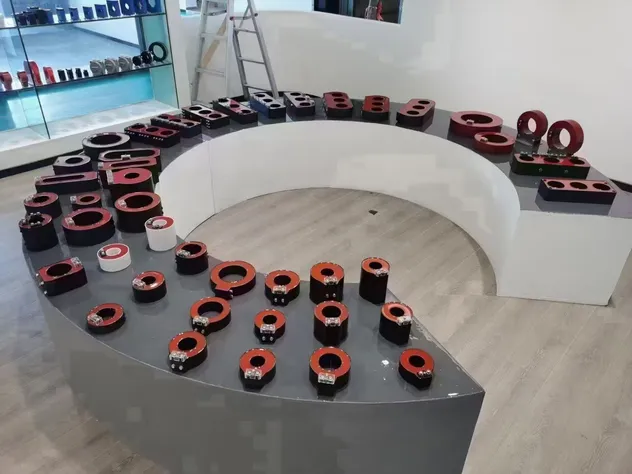

Factory 1 Factory 2 Factory 3

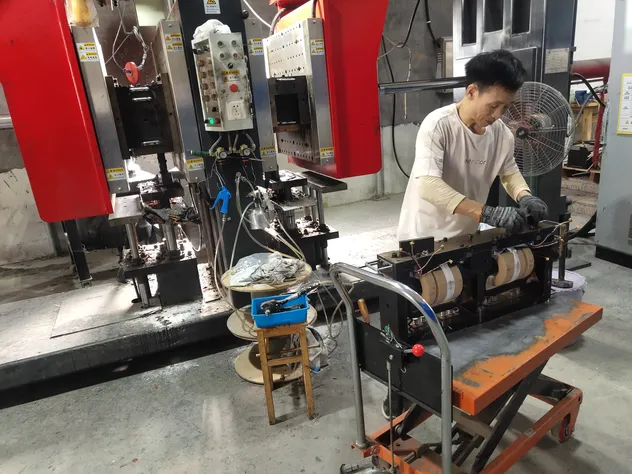

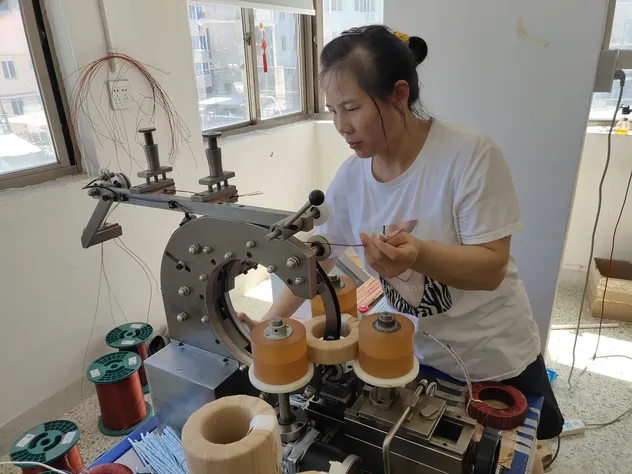

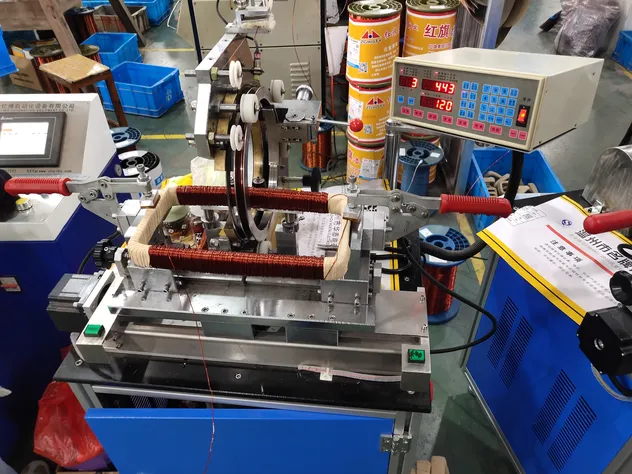

Equipment 1 Equipment 2 Equipment 3
Seamless Project Support
1. Specify Your Requirements: Detailed description, drawings, and reference images.
2. Obtain Tailored Solutions: Detailed quotation within 24 hours.
3. Authorize Mass Production: Production commences upon approval and deposit.
Support Process
Frequently Asked Questions
What standards do these current transformers comply with?
They comply with GB/T 20840.1 & 2 and IEC61869-1 & 2 international standards.
What is the rated secondary current for the BH-0.66 series?
The rated secondary current is typically 5A or 1A.
What are the recommended operating temperatures?
The optimal ambient temperature range for operation is between -5ºC and +40ºC.
What is the insulation performance of these units?
The units can bear a power frequency withstand voltage of 3kV for 1 minute between windings and ground.
Are custom specifications available?
Yes, if requested parameters are beyond the standard table, tailored solutions can be provided after consultation.
What materials are used for insulation?
High-quality polycarbonate plastic is used as the insulating medium for indoor applications.
