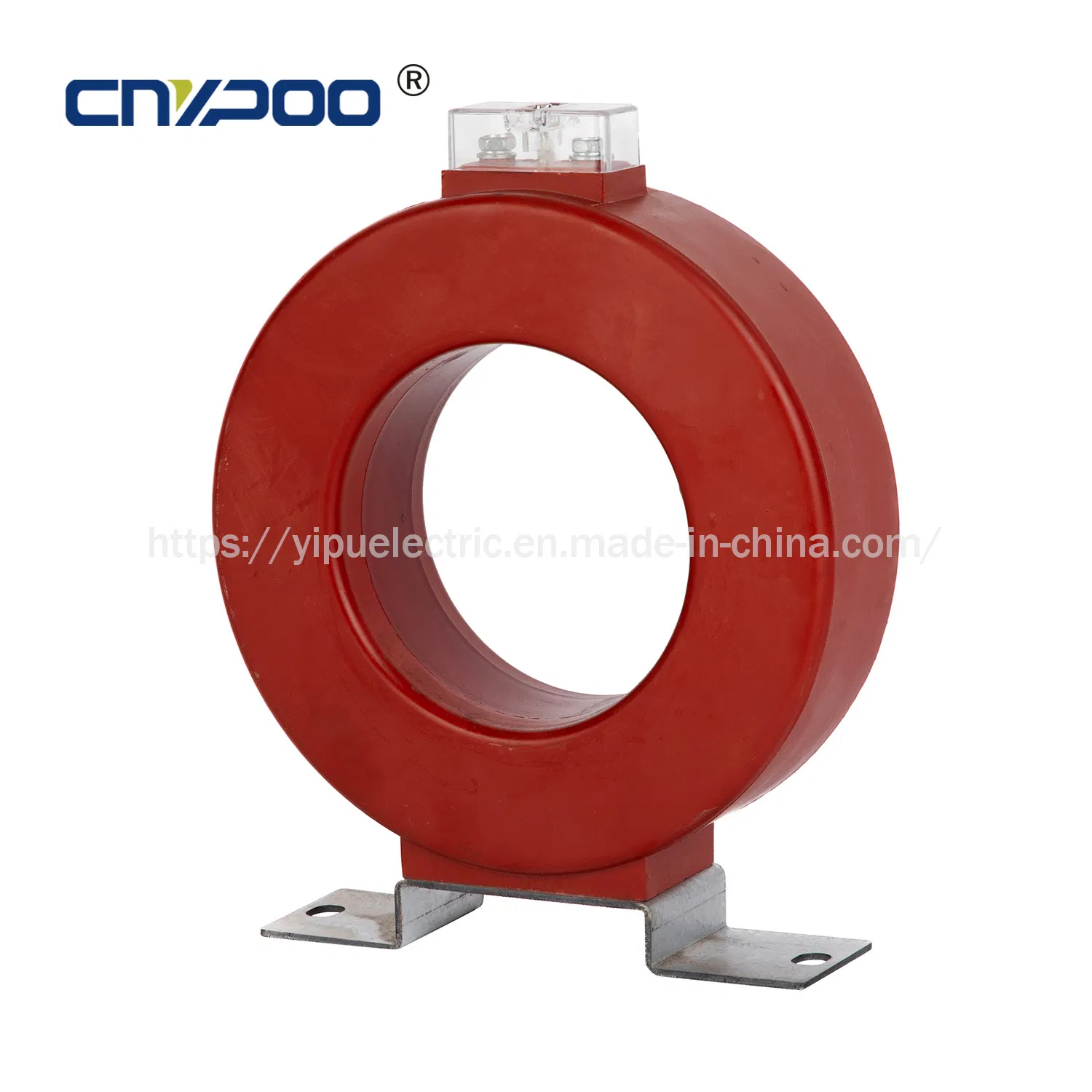

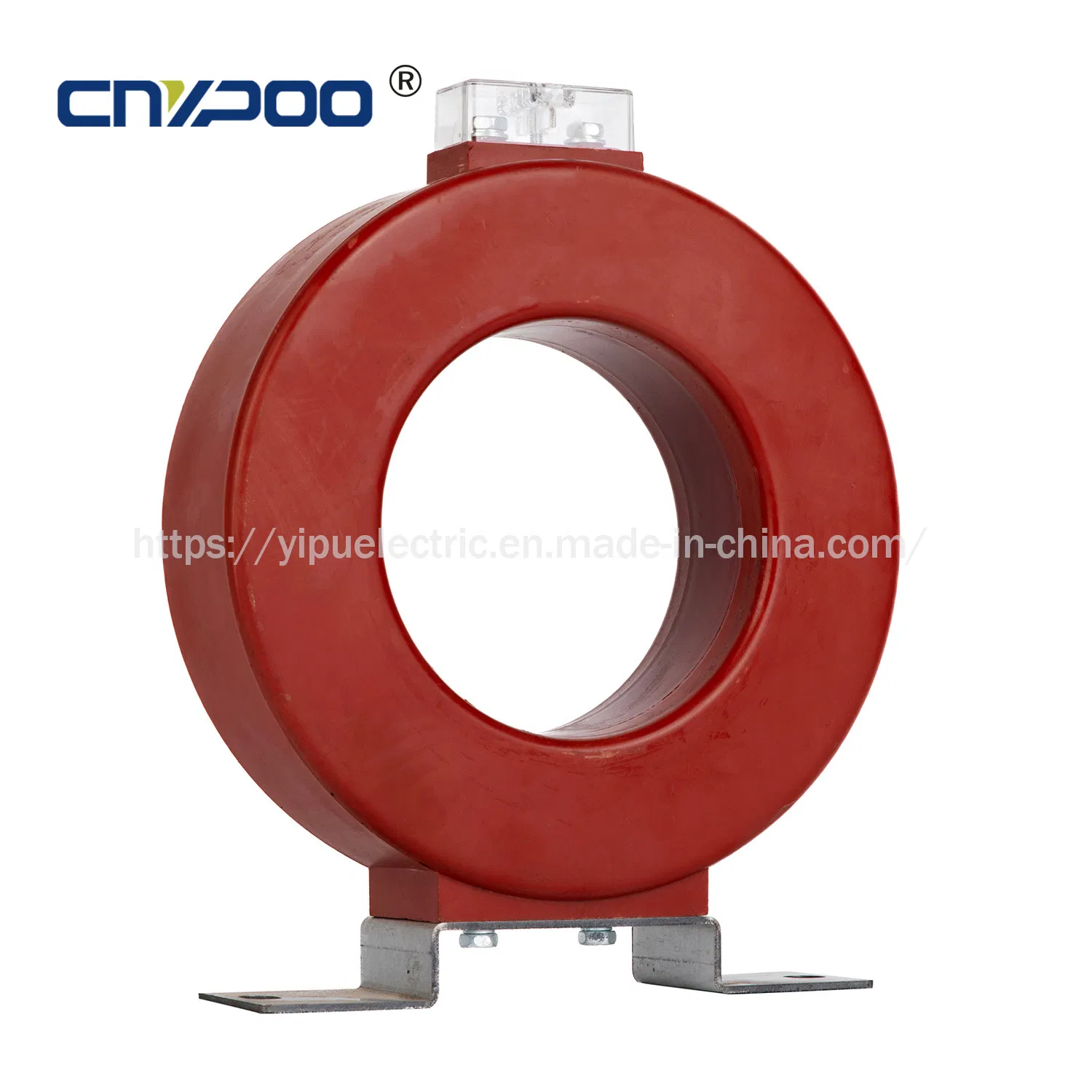

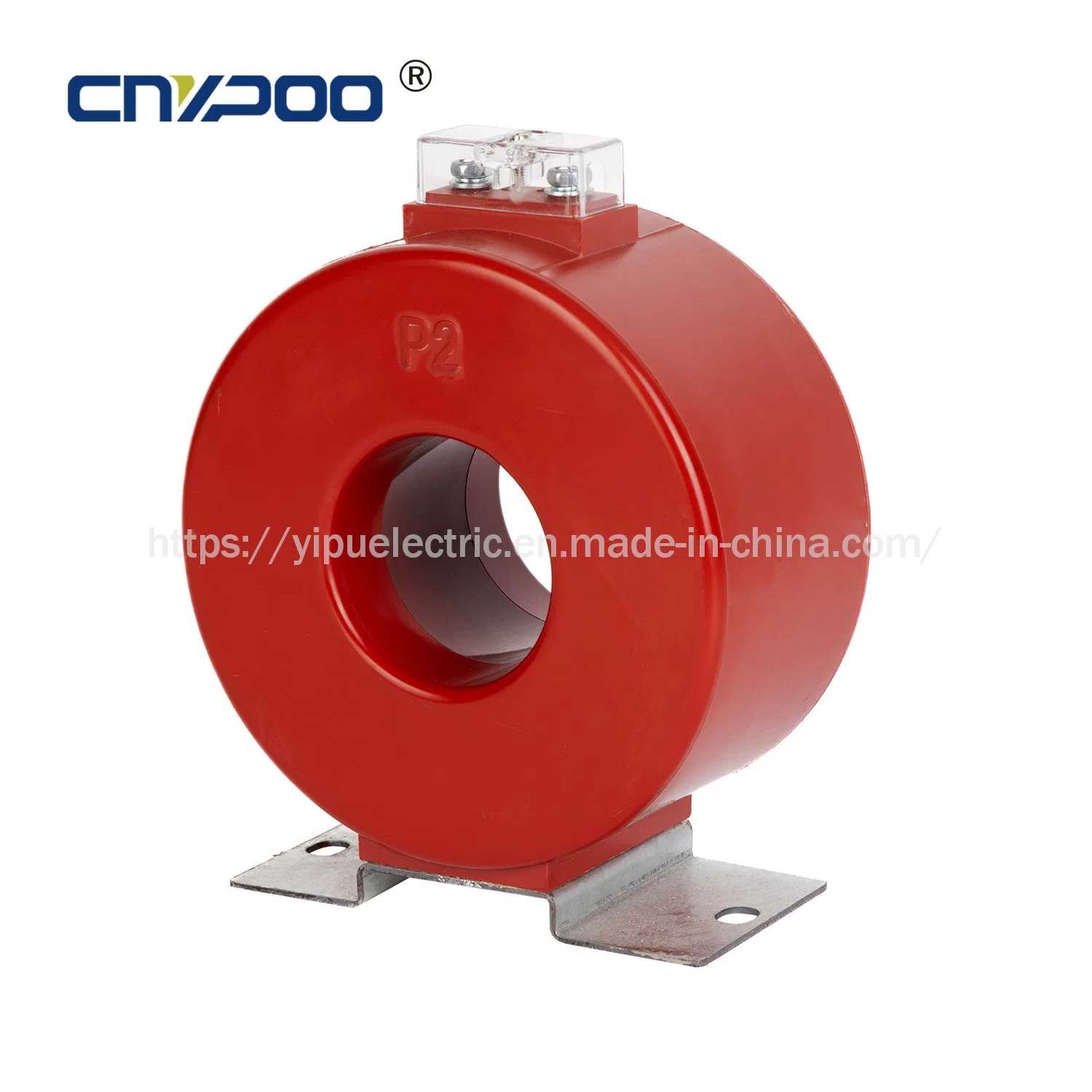

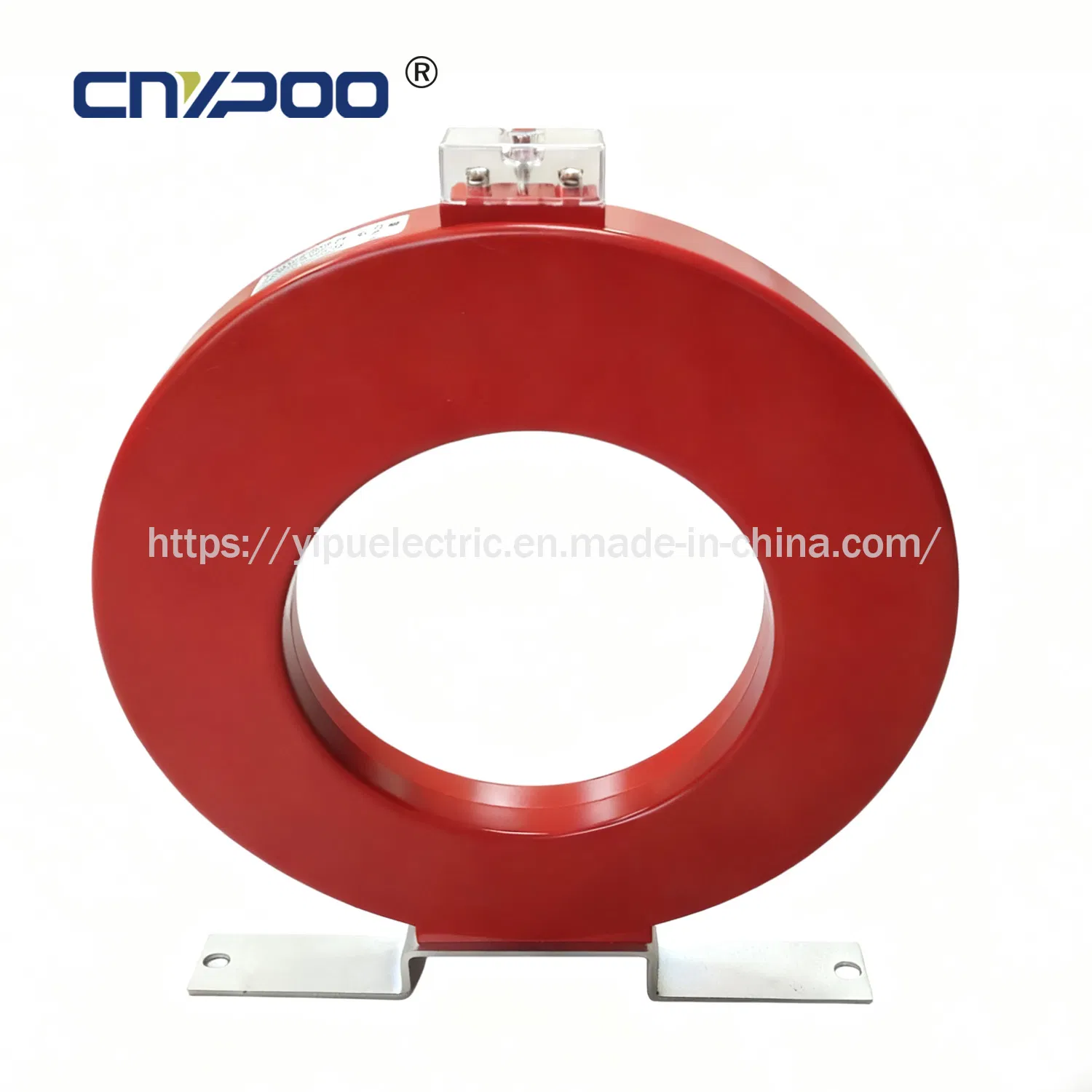

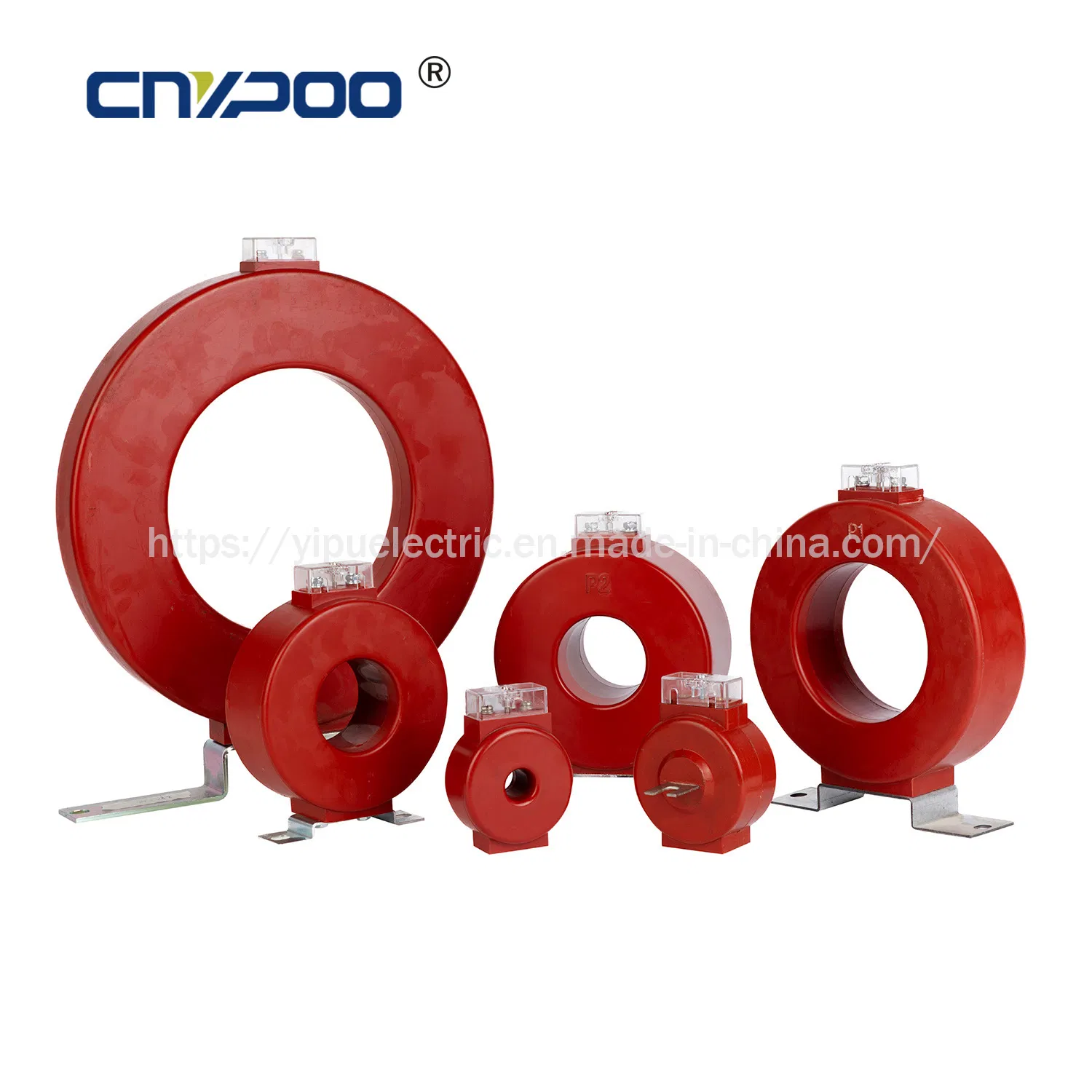

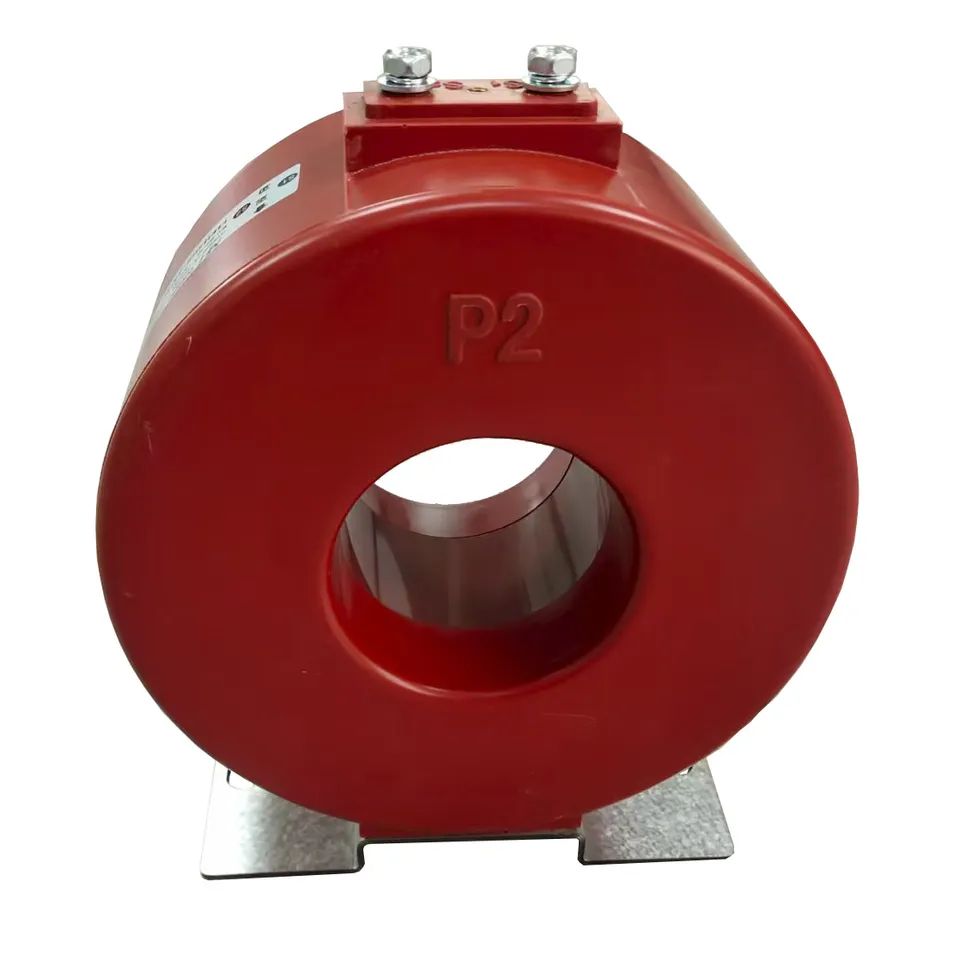

Model: LMZB Series

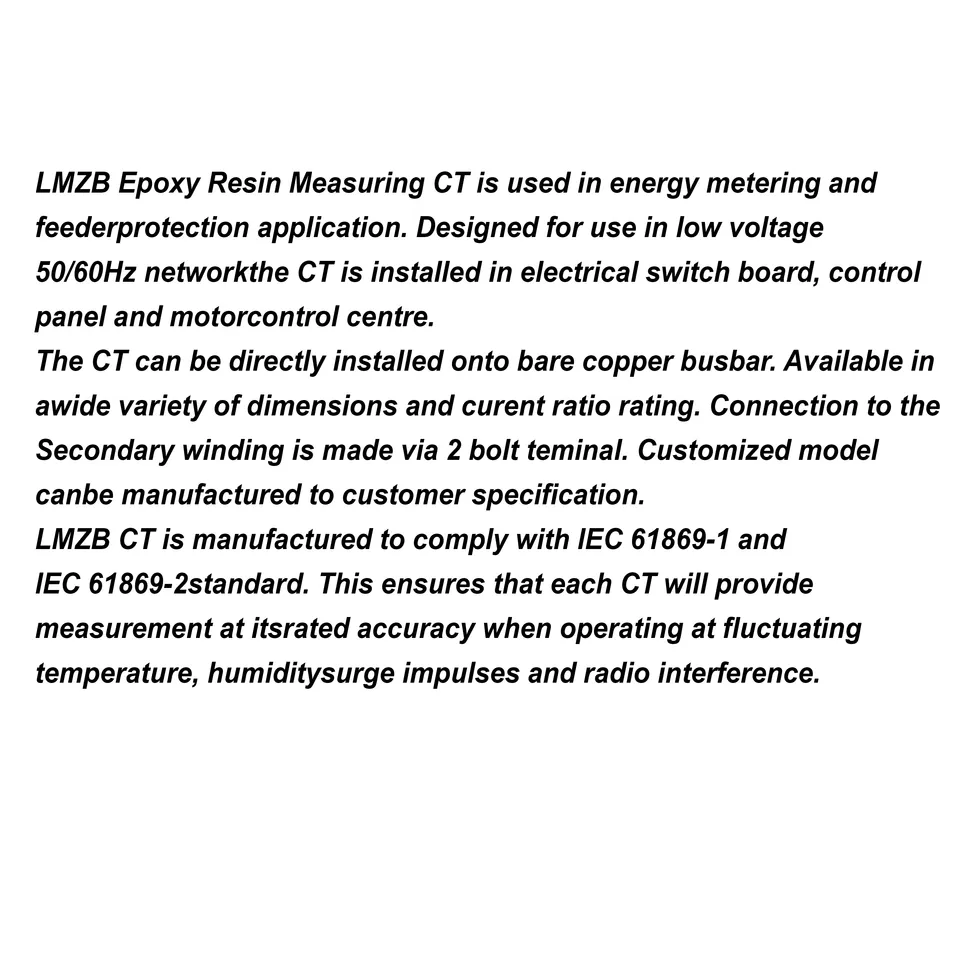

Our high-precision low voltage transformers are designed for industrial use, ensuring accurate measurement and reliable protection. They are manufactured in compliance with international standards IEC 61869-1 and IEC 61869-2.
| Standard Model Range 5P10 | ||||
|---|---|---|---|---|
| Model | Ratio | Burden | Class | Dimensions (ID*OD*HT) mm |
| LMZB-34 | 100/5A | 5VA | 5P10 | 34*150*95 |
| LMZB-45 | 300/5A | 7.5VA | 5P10 | 45*140*50 |
| LMZB-65 | 600/5A | 15VA | 5P10 | 65*140*50 |
| LMZB-85 | 1200/5A | 15VA | 5P10 | 85*160*70 |
| LMZB-110 | 2000/5A | 15VA | 5P10 | 110*180*50 |
| LMZB-130 | 3000/5A | 15VA | 5P10 | 130*200*50 |
| Standard Model Range 5P20 | ||||
|---|---|---|---|---|
| Model | Ratio | Burden | Class | Dimensions (ID*OD*HT) mm |
| LMZB-34 | 150/5A | 5VA | 5P20 | 34*130*75 |
| LMZB-65 | 500/5A | 10VA | 5P20 | 65*140*50 |
| LMZB-110 | 1600/5A | 15VA | 5P20 | 110*200*60 |
| LMZB-130 | 3000/5A | 15VA | 5P20 | 135*220*60 |

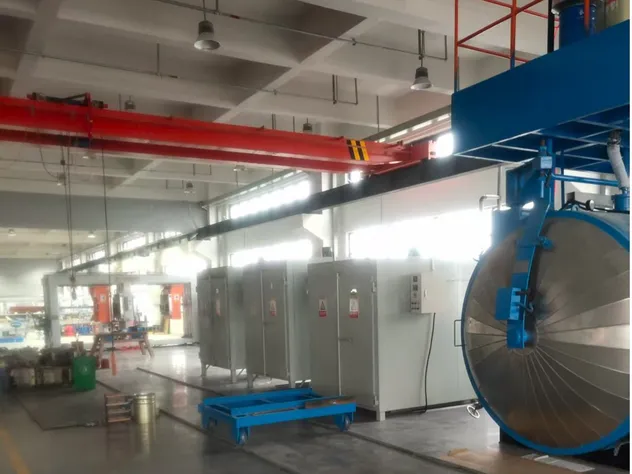

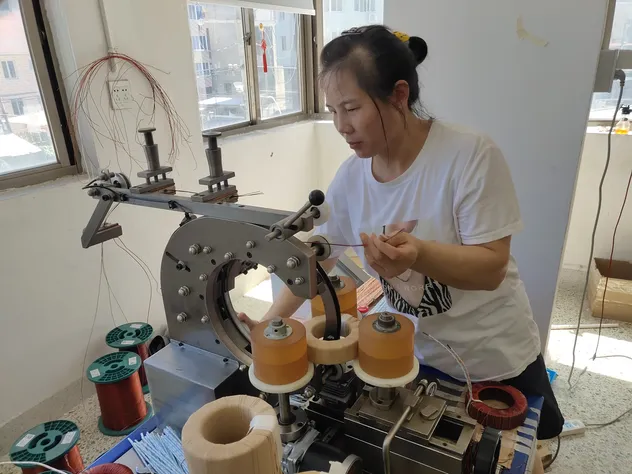

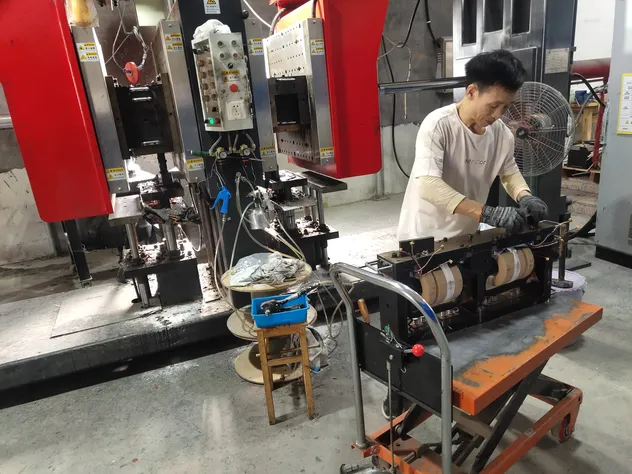

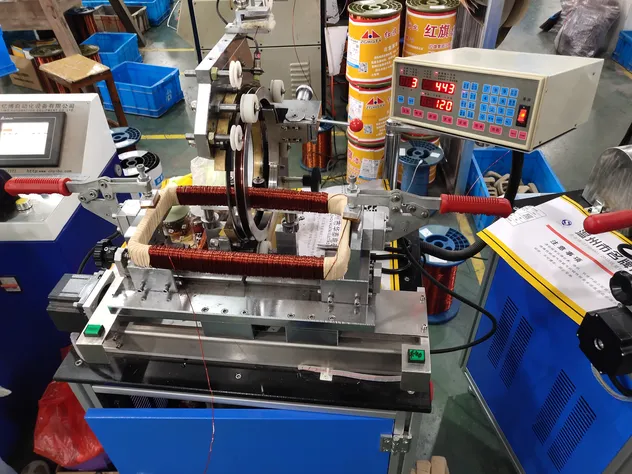

As a distinguished leader in manufacturing 0.5kV to 35kV current and voltage transformers, we prioritize scientific development and align with market demands. Our facility is equipped with cutting-edge domestic production technology and a robust management system to ensure excellence in every product.
