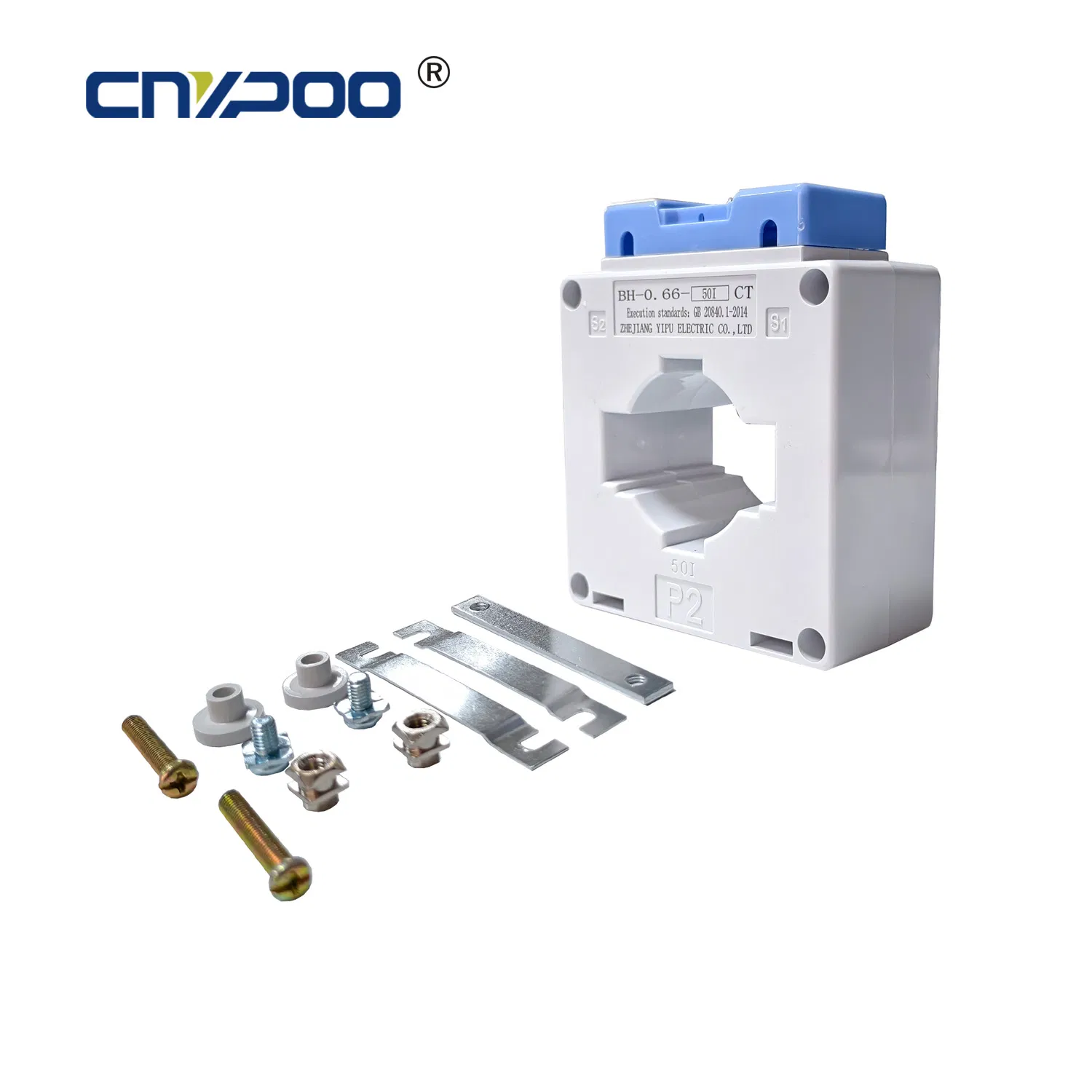

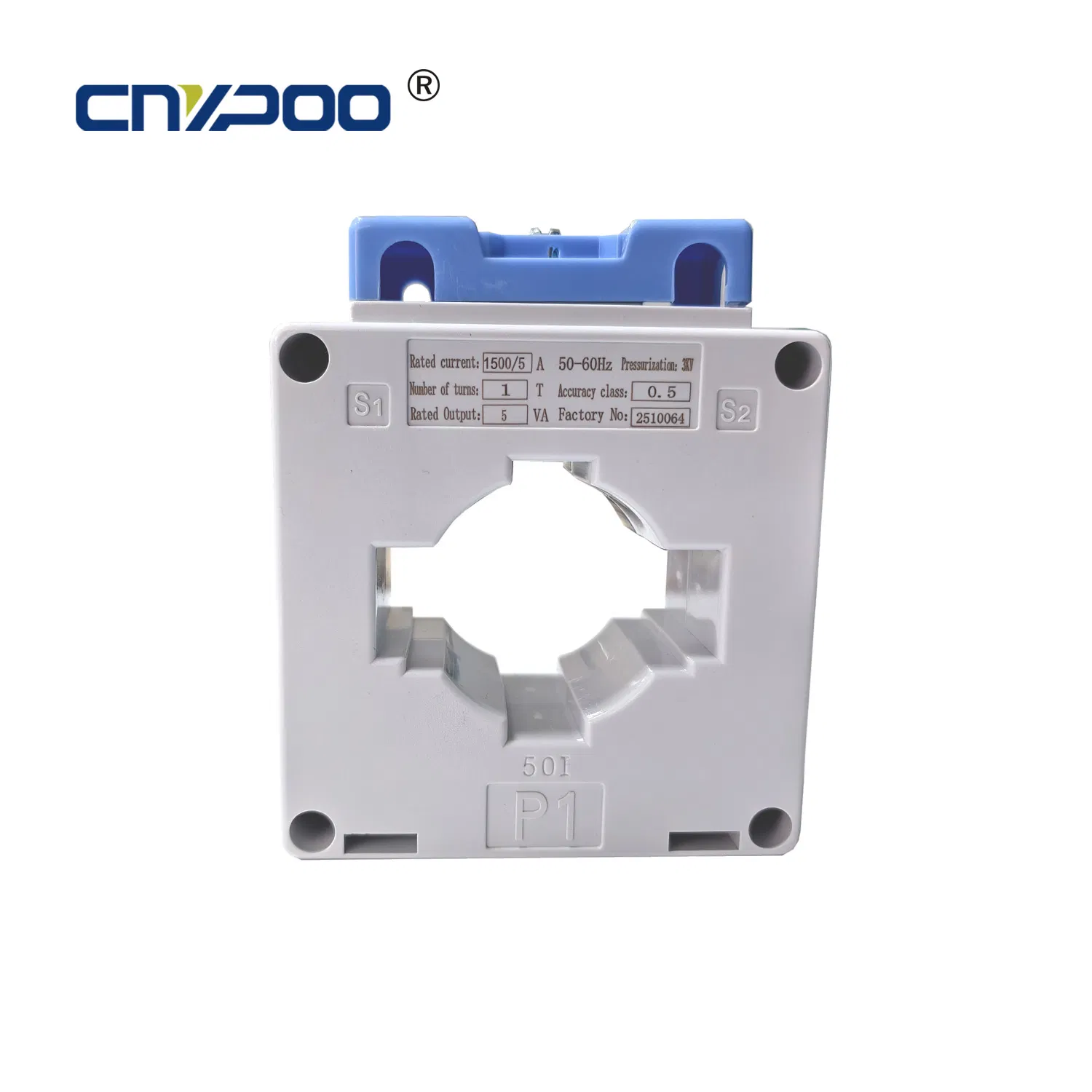

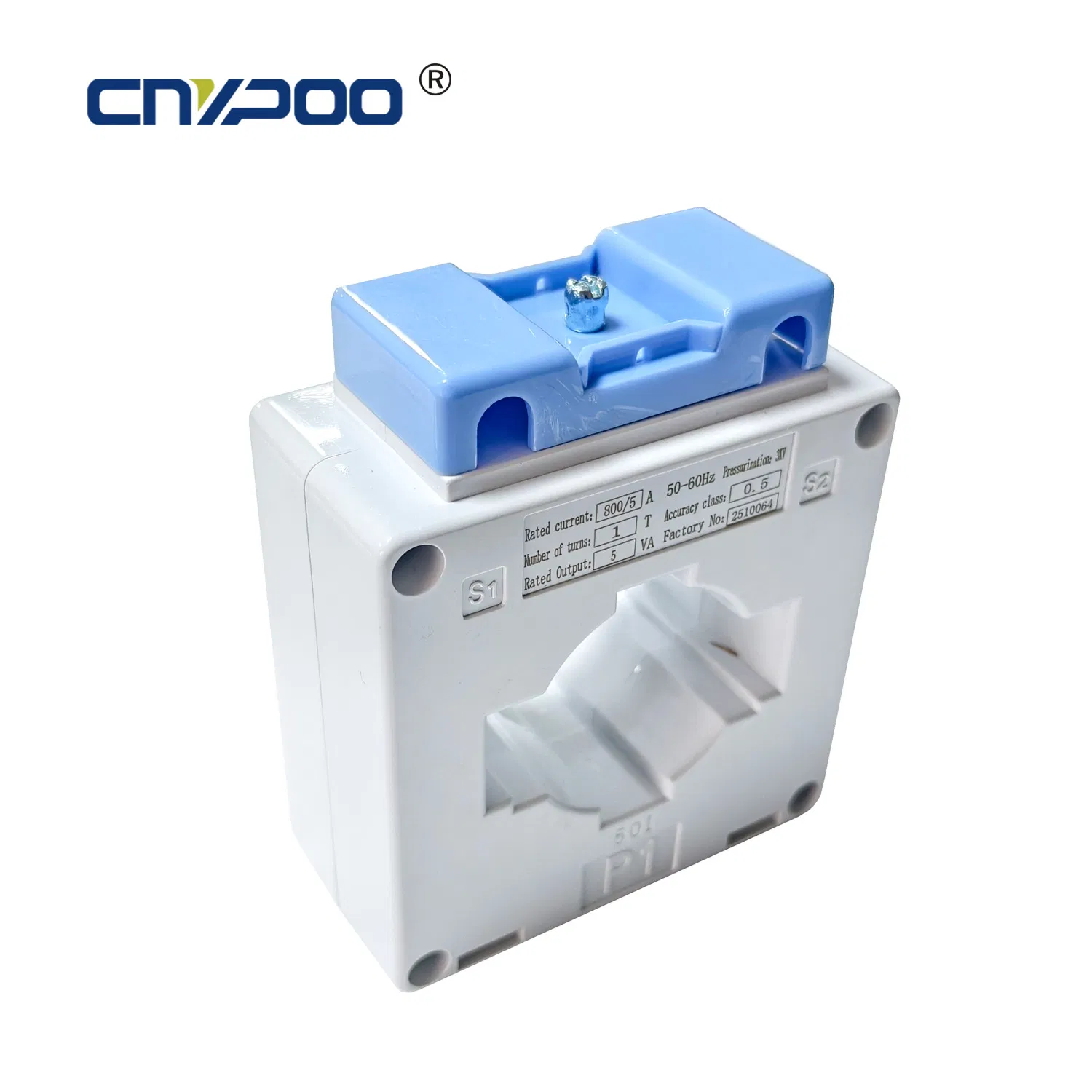

High Precision Bh-0.66 Low Voltage Metering Transformer Class 0.5

1 / 5

High Precision Bh-0.66 Low Voltage Metering Transformer Class 0.5

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

bh-0.66-50I/MSQ-0.66

Phase

Single

Operation Condition

Indoor

Usage

Protection, Measurement

Winding Form

Single Layer & Tightly Wound Type

Insulating Medium

Polycarbonate Plastic

Installation

Active Type

Rated Secondary Current

5A or 1A

Rated Frequency

50Hz or 60Hz

Ambient Temperature

-5ºC~+40ºC

Product Description

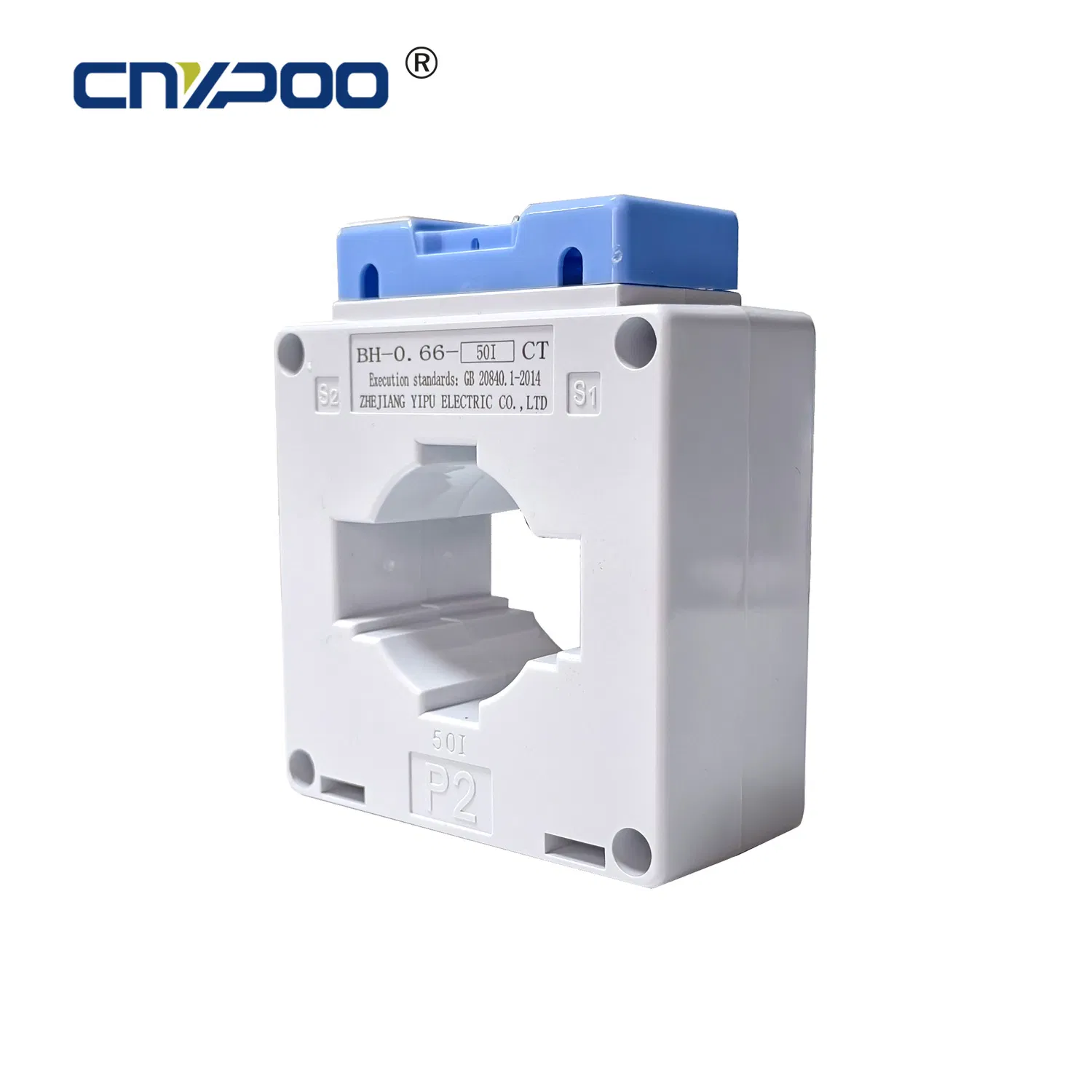

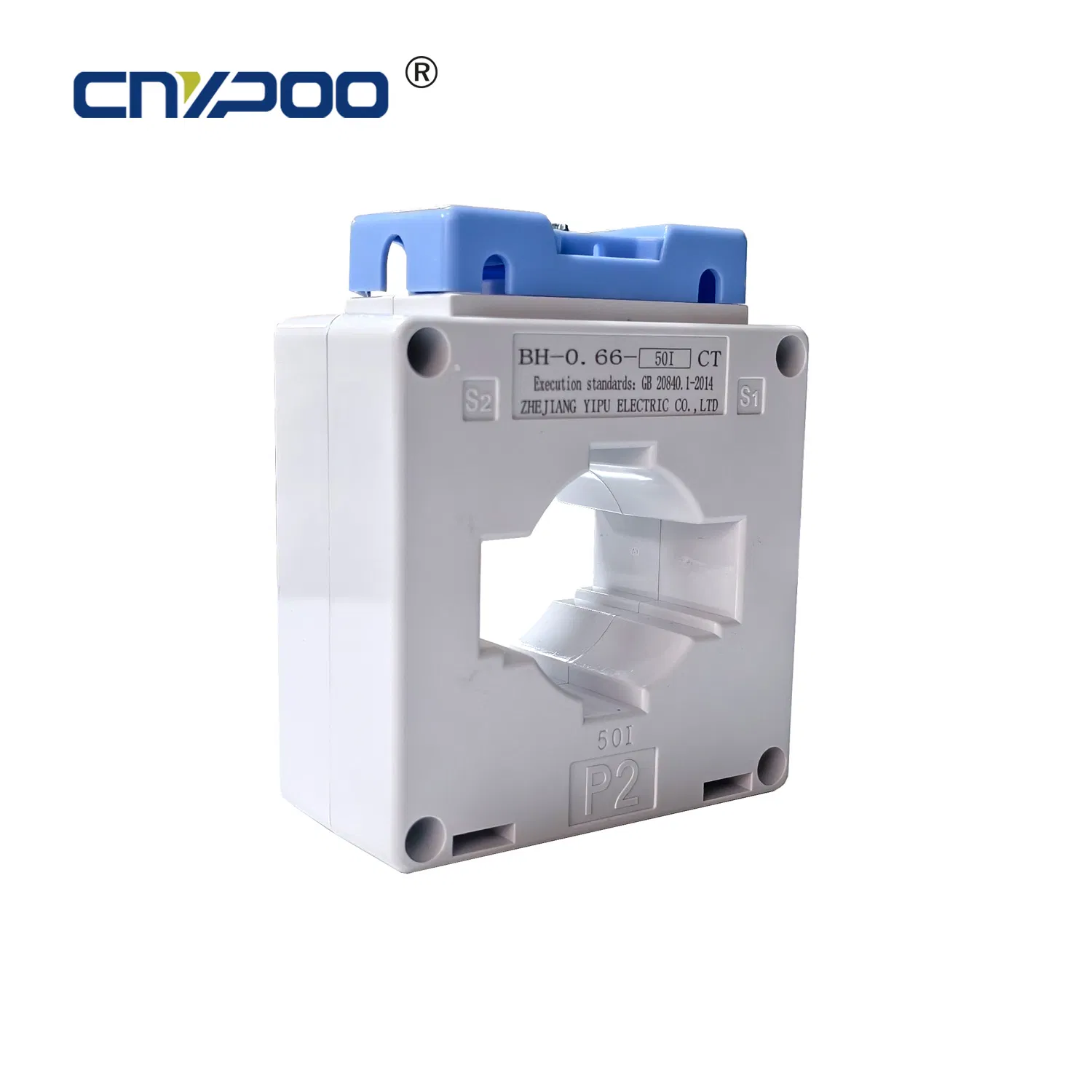

Model: BH-0.66-50I

Compliance with standards: GB/T 20840.1 & 2 and IEC61869-1 & 2.
Insulating property: primary winding to secondary winding and ground, and secondary winding to ground can bear the power frequency withstand voltage 3kV for 1min.

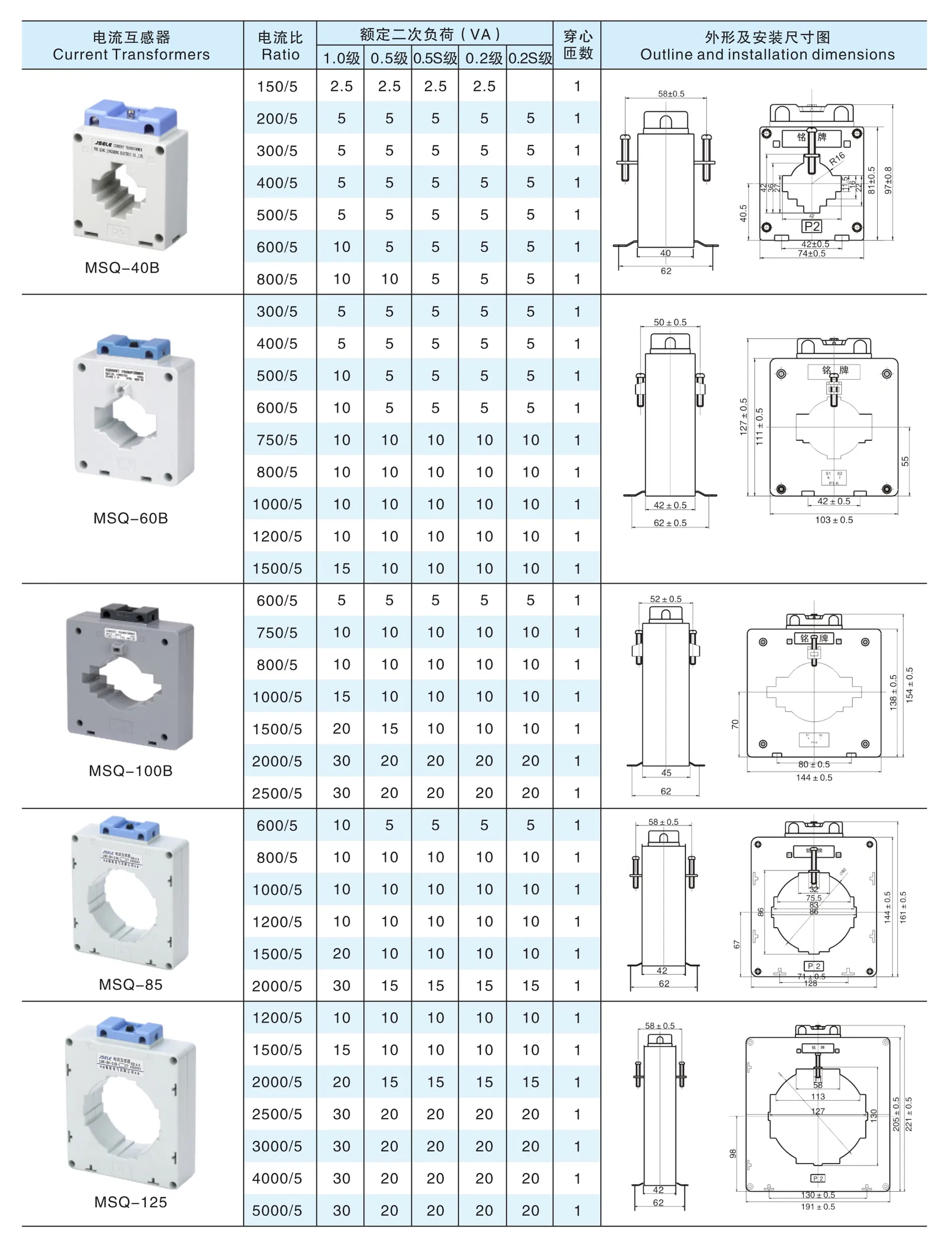

Technical Specifications

Type	Rated Primary Secondary Current (A)	Rated Secondary Output (VA)					Cross-core Turn Number
Type	Rated Primary Secondary Current (A)	1	0.5	0.5S	0.2	0.2S	Cross-core Turn Number
BH-0.66-50I	200/5	5	2.5	/	/	/	1
BH-0.66-50I	400/5	5	5	/	/	/	1
BH-0.66-50I	600/5	10	10	5	5	5	1
BH-0.66-50I	800/5	10	10	10	10	10	1
BH-0.66-50I	1200/5	20	20	20	20	10	1
BH-0.66-50I	1500/5	20	20	20	20	15	1

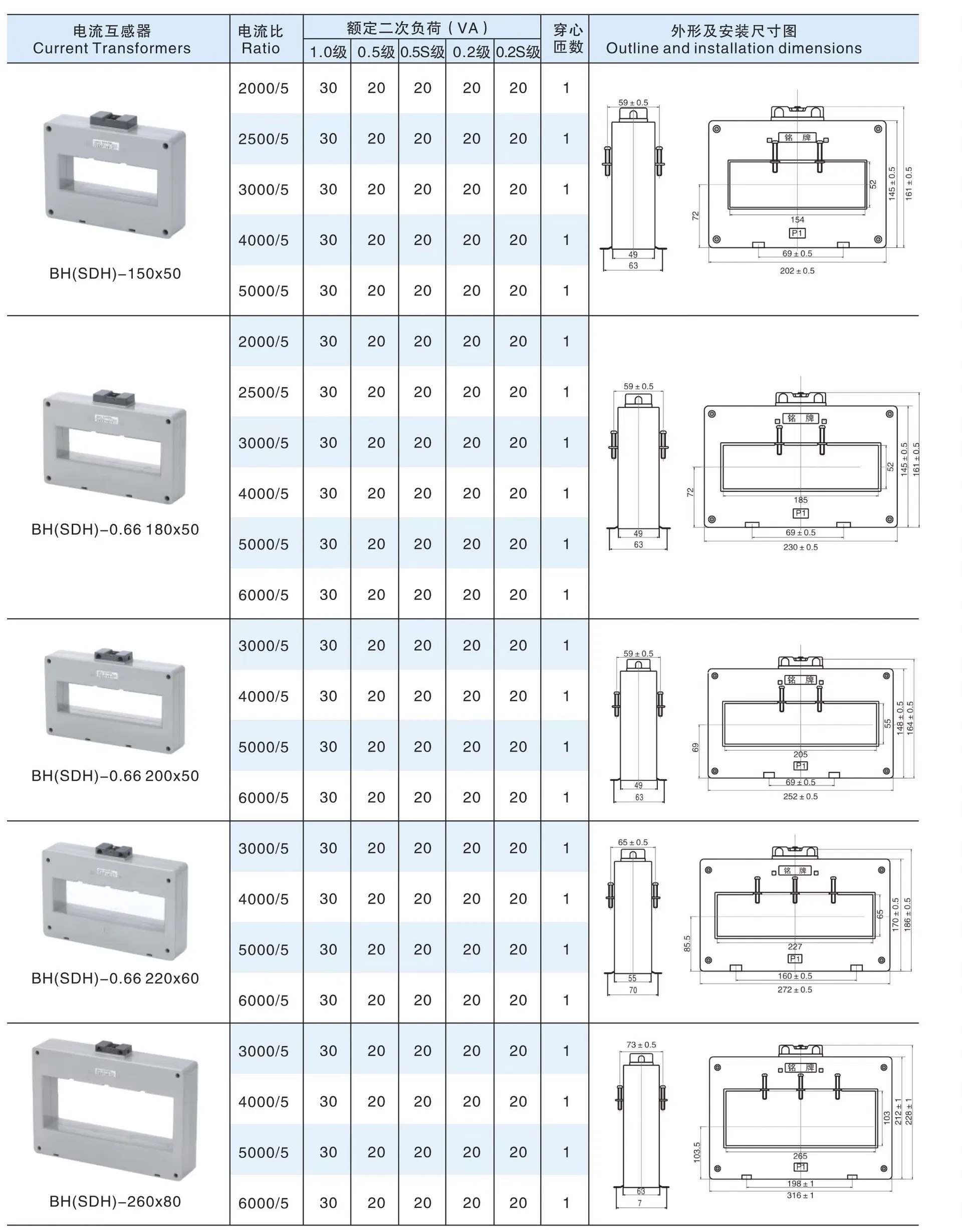

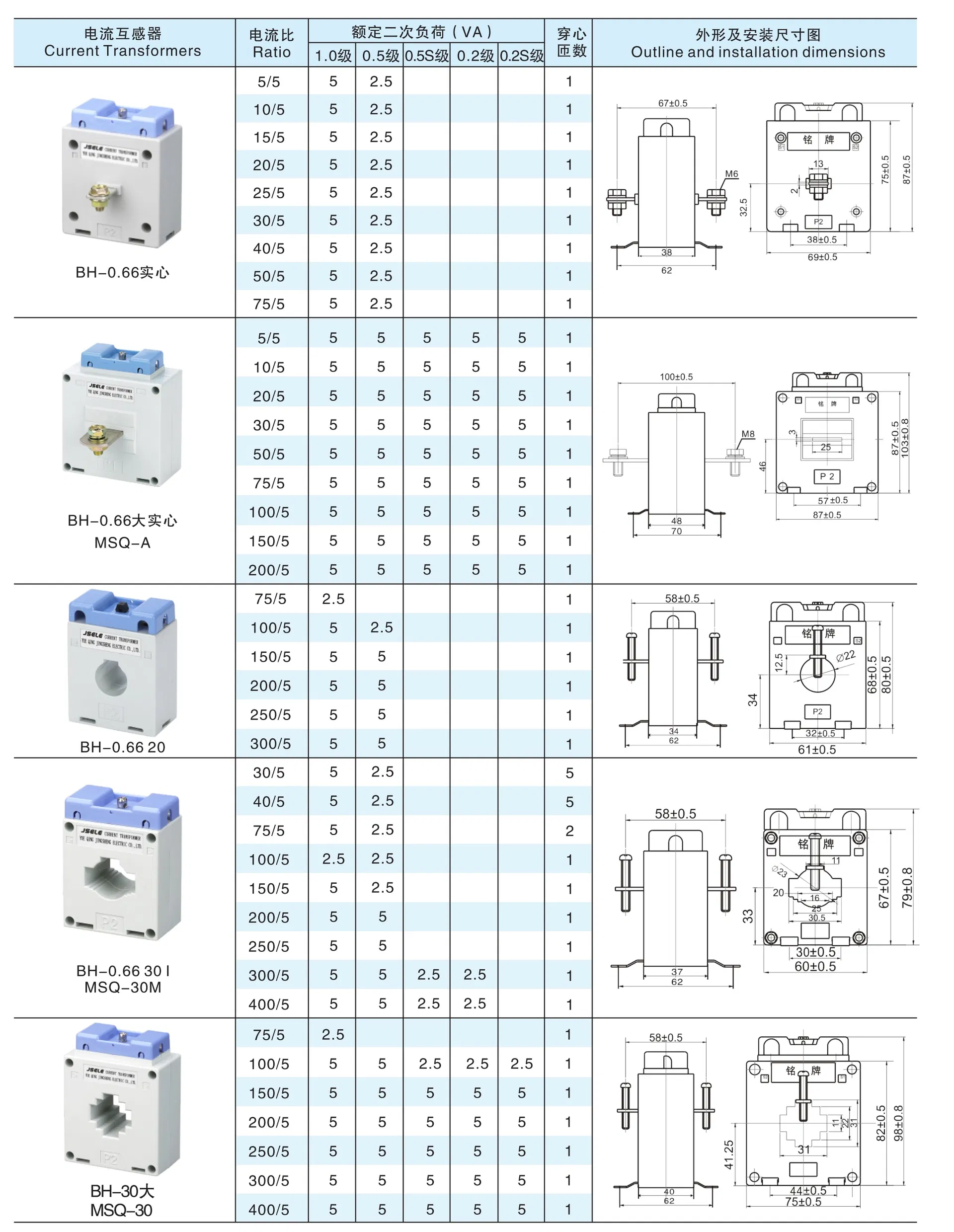

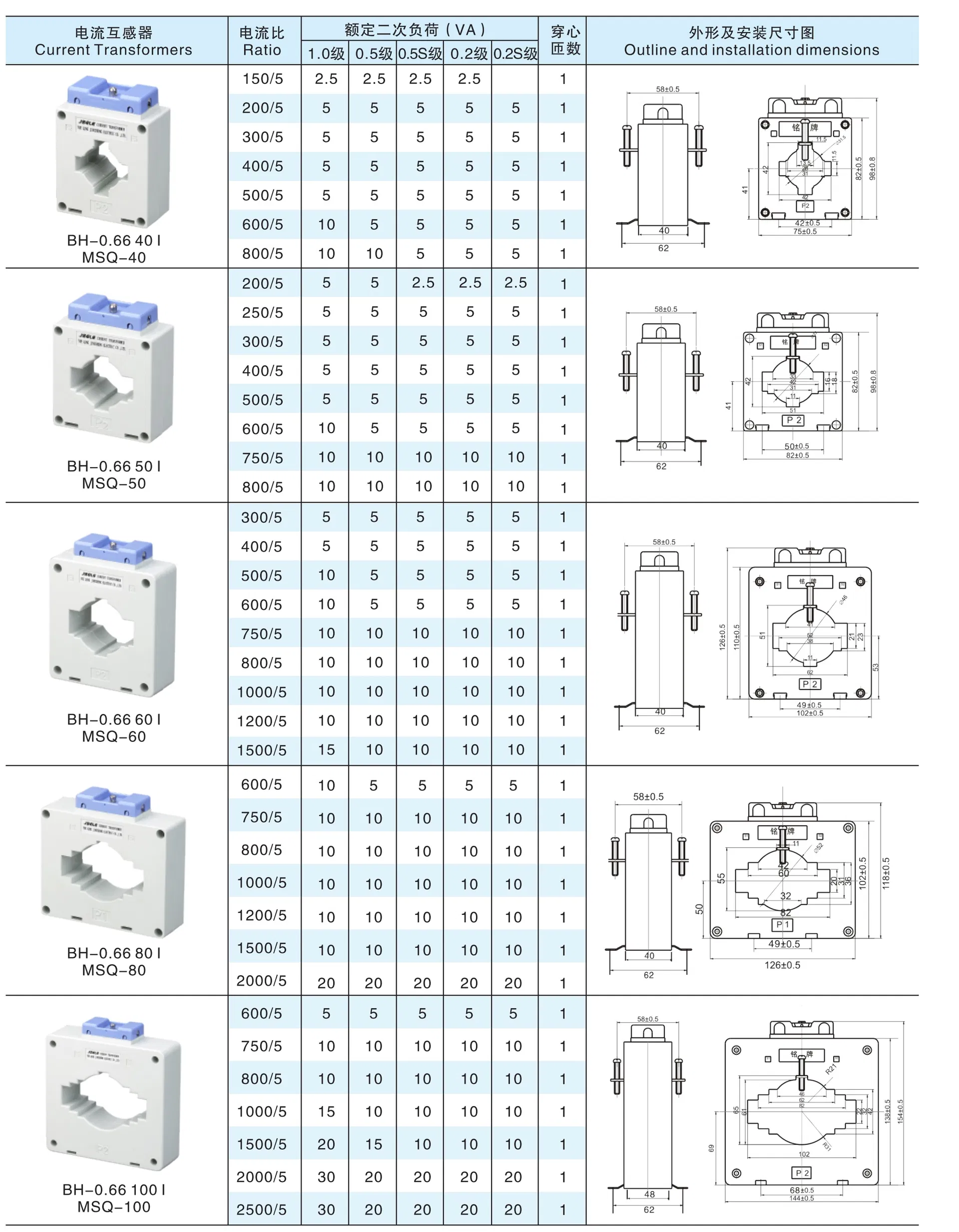

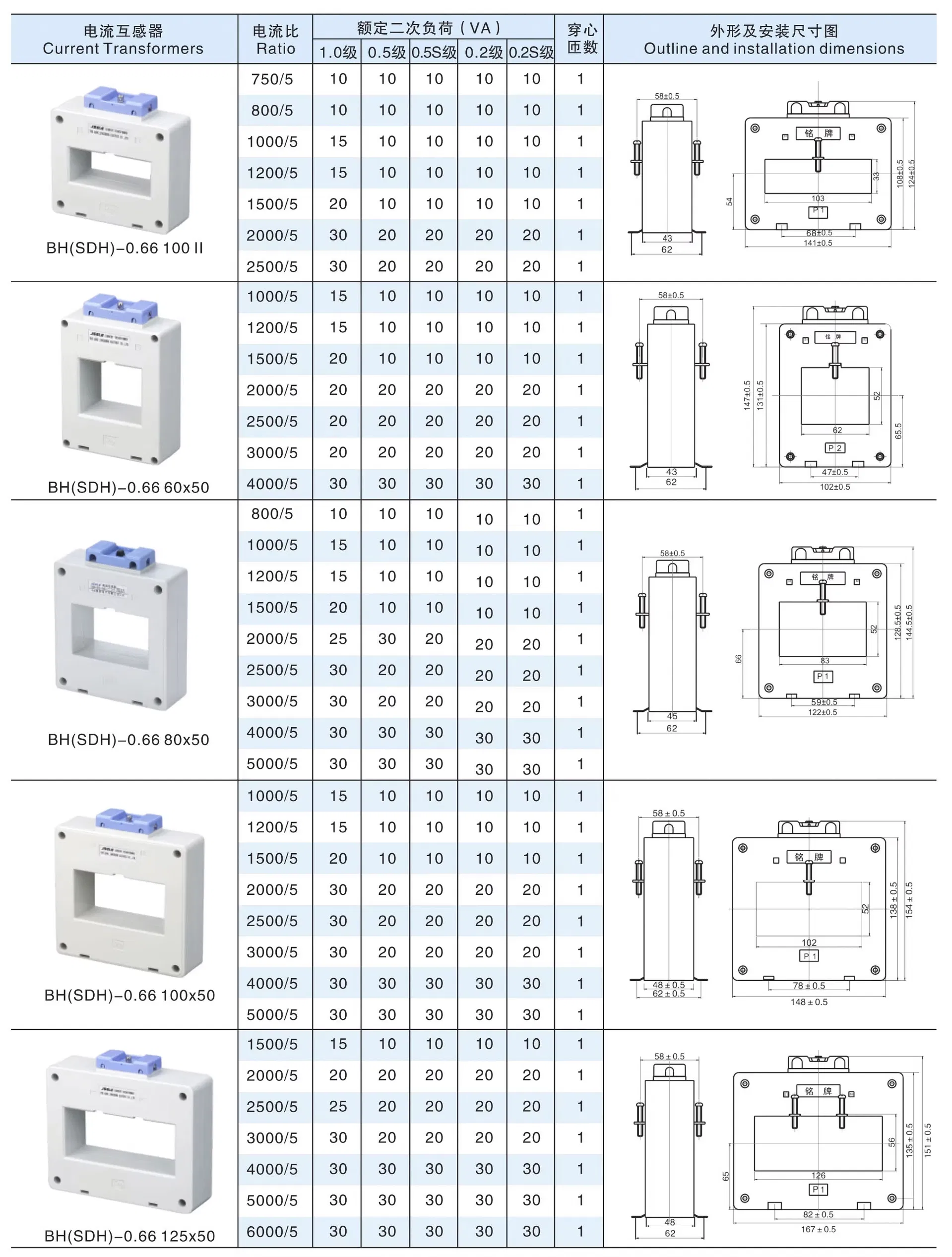

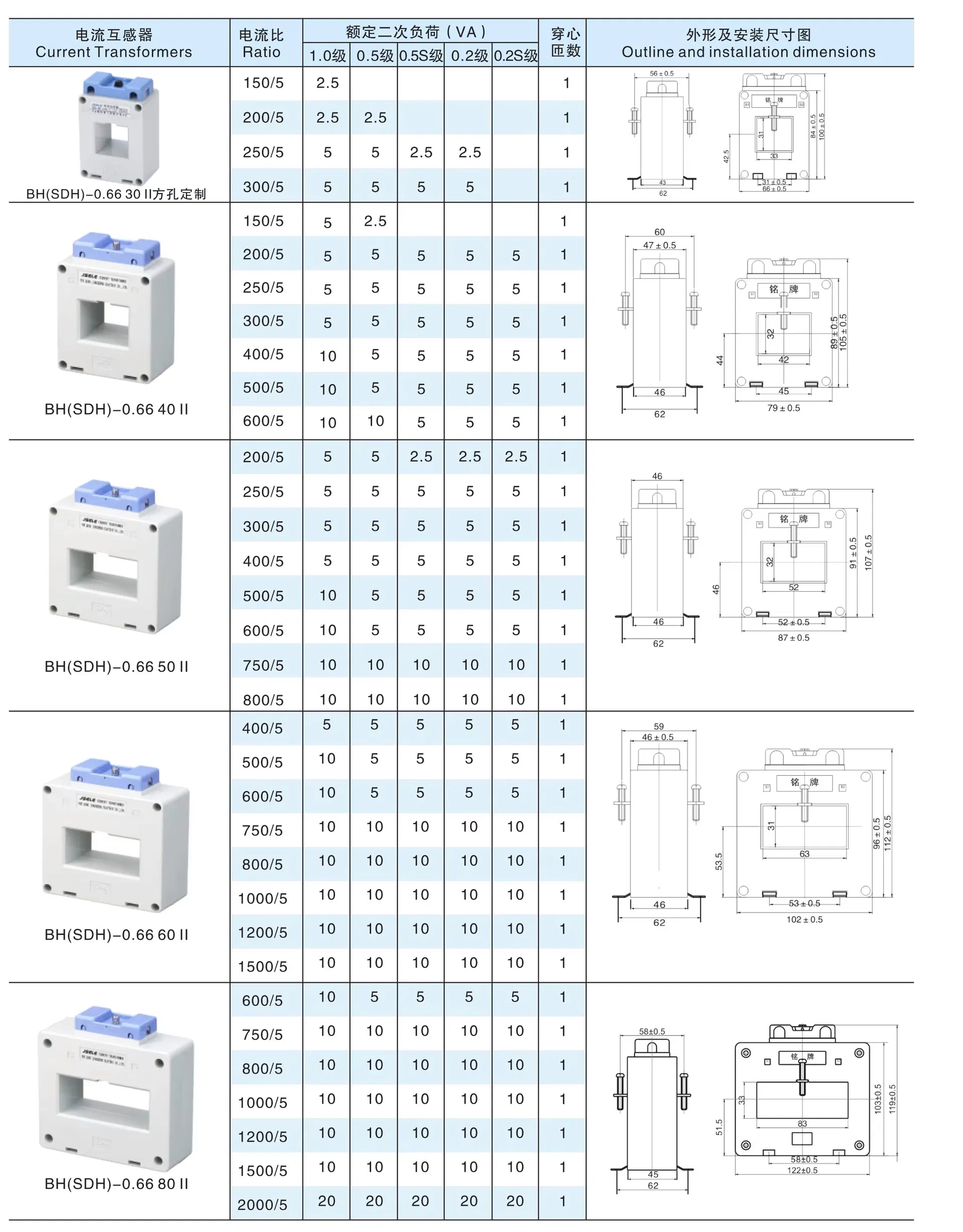

Product Details

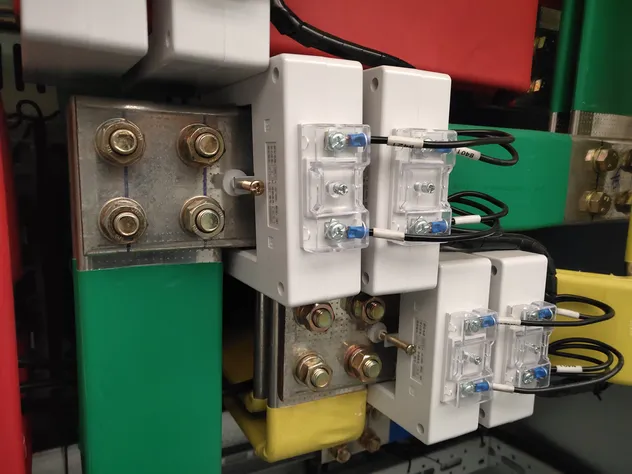

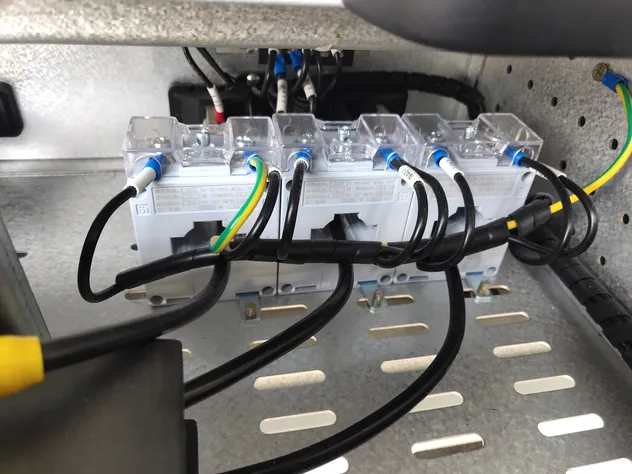

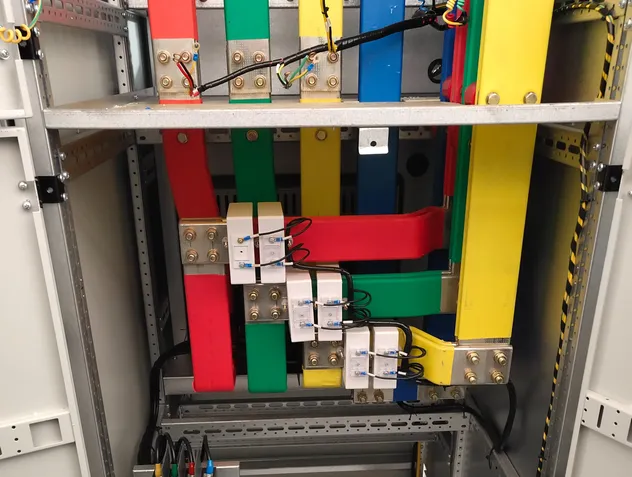

Use Scenarios

Packing & Delivery

Package Size

10.00cm * 10.00cm * 10.00cm

Gross Weight

0.800kg

Lead Time

1-100 Pcs: 1 day
101-1000 Pcs: 3 days
1001-10000 Pcs: 10 days

Seamless Project Support

Transforming complexity into simplicity with our three-step process:

01 Specify Requirements

Provide drawings, reference images, and innovative ideas.

02 Tailored Solutions

Receive a detailed quotation and customized solution within 24 hours.

03 Mass Production

Upon approval, production commences with prompt shipment.

Frequently Asked Questions

Q1: What standards do your transformers comply with? A: Our products comply with GB/T 20840.1 & 2 and IEC61869-1 & 2 international standards.

Q2: What is the rated secondary current for the BH-0.66 series? A: The rated secondary current is typically 5A or 1A.

Q3: Can these transformers be used outdoors? A: This specific model is designed for indoor operation conditions within a temperature range of -5ºC to +40ºC.

Q4: What material is used for insulation? A: We use high-quality Polycarbonate Plastic as the insulating medium for reliable performance.

Q5: Do you offer customized specifications? A: Yes, if your required parameters are beyond our standard table, we can provide tailored solutions based on consultation.

Q6: What is the lead time for a bulk order of 5000 pieces? A: For quantities between 1001 and 10000 pieces, the standard lead time is approximately 10 days.
