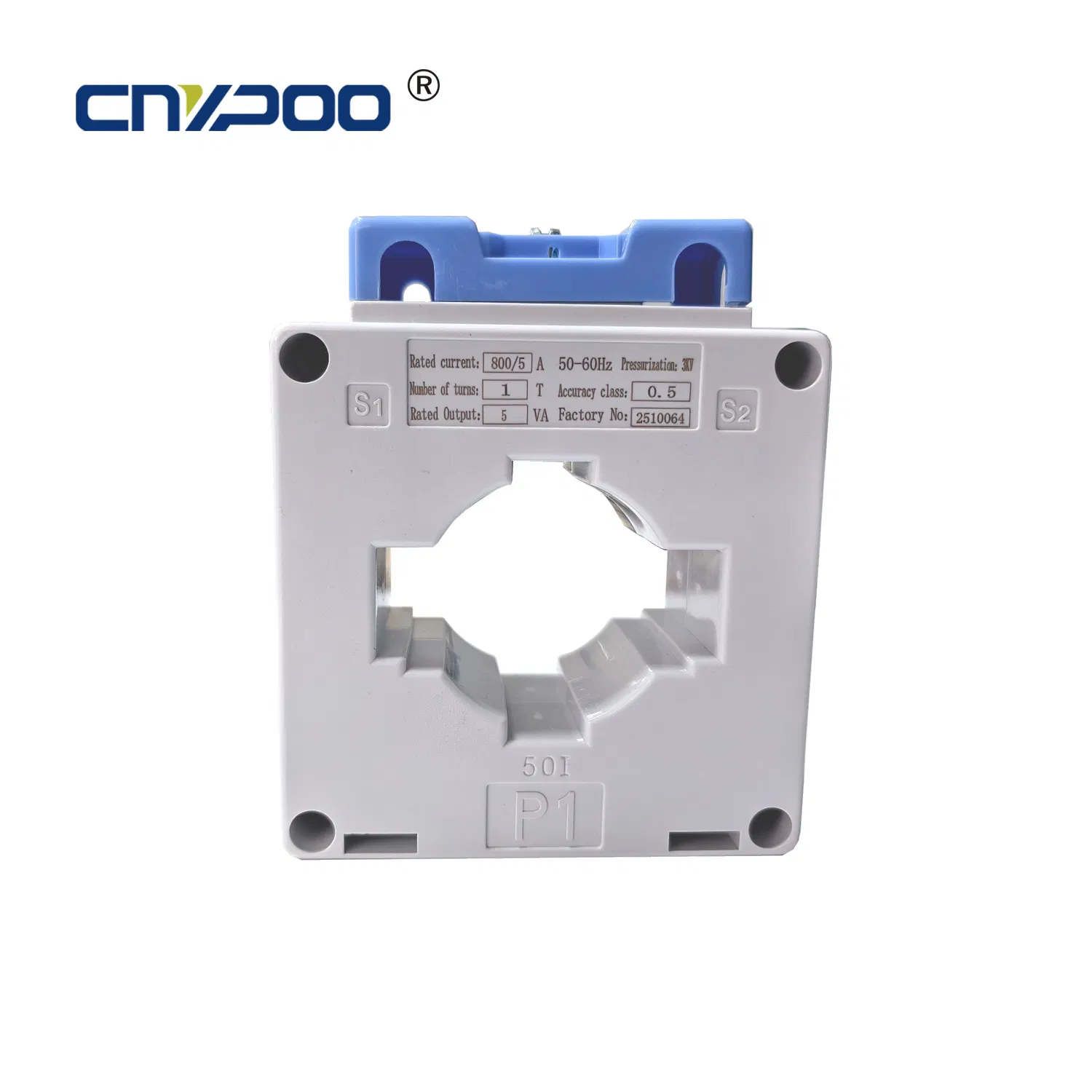

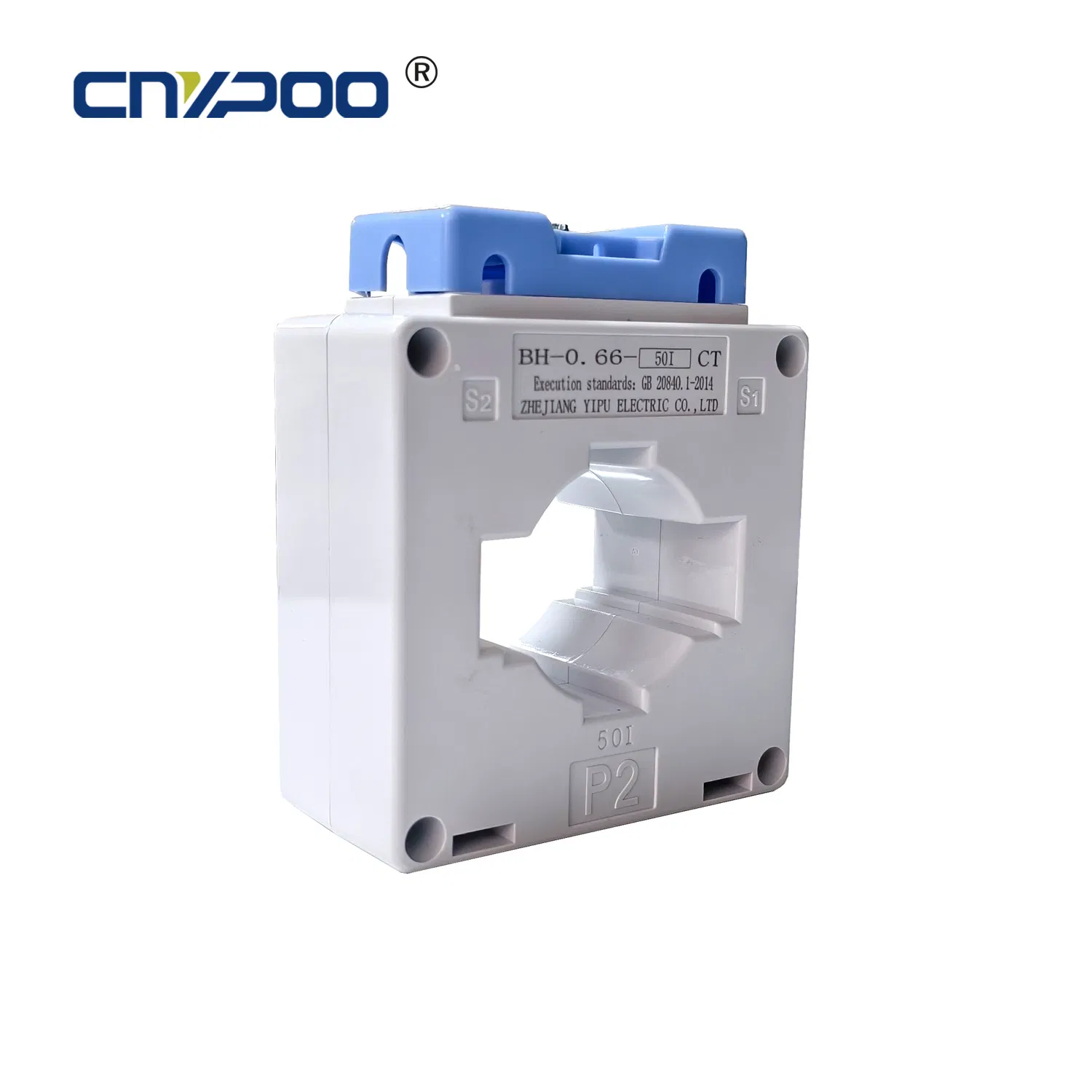

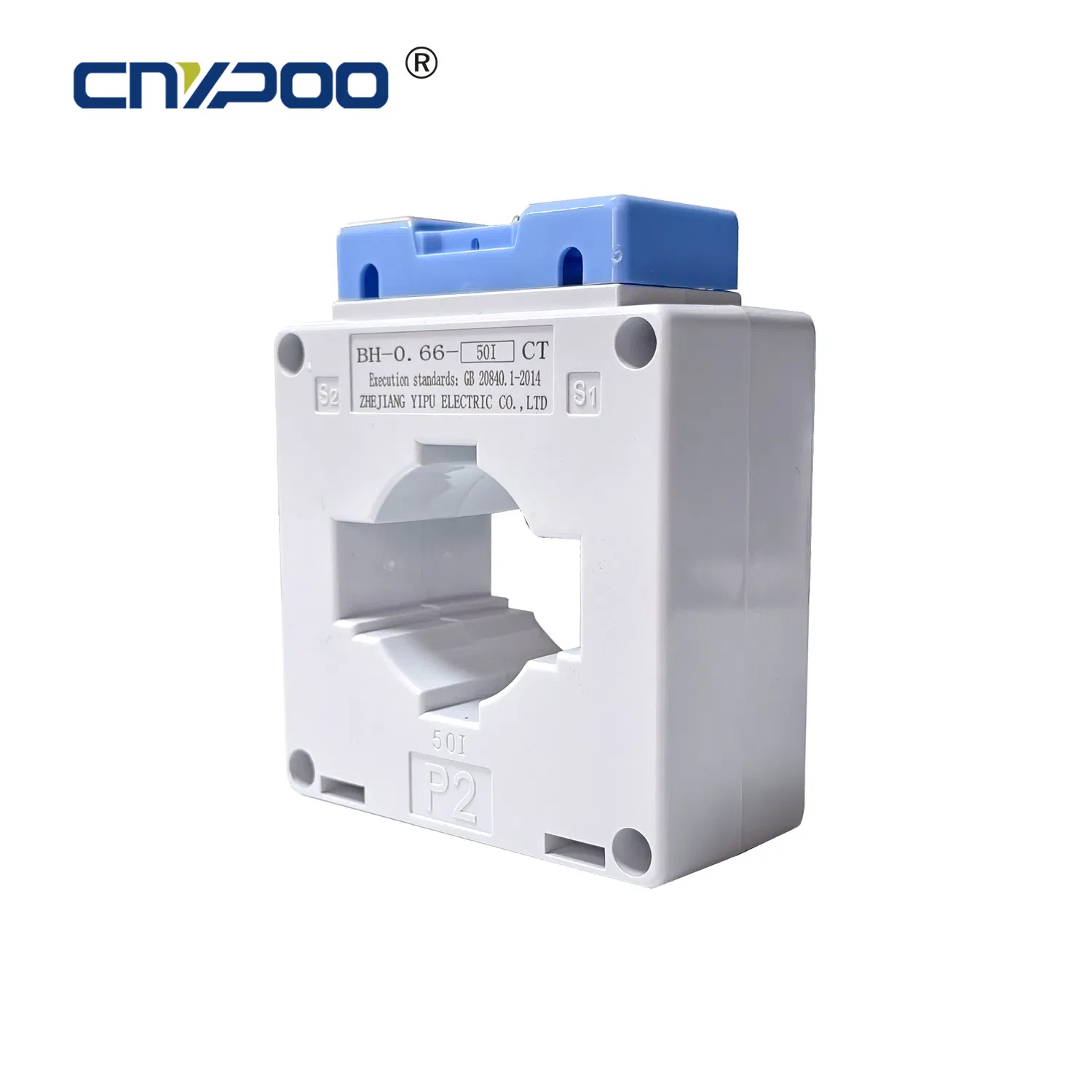

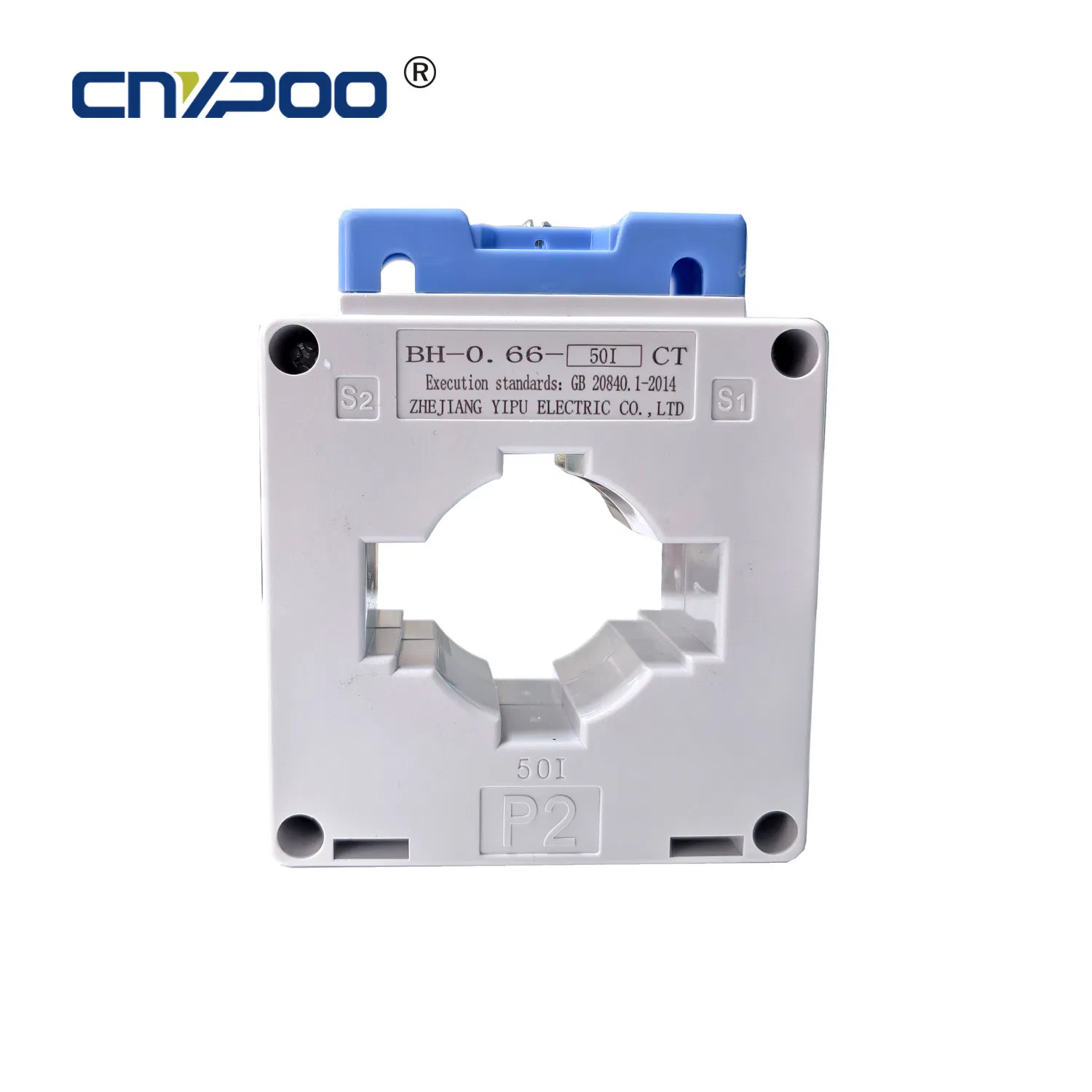

High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
1 / 5
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications
High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications

High Precision 600/5A Bh-0.66 Current Transformer for Low Voltage Applications

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
bh-0.66-50I
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Polycarbonate Plastic
Installation
Active Type
Rated Secondary Current
5A or 1A
Rated Frequency
50Hz or 60Hz
Production Capacity
3,000,000 Pieces/Year
✓

Product Description

Current Transformer
Model: BH-0.66-50I
Compliance with standards: GB/T 20840.1 & 2 and IEC61869-1 & 2.
Ambient temperature: -5ºC~+40ºC
Rated secondary current: 5A or 1A.
Power factor: (cosφ) = 0.8 (lagging).
Rated frequency: 50Hz or 60Hz.
Insulating property: Primary winding to secondary winding and ground can bear power frequency withstand voltage 3kV for 1min.
⚙

Technical Specifications

Type Rated Primary Secondary Current (A) Rated Secondary Output (VA) Cross-core Turn
1 0.5 0.5S 0.2 0.2S
BH-0.66-50I200/552.5///1
BH-0.66-50I400/555///1
BH-0.66-50I600/510105551
BH-0.66-50I1000/515101010101
BH-0.66-50I1500/520202020151

Note: Custom parameters are available upon request for specific application needs.

📷

Product Gallery

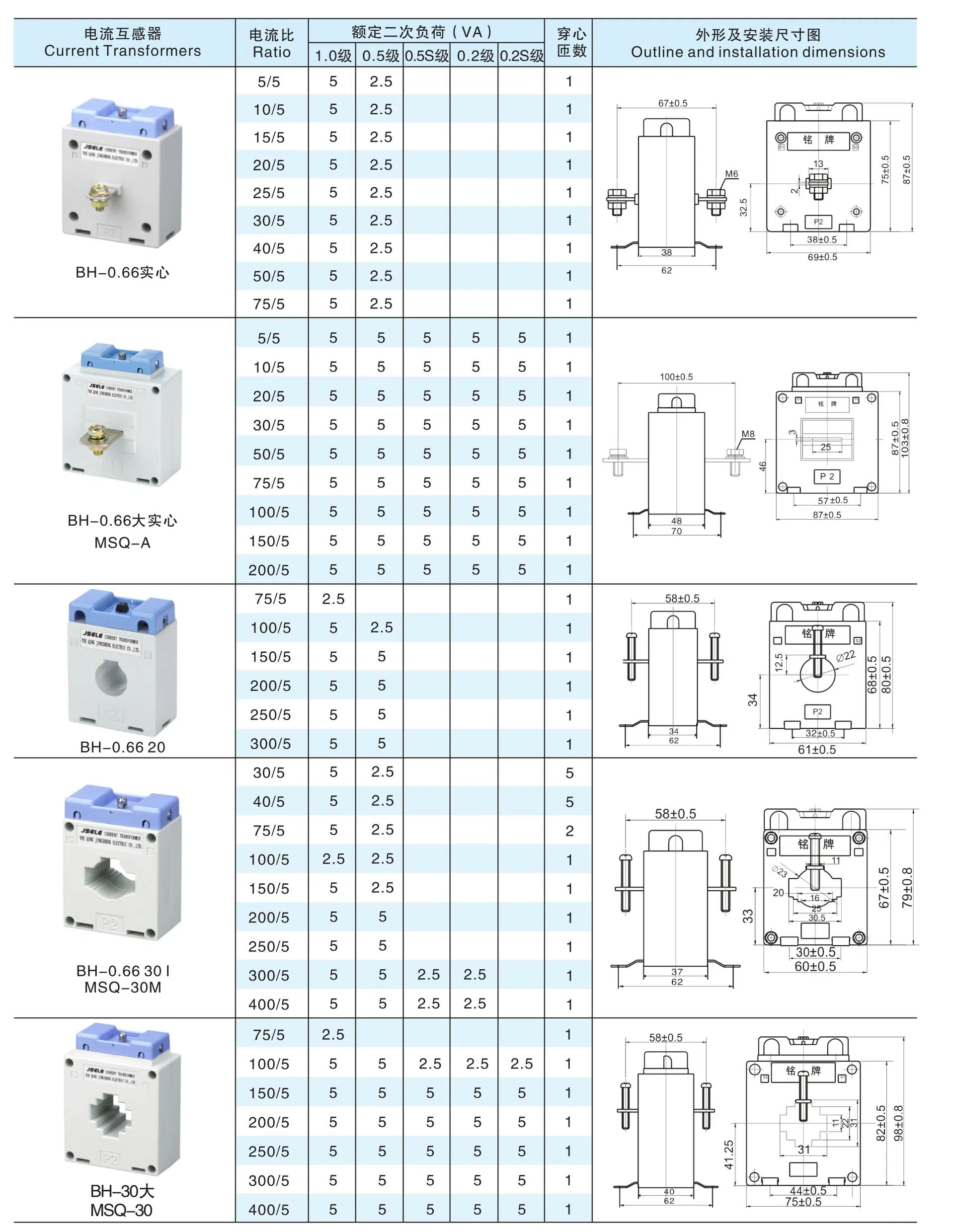

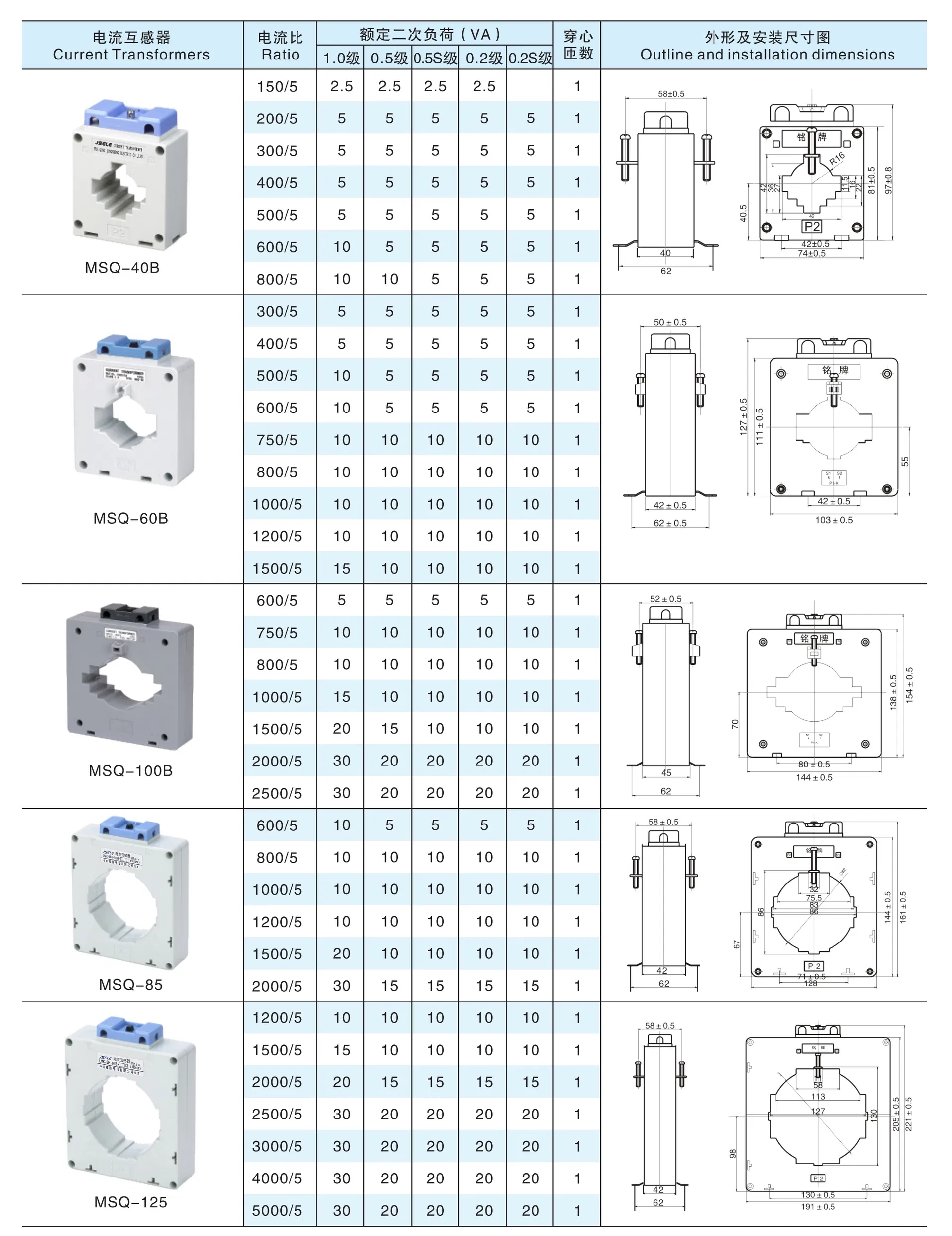

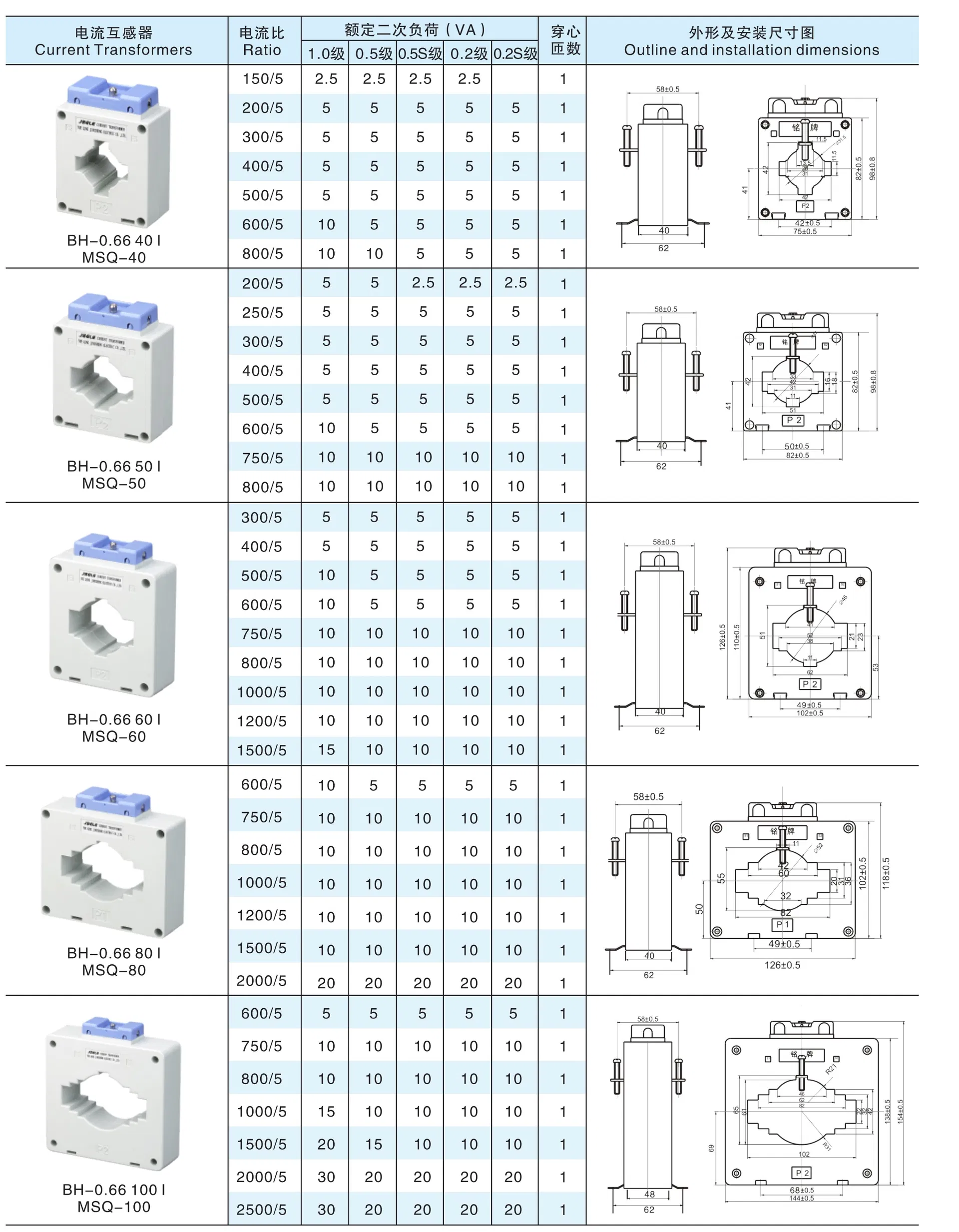

Detail 1 Detail 2 Detail 3

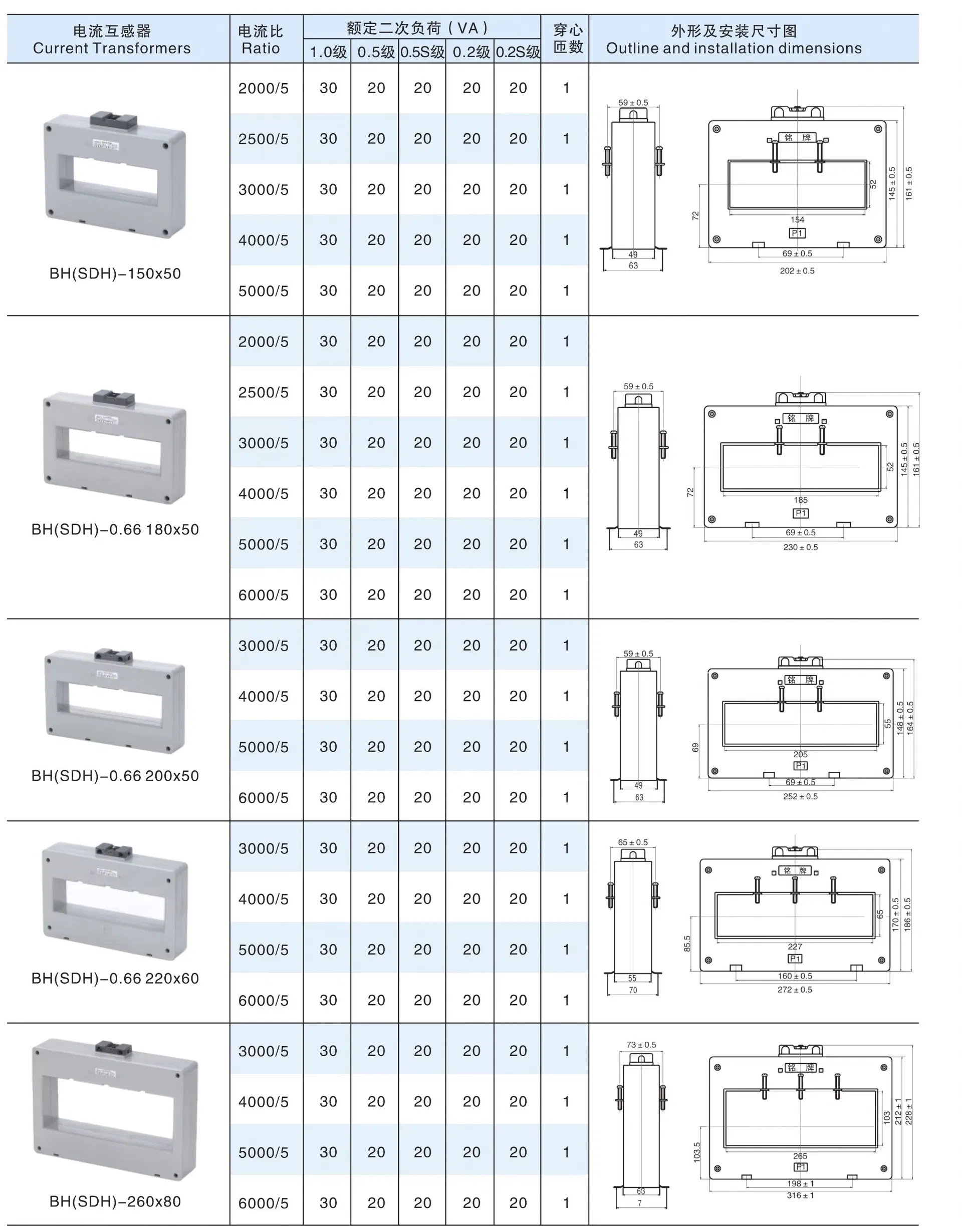

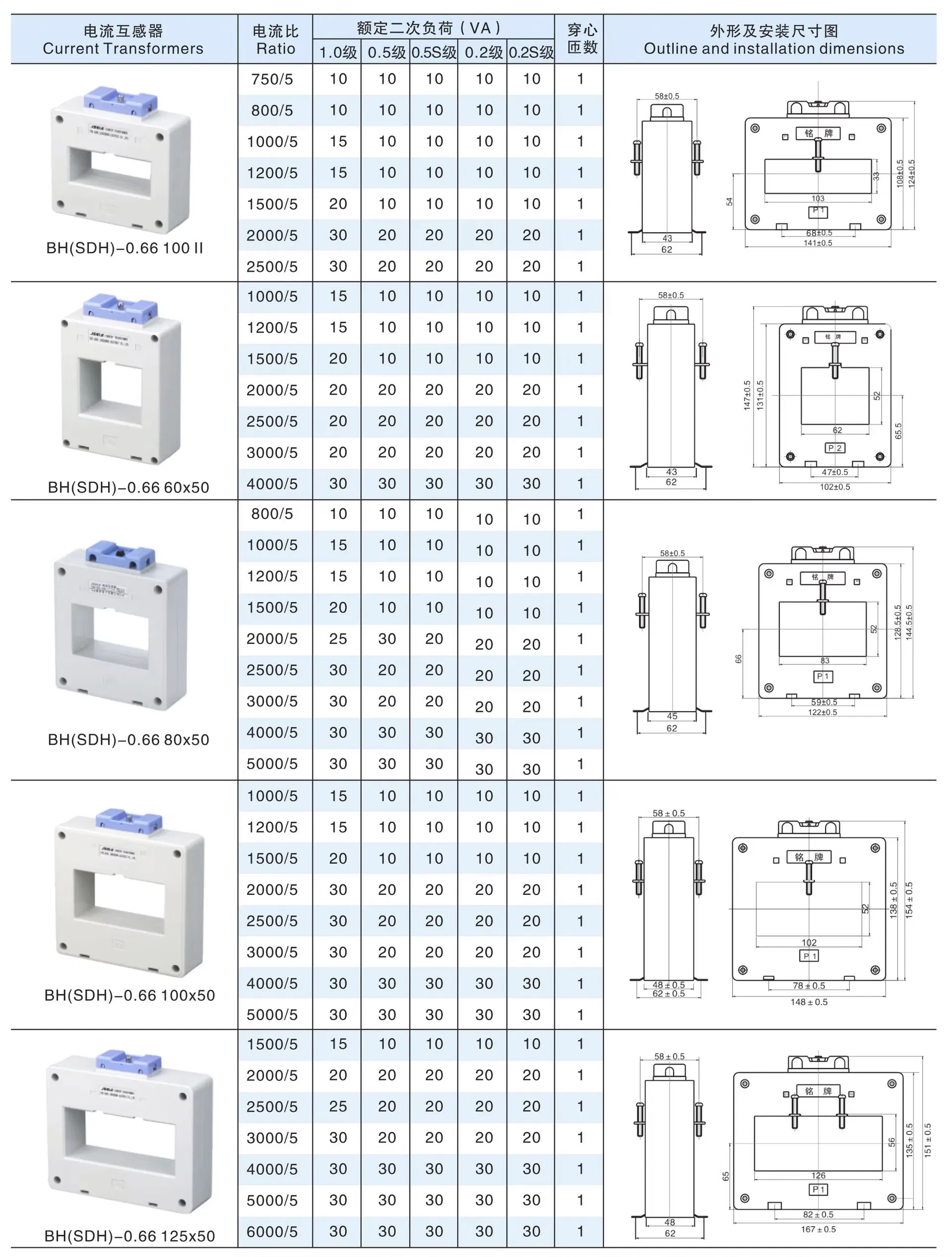

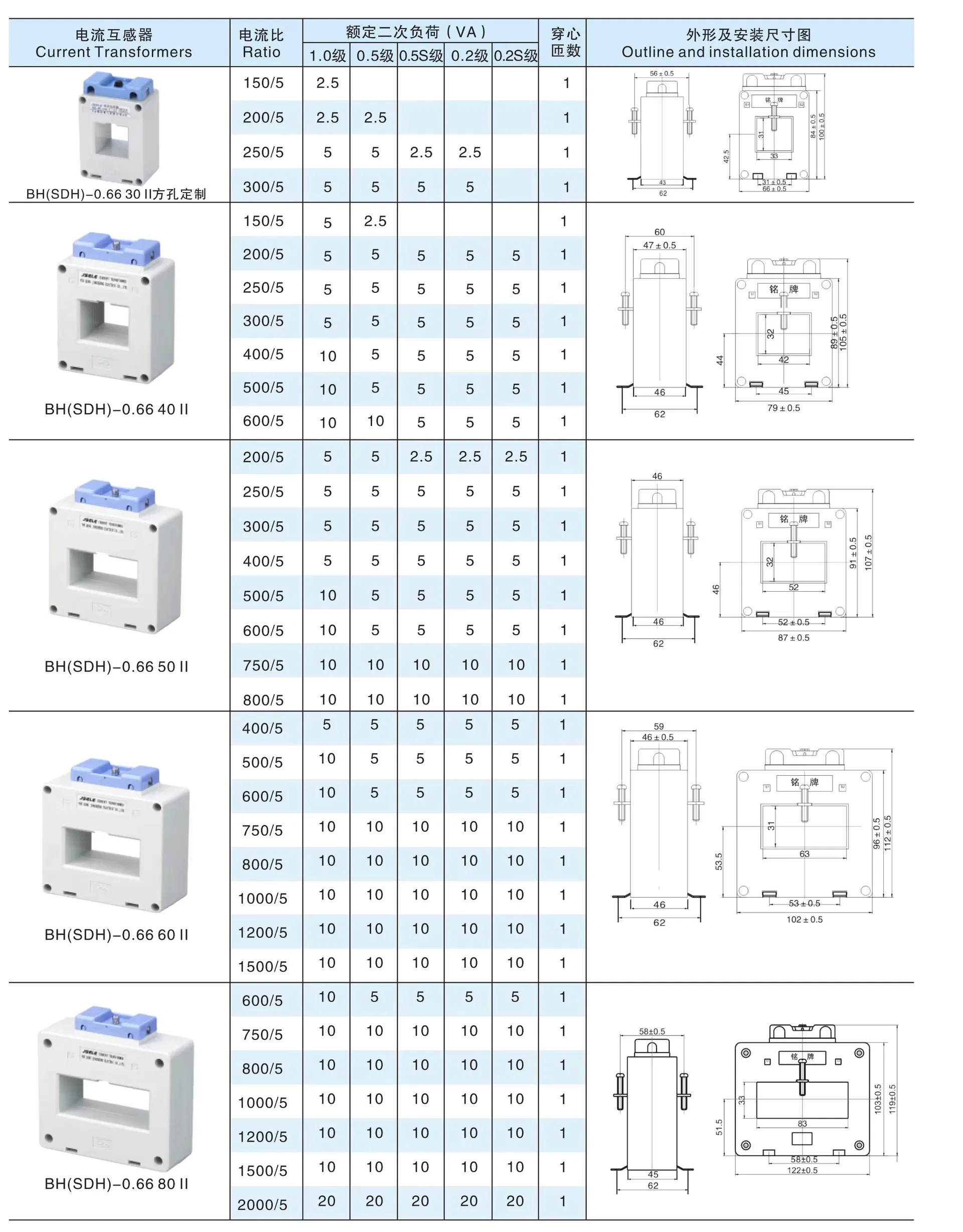

Detail 4 Detail 5 Detail 6
⚡

Use Scenarios

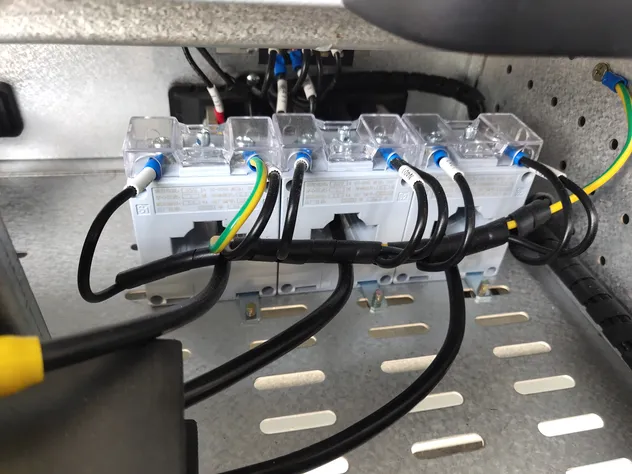

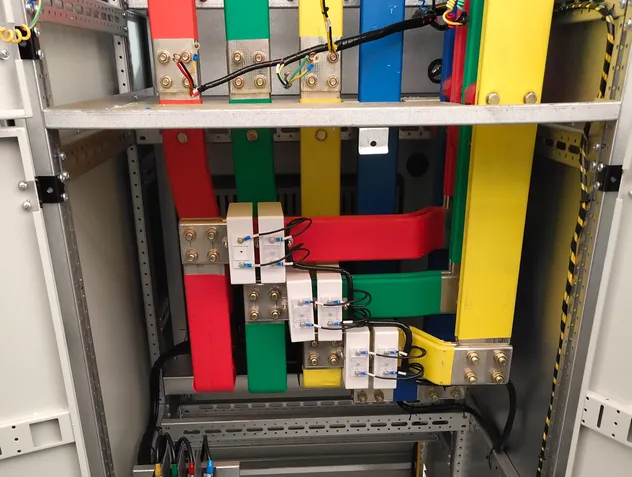

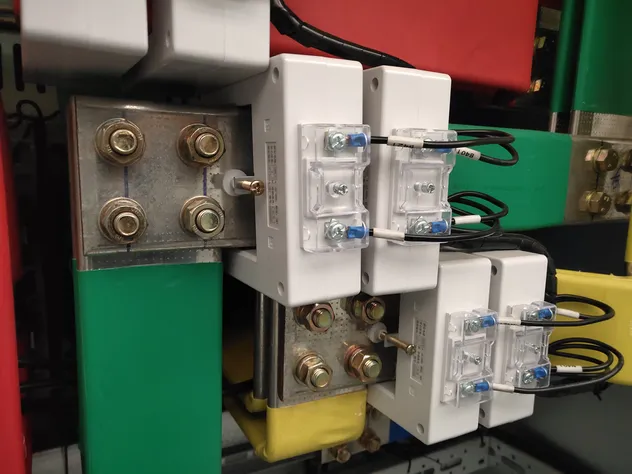

Scenario 1 Scenario 2 Scenario 3
📦

Packing & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Gross Weight
0.800kg
Lead Time
1-100 Pcs: 1 day | 1000+ Pcs: Negotiable
Packing 1 Packing 2 Packing 3
🏭

Manufacturing Excellence

We are a distinguished leader in manufacturing 0.5kV to 35kV current and voltage transformers. Our facility spans 3000 square meters, equipped with cutting-edge production lines and a robust quality management system. With over 70 models and 1000 specifications, our products are indispensable for power stations and industrial factories worldwide.

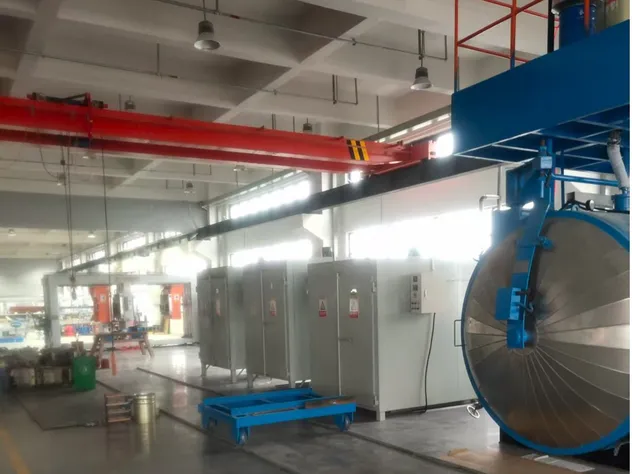

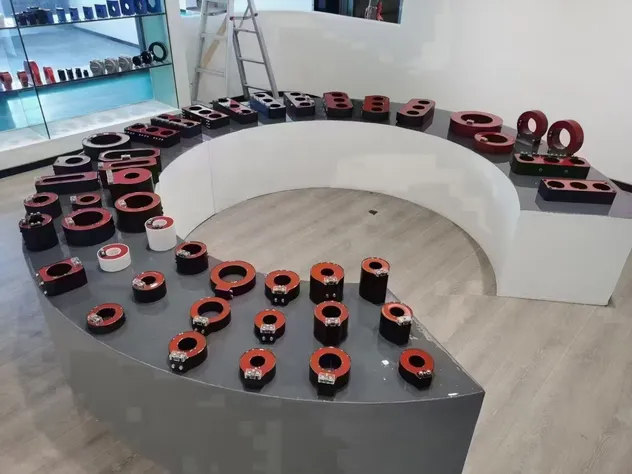

Factory 1 Factory 2 Factory 3
?

Frequently Asked Questions

What is the main application of the BH-0.66 current transformer?
The BH-0.66 series is primarily used in indoor low-voltage power systems for current measurement, energy metering, and relay protection.
Does this model comply with international standards?
Yes, our current transformers fully comply with GB/T 20840.1 & 2 and IEC61869-1 & 2 standards.
What is the accuracy class of these transformers?
We offer multiple accuracy classes including 1, 0.5, 0.5S, 0.2, and 0.2S to meet different precision requirements.
What insulation materials are used?
The product uses high-quality Polycarbonate plastic as the insulating medium, providing excellent durability and safety.
Can you provide customized ratios?
Yes, we can determine specific parameters and current ratios based on consultation to meet your unique project requirements.
What is the lead time for mass production?
For quantities under 100 pieces, shipping typically occurs within 1 day. Larger orders up to 10,000 pieces usually take 10 days.
