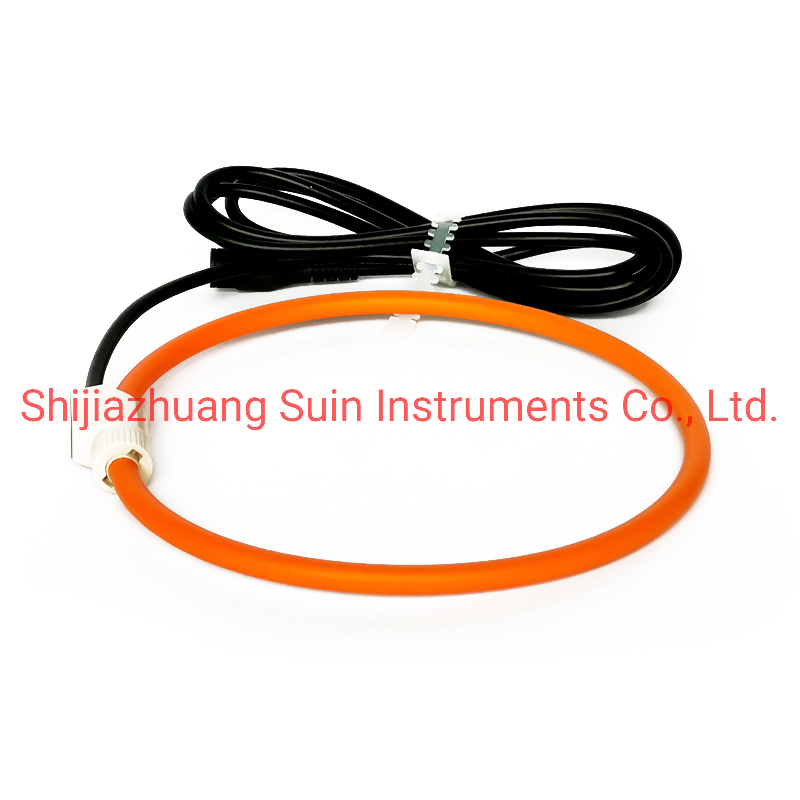

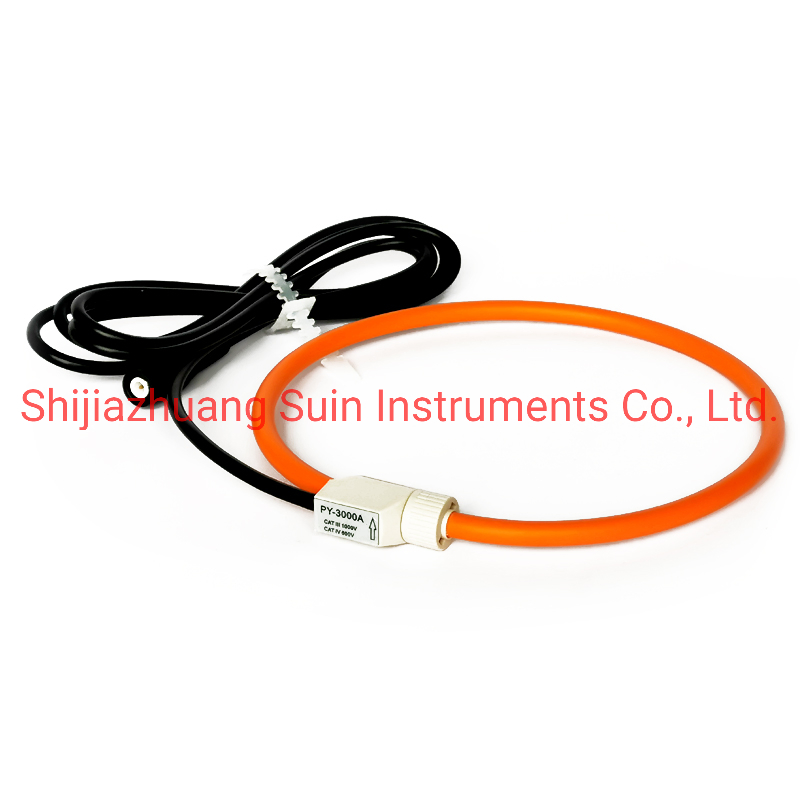

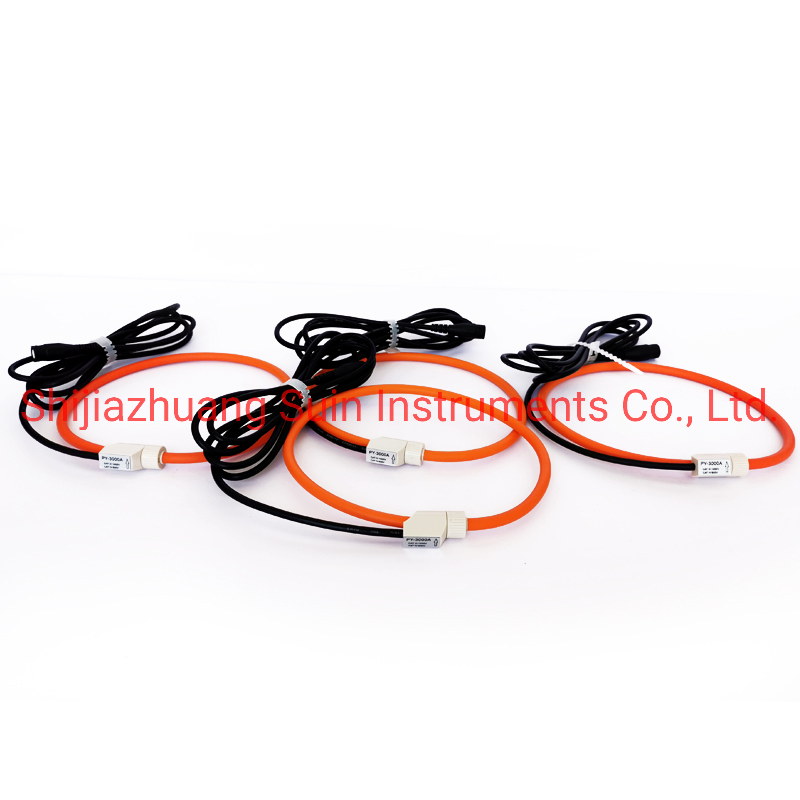

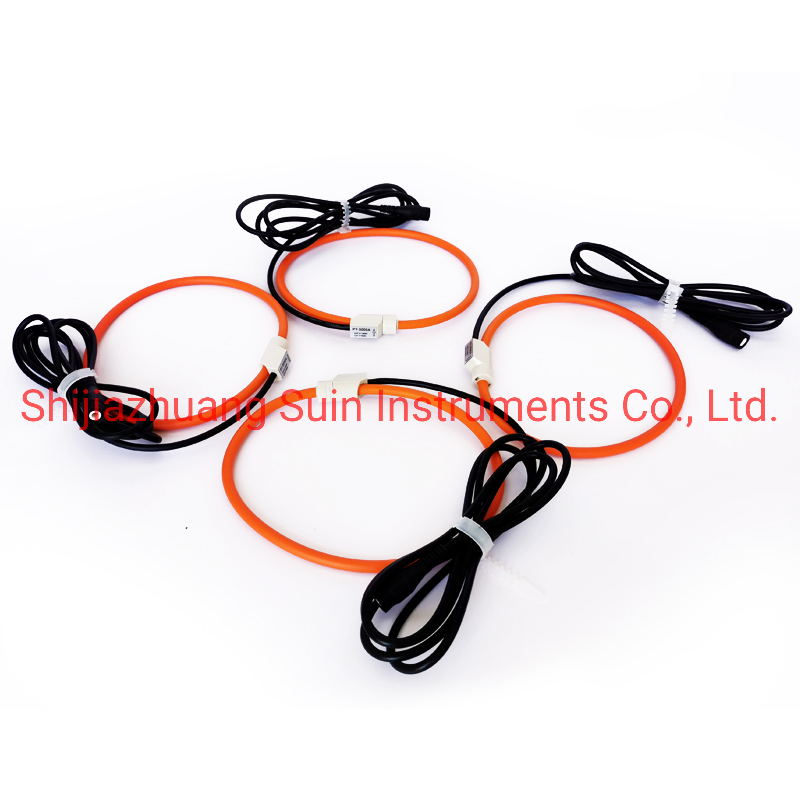

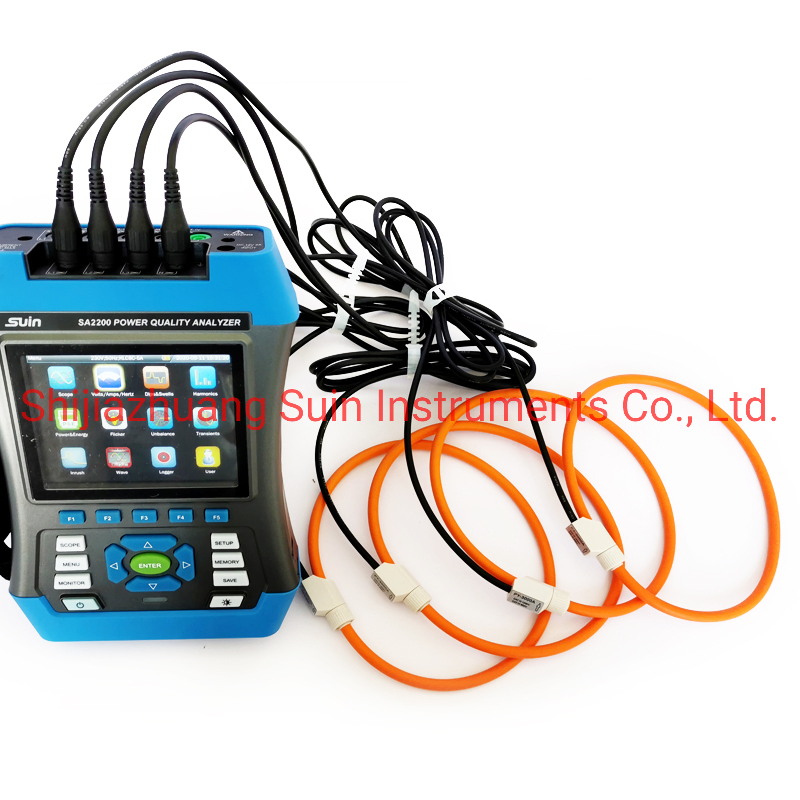

High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
1 / 5
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer
High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer

High Accuracy Py-3000A Flexible AC Rogowski Coil Current Transformer for Analyzer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
Py-3000A
Production Process
SemiConductor Integrated
Material
Metal
Accuracy Grade
1.0G
Application
Switching Power Supply
IP Rating
IP20
Certification
ISO
Customized
Customized
Measurement Range
15-3000A
Transport Package
Carton
Specification
130g
Trademark
Neutral
Origin
China
HS Code
8504311000
Production Capacity
50000PCS/Year
Product Description
Py-3000A Flexible AC Rogowski Coil 1

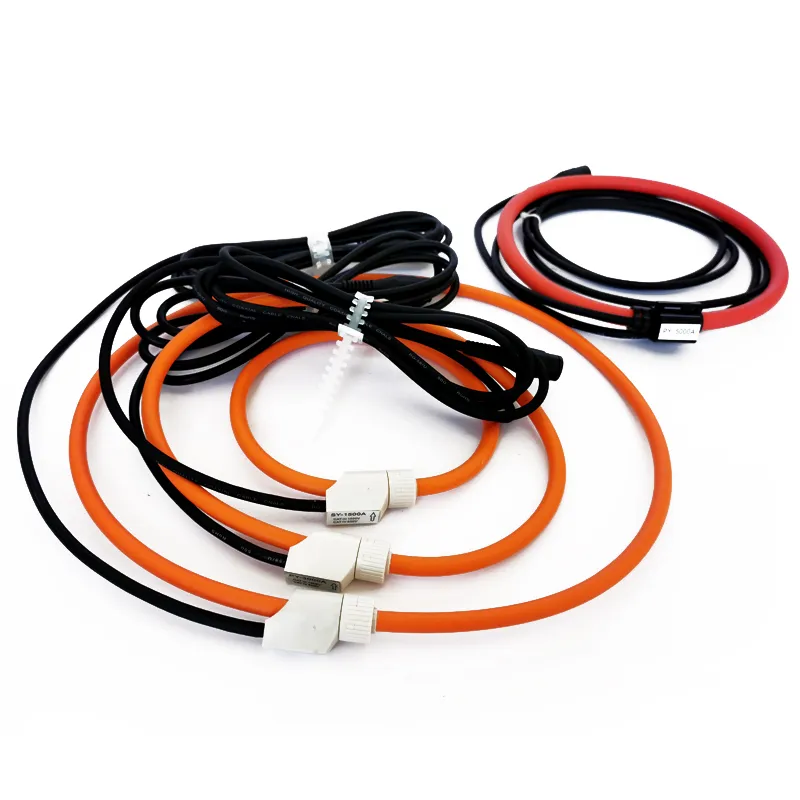

Py-3000A Flexible AC Rogowski Coil 2

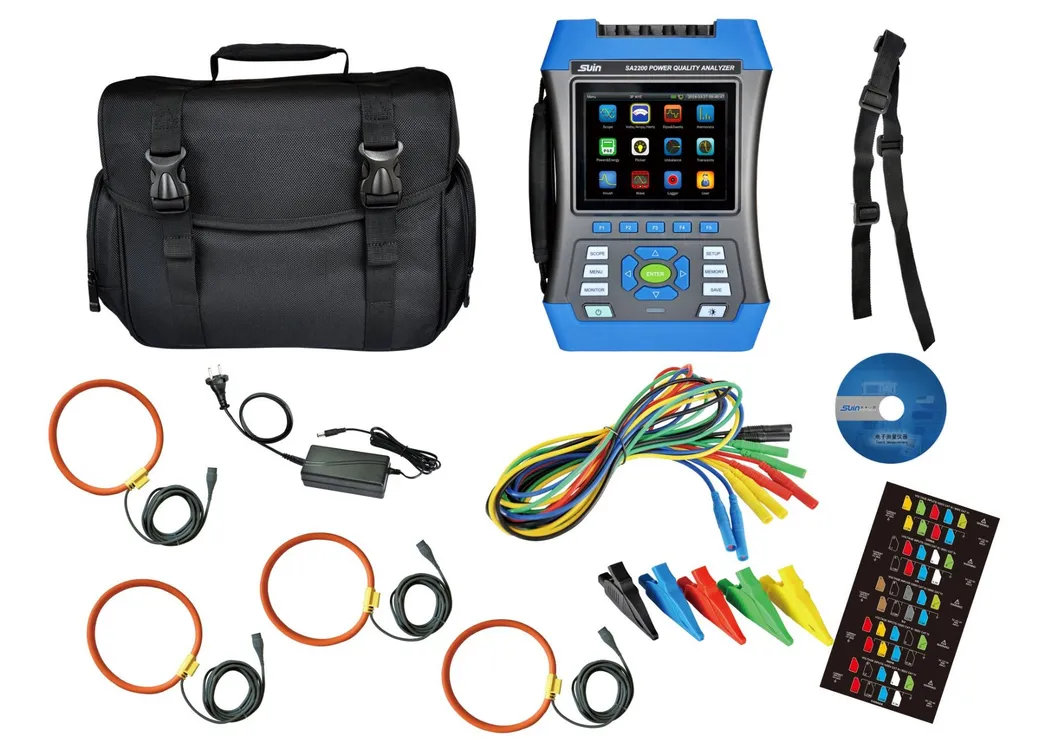

Py-3000A Flexible AC Rogowski Coil 3
Py-3000A Flexible AC Rogowski Coil 4
Py-3000A Flexible AC Rogowski Coil 5
Py-3000A Flexible AC Rogowski Coil 6
Py-3000A Flexible AC Rogowski Coil 7
Technical Parameters PY-3000A PY-5000A
Measurement Range 15~3000A 20~5000A
Output Voltage Ratio 65mV/1000A@50Hz 50mV/1000A @ 50Hz
Accuracy ±1% + Position Error
Maximum Allowable Input 100KA
Phase Error <±1°
Noise <2mVrms (10Hz~10KHz)
Frequency Characteristic 10Hz~10KHz(-3dB)
Weight 130g
Length 200cm
CT Perimeter 50cm
Measurement Position Error ±2%
Frequently Asked Questions
What is the measurement range of the PY-3000A model?
The PY-3000A model features a wide measurement range from 15A to 3000A, making it suitable for various power monitoring applications.
What is the accuracy grade and phase error for these Rogowski coils?
These coils have an accuracy grade of 1.0G and an accuracy of ±1% (plus position error), with a phase error of less than ±1°.
Can these current transformers be used in switching power supplies?
Yes, the primary application for these Rogowski coils is for switching power supplies and general current analysis.
What is the IP rating of the product?
The product is rated at IP20, providing protection against solid objects and suitable for indoor environmental conditions.
What are the frequency characteristics of the PY series?
The frequency characteristic ranges from 10Hz to 10KHz (-3dB), ensuring stable performance across a wide frequency band.
Is customization available for these units?
Yes, the product is listed as customizable to meet specific technical requirements for different industrial applications.
