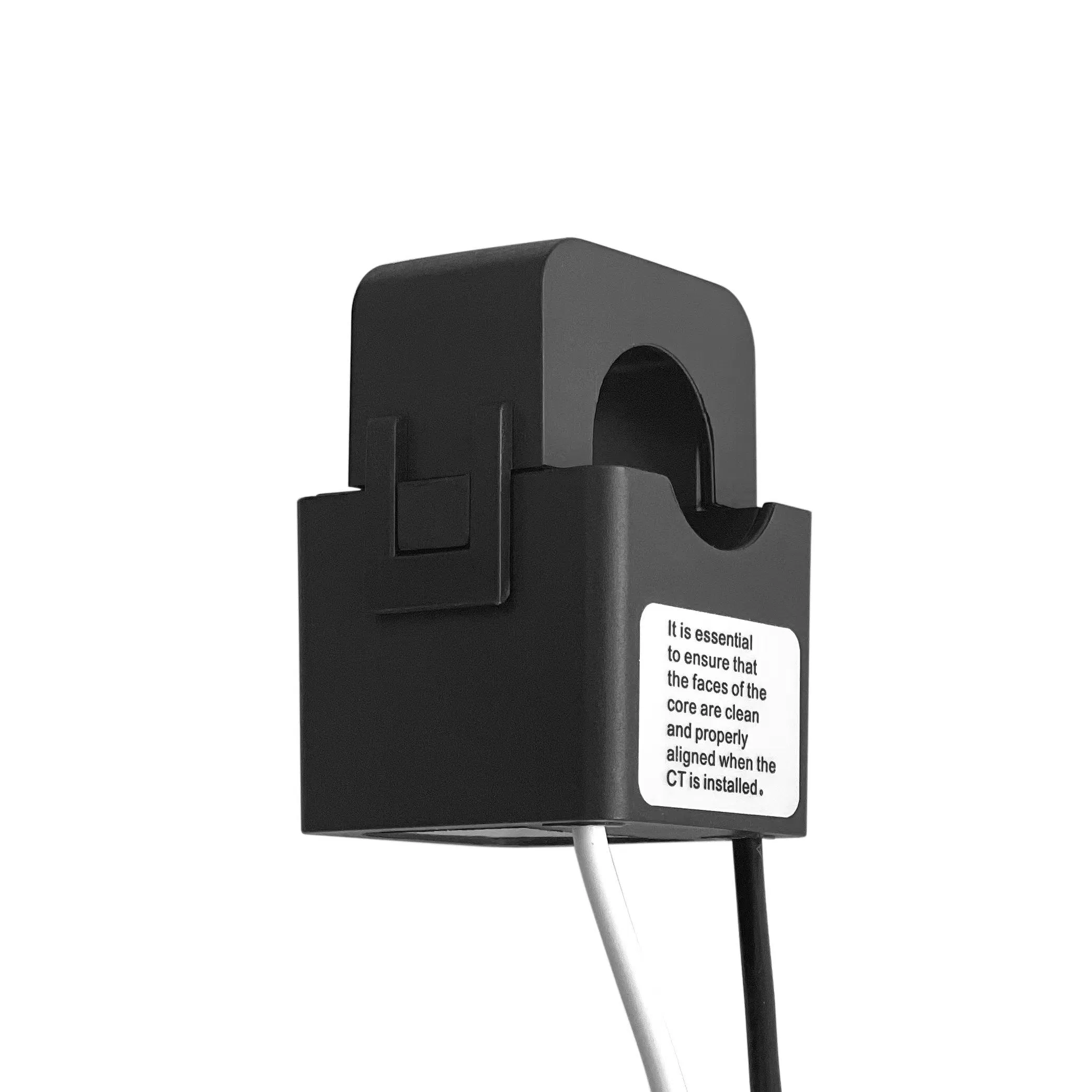

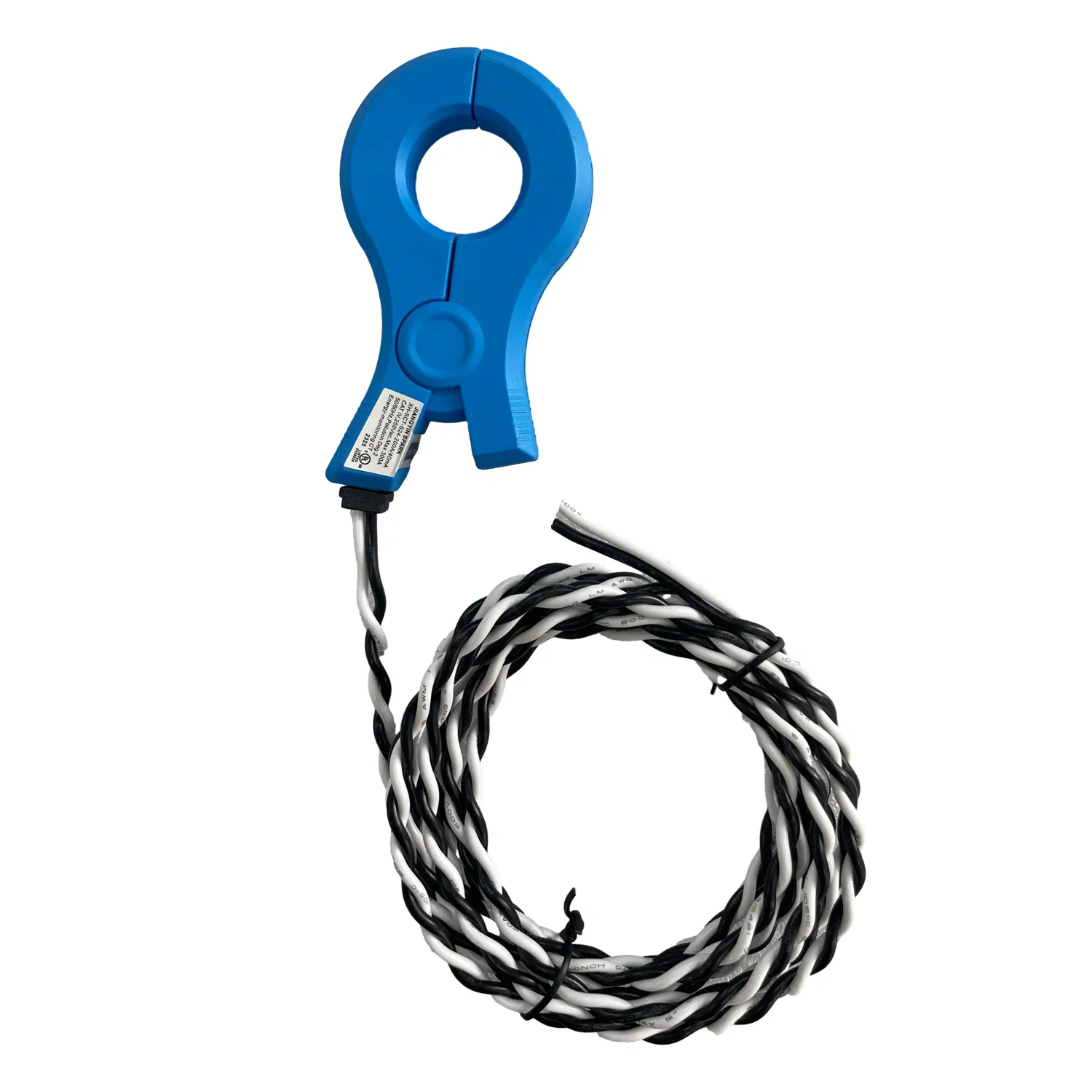

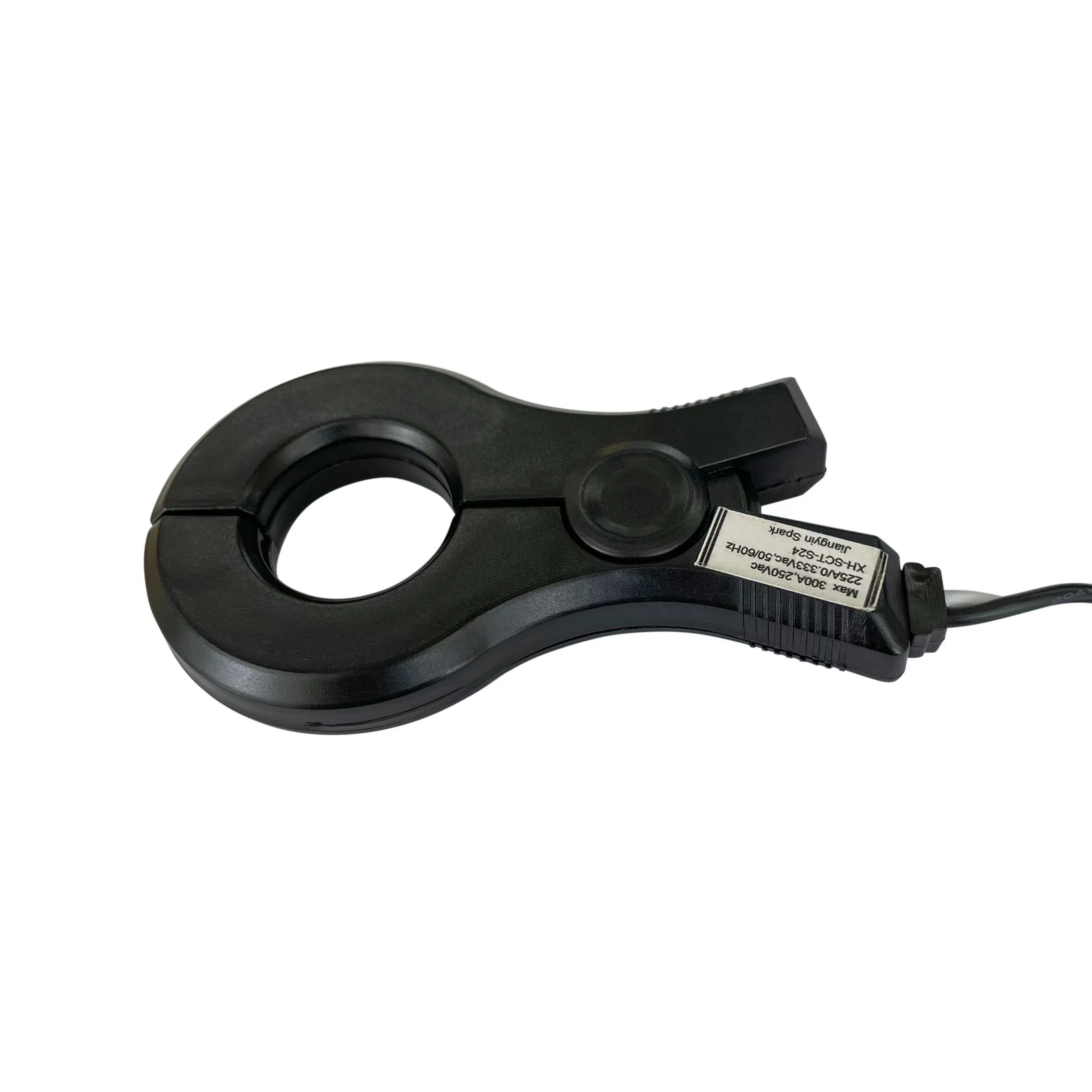

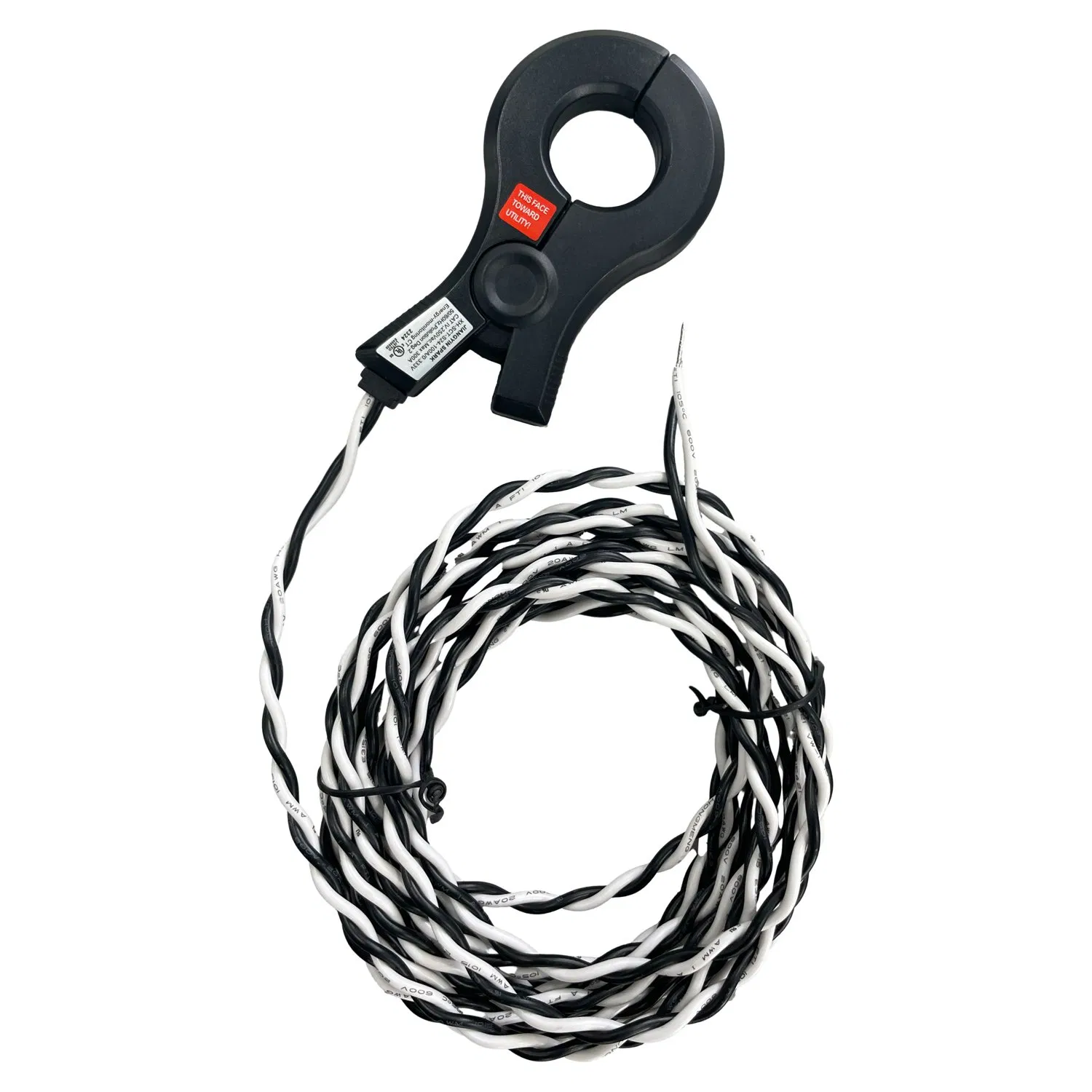

Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
1 / 5
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer
Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer

Energy Monitoring Xh-Sct-S24-200A/66.6mA Split Core Sensor Clamp on Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
XH-SCT-S24
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Insulating Paper
Installation
Extension Type
Hole Size
24mm
Current Rating
200A
Output Voltage
66.6mA
Current Error
0.5 Class
Certificates
UL0808, CE, ROHS, ISO9001
Origin
China
Production Capacity
500,000 PCS/Month
Product Overview

Energy Monitoring XH-SCT-S24-200A/66.6mA Split Core Sensor

The XH-SCT-S24 Clamp-on current sensor measures AC current from 50 to 300 Amps passing through the center conductor. These CTs feature a clamp and split-core design, allowing for single-handed installation. Designed for fast and easy deployment, the split-core design permits non-contact current measurements through magnetic field induction without requiring the primary wire to be taken offline or disconnected. This method ensures a safer, easier, and more portable current measurement solution.

Smart Grid Application Features

● Load Center
● Three Phase Balance Control
● In-Factory & In-Home Display
● Solar & Wind Turbine Inverters
● Power Measurement for PLC
Split Core Sensor Clamp on Current Transformer
Technical Specifications
Model Input (A) Max Current (A) Output
XH-SCT-S24 0.2-300A AC 320A AC mA / 0.333V AC / 0-3 V AC
Accuracy (1% - 100% of rated current) ±0.5 %
CT Phase Angle (5% - 120% of rated current) 0.5 (Ultracrystalline) / 1.5± 0.5 (Silicon iron) Degrees
Nominal Line Frequency 60 / 50 Hz
Current Rating 225 A
Output Voltage 0 - 333 mVac
Overvoltage AC 5000V/0.3mA/60S (50HZ/60HZ) Vac
MECHANICAL
Type Split core, clamp design -
Average Window Diameter 24 mm
Lead Wire Type/Length/Gauge Twisted pair / 17ft (5.2m) 20 AWG MTW, UL105
Weight 190 g
ENVIRONMENTAL
Operating Temperature Range -40 to 60 °C
Operating Humidity 5% to 90% relative humidity -
IP Rating 30 (NEMA 1) -
Dimensions & Production

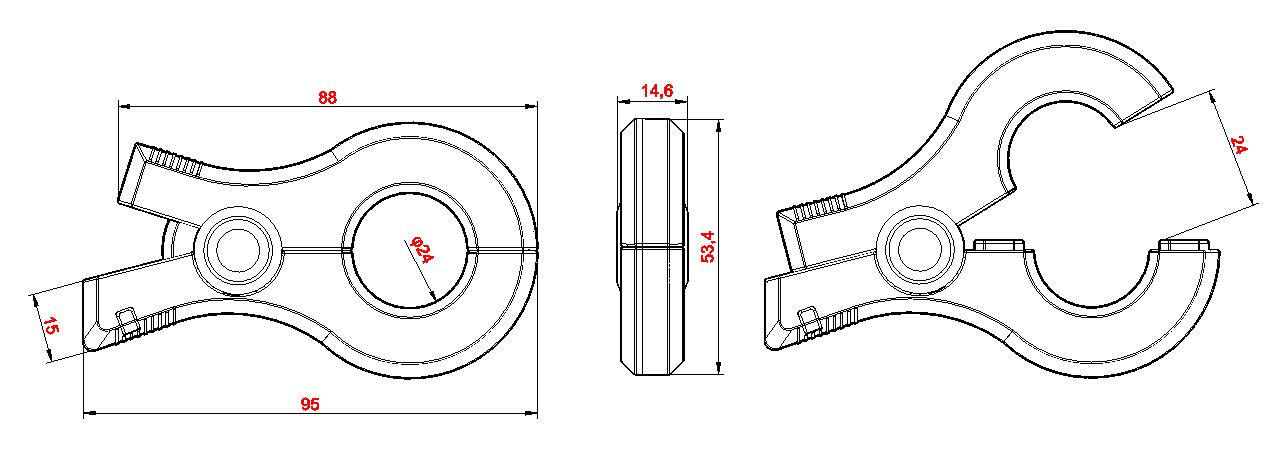

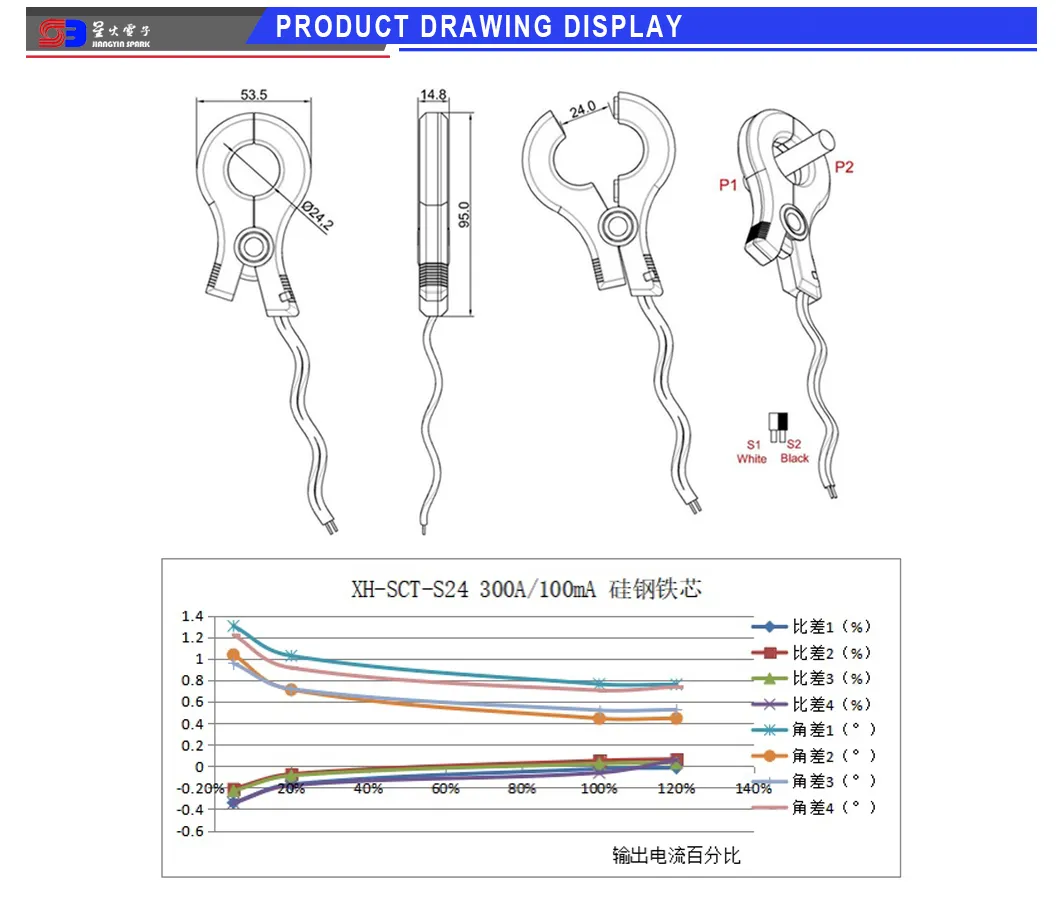

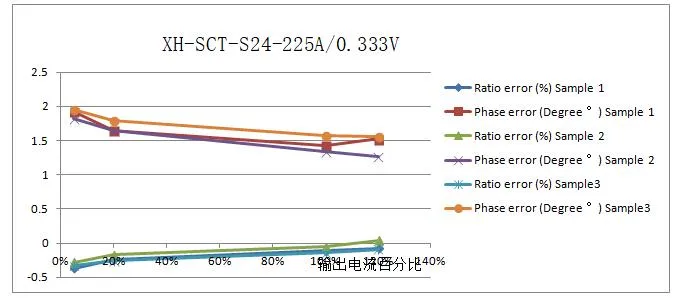

Technical Drawing

Testing & Production Process

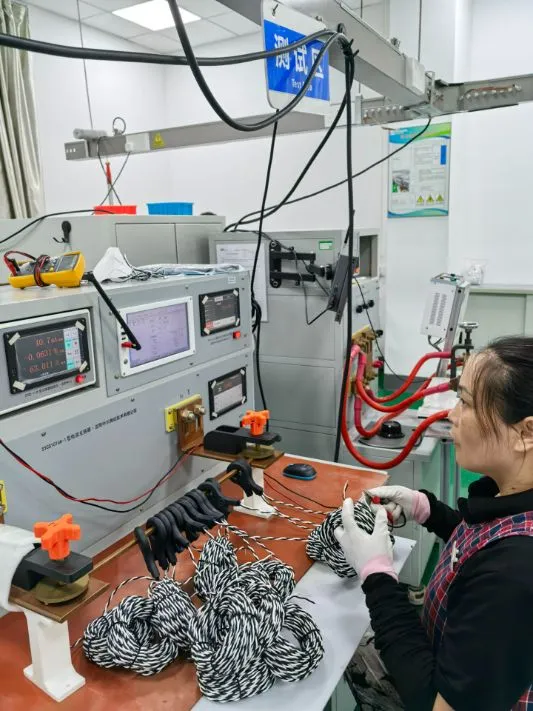

Product Testing
Production Line 1
Production Line 2
Related Hot Sales
Hot Sales Products
Frequently Asked Questions
What is the main advantage of the split-core design?
The split-core design allows for non-contact current measurement without needing to disconnect the primary wire, making installation faster, safer, and easier.
What is the maximum current rating for the XH-SCT-S24?
The XH-SCT-S24 is rated for 200A, with a maximum continuous current capacity of up to 320A AC.
What is the window diameter (hole size) of this transformer?
This model features a 24mm average window diameter, suitable for various conductor sizes.
What certifications does this current transformer have?
The product is compliant with UL0808, CE, ROHS, and ISO9001 standards.
Can this sensor be used outdoors?
This specific model is designed for indoor operation conditions with an IP30 (NEMA 1) rating.
What is the accuracy class of the XH-SCT-S24?
It features a 0.5 Class accuracy rating for precise measurement and protection applications.
