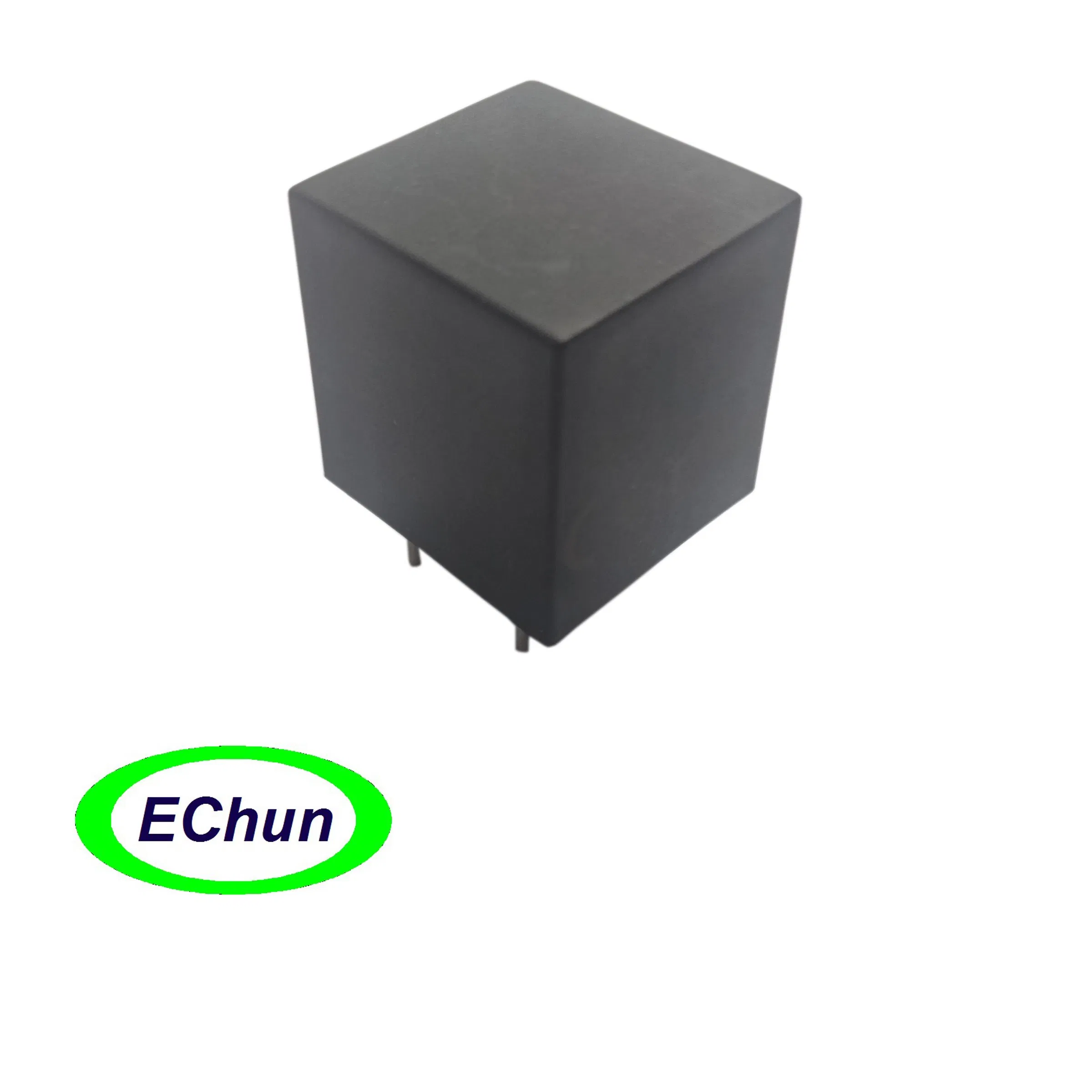

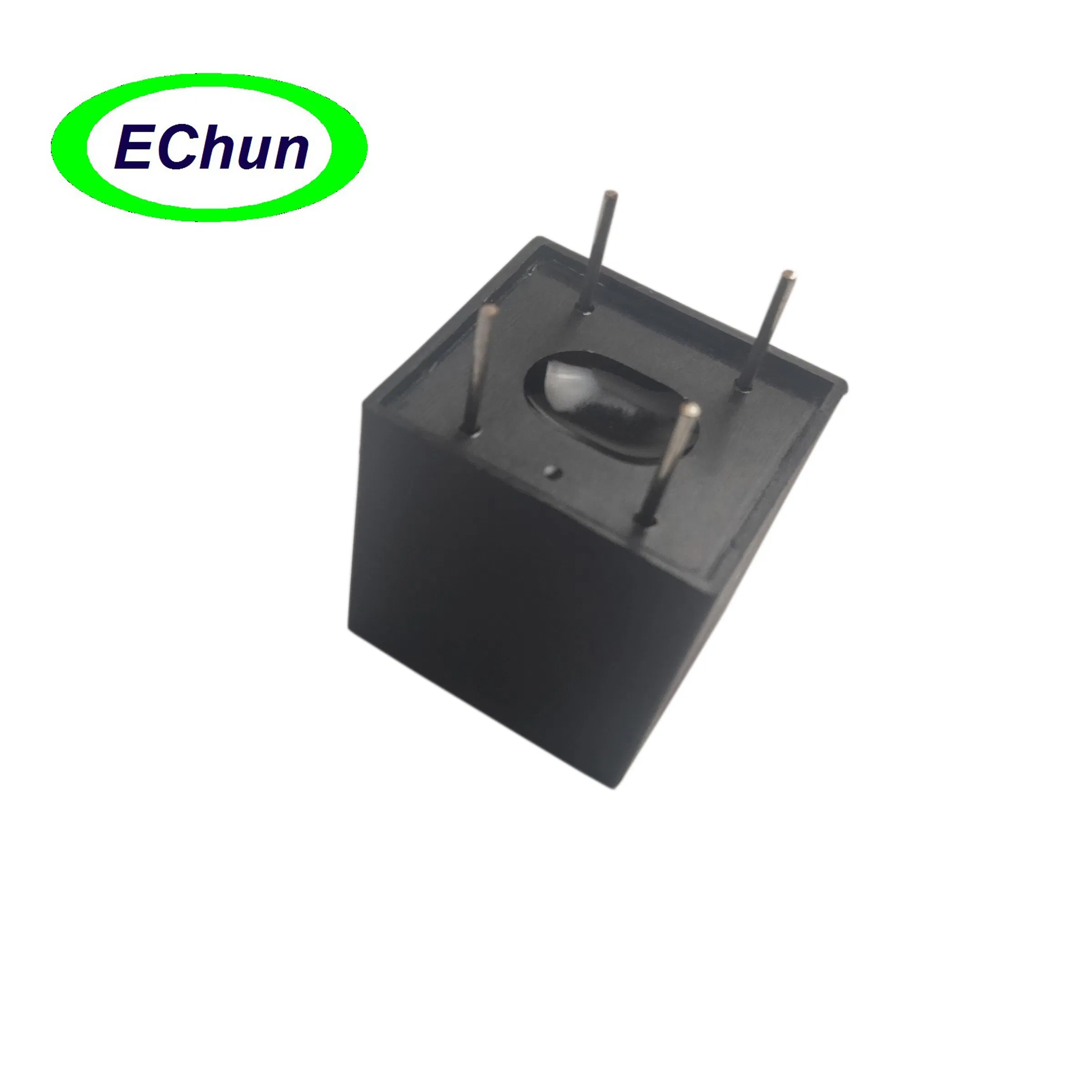

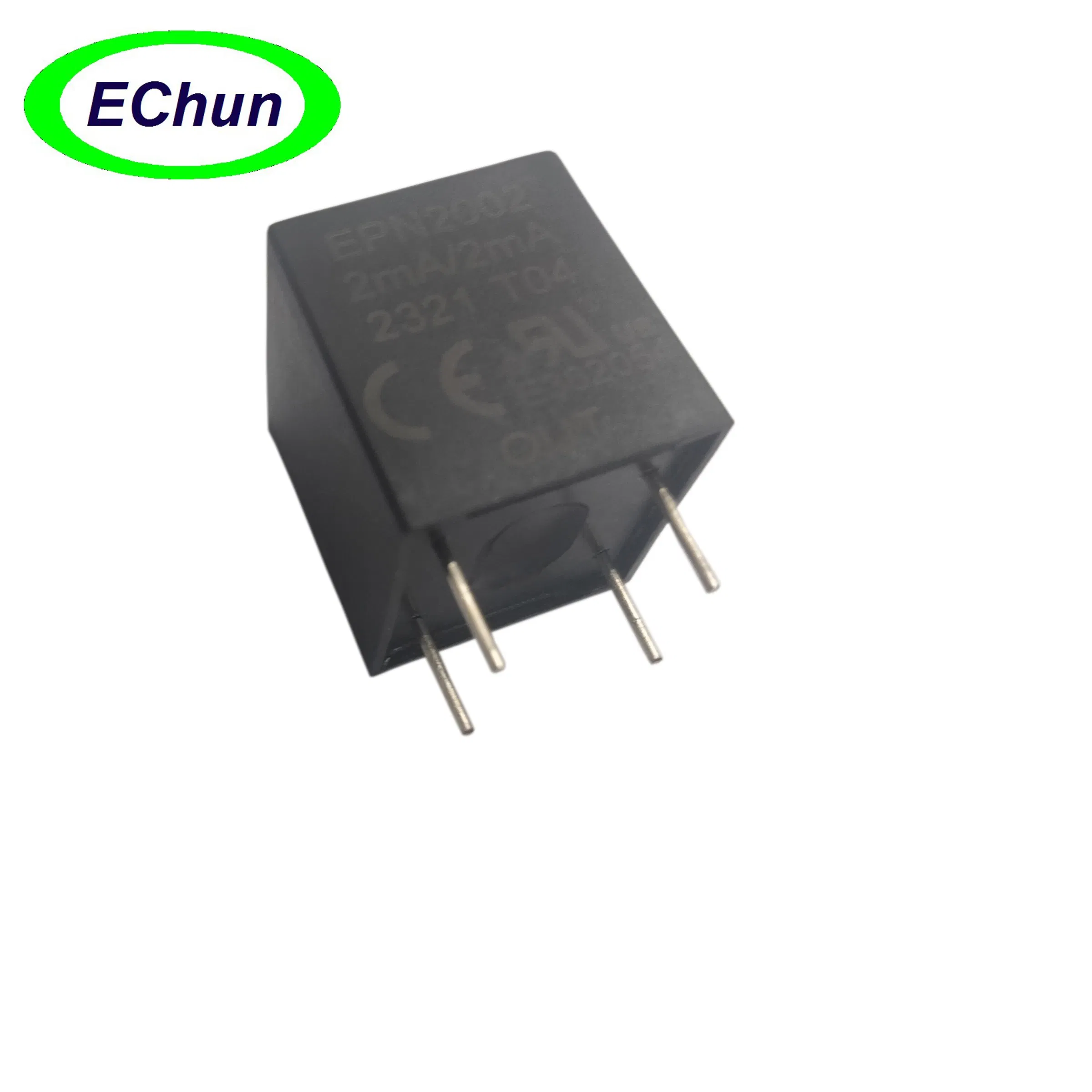

The EPN2002-T04 are high-precision potential transformers. Designed with a compact footprint, they are ideal for PCB mounting applications where cost-efficiency and reliability are paramount.

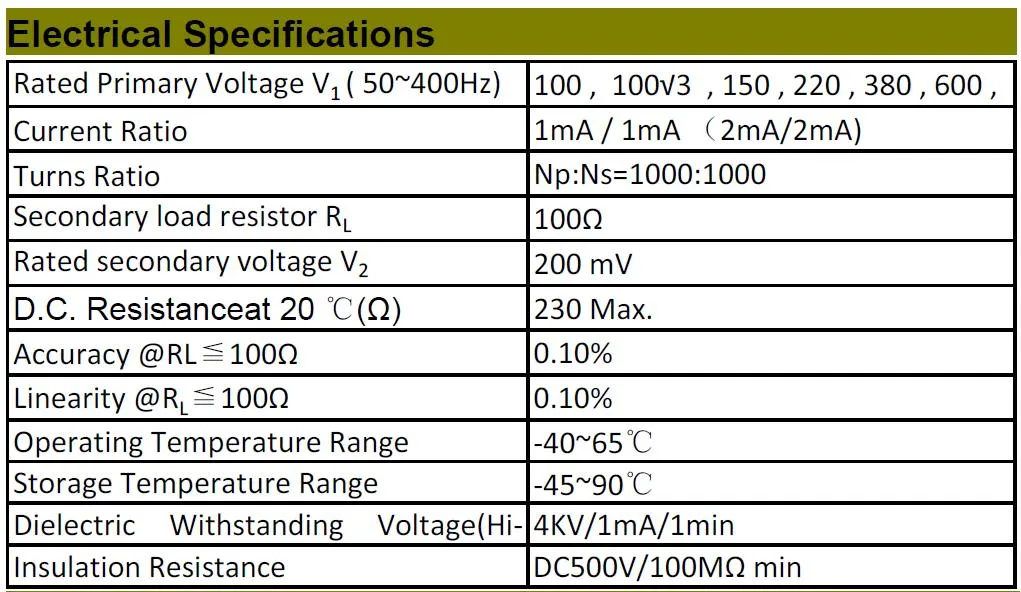

- Standard Current Ratio: 2mA/2mA
- High Accuracy Class: 0.1
- Frequency Range: 50-400Hz
- Excellent linearity across the entire operating range
- Custom design Turns-Ratio available upon request
- Design Standards: ANSI C57.13, IEC61869-2
- Fully UL Recognized and CE Certified
❓ Frequently Asked Questions
What is the primary application of the EPN2002-T04?
It is specifically designed for indoor PCB mounting, used for protection, measurement, and monitoring in electrical systems.
What certifications does this transformer hold?
The EPN2002-T04 is both UL Recognized and CE Certified, meeting international safety and quality standards.
Can the turns-ratio be customized for specific projects?
Yes, custom design turns-ratios are available to meet your specific technical requirements.
What is the accuracy level of this potential transformer?
This model offers a high accuracy class of 0.1, ensuring precise data for monitoring and measurement.
What are the housing and insulation materials?
The unit is encapsulated in Epoxy Resin for superior insulation and features a 94V-0 rated fire-resistant housing.
What is the standard operating frequency?
It is optimized for 50/60Hz systems but can operate effectively within a frequency range of 50Hz to 400Hz.
