Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
1 / 5
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer
Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer

Comewill High Quality EMS-62/40 Change Small Low-Voltage Precision Current Transformer Factory Price - CT Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
MES
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Epoxy Resin
Installation
Strut Type
Magnetic Circuit
Single Stage Type
Principle
Electromagnetic Type
Certification
ISO9001, CE, RoHS
Warranty
12 Months
Frequency
50/60Hz
Primary Current
30A-3000A
Secondary Current
5A or 1A
Rated Voltage
0.72kv AC
Accuracy
0.5, 1.0, 3.0
!

Product Description

We support various customized transformers. Our production system covers R&D, manufacturing, sales, and service across a full chain of electrical components.

The product range includes cable plug-in connectors, current and voltage transformers, temperature and humidity controllers, electromagnetic locks, and heaters. We are committed to offering high-quality products and services to satisfy evolving industrial needs.

OEM & ODM SERVICES AVAILABLE FOR VARIOUS TYPES OF CT/VT.

L

Technical Parameters

Parameter Item Specification Details
Rated frequency50Hz/60Hz
Rated test voltage3kv AC (1min)
Rated short-time thermal current (Ith)1.2 in
Rated dynamic current (Idyn)2.5Ith
Rated voltage (Um)0.72kv AC
Continuous overload (Id)1.2In
Operating temperature-10°C~50°C
Housing self-extinguishing classVO
Safety factorFS 5
Secondary current5A / 1A
Type Ratio (A) Burden Class: 0.5 (VA) Burden Class: 1.0 (VA)
MES-62/3030/5/2.5 (4T)
MES-62/3040/5/2.5 (3T)
MES-62/3050/5/2.5 (2T)
MES-62/3060/5/2.5 (2T)
MES-62/3075/5/1.5
MES-62/30100/51.52.5
MES-62/30150/52.53.75
MES-62/30200/53.755
P

Product Display

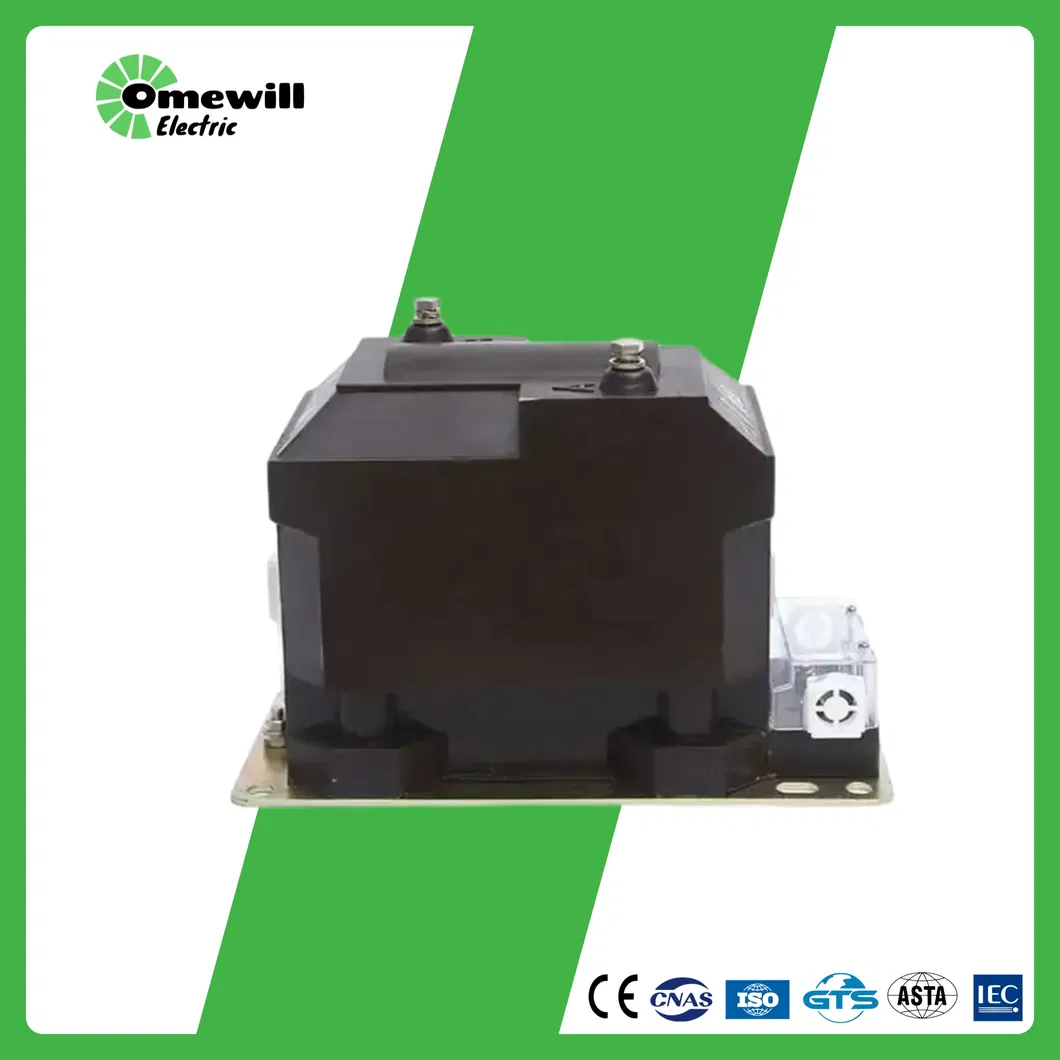

Current Transformer 1

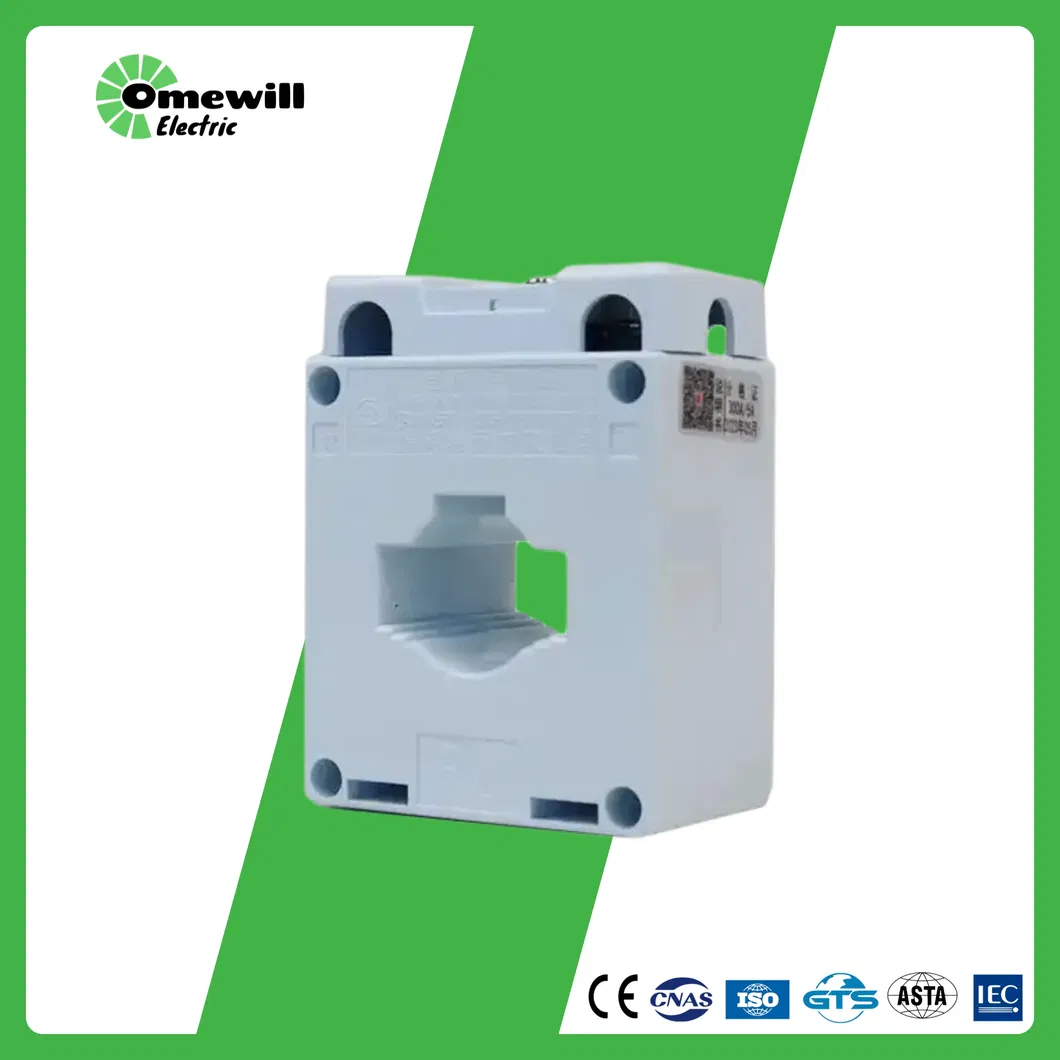

Current Transformer 2

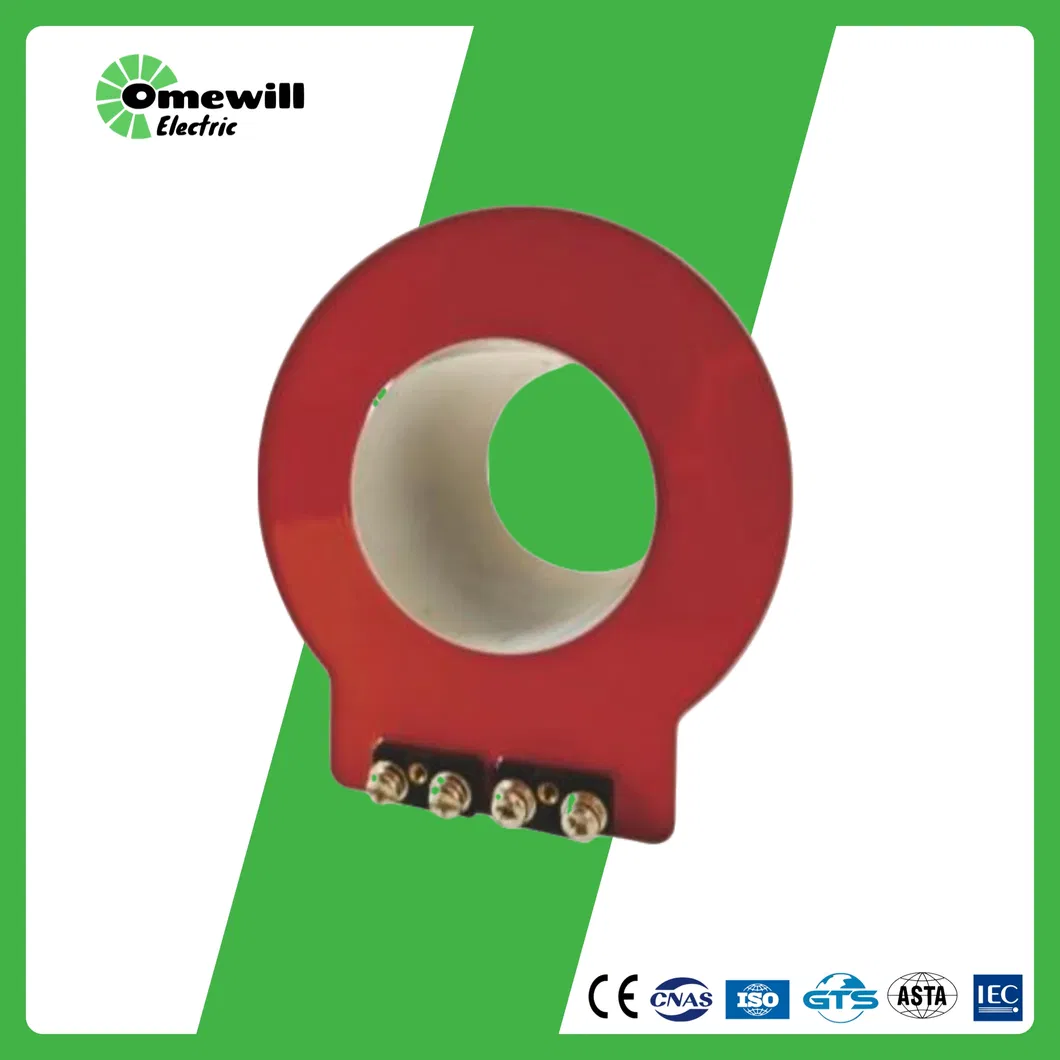

Current Transformer 3

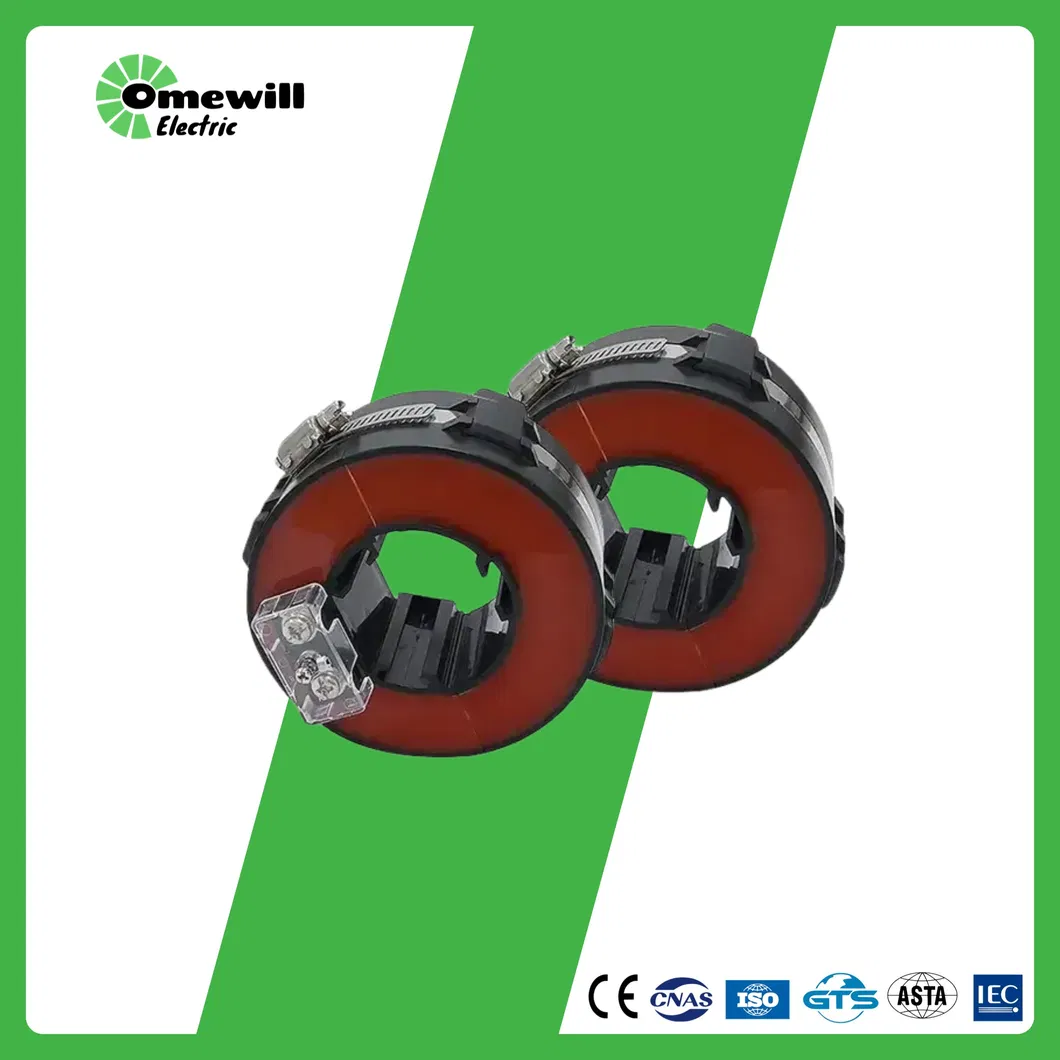

Current Transformer 4

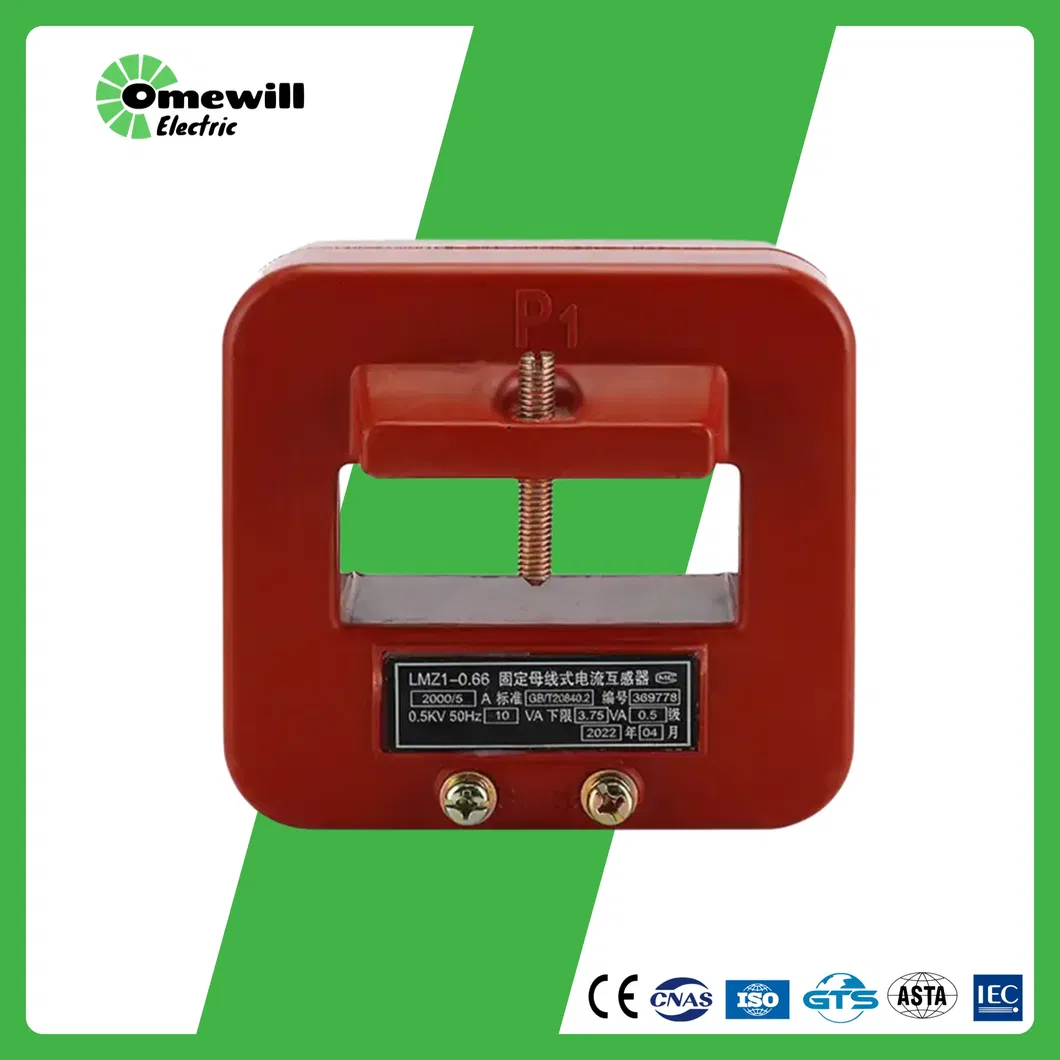

Current Transformer 5

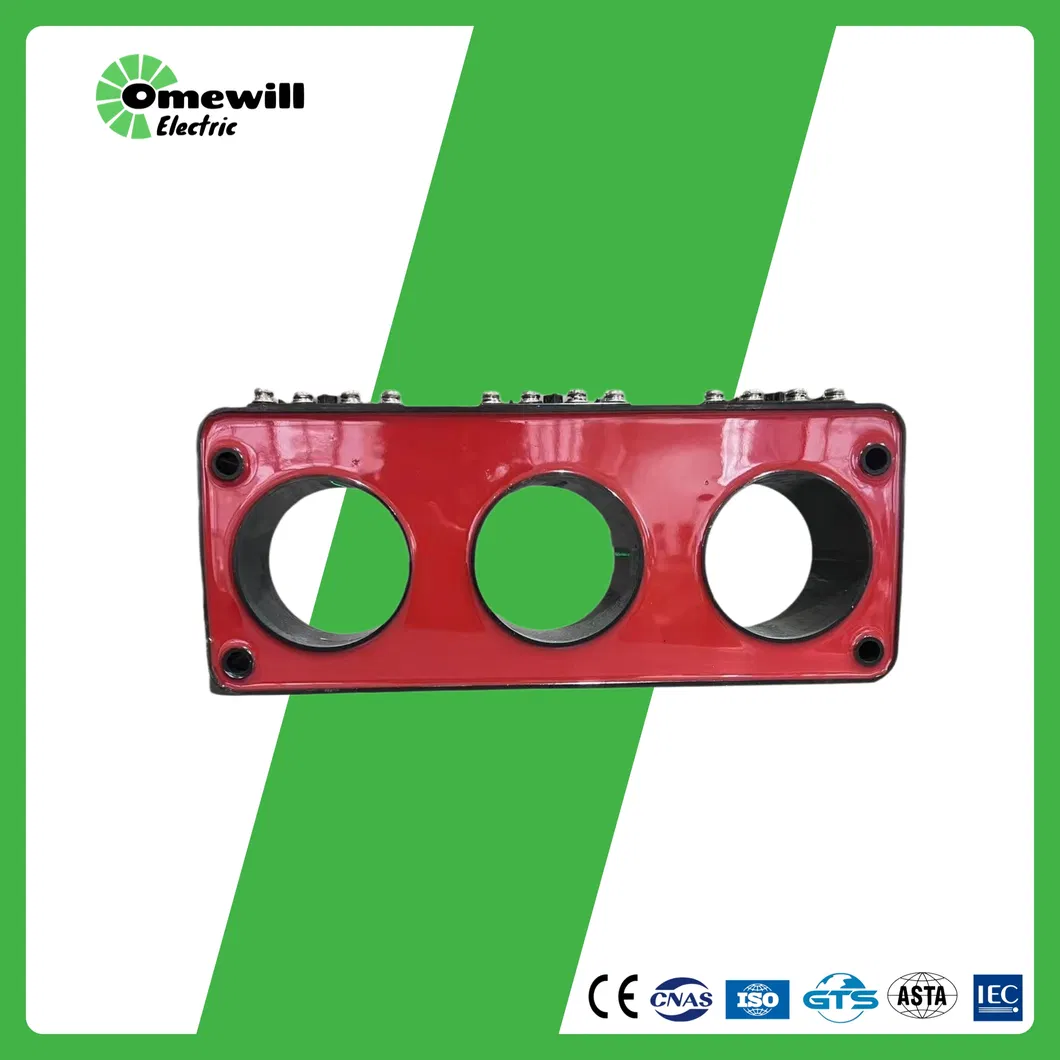

Current Transformer 6
Current Transformer 7
Current Transformer 8
Current Transformer 9

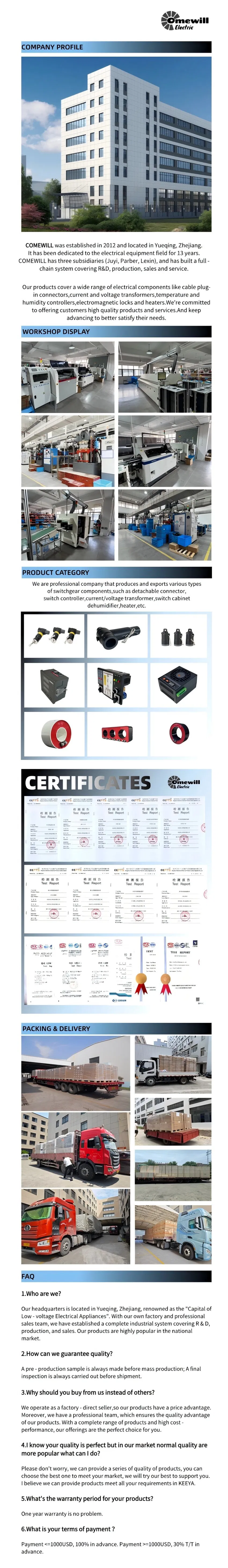

Detailed Product Specifications
?

Frequently Asked Questions

What is the rated voltage for the MES series current transformer?
The rated voltage (Um) for the MES series is 0.72kv AC.
What accuracy classes are supported by these transformers?
These transformers support accuracy classes of 0.5, 1.0, and 3.0, depending on the specific model and burden requirements.
Can I request a customized transformer (OEM/ODM)?
Yes, we support various customized transformers and offer both OEM and ODM services to meet specific technical requirements.
What is the operating temperature range for indoor installation?
The standard operating temperature range is from -10°C to 50°C.
What materials are used for insulation and housing?
The transformers use Epoxy Resin as the insulating medium and feature a housing with a VO self-extinguishing class for safety.
What is the primary current range available?
The primary current range spans from 30A up to 3000A, with secondary current options of 5A or 1A.
