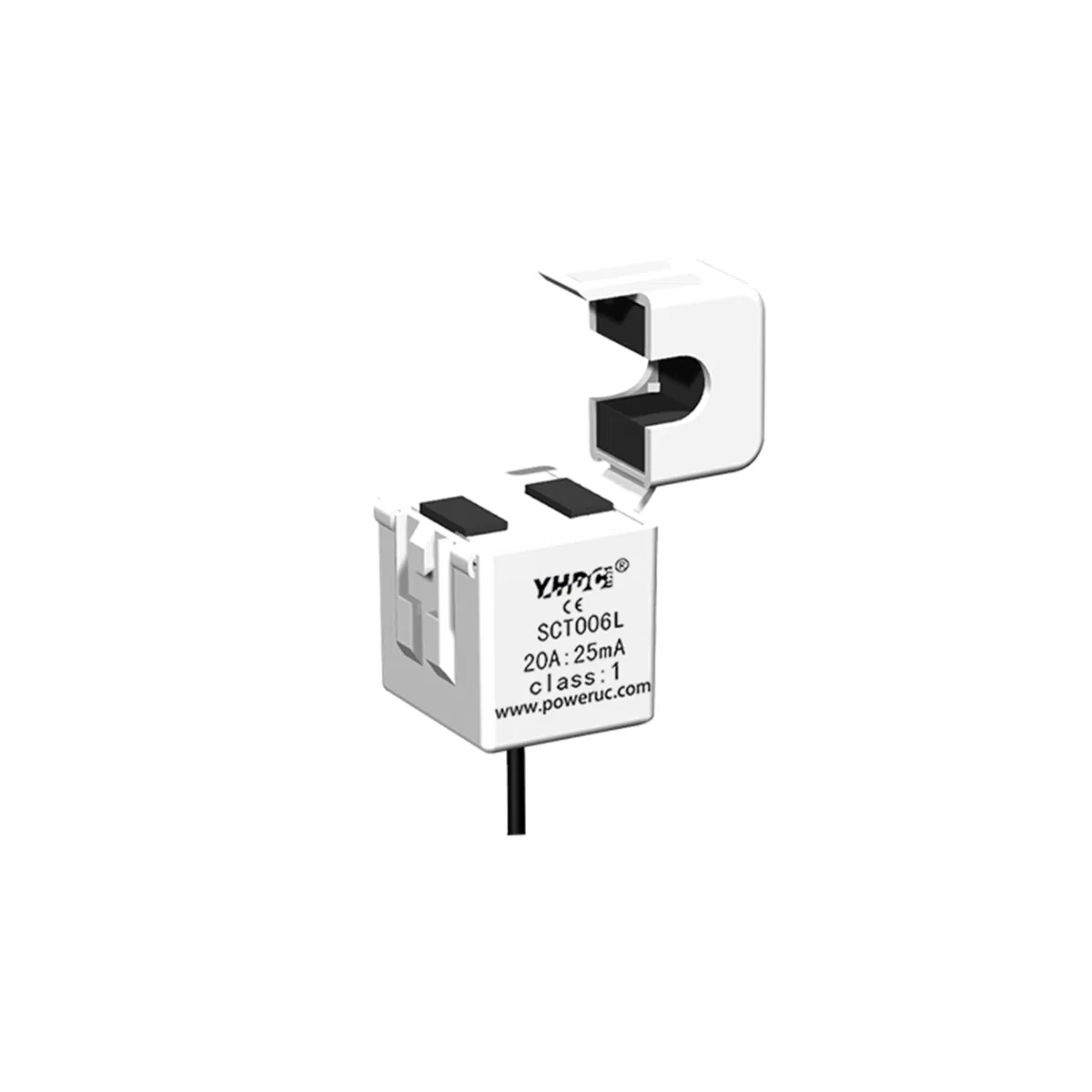

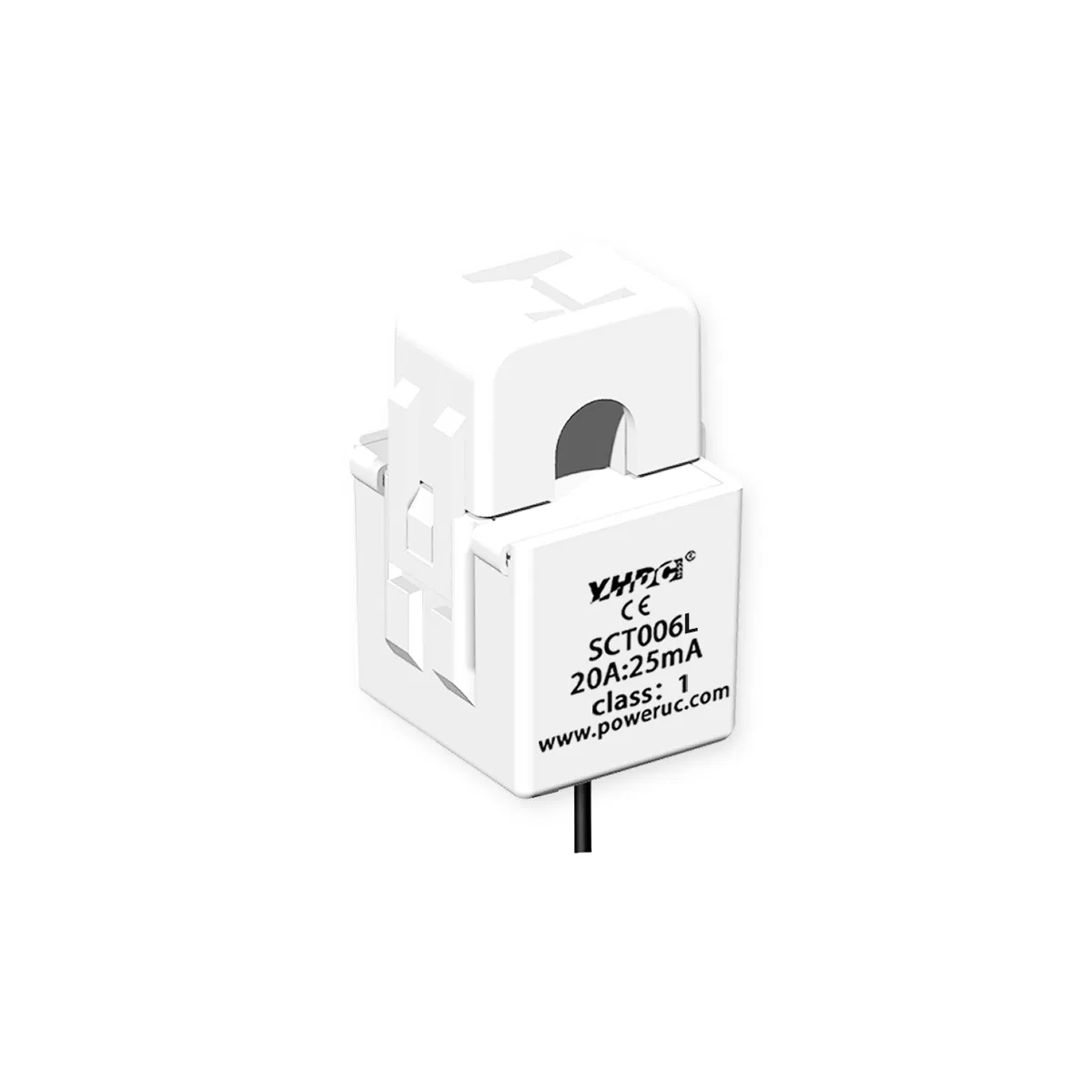

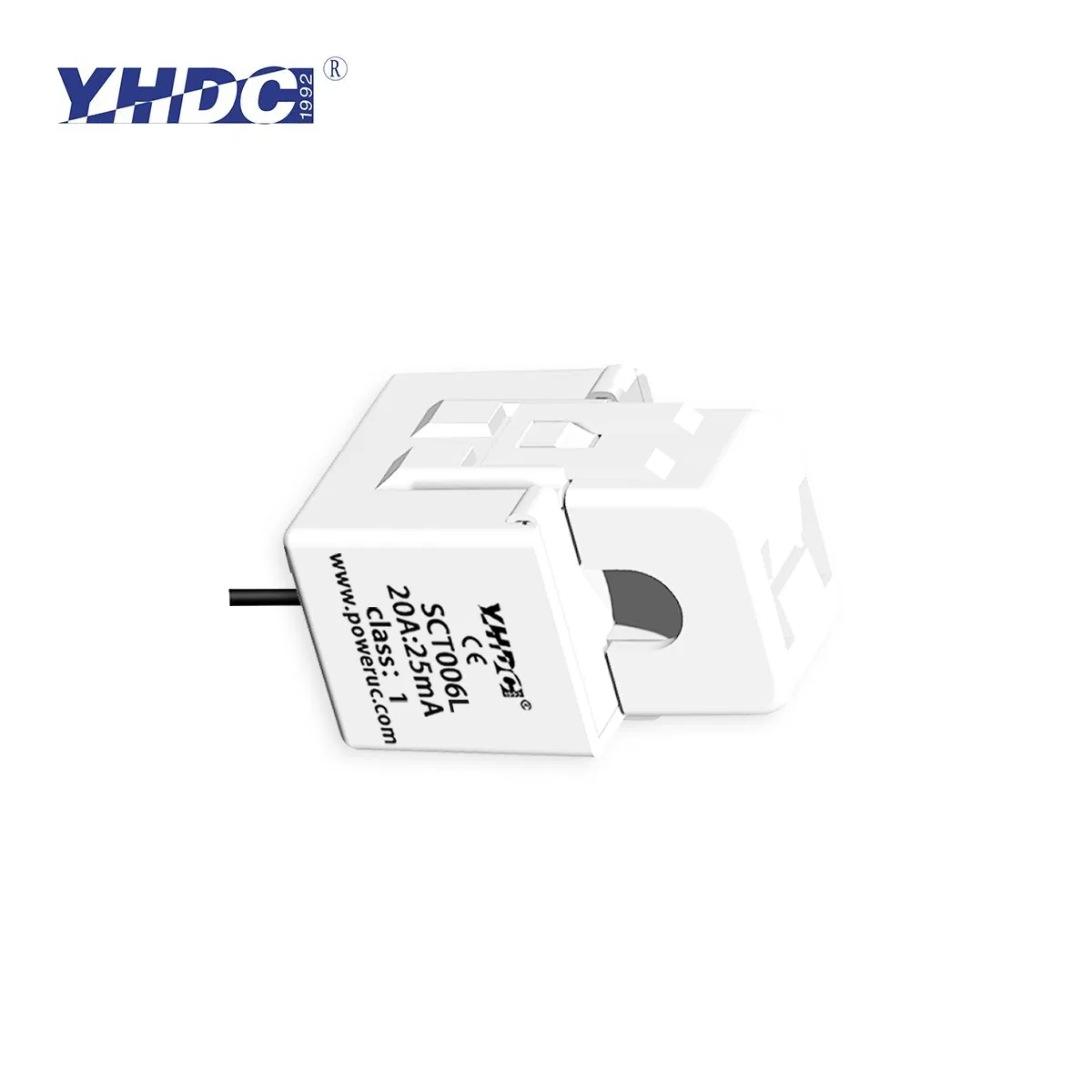

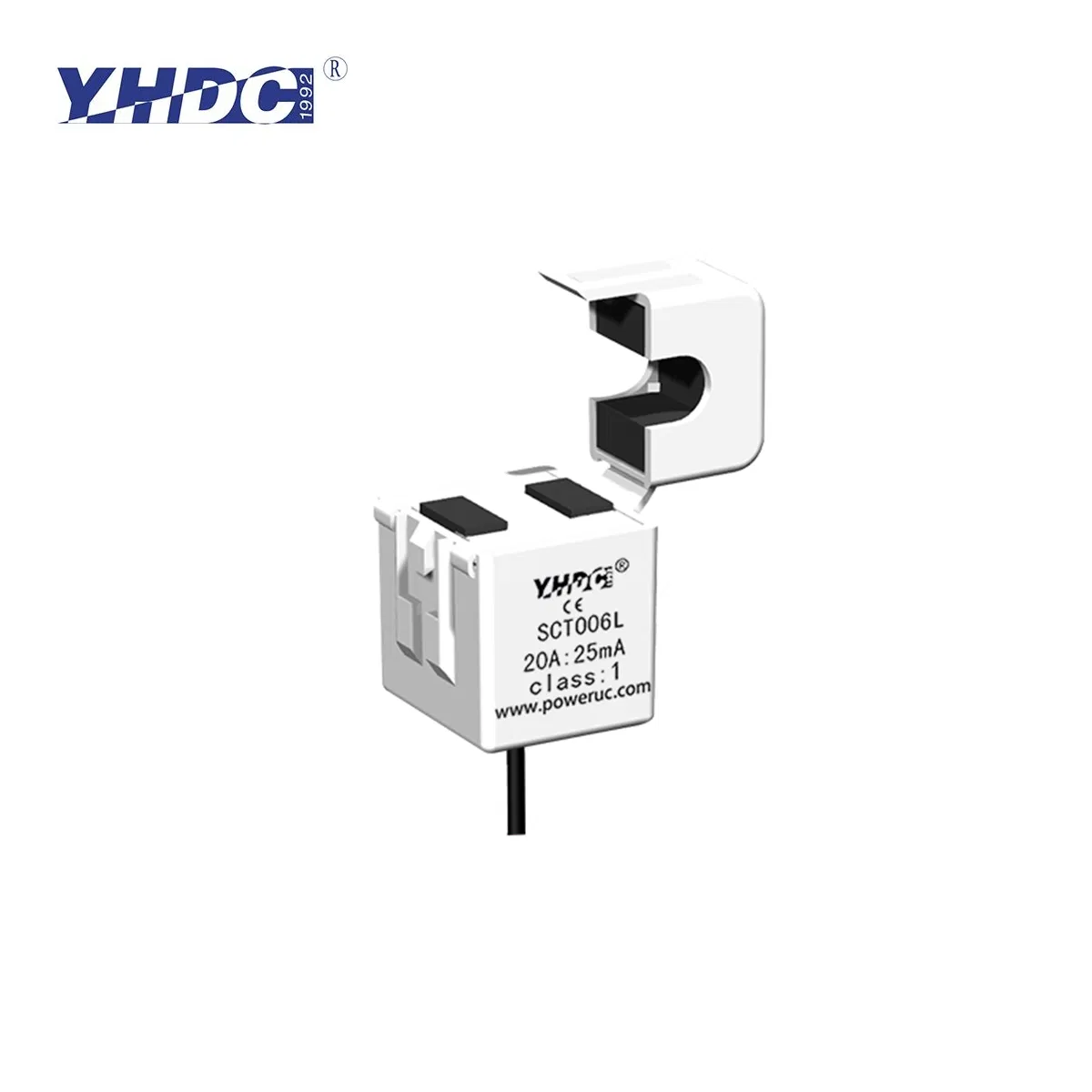

CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
1 / 5
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns
CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns

CE/RoHS Yhdc-Sct006L Clamp on CT Sensor Split Core Current Transformer 20A/25mA 800turns

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
SCT006L
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound
Insulating Medium
Insulating Paper
Installation
Free Hanging (in-Line)
Opening Size
6mm
Input / Output
20A / 25mA
Accuracy
1%
Rated Voltage
720V
Certificates
CE/RoHS/Reach/ISO9001
💡

Product Overview

Clamp on CT Sensor Split Core Current Transformer 20A/25mA (800 turns)

Split core current transformers are designed for installation on current-intensive power lines or equipment. They output measured current signals for monitoring, measurement, or protection without the need to disconnect primary cables.

Key Characteristics:

  • Safety lock buckle design
  • Easy non-intrusive installation
  • Small form factor for tight spaces
  • High accuracy for kWh meters

Main Applications:

  • Electrical wiring monitoring
  • Electric motors & HVAC systems
  • Automation-control systems
  • Charging piles & Data centers
  • Relay protection devices
⚙️

Technical Index

Material of Core
Ferrite
Frequency Range
50Hz - 1KHz
Operating Temp
-25ºC ~ +60ºC
Storage Temp
-30ºC ~ +90ºC
Waterproof Grade
IP00
Dielectric Strength
AC 3.5KV/1min 50Hz
Model SCT006L Options
Input 1A 5A 10A 20A
Output 1mA 2.5mA / 5mA / 10mA 5mA / 10mA / 20mA 20mA / 25mA
📏

Dimensions & Technical Drawings

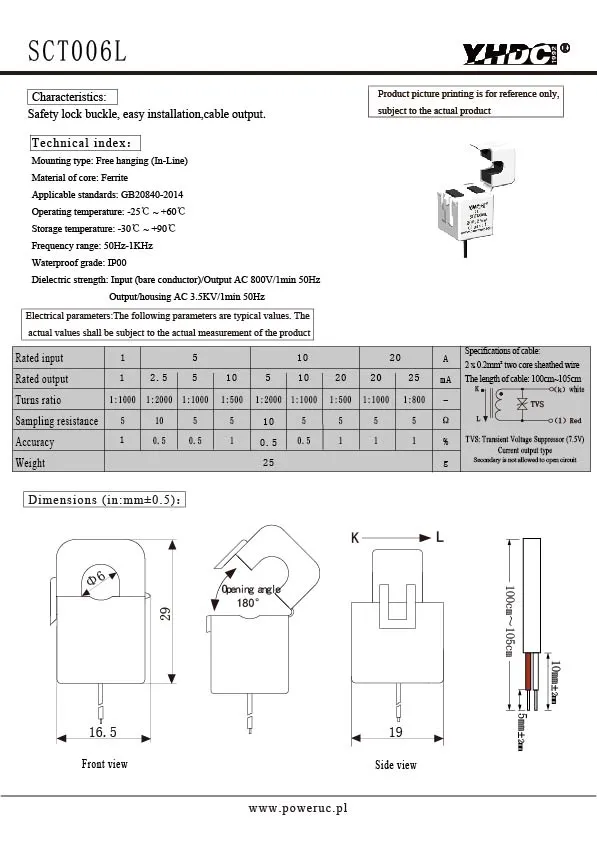

Dimensions 1

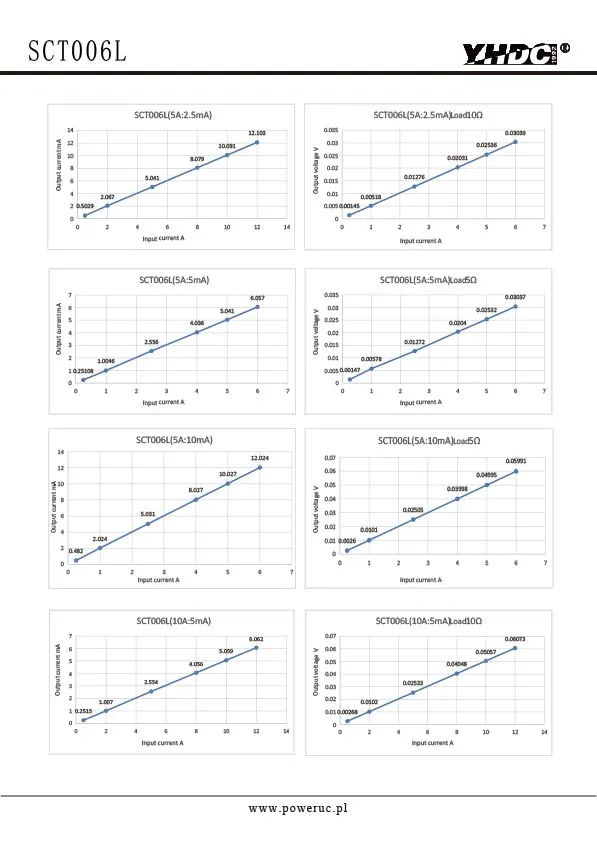

Dimensions 2

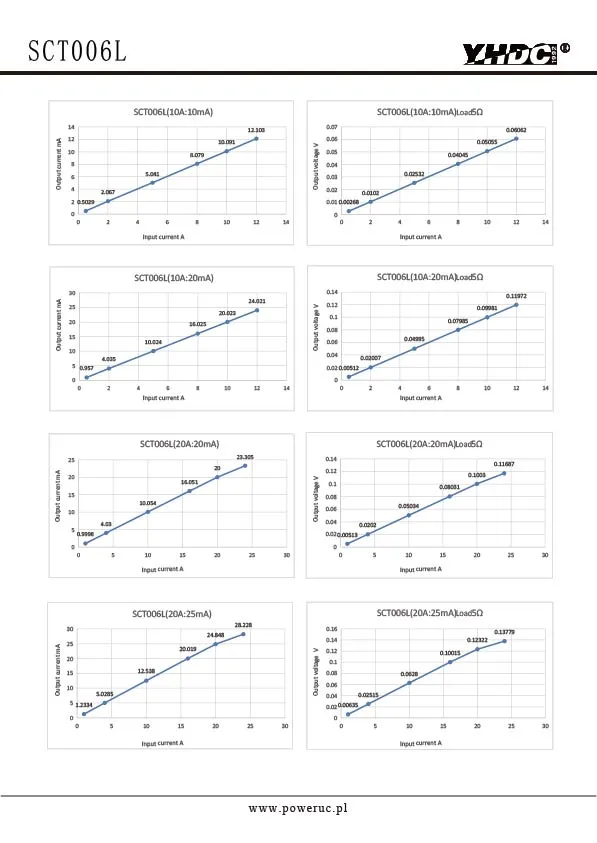

Dimensions 3
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
❓

Frequently Asked Questions

What is the advantage of a split core current transformer?
The primary benefit is that it can be installed easily without disturbing or disconnecting the main cables, making it ideal for retrofitting and maintenance.
Can I customize the input and output parameters?
Yes, we provide various input (1A-20A) and output (1mA-25mA) configurations to meet specific project requirements.
What is the typical lead time for an order?
Standard delivery time is approximately 5-7 working days depending on the order volume.
Is the SCT006L suitable for outdoor use?
This model is rated for indoor operation conditions with an IP00 waterproof grade.
What safety standards does this CT comply with?
It complies with GB20840-2014 standards and holds CE, RoHS, and Reach certifications.
How do I place an order?
You can contact our sales team directly via email with your specific requirements or use our online ordering system.
