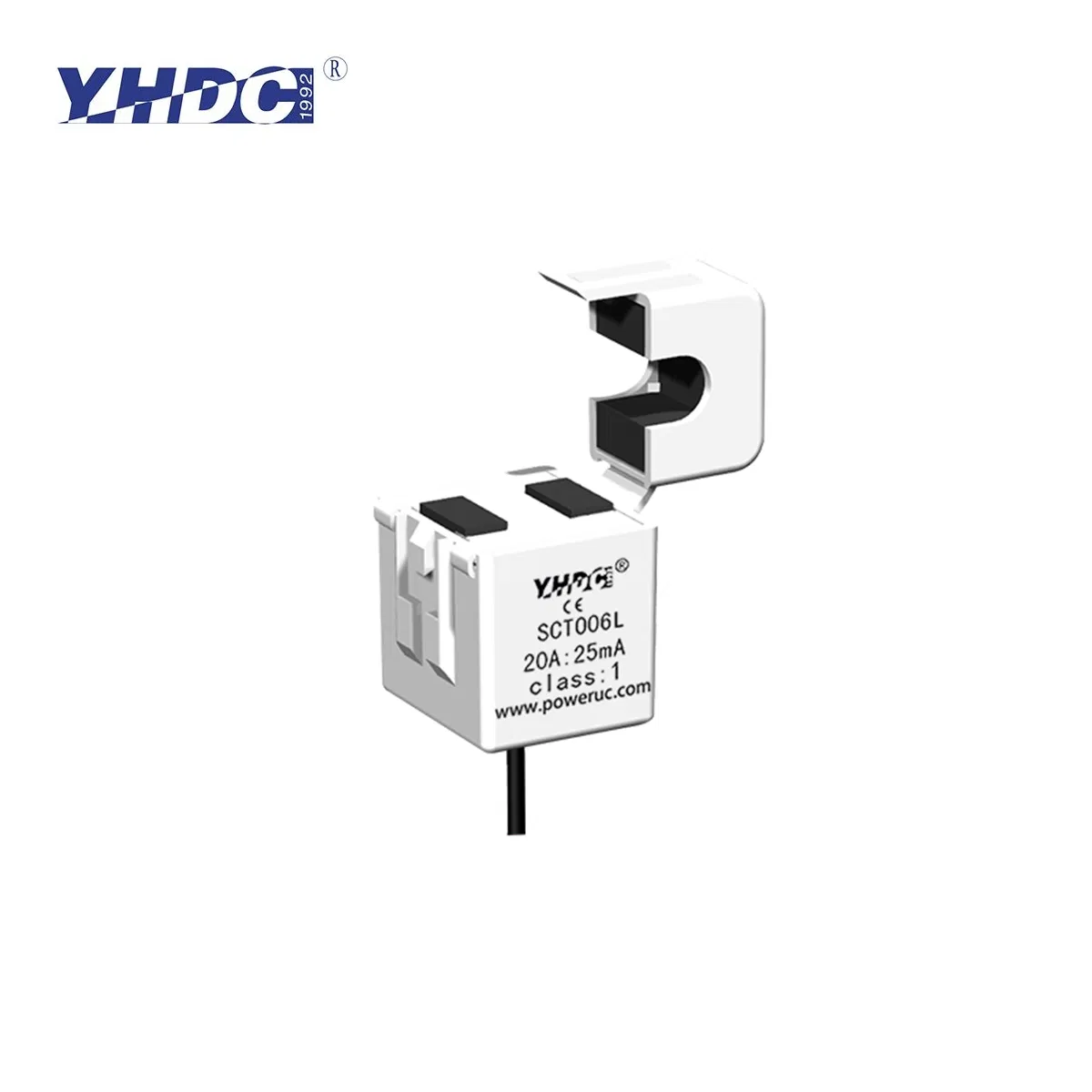

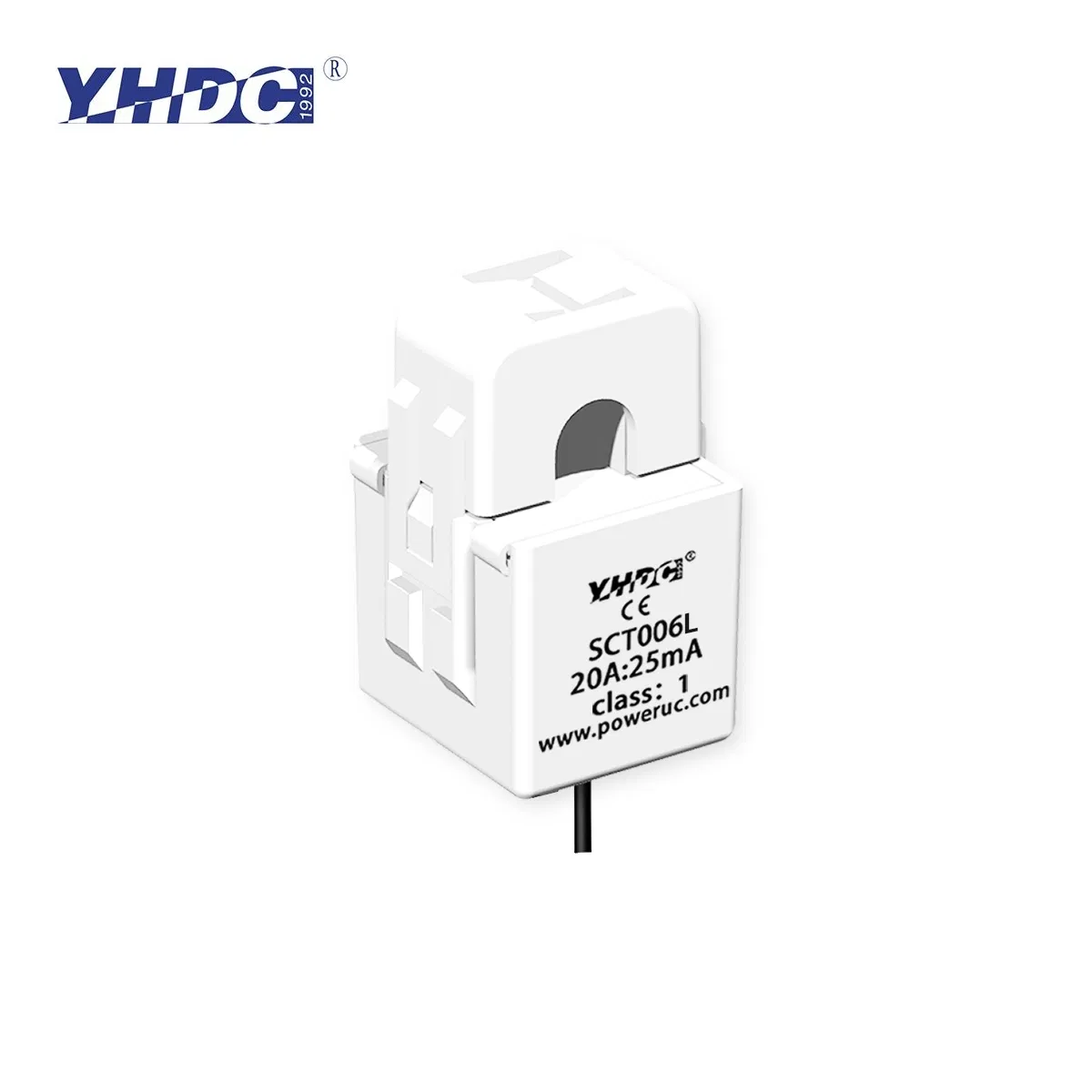

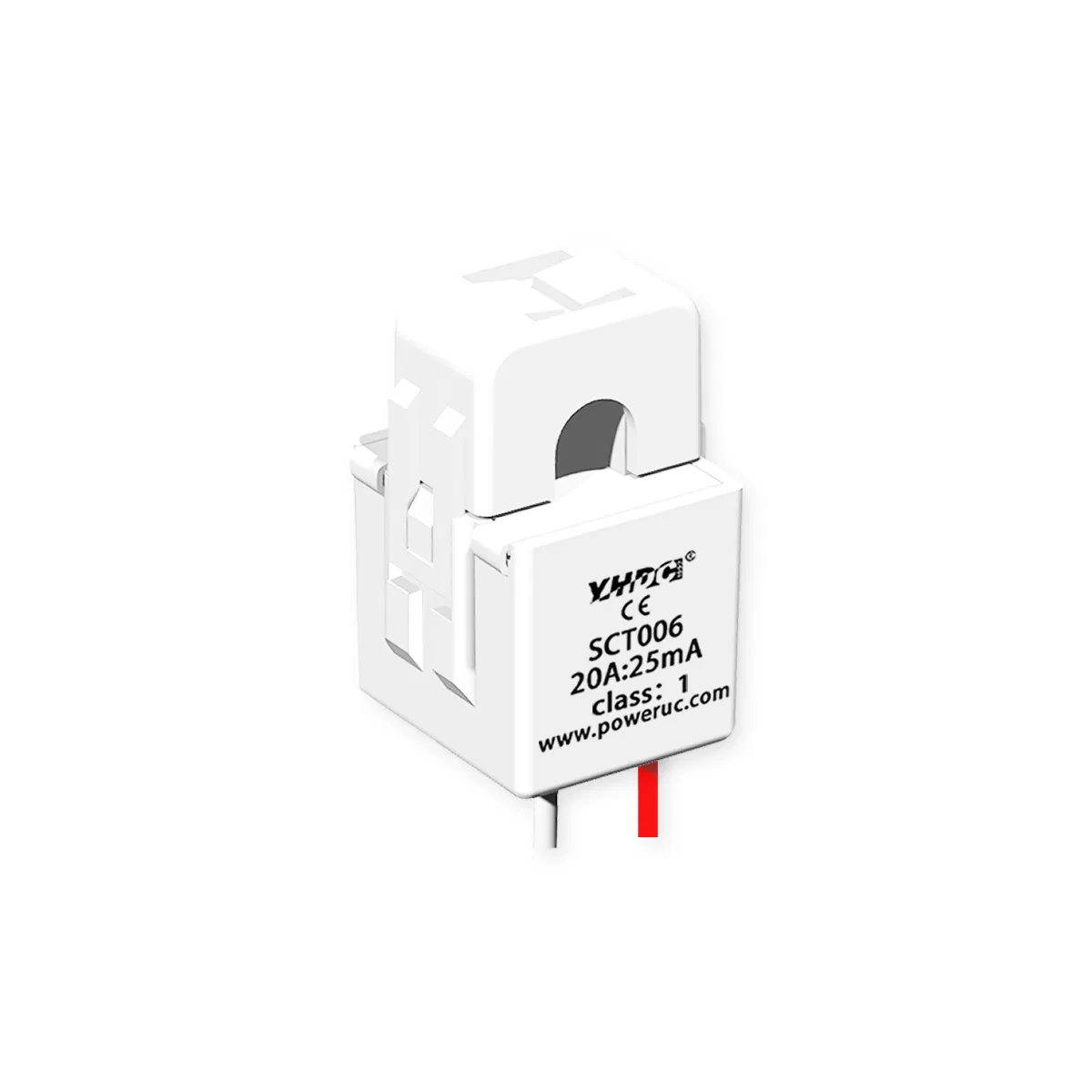

CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
1 / 5
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA
CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA

CE Certificate Yhdc Sct-006L Clamp on CT Sensor Split Core Current Transformer 5A/2.5mA

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview

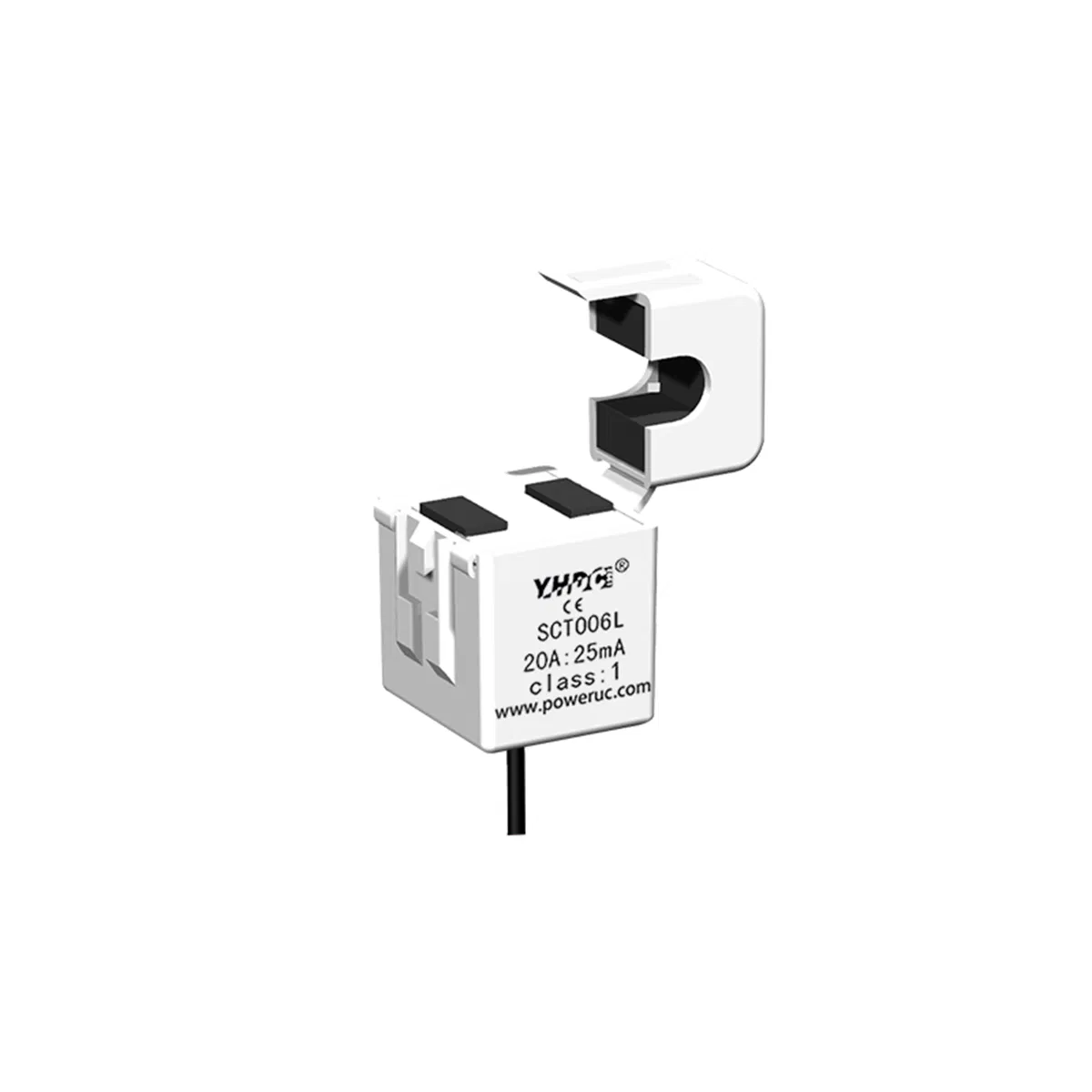

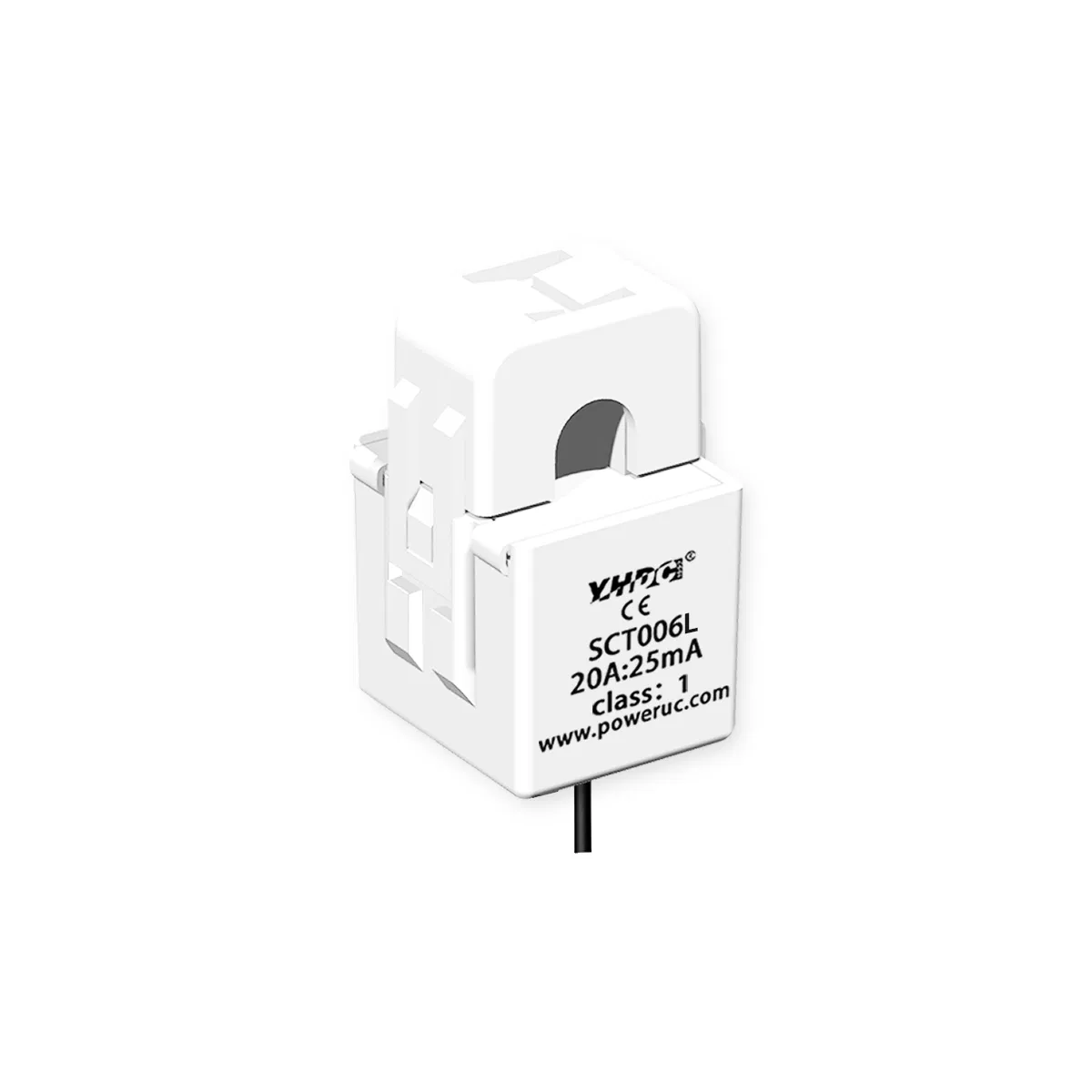

SCT-006L Clamp on CT Sensor is a split core current transformer designed for monitor measurement or protection. These transformers can be placed into position easily without disturbing or disconnecting the main cables, maintaining high accuracy for kWh meters.
Model NO.
SCT-006L
Phase
Single
Opening Size
6mm
Input
5A
Output
2.5mA
Accuracy
0.5%
Rated Voltage
720V
Frequency
50-1kHz
Material of Core
Ferrite
Certificates
CE/RoHS/Reach/ISO9001
Key Applications
Current measurement, monitoring and protection for electrical wiring and equipment.
Power measurement for electric motors, lighting, and HVAC systems.
Automation-control systems and data centers.
Relay protection and charging piles.
Technical Index
Mounting Type: Free hanging (In-Line)
Operating Temperature: -25ºC ~ +60ºC
Storage Temperature: -30ºC ~ +90ºC
Waterproof Grade: IP00
Dielectric Strength: Output/Housing AC 3.5KV/1min 50Hz
Product Parameters
Model SCT006L
Input 1A 5A 10A 20A
Output 1mA 2.5mA 5mA 10mA 5mA 10mA 20mA 20mA 25mA

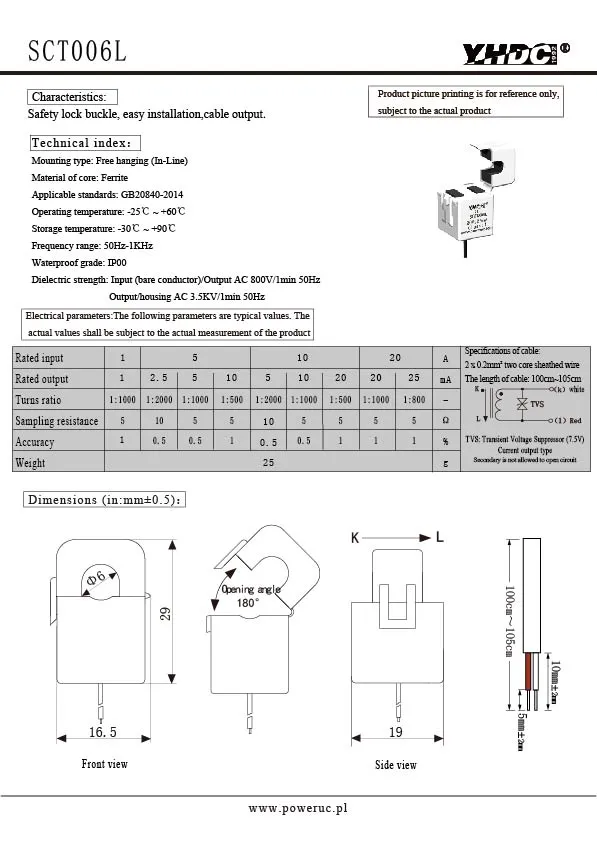

Dimensions & Technical Drawings

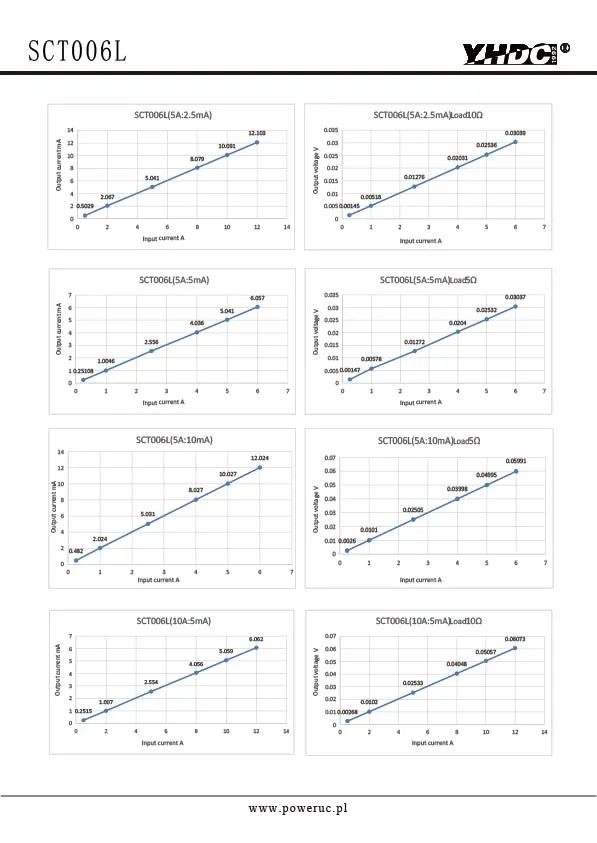

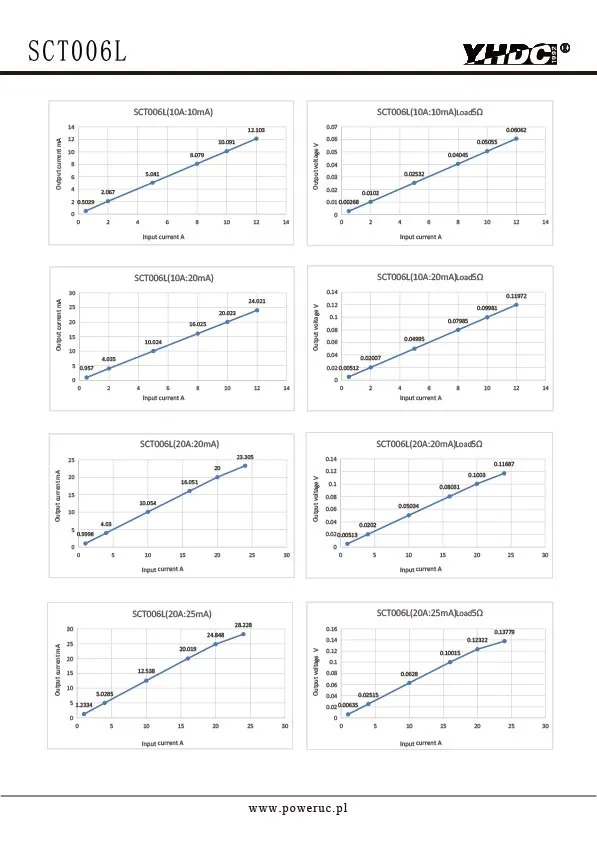

SCT-006L Dimensions 1 SCT-006L Dimensions 2 SCT-006L Dimensions 3 SCT-006L Tech Drawing 1 SCT-006L Tech Drawing 2 SCT-006L Product Image SCT-006L Installation SCT-006L Specifications
FAQ
What are the advantages of using a split-core current transformer like the SCT-006L?
The primary benefit is that it can be installed easily without disconnecting or disturbing the main cables, making it ideal for retrofitting and energy monitoring in existing systems.
What is the accuracy class of this sensor?
The SCT-006L features an accuracy level of 0.5%, which is suitable for high-precision energy measurement and kwh meters.
What is the maximum opening size for the cable?
The opening size for the SCT-006L model is 6mm, specifically designed for small-diameter wiring.
What certifications does the product hold?
The product is certified with CE, RoHS, Reach, and manufactured under ISO9001 quality management systems.
What is the operating temperature range?
The device is designed to operate reliably between -25ºC and +60ºC, with a storage temperature tolerance up to +90ºC.
Can this be used for outdoor applications?
This model is rated for indoor operation conditions with a waterproof grade of IP00.
