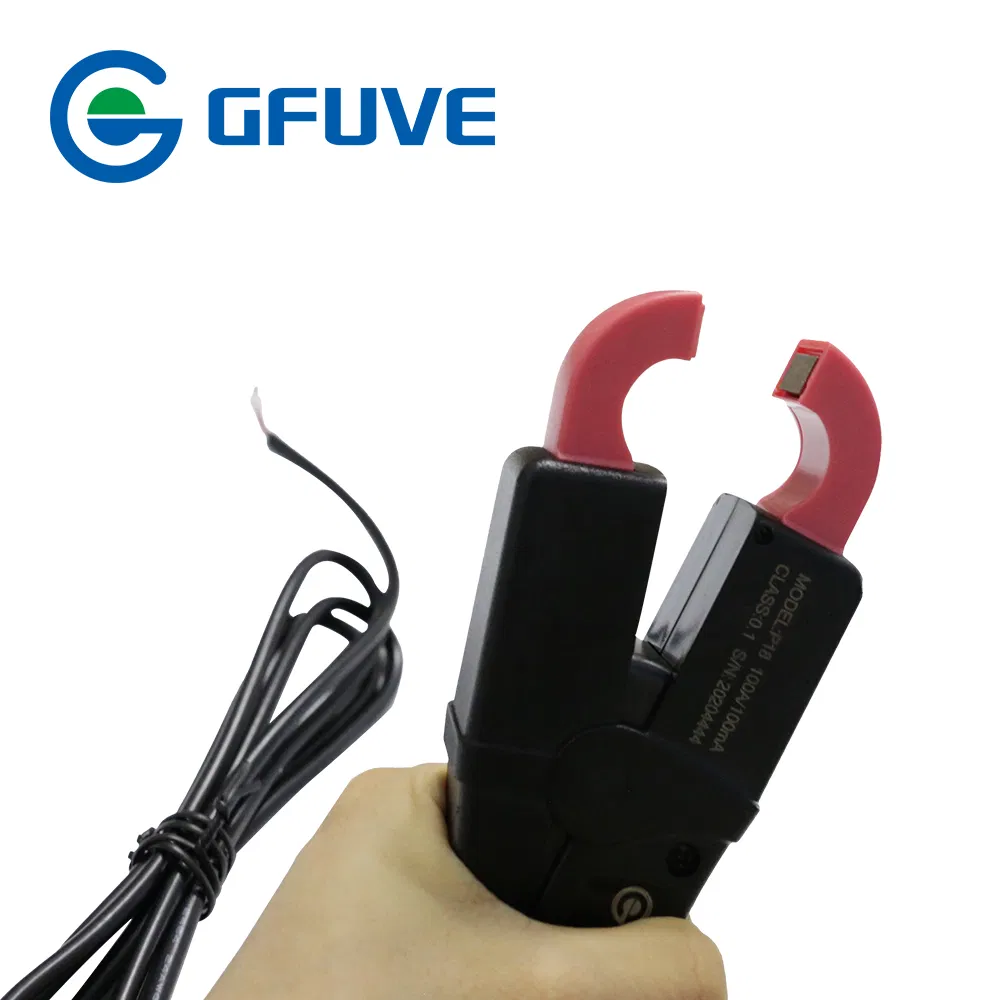

P18 AC Split Core Current Transformer Voltage Output AC Current Clamp

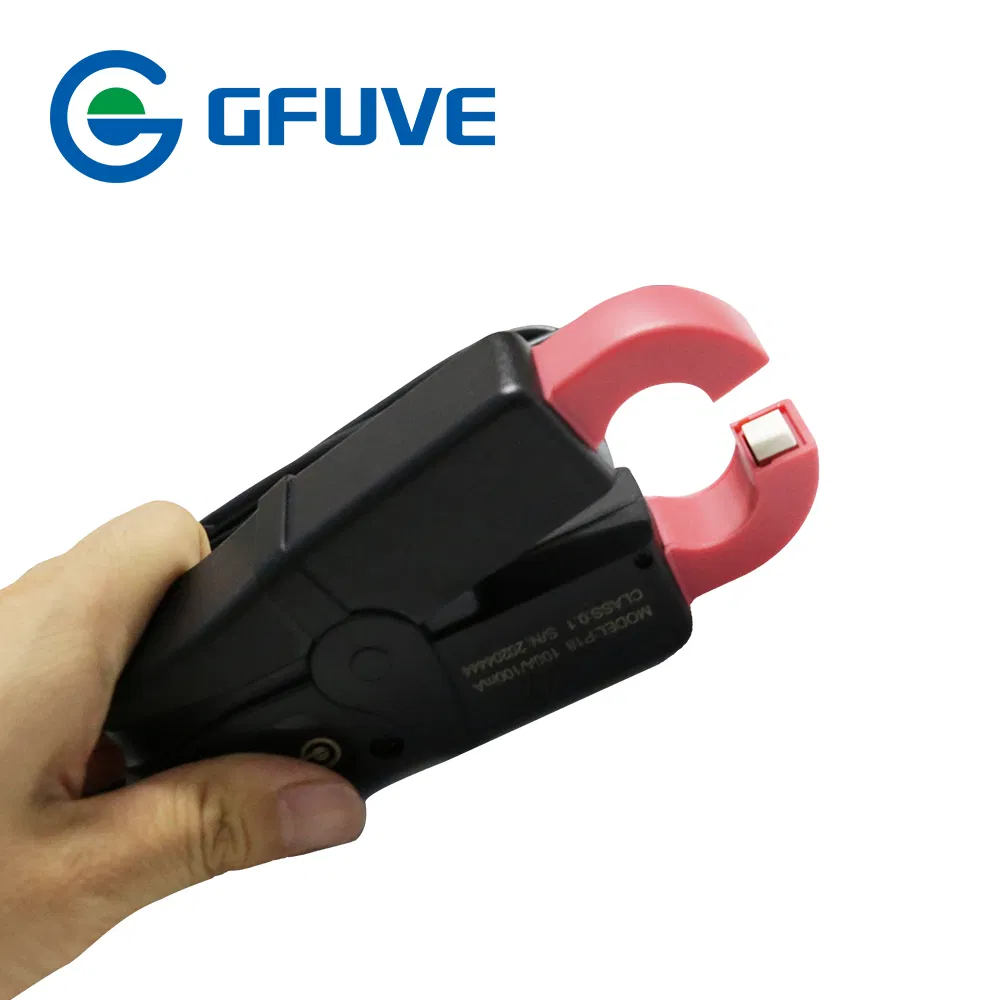

P18 AC Split Core Current Transformer Voltage Output AC Current Clamp

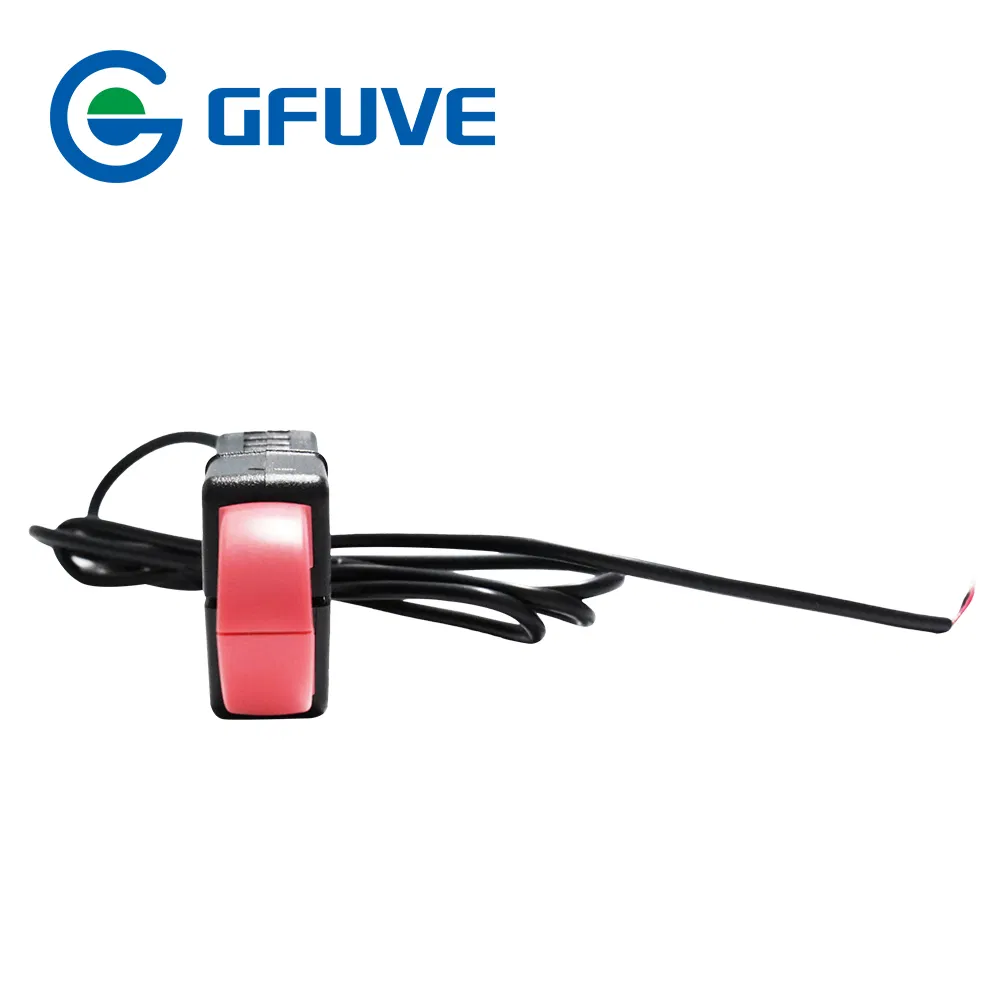

P18 AC Split Core Current Transformer Voltage Output AC Current Clamp

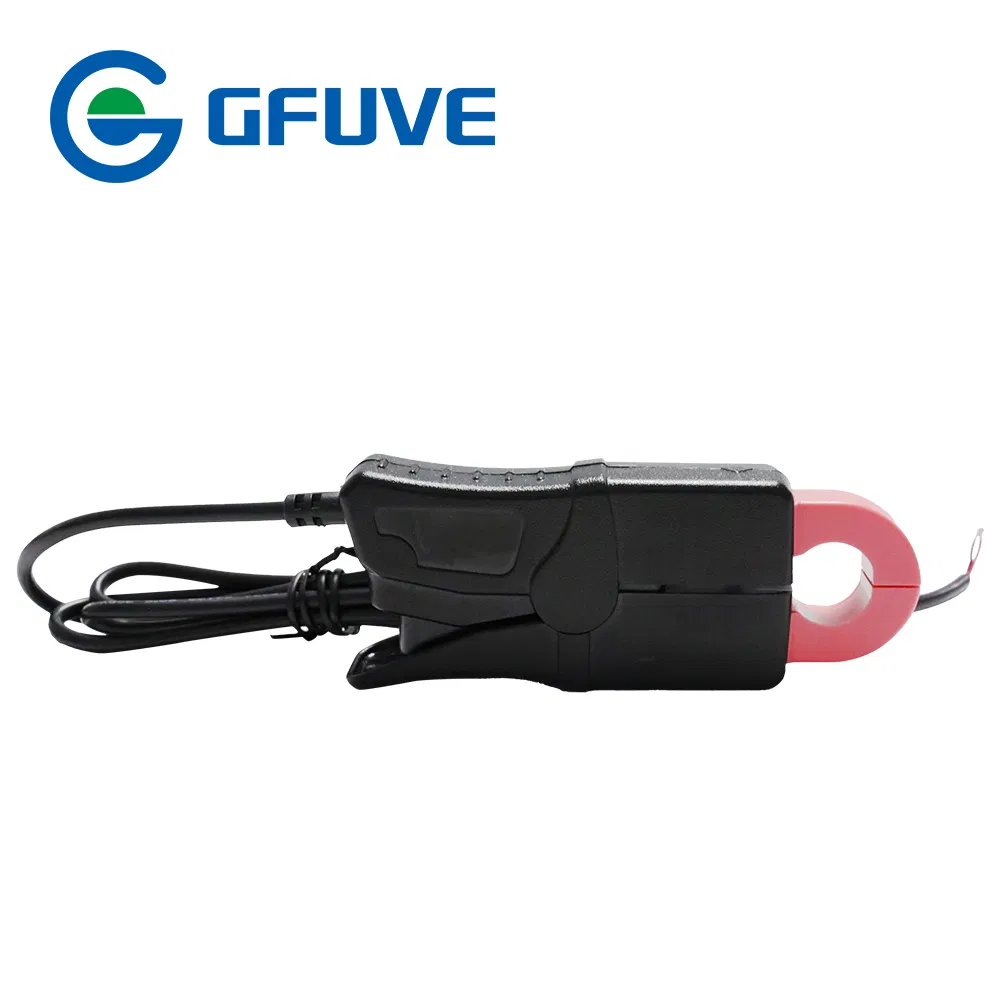

P18 AC Split Core Current Transformer Voltage Output AC Current Clamp

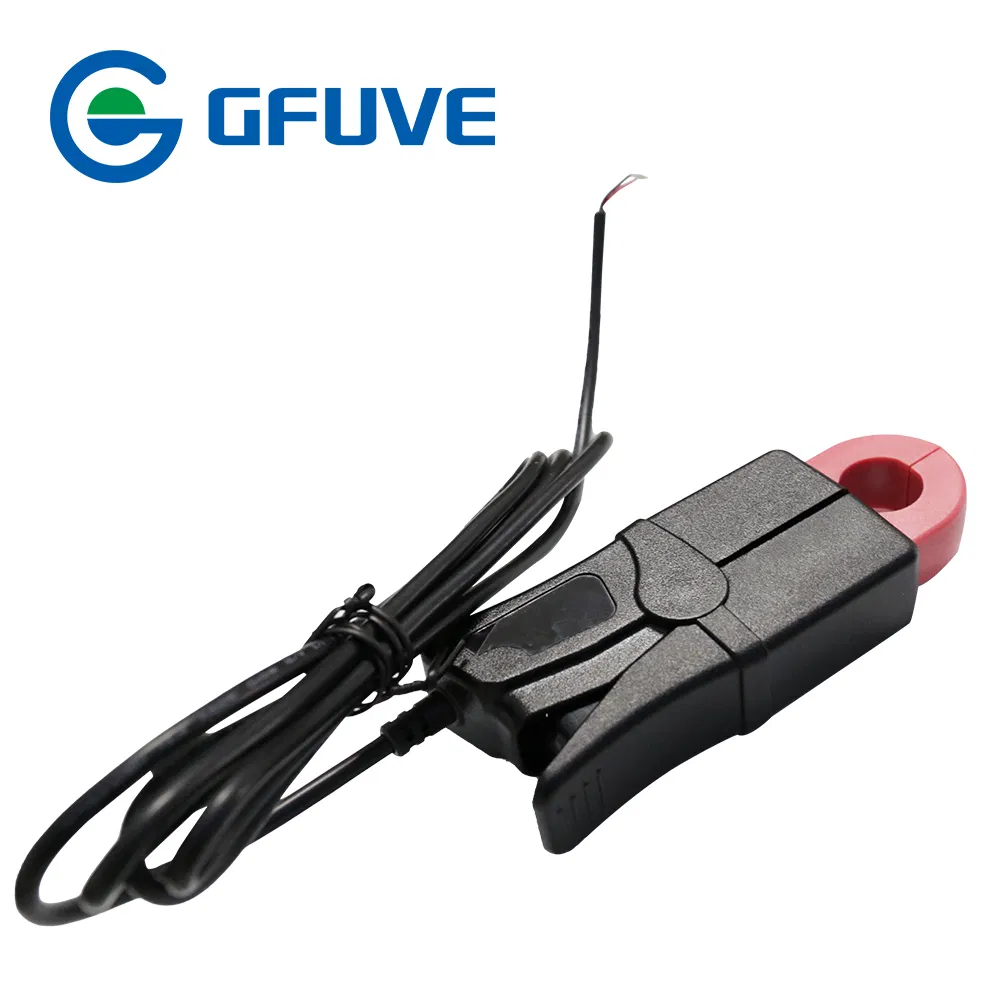

P18 AC Split Core Current Transformer Voltage Output AC Current Clamp
1 / 5
P18 AC Split Core Current Transformer Voltage Output AC Current Clamp
P18 AC Split Core Current Transformer Voltage Output AC Current Clamp
P18 AC Split Core Current Transformer Voltage Output AC Current Clamp
P18 AC Split Core Current Transformer Voltage Output AC Current Clamp
P18 AC Split Core Current Transformer Voltage Output AC Current Clamp

P18 AC Split Core Current Transformer Voltage Output AC Current Clamp

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview
Model NO.
P18
Production Process
Integration
Material
Metal
Accuracy Grade
0.1%, 0.2%
Application
Energy Sub-Meters
IP Rating
IP67
Certification
CE
Customized
Customized
Transport Package
Carton
Specification
400g, 52.5*137.5*28mm
Trademark
UL, CE, CNAS mark
Origin
China
Product Description

P18 200A DOUBLE RATIO VOLTAGE OUTPUT AC CURRENT CLAMP

The round jaw design on the P18 series double ratio AC current clamp along with the high content permalloy core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 200A.

The P18 AC current clamp is a general purpose 200A AC current clamp CT designed for use with DMMs, power loggers and energy meter calibration instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The P18 clamp CT has an integral 2.5m lead terminated. The rounded jaw design on this current clamp makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.

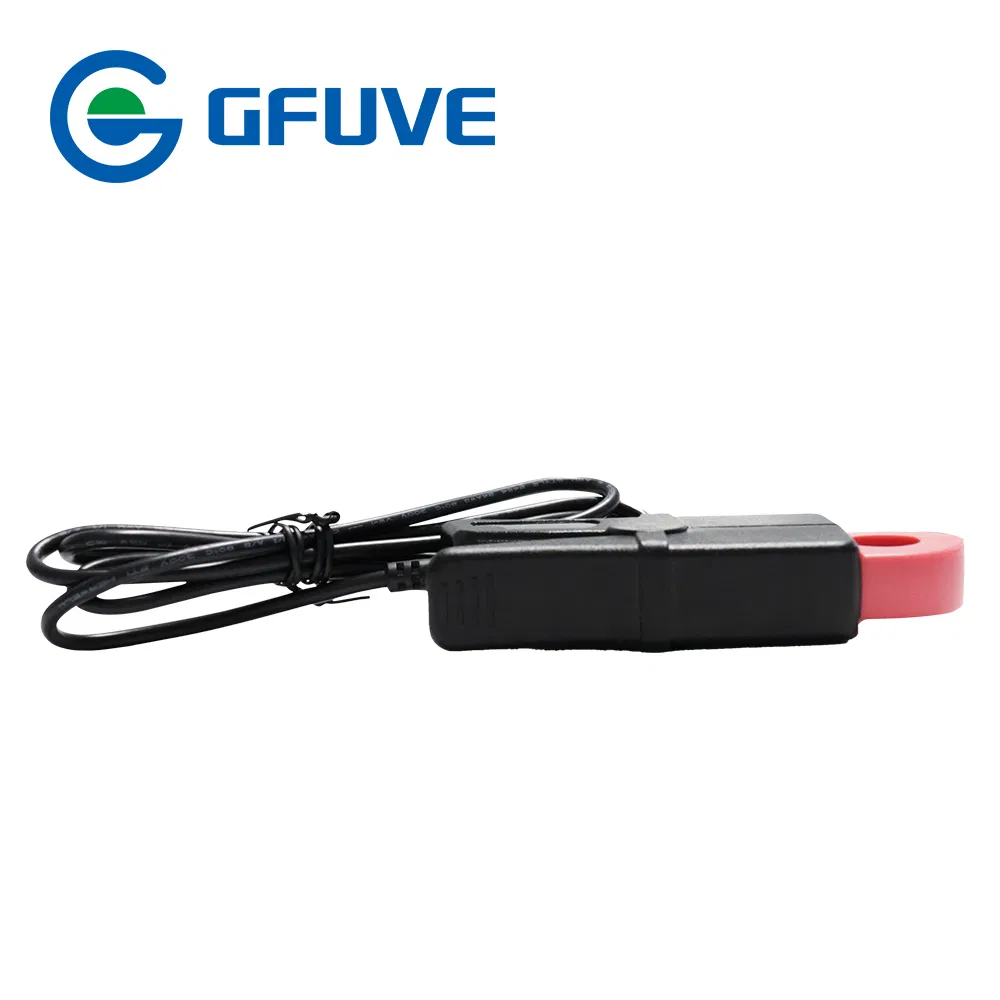

P18 AC Current Clamp

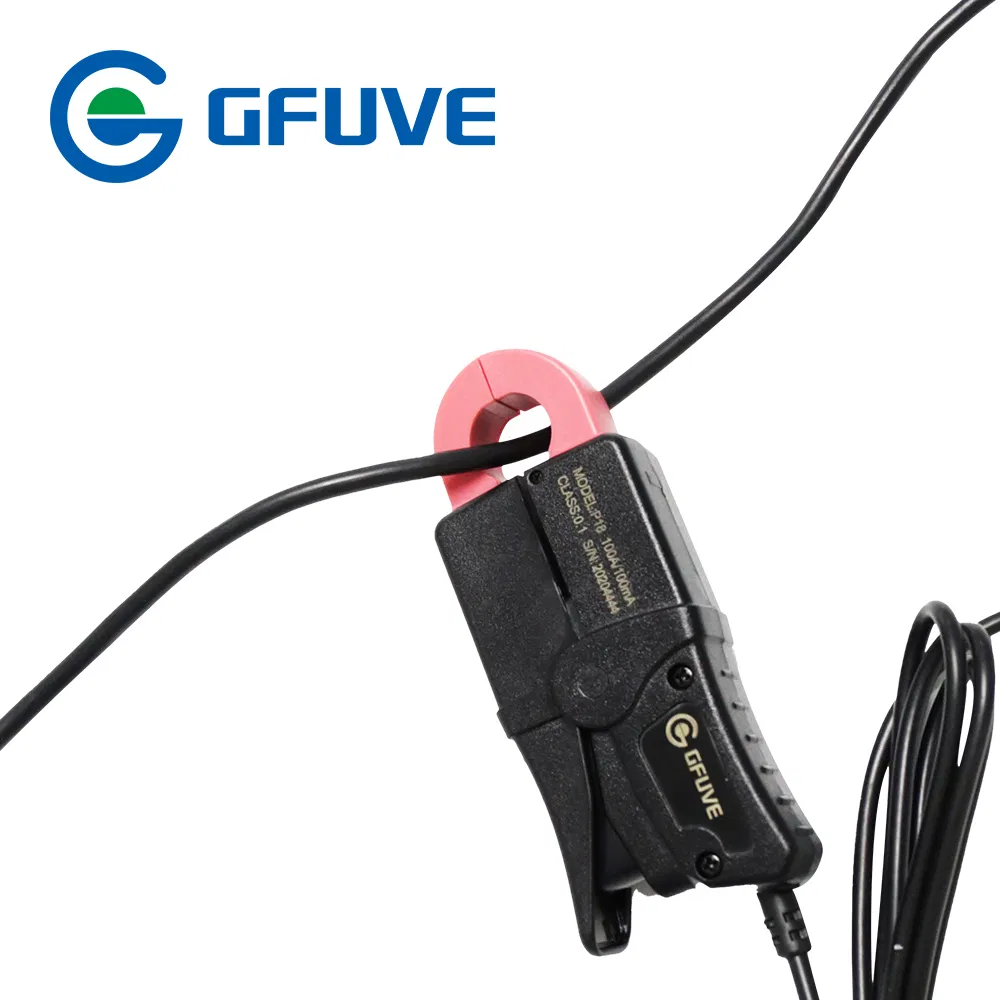

P18 AC Current Clamp View

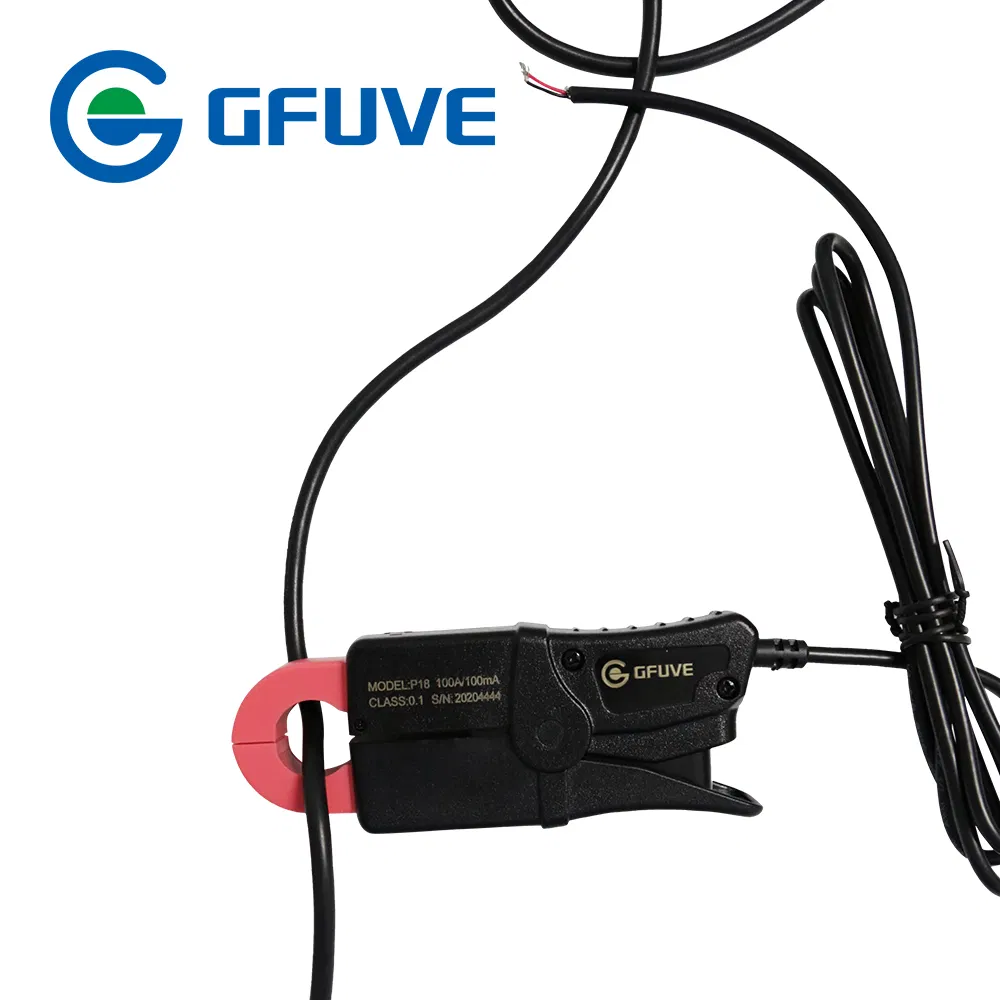

P18 AC Current Clamp Detail

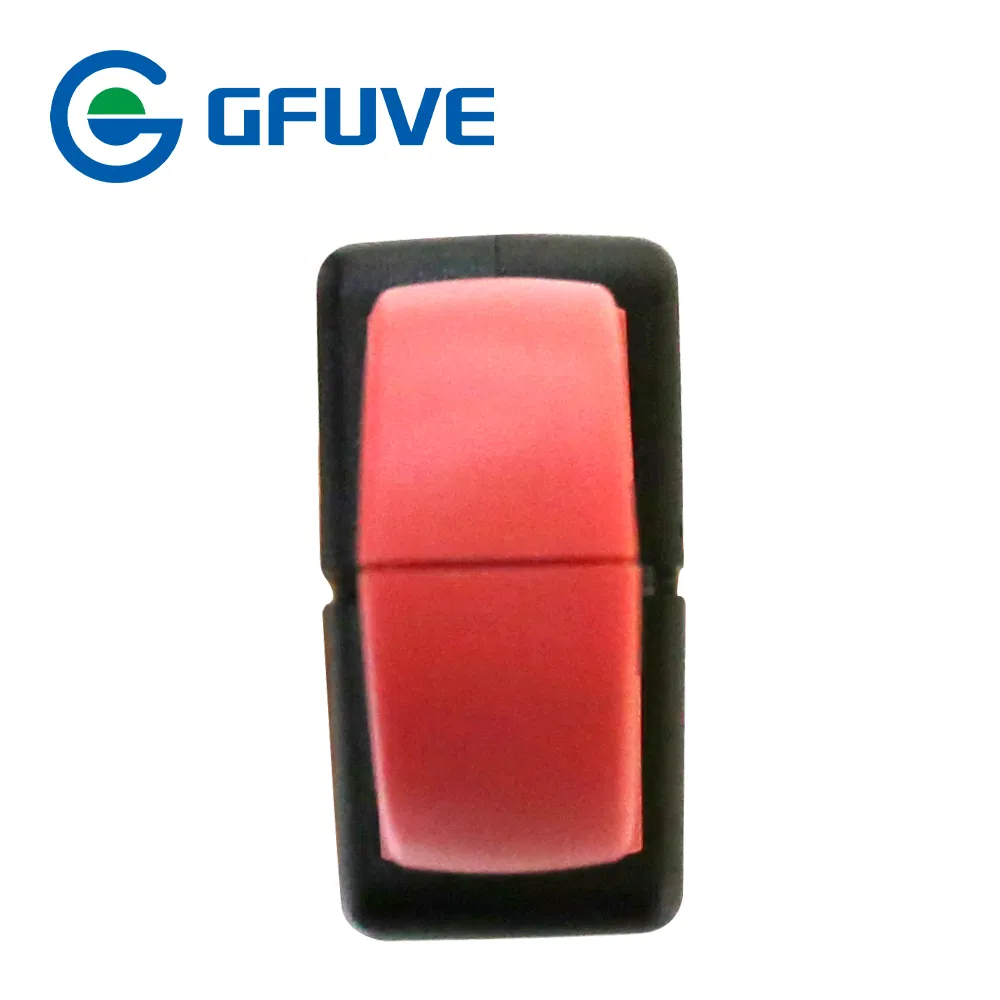

P18 AC Current Clamp Application

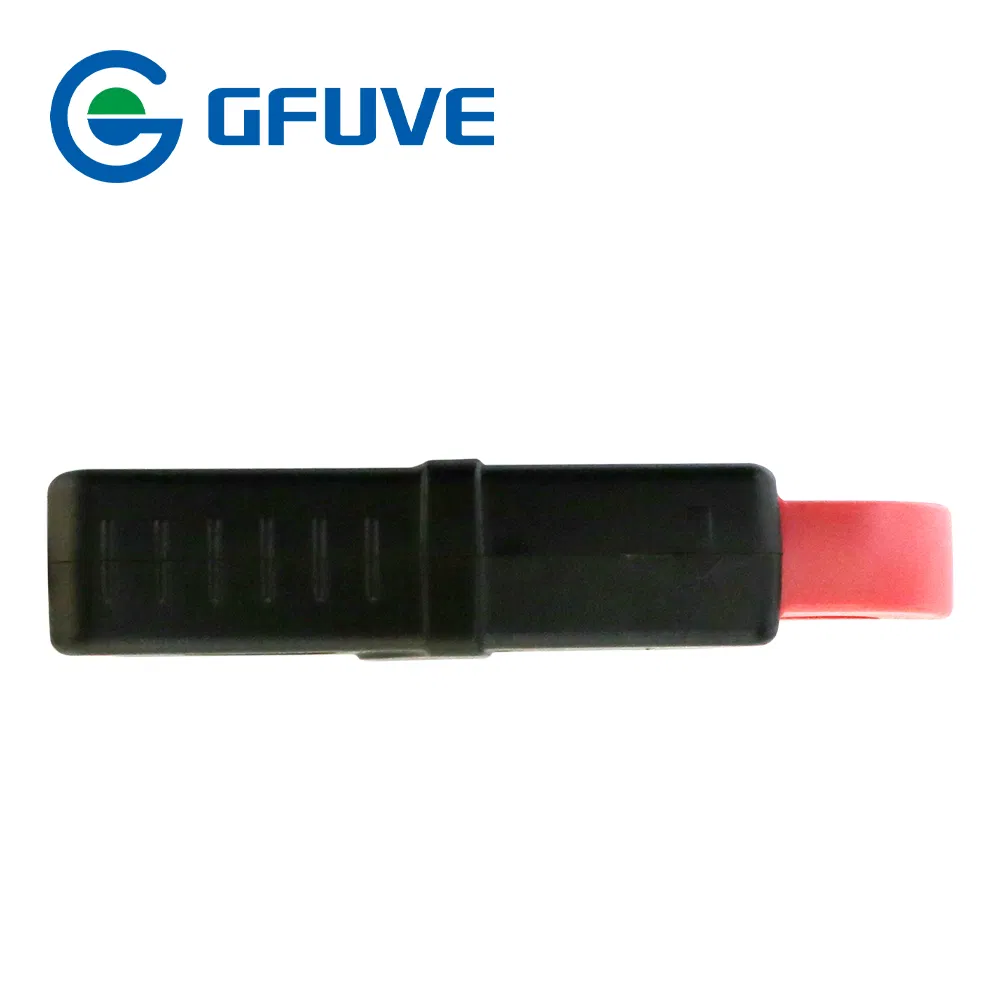

P18 AC Current Clamp Measurement
Key Features
✓ UL, CE mark certification
✓ Holding wire diameter: φ18mm
✓ Frequency 10Hz-2MHz bandwidth
✓ High times harmonic measurement
✓ Conforms to EN 61010, 600V CAT III
✓ Measurement range of 1mA to 200A AC
✓ Low phase shift for power measurement
✓ High content nickel metal permalloy core
✓ Improved ergonomic design & easy operation
✓ High precision 0.1% for current measurement
✓ Designed for DMMs, recorders, and oscilloscopes
Product Parameters
Ratio1000:1 or 2000:1 (customized)
Accuracy class0.1%, 0.2%
Primary current0-10A AC and 0-200A AC
Signal output10A (100mV/A) and 100A (200A)(10mV/A) with switch
Secondary voltage0-1V AC, 0-2V AC, 0-5V AC, 0-10V AC
Secondary current0-100mA AC and 0-200mA AC
Max. Cont. Input current240A
Load capacity≤20Ω, standard 4Ω
Over voltage categoryCAT III 600V
Frequency range10Hz-2MHz
Dielectric strength3KV 50Hz/60Hz at 1minute
Temperature range-40°C to +55°C
Output2.5 meter cable with D01 or BNC connector, 4mm banana
Max. voltage not insulated conductors600V
StandardEN 61010-1, EN 61010-2-032, IEC60044-1, & IEC61869-2
InstallationClamp type
Frequently Asked Questions
What is the measurement range of the P18 current clamp?
The P18 series current clamp supports a wide measurement range from 1mA up to 200A AC.
What makes the P18 suitable for high-precision power quality applications?
It features a high-content nickel metal permalloy core and a specialized round jaw design, ensuring high accuracy (up to 0.1%), low phase shift, and a wide frequency response.
What is the maximum conductor size the clamp can accommodate?
The clamp is designed with a holding wire diameter of φ18mm, making it ideal for various cable sizes in energy sub-metering.
Can this clamp be used with standard multimeters?
Yes, the P18 is specifically designed for use with DMMs (Digital Multimeters), power loggers, recorders, and oscilloscopes.
What safety standards does the P18 comply with?
The device conforms to EN 61010 and is rated for 600V CAT III environments, carrying both UL and CE marks.
What are the available output options?
It comes with a 2.5-meter cable and can be configured with BNC connectors, 4mm banana plugs, or customized signal leads.
