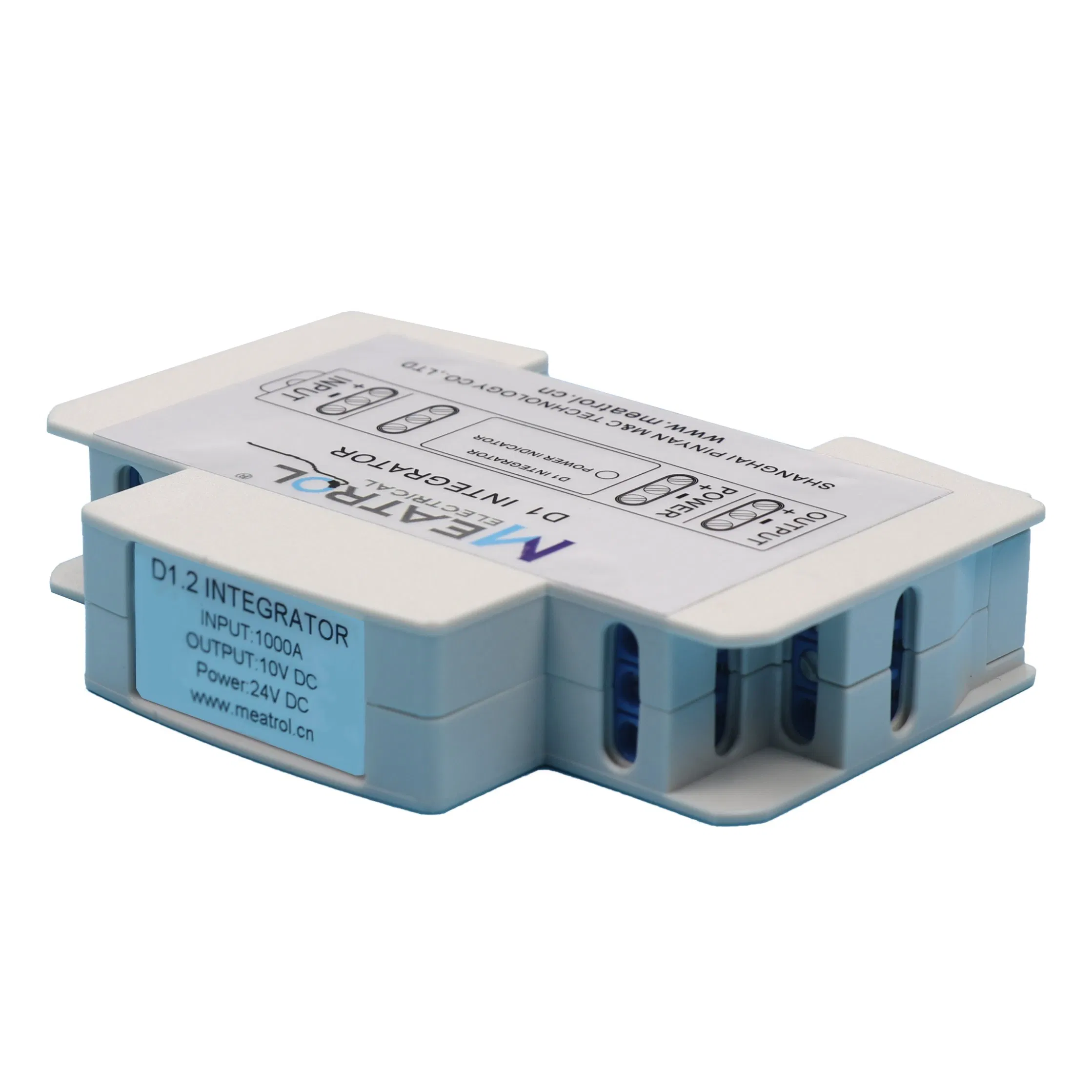

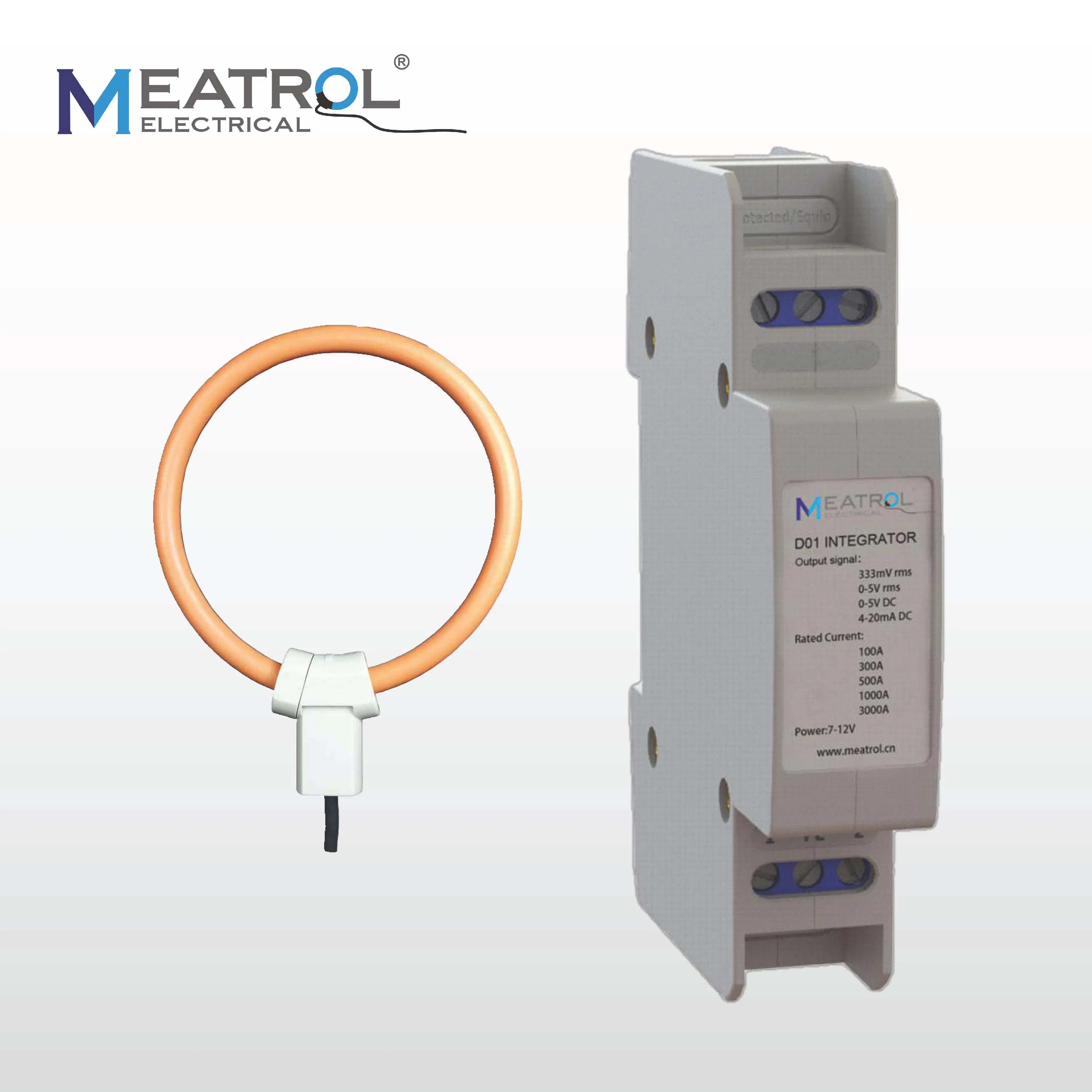

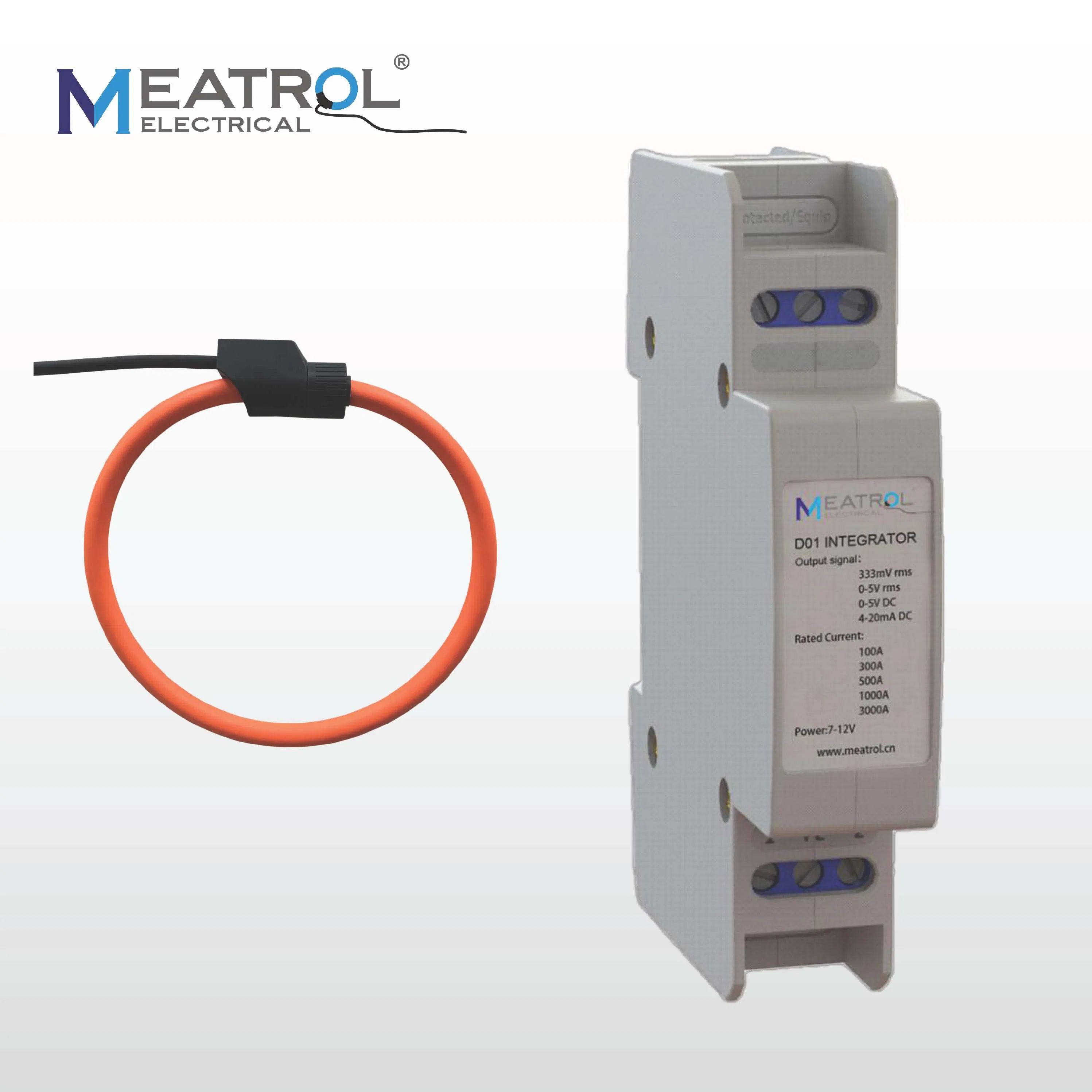

4V DC Integrator Current Transducer Rogowski Coil AC Flexible Current Transformer

Basic Specifications

Model NO.

D1.2

Production Process

Integration

Material

Plastic

Accuracy Grade

0.5% Typical

IP Rating

IP20

Certification

CE ISO

Rated Output

5V AC RMS, 4V DC, 4-20mA

Response Time

≤1us

Bandwidth

10Hz to 20kHz

Rated Input

100A-6000A

Power Supply

12V or 24V

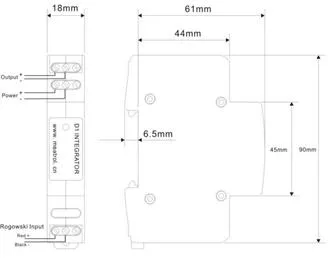

Dimension

90*61*18mm

Product Description

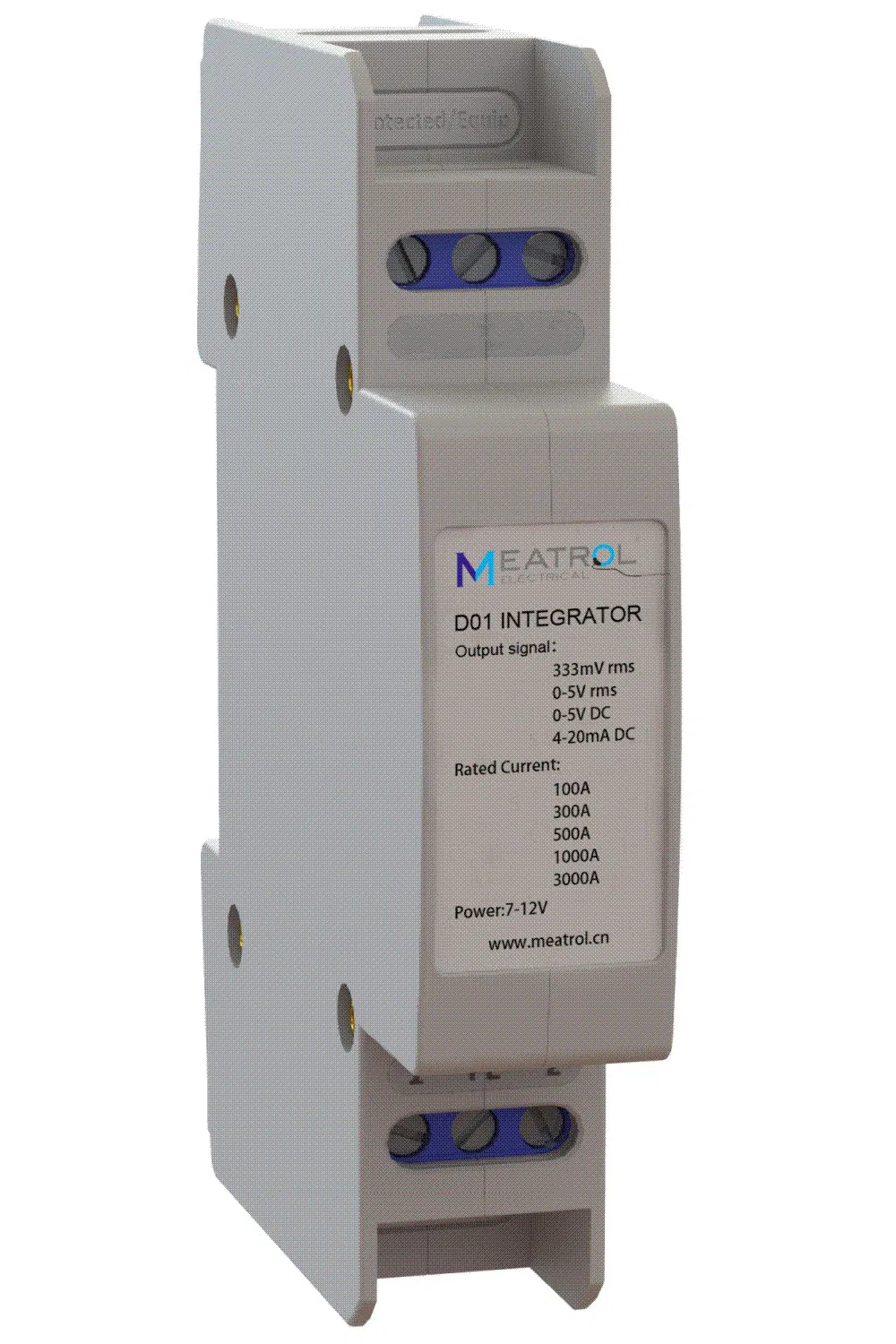

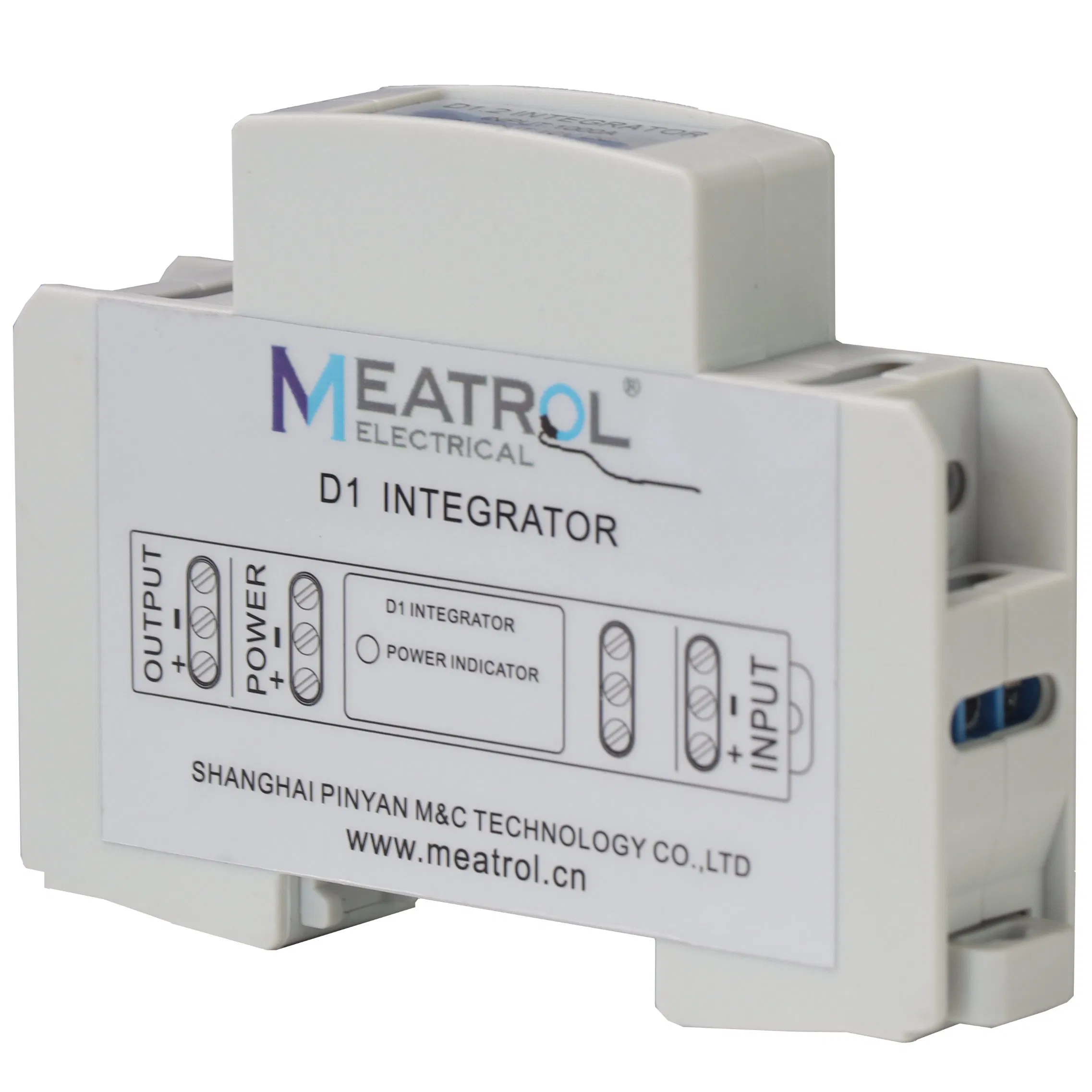

D1 Industrial Integrator Overview

The D1 is an industrial Rogowski coil integrator designed for installation in distribution boxes. Housed in a plastic 1-module DIN-RAIL enclosure, it is powered directly from the mains and provides essential signal processing for flexible current sensors.

Core Functions

Amplifies weak mV signals from Rogowski coils to standard signals for multimeters and scopes.
Ensures signal equalization for a linear response across wide frequency ranges.
Shifts the output signal by 90° to accurately represent the measured current.

Key Advantages

High read accuracy: 0.5%
DIN-RAIL mounting for easy installation
Wide bandwidth: 5Hz to 20kHz
Extremely low zero drift (down to 2mV)

Main Applications

Power monitoring & analysis
Harmonics and transients monitoring
Welding machine control
High current measurement & PLC control

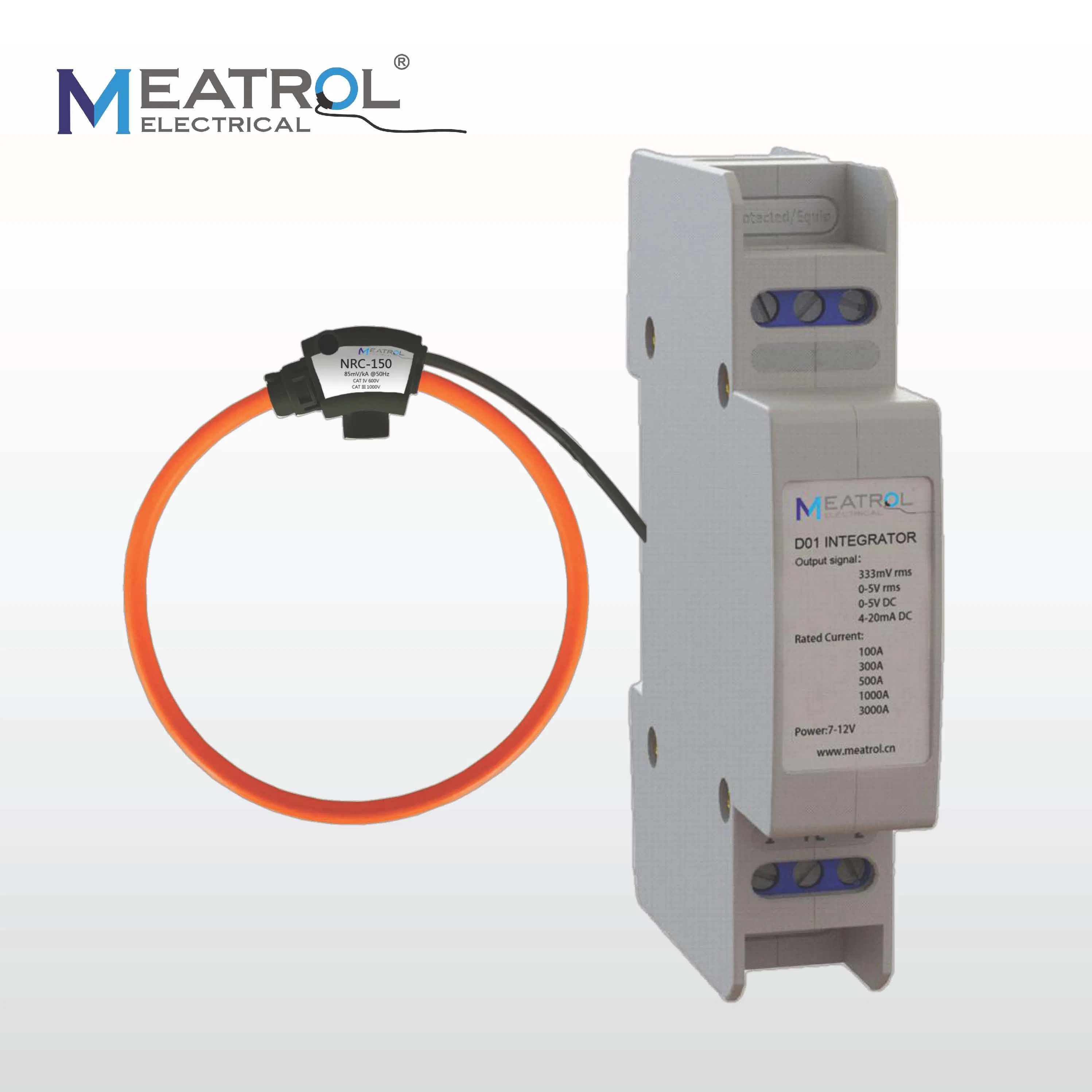

Understanding Rogowski Coil Technology

Rogowski coils are air-cored toroidal coils placed around a conductor. The magnetic field produced by the AC current induces a voltage in the coil proportional to the rate of change of the current. When combined with the D1 integrator, it provides a highly accurate measurement system with no saturation risk.

Technical Specifications

Model	D1.1	D1.2	D1.3
Rated Output	5V AC rms	4V DC (true-rms)	4-20mA
Max Output	10V AC rms	4.8V DC	25mA
Response Time	≤1us	Default 100ms (adjustable)
Bandwidth	10Hz to 20kHz	20Hz to 2kHz
Rated Input	100A, 600A, 1000A, 3000A, 6000A
Linearity	±0.2% of reading
Protection	IP20

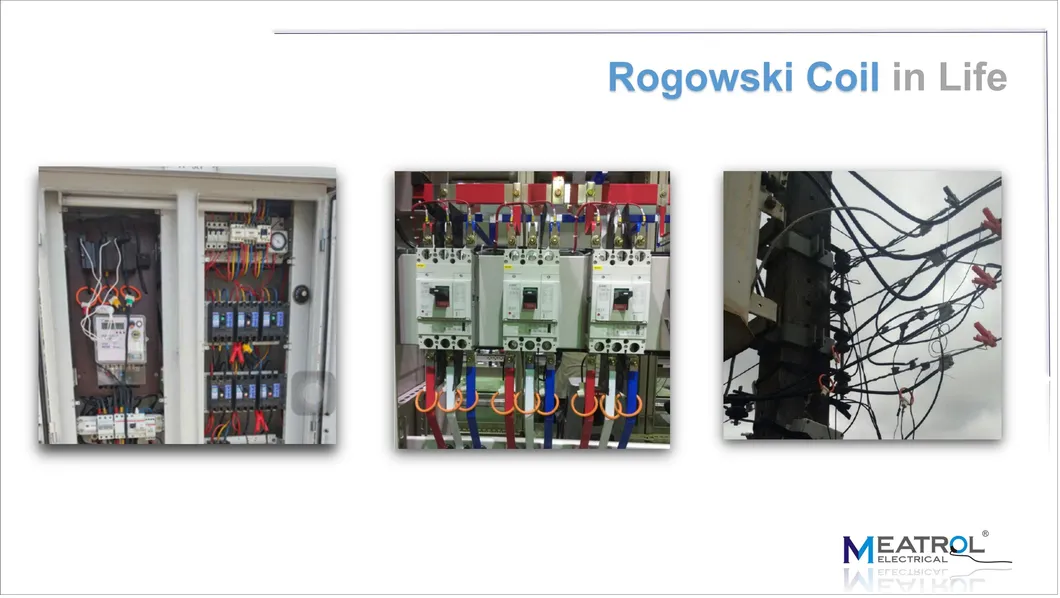

Application Cases

Frequently Asked Questions

Q: What is the primary purpose of the D1 Industrial Integrator?

A: The D1 integrator is designed to amplify and convert the weak mV signals from Rogowski coils into standard signals (like 4-20mA or 0-5V) that can be easily read by industrial controllers and monitoring devices.

Q: Can this integrator be used with different sizes of Rogowski coils?

A: Yes, the D1 can be combined with various models and sizes of Rogowski coils, including Y-FCT, NRC, and MRC series, making it a highly flexible solution.

Q: What are the available output signal options?

A: The D1 series offers three standard output versions: D1.1 (5V AC rms), D1.2 (4V DC true-rms), and D1.3 (4-20mA). Custom values are available upon request.

Q: Is the device suitable for high-current monitoring?

A: Absolutely. It supports rated inputs from 100A up to 6000A and is used in applications involving currents as high as 1500kA in pulse welding machines.

Q: How is the D1 integrator installed?

A: It features a compact 1-module DIN-RAIL enclosure, making it extremely easy to install within standard industrial distribution boxes.

Q: Does it work with DC components?

A: While it does not measure pure DC, it can carry out accurate measurements of AC components even with a large superimposed DC component, as there is no iron core to cause saturation.
