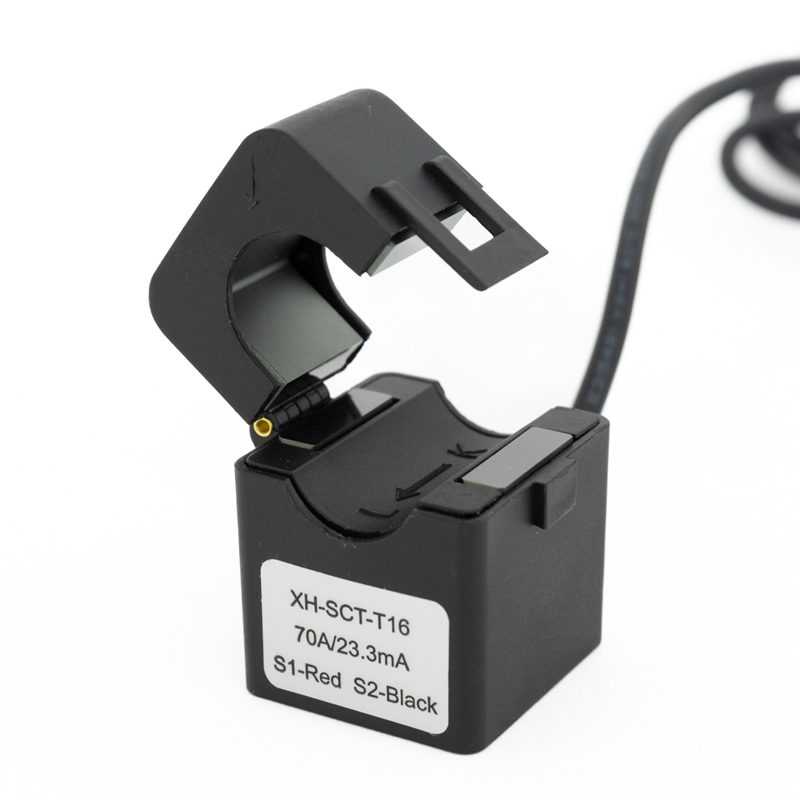

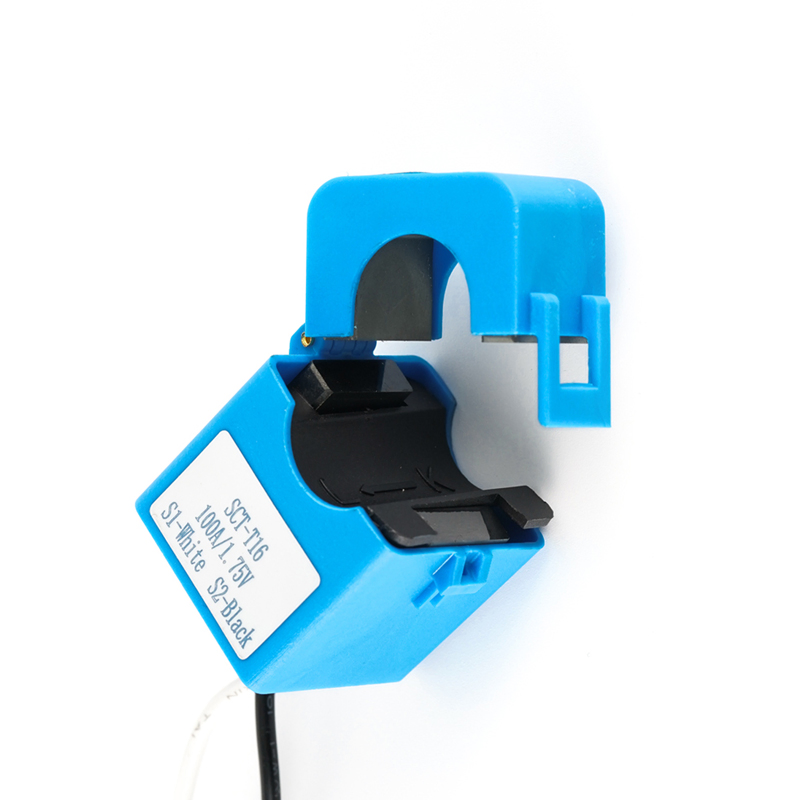

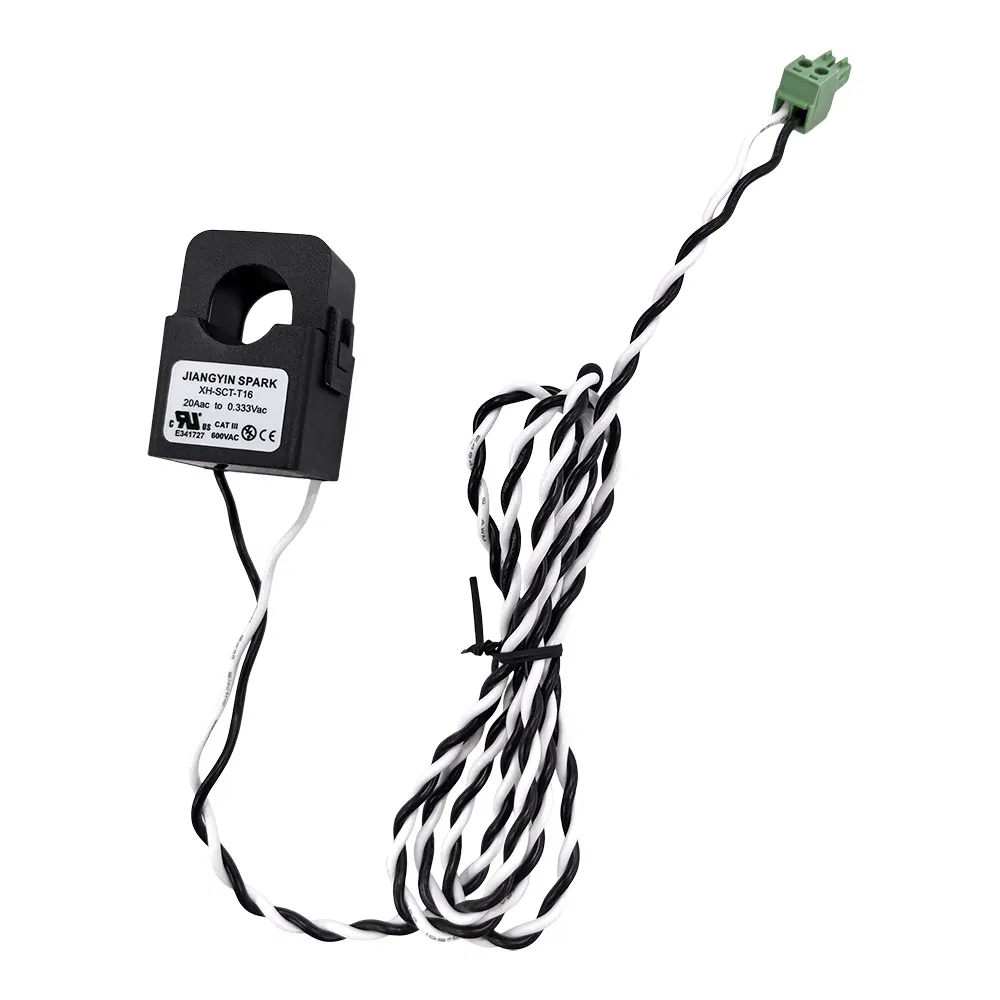

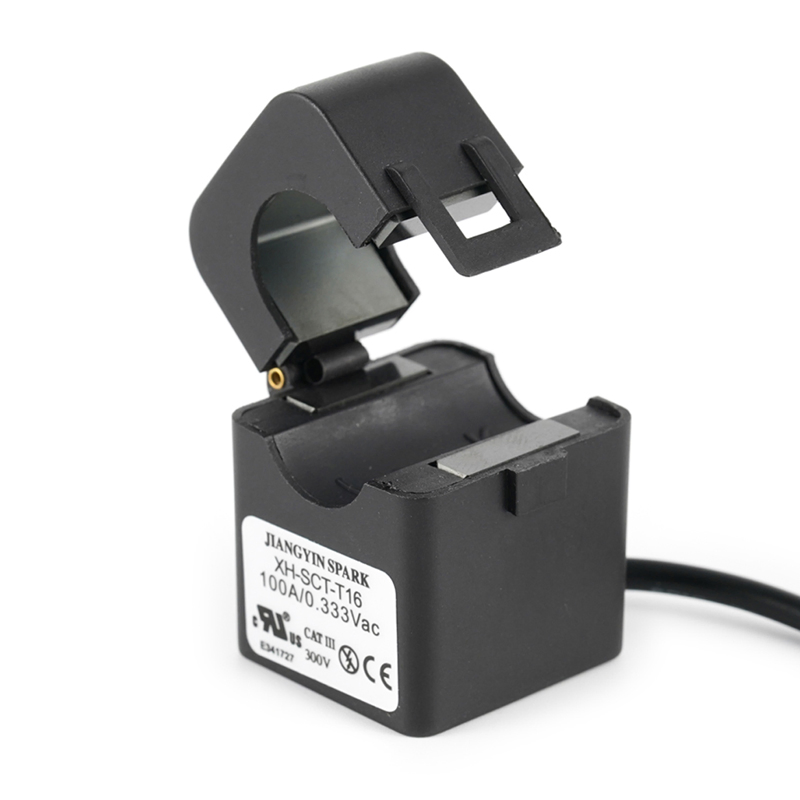

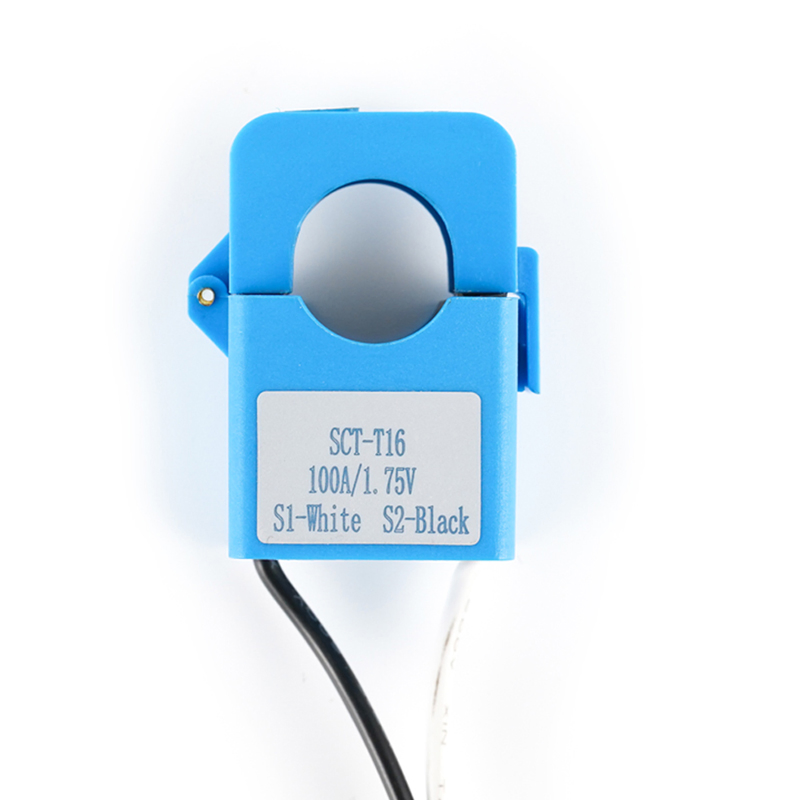

16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
1 / 5
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL
16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL

16mm Hole Xh-Sct-T16-20A/0.333V Split Core CT Current Transformers for IoT CT Current Clamp with UL

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
XH-SCT-T16
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit
Combined Type
Input (a)
20A
Max Current (a)
140AAC
Output
0.333V
Window Size
16mm
Certificates
CE, UL, RoHS
Rated Frequency
50/60Hz
✨ Product Features

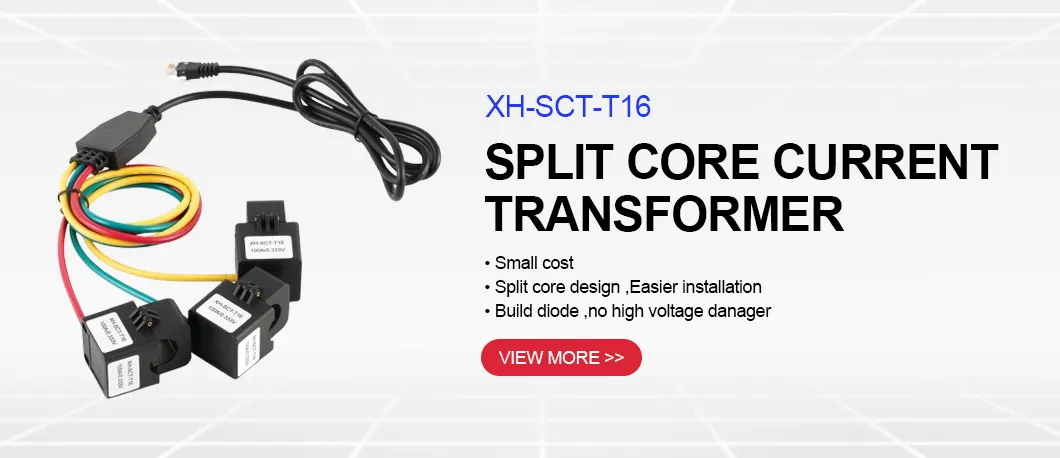

Split Core CT Features

Specifications:

  • Rated Voltage: 0.66KV
  • Insulation Voltage: 3KV
  • Rated Frequency: 50/60Hz
  • Operating Temperature: -15ºC to 60ºC
  • Certificates: CE, UL, ROHS

Key Advantages:

  • Small cost and high efficiency
  • Split core design for easier and faster installation
  • Built-in diode prevents high voltage danger
📏 Dimensions (mm)

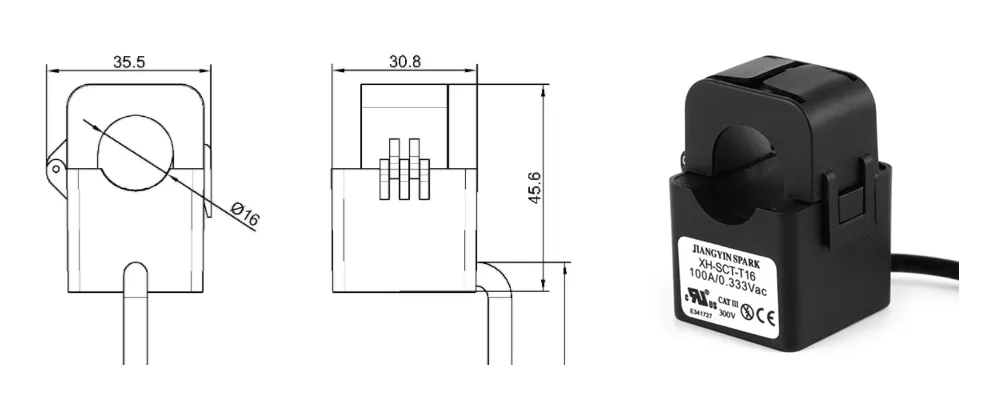

XH-SCT-T16 Dimensions
Model Input (A) Max Current (A) Output
XH-SCT-T16 0.2-120AAC 140AAC mA / 0.333VAC / 0-3 VAC
📈 Performance & Details

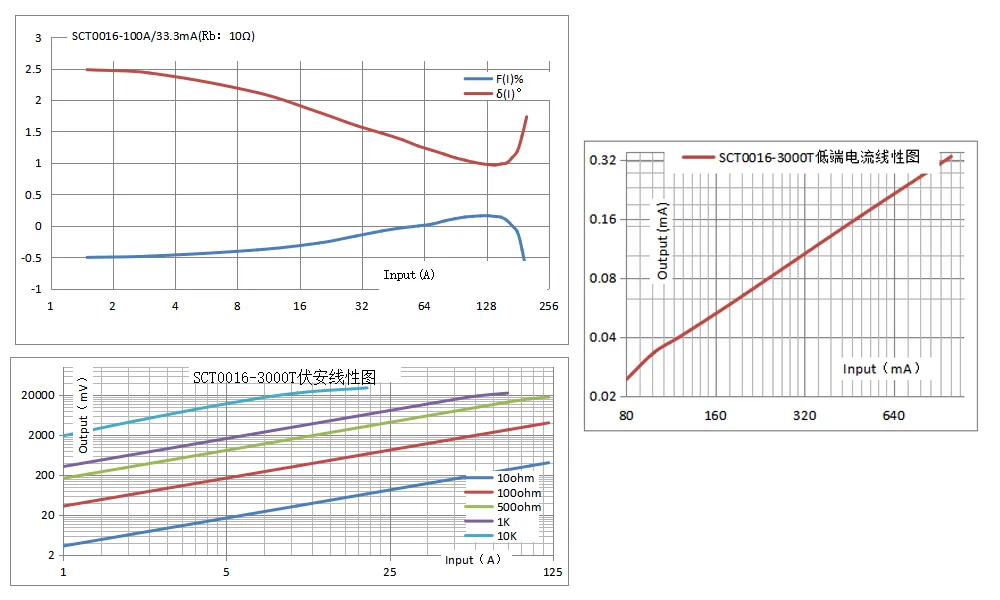

Curve Performance

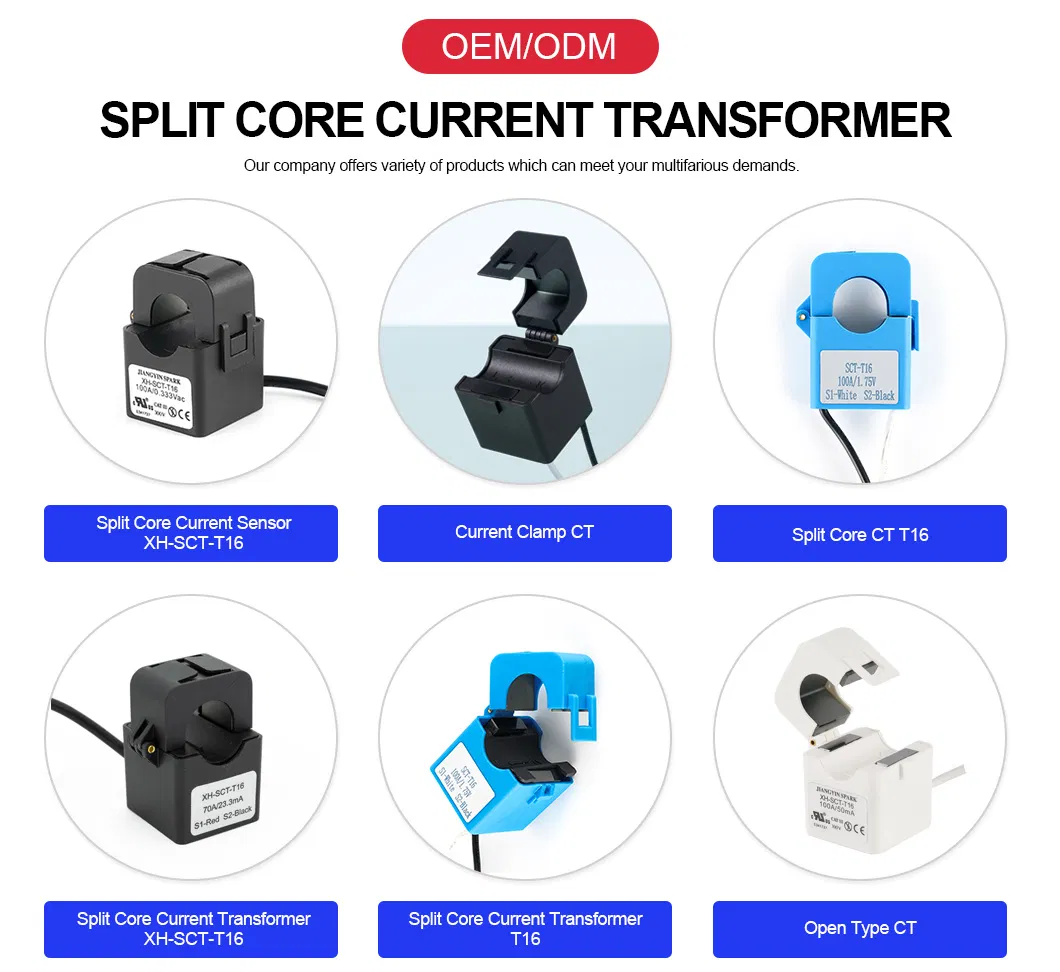

Detailed Product Photo
💡 Application Areas
Application Areas
🏭 Production Environment

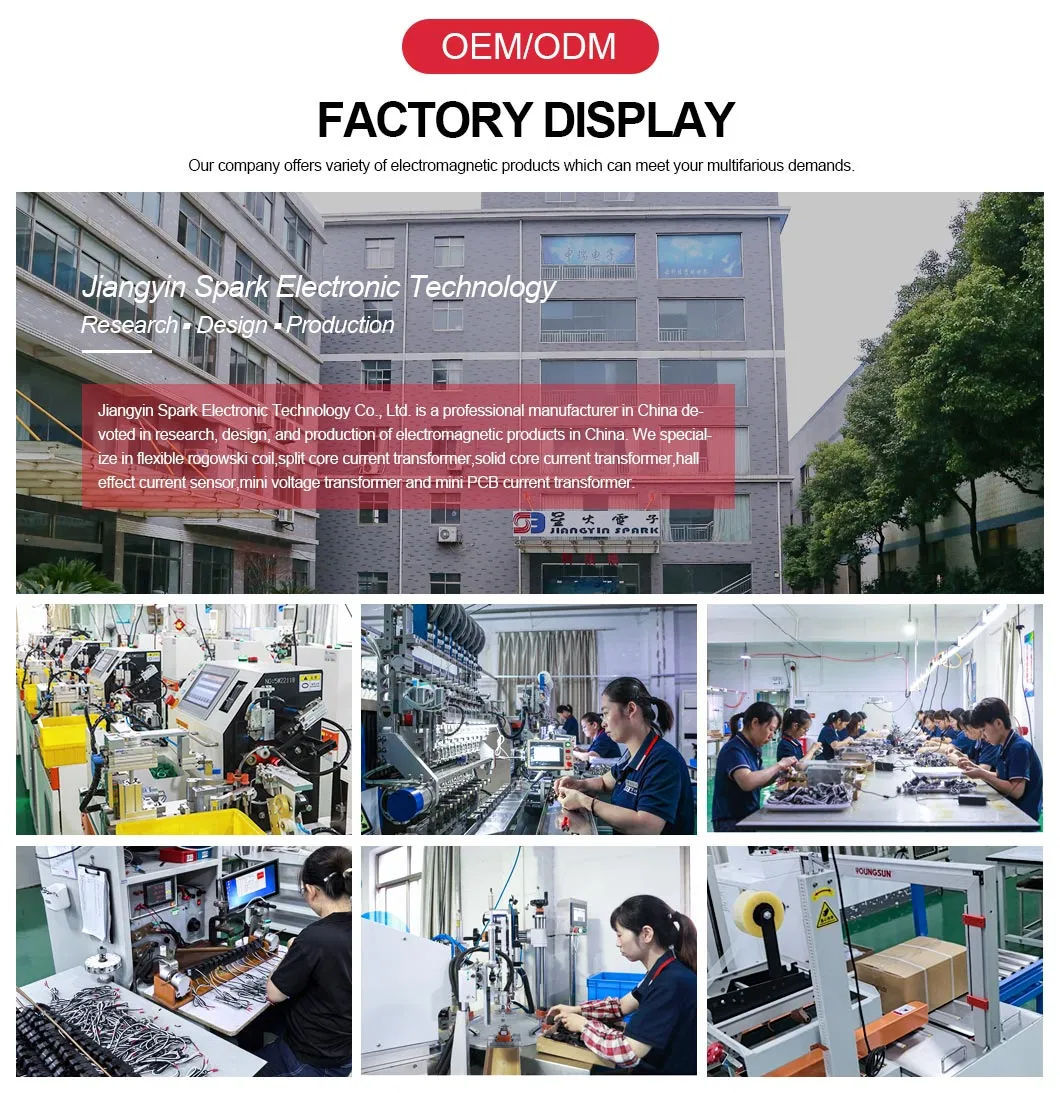

Production View 1
Production View 2
Production View 3
🔄 Other Available Models
Model I.D. (Internal Diameter) Ratio Rated Amps Accuracy
XH-SCT-T066mm1000:11, 5, 10, 15, 200.5
XH-SCT-T1010mm3000:15, 15, 30, 50, 75, 800.5
XH-SCT-T1616mm3000:150, 70, 100, 1200.5
XH-SCT-T2424mm3000:1100, 150, 200, 3000.5
XH-SCT-T3636mm3000:1300, 400, 500, 6000.5
📦 After-Sales & Logistics

Package Details

All units are securely packed with bubble wrap and white boxes within standard cartons. We support neutral packing and OEM designs for customized labels.

Packaging
Shipping

Shipping & Delivery

Products are shipped via UPS, DHL, FedEx, or TNT for door-to-door service. Lead time is typically 3-7 days for standard quantities under 1000PCS.

Warranty & Commitment

  • 1-year quality warranty.
  • 20+ years of manufacturing expertise.
  • Factory direct sales for competitive pricing.
  • Fast 24-hour response time.
Warranty
🔥 Hot Sales Selection

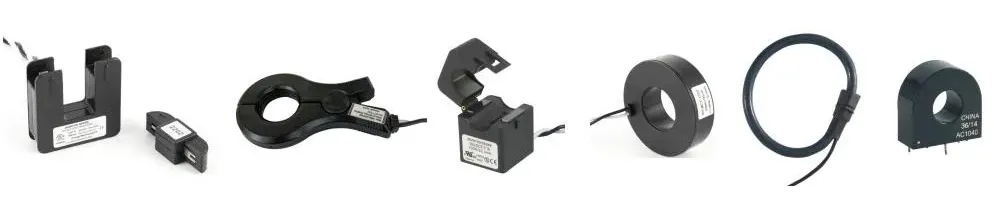

Hot Sale Models
❓ Frequently Asked Questions
What is the main advantage of the split core design?
The split core design allows for much easier installation without disconnecting existing cables, saving time and reducing labor costs in IoT and power monitoring projects.
What output options are available for the XH-SCT-T16?
It supports multiple output signals including mA, 0.333VAC, and 0-3 VAC, making it compatible with various measurement instruments and IoT sensors.
Is the product safe to use in high-current environments?
Yes, the CT includes a built-in diode to prevent high voltage danger, and it is rated for an insulation voltage of up to 3KV.
Which international standards do these transformers meet?
Our current transformers are fully certified with CE, UL, and RoHS compliance, ensuring high quality and safety for global markets.
What is the typical lead time for an order of 500 units?
For non-customized products under 1000 pieces, the typical lead time is between 3 to 7 days after payment receipt.
Does the product come with a warranty?
Yes, we provide a 1-year warranty for our current transformers. If any defects are found, please notify us within 3 days of receiving the goods.
