Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
1 / 5
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r
Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r

Yhdc 45mm Hole Waterproof Split Core Current Transformer, Current Clamp Scti045r

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
SCTI045R
Phase
Single
Operation Condition
Indoor / Outdoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Insulating Paper
Installation
Free Hanging (in-Line)
Magnetic Circuit
Single Stage Type
Core Material
Laminated Silicon Steel
Opening Size
45mm
Input
200A/300A/400A/500A/600A
Output
5A
Accuracy
0.5s/0.5/1
Rated Voltage
720V
Frequency Range
50-60Hz
Waterproof Grade
IP67
Product Description

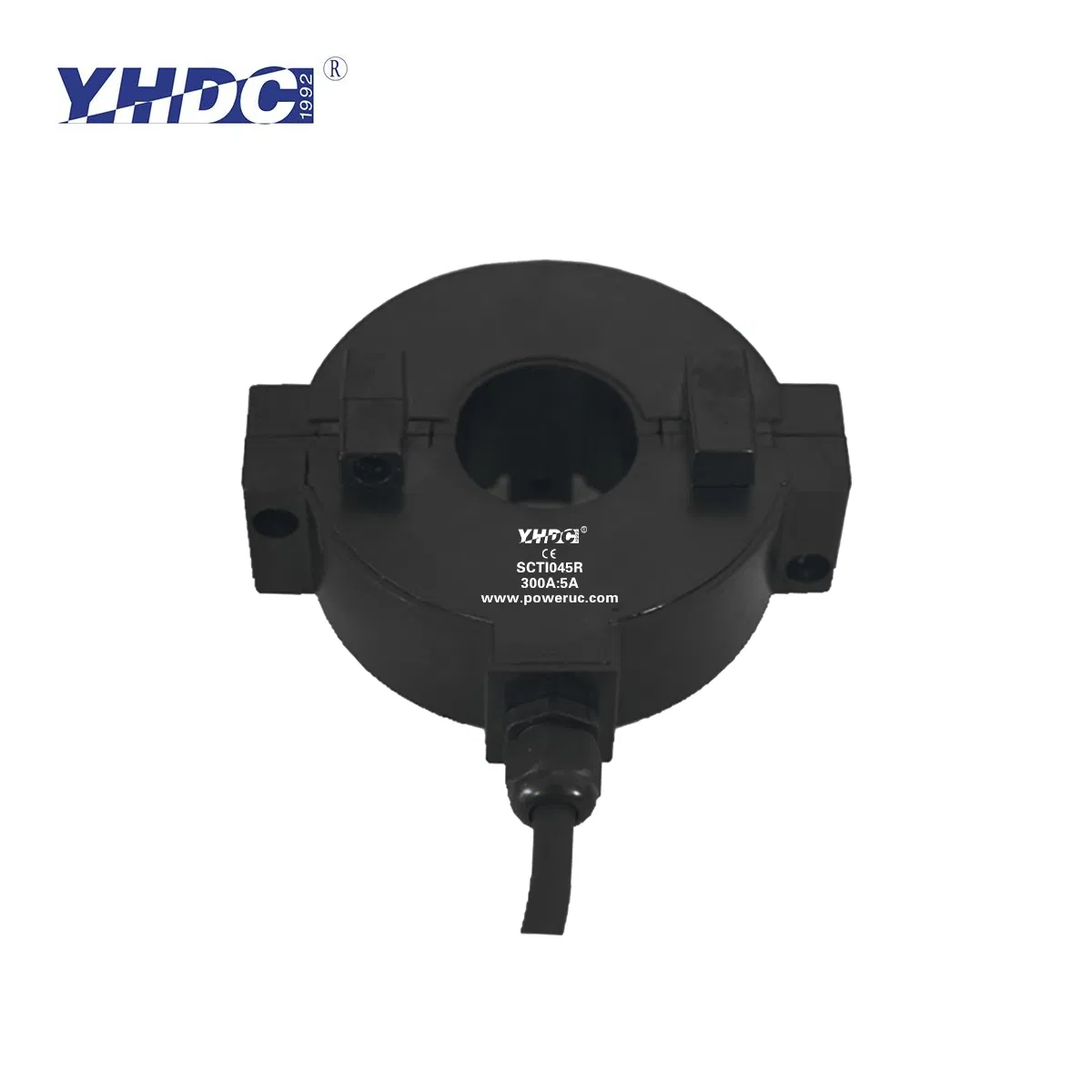

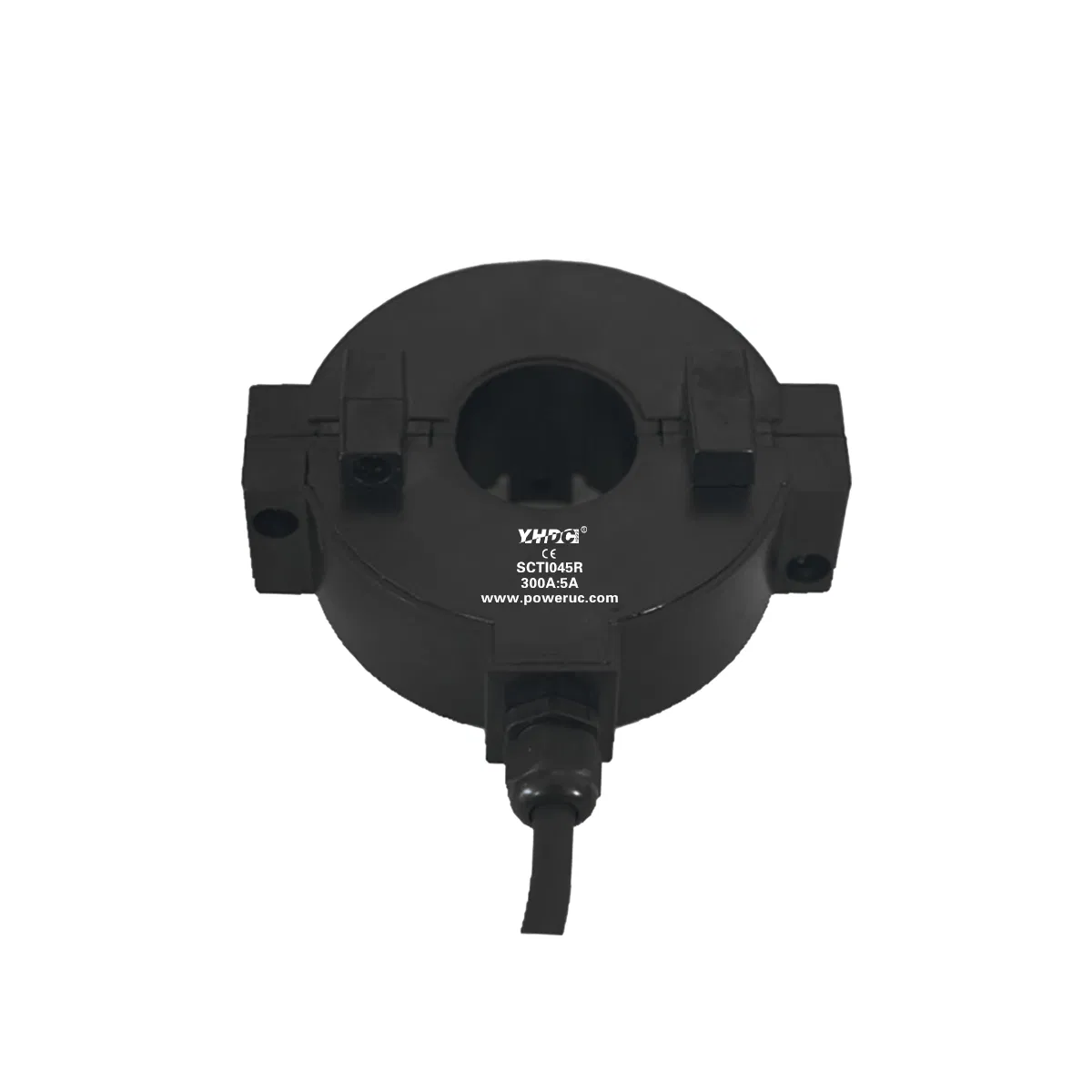

45mm Hole Split Core Current Transformer, Current Clamp SCTI045R

The model SCTI045R split core CT is a 45mm core diameter outdoor split core current transformer. It can be applied to test, control, display and record the running of electrical equipment, and to protect equipment against damage in AC circuits with rated voltage below 720V and frequencies of 50-60Hz.

This outdoor split core current transformer is highly reliable and robust, designed to withstand harsh environmental conditions. With excellent waterproof performance and an IP67 rating, it is specifically designed for outdoor applications where protection against moisture and water ingress is essential.

Key Characteristics:
  • Split core structure for easy installation without disconnecting cables.
  • Cable output designed for convenience.
  • Outdoor use with superior waterproof performance (IP67).
  • Robust construction for high reliability.
Technical Index
Mounting Type
Free Hanging (in-Line)
Standards
GB20840-2014
Operating Temp.
-20ºC ~ +60ºC
Storage Temp.
-30ºC ~ +90ºC
Dielectric Strength
3.5KV 50Hz 1min
Frequency
50Hz-60Hz
Product Parameters
Model SCTI045R
Input 200A 300A 400A 500A 600A
Output 5A
Dimensions & Gallery

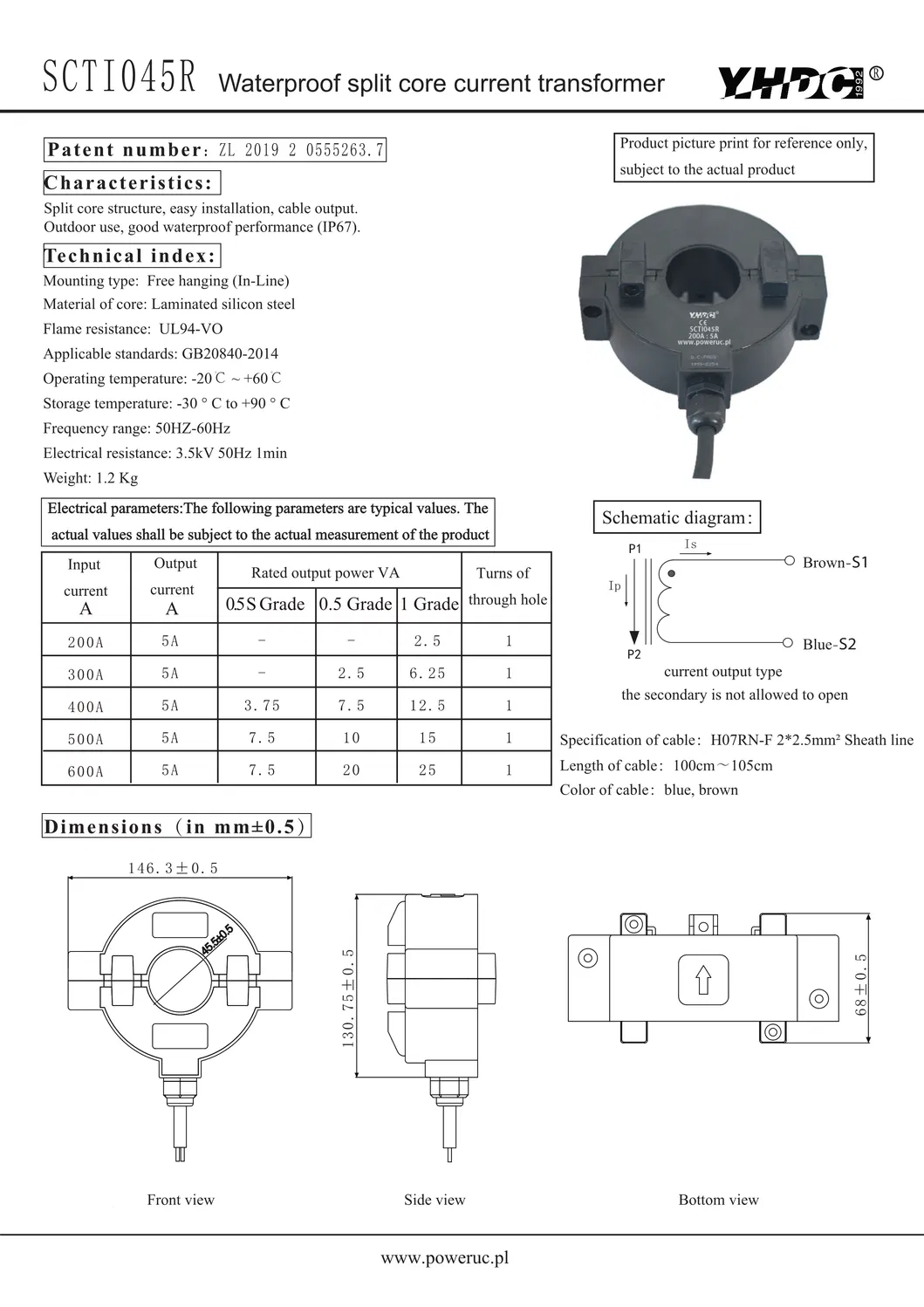

Dimensions
Product View 1
Product View 2
Product View 3
Product Application
Waterproof Test
Packaging & Delivery
Package Size
20.00cm * 18.00cm * 7.00cm
Gross Weight
2.000kg
Transport Package
Carton
FAQ
Q: Do you provide samples and can the product be customized?
A: Yes, we provide samples and offer customization options for the product to meet your specific requirements.
Q: How long is the typical delivery time?
A: Our standard delivery time is 5-7 working days after order confirmation.
Q: Are you a trading company or a manufacturer?
A: We are a factory and direct manufacturer, ensuring high-quality control and competitive pricing.
Q: How can I place an order?
A: You can contact us via message or email with your order details, or place an order directly through our online platform.
Q: What is the waterproof rating for the SCTI045R?
A: This model features an IP67 waterproof rating, making it ideal for outdoor installations and harsh environments.
Q: What core materials are used in these transformers?
A: The core is made of high-quality laminated silicon steel for optimal magnetic performance and accuracy.
