IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
1 / 5
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type
IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type

IP67 Xh-Fsct-T30-300/5A Outdoor Waterproof Split Core Cts Current Transformer 0.5% Accuracy 5va Clip on Type

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
FSCT-T36
Operation Condition
Outdoor
Usage
Protection, Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Common Insulating Materials
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation Principle
Electromagnetic Type
Window Size
30 x 30 mm
Rated Input Current
300A
Rated Output
5A
Accuracy
0.5%
Burden
5va
Package Size
20.00cm * 7.00cm * 20.00cm
P

Product Description

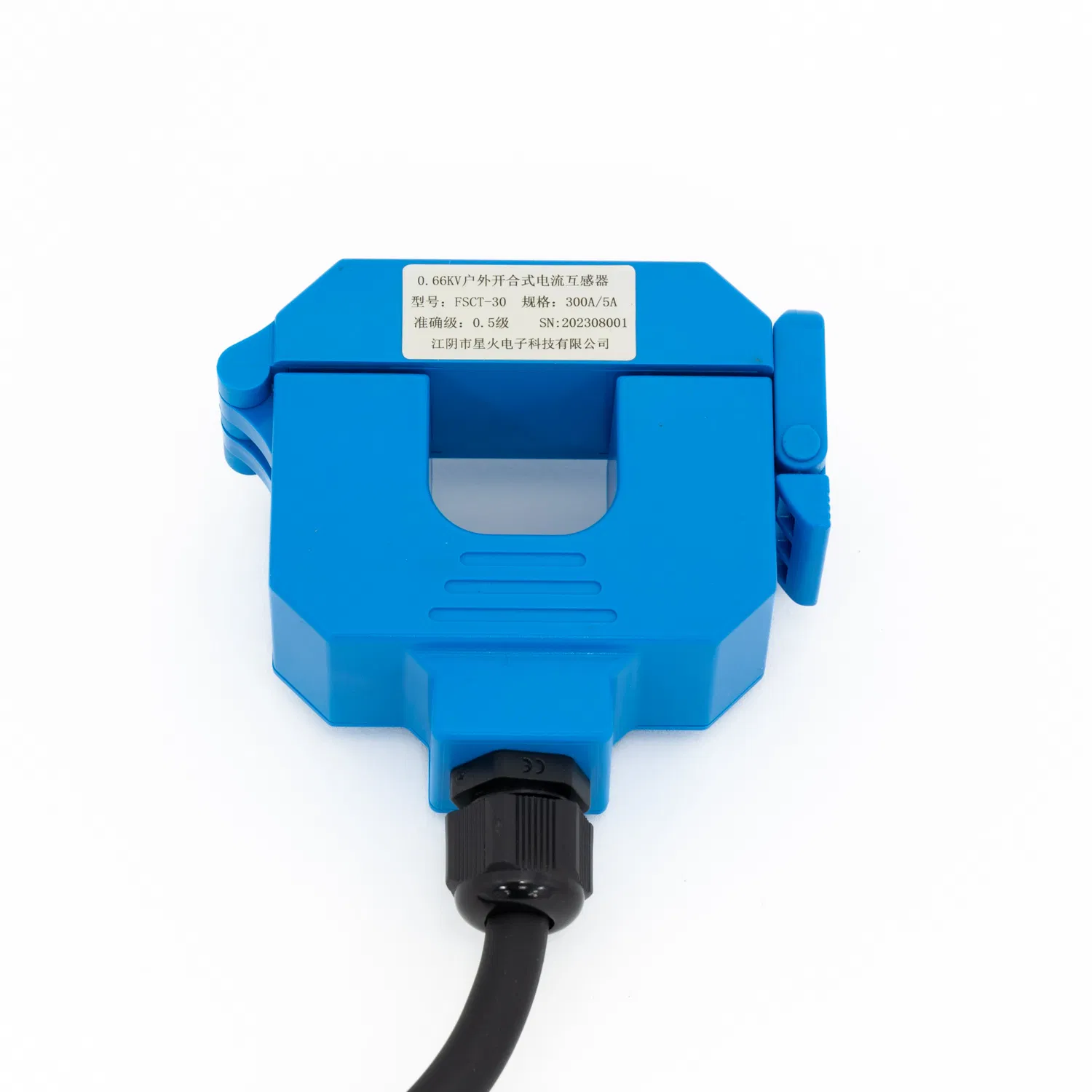

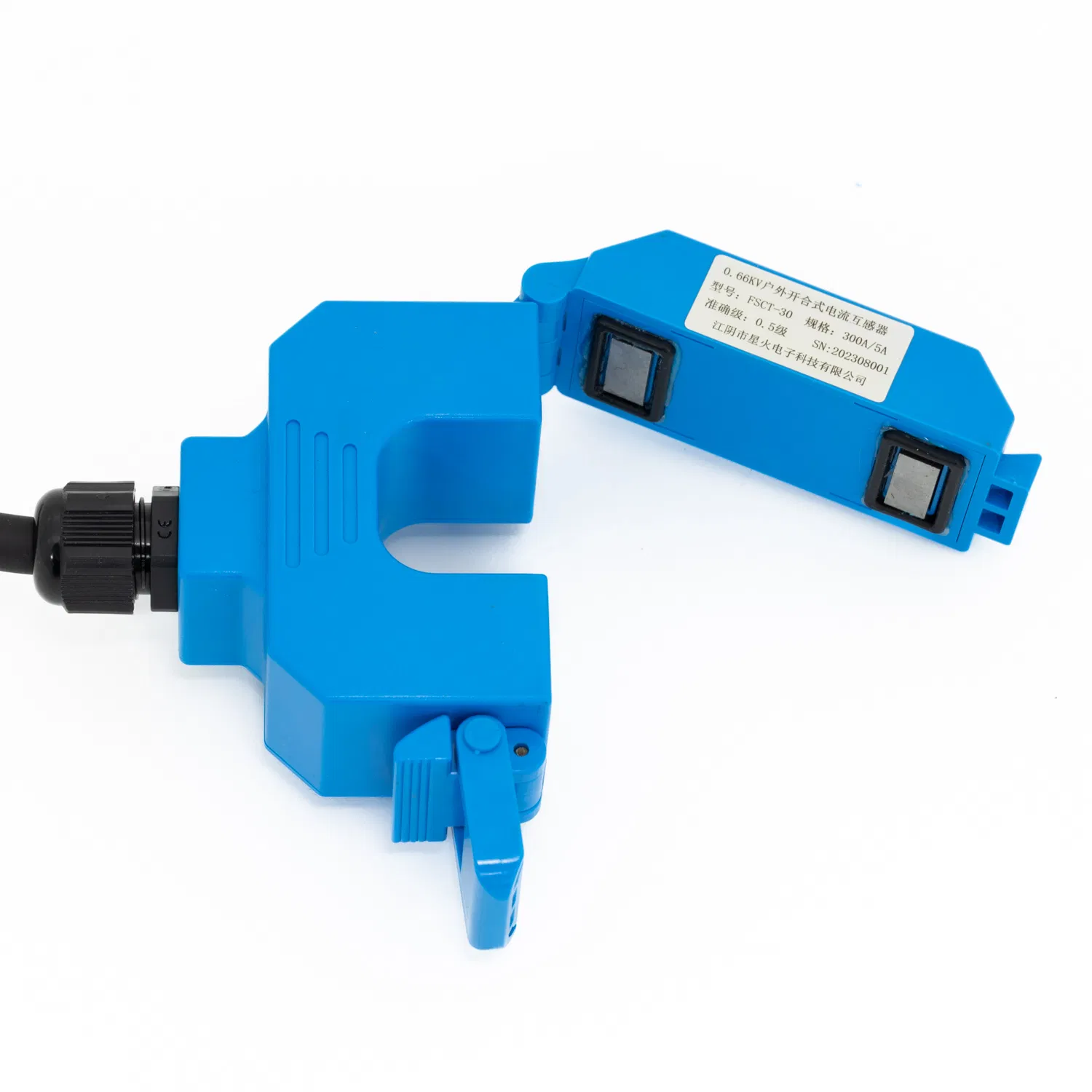

IP67 XH-FSCT-T30-300/5A Outdoor Waterproof Split Core Current Transformer

The XH-FSCT-T30 Waterproof Split Core Current Transformer is engineered with a high-quality silicone steel core and is fully potted for reliable outdoor performance. Its split-core design allows for easy installation on ground potential conductors without disconnecting the primary circuit.

Feature Specification
Inner Diameter30 x 30 mm
Rated Primary Current10-600Amp
Rated Secondary Output1A, 5A, mA, mV
IP RatingIP67
Accuracy Class0.5, 1.0
Insulation Strength3KV/1mA/1Min
Weight520g
Work Voltage0.66/0.72KV
Operating Temperature-40ºC ~ 70ºC
Operating Humidity≤95%
V

Visual Display

Outdoor Waterproof Split Core CT
Split Core Current Transformer Detail

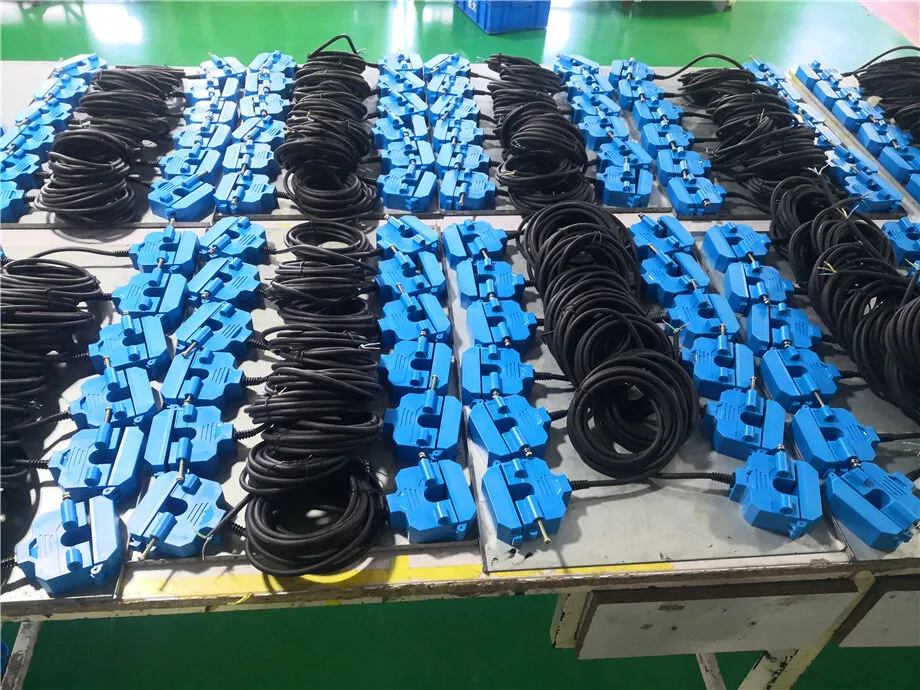

Clip on Current Transformer
Waterproof CT Measurement

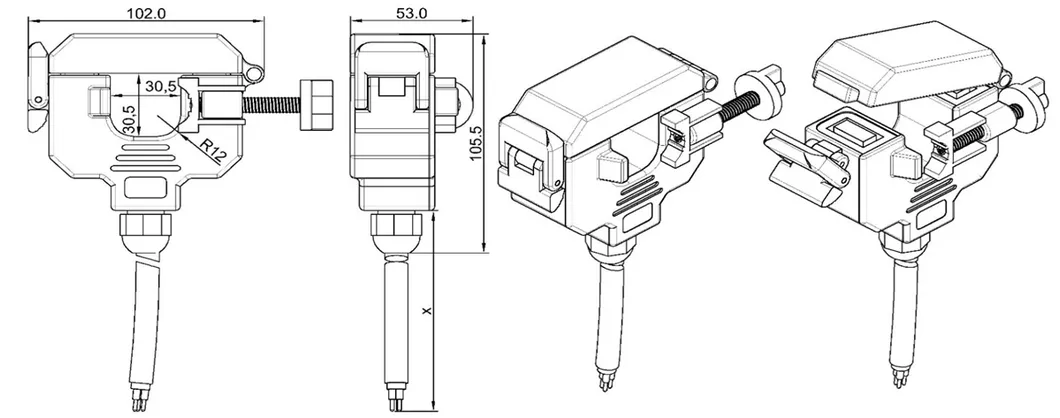

Dimensions and Installation
Product Specifications Chart
Product Overview
?

Frequently Asked Questions

What is the IP rating of this current transformer?
This model is rated IP67, making it completely waterproof and suitable for harsh outdoor environments.
Does installation require power interruption?
No, the split-core design allows for easy "clip-on" installation on existing conductors without the need to disconnect the primary circuit.
What is the operating temperature range?
The unit is designed to operate reliably in extreme conditions ranging from -40ºC to +70ºC.
What are the available secondary outputs?
Standard secondary outputs include 5A or 1A, but it can also be configured for mA or mV signals as per requirements.
What is the accuracy level of the XH-FSCT-T30?
This current transformer provides high precision with accuracy classes of 0.5% or 1.0%, suitable for measurement and protection.
What standards does this product comply with?
It complies with international standards GB20840 and IEC 61869, and holds CE and RoHS certifications.
