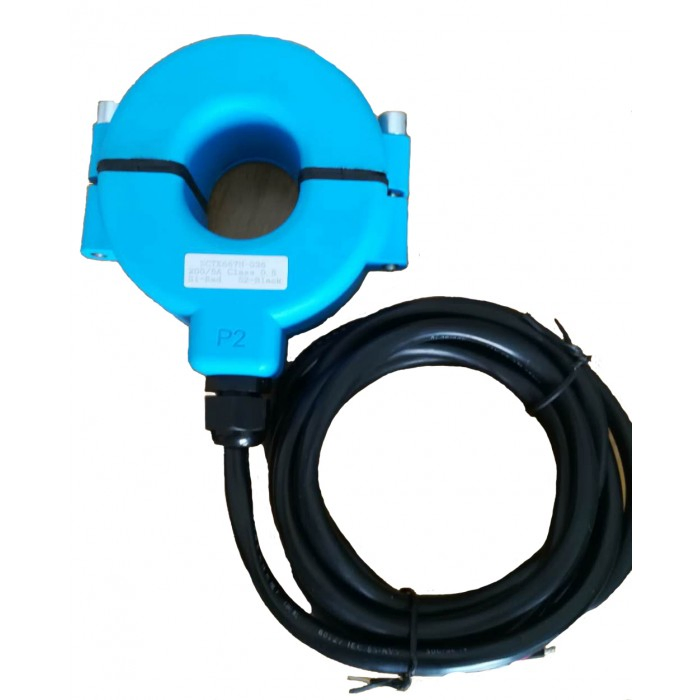

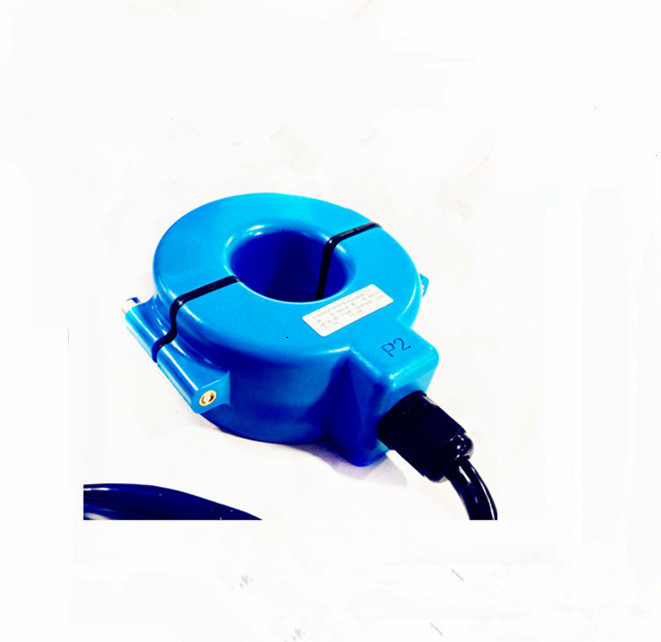

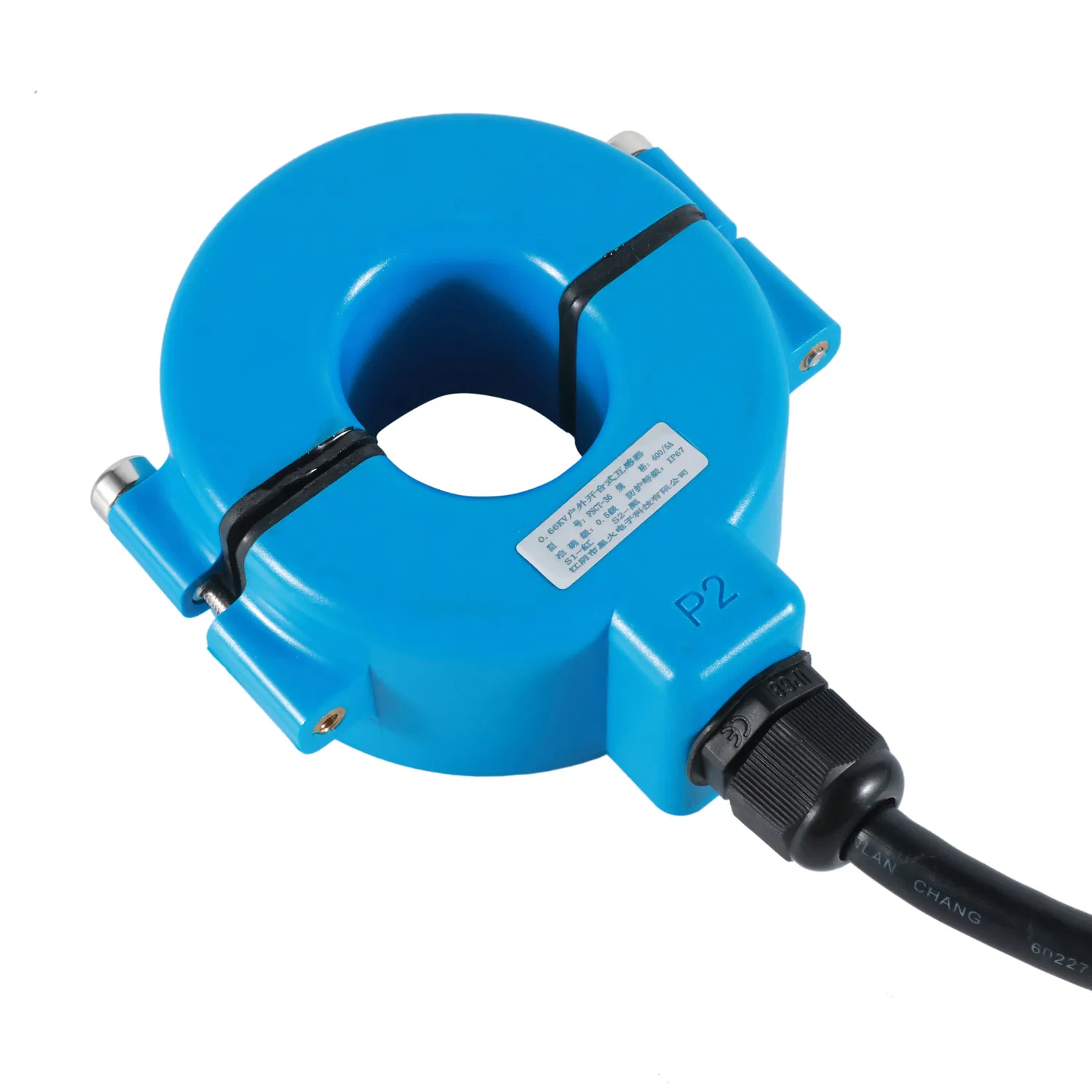

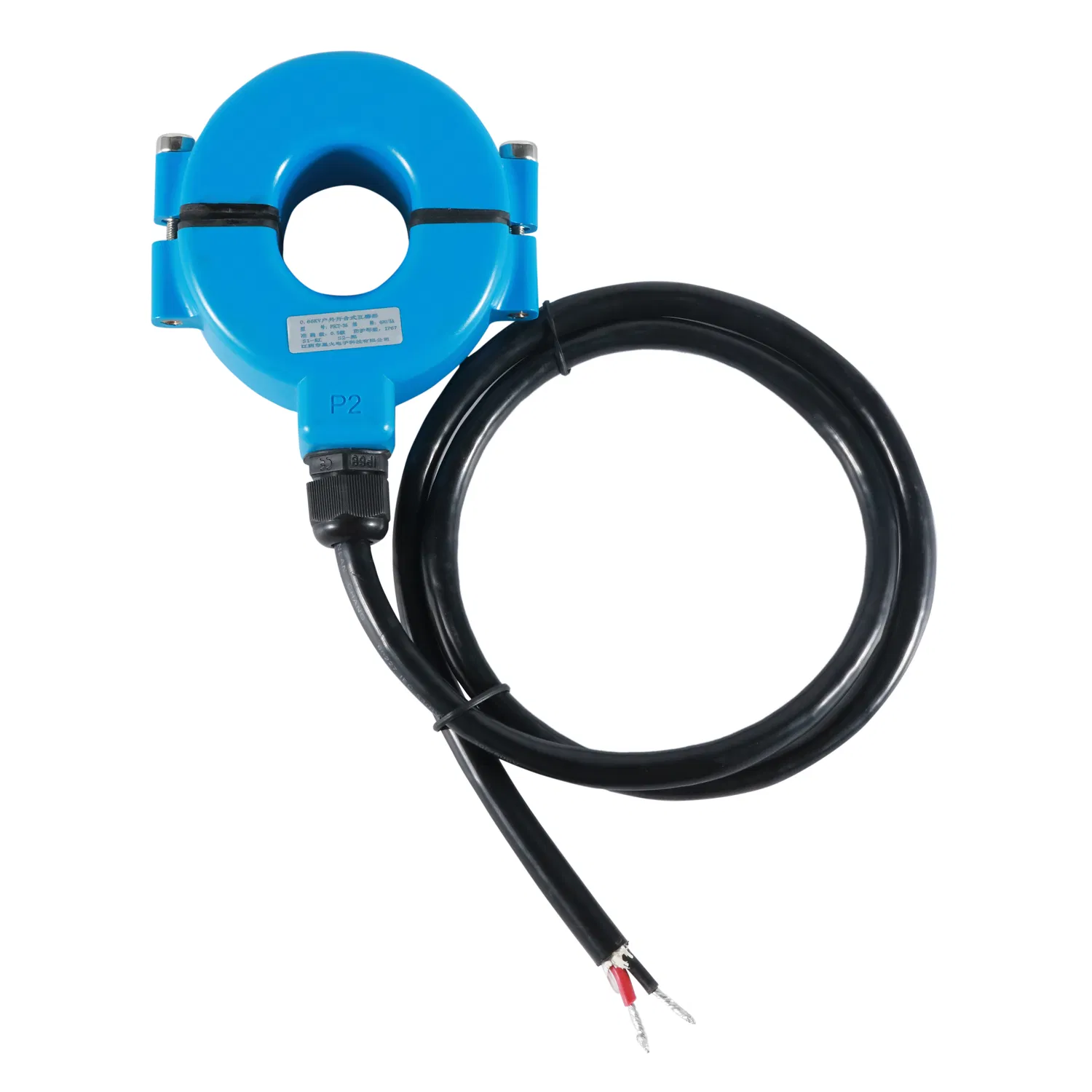

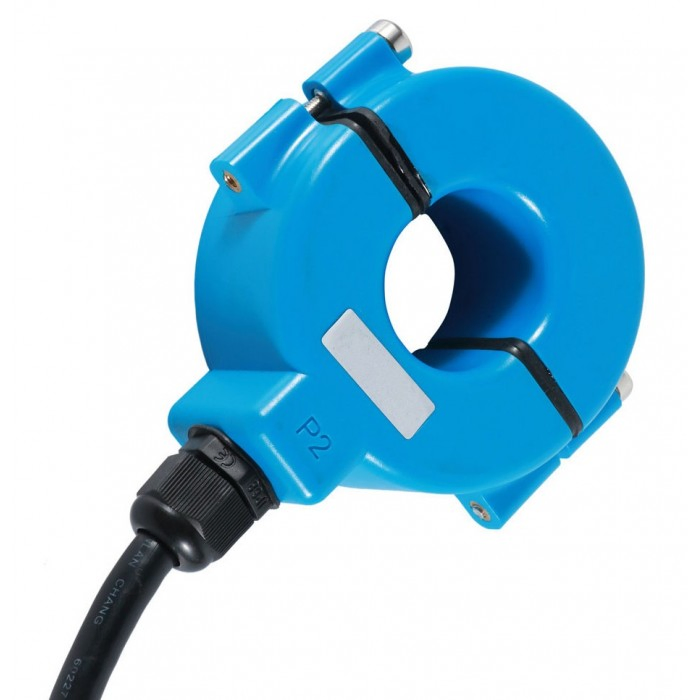

Outdoor Waterproof Split Core Current Transformer 200A 50mA
Outdoor Waterproof Split Core Current Transformer 200A 50mA
Outdoor Waterproof Split Core Current Transformer 200A 50mA
Outdoor Waterproof Split Core Current Transformer 200A 50mA
Outdoor Waterproof Split Core Current Transformer 200A 50mA
1 / 5
Outdoor Waterproof Split Core Current Transformer 200A 50mA
Outdoor Waterproof Split Core Current Transformer 200A 50mA
Outdoor Waterproof Split Core Current Transformer 200A 50mA
Outdoor Waterproof Split Core Current Transformer 200A 50mA
Outdoor Waterproof Split Core Current Transformer 200A 50mA

Outdoor Waterproof Split Core Current Transformer 200A 50mA

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
FSCT-T36
Production Process
SemiConductor Integrated
Material
Stainless Steel
Accuracy Grade
0.5G
Application
Power, Electronic
IP Rating
IP20
Certification
RoHS
Customized
Customized
Phase
Single
Coil
Core-Type Transformer
Transport Package
Cartons
Specification
CE, UL, ROHS, ISO9001: 2008
Origin
China(Mainland)
HS Code
8504
Production Capacity
100, 000 PCS/Month
S

Product Specifications

ModelFSCT-T36
StandardsGB 20840 (IEC 61869), GB4208
Window size36mm
IP ratingIP67
Burden1.5VA-5VA
Rated current100-800 Arms
Max current800 Arms
Turns100-3000T
Accuracy class0.5, 1.0
Equipment maximum voltage0.66/0.72KV
Rated output5A, 1A, mA, mV, V
Wire lead2*2.5mm2 sheathed wire
Insulation strength3KV VAC/min
Insulation impedanceDC500V/100MΩ
Rated frequency50-400HZ
Working temperature-40ºC~70ºC
Storage temperature-40ºC~90ºC
A

Applications

  • Power quality monitoring
  • Power instrument and meter
  • Distributed measurement systems
  • Measurement of current of power supply equipment below 10KV
  • Microcomputer protection
D

Dimensions & Installation

Dimensions

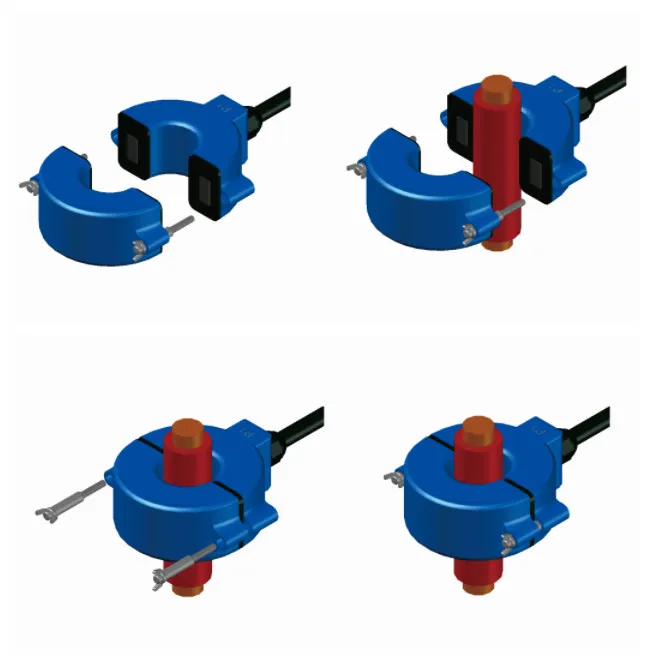

Installation

Waterproof Features

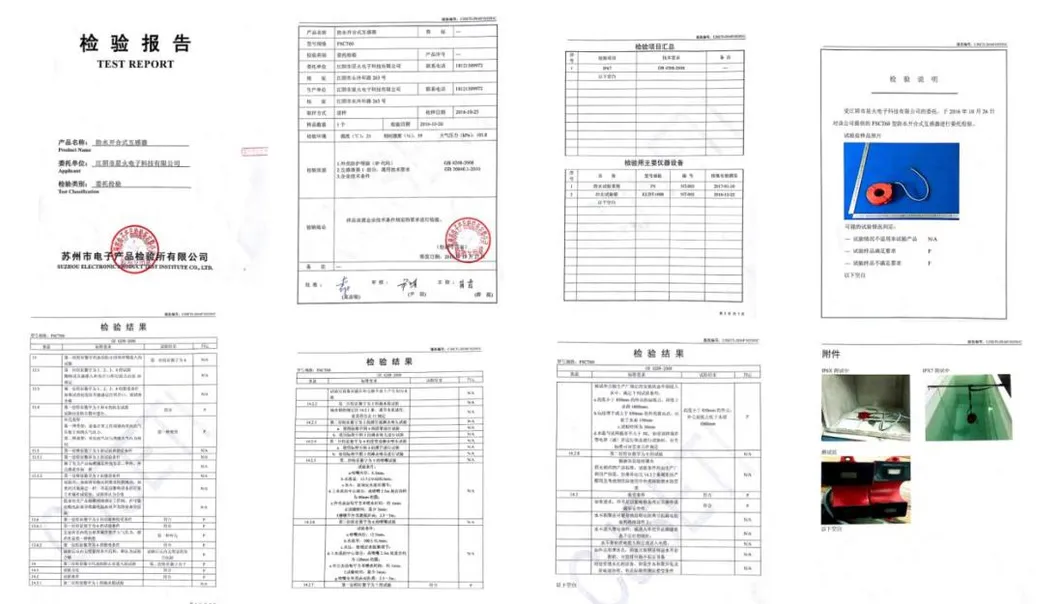

Waterproof Split Core Current Transformer
G

Product Gallery

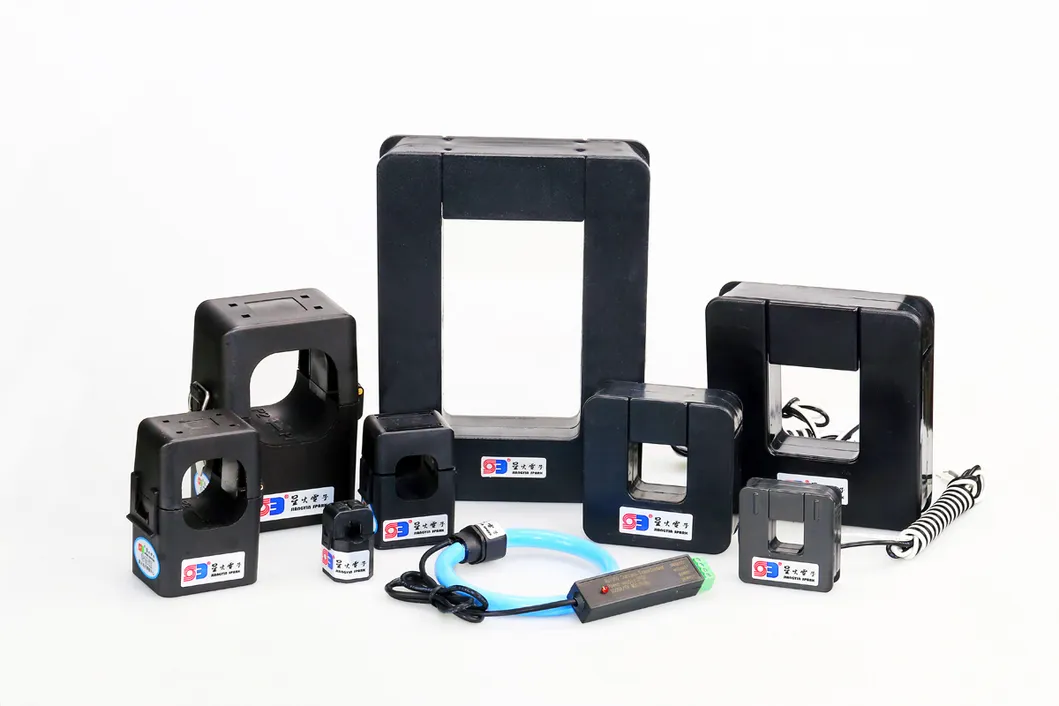

Product view 1
Product view 2
Product view 3
Product view 4

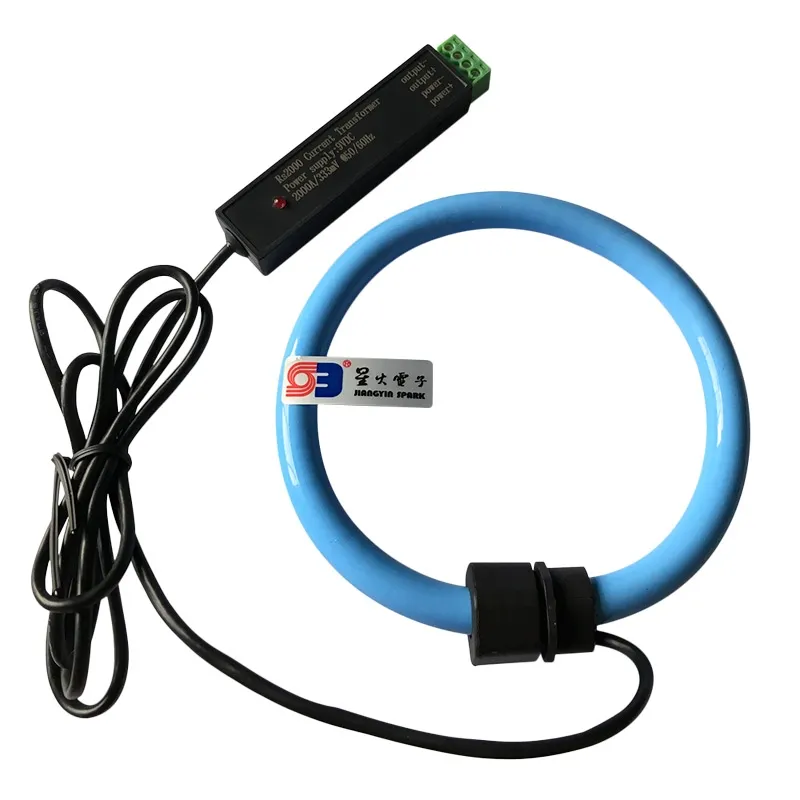

Product view 5

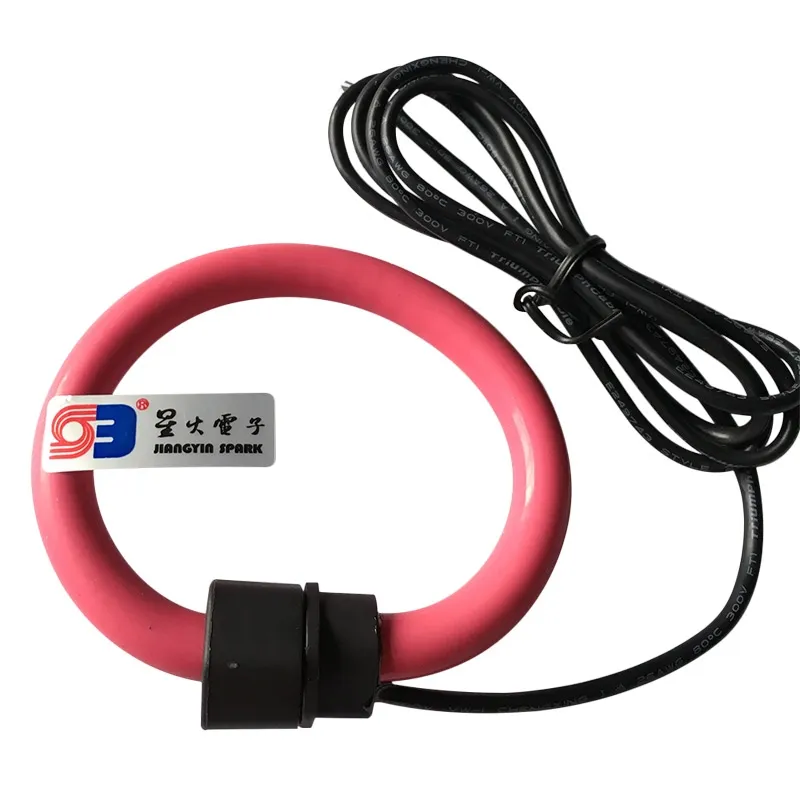

Product view 6

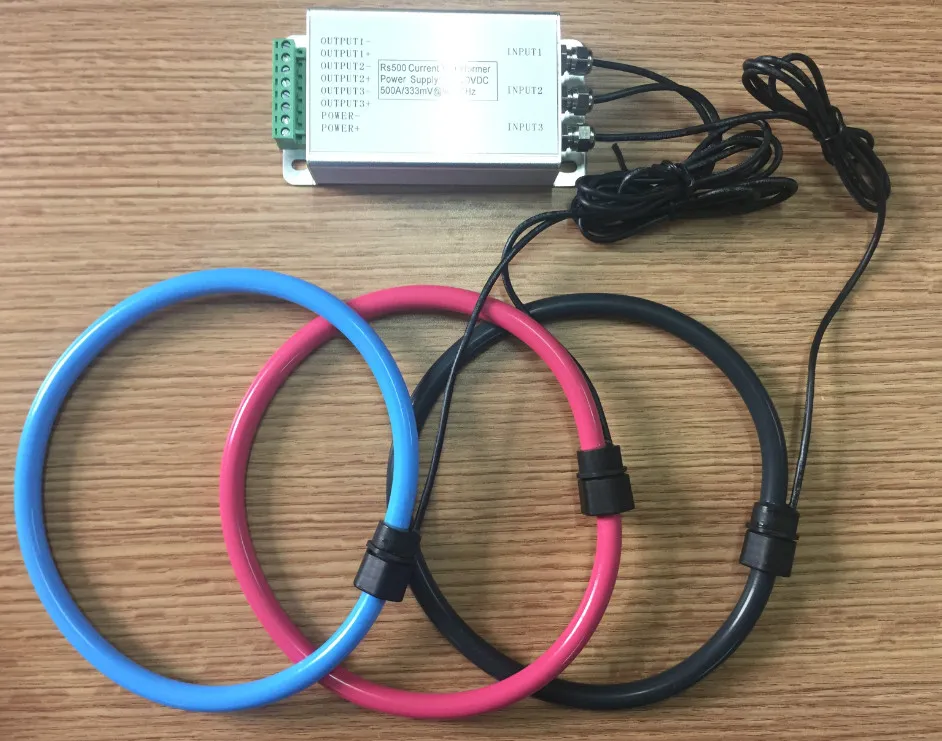

Product view 7

Frequently Asked Questions

What is the waterproof rating of the FSCT-T36 transformer?
The FSCT-T36 model features an IP67 rating, making it suitable for outdoor use and resistant to dust and water immersion.
What are the available accuracy classes for this model?
The current transformer is available in accuracy classes 0.5 and 1.0, ensuring precise measurement for power quality monitoring.
What temperature range can this device withstand?
It has a wide working temperature range from -40ºC to 70ºC, and can be safely stored in temperatures between -40ºC and 90ºC.
Is the current transformer customizable?
Yes, the FSCT-T36 supports customization to meet specific project requirements and technical standards.
What material is used for the construction?
The product is constructed using high-quality stainless steel and features a core-type transformer coil for durability and efficiency.
What is the maximum equipment voltage supported?
The maximum equipment voltage rating for this transformer is 0.66/0.72KV.
