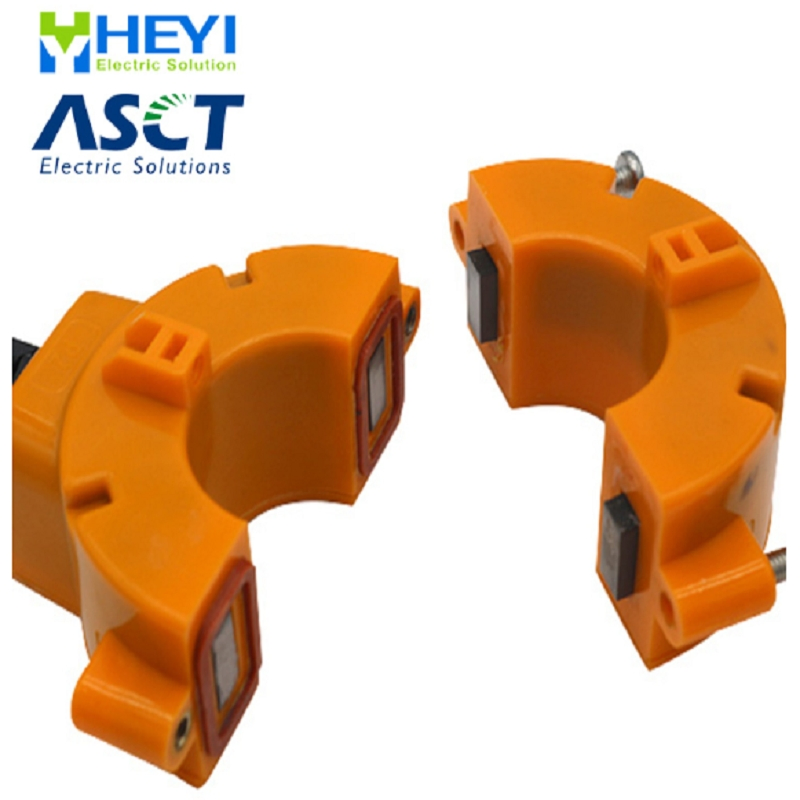

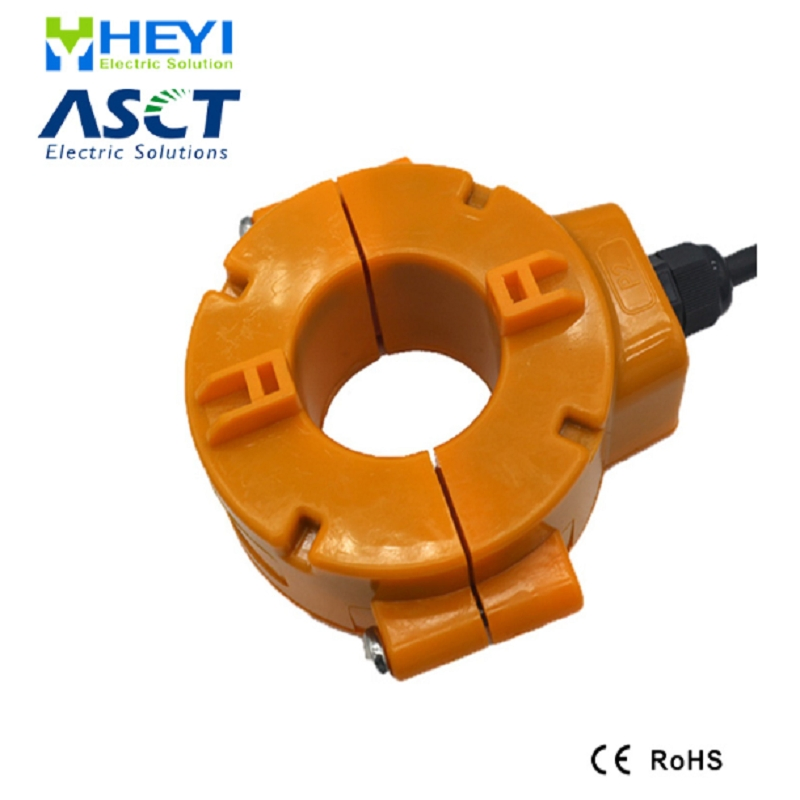

Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
1 / 5
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65
Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65

Heyi Split Core Oct-45 Waterproof Current Transformer for Outdoor Use IP65

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
OCT-45
Phase
Single
Operation Condition
Outdoor
Usage
Protection, Measurement
Insulating Medium
Insulating Paper
Voltage Transformation
Electromagnetic Type
Frequency
50/60Hz
Rated Input
1A-800A
Rated Output
1A, 5A
IP Grade
IP67
Case Material
PC/UL94-V0
Core
Silicon Steel
Packaging & Delivery
Package Size
8.00cm * 8.00cm * 4.00cm
Package Gross Weight
4.000kg
Split Core Transformer

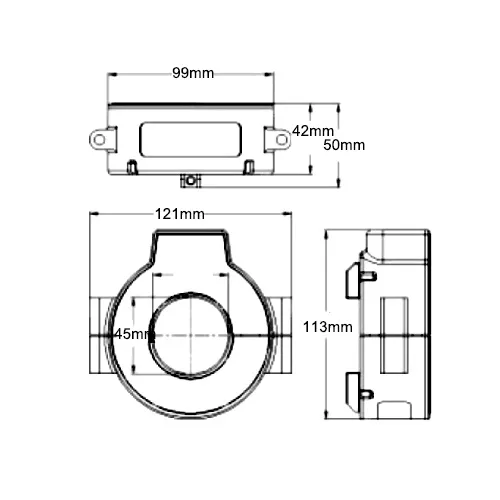

Technical Drawing
Product View
Technical Specifications
Rated Primary Current (Amp.) 50/60Hz100-1200A
Current Ratio400/5A
D.C. Resistance Max at 20 ºC0.1Ω
AccuracyClass 0.5
Burden2.5VA
Phase Error at Rated Current<= 1.5˚
Operating Temperature Range-25~65ºC
Dielectric Withstanding Voltage3.0KV/1mA/1min
Insulation ResistanceDC500V/100MΩ min

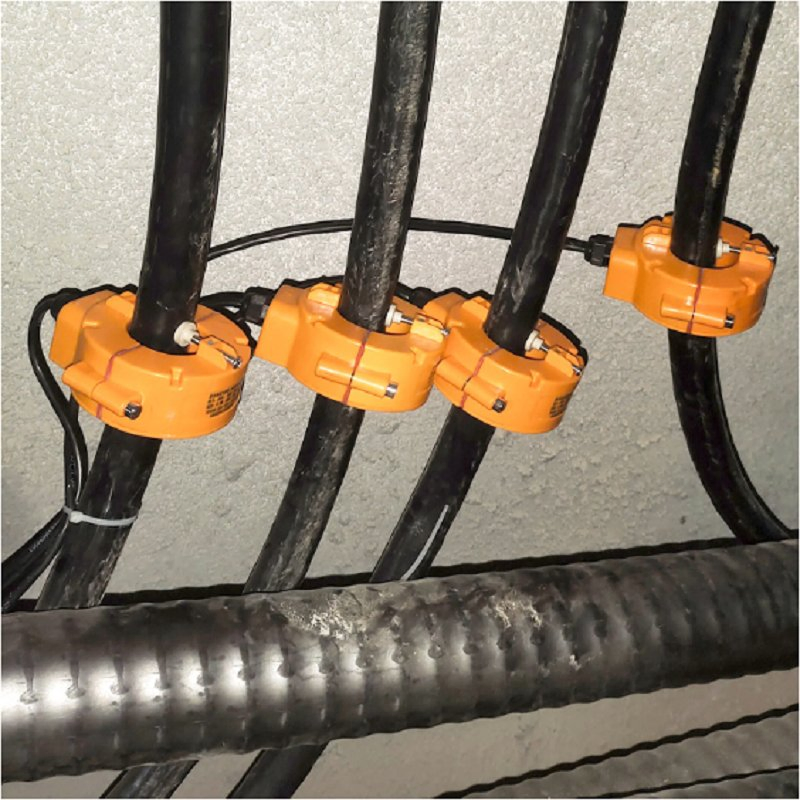

Application 1

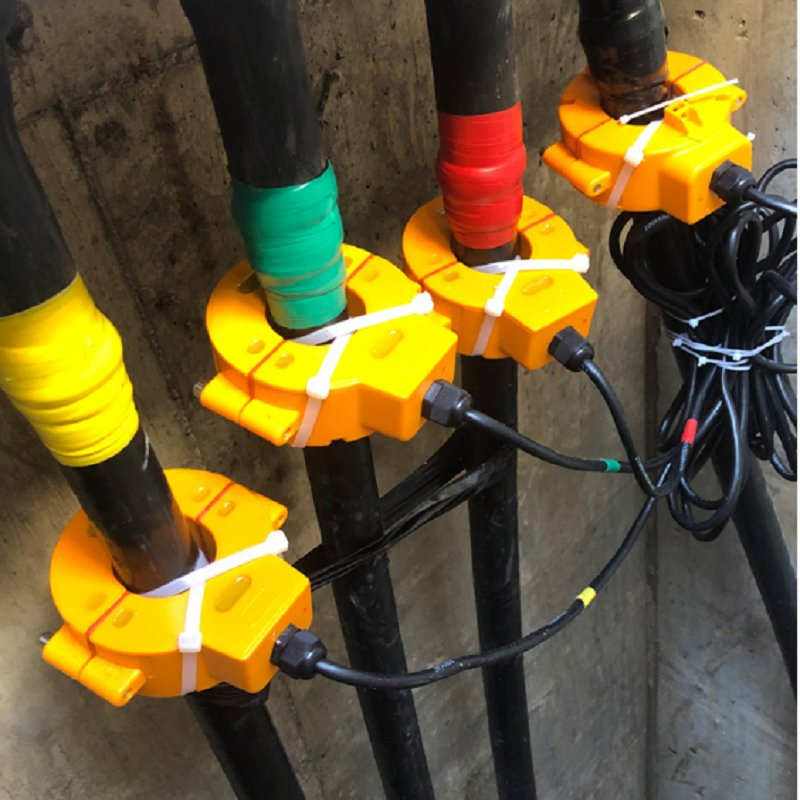

Application 2
Dimension Info
Detail View 1
Detail View 2
Detail View 3
Applications
⚡
  • Current measurement, monitoring and protection for electrical wiring and equipment.
  • Current and power measurement for electric motors, lighting, air compressors, and heating systems.
  • Ventilation system, air-condition equipment and automation - control systems.
  • Current, power and energy monitoring devices.
  • Relay protection devices.

🛒 How to Order

1. Let us know the model, color, poles and rated current.
2. Proforma invoice (PI) confirmation.
3. Payment processing.
4. Delivery within 6-10 days after payment.
5. OEM/ODM available (Free for 5000+ sets).

📦 Shipping

• Express: UPS, DHL, EMS, FedEx, TNT (Door to Door).
• Delivery: 3-5 days for standard items (<1000pcs).
• Usually takes 3-7 days depending on destination.

🛡️ Warranty & Payment

• Payment: T/T, Western Union (30% deposit, 70% before shipping).
• Warranty: 1 year quality guarantee.
• Defective products must be notified within 3 days.

Frequently Asked Questions
Is the OCT-45 current transformer suitable for outdoor environments?
Yes, the OCT-45 is designed for outdoor operation and features an IP67 waterproof rating, ensuring reliable performance in harsh conditions.
What is the accuracy class of this transformer?
This model provides high-precision measurement with an accuracy of Class 0.5.
What materials are used for the insulation and casing?
The case is made of flame-retardant PC/UL94-V0, the bobbin is PBT, and it uses insulating paper as the insulating medium.
What is the rated input range?
The rated input ranges from 1A to 800A (with primary current support up to 1200A depending on specific requirements).
What is the standard warranty for this product?
We provide a 1-year warranty from the date of delivery for all OCT-45 current transformers.
Can this be used for smart grid automation?
Absolutely. It is designed for current measurement and monitoring in automation control systems and energy monitoring devices.
