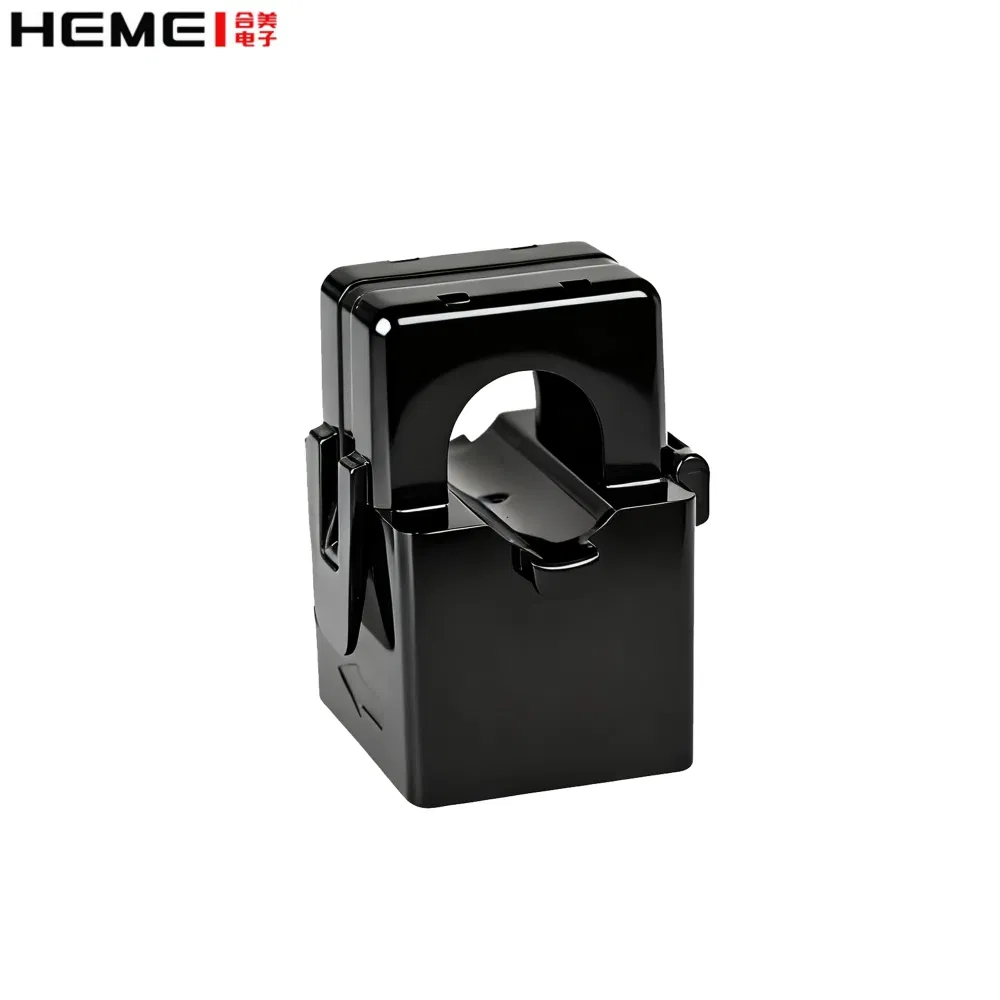

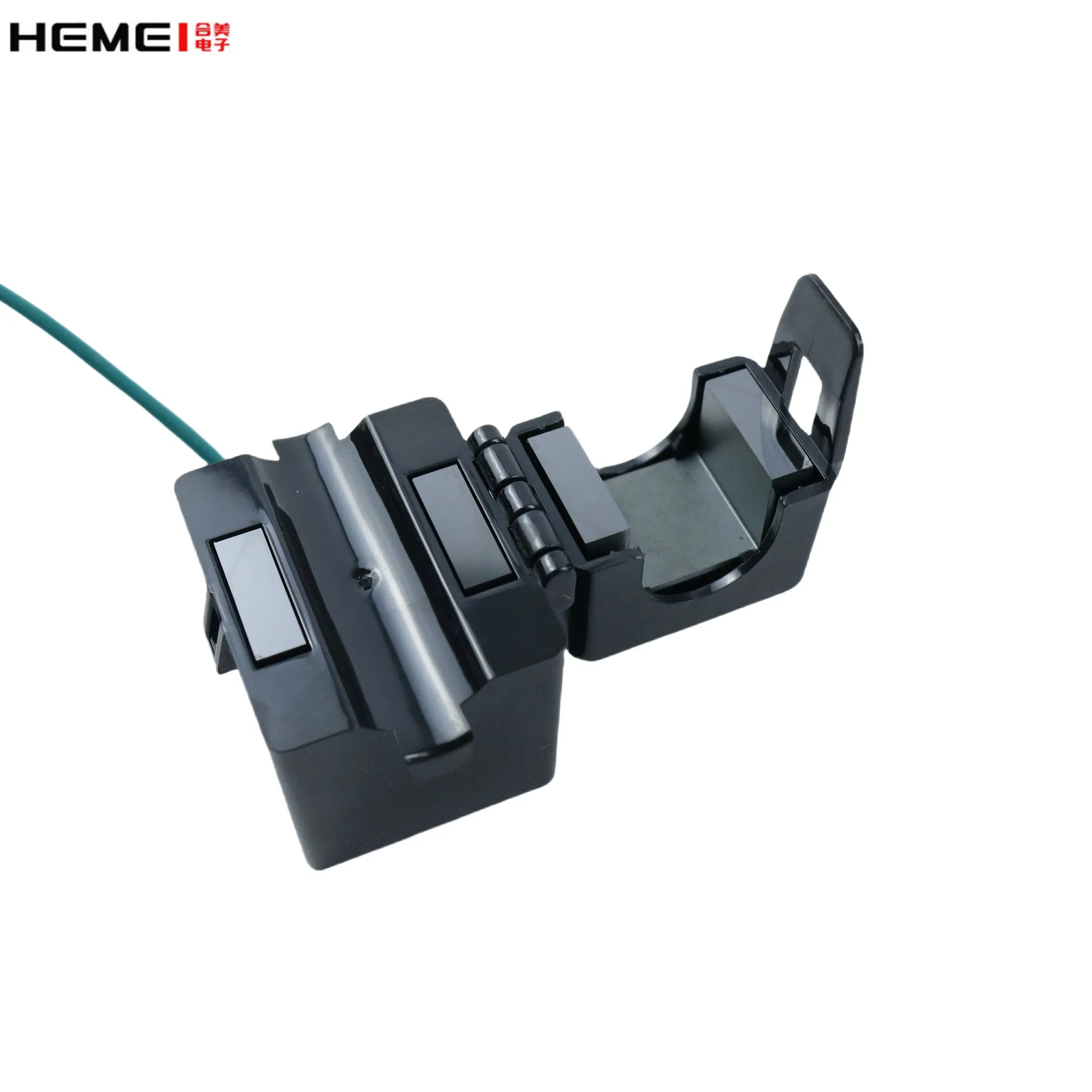

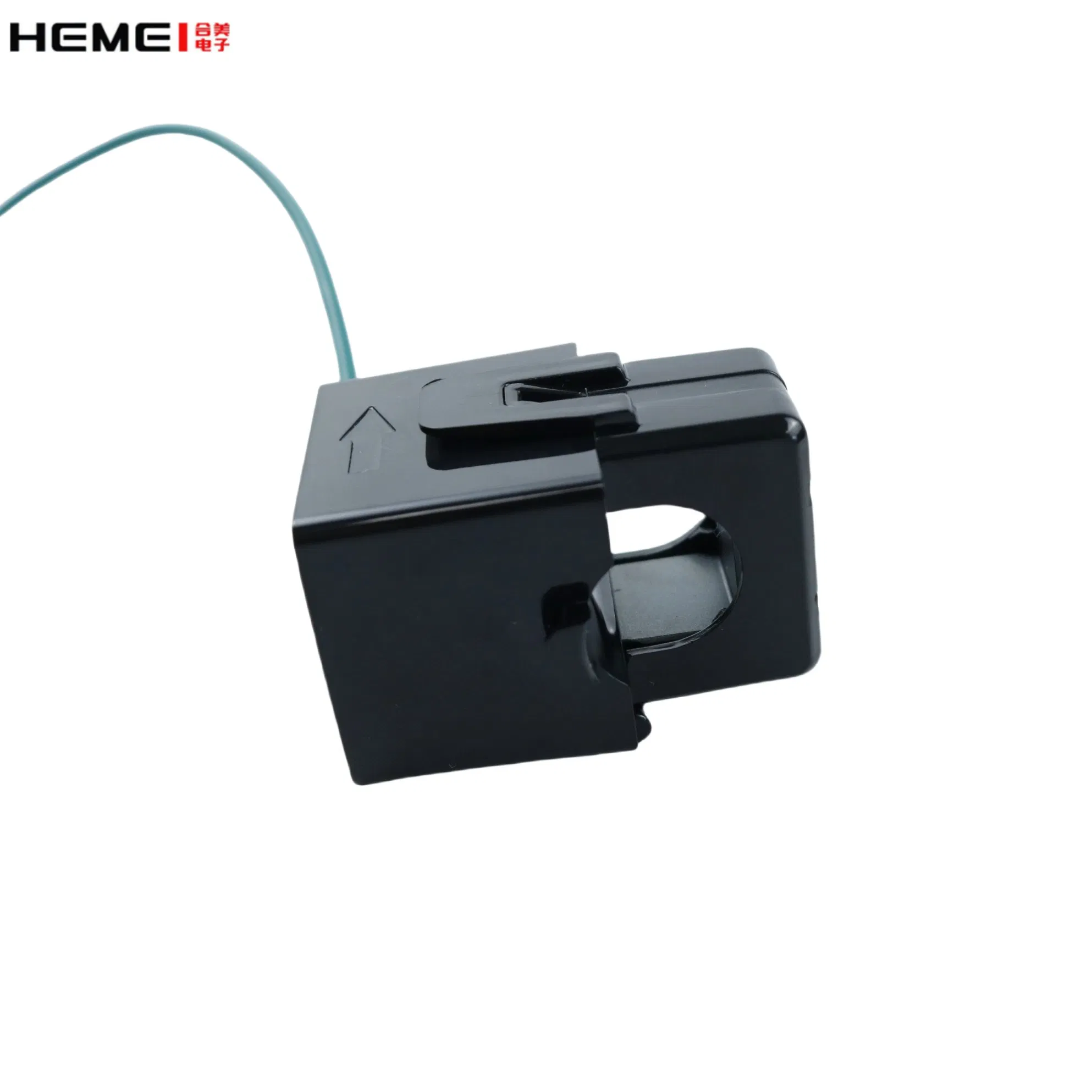

24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
1 / 5
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer
24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer

24mm Hole AC Split Core Current Transformer 60/5A 100/5A Waterproof Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i
Basic Information
Model NO.
HM-CTSC-24
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Epoxy Resin
Accuracy
0.5%/1.0%
Primary Input
0.25A~300A
Output
0.333va/0-5VAC/Ma
Certification
CE/UL/RoHS
!
Product Description
Split Core Current Transformer

The split core current transformer are designed for fast and easy installation. The CTs are ideal for installation on existing electrical cables by clamping on the conductor. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

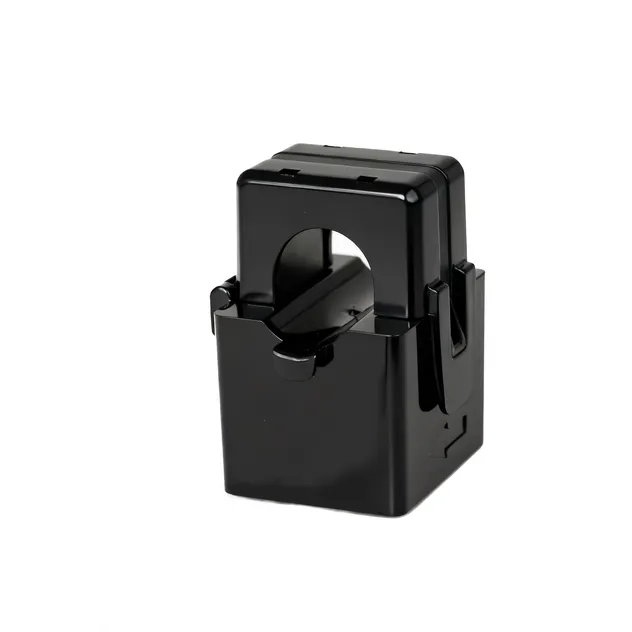

Split Core Current Transformer View 1

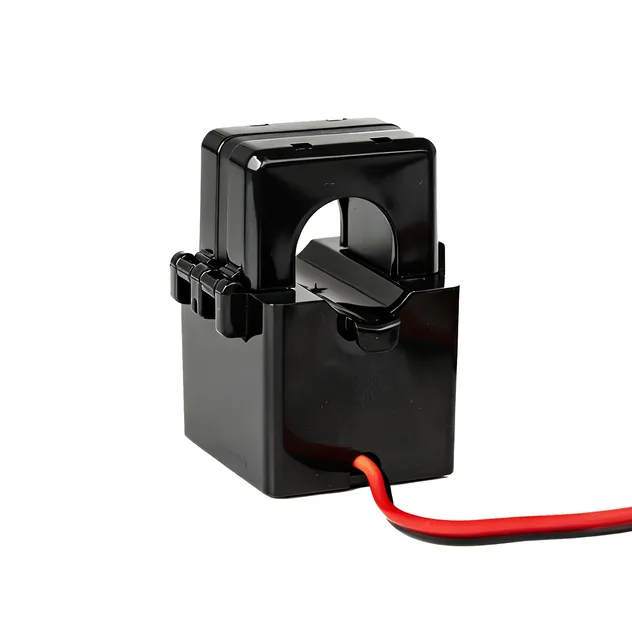

Split Core Current Transformer View 2

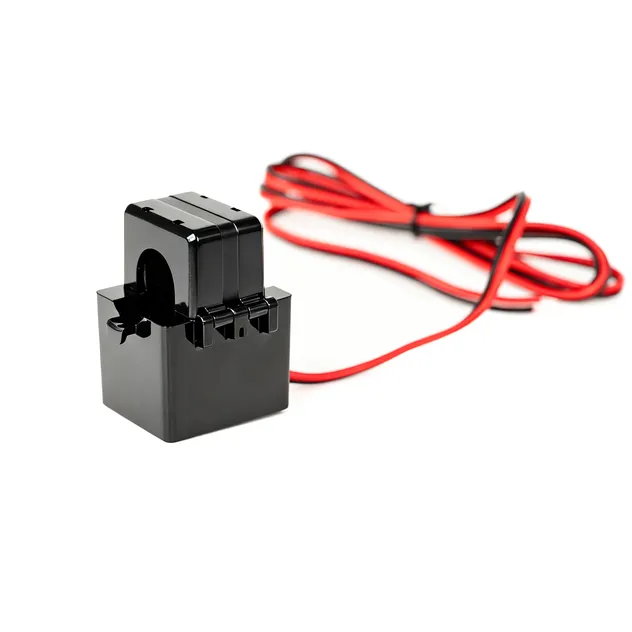

Split Core Current Transformer View 3
⚙
Technical Indicators
Technical Indicators Indicator Parameters
Operating voltage≤0.72KV
Operating frequency50Hz~1KHz
Rated accuracy level0.2%/0.5%/1.0%
Input current0A~600A
Insulation resistance≥1M ohms@500Vdc
Power frequency withstand voltage3500V@2mA\1min\50Hz
Flame retardant levelUL94-V0
Phase linearity error≤20′
📋
Product Parameters
Model Inner Diameter Turns Ratio Input Current Accuracy
HM-CTSC-1010mm500/1 - 3000/10A~80A0.2% / 0.5%
HM-CTSC-1616mm500/1 - 3000/10A~150A0.2% / 0.5%
HM-CTSC-2424mm500/1 - 3000/10A~300A0.2% / 0.5%
HM-CTSC-3535mm500/1 - 3000/10A~600A0.2% / 0.5%
★
Application & Production

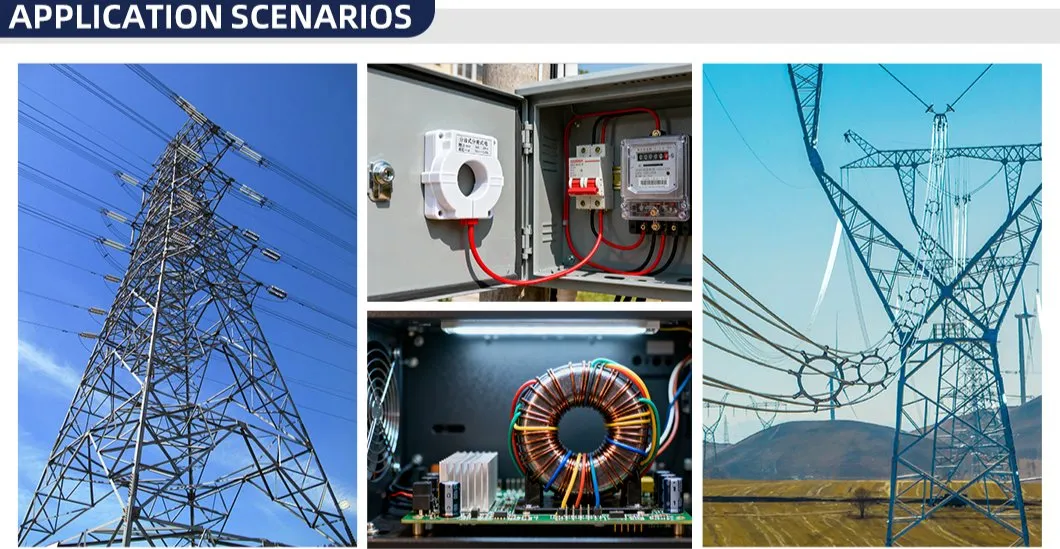

Application Scenarios

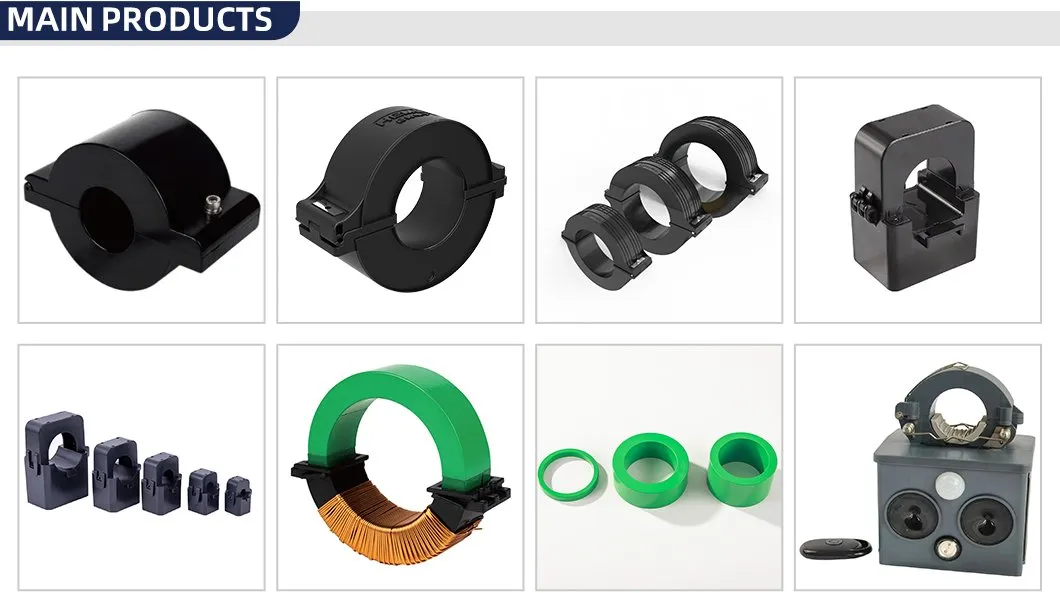

Main Products Gallery
Production Facility
Workshop
✔
Certifications & Logistics
Product Certifications
Packaging and Shipping
?
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in current transformers.
Can I request a sample order?
Yes, we welcome sample orders to test and check quality. Sample fees and freight costs apply.
Do you offer customized products (OEM/ODM)?
Yes, our R&D department has over 10 years of experience in the electric industry. We offer OEM, ODM, and OPM services to meet specific customer requirements.
What is the typical lead time for an order?
For customized products, the lead time is usually 10-15 days, depending on the design complexity and order quantity.
How do you ensure product quality?
Our production follows ISO9001 standards. We conduct performance tests during production and comprehensive quality tests upon completion.
What are the advantages of split core CTs?
Split core designs allow for easy installation on existing wiring without disconnecting the primary conductor, ensuring a safer and faster setup.
