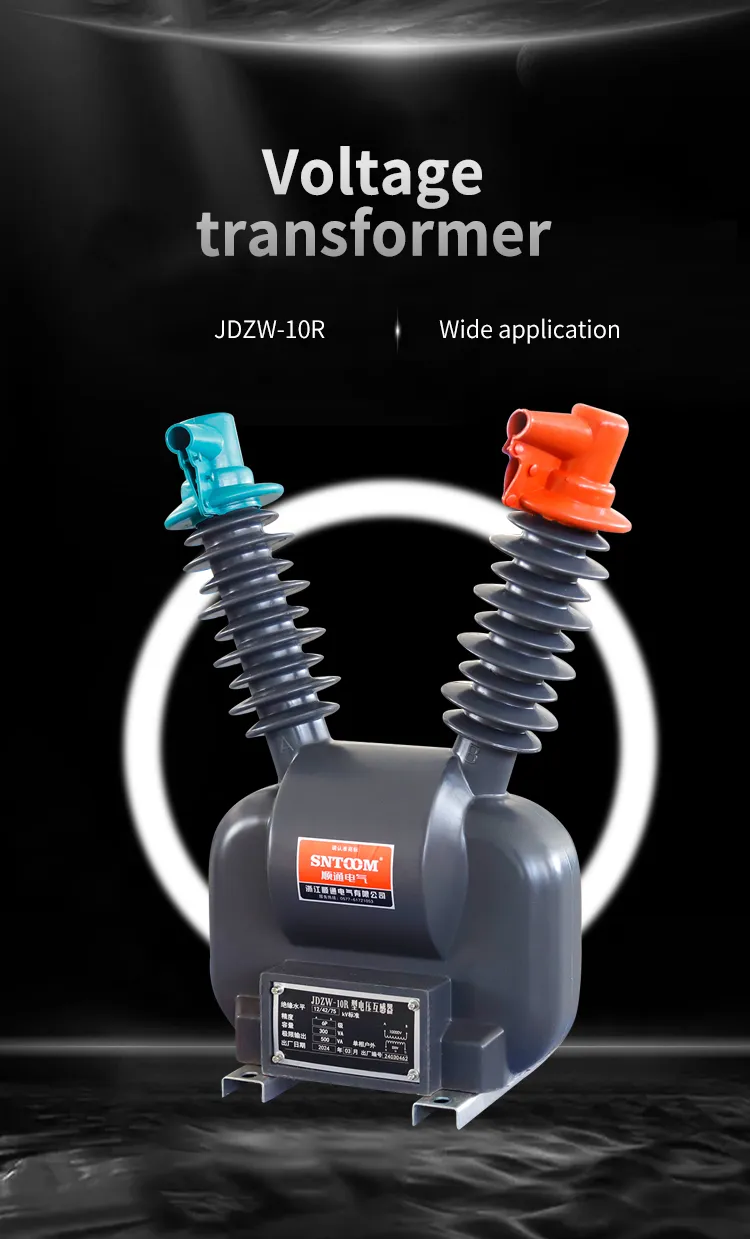

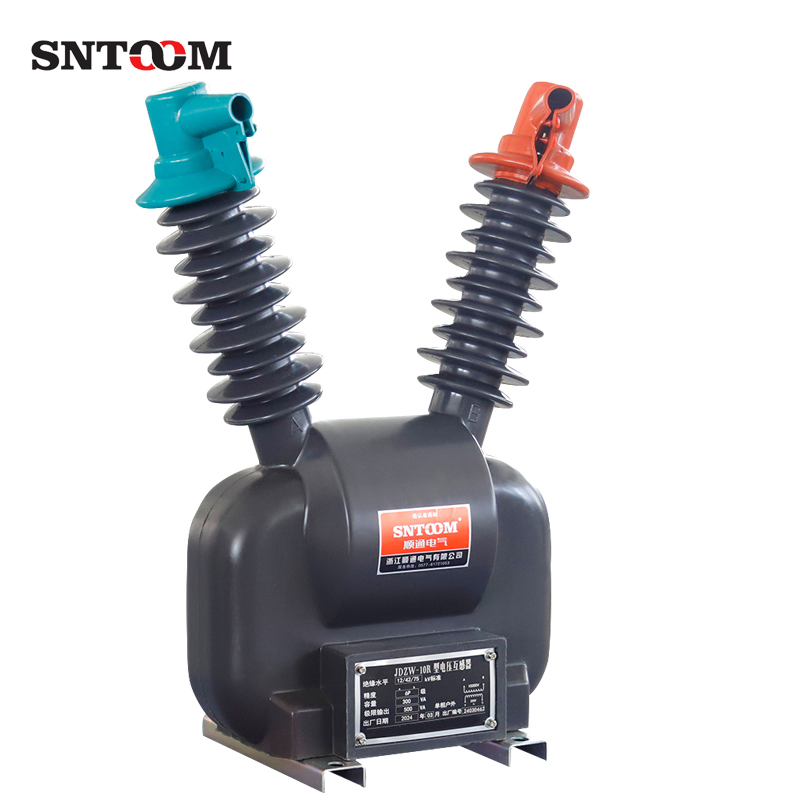

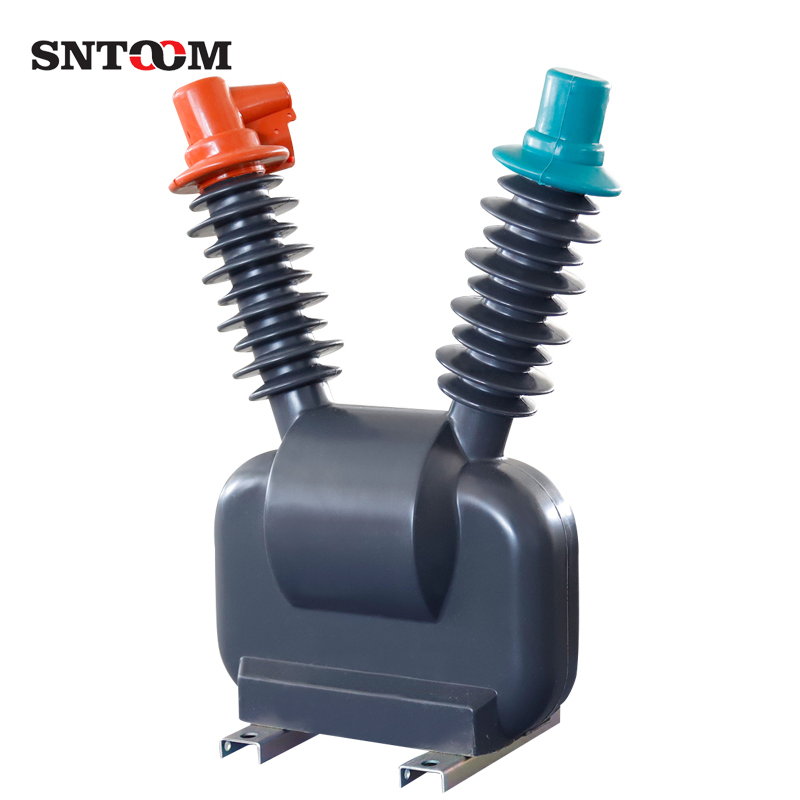

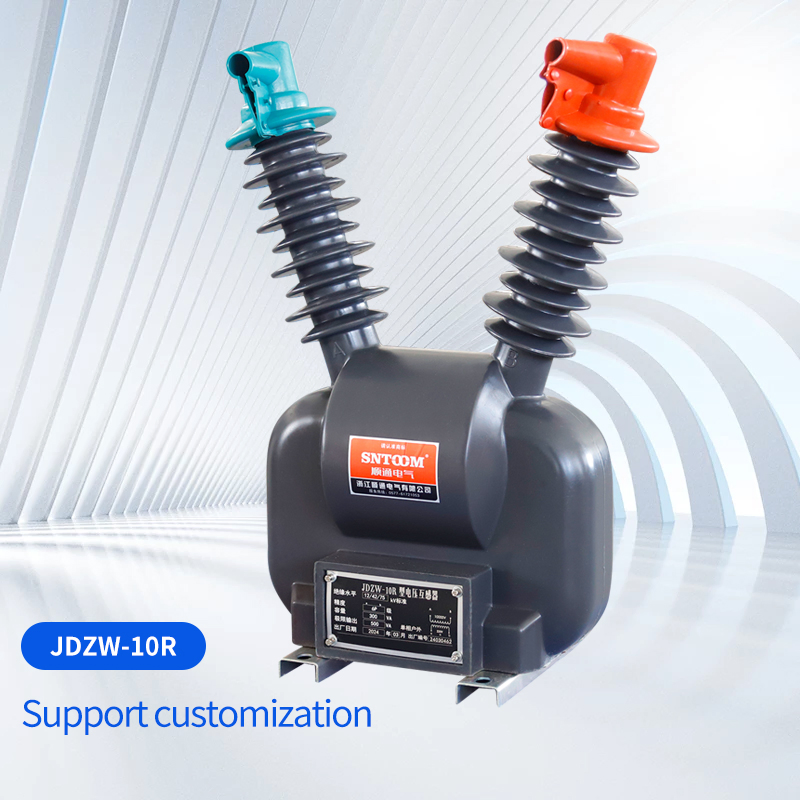

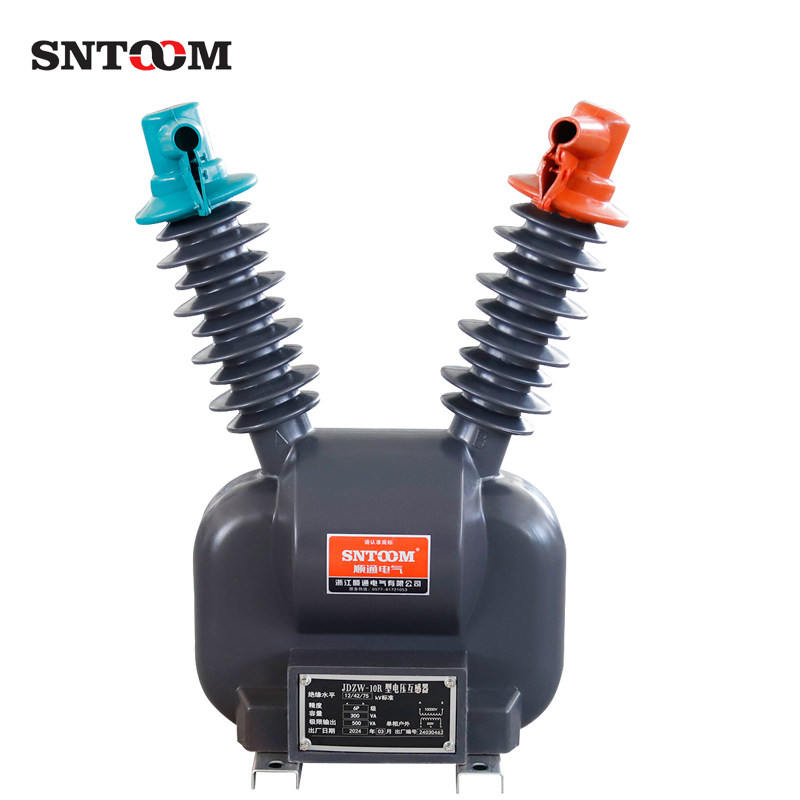

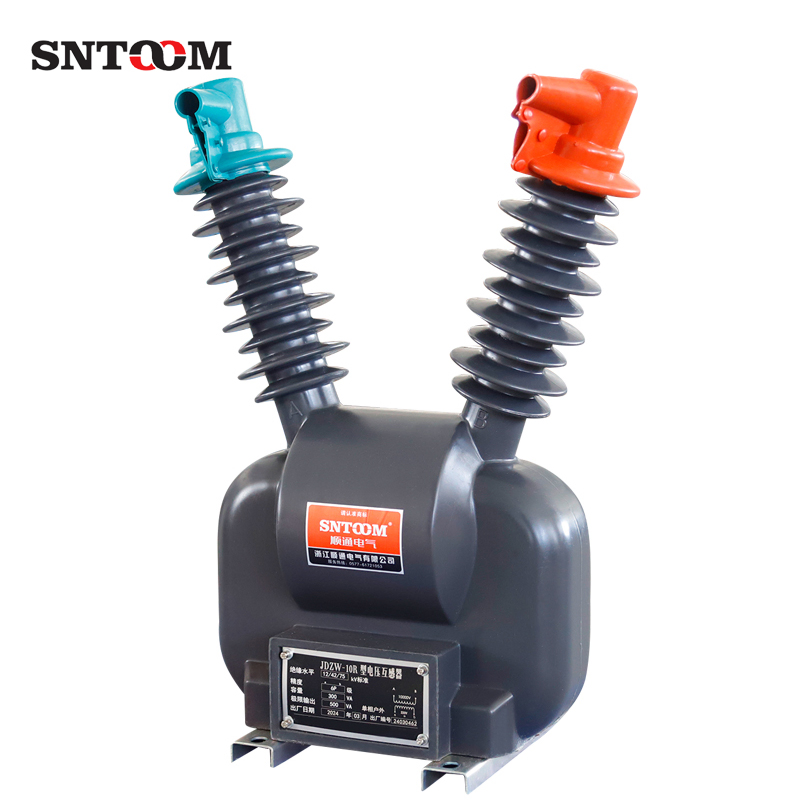

Jdzw-10r Voltage Transformer Dry PT Voltage Transformer Intelligent Vacuum Circuit Breaker 220V Power Supply

Customization: Available
Application: Electronic, Instrument
Type: Voltage Transformer

Product Description

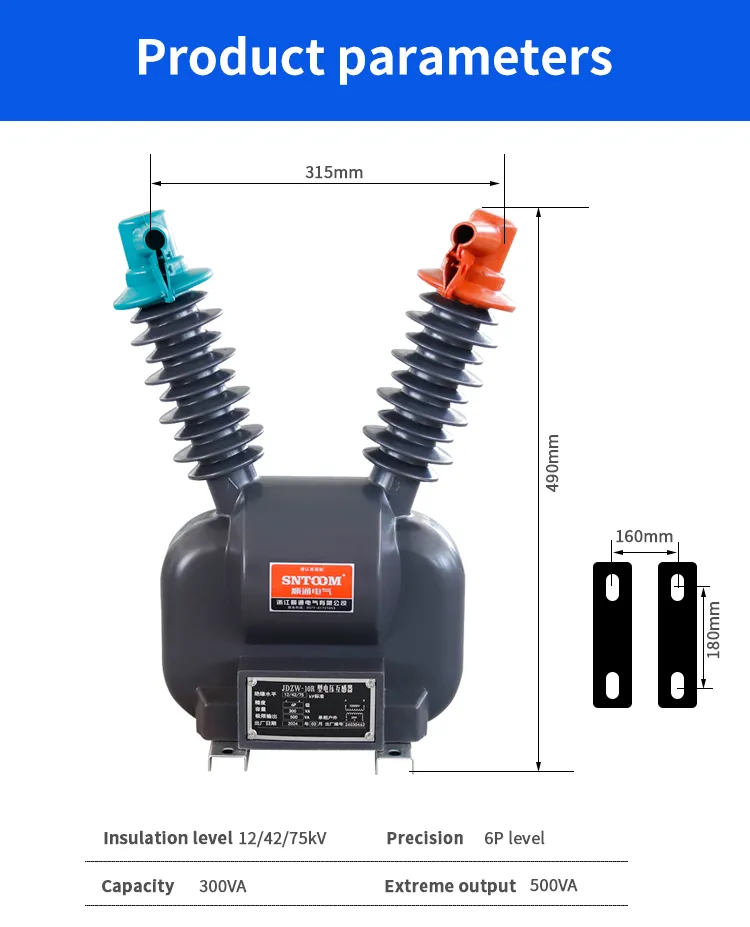

Technical Specifications
Model NO.
JDZW-10R
Phase
Single
Operation Condition
Outdoor
Usage
Protection
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Common Insulating Materials
Installation
Active Type
Voltage Transformation
Electromagnetic Type
Precision
6p Level
Insulation Level
12/42/75kv
Capacity
300va
Extreme Output
500va
Production Capacity
999pieces/Year
Packaging & Delivery
Package Size
49.00cm * 31.50cm * 202.00cm
Package Gross Weight
30.000kg
Transport Package
Carton Packing
Product Visuals
Detailed Overview

This series of high-performance electrical equipment is developed by a professional manufacturer specializing in R&D, production, and sales. The leading product line includes voltage transformers, audio-visual alarms, fans, regulated power supplies, and other essential electrical components.

The facility is equipped with advanced production machinery and sophisticated testing equipment, managed by a team of professional technical engineers. A comprehensive quality management system ensures that every product meets rigorous standards.

The independently developed high-power voltage regulators, purified power supplies, E04 series, and JBK5 series transformers are known for their stable performance and reliable quality. By focusing on market-oriented principles and maintaining integrity in quality, these products are designed to reduce costs and improve management efficiency for various industrial applications.

Frequently Asked Questions
What is the primary application of the JDZW-10R model?
The JDZW-10R is an electromagnetic type voltage transformer specifically designed for outdoor protection usage in power supply systems.
What is the insulation rating for this transformer?
This model features a high insulation level of 12/42/75kv, utilizing common insulating materials suitable for active type installations.
What are the power capacity specifications?
The JDZW-10R has a rated capacity of 300va and can reach an extreme output of 500va.
Is the product suitable for international transport?
Yes, the units are securely packed in carton packaging with a gross weight of 30kg and dimensions of 49cm x 31.5cm x 202cm to ensure safe delivery.
What precision level does this transformer provide?
The unit operates at a 6p level precision, ensuring reliable performance for circuit breaker power supply and monitoring.
Can this be used for vacuum circuit breakers?
Absolutely, it is commonly used as a dry PT voltage transformer for intelligent vacuum circuit breakers and 220V power supply configurations.
