⚙️ Product Description

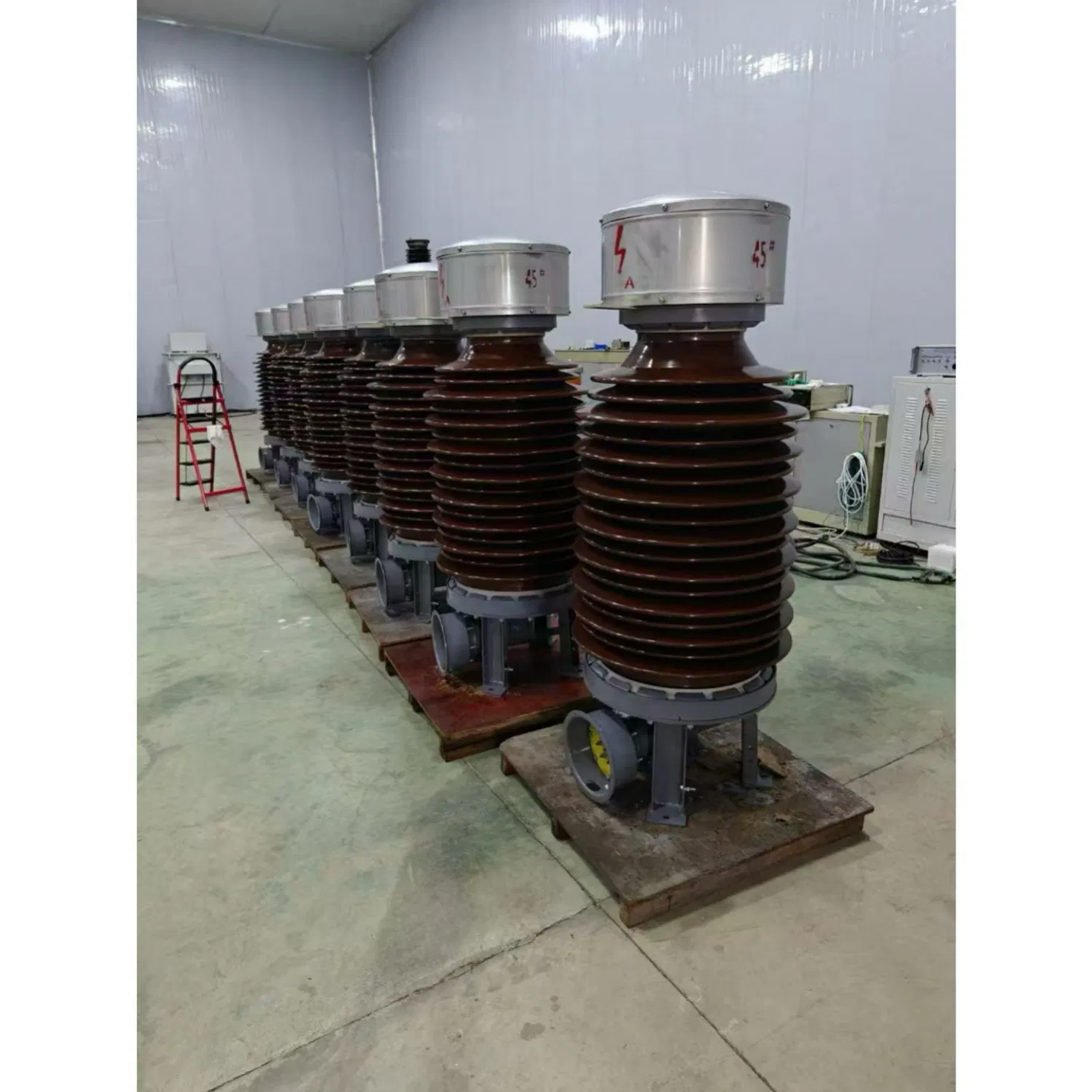

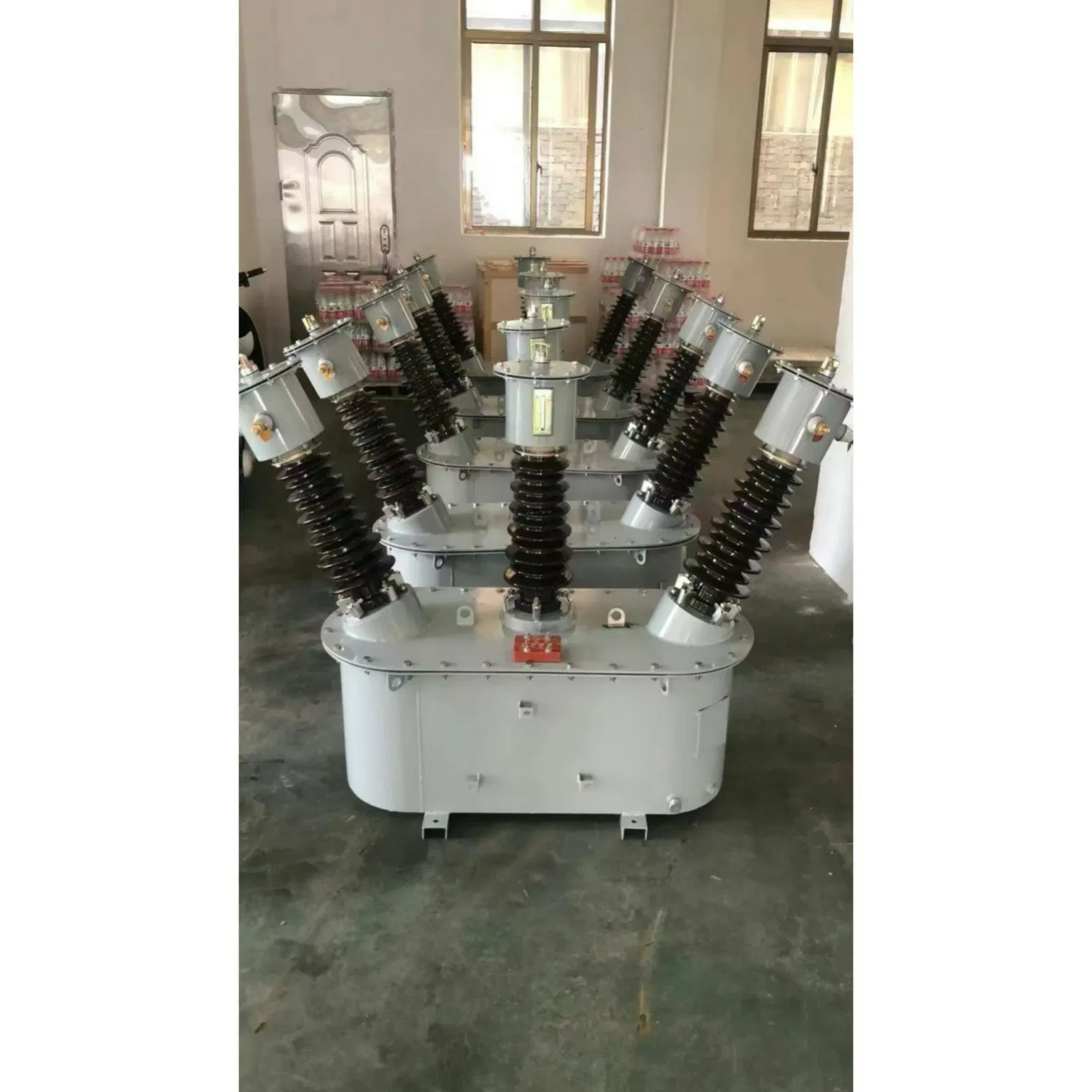

This series of Current Transformers includes products such as LB-60W2, LB-66W2 (LB-72.5W2), LB9110W2 (LB9-126W2), LB9-120W2 (LB9-123W2), and LB-132W2, LB-138W2 (LB-145W2). These are designed for electric current measurement, energy measurement, and relay protection in power systems with voltages ranging from 60kV to 145kV and frequencies of 50Hz to 60Hz. All products comply with GB 1208 and IEC 60044-1 standards.
🌟 Key Technical Advantages:
- Superior Sealing: Components are not exposed to air, ensuring longer service life and better performance.
- Anti-Corrosive Design: Oil tanks made of anti-corrosive aluminum alloy eliminate partial whirlpool heat and prevent rust.
- High Strength Insulation: Porcelain bushings made of high-strength porcelain spliced with the oil tank for a compact and beautiful structure.
- Advanced Drying Technique: Utilizes profiling heat conduction and high-degree vacuum drying to maintain insulation integrity (dielectric loss below 0.3%).
- Precision Testing: Oil draining valves allow for syringe sampling to ensure the precision of transformer oil tests.

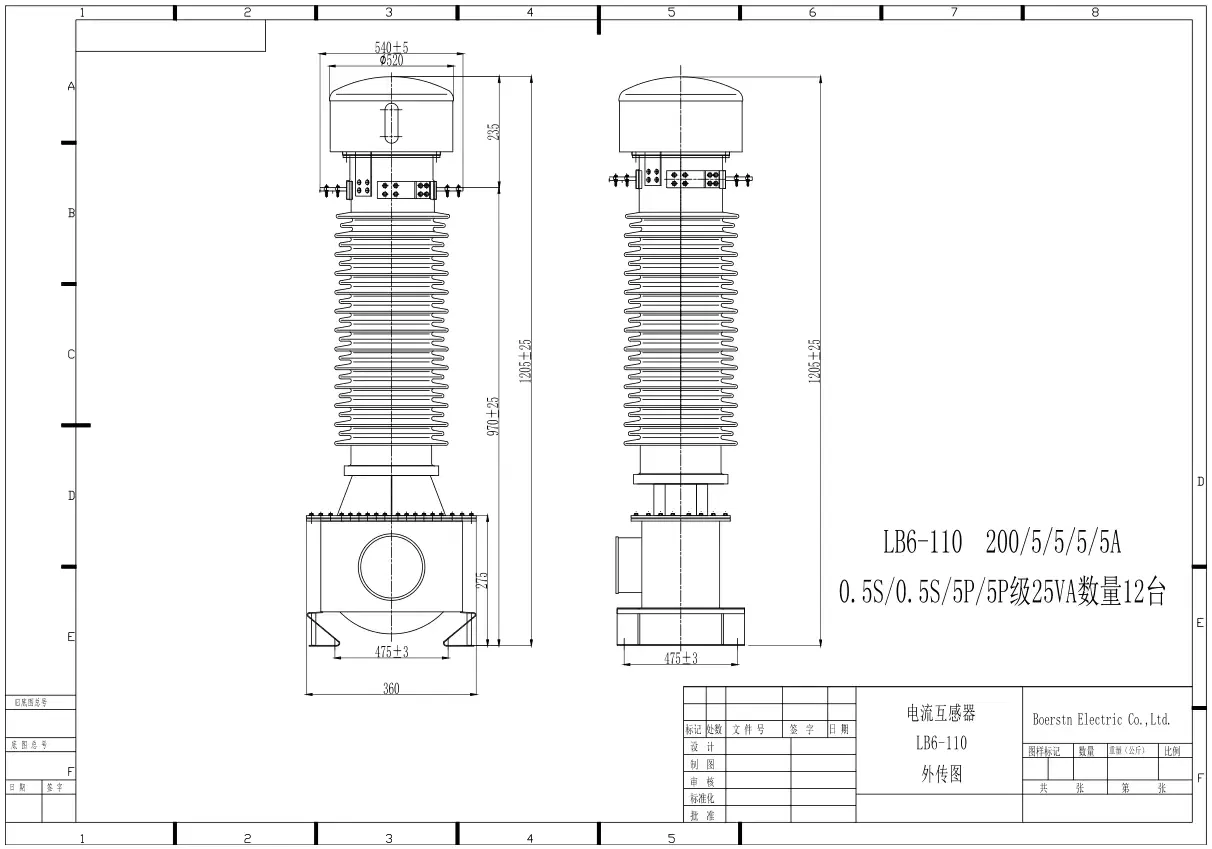

| Model Type |
LB-60W2 / LB-66W2 |
LB9-110W2 / LB9-126W2 |
LB-132W2 / LB-138W2 |
| Rated Voltage (kV) |
60 / 66 |
110 / 120 |
132 / 138 |
| Frequency (Hz) |
50-60 |
50-60 |
50-60 |
| Insulation Level |
72.5/140/325 |
126/230/550 |
145/275/650 |
| Short-time Current |
5.3-45kA/3s |
5.3-45kA/3s |
5.3-45kA/3s |
| Accuracy Class |
0.2, 0.2S, 0.5, 0.5S, 5P, 10P (4-6 cores) |
🏢 Company Profile

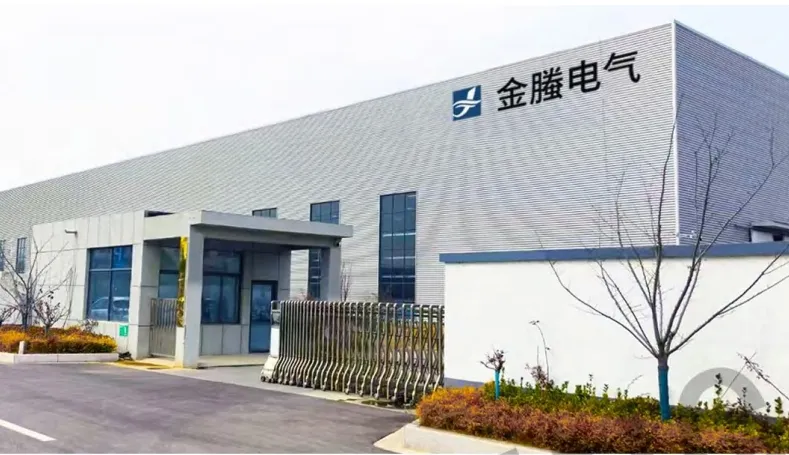

As a technology-driven enterprise, we specialize in the research, development, production, and sales of power transmission and distribution equipment. Our core philosophy is "quality-based and innovation-oriented," providing efficient and reliable power solutions globally. Our product range includes transformers, substations, switchgear, and ring network cabinets, widely used in industrial, energy, and infrastructure sectors.
With low loss, high safety, and environmental adaptability, our products are exported to Asia, Africa, the Middle East, Central Asia, Southeast Asia, and South America. We have successfully completed over 500 overseas projects. We strictly adhere to international standards such as IEC, IEEE, and ANSI, and hold ISO9001 and ISO14001 certifications. Our professional R&D team and advanced testing equipment ensure stable product performance and long service life.
❓ Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional factory with 10 years of experience in electrical equipment fields including transformers, substations, and high/low voltage switchgear.
What is your Minimum Order Quantity (MOQ)?
Our minimum order quantity is 1 piece, allowing for both small-scale and large-scale project support.
What are your standard payment terms?
We typically require a 40% deposit in advance, with 60% due before shipment. We also accept letters of credit.
What is the typical delivery cycle for an order?
Standard models are usually shipped within 15-30 days, while batch or custom orders may take 30-45 days.
Do you provide after-sales service and warranties?
Yes, we offer a two-year warranty along with comprehensive online and offline installation guidance.
Can products be customized to specific requirements?
Absolutely. We provide standardized selection as well as customized engineering support to meet your specific technical parameters and ODM/OEM needs.
