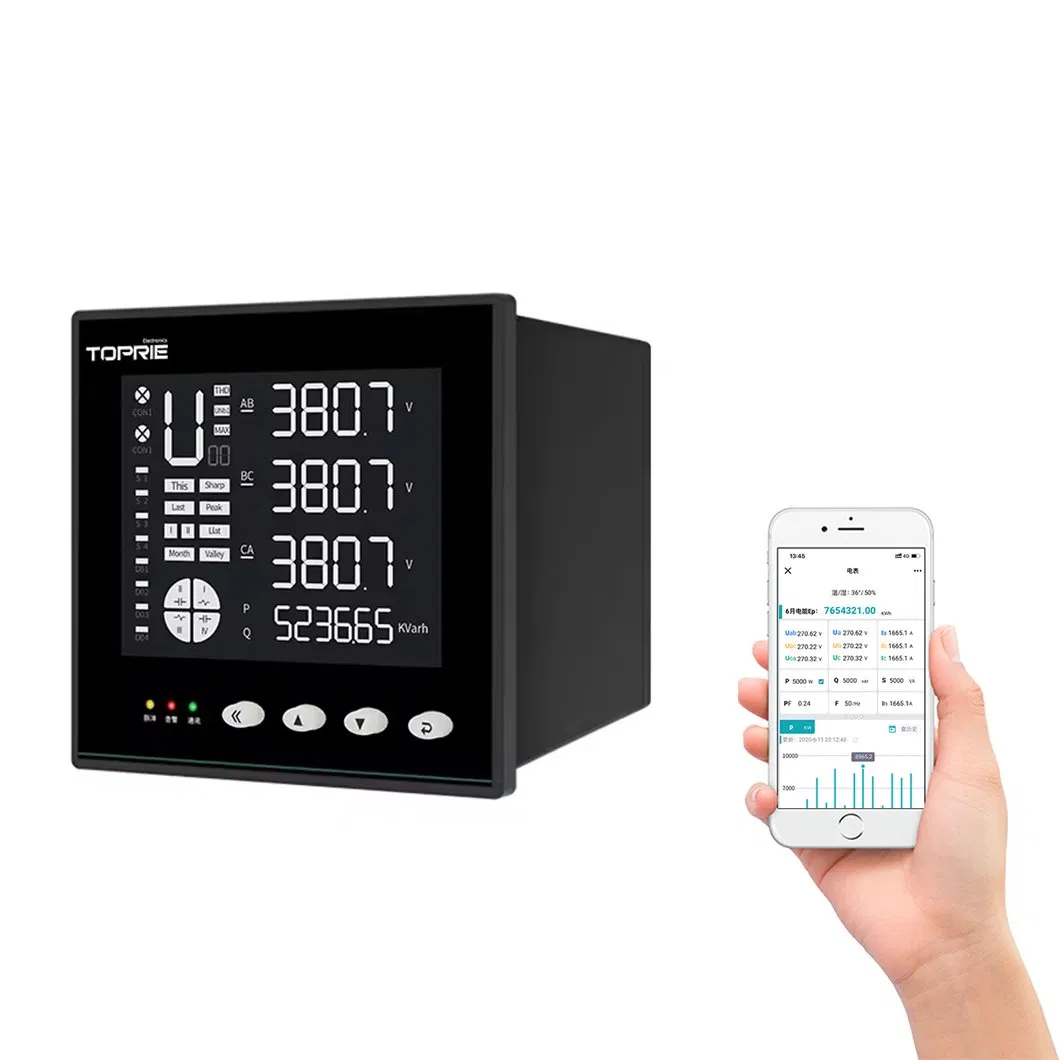

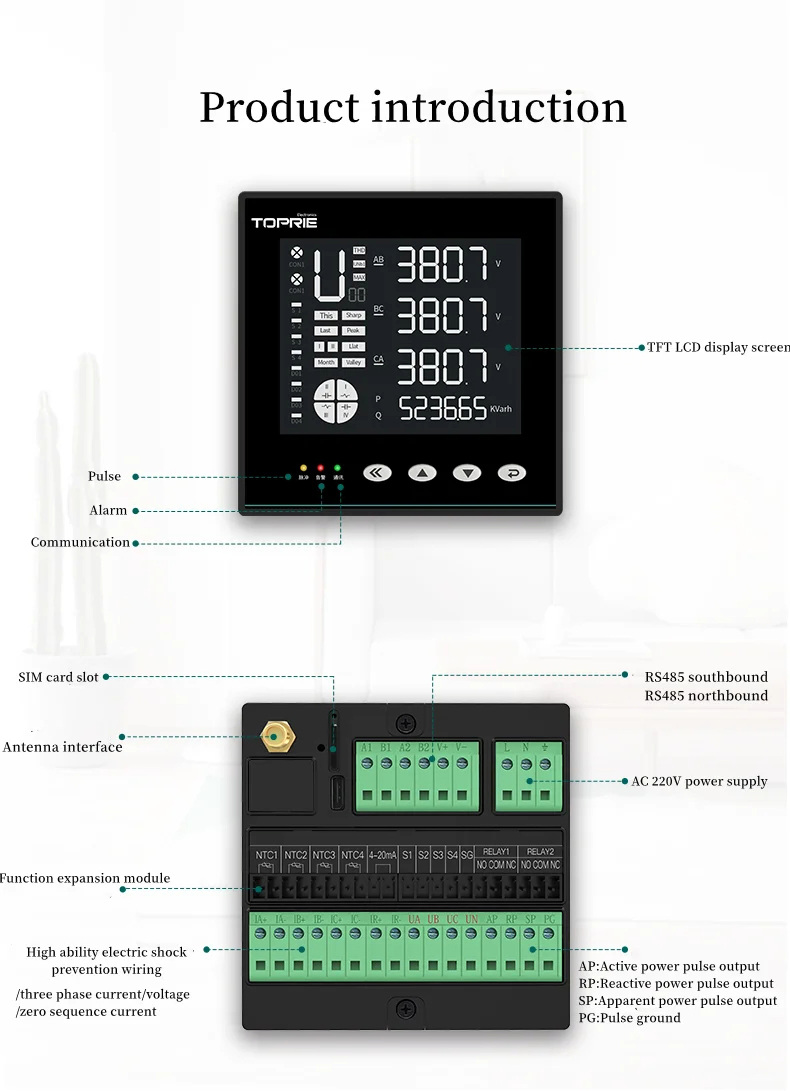

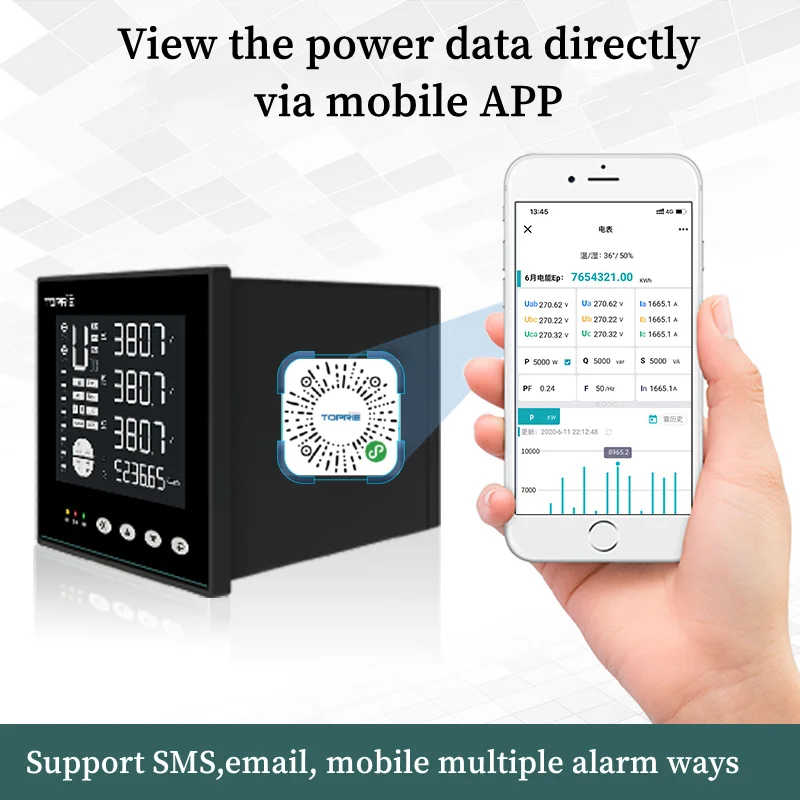

Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
1 / 5
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer

Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO. TP613CB Display Digital
Installation Embedded Usage Multi-Functional Energy Meter, Watt-Hour Meter, Smart Power Meter
Electric Equipment Three-phase Four-wire Theory Smart Power Meter
Connection Terminal Certification RoHS, ISO, CE
Frequency 45-65Hz Accuracy Voltage & Current Level 0.2, Power Level 0.2

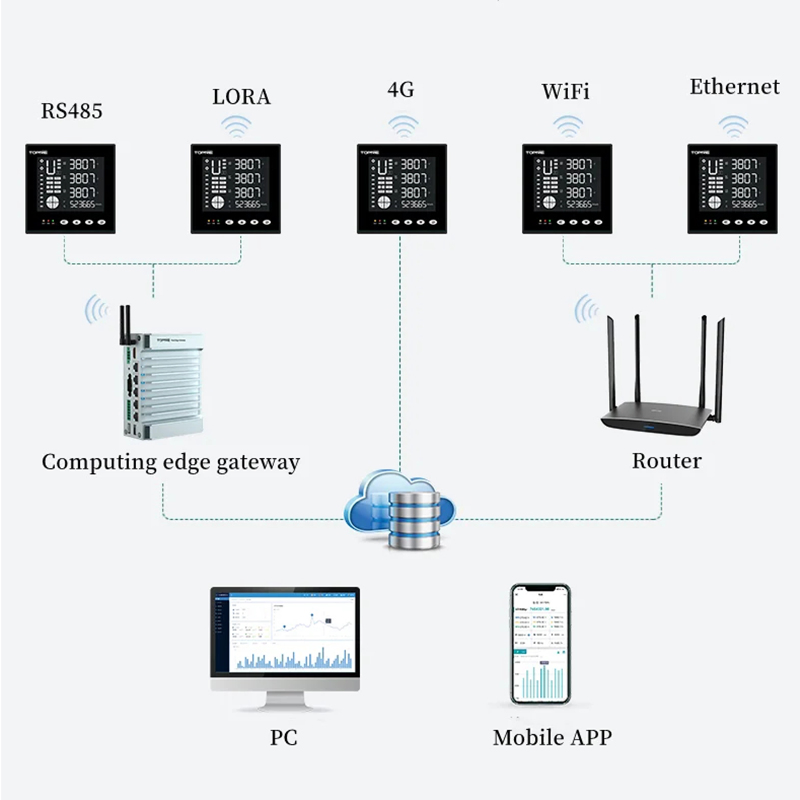

Communication RS485 (4G, WiFi, Lora), Modbus RTU, MQTT Harmonics 2-31 Times Measurement
Product Parameters
🔸 Measures 60 different power parameters (voltage, current, active/reactive power, frequency, power factor, etc).
🔸 Active/reactive power energy metering with pulse output port.
🔸 RS485 communication interface (MODBUS RTU) and MQTT protocol support.
🔸 Fully isolated input/output with remote function.
🔸 12 periods and 4 kinds of rates with statistics function.

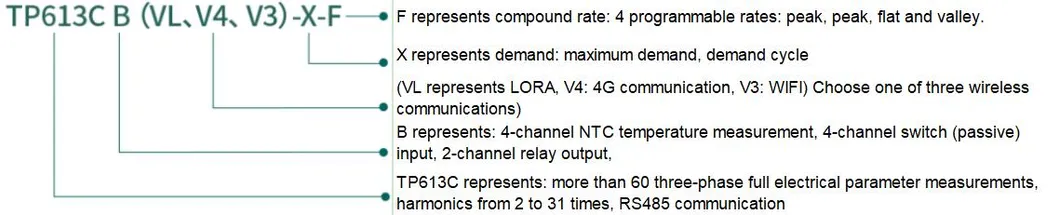

Product Parameters Chart
Technical Specifications
Current Input Range0.01In~1.2In (Accuracy Level 0.2)
Voltage Input Rated30V-600V (Accuracy Level 0.2)
Power SupplyAC 100V~265V, 50Hz/60Hz
Power Consumption5W
Dimension96*96*108mm
Baud Rate4800bps~115200bps
EnvironmentWorking: -25°C to 55°C | Storage: -40°C to 70°C
Product Display

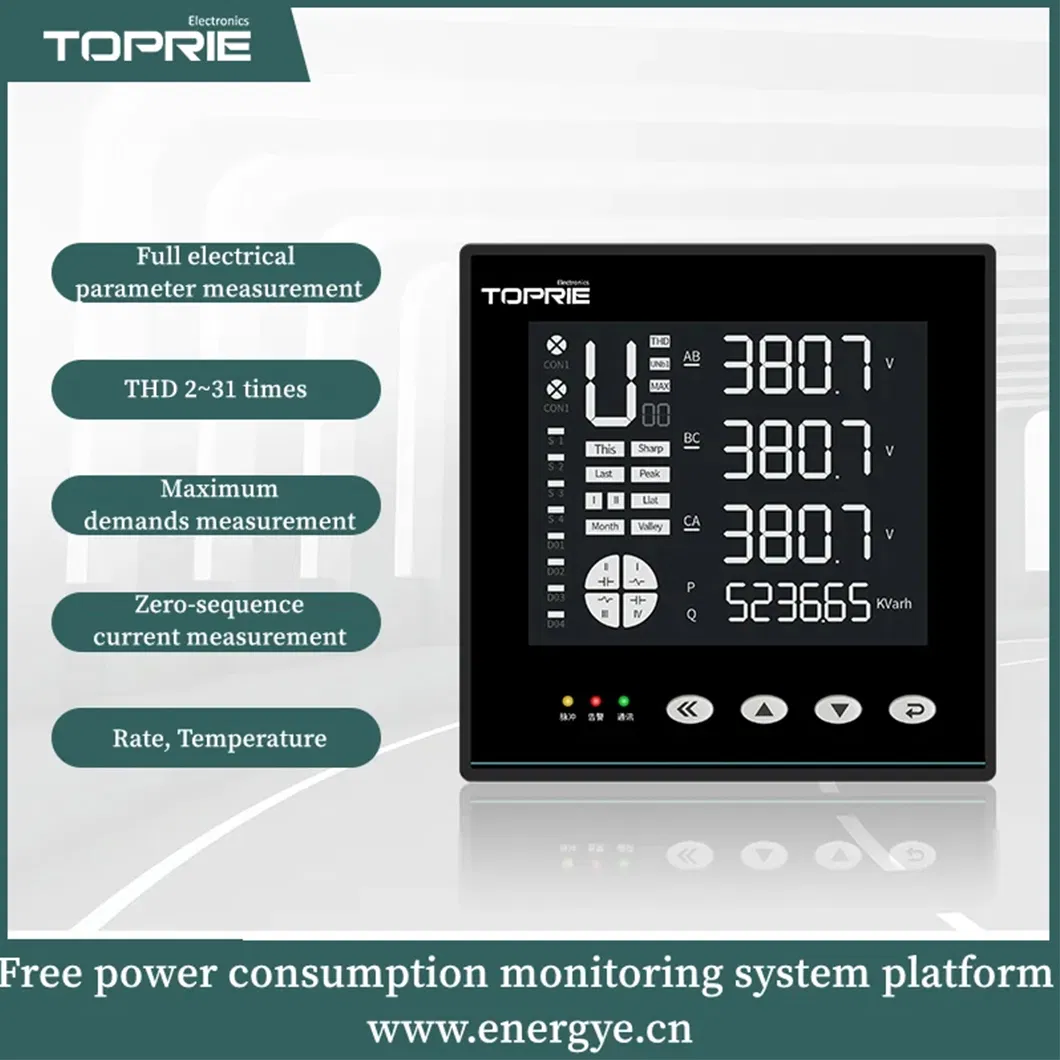

Meter View 1

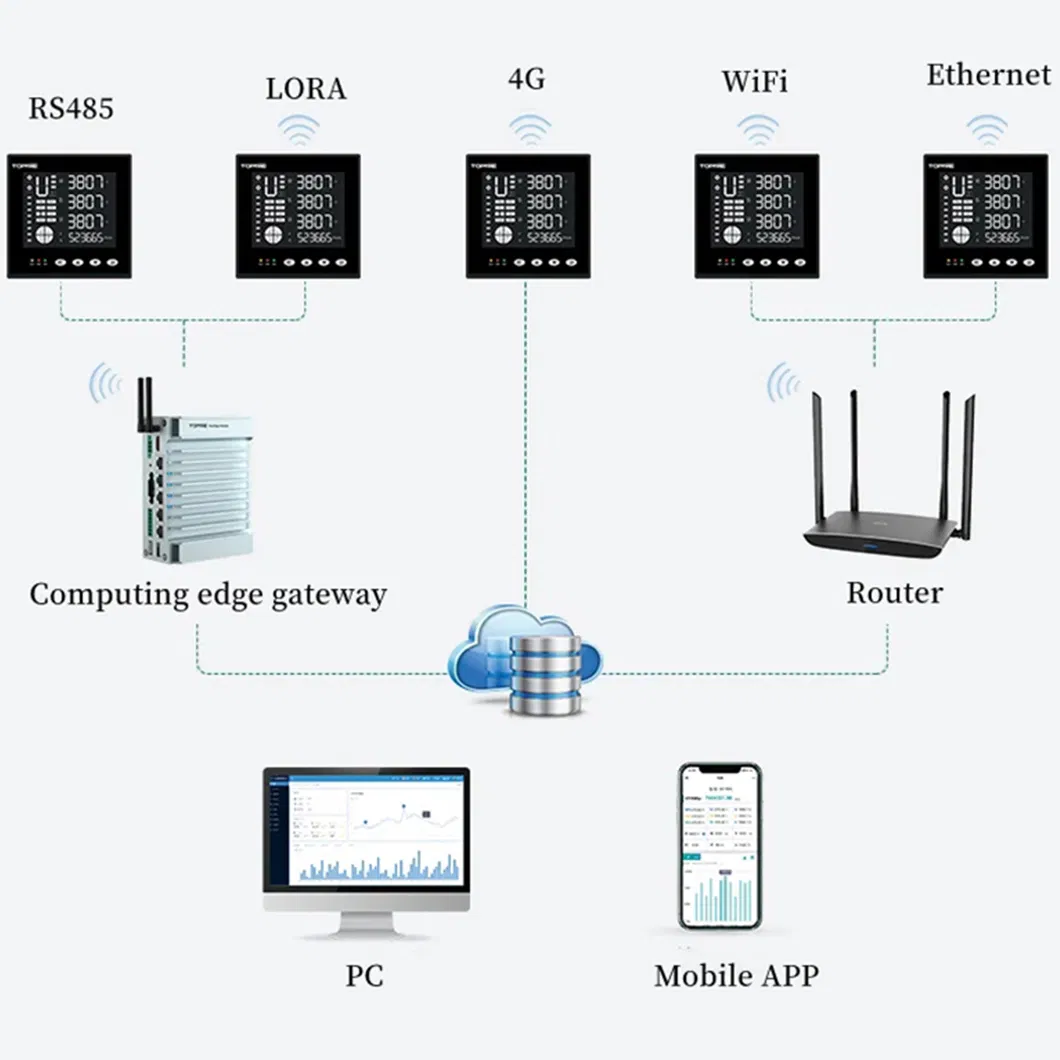

Meter View 2

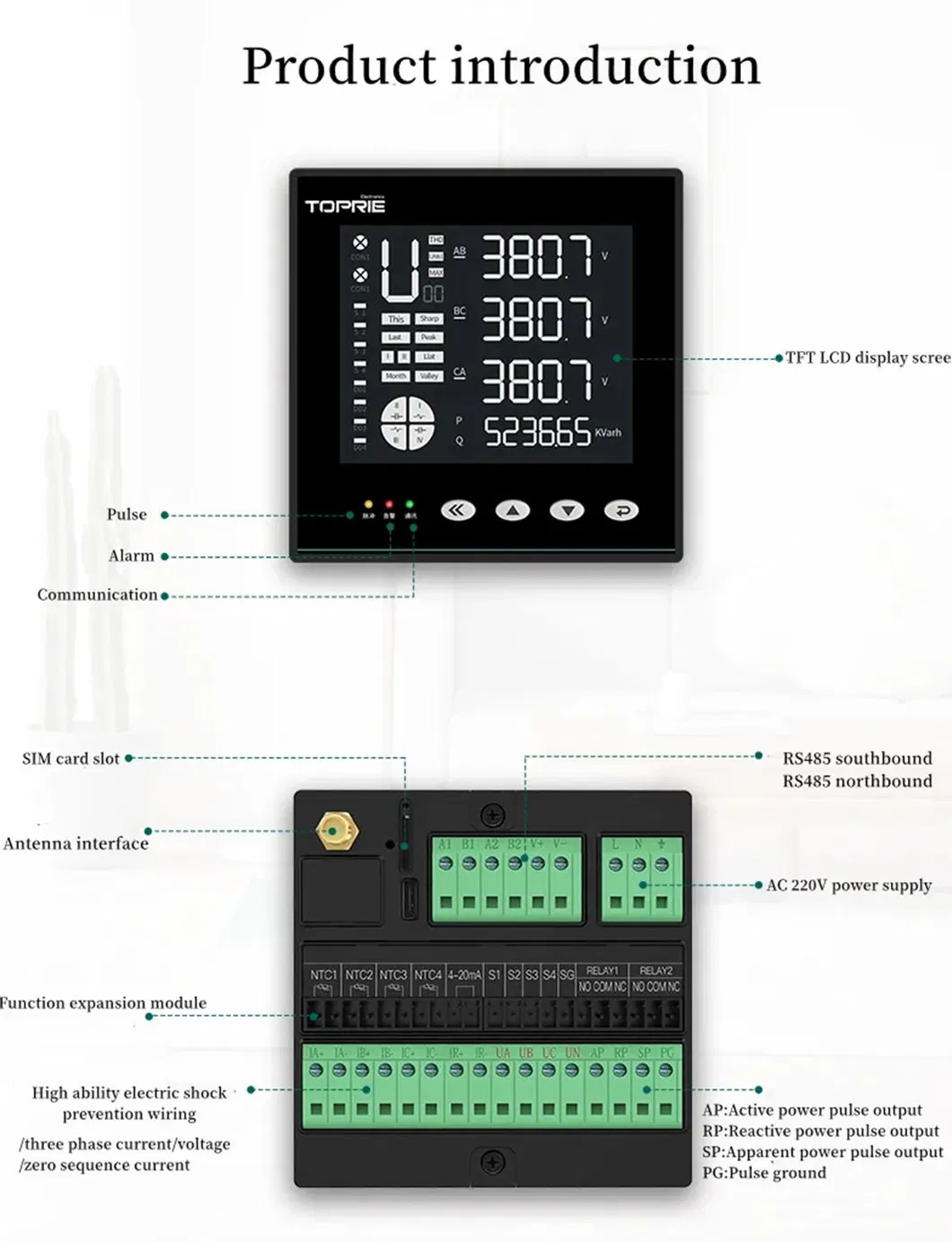

Meter View 3

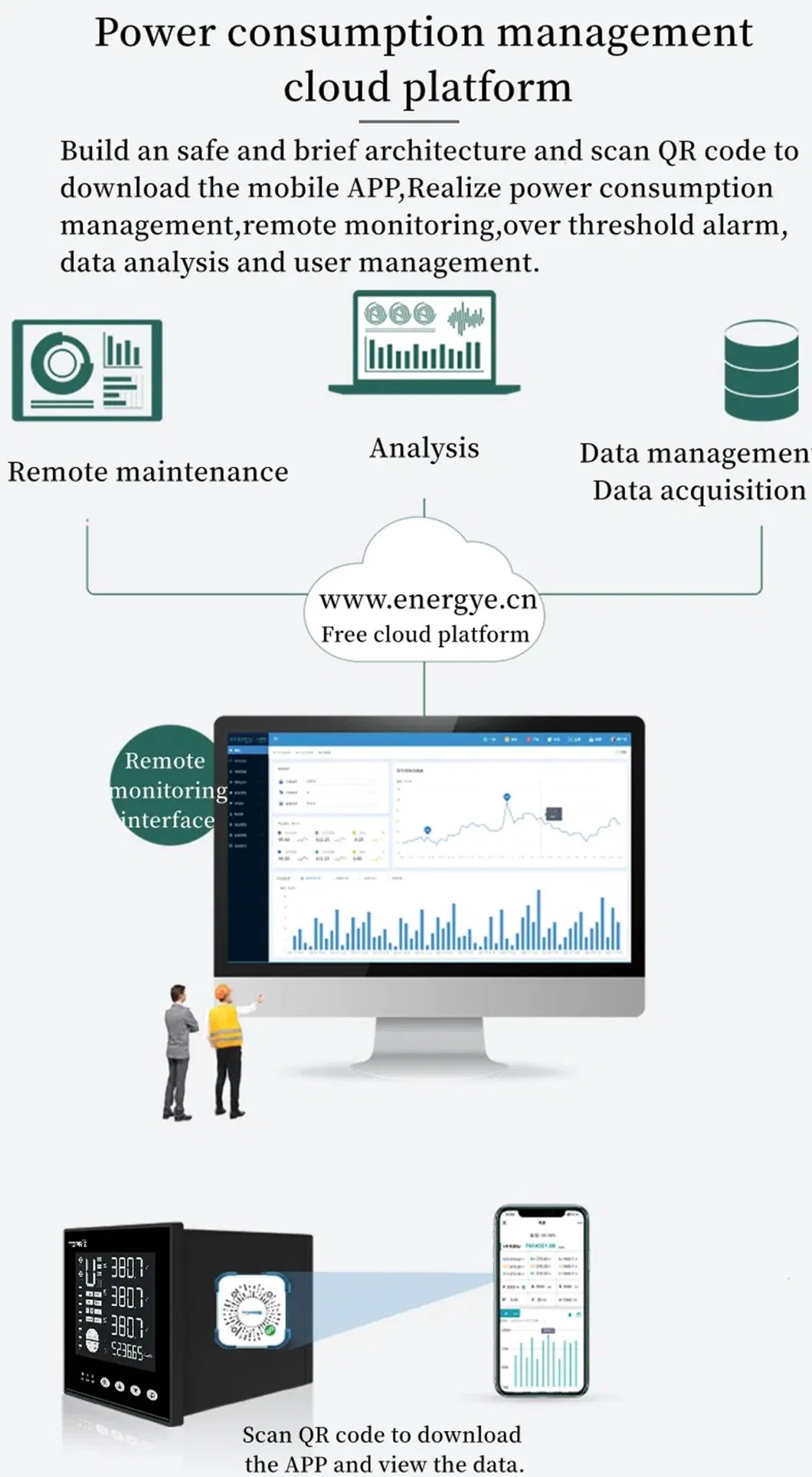

Meter View 4

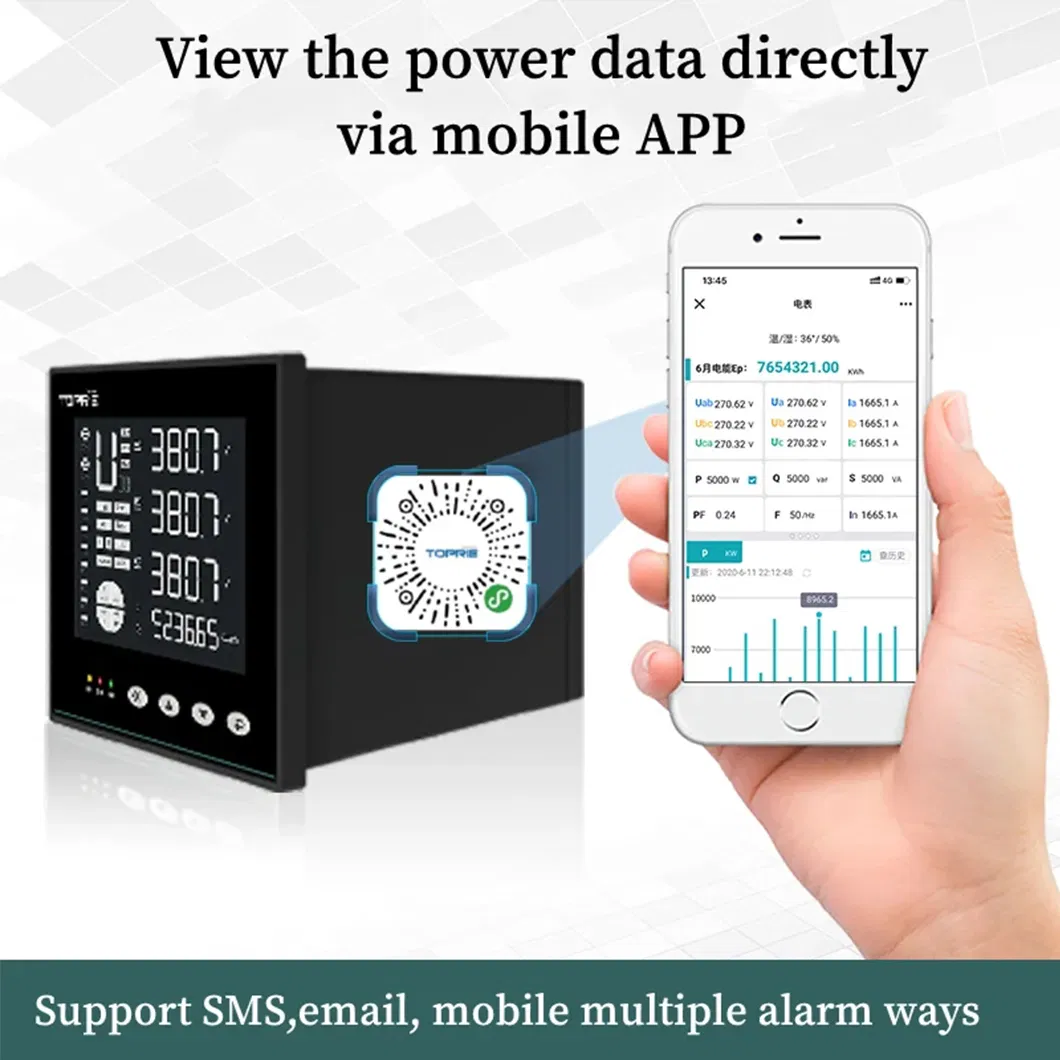

Meter View 5
Meter View 6

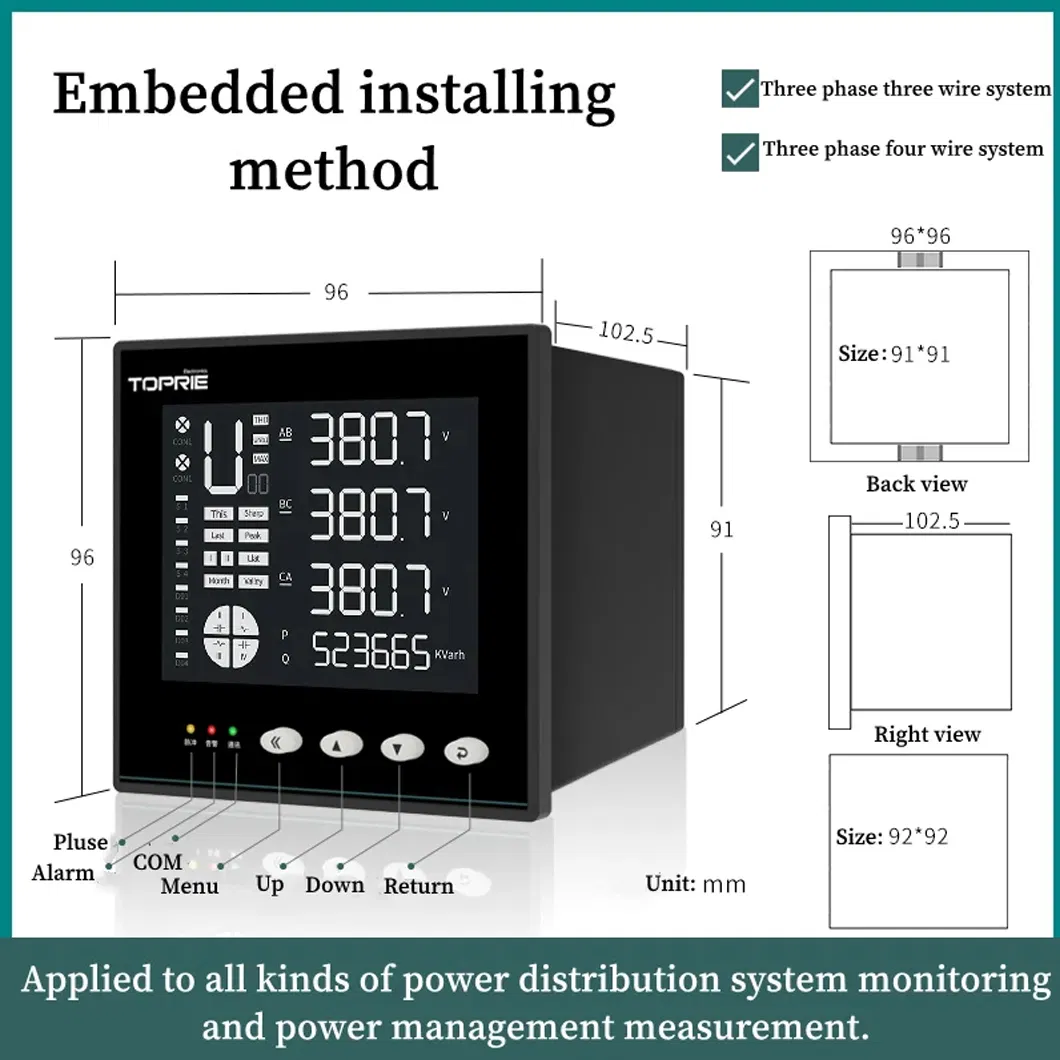

Detailed Dimensions
Professional Solutions

We are a leading high-tech enterprise specializing in the development and manufacturing of environmental monitoring and data acquisition solutions. Our facility spans over 3,000 square meters, equipped with a highly skilled team committed to research, design, quality control, and precision manufacturing.

Core Business Portfolio:
Solution 1

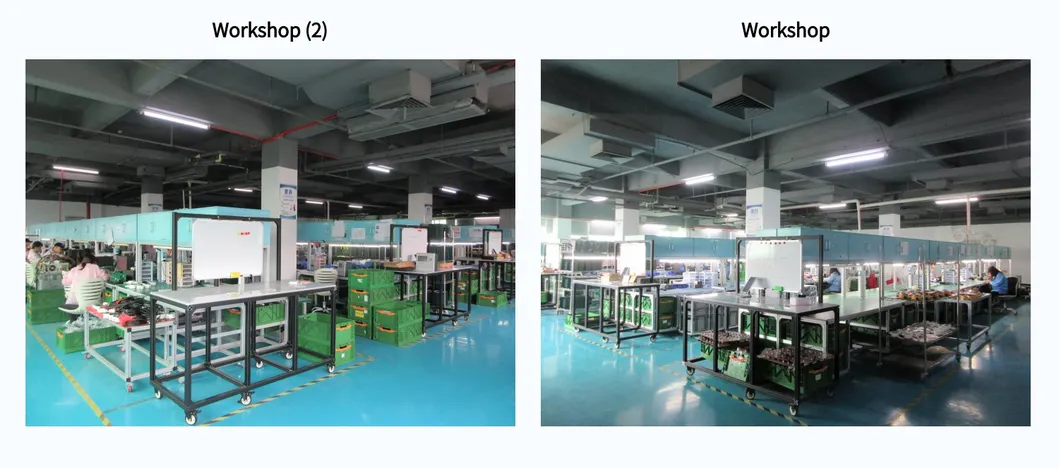

Solution 2

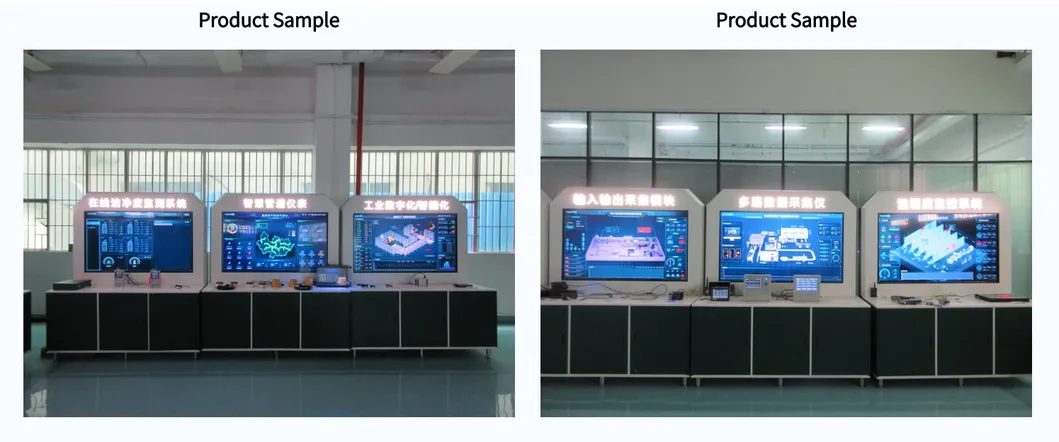

Solution 3

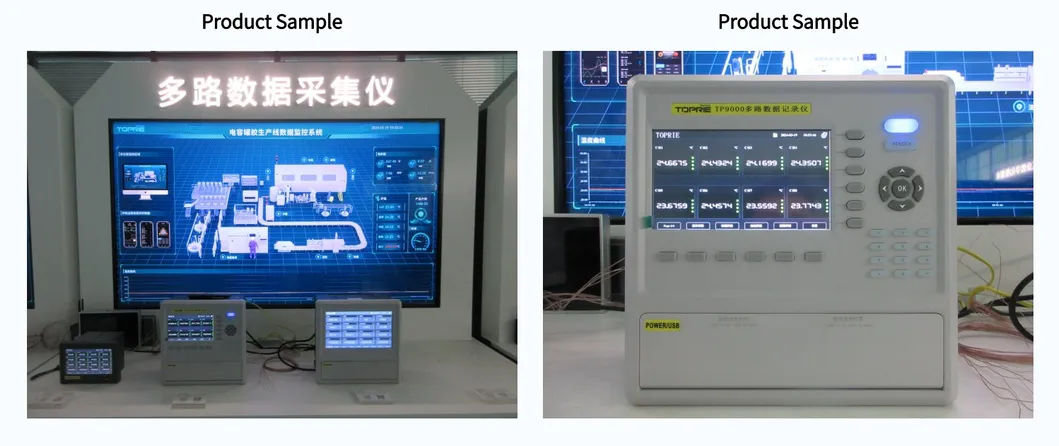

Solution 4

We provide cutting-edge products including Multi-Channel Data Loggers, Smart IoT Gateways, Power Quality Analyzers, and Comprehensive IoT Solutions. With advanced testing facilities and rigorous quality assurance, we ensure every product meets the highest industry standards.

Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional manufacturer of data loggers, humidity & temperature sensors, gas detectors, pressure sensors, IoT gateways, and power & energy meters.
Can I customize my logo and communication methods?
Yes, logo customization is available with a small MOQ. We support multiple communication methods including GPRS, 4G, Wi-Fi, LoRa, and LoRaWAN.
What is the standard lead time for orders?
Standard products typically ship within 3-5 days after payment. Custom orders depend on the specific requirements and quantity.
What payment methods do you support?
We accept various payment methods including T/T (bank transfer), Western Union, and PayPal.
What is your after-sales service and warranty policy?
We offer a 12-month warranty and lifetime maintenance. Our technical support team provides assistance within 24 hours to resolve any issues.
How are the products packaged for shipping?
Products are packed in standard cartons and can be shipped via express (door-to-door), air, or sea based on your requirements.
Production and Quality Control

Related Products

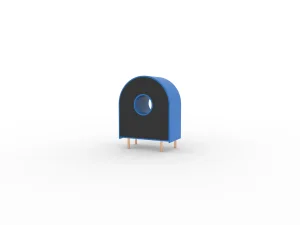

Intelligent Equipment Component Micro Curernt Transformer

Intelligent Equipment Component Micro Curernt Transformer

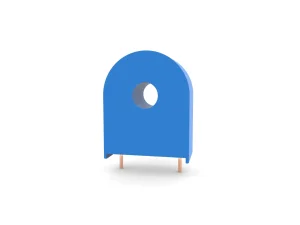

Intelligent Monitoring Component Micro Current Transformer

Intelligent Monitoring Component Micro Current Transformer
Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer

Intelligent Temp Meter Power Data Collectorenergy Meter Current Transformer

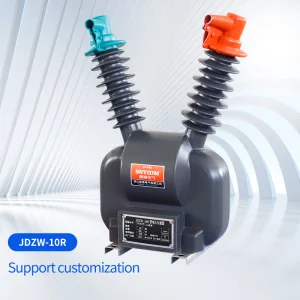

Jdzw-10r Voltage Transformer Dry PT Voltage Transformer Intelligent Vacuum Circuit Breaker 220V Power Supply

Jdzw-10r Voltage Transformer Dry PT Voltage Transformer Intelligent Vacuum Circuit Breaker 220V Power Supply

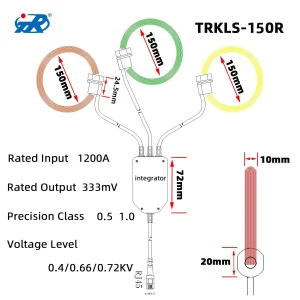

TR High Intelligent Pressure 3 Phase Dry Step up CT Split Core AC DC Current Transformer Rogowski Coil

TR High Intelligent Pressure 3 Phase Dry Step up CT Split Core AC DC Current Transformer Rogowski Coil
Jlszv-35W Outdoor Dry Split 35kv High Voltage Power Metering Box Current and Voltage Combination Transformer

Jlszv-35W Outdoor Dry Split 35kv High Voltage Power Metering Box Current and Voltage Combination Transformer

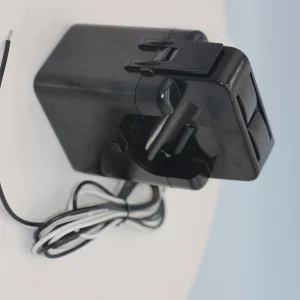

Kct-50 400A/200mA Asct Clamp on Split Core Clamp on Current Transformers Intelligent Switch

Kct-50 400A/200mA Asct Clamp on Split Core Clamp on Current Transformers Intelligent Switch

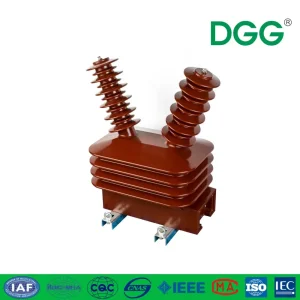

11kv Casting Resin Outdoor Split Core Voltage/Potential Current Instrument Transformer for Safe Voltage and Current Measurement

11kv Casting Resin Outdoor Split Core Voltage/Potential Current Instrument Transformer for Safe Voltage and Current Measurement
Precision Voltage Transformer for Electrical Meter Verification and Calibration Work

Precision Voltage Transformer for Electrical Meter Verification and Calibration Work

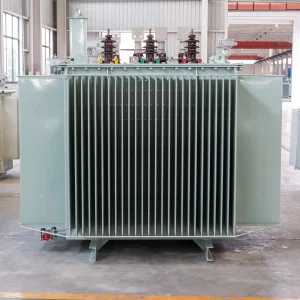

CE 10kv11kv 33kv 110kv to 0.4kv 500kVA 800kVA 1000kVA 2000kVA Voltage Electric Step Down Prefabricated Substation Three Phase Power Oil Immersed Transformer
