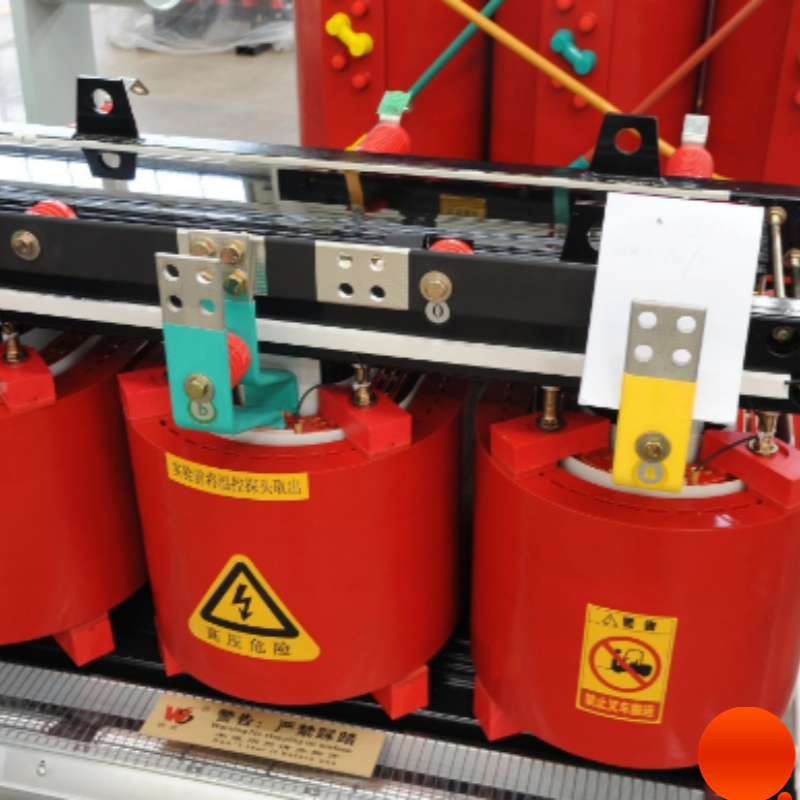

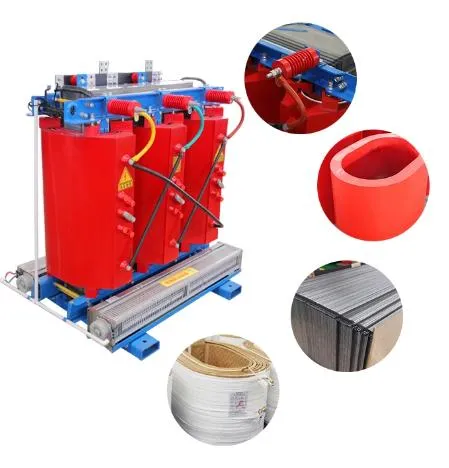

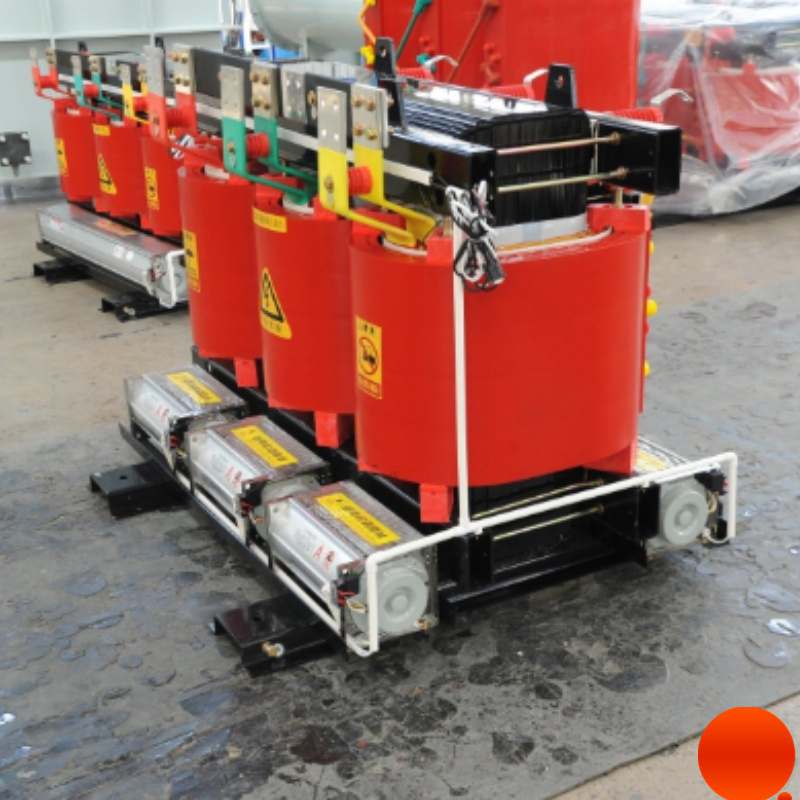

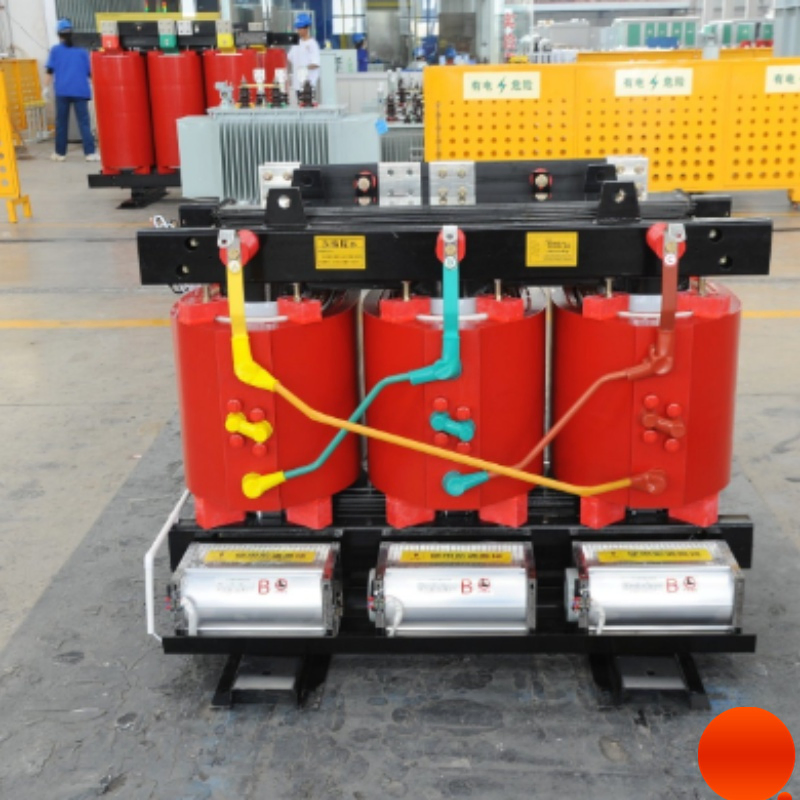

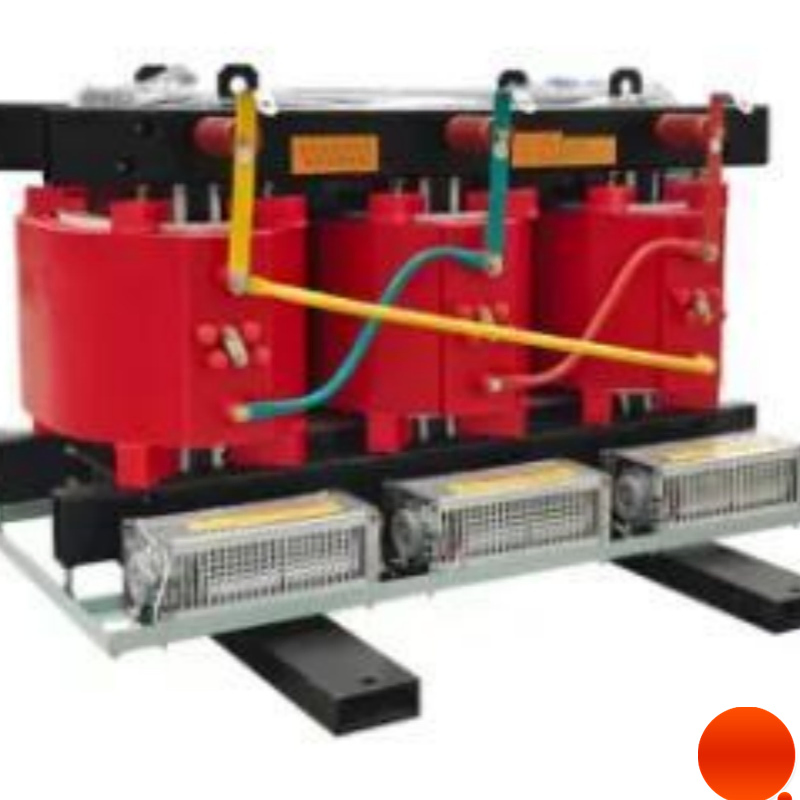

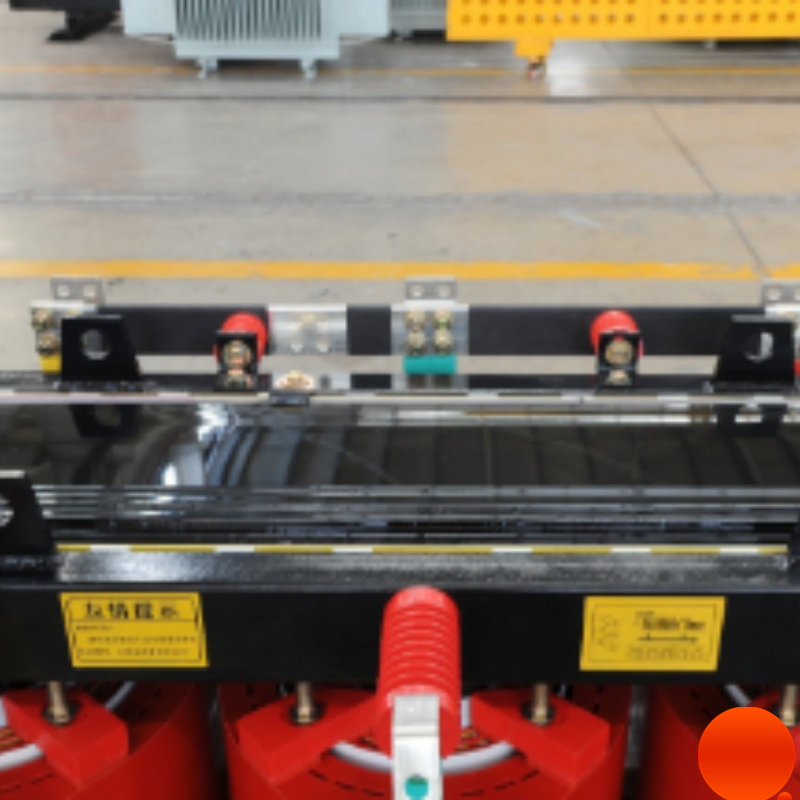

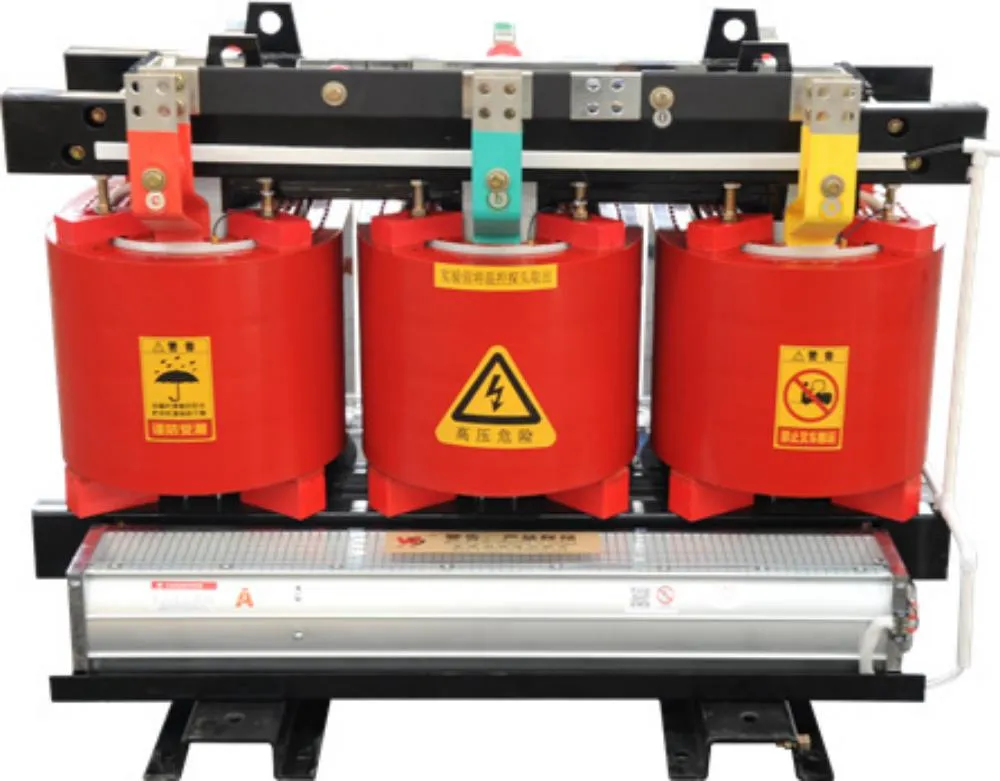

IEC standard 30kva 10/0.4Kv dry type transformer.
Dry-type power transformers adopt special process technology to ensure products fully meet requirements such as fire prevention, waterproof, and environmental protection.
By optimizing the structure of the high-voltage coil, the series improves the distribution of voltage and capacitance between layers, enhancing the product's ability to withstand atmospheric overvoltage, operating overvoltage, and electric field distribution.
It is an ideal product for distribution systems, widely used in subways, shipbuilding, mining, chemical industries, power systems, and personnel-intensive buildings where safety is paramount.

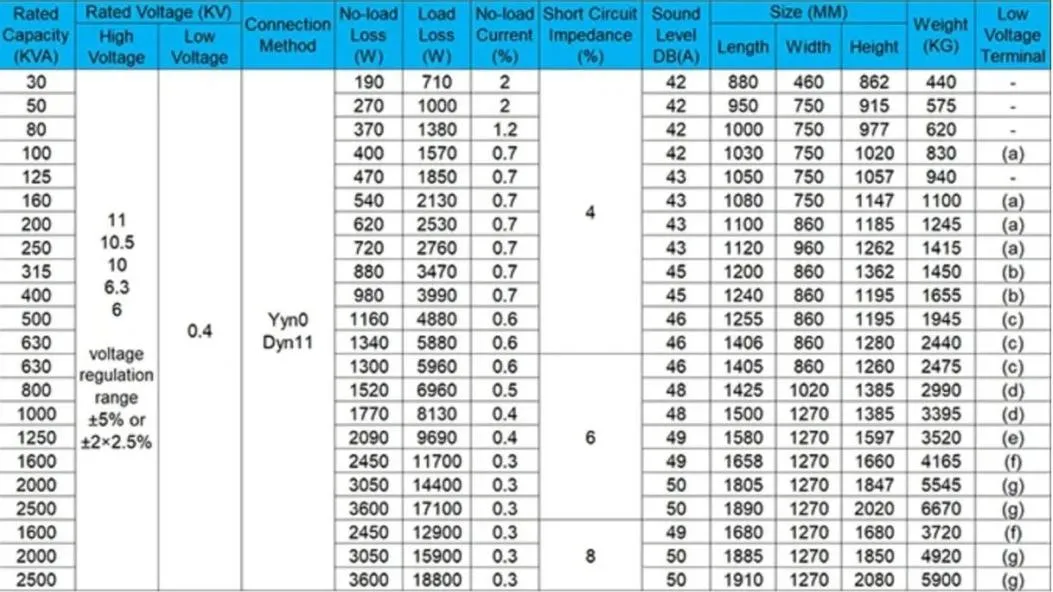

| Transformer Type | Resin Cast Dry Type |
| Number of Phase | Three Phase |
| Winding Material | Aluminum/Copper |
| Rated Capacity | 30kVA |
| High Voltage | 10/11kV |
| Low Voltage | 0.4kV |
| Tapping Range | ±2x2.5% |
| Impedance Voltage | 4% |
| Frequency | 50/60Hz |
| Insulation Class | F |
| Protection Level | IP00/IP20/IP30 |
| Operation Altitude | ≤1000m |
Uses advanced materials and technology to achieve H-grade insulation, reliably used in ambient temperatures up to 180ºC, with main parts sustaining up to 220ºC.
Flame retardant and moisture-proof materials. Combustible content is only 10% of epoxy resin transformers. No poisonous fumes during extreme heat.
Special coil design prevents partial discharge and sustains high thermal shock. Excellent moisture and mold resistance.
Can sustain 120% rated capacity. Capable of long-time running under IP23 without forced air cooling.
A digital management enterprise integrating research and development, production, sales, and installation of power equipment. Products cover 6kv, 11kv, 22kv, 35kv power transformers, distribution transformers, box substations, and switchgear. Markets cover more than 40 countries across the Middle East, Americas, Europe, and Africa.

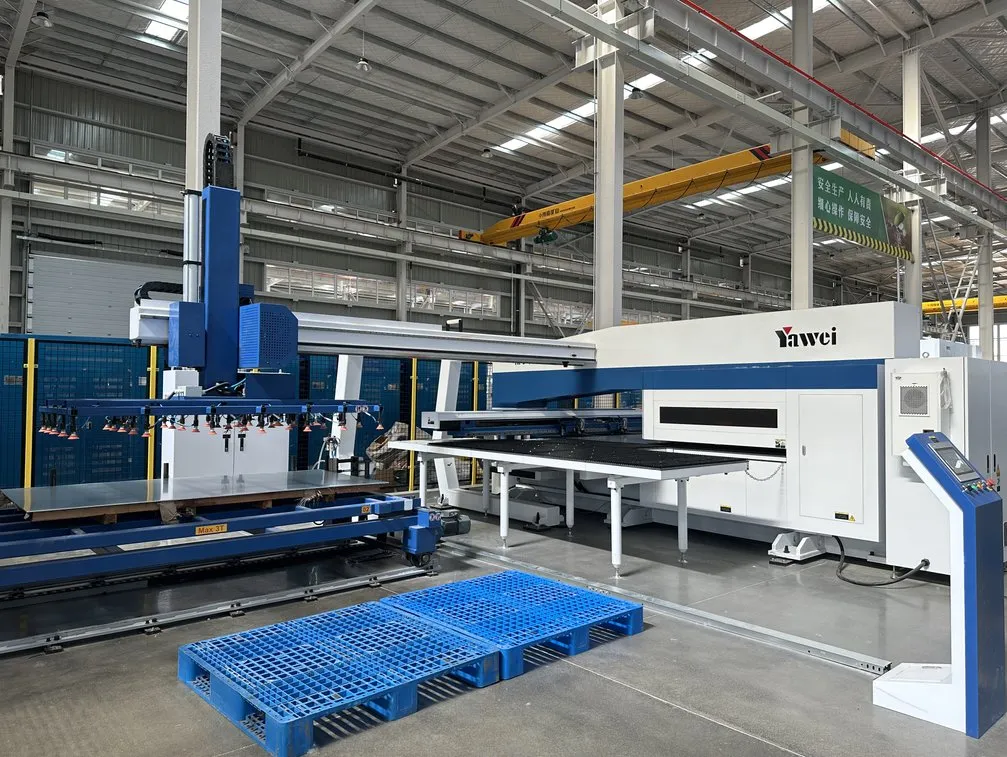

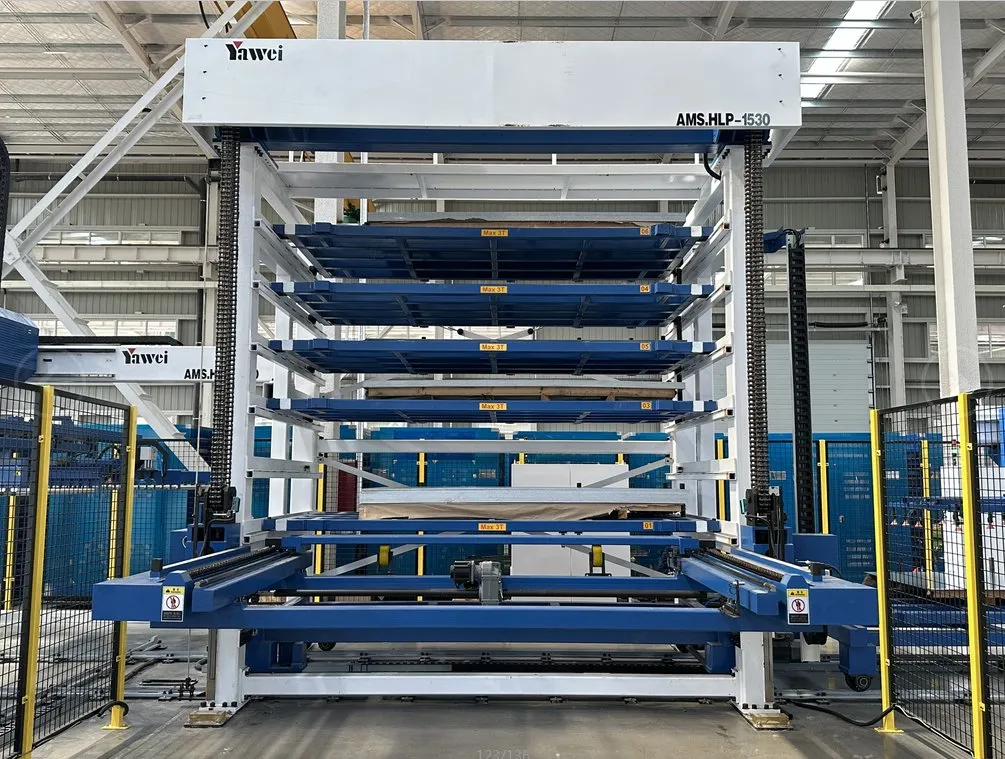

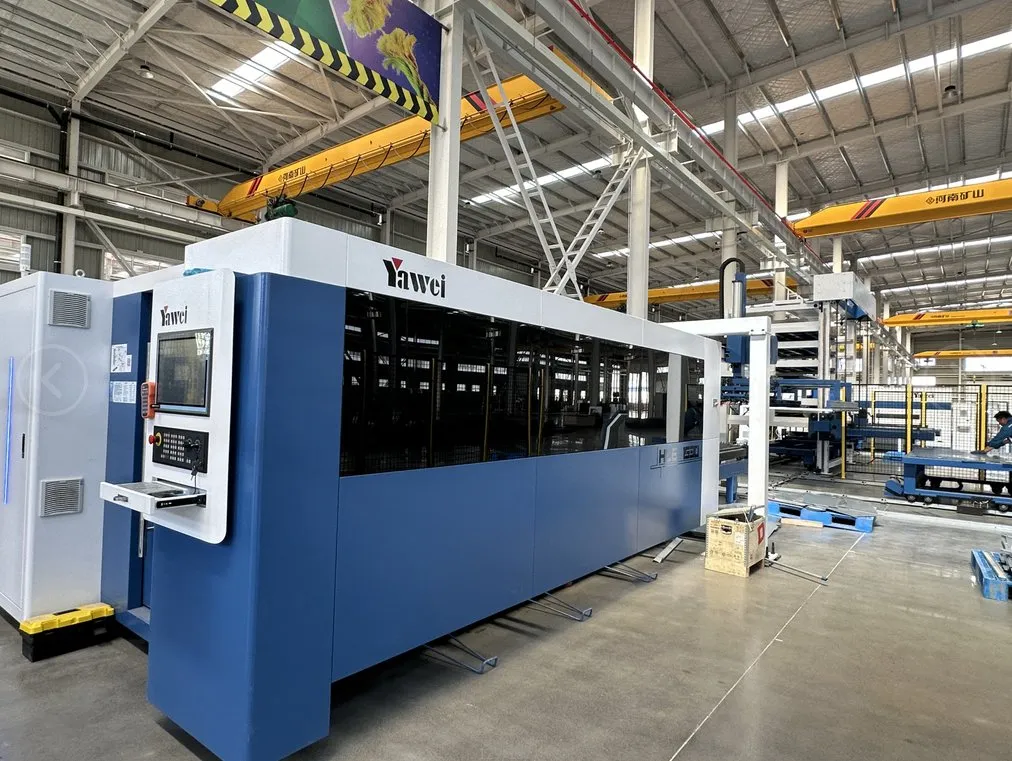

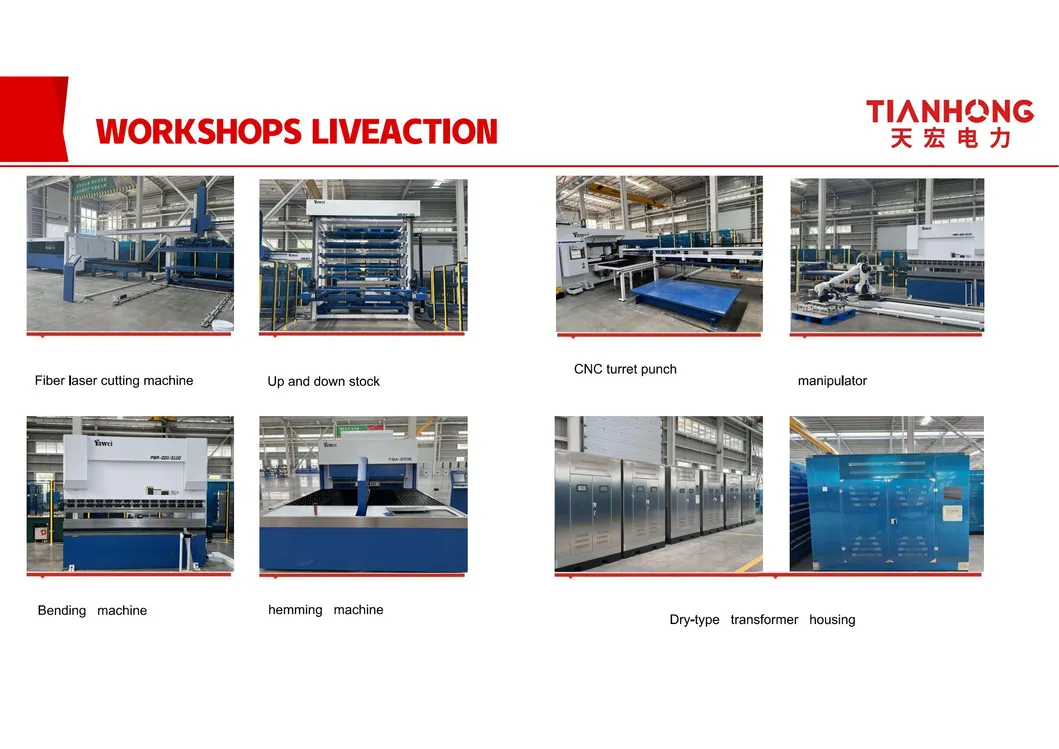

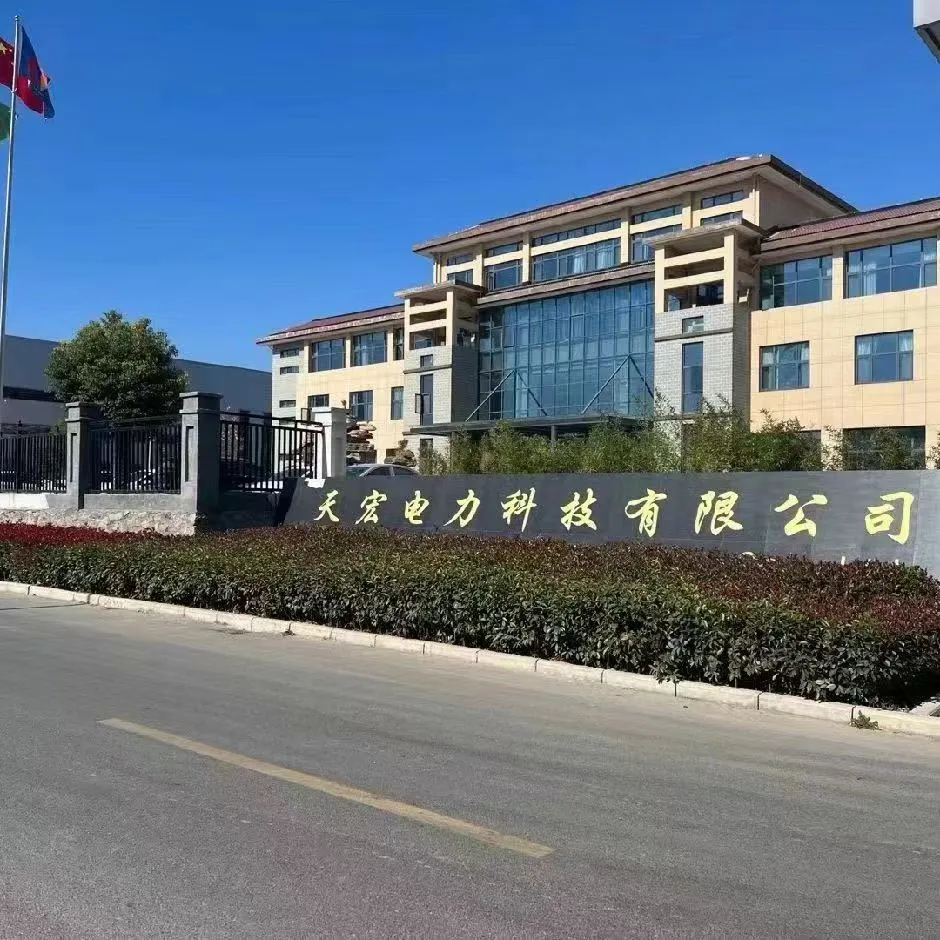

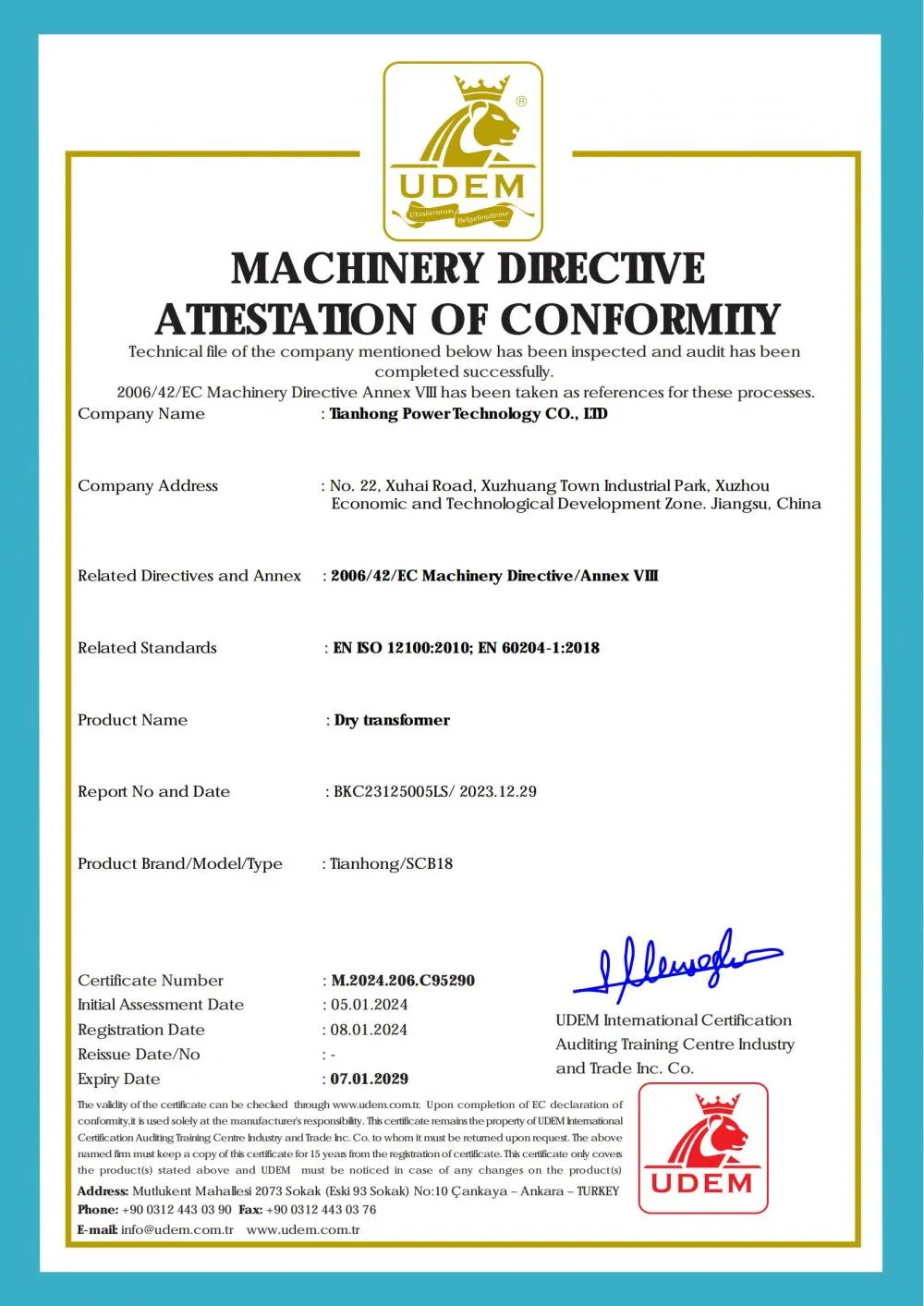

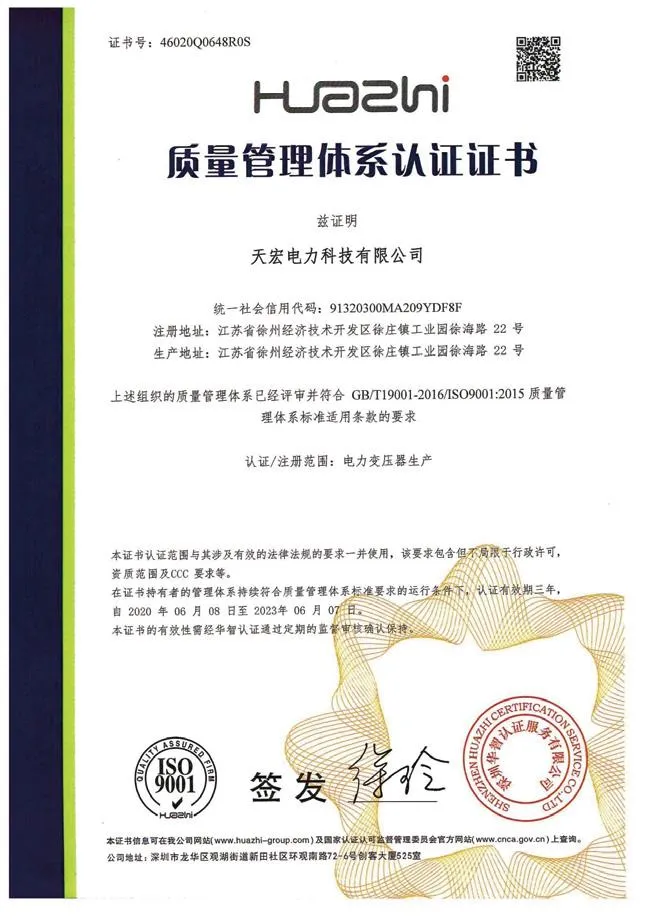

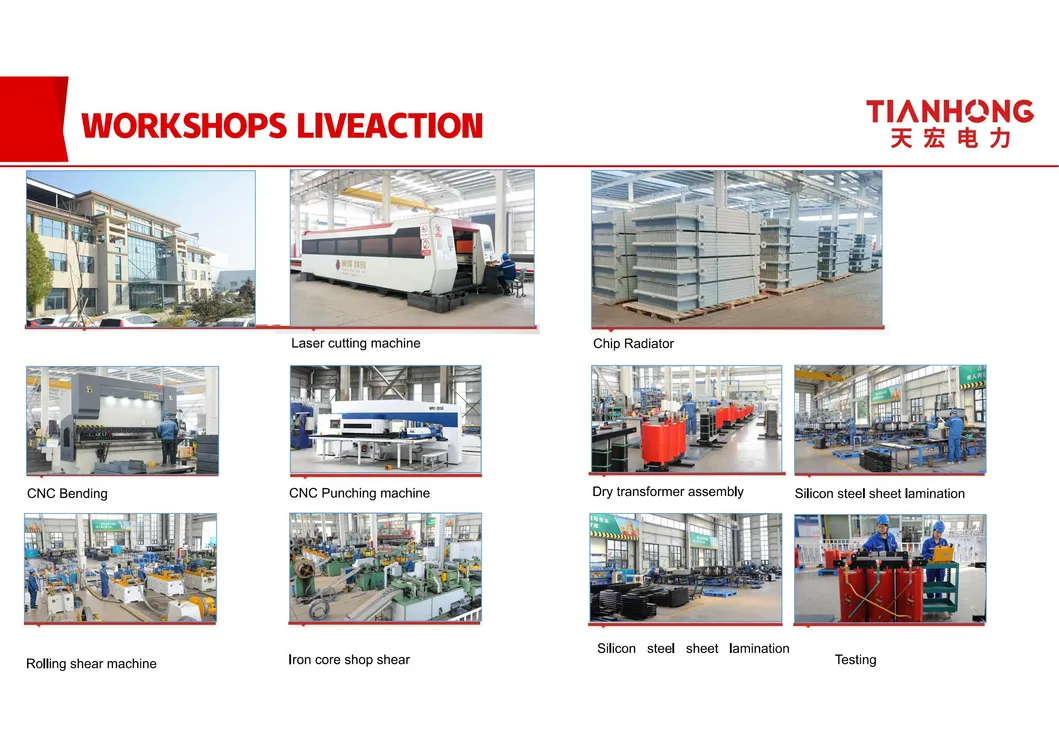

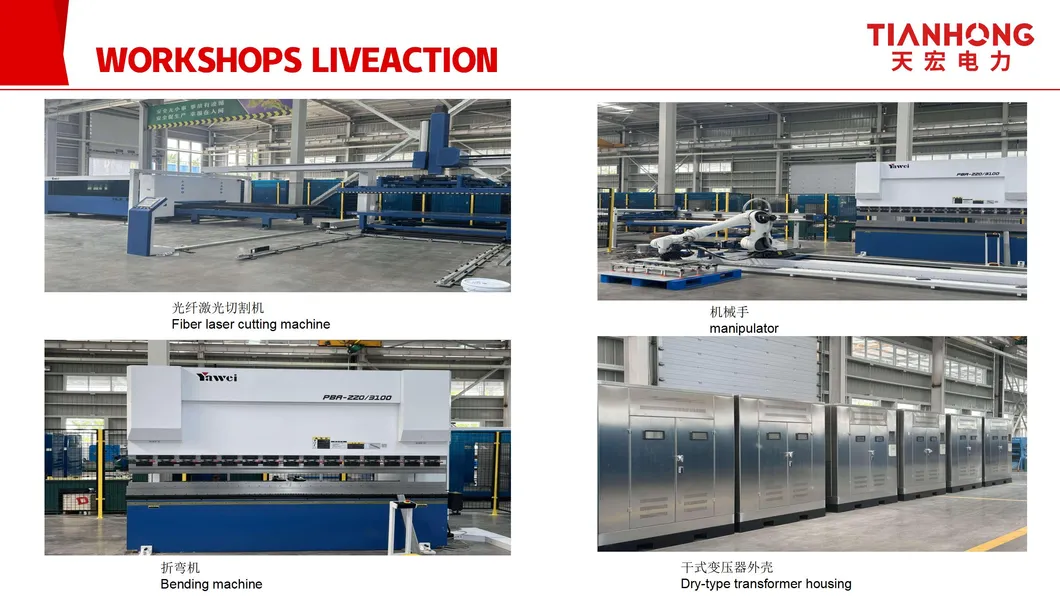

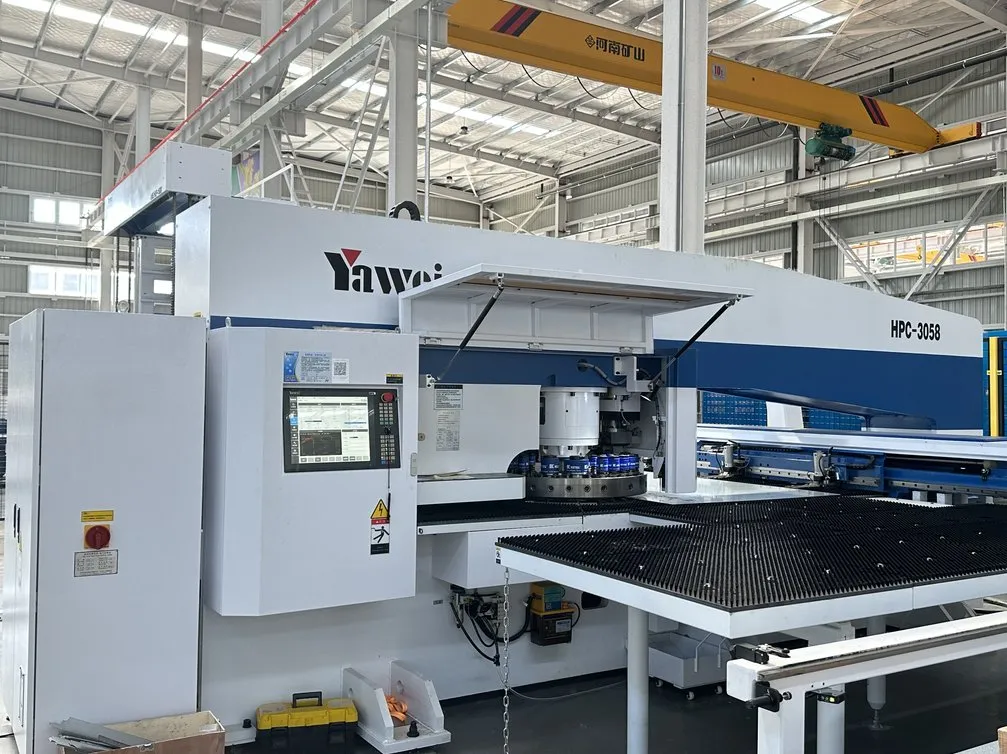

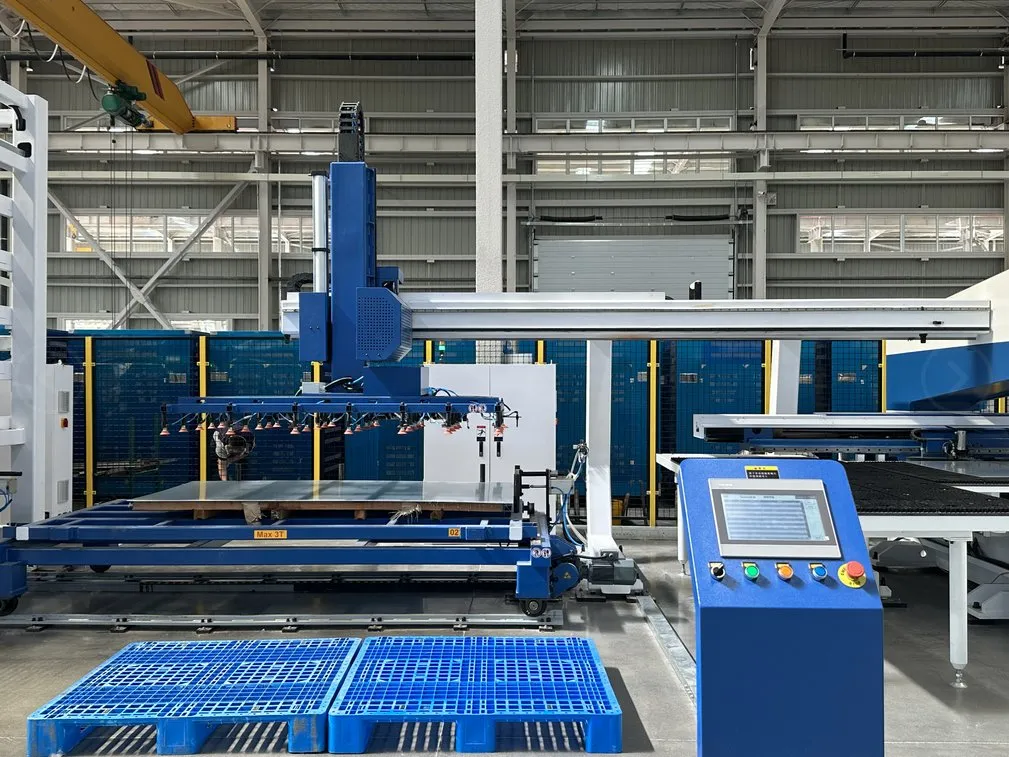

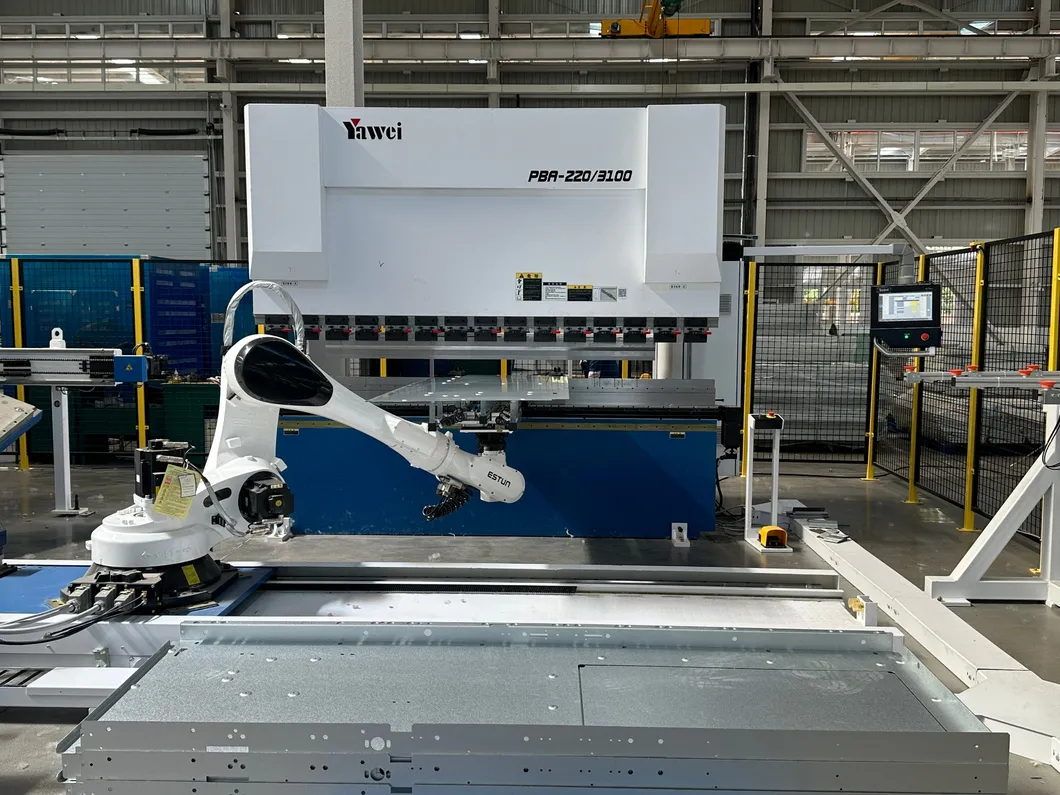

The facility includes three specialized plant areas for dry transformers, oil transformers, and intelligent workshops, covering 250,000 square meters. Technical performance reaches international advanced levels with safety and reliability certifications.
