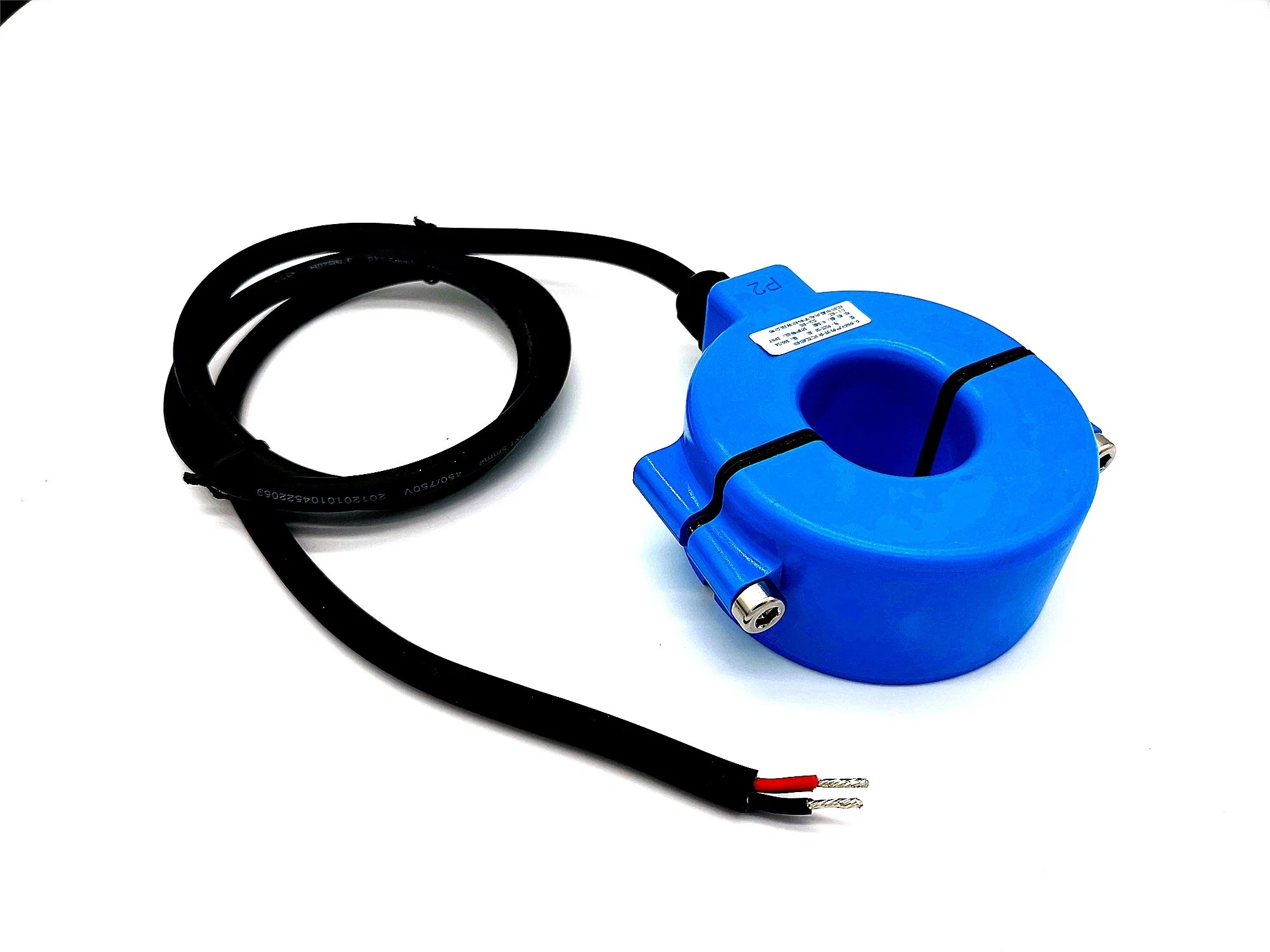

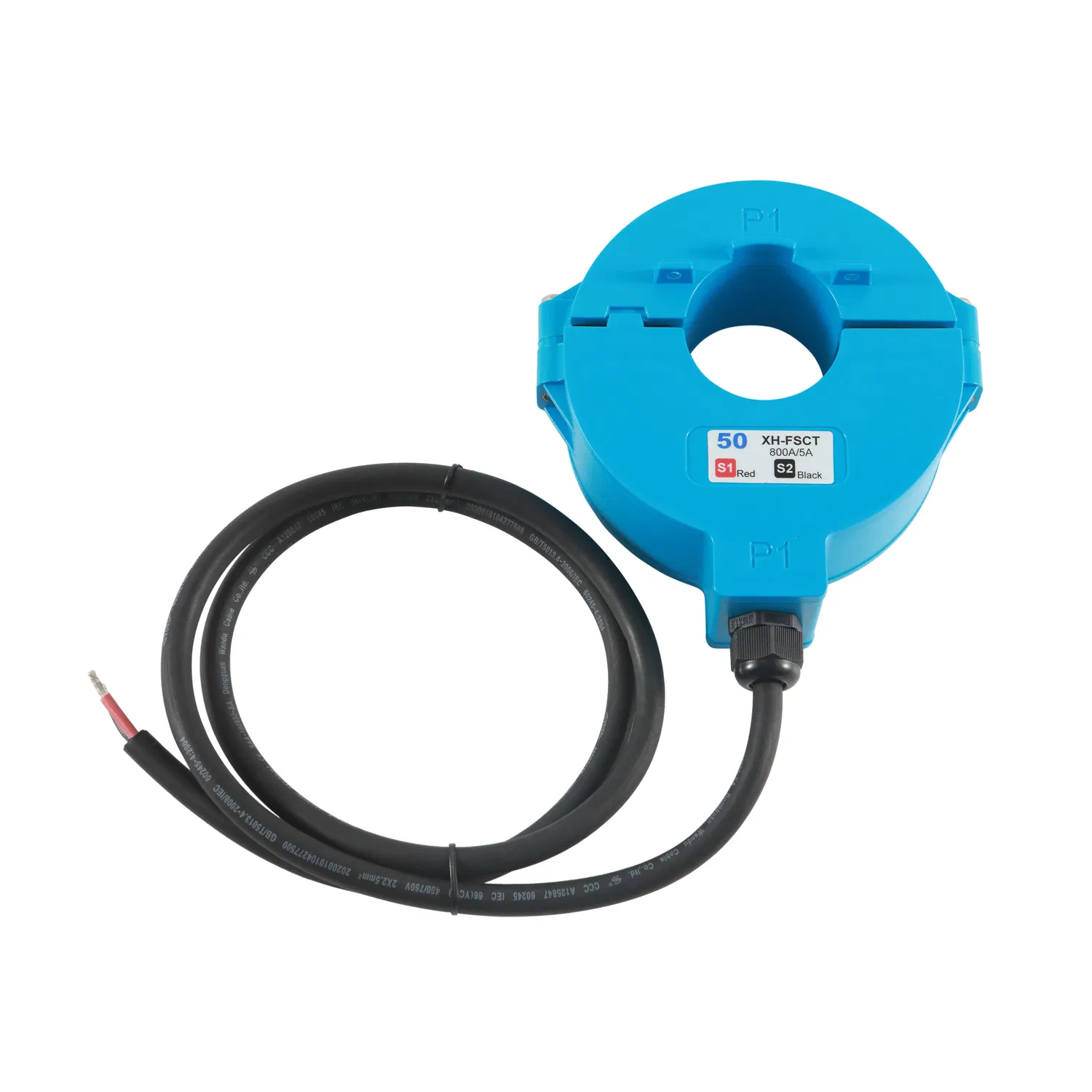

Fsct-T36 Outdoors Waterproof Split Core Current Transformer
Fsct-T36 Outdoors Waterproof Split Core Current Transformer
Fsct-T36 Outdoors Waterproof Split Core Current Transformer
Fsct-T36 Outdoors Waterproof Split Core Current Transformer
Fsct-T36 Outdoors Waterproof Split Core Current Transformer
1 / 5
Fsct-T36 Outdoors Waterproof Split Core Current Transformer
Fsct-T36 Outdoors Waterproof Split Core Current Transformer
Fsct-T36 Outdoors Waterproof Split Core Current Transformer
Fsct-T36 Outdoors Waterproof Split Core Current Transformer
Fsct-T36 Outdoors Waterproof Split Core Current Transformer

Fsct-T36 Outdoors Waterproof Split Core Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
FSCT-36
Phase
Single
Operation Condition
Outdoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit
Combined Type
Output
1A or 5A
IP Rating
IP 67
HS Code
8504
Production Capacity
200,000 PCS/Month

Packaging & Delivery

Package Size
10.00cm * 20.00cm * 10.00cm
Gross Weight
1.000kg

Product Description

FSCT-36 Outdoor Waterproof Split Core Current Transformer

The FSCT-36 Outdoor Waterproof current transformer is engineered with a high-quality silicone steel core and is fully potted for rigorous outdoor environments. Its split-core design allows for easy installation on ground potential conductors without disconnecting primary circuits.

Technical Key Features:

  • Window Size: 36 mm
  • Accuracy: 0.5-1%
  • Standards: GB20840; IEC 61869
  • Rated Frequency: 50Hz or 60Hz
  • Secondary Winding Power Frequency Withstand: 3kv/1min
  • Environment: Outdoor Waterproof (IP67)
Parameter Specification Details
ModelFSCT-36
Window size36mm
Rated primary current100-800 Arms
Rated output5A / 1A
Burden1.5VA - 5VA
Accuracy class0.5, 1.0
Equipment maximum voltage0.66/0.72KV
Insulation Strength3KVac/min
Working Temperature-25ºC ~ 70ºC
Rated Frequency50-400HZ

Main Applications:

  • Power quality monitoring
  • Power instrument and meter interfacing
  • Distributed measurement systems
  • Current measurement for power supply equipment below 10KV
  • Microcomputer protection systems

Product Display & Testing

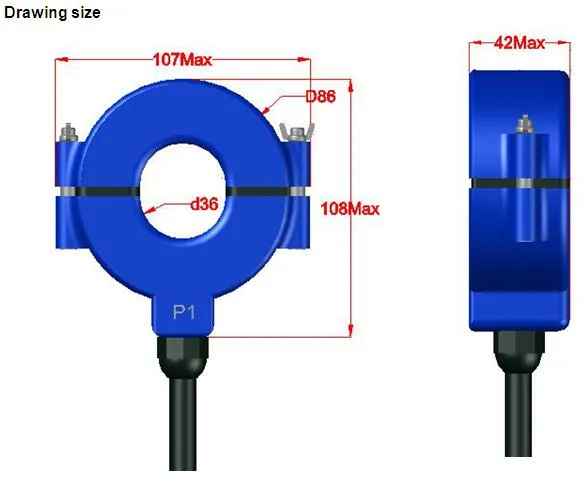

FSCT-36 Outdoor Current Transformer

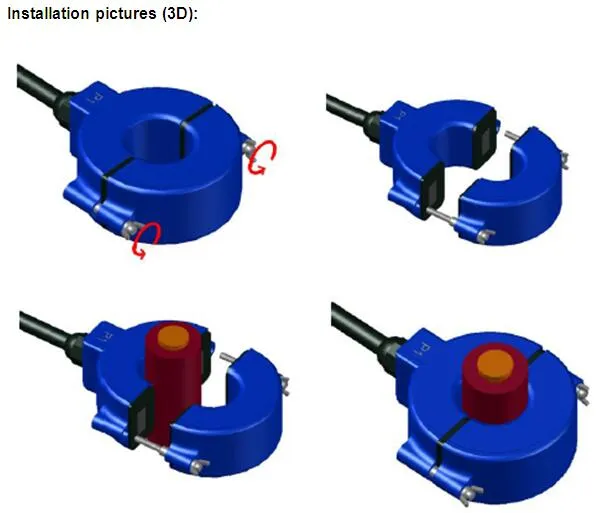

Split Core Design

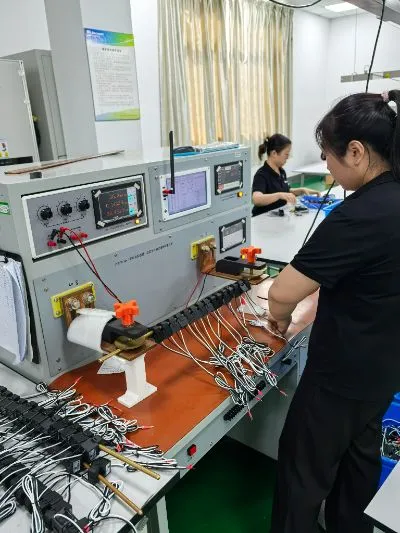

Product Testing
Shipment Readiness

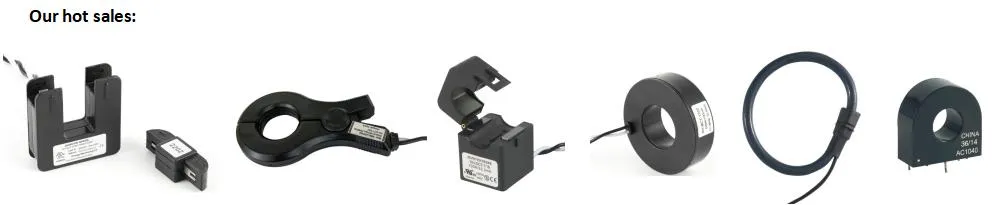

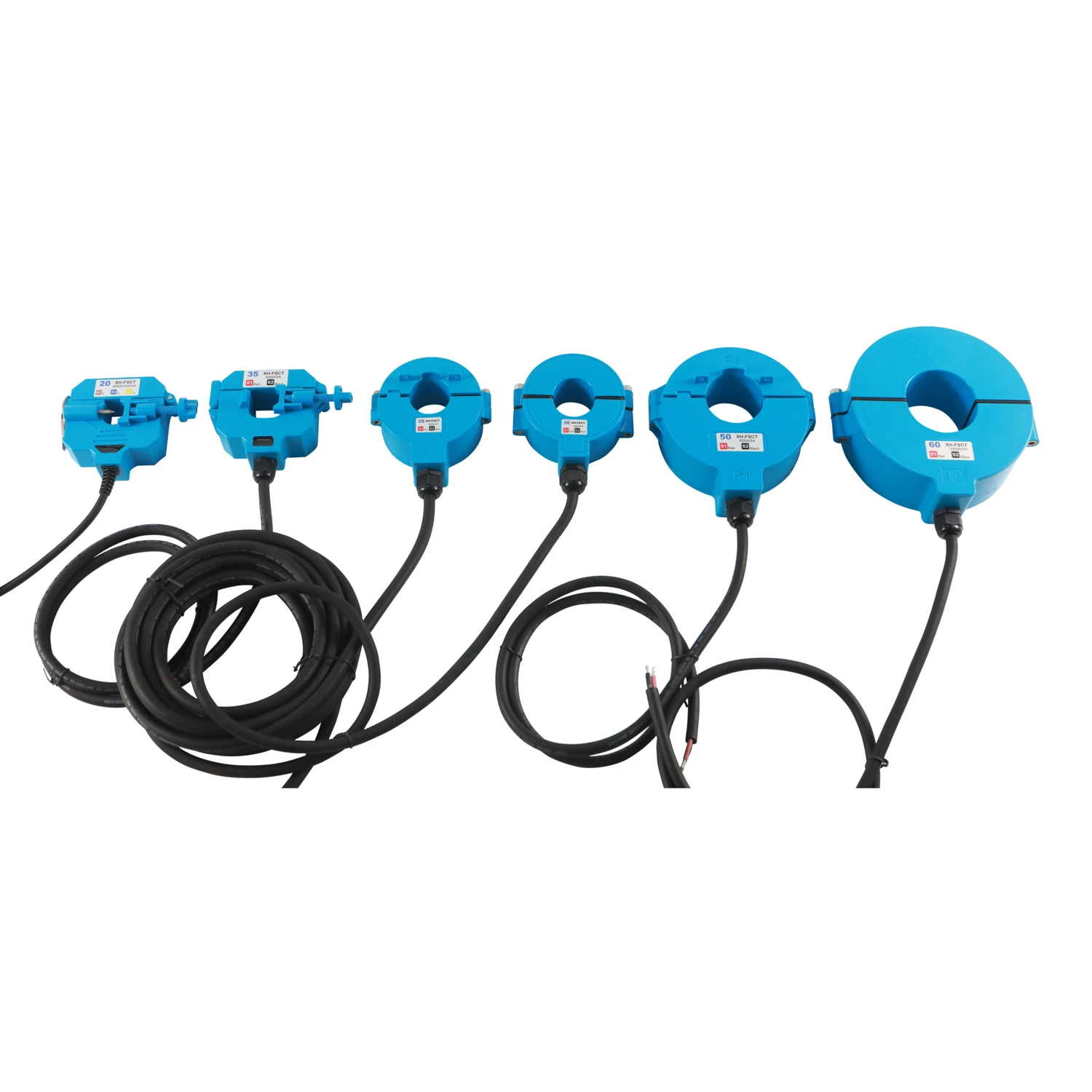

Full Product Line Overview

Frequently Asked Questions

What is the waterproof rating of the FSCT-36?
The FSCT-36 is rated IP67, making it completely dust-tight and capable of withstanding immersion in water, which is ideal for outdoor use.
Does this transformer require the circuit to be broken for installation?
No, the FSCT-36 features a split-core design, allowing it to be clamped around a conductor without disconnecting the cable.
What are the available secondary output options?
The standard secondary output can be configured for either 1A or 5A, depending on your measurement equipment requirements.
What is the maximum primary current it can handle?
The FSCT-36 supports a rated primary current ranging from 100A up to 800 Arms.
What accuracy classes are available?
This model provides high precision with an accuracy class of 0.5 or 1.0, suitable for professional measurement applications.
Can it operate in extreme temperatures?
Yes, the operating temperature range is -25ºC to +70ºC, ensuring stability in various outdoor climates.
