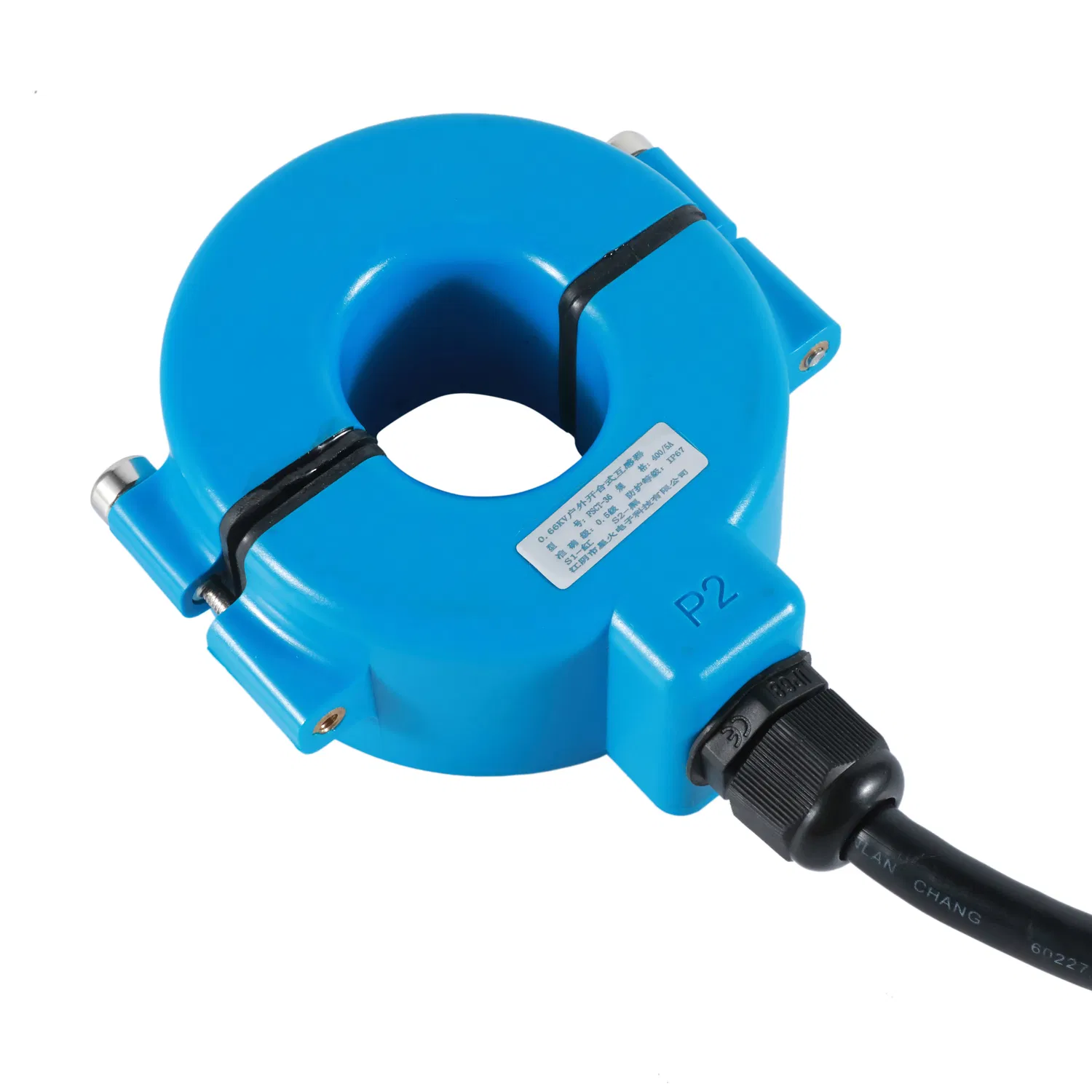

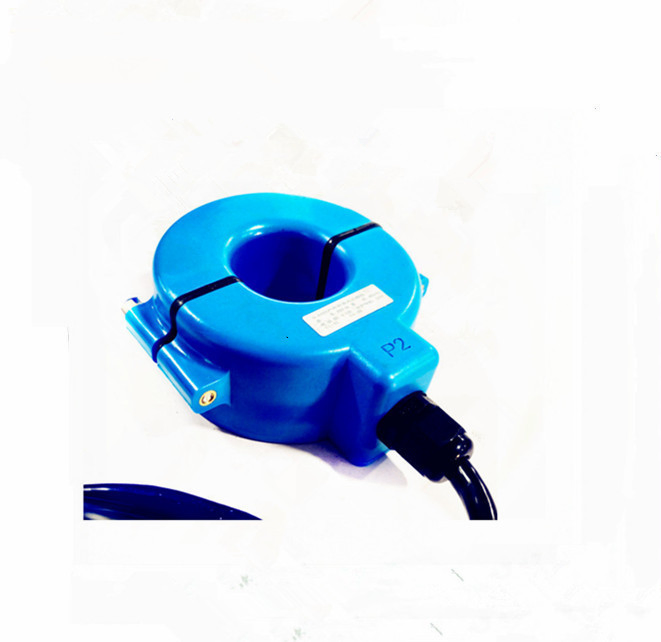

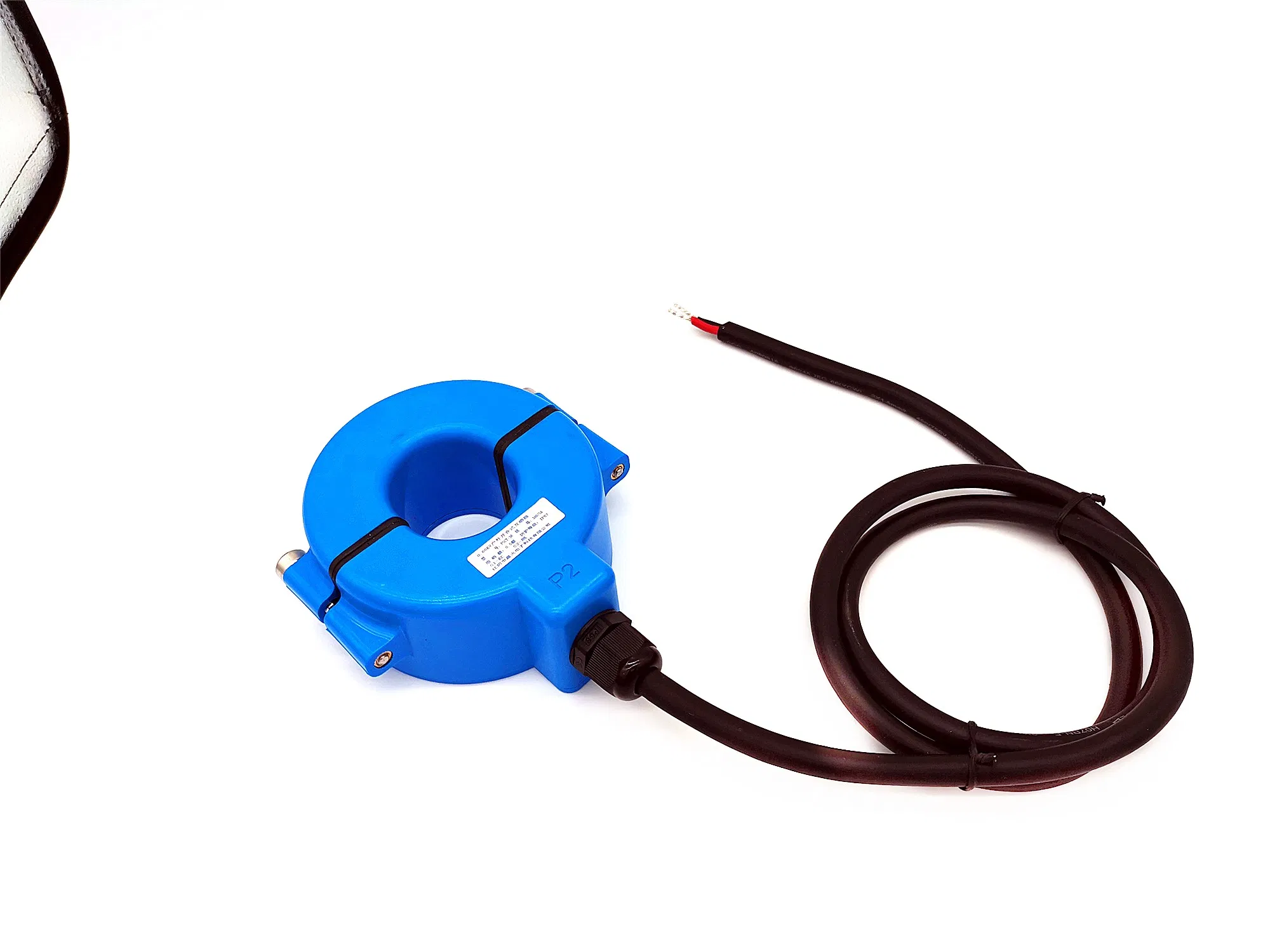

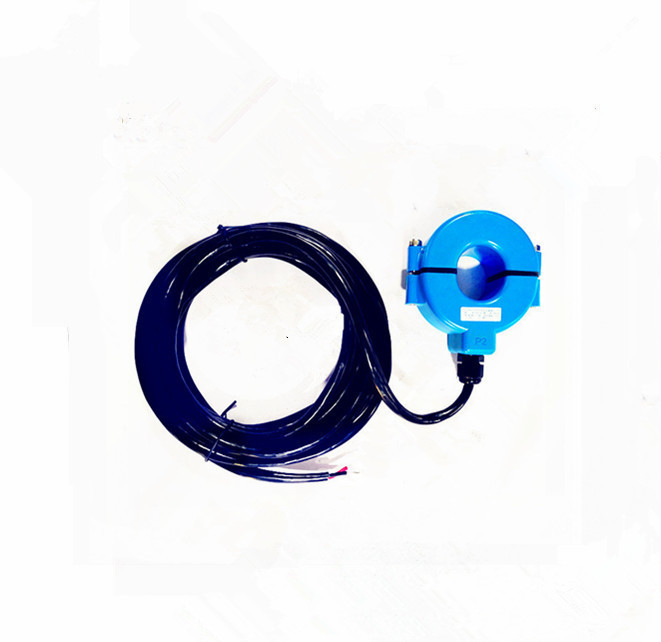

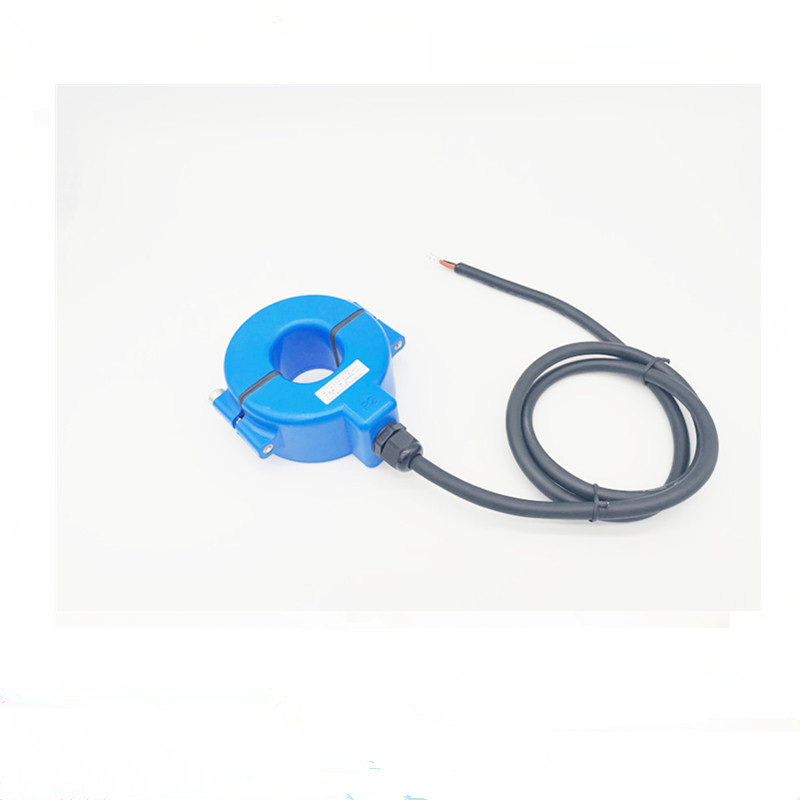

Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
1 / 5
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A
Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A

Fsct-T36 IP68 Outdoor Waterproof Split-Core Current Transformer Cts 600A 5A

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋
Basic Information
Model NO.
FSCT-T36
Phase
Single
Operation Condition
Outdoor
Usage
Protection, Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Common Insulating Materials
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation
Electromagnetic Type
Rated Input Current
600A
Rated Output
5A
Window Size
36mm
IP Rating
IP68 / IP67
Weight
1.5kg
Package Gross Weight
1.500kg
Production Capacity
100,000 PCS/Month
⚙️
Specifications
ModelFSCT-T36
StandardsGB 20840 (IEC 61869), GB4208
Window size36mm
IP ratingIP67
Burden1.5VA-5VA
Rated current100-800 Arms
Max current800 Arms
Turns100-3000T
Accuracy class0.5, 1.0
Equipment max voltage0.66/0.72KV
Rated output5A, 1A, mA, mV, V
Wire lead2*2.5mm² sheathed wire
Insulation strength3KV VAC/min
Insulation impedanceDC500V/100MΩ
Rated frequency50-400HZ
Working temperature-40ºC~70ºC
Storage temperature-40ºC~90ºC
💡
Product Applications
  • Power quality monitoring
  • Power instrument and meter
  • Distributed measurement systems
  • Measurement of current of power supply equipment below 10KV
  • Microcomputer protection
📏
Dimensions & Installation
Dimension Of FSCT-T36

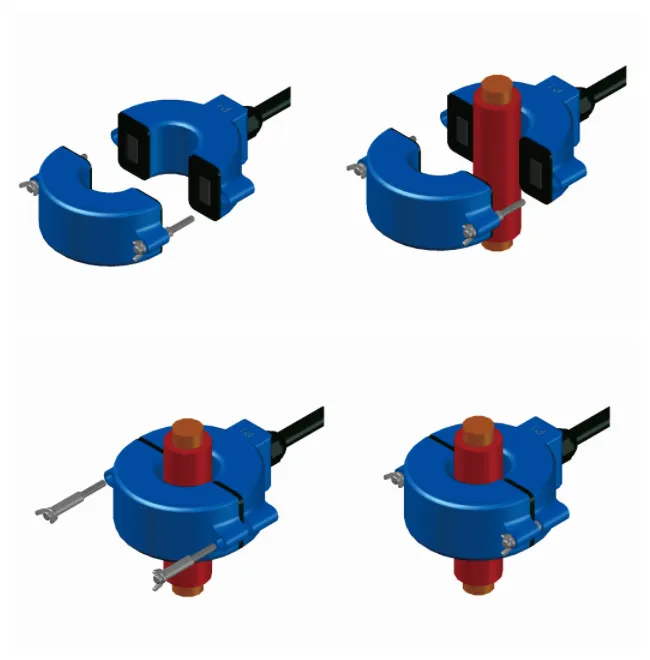

Installation Of FSCT-T36
💧
Waterproof Protection

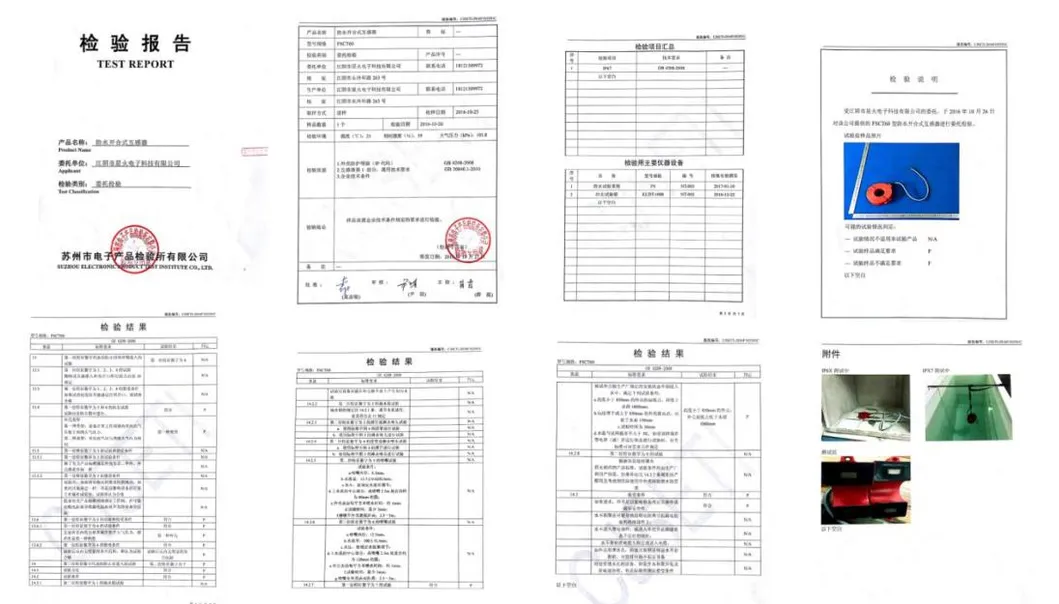

Waterproof FSCT-T36 IP67
🔍
Other Product Ranges

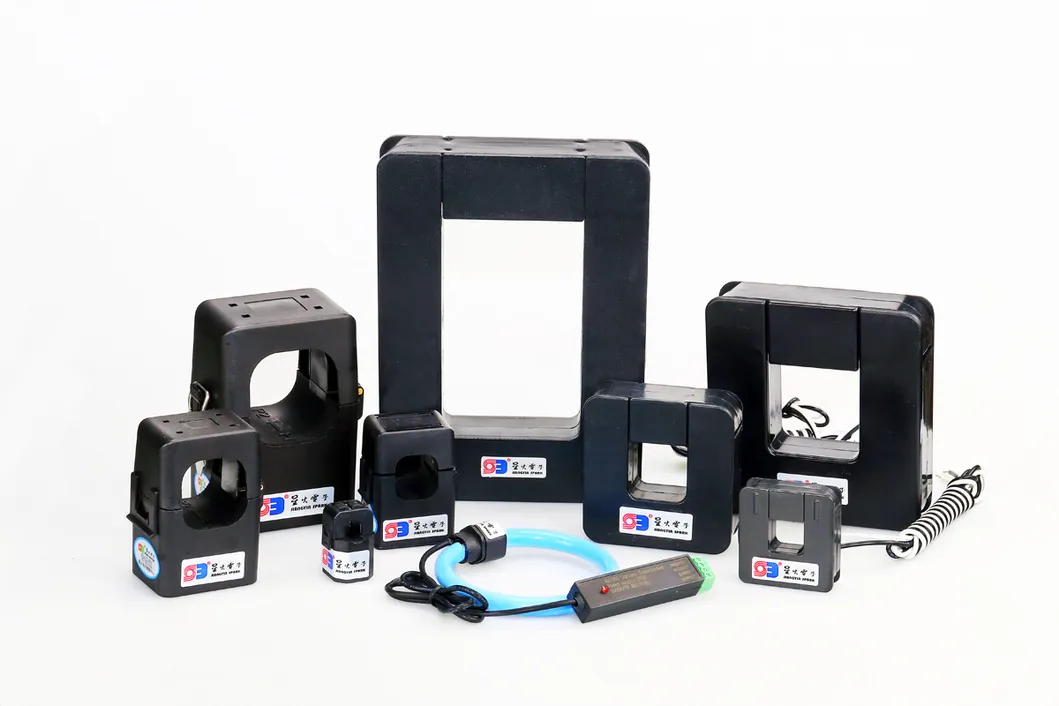

Related Product 1
Other Product
Other Product
Other Product
❓
Frequently Asked Questions
1. What is the benefit of a split-core current transformer like the FSCT-T36?
The split-core design allows for easy installation without the need to disconnect existing cables or busbars, significantly reducing installation time and costs.
2. Is this current transformer suitable for outdoor use?
Yes, the FSCT-T36 is designed for outdoor conditions with an IP67/IP68 waterproof rating, ensuring reliable performance in harsh environments.
3. What cable sizes can the window of the FSCT-T36 accommodate?
The FSCT-T36 features a 36mm window size, making it suitable for a wide range of standard power cables.
4. What are the available output options?
While the standard rated output is 5A, it can also be configured for 1A, as well as mA, mV, or V outputs depending on your measurement requirements.
5. What is the accuracy class of the FSCT-T36?
This model offers high-precision measurement with accuracy classes of 0.5 or 1.0, meeting various industrial monitoring standards.
6. Does it support high-frequency applications?
Yes, the transformer operates within a rated frequency range of 50Hz to 400Hz, supporting diverse power system configurations.
