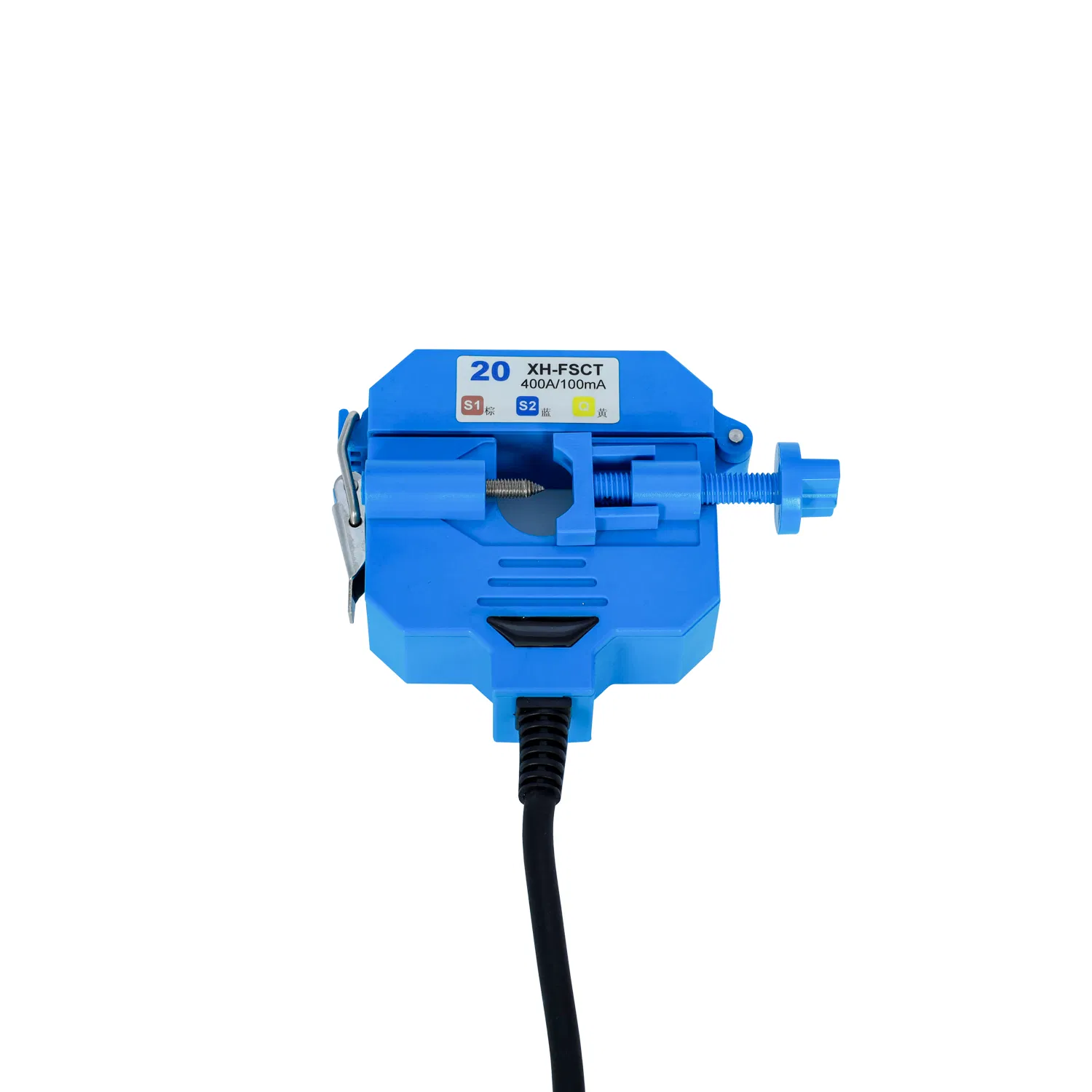

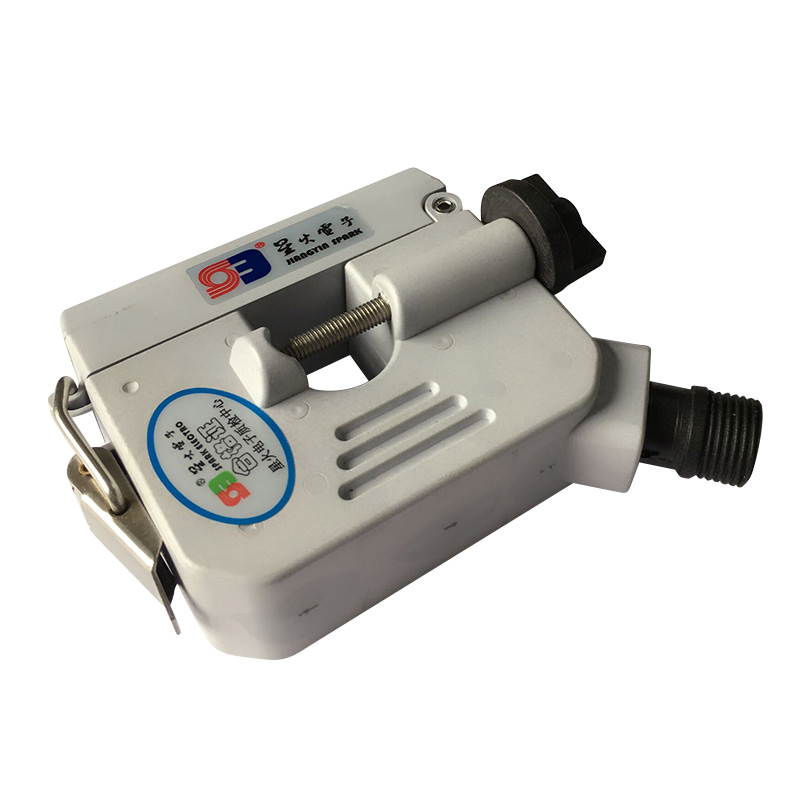

IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
1 / 5
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip
IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip

IP67 Waterproof Outdoor CT Fsct-20 150A/1A Split Core Current Transformer with Clip

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
FSCT-20
Phase
Single
Operation Condition
Outdoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Injection Molding
Installation
Active Type
IP Rating
IP67
Window Size
20 X 20mm
Input Current
0-600A
Output
1A, mA, mV, V
Production Capacity
50000 pieces/Week

Packaging & Delivery

Package Size
15.00cm * 7.00cm * 20.00cm
Package Gross Weight
0.400kg

Product Description

Outdoor Split Core Current Transformer XH-FSCT-20
φ20mm Opening With 10 To 600 Amp Rating

  • Utilities pole probe monitoring and measurement
  • Power distribution line monitoring
  • Building and factory energy management systems
  • Measurement and monitoring of low current in outdoor applications
  • Current balancing monitoring
  • Smart grid application and energy efficiency
  • Inner Diameter: 20mm
  • Primary Current: 0~600A
  • Accuracy Class: 0.5%, 1%
Outdoor CT Fsct-20
Split Core Current Transformer
ModelXH-FSCT-T20
StandardsGB 20840 (IEC 61869), GB4208
Equipment maximum voltage0.33/0.72KV
IP ratingIP 67
Rated current10-600 Arms
Max current1000 Arms
Accuracy class0.5, 1.0
Rated outputmA/mV/1A
Wire lead3*0.75mm2 sheathed wire
Insulation strength3KVAC/min
Rated frequency50-400HZ
Working temperature-25ºC~50ºC

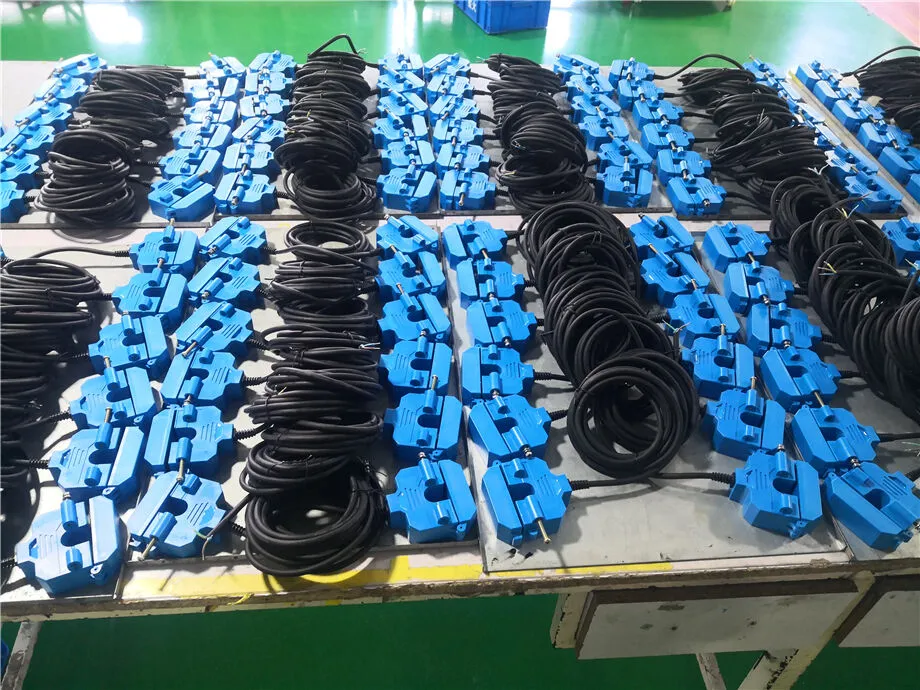

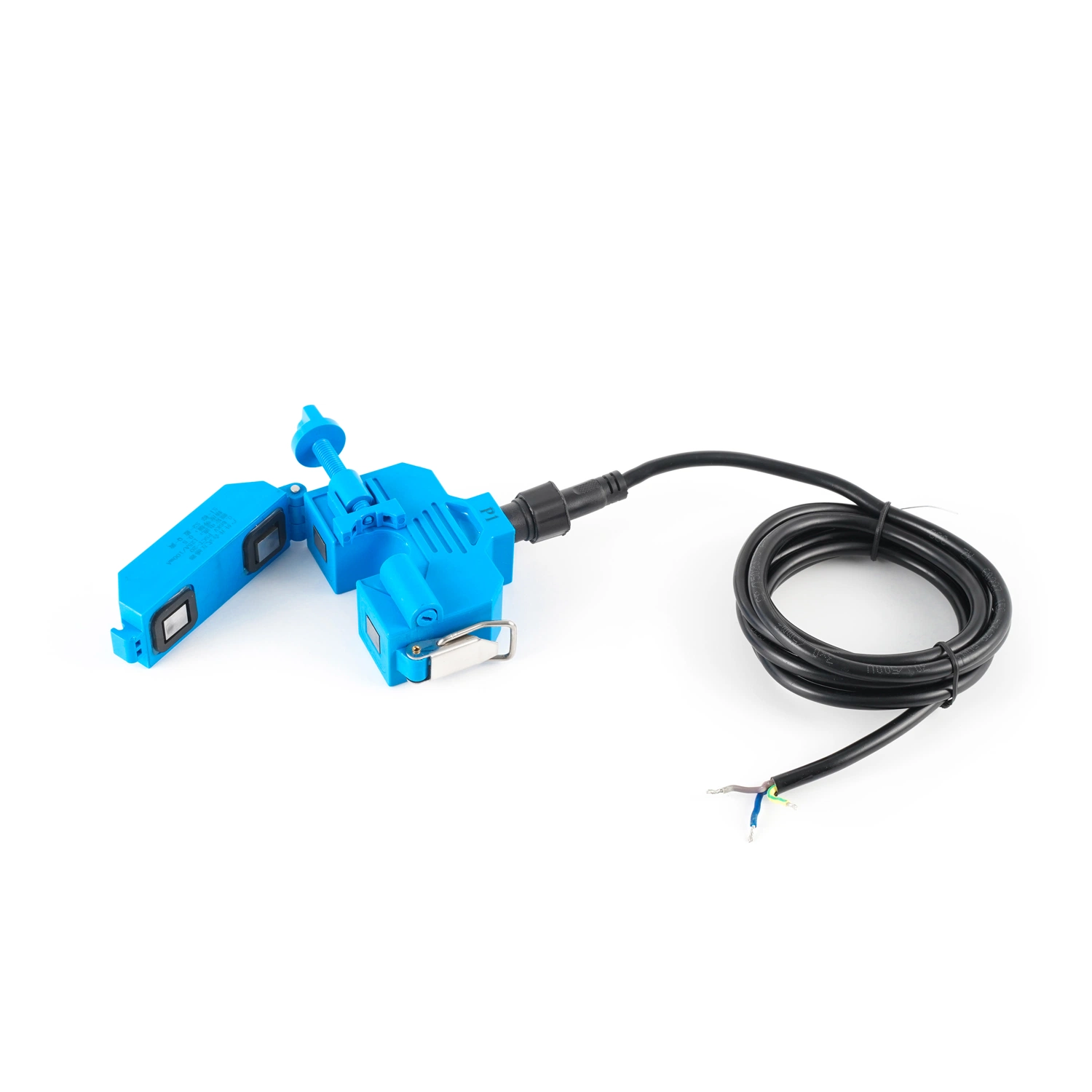

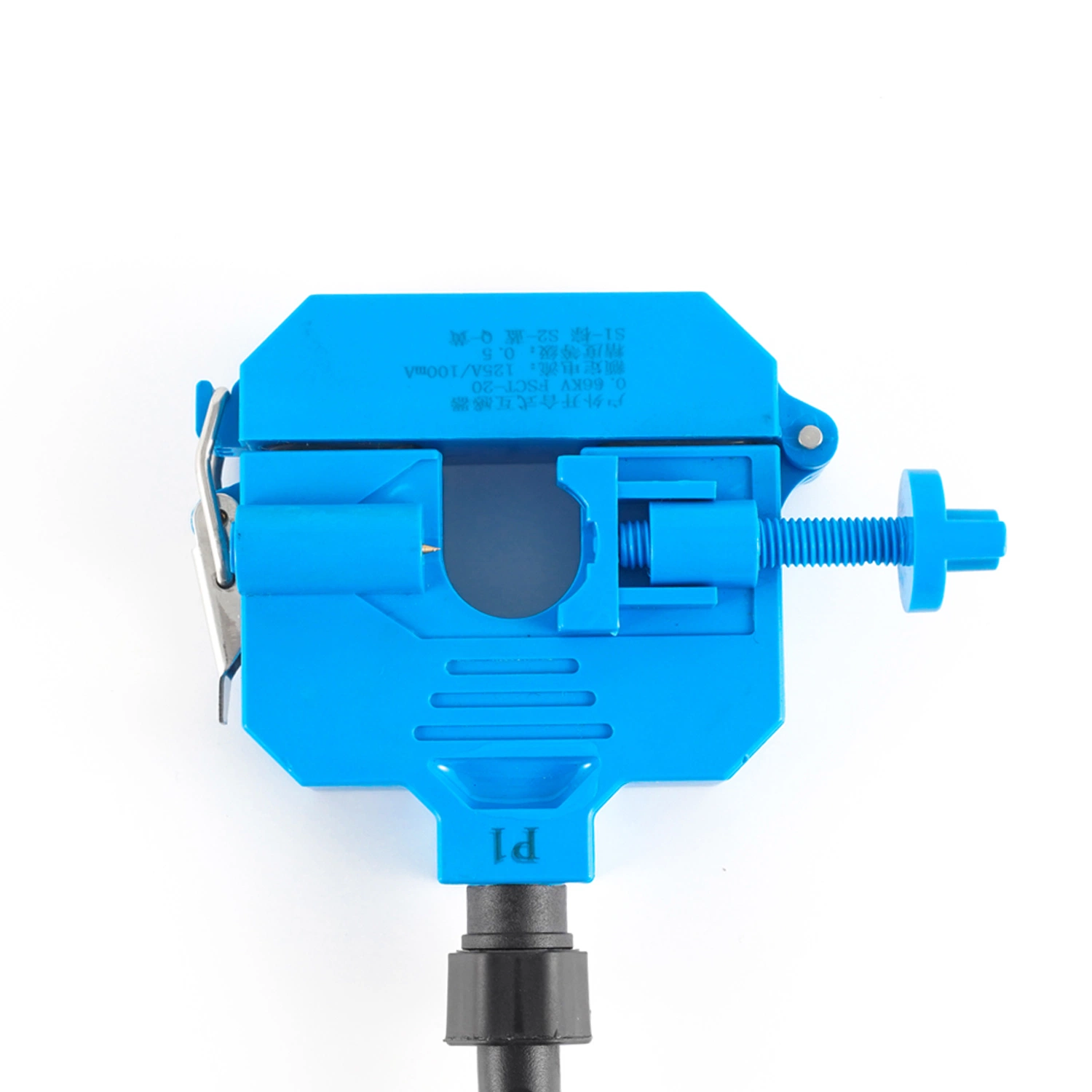

Product View 1

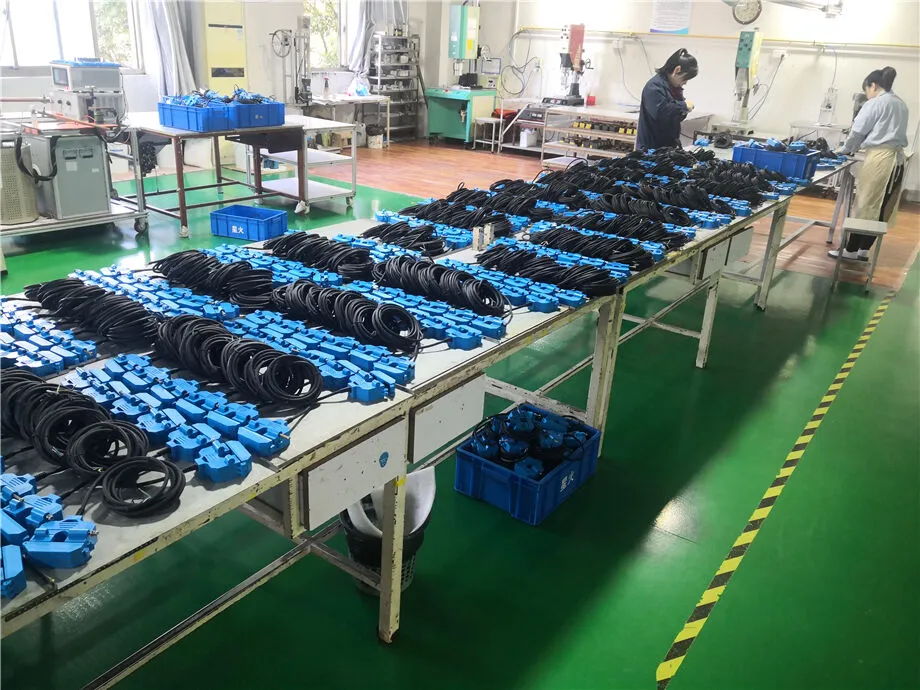

Product View 2

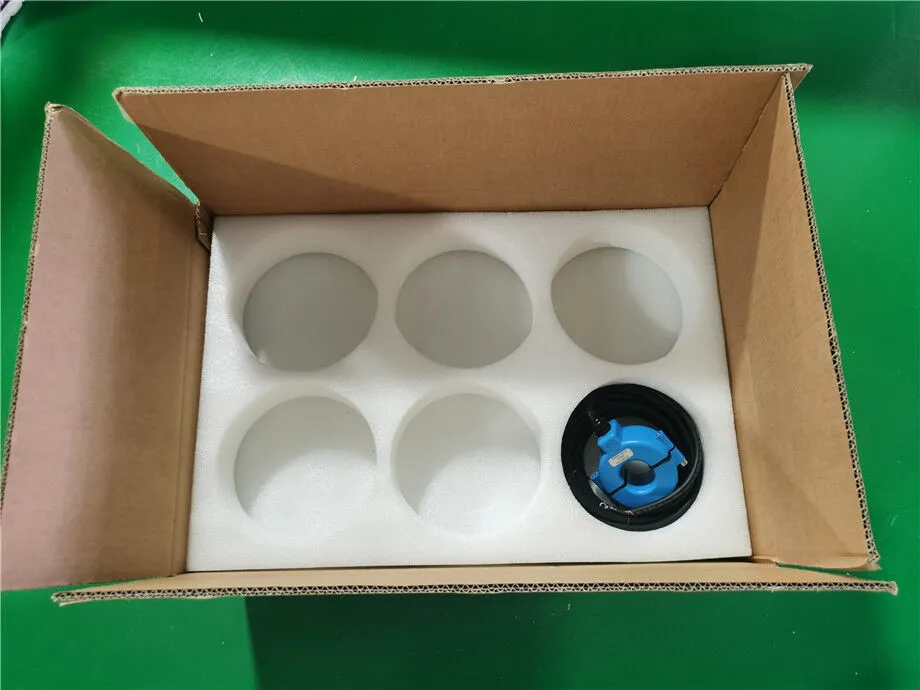

Product View 3

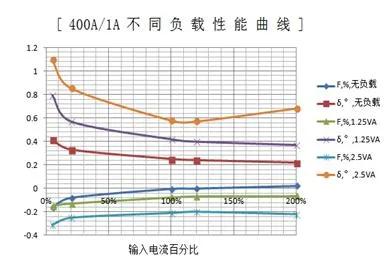

Curve Performance:

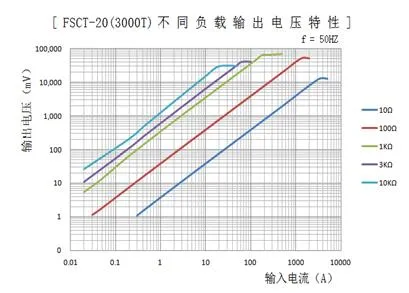

Curve Performance 1
Curve Performance 2
Technical Drawing

Other Hot Sales:

Related Products

Frequently Asked Questions

What is the IP rating of the FSCT-20 transformer?
The FSCT-20 features an IP67 rating, making it completely waterproof and suitable for outdoor applications.
What is the measurement range for this current transformer?
It is designed for primary currents ranging from 0 to 600A, with a maximum current capacity of 1000 Arms.
Can this be used for smart grid monitoring?
Yes, it is ideal for smart grid applications, utilities pole probe monitoring, and energy efficiency management.
What are the available output options?
The transformer supports multiple output types including 1A, mA, mV, and Voltage signals.
What is the operating temperature range?
The device operates reliably in temperatures ranging from -25ºC to 50ºC.
What is the window size for cable installation?
The FSCT-20 has a window opening of 20 x 20mm, suitable for various cable line measurements.
