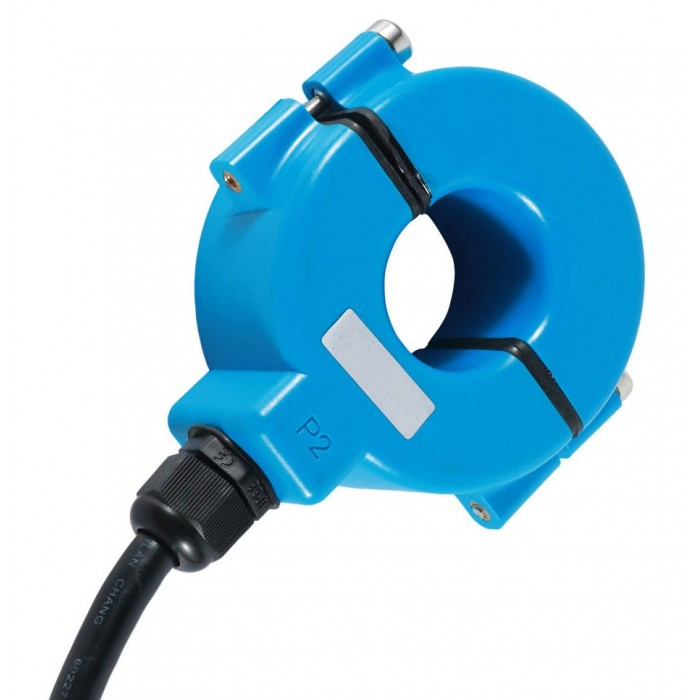

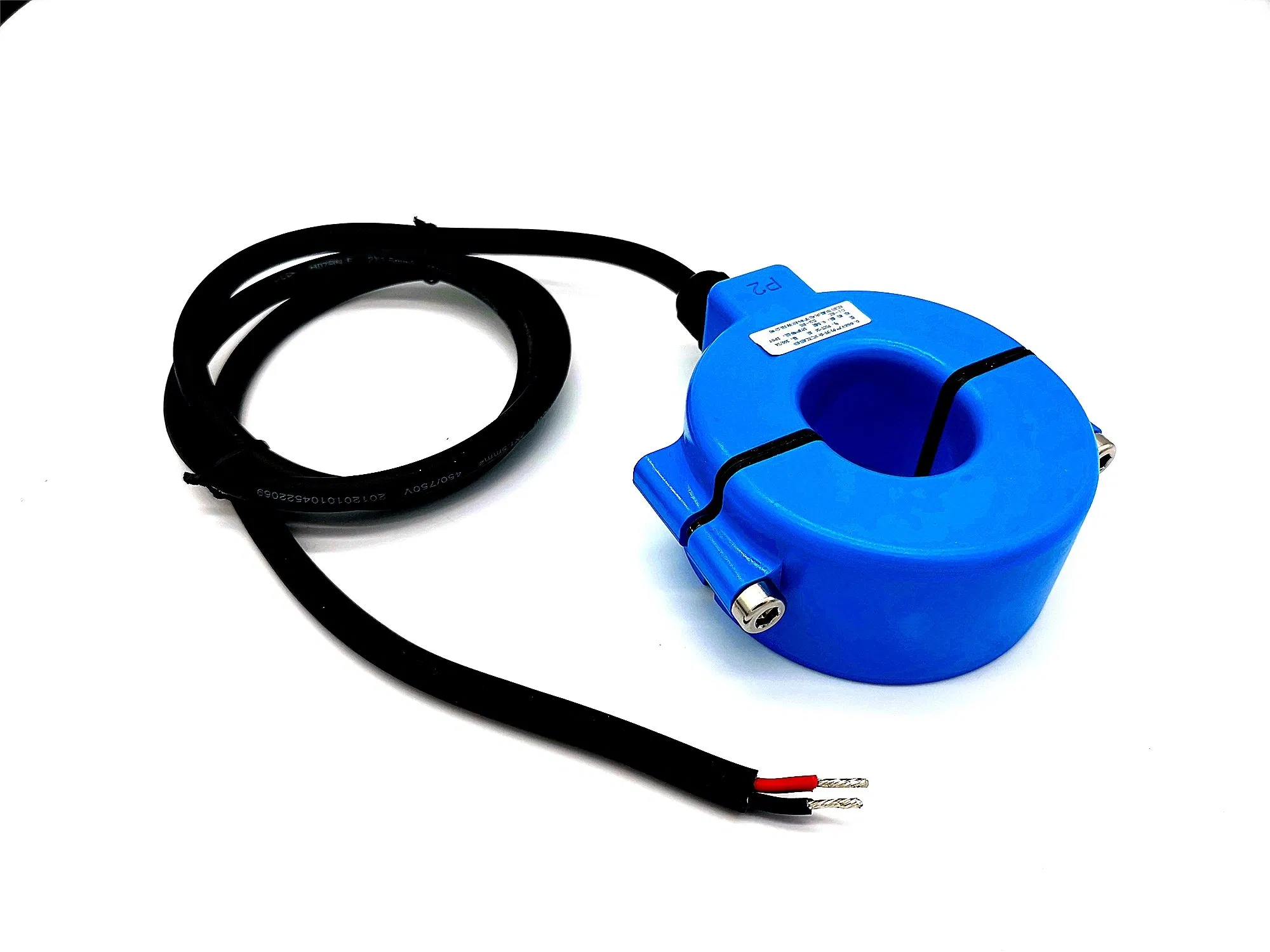

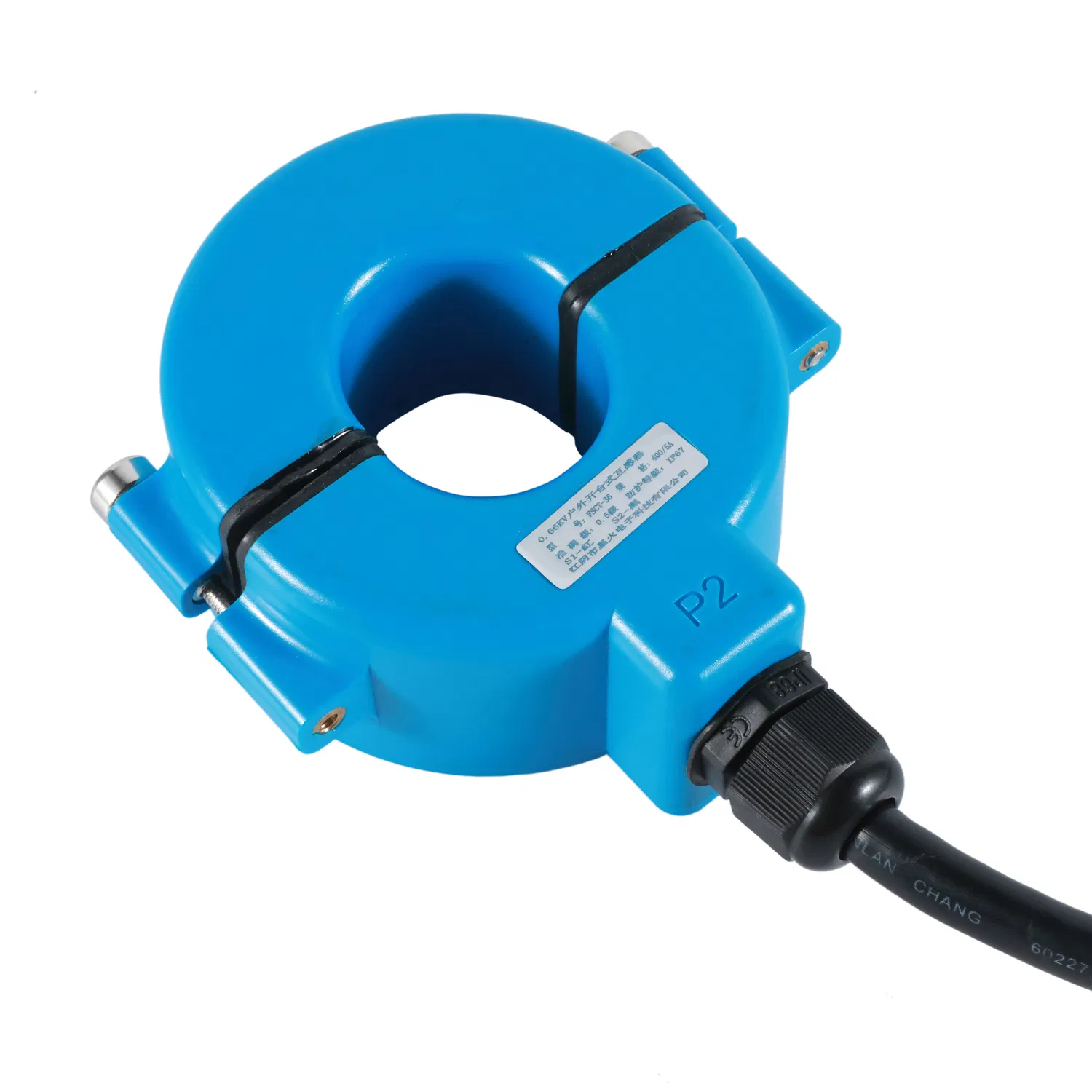

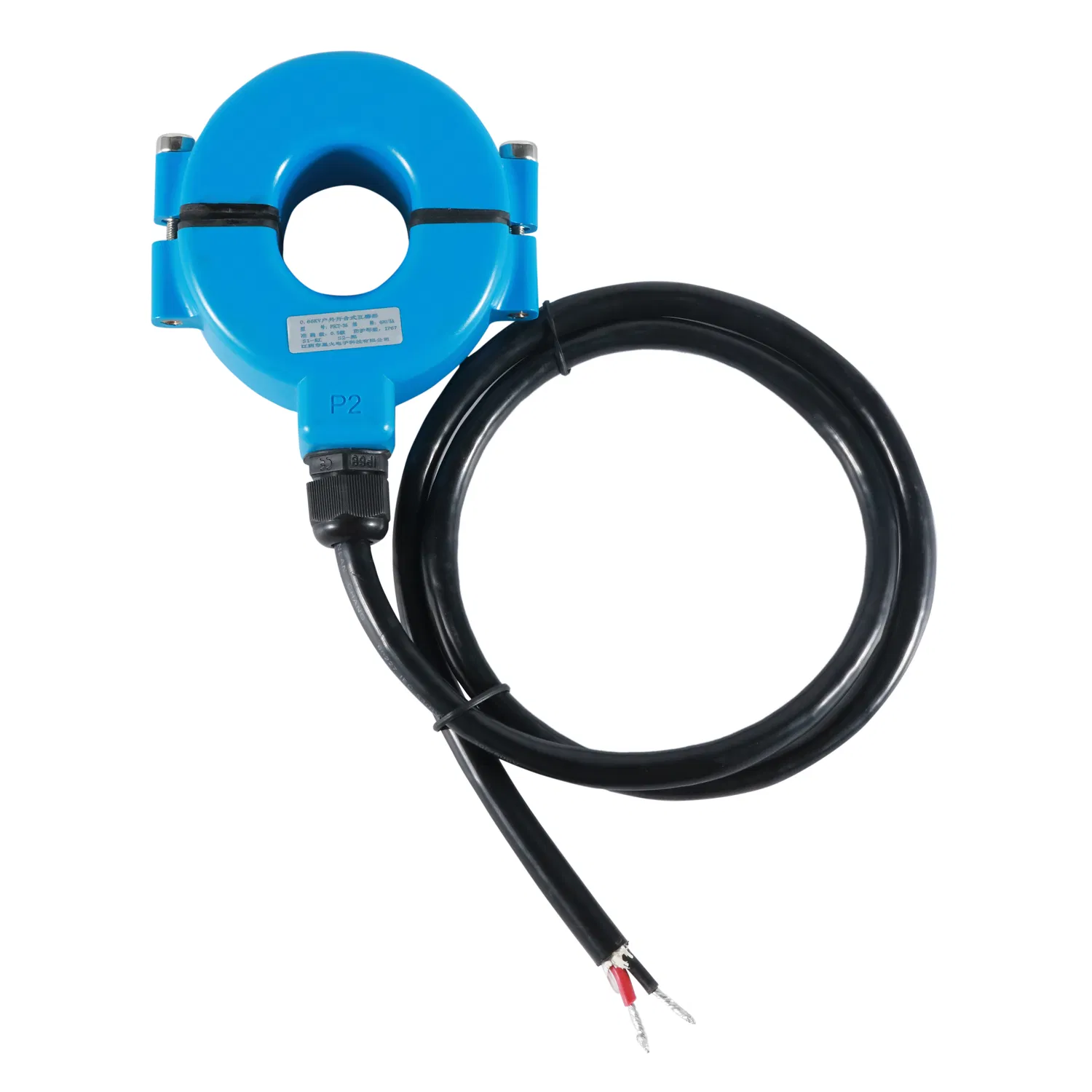

Outdoor Waterproof IP67 Split Core Cts Current Transformer 200A 50mA

ℹ️

Basic Information

Model NO.:FSCT36

Production Process:SemiConductor Integrated

Material:Stainless Steel

Accuracy Grade:0.5G

Application:Power, Electronic

IP Rating:IP20

Certification:RoHS

Customized:Customized

Phase:Single

Coil:Core-Type Transformer

Transport Package:Cartons

Specification:CE, UL, ROHS, ISO9001: 2008

Origin:China(Mainland)

HS Code:8504

Production Capacity:100, 000 PCS/Month

📋

Specifications

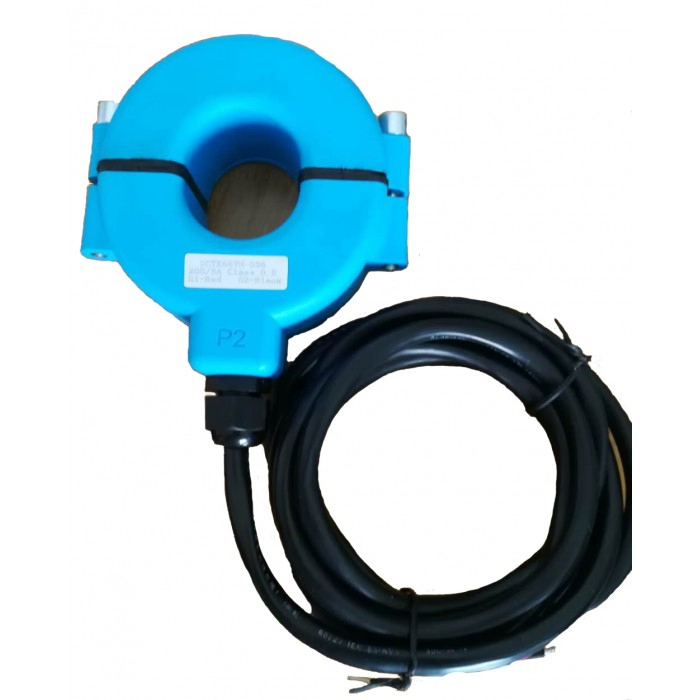

Outdoor Waterproof IP67 Split Core CTs Current Transformer 200A 50mA

Model	FSCT-T36
Standards	GB 20840 (IEC 61869), GB4208
Window size	36mm
IP rating	IP67
Burden	1.5VA-5VA
Rated current	100-800 Arms
Max current	800 Arms
Turns	100-3000T
Accuracy class	0.5, 1.0
Equipment maximum voltage	0.66/0.72KV
Rated output	5A, 1A, mA, mV, V
Wire lead	2*2.5mm² sheathed wire
Insulation strength	3KV VAC/min
Insulation impedance	DC500V/100MΩ
Rated frequency	50-400HZ
Working temperature	-40ºC~70ºC
Storage temperature	-40ºC~90ºC

🚀

Key Applications

Power quality monitoring
Power instrument and meter
Distributed measurement systems
Measurement of current of power supply equipment below 10KV
Microcomputer protection

📐

Dimensions & Installation

Dimension Diagram

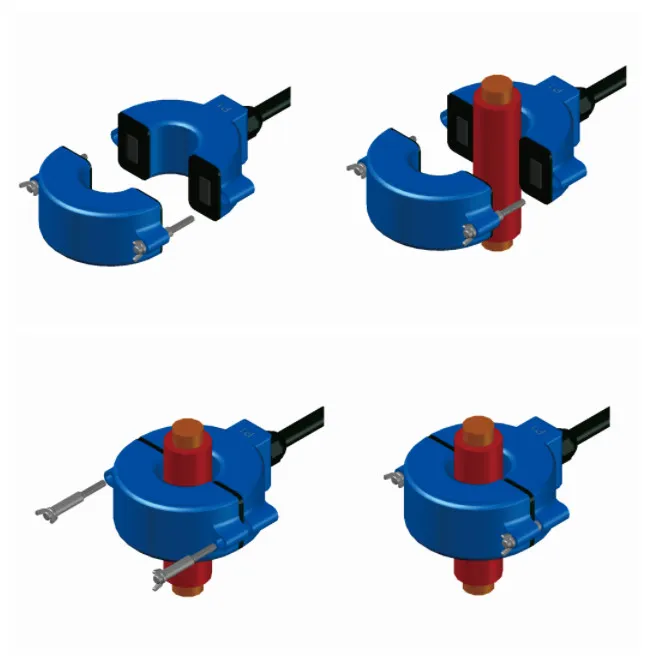

Installation Guide

💧

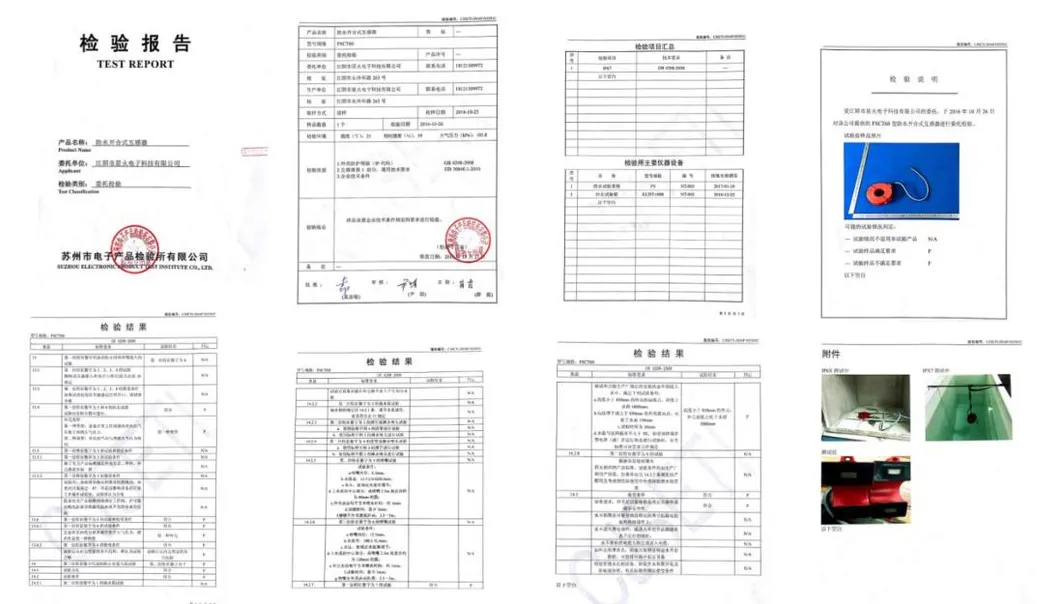

Waterproof Performance

📦

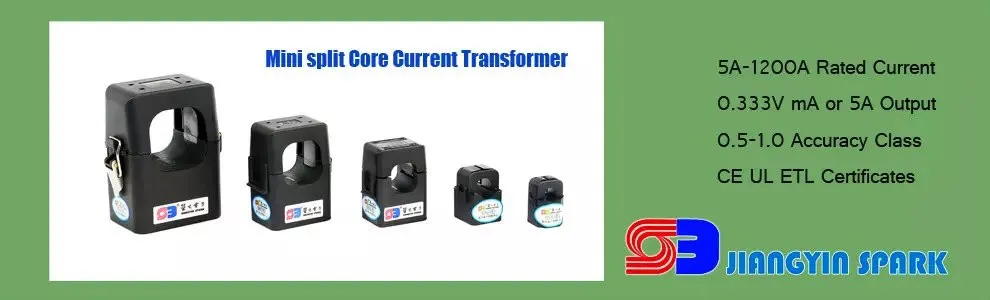

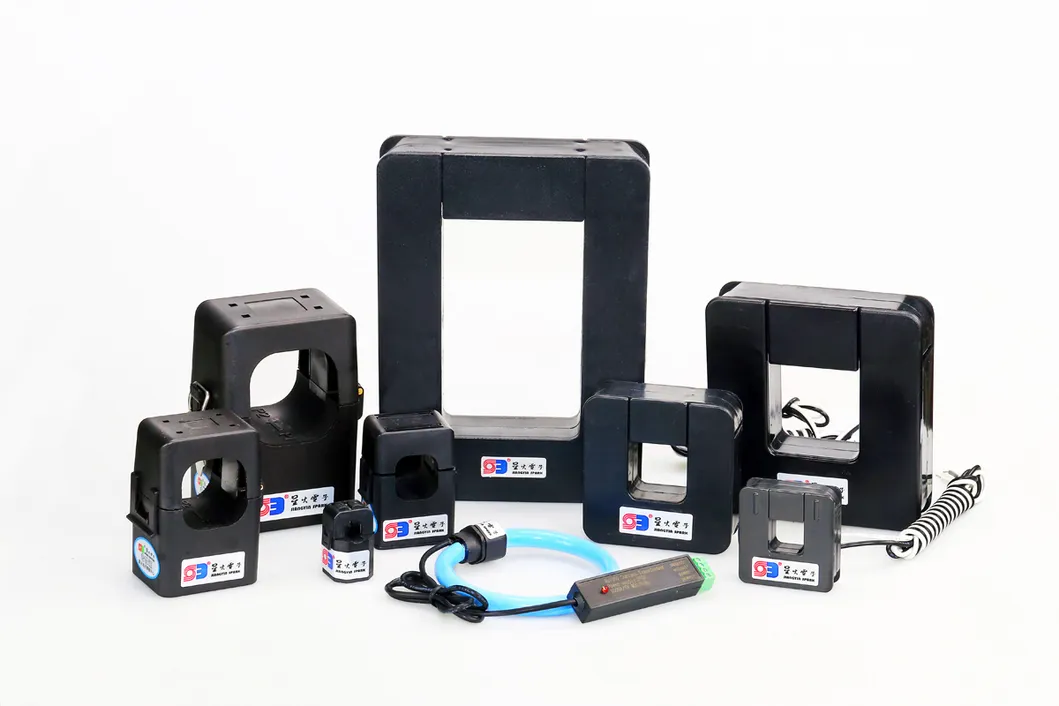

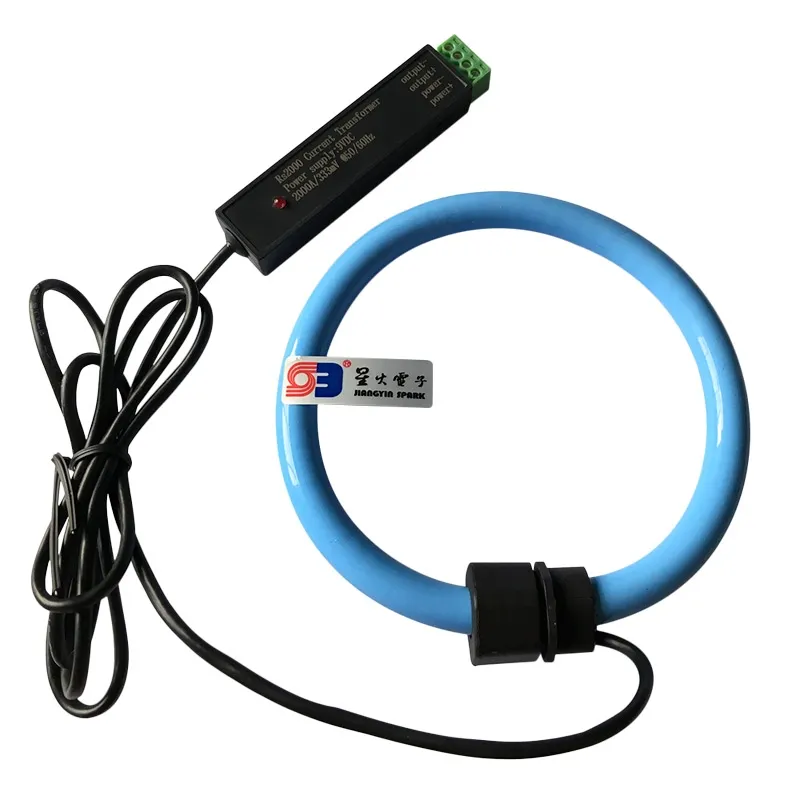

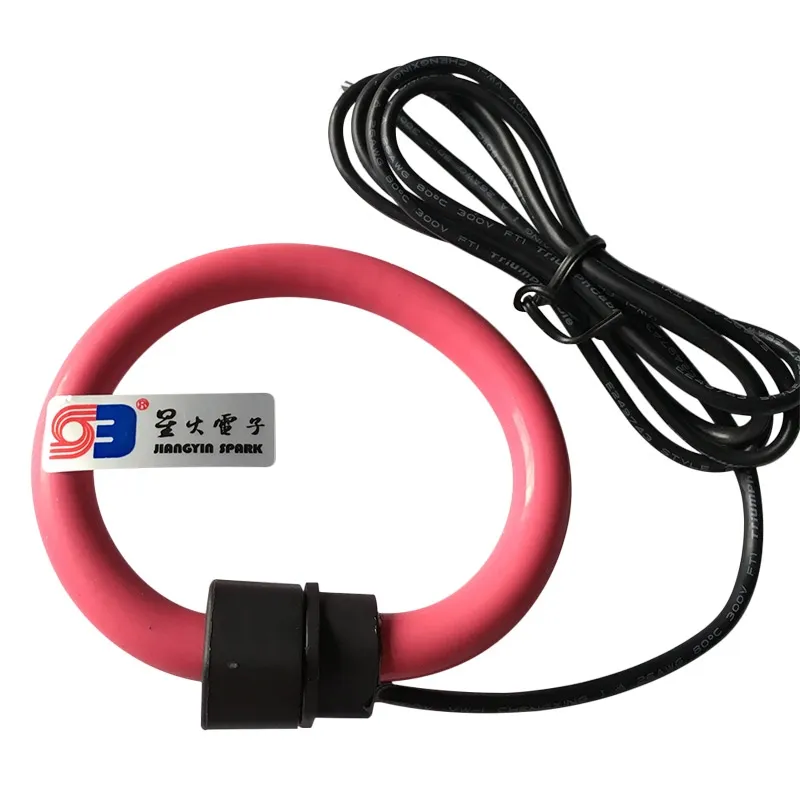

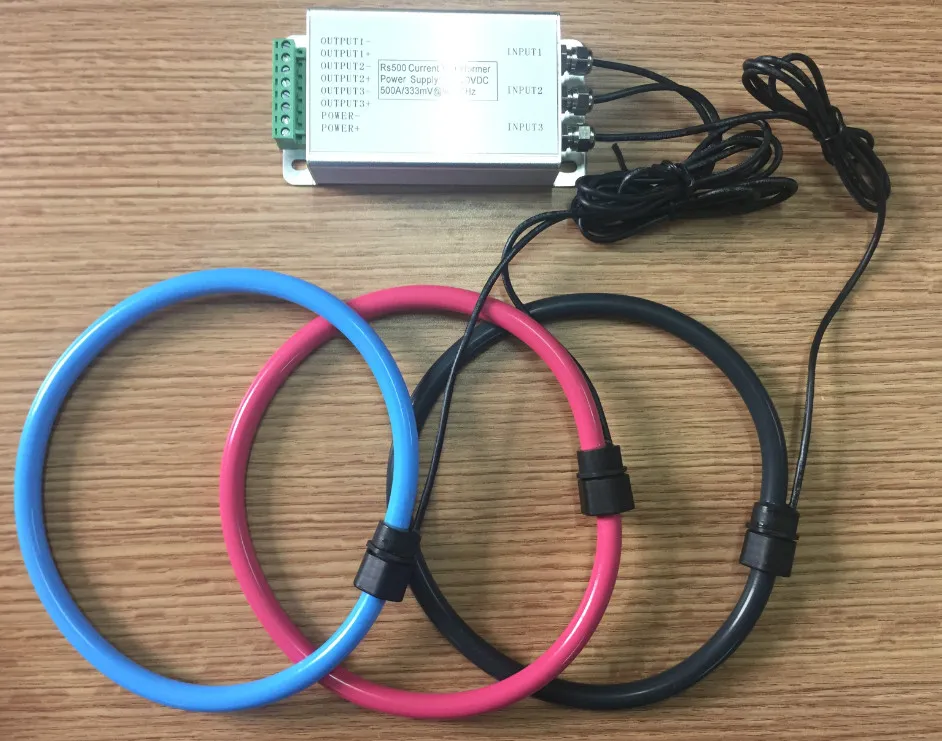

Other Product Range

❓

Frequently Asked Questions

Q1: What is the protection level of the FSCT36 current transformer? A: The FSCT36 is designed with an IP67 rating, making it completely waterproof and suitable for outdoor use.

Q2: What is the maximum rated current for this model? A: The rated current range is between 100 to 800 Arms, with a maximum current capacity of 800 Arms.

Q3: Does the transformer support custom output signals? A: Yes, the rated output can be customized to 5A, 1A, mA, mV, or V signals depending on your requirements.

Q4: What is the window size of the split core? A: The window size is 36mm, allowing for easy installation around cables without disconnecting the circuit.

Q5: What is the operating temperature range for this device? A: It can operate reliably in temperatures ranging from -40ºC to +70ºC.

Q6: Which international standards does this product comply with? A: It complies with GB 20840 (IEC 61869) and GB4208 standards, and holds CE, UL, and RoHS certifications.
