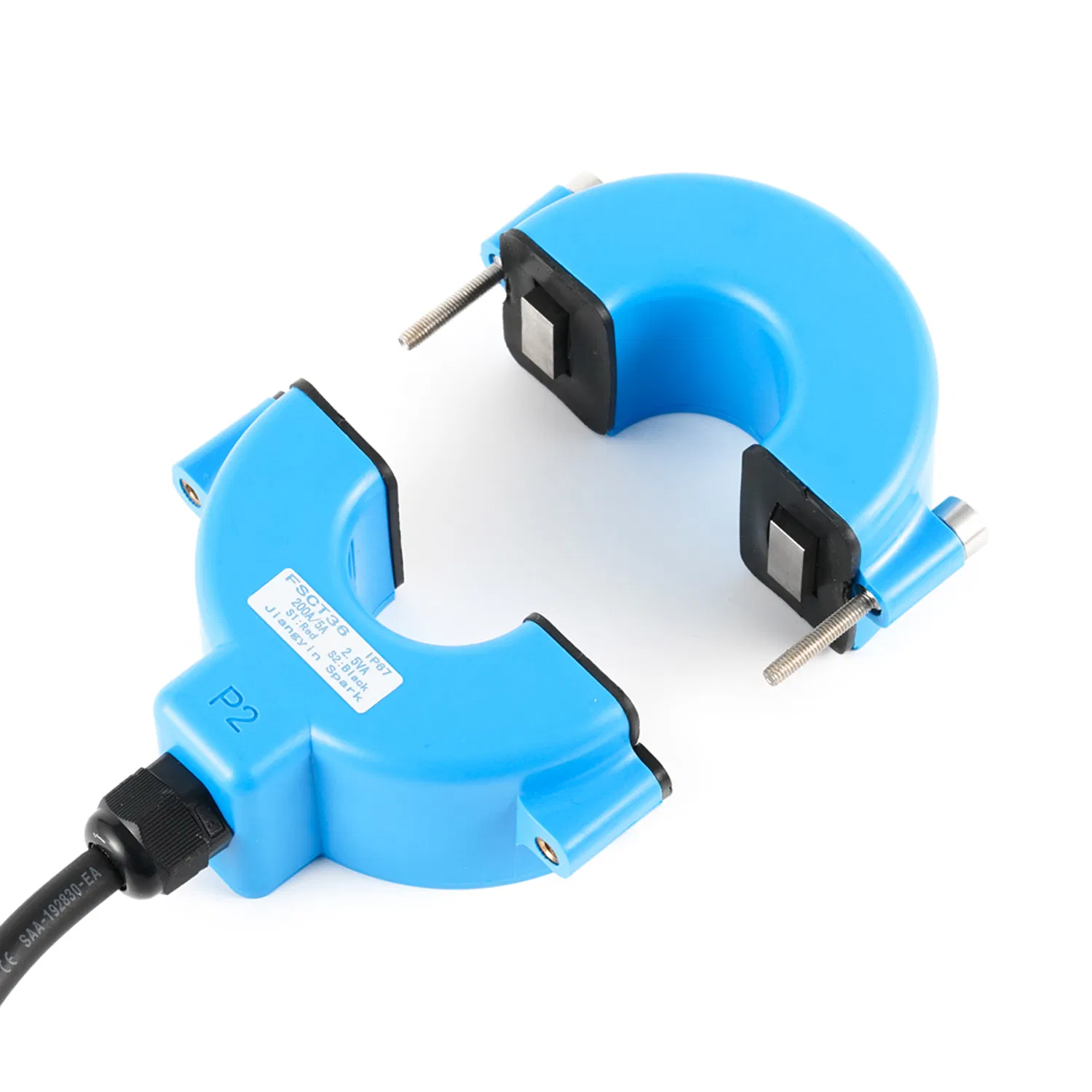

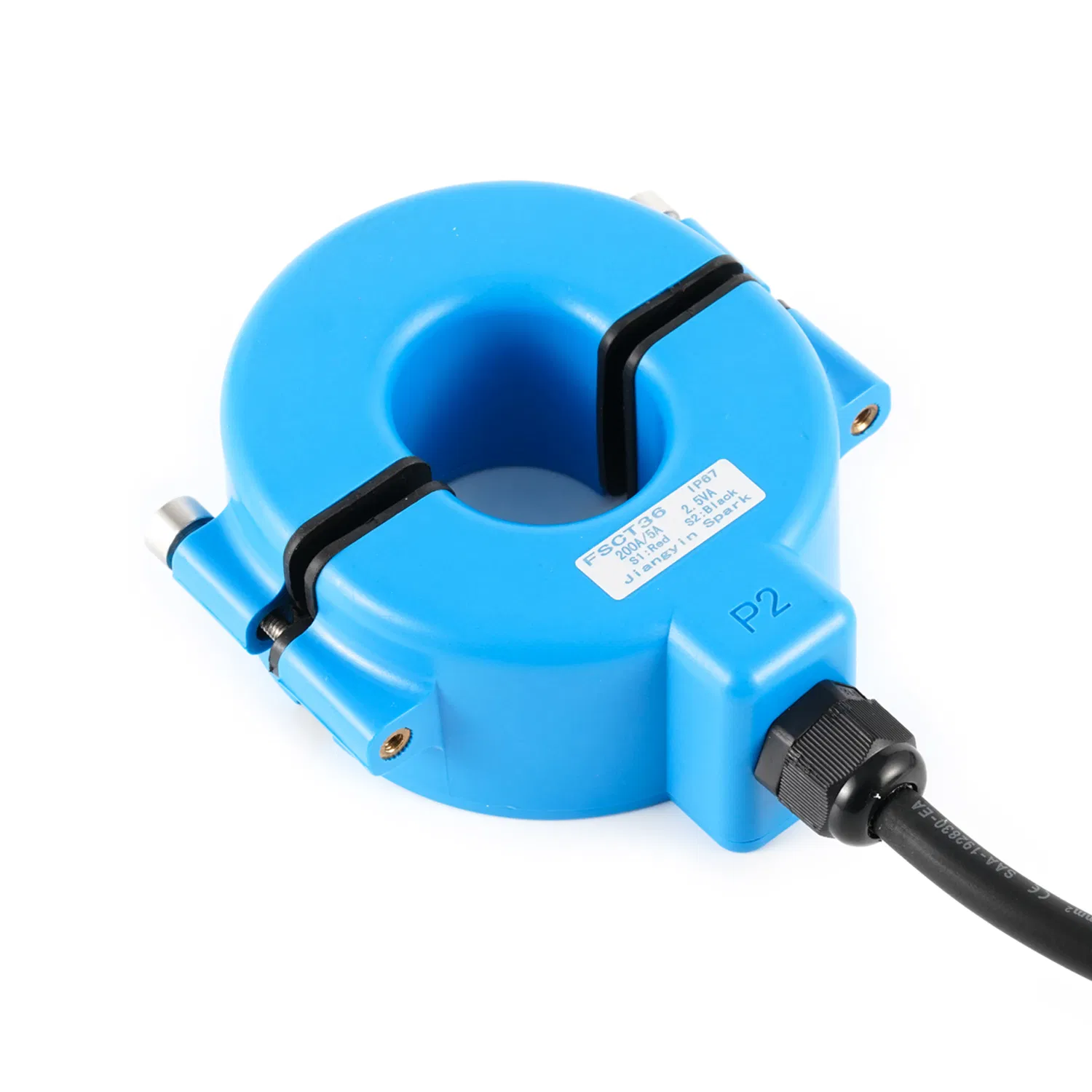

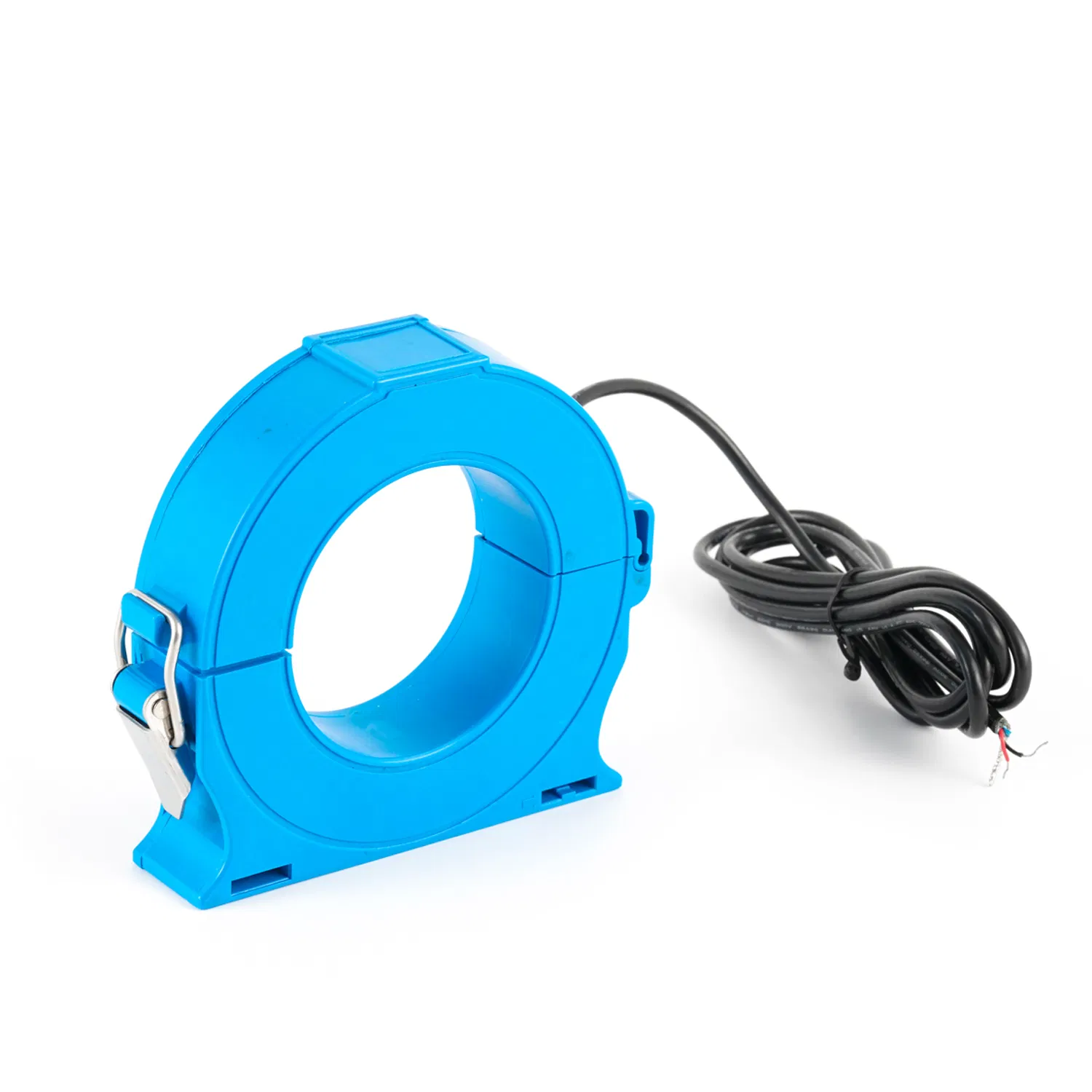

Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
1 / 5
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer

Fsct-T36 600A/5A Outdoors Waterproof Split Core Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
FSCT36 600A/5A
Phase
Single
Operation Condition
Outdoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit
Combined Type
Principle
Capacitive Type
Output
1A or 5A
Certificates
IP 67, CE RoHS
HS Code
8504
Production Capacity
200,000 PCS/Month
🔍

Product Description

FSCT-36 Outdoor Waterproof Split Core Current Transformer

The FSCT-36 Outdoor Waterproof current transformer is built with a high-quality silicone steel core and is professionally potted for durable outdoor use. It is specifically designed for easy installation on ground potential conductors without disconnecting the primary circuit.

✓Window size: 36 mm
✓Accuracy: 0.5-1%
✓Standards: GB20840; IEC 61869
✓Rated Frequency: 50Hz or 60Hz
✓Safety Factor Rating: < 10
✓IP Rating: IP 67
⚙️

Technical Parameters

ModelFSCT-36
Window size36mm
Rated primary current100-800 Arms
Rated output5A/1A
IP ratingIP 67
Burden1.5VA - 5VA
Max current800 Arms
Accuracy class0.5, 1.0
Equipment max voltage0.66/0.72KV
Wire lead2*2.5mm² sheathed wire
Insulation strength3KVac/min
Working temperature-25ºC ~ 70ºC
Rated frequency50-400HZ
⚡

Primary Applications

●Power quality monitoring
●Power instrument and meter systems
●Distributed measurement systems
●Current measurement for equipment below 10KV
●Microcomputer protection
🖼️

Product Gallery & Testing

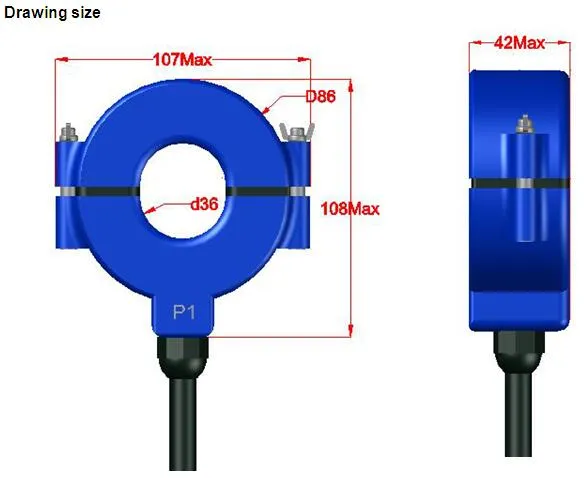

Waterproof Split Core CT

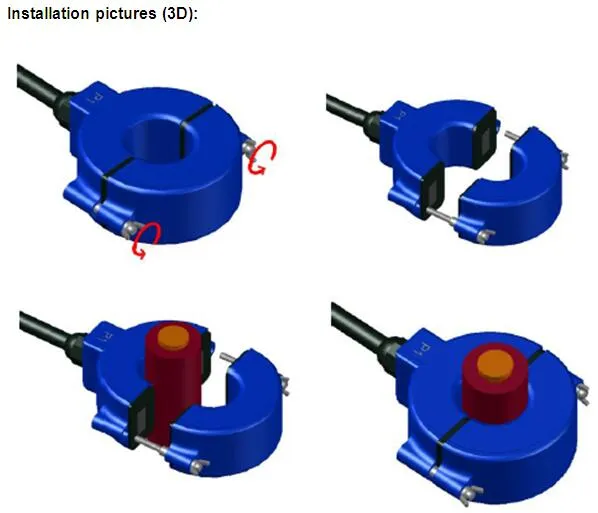

FSCT-36 Outdoor CT

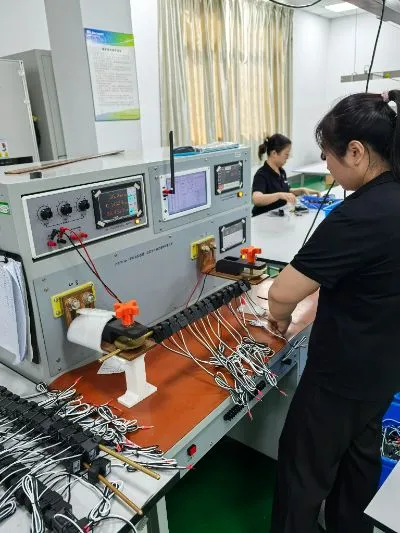

Product Test
Shipment of Split Core CT
Current Transformer Overview
❓

Frequently Asked Questions

1. What is the waterproof rating of the FSCT-36?
The FSCT-36 features an IP 67 rating, making it suitable for demanding outdoor environments and waterproof applications.
2. Can this transformer be installed without cutting the power?
Yes, the split-core design allows for easy installation on existing conductors without the need to disconnect or break the primary circuit.
3. What is the accuracy class of this current transformer?
The FSCT-36 offers high precision with an accuracy class of 0.5 to 1.0, depending on the specific application requirements.
4. What is the operating temperature range?
The unit is designed to operate reliably in temperatures ranging from -25ºC to +70ºC.
5. What are the available secondary output options?
The standard secondary rated output is either 5A or 1A, providing flexibility for different monitoring equipment.
6. Which standards does the FSCT-36 comply with?
It complies with international standards GB20840 and IEC 61869, ensuring quality and safety for global markets.
