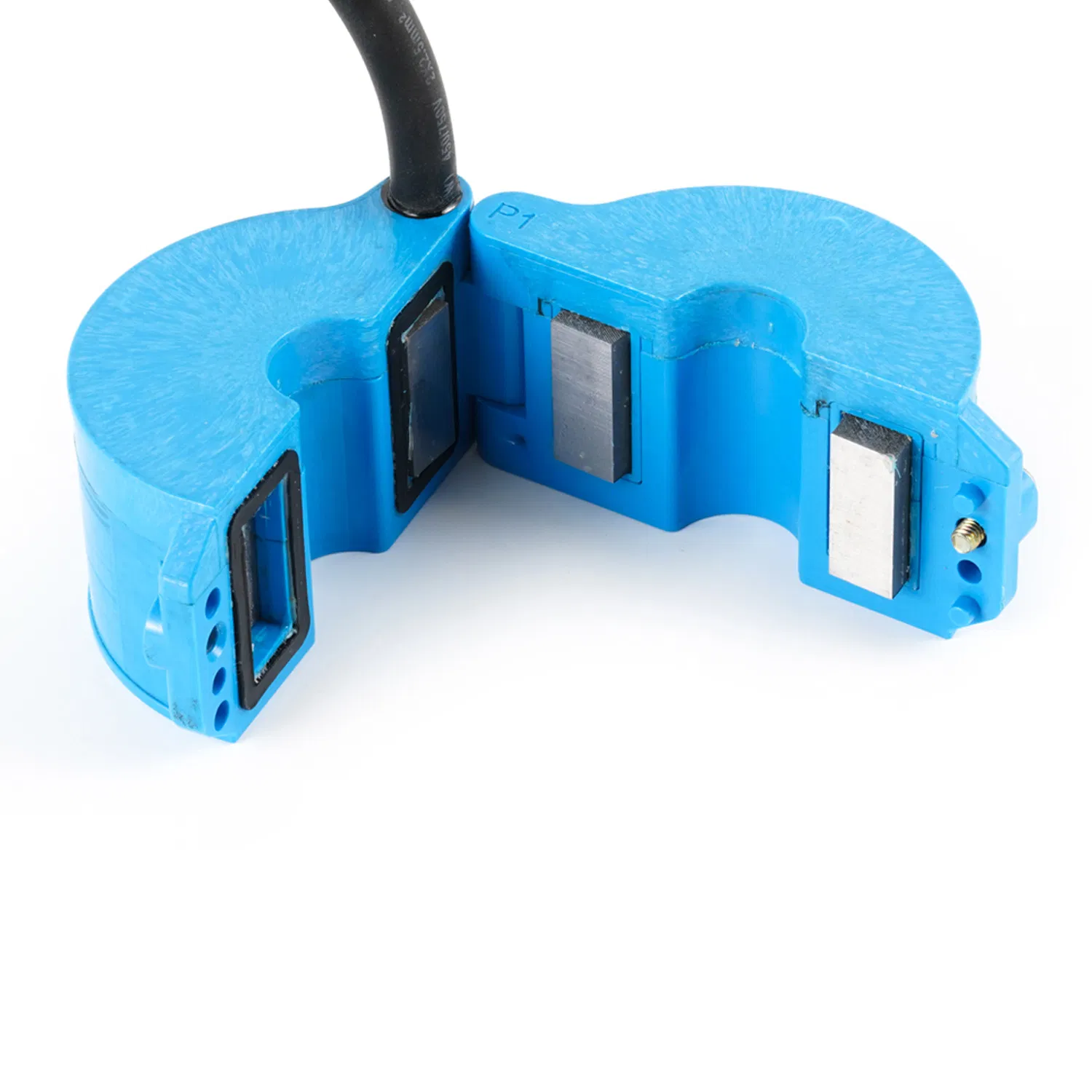

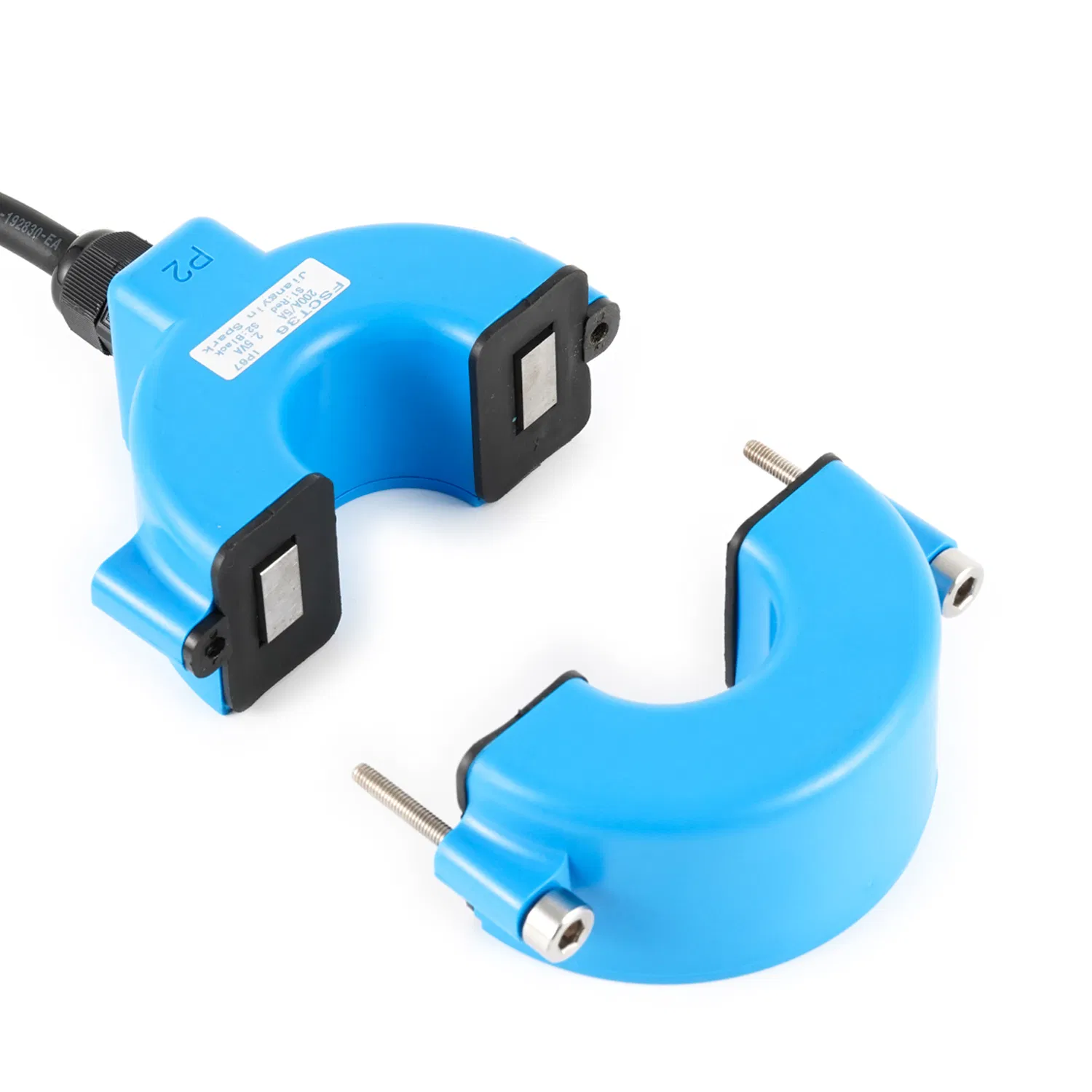

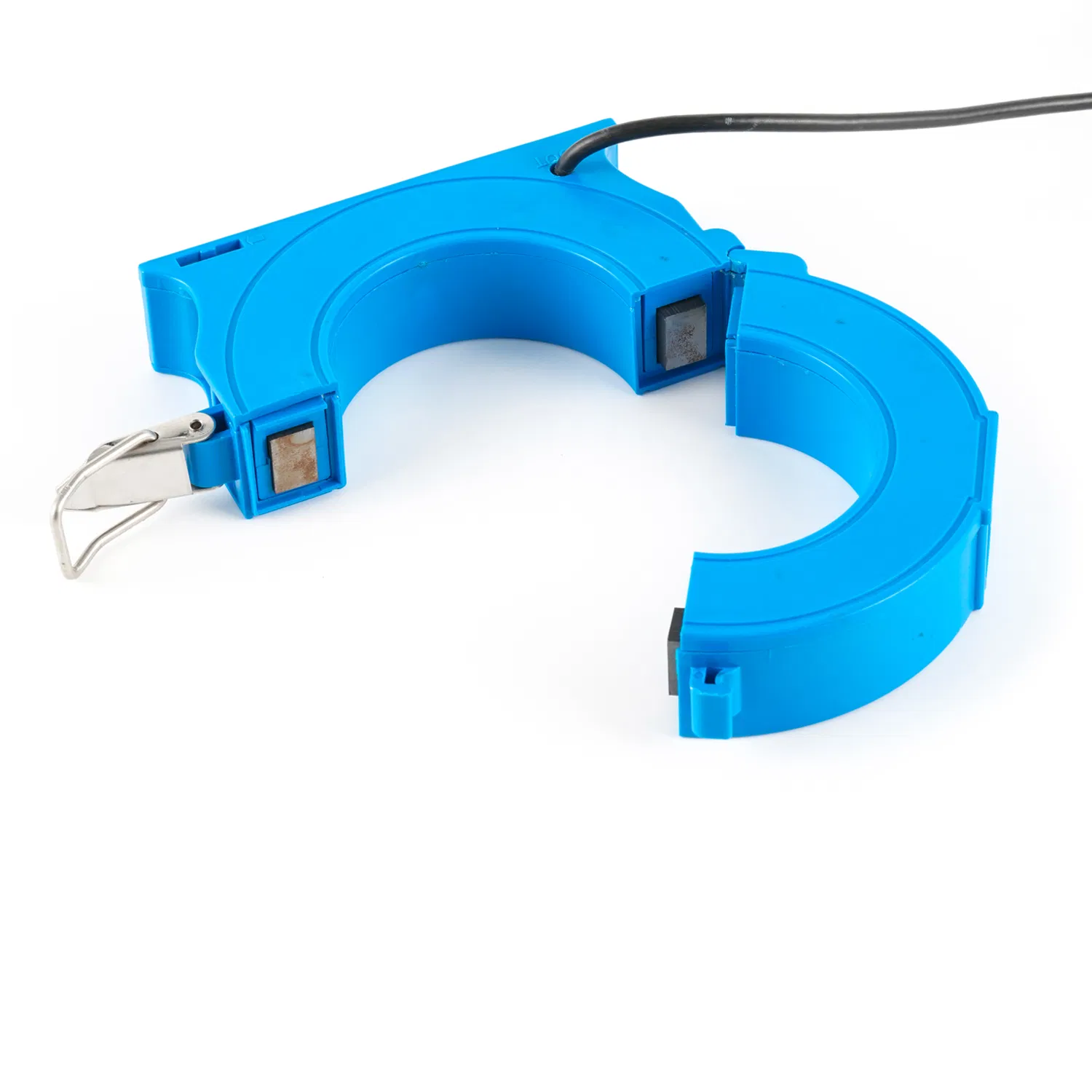

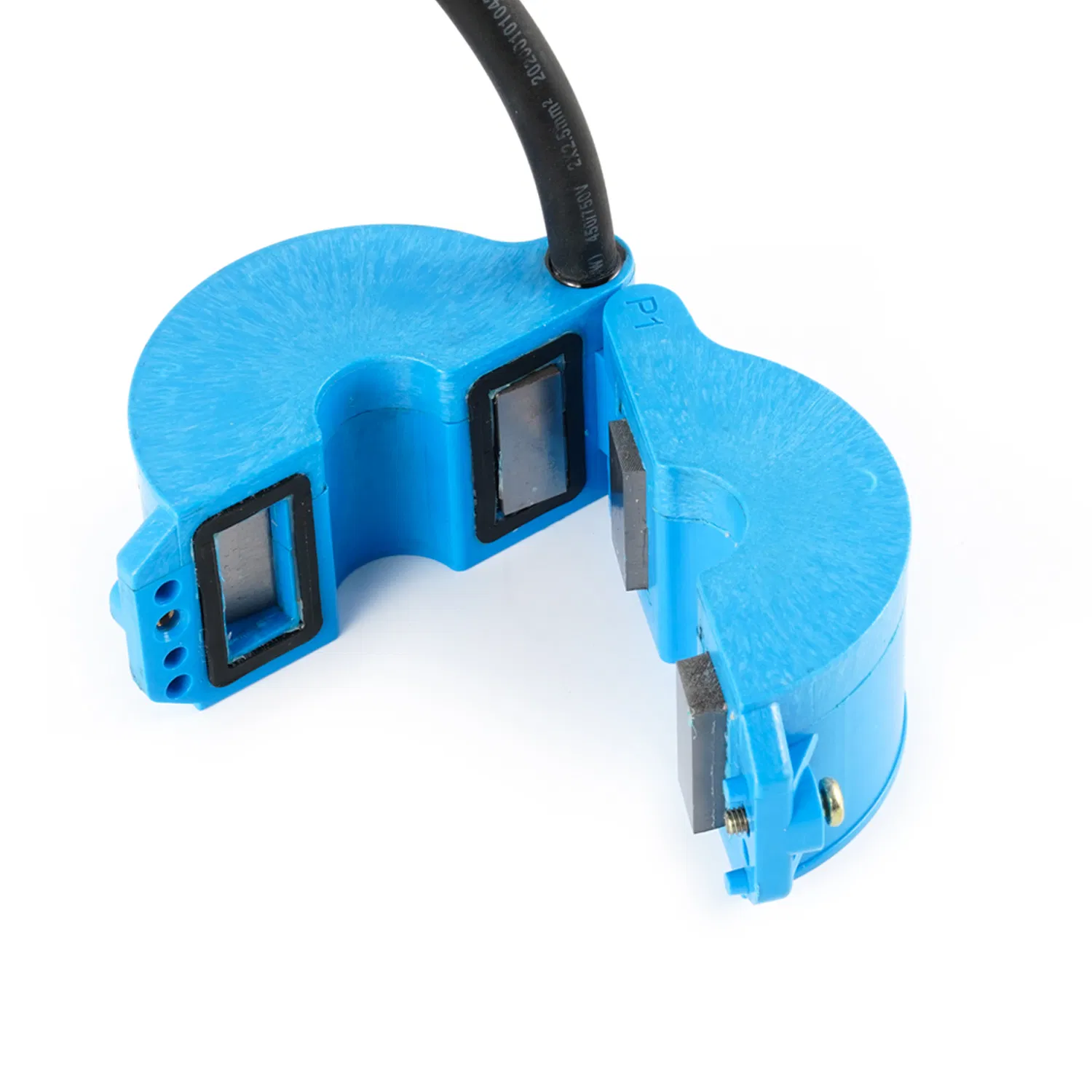

Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
1 / 5
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer
Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer

Fsct-T36 500A-5A Outdoors Waterproof Split Core Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
Fsct-T36 600A-5A
Phase
Single
Operation Condition
Outdoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit
Combined Type
Voltage Principle
Capacitive Type
Output
1A or 5A
Certificates
IP 67, CE RoHS, ISO9001: 2000
Production Capacity
200, 000 PCS/Month
D

Product Description

FSCT-36 Outdoor Waterproof Split Core Current Transformer

The FSCT-36 Outdoor Waterproof current transformer is built with a silicone steel core and is potted for rugged outdoor use. It is specifically designed for easy installation on ground potential conductors, providing reliable performance in harsh environments.

ModelFSCT-36
Window size36mm
Rated primary current100-800 Arms
Rated output5A/1A
IP ratingIP 67
Burden1.5VA -5VA
Max current800 Arms
Accuracy class0.5, 1.0
Max Voltage0.66/0.72KV
Insulation strength3KVac/min
Rated frequency50-400HZ
Working temperature-25ºC ~ 70ºC
A

Applications

  • Power quality monitoring
  • Power instrument and meter
  • Distributed measurement systems
  • Measurement of current for power supply equipment below 10KV
  • Microcomputer protection
P

Product Gallery

FSCT-T36 Waterproof Current Transformer View 1
FSCT-T36 Waterproof Current Transformer View 2

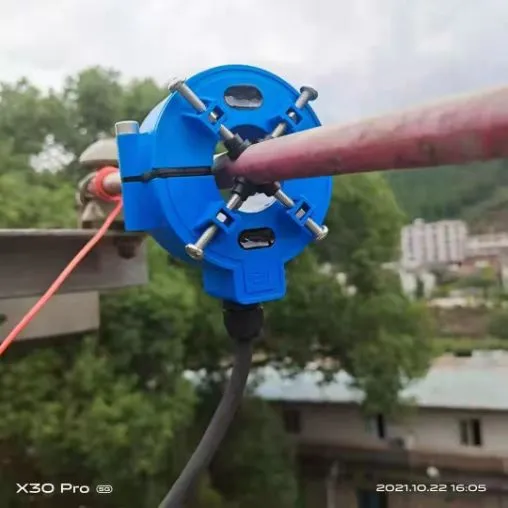

FSCT-T36 Testing
FSCT-T36 Split Core Detail

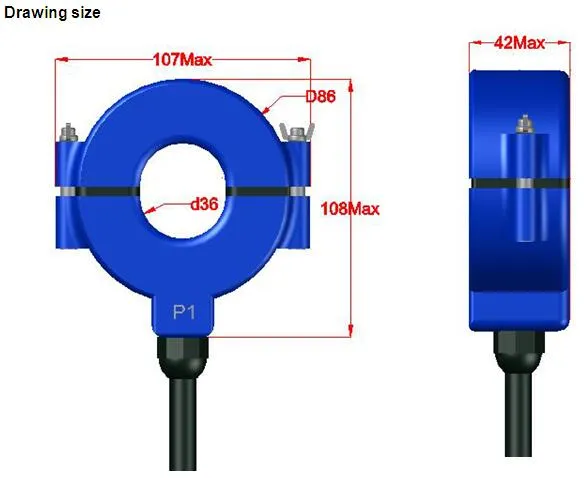

FSCT-T36 Dimensions
?

Frequently Asked Questions

What is the waterproof rating of the FSCT-36 transformer?
The FSCT-36 is rated IP67, making it completely dust-tight and capable of withstanding immersion in water, which is ideal for outdoor installations.
What are the available output options for this model?
The standard rated secondary output current for this model is either 5A or 1A.
Can this transformer be used for high-accuracy measurements?
Yes, the FSCT-36 supports accuracy classes of 0.5 and 1.0, suitable for precise power quality monitoring and metering.
What is the window size for conductor entry?
The transformer features a 36mm window size to accommodate various cable diameters.
Is the split core design suitable for existing installations?

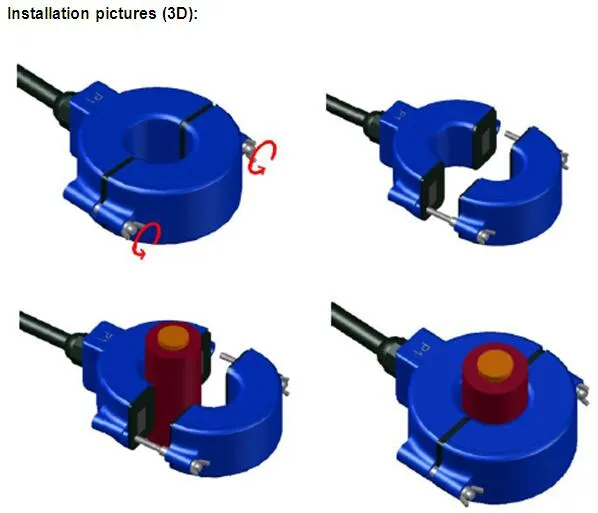

Absolutely. The split core design allows for easy installation on ground potential conductors without disconnecting the primary circuit.
What is the operating temperature range?
It is designed to work reliably in environments ranging from -25ºC to +70ºC.
