Product Description

📊

Basic Information

Model NO.

TA16E

Phase

Single

Operation Condition

Indoor

Usage

Protection, Measurement

Winding Form

Single Layer & Tightly Wound Type

Insulating Medium

Insulating Paper

Installation

PCB

Magnetic Circuit

Single Stage Type

Material of Core

Permalloy

Input

5A/0.1A

Output

5mA/2.5mA

Linearity

≤0.1%

Rated Voltage

720V

Frequency Range

20Hz-20kHz

Operating Temp.

-20ºC ~ +70ºC

Certificates

CE/RoHS/Reach/ISO9001

🔍

Product Overview

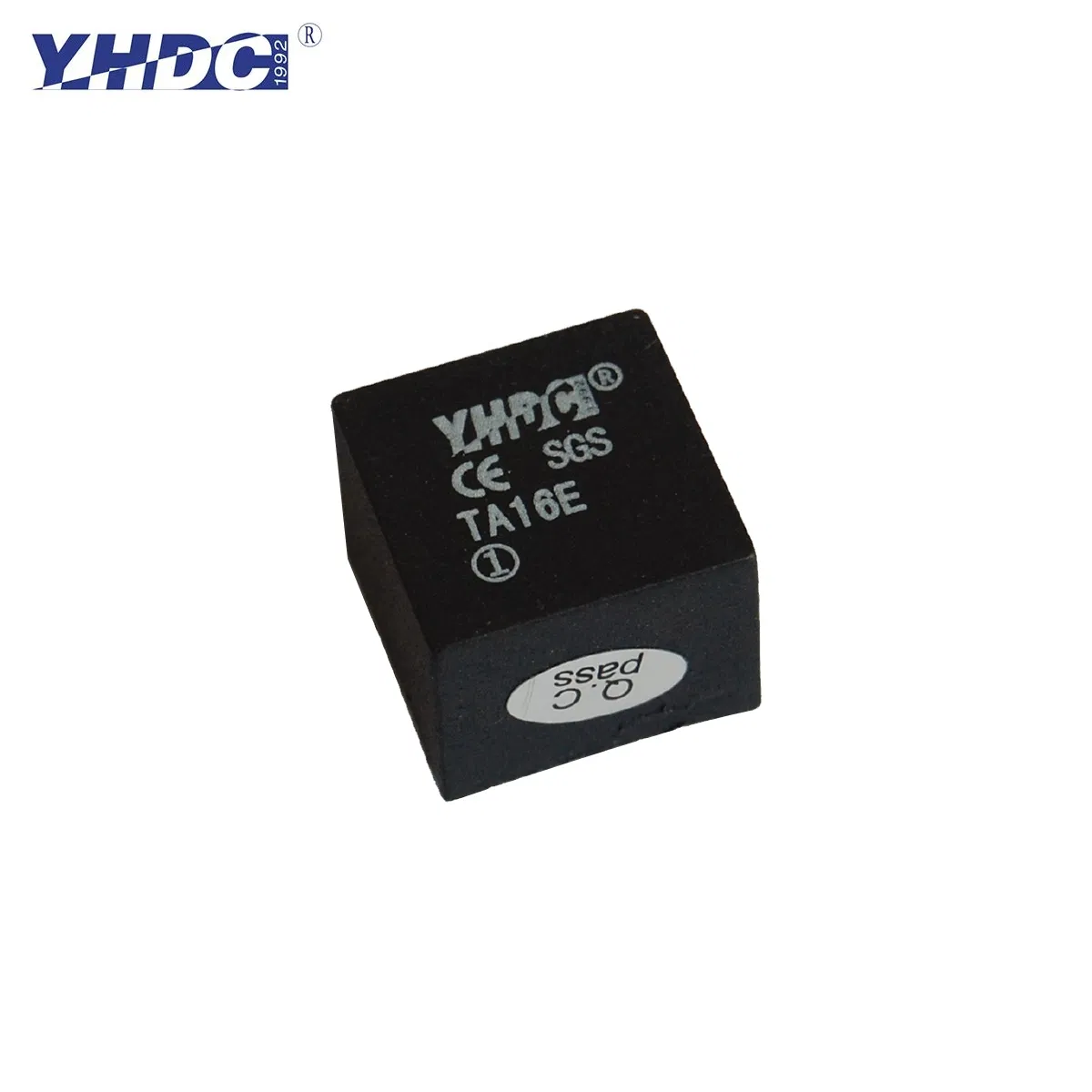

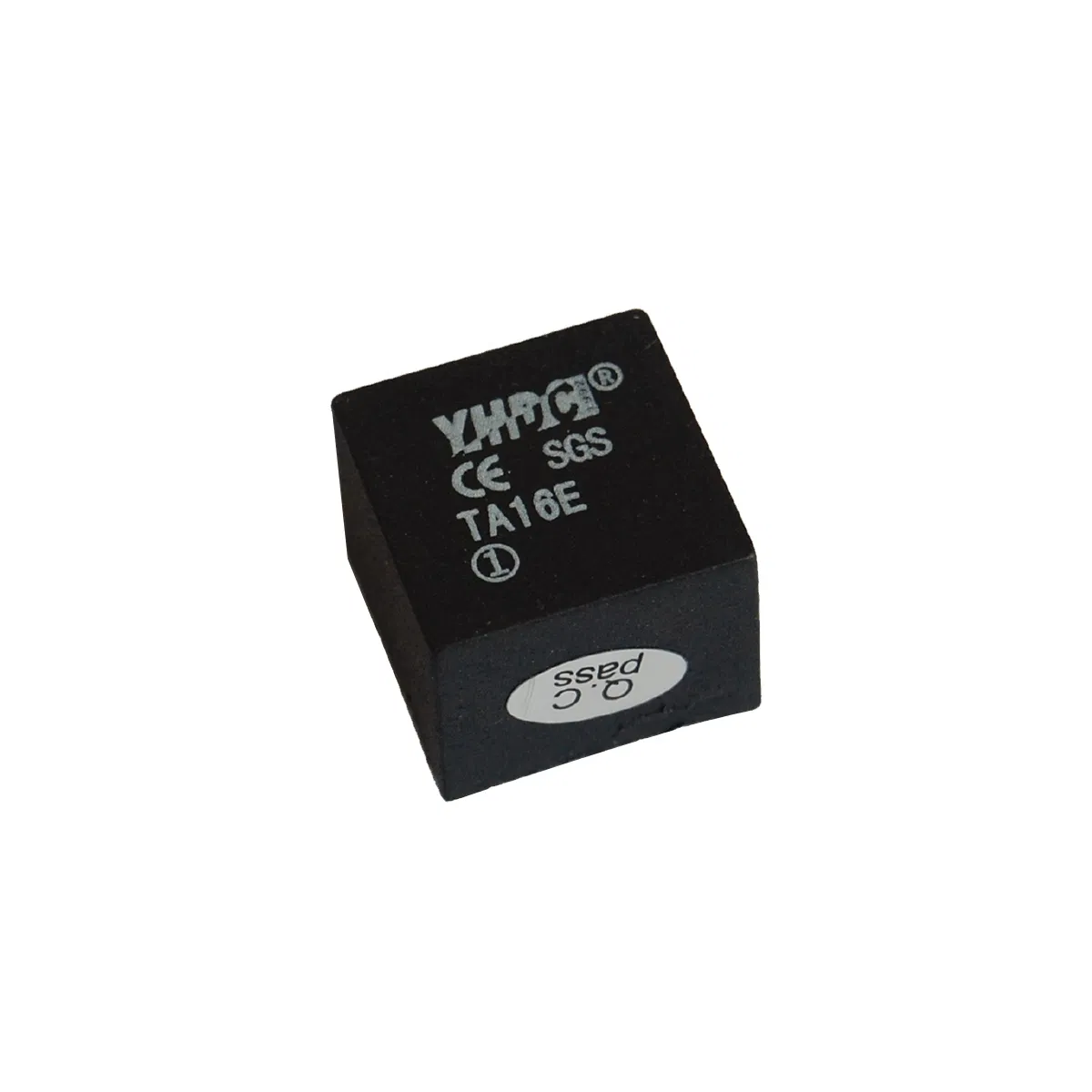

Primary Coil Built-in Type Current Transformer TA16E

This precision current transformer features a fully encapsulated permalloy magnetic core with epoxy resin potting and PCB solder mount with an integral primary conductor. It offers excellent mechanical properties and high insulation strength, providing a linearity better than 0.1% across a wide frequency range of 20Hz to 20KHz.

Key Characteristics:

Epoxy potting and permalloy core for stability.
Compact size, fully enclosed design.
Ideal for electrical load remote monitoring.
Used as input signals for electronic control systems.
Support for phase loss indication and motor running state monitoring.

💡

Typical Applications

Industrial meters

Substation MV/LV feeder monitoring

Digital Fault Recorders (Data Logger)

Inverter controlling & Power analyzers

HEMS / BEMS / FEMS energy systems

EV charging stands and cables

📋

Product Parameters

Model	TA16E-01	TA16E-02	TA16E-03
Input	5A	5A	0.1A
Output	5mA	2.5mA	2.5mA
Dielectric Strength	2KV 50Hz 1min

📐

Dimensions in mm

Dimensions

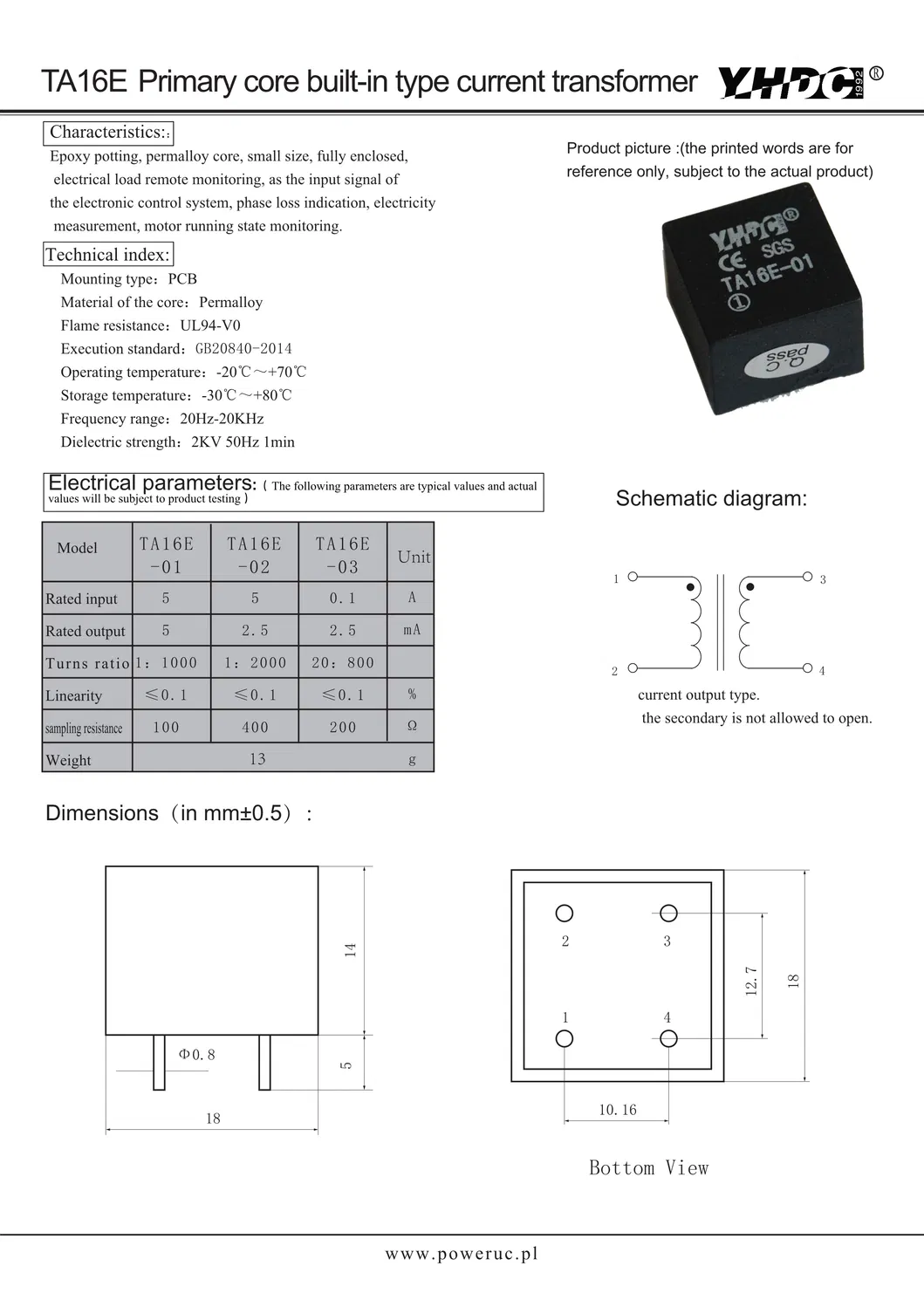

Technical Layout

Connection Diagram

Product View

Mounting Details

Specifications Diagram

❓

Frequently Asked Questions

Do you provide samples for testing?

Yes, samples are provided and products can be customized based on requirements.

What is the typical delivery time for orders?

Standard delivery time is approximately 5-7 working days.

Are you a manufacturer or a trading company?

We are a factory specializing in current transformer production.

How can I place an order for the TA16E?

You can contact us via email with your specific order details or proceed with an online order.

What core material is used in this transformer?

This model utilizes a high-quality Permalloy core for superior linearity and precision.

What is the frequency range of the TA16E?

The transformer operates efficiently within a frequency range of 20Hz to 20kHz.
