Product Overview

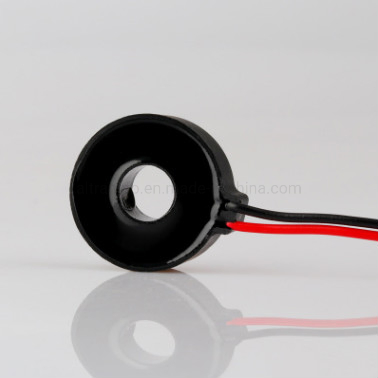

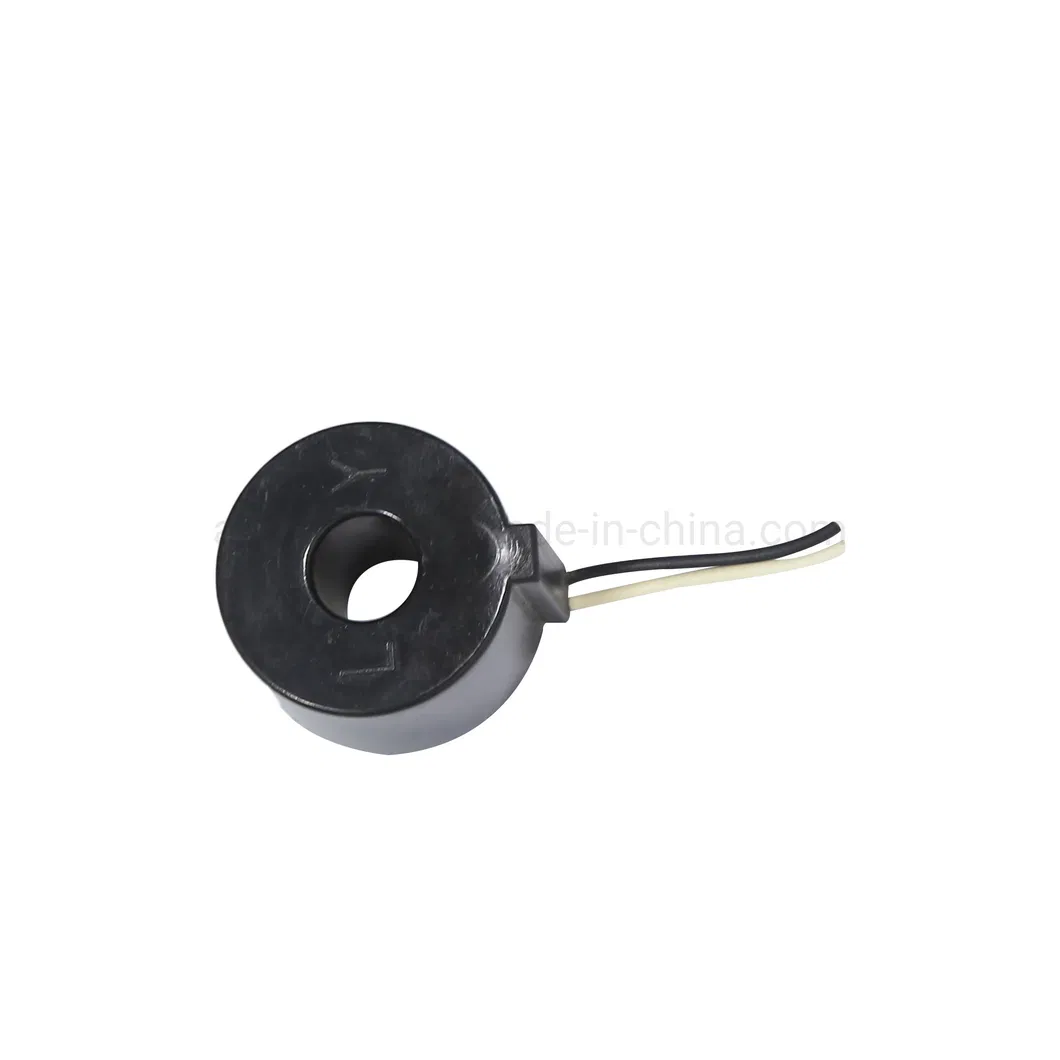

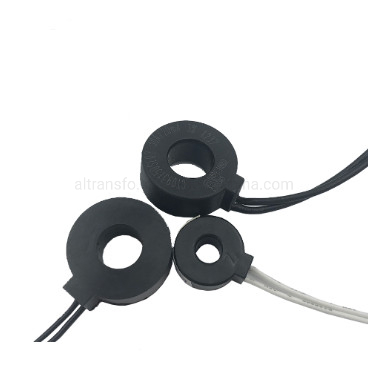

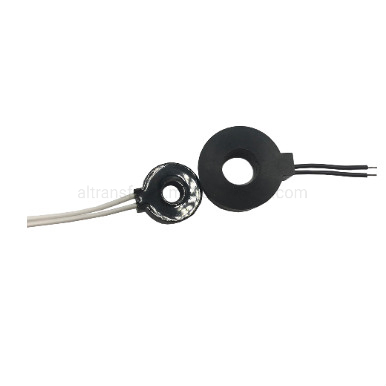

Solid Core Current Transformer designed for superior accuracy with a 0.333V output. These solid core CTs are highly precise, compact in size, and cost-effective. For mA secondary output, accuracy can reach up to 0.1%.
✓ Rated input current: 5A to 400A
✓ Output: 0.333V AC at rated current
✓ Accuracy: ±1% (Standard)
✓ Housing: Epoxy encapsulated
✓ Lead Wire: 1.05m twisted-pair
✓ Compliance: RoHS Compliant
Applications

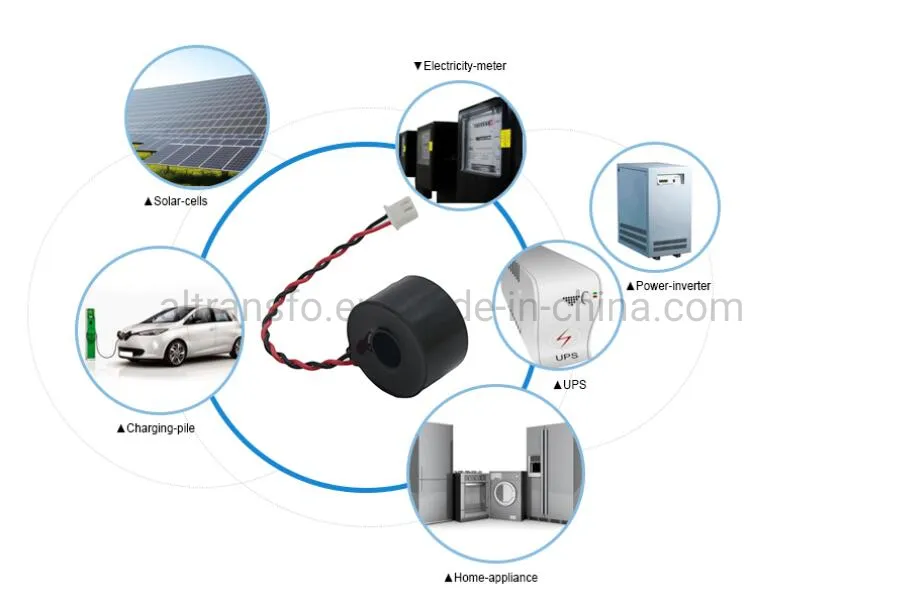

Measures AC current flow to electric motors, lighting, and air conditioning equipment. Fully compatible with HVAC temperature control, power management, and building automation systems.
Frequently Asked Questions
What is the main advantage of a solid core current transformer?
Solid core CTs offer higher accuracy, a more compact design, and are generally more cost-effective compared to split-core alternatives.
Can the output parameters be customized?
Yes, custom outputs (such as mA secondary output) and other specific parameters are available upon request to meet your specific requirements.
What is the typical lead time for production?
Generally, it takes 5-10 days if the goods are in stock. For non-stock items, the production capacity is approximately 5000PCS every 20 days.
Are samples available for testing?
Yes, we can provide samples for quality evaluation. Please contact us to discuss sample arrangements and shipping.
What materials are used in the construction?
The core is made of high-quality Permalloy for excellent linearity, and the housing is encapsulated in durable epoxy resin for indoor protection.
Is the product compliant with environmental standards?
Yes, the product is RoHS compliant, ensuring it meets international environmental safety standards.
