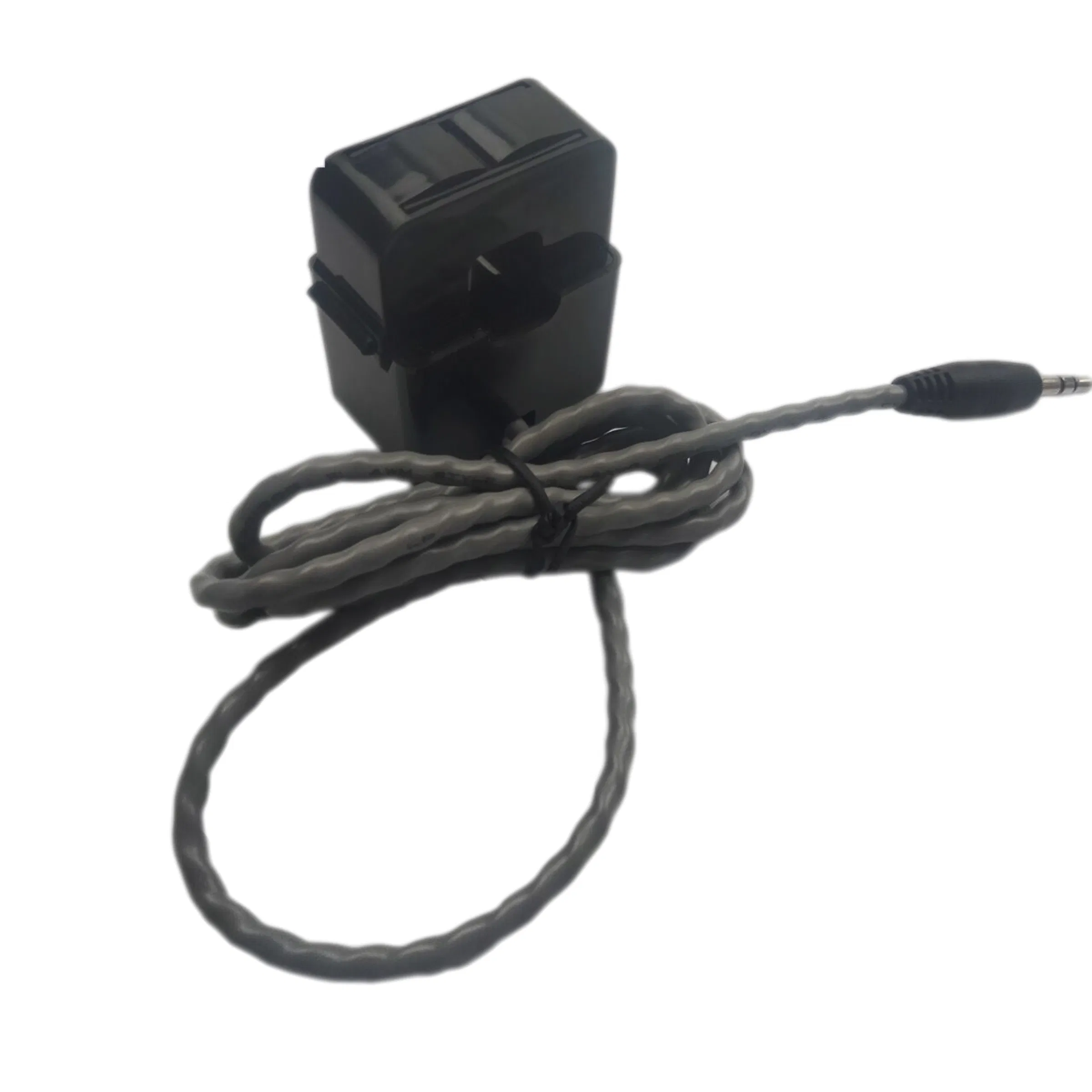

High Precision 100A Split Core Current Transformer with Audio Jack

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
ECS12
Phase
Single
Operation
Indoor Condition
Usage
Protection, Measurement, Monitor
Insulating Medium
Insulating Paper
Installation
Active Type
Spec
100A/333mv
Inner Hole
12mm
Color
Black
Certification
UL/CE
Accuracy
50/60Hz
Core
Split Core

Product Overview

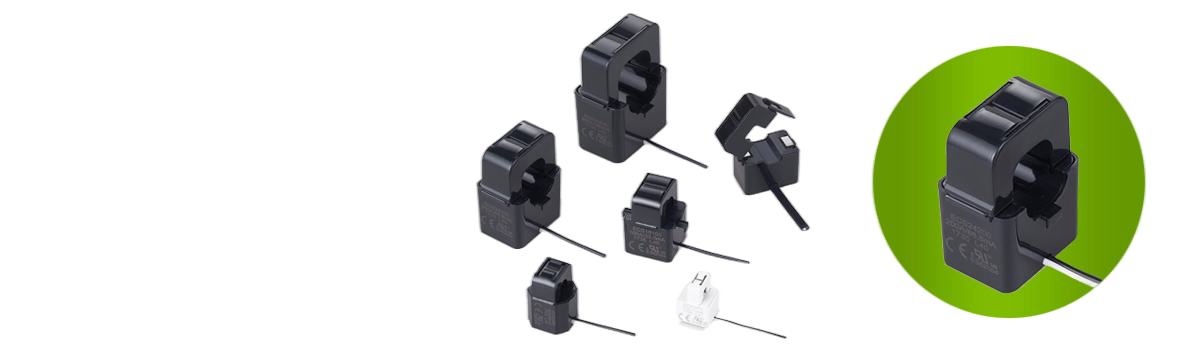

High-accuracy split core current transformer
The ECS12100 series of split-core current transformers are engineered for seamless integration into existing infrastructure, such as control centers and load centers, providing an effortless solution for measuring and monitoring wattage. Thanks to their ingenious mountable design, there is no need to remove existing cables, making installation simpler and more efficient.

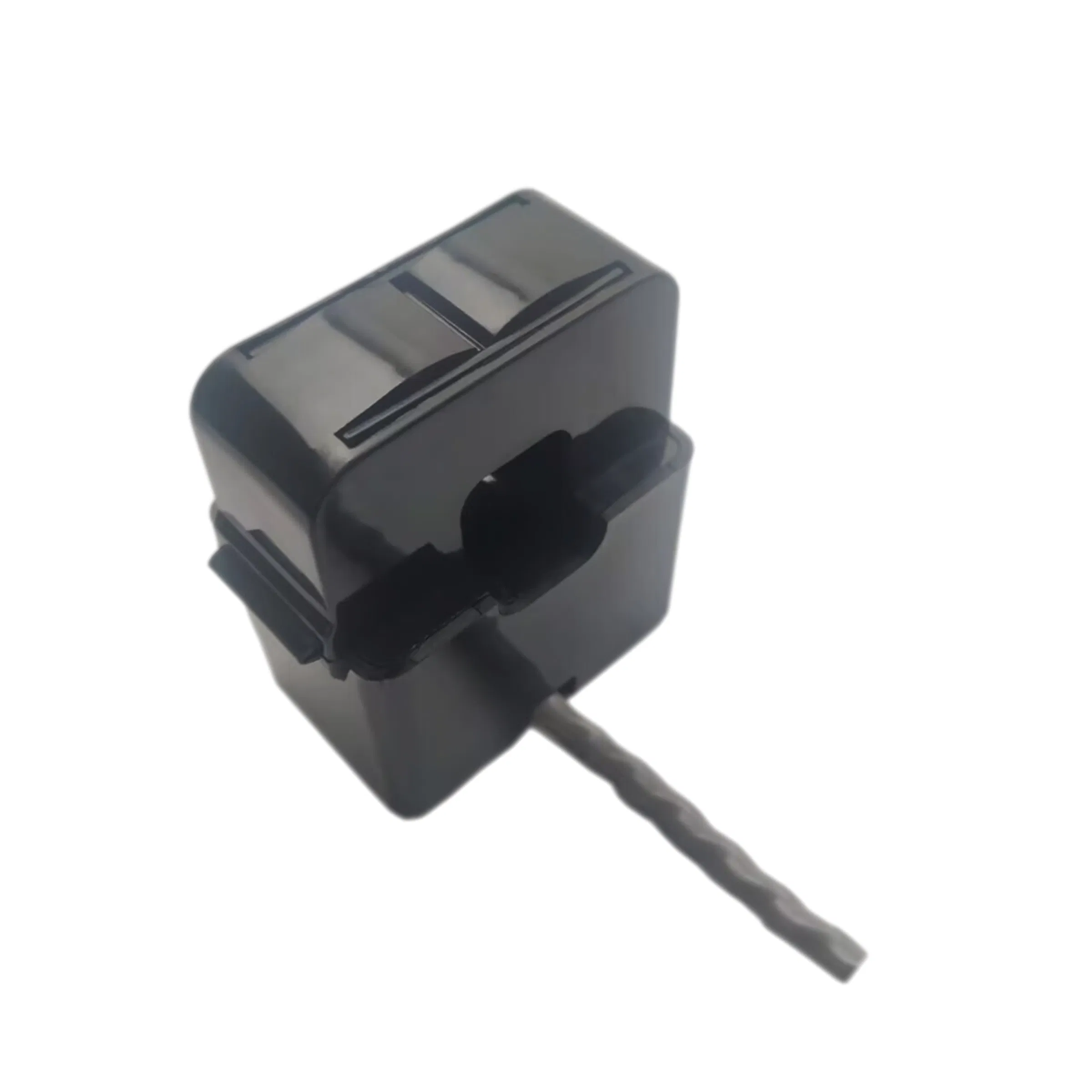

Split Core Current Transformer
📊

Key Applications

  • Ideal for high-precision current measurement.
  • Designed for system monitoring and protection.
  • Perfect for energy and sub-metering products.
  • Essential for network equipment stability.
  • Integral component for advanced control systems.

Main Advantages

  • Effortless installation with easy-to-mount design.
  • Excellent linearity across the entire range.
  • Consistent accuracy for reliable monitoring.
  • Fully compliant with RoHS environmental standards.

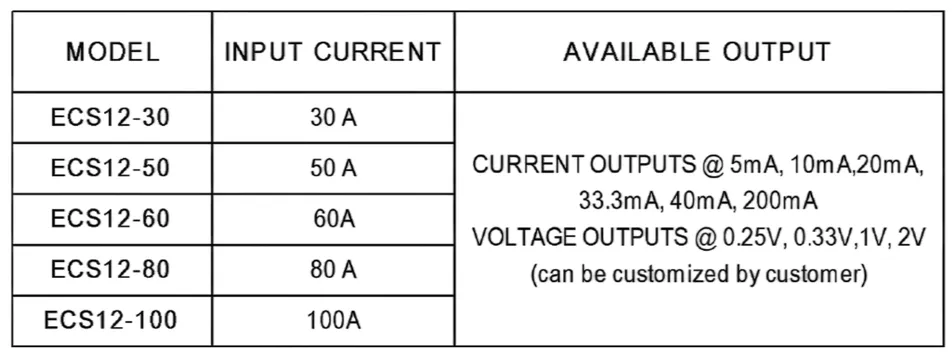

Technical Specification

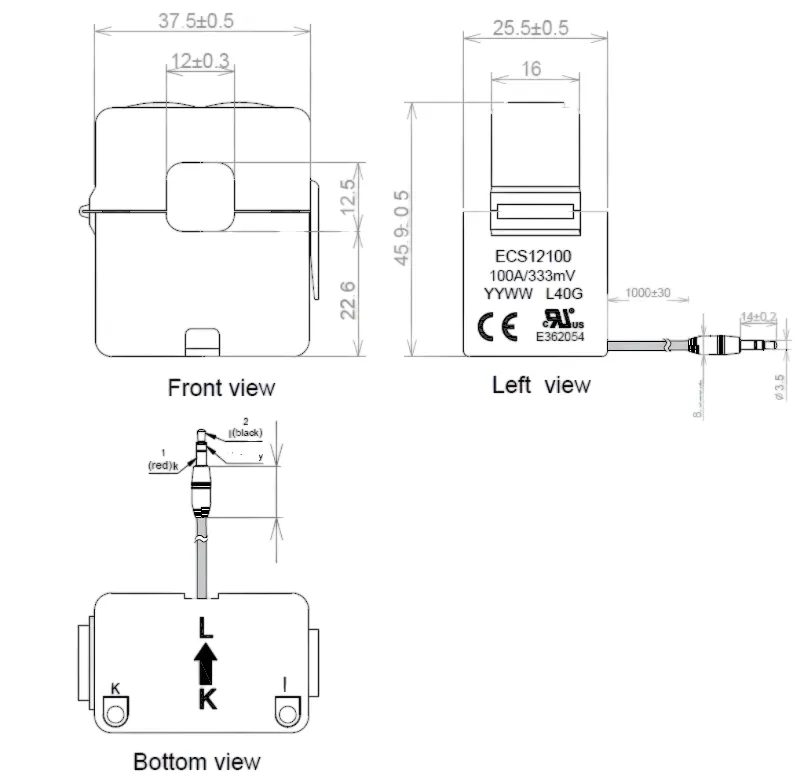

Technical Specification Details

Manufacturing Excellence

Factory Overview

Frequently Asked Questions

What's the lead time for orders?
Standard models ship in 15–30 days; customized units require 30–45 days.
Can I request a customized size or attachment?
Absolutely! We offer tailored attachments and customized specifications to meet your project needs.
What documents do you provide for export?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
How do I place an order?
Please contact our sales team via the inquiry form for a formal quote, then confirm with a Purchase Order (PO).
Are these transformers compliant with international standards?
Yes, our current transformers are UL and CE certified, and fully compliant with RoHS standards.
Do I need to disconnect cables for installation?
No, the split-core design allows for easy installation around existing cables without any disconnection required.
