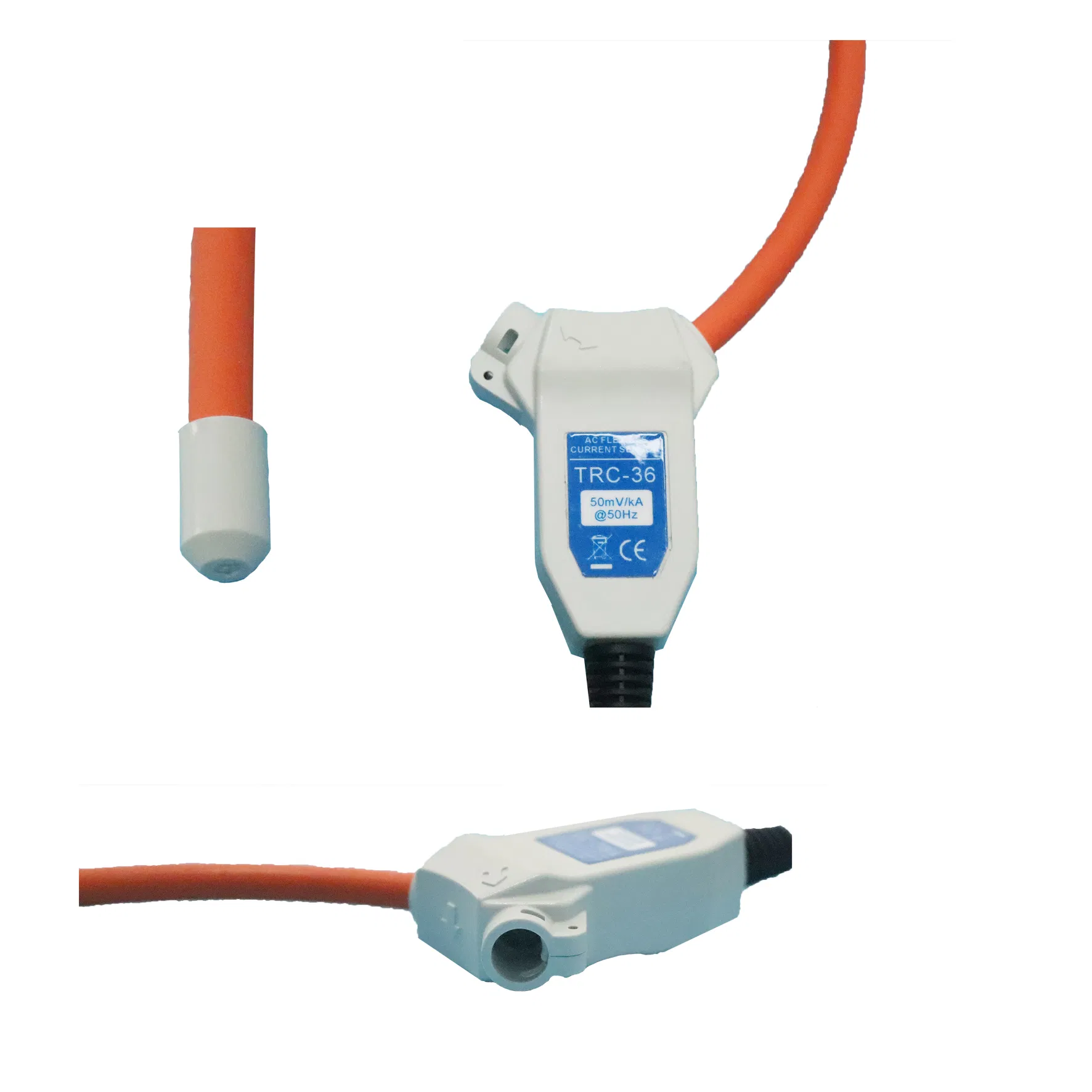

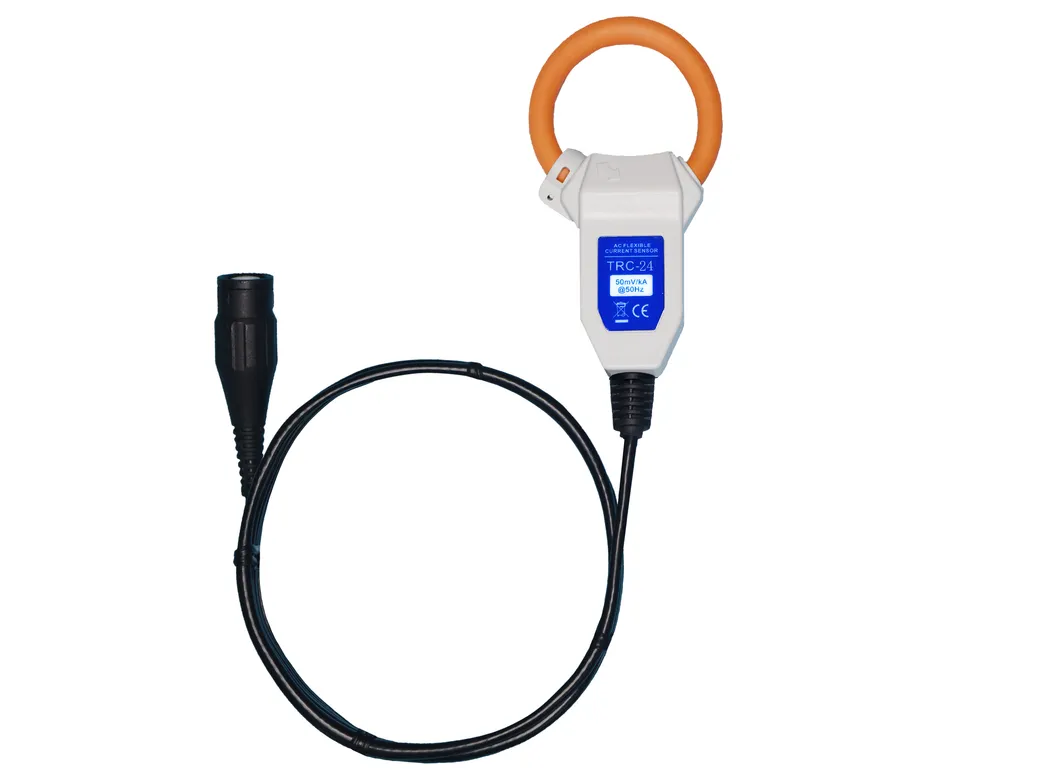

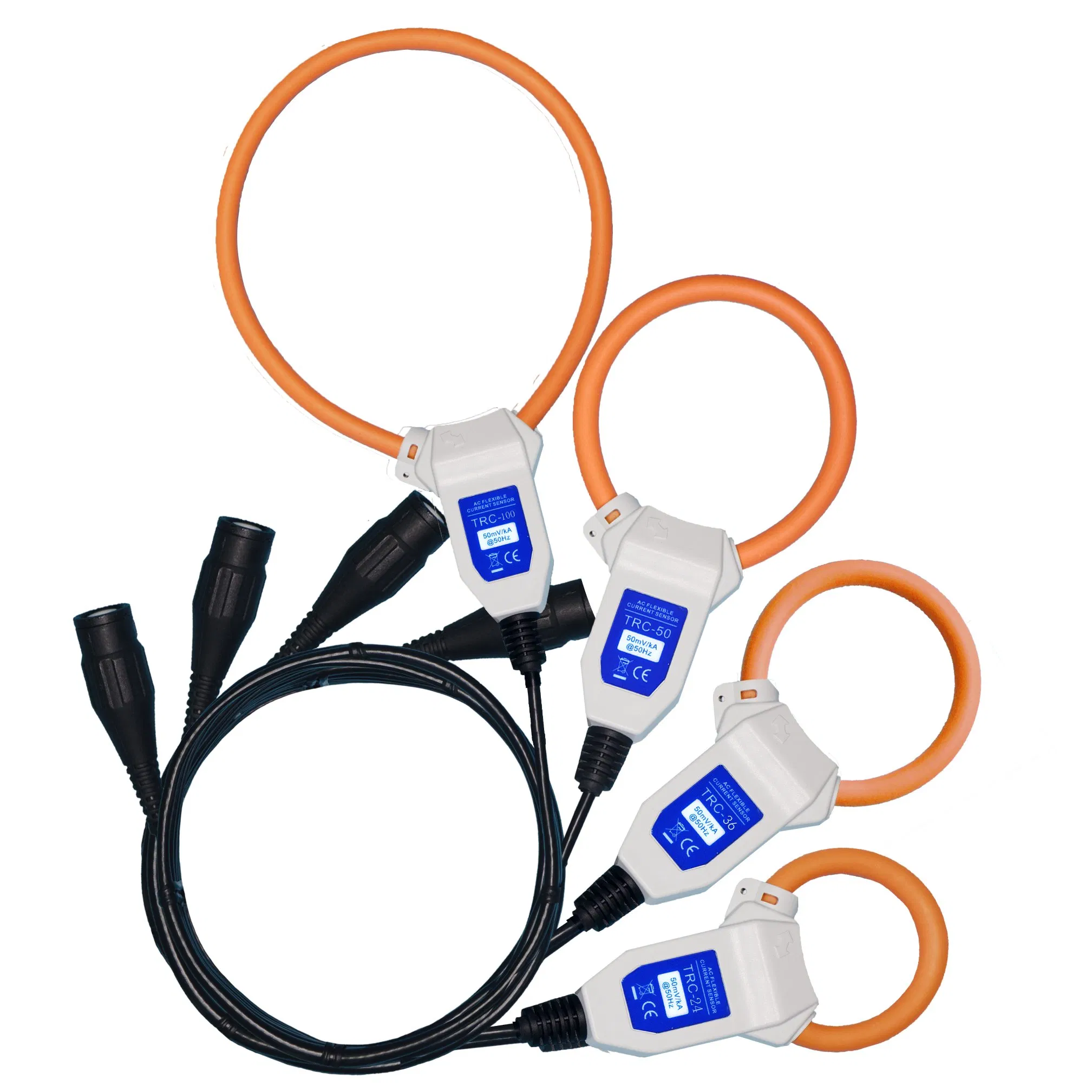

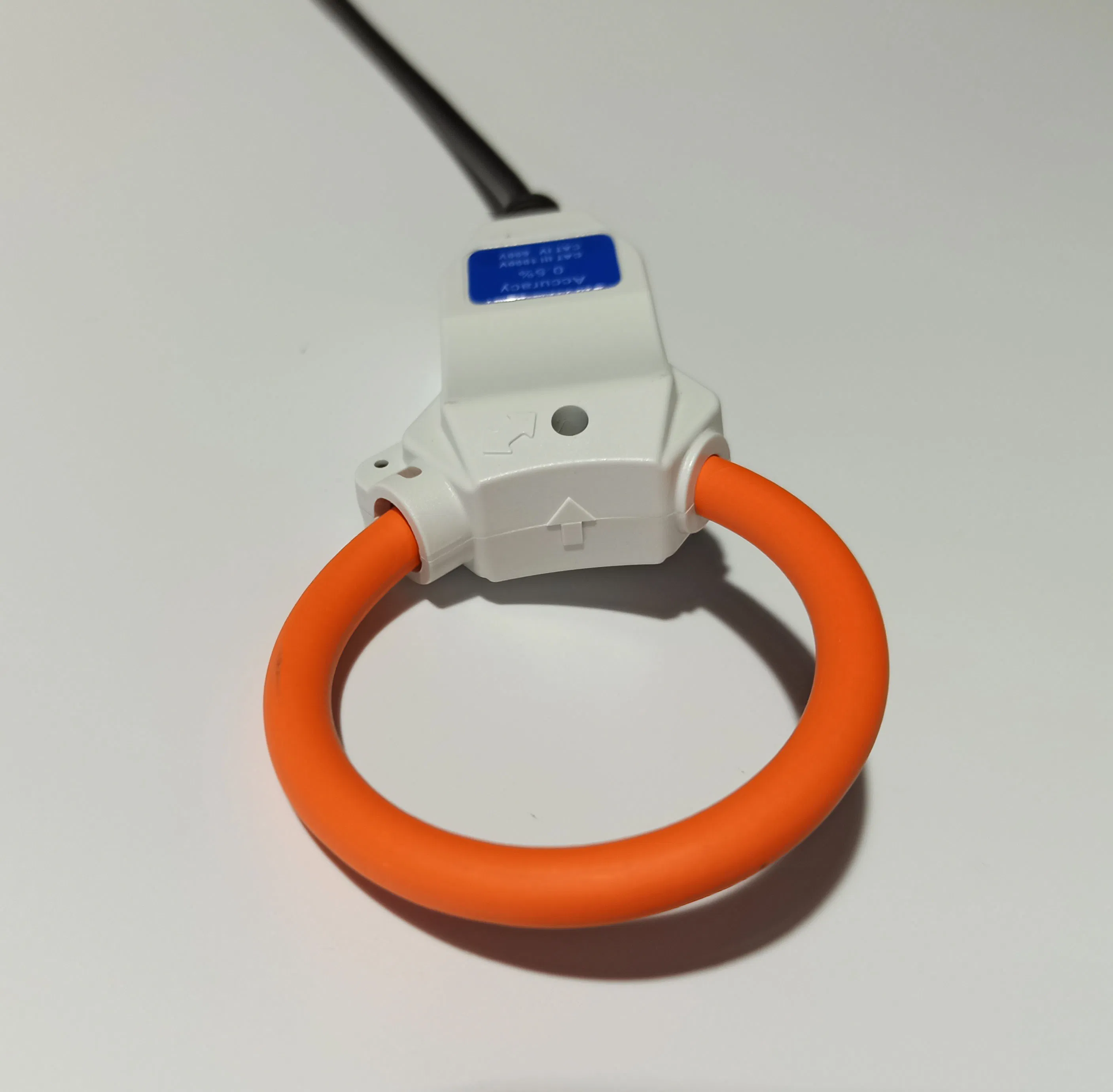

TRC is a MINI flexible current transducer based on Rogowski principle, particularly suitable for measurement in combination with portable devices. These coils are available in different sizes and can be used in all applications where traditional transducers are not fitting due to size or weight. It provides a stable measurement from low currents to hundreds of kA.

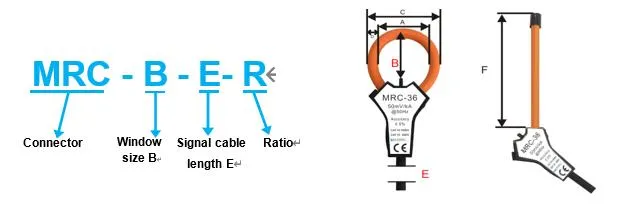

| MODEL | TRC-16 | TRC-24 | TRC-36 |
|---|---|---|---|

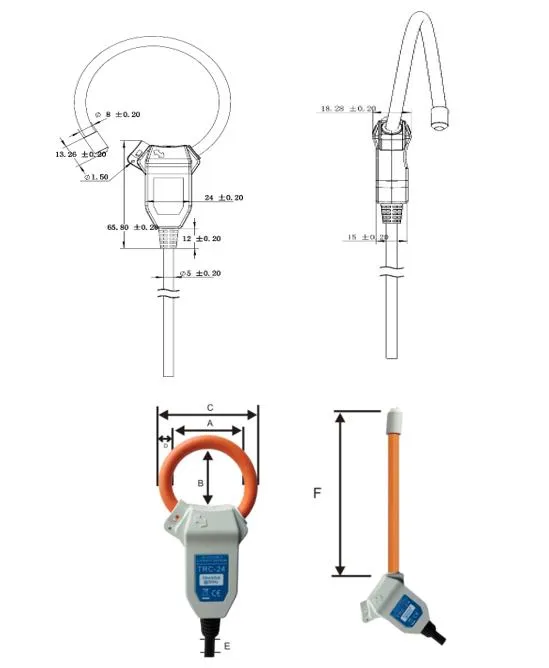

| Window size | 16mm | 24mm | 36mm |
| Rated current | 100A | 300A | 600A |
| Maximum measurable | 100kA | ||
| Read Accuracy | Calibrated <0.5% (central position, 25ºC) | ||
| Output (di/dt) | 50mV/kA@50Hz (Calibrated) | ||
| Operating Temperature | -30ºC to 80ºC | ||
| Certifications | CE marked, LVD EN 61010-1:2010, EMC EN 61326-1:2013 |
| Voltage Insulation | Coil: 2000V; Signal cable: 1000V |
| IP Rating | IP65 |
| Safety Grade | 1000V CATIII, 600V CATIV |

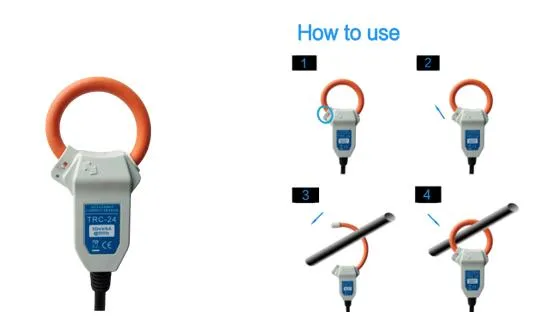

Do not stress the coil by applying mechanical force (twisting, puncturing, tight bending, etc.) as it will dramatically degrade accuracy. Installation must be performed by qualified personnel. Ensure all protective measures against electrical shock are taken during operation.
