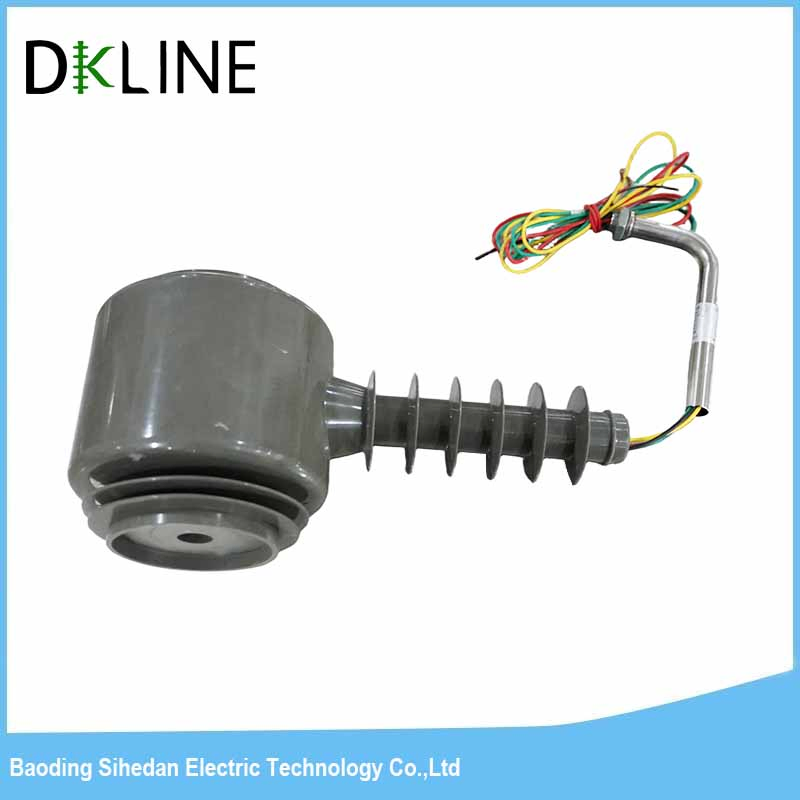

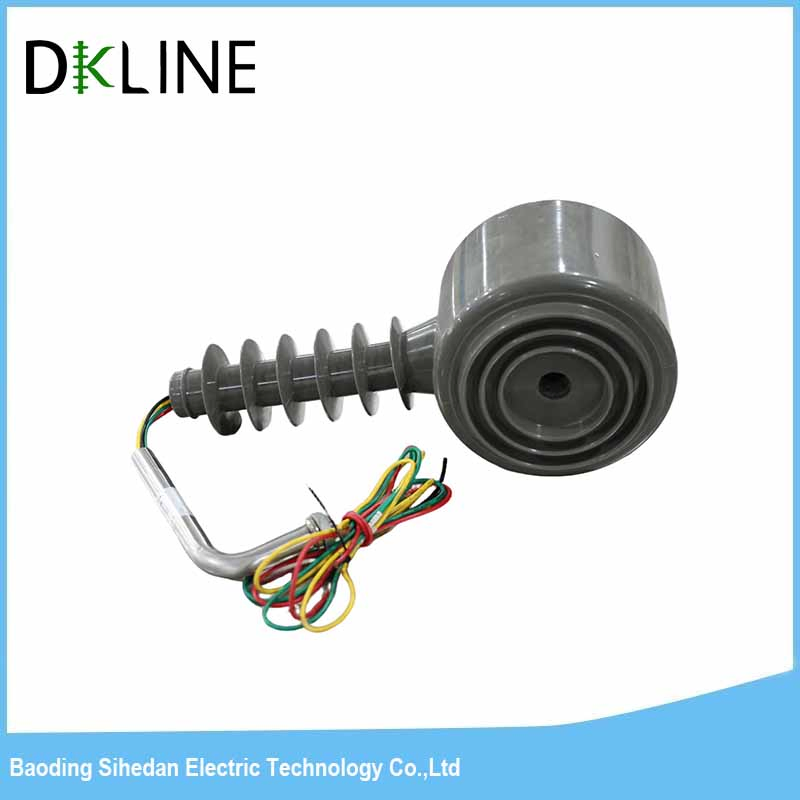

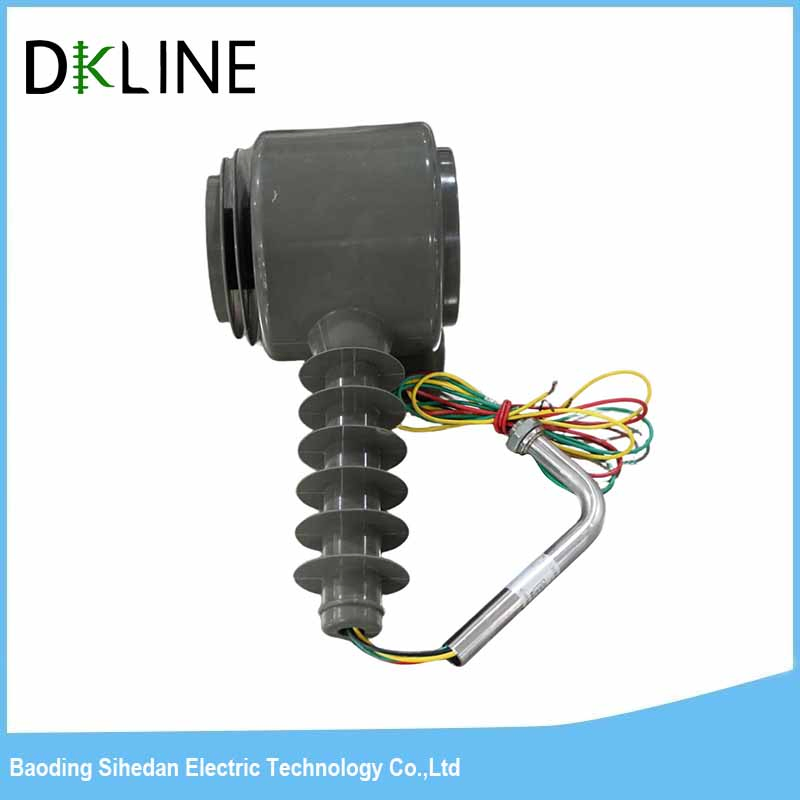

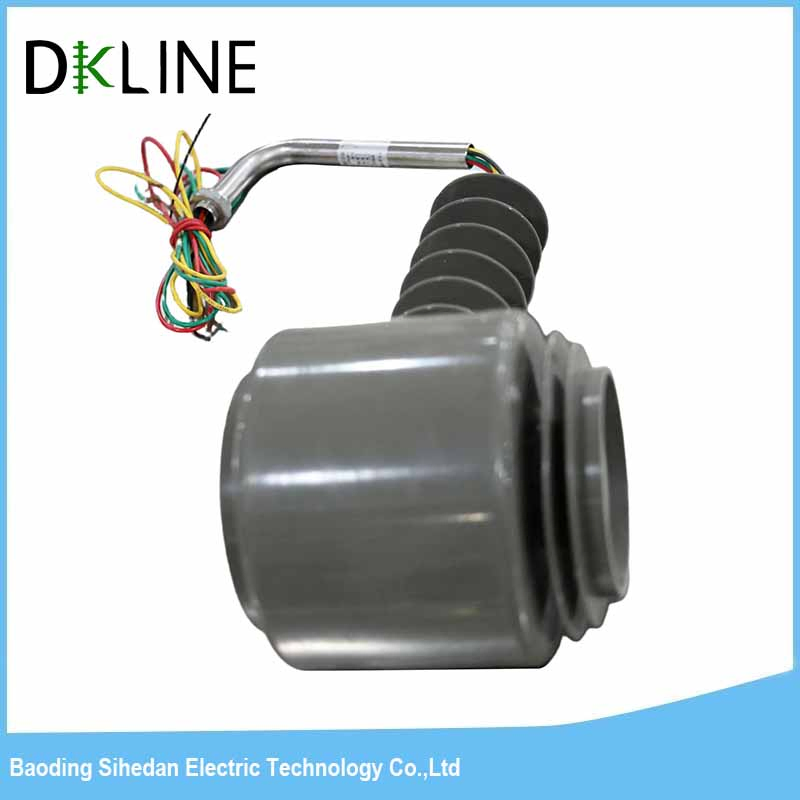

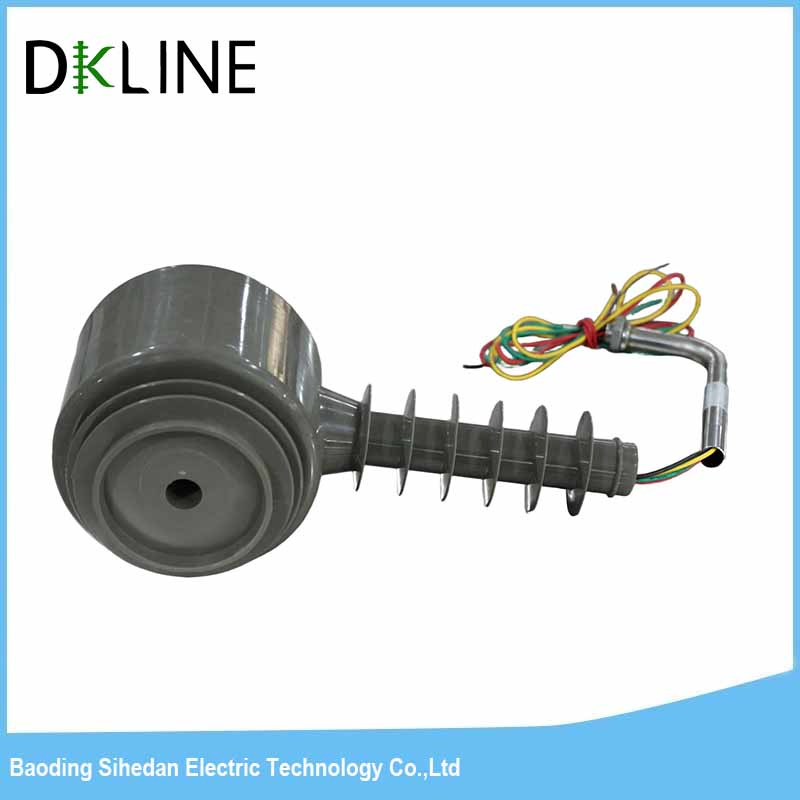

Three Phase Split Core Zero Phase Current Transformer
Three Phase Split Core Zero Phase Current Transformer
Three Phase Split Core Zero Phase Current Transformer
Three Phase Split Core Zero Phase Current Transformer
Three Phase Split Core Zero Phase Current Transformer
1 / 5
Three Phase Split Core Zero Phase Current Transformer
Three Phase Split Core Zero Phase Current Transformer
Three Phase Split Core Zero Phase Current Transformer
Three Phase Split Core Zero Phase Current Transformer
Three Phase Split Core Zero Phase Current Transformer

Three Phase Split Core Zero Phase Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LZW32-10
Phase
Single
Condition
Outdoor
Usage
Protection, Measurement
Winding Form
Small Fixed Type
Insulation
Epoxy Resin
Installation
Extension Type
Current
20-1200A / 5A or 1A
Frequency
50/60Hz
Capacity
10000 Pieces/Month
Product Description
LZW32-10(12) current transformer is an outdoor high-voltage dry-type current transformer specifically designed for the zw32-12/630 type vacuum circuit breaker. It is mainly used for multi-level electrical measurement and power-off protection, and has excellent anti-fouling, anti-shock and explosion-proof performance.
Technical Specification
Type Rated primary current (A) Rated secondary current (A) Accuracy level and rated output (VA) Rated insulation level (kV)
0.2S 0.5 10P10
LZW32-10(12) 20, 30, 50 5(1) 2.5 2.5 2.5 10(12)/42
50, 100, 150 2.5 5 7.5
100, 200, 300 7.5 10 15
200, 300, 400 10 15 15
200, 400, 600 10 15 20
600, 1000, 1200 20 20 20
Current Transformer View 1
Current Transformer View 2

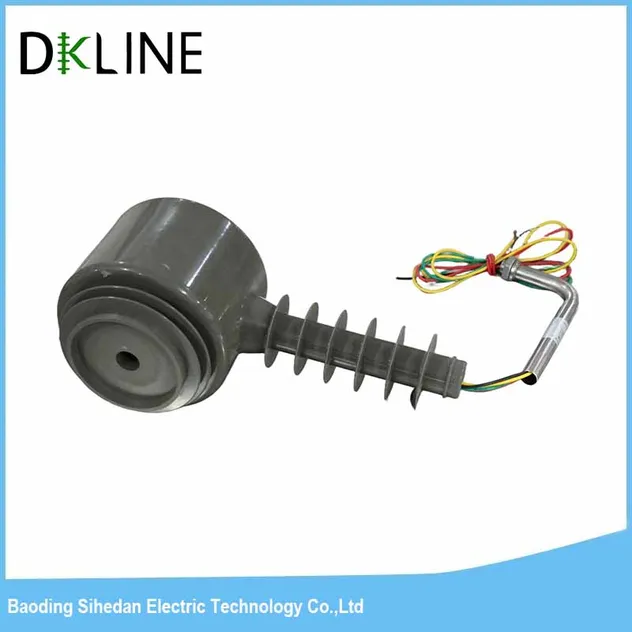

Current Transformer View 3
Frequently Asked Questions
Are samples available for testing?
We provide samples for free, however, the freight charges need to be covered by the customer.
Do you provide EPC material design?
Yes, we have been supplying LV and MV EPC materials in bulk for many years with a strong professional design team.
Is OEM service available?
Yes, we provide custom manufacturing for current transformers and anchor clamps as per your specific requirements.
Can you provide documents for tender submissions?
Yes, we prepare a whole set of technical documents ready for tender submission.
What is the monthly production capacity?
Our current production capacity is approximately 10,000 pieces per month to ensure timely delivery.
What are the main features of the LZW32-10 model?
It features high-voltage dry-type insulation, excellent anti-fouling properties, and is explosion-proof, specifically optimized for outdoor vacuum circuit breakers.
