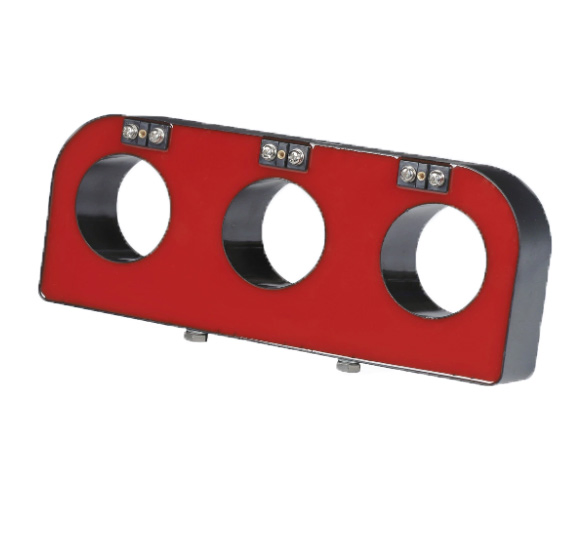

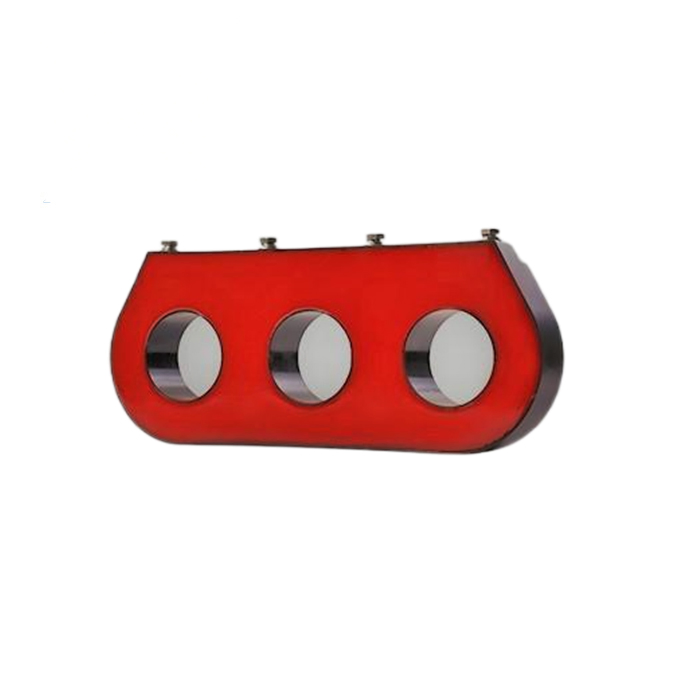

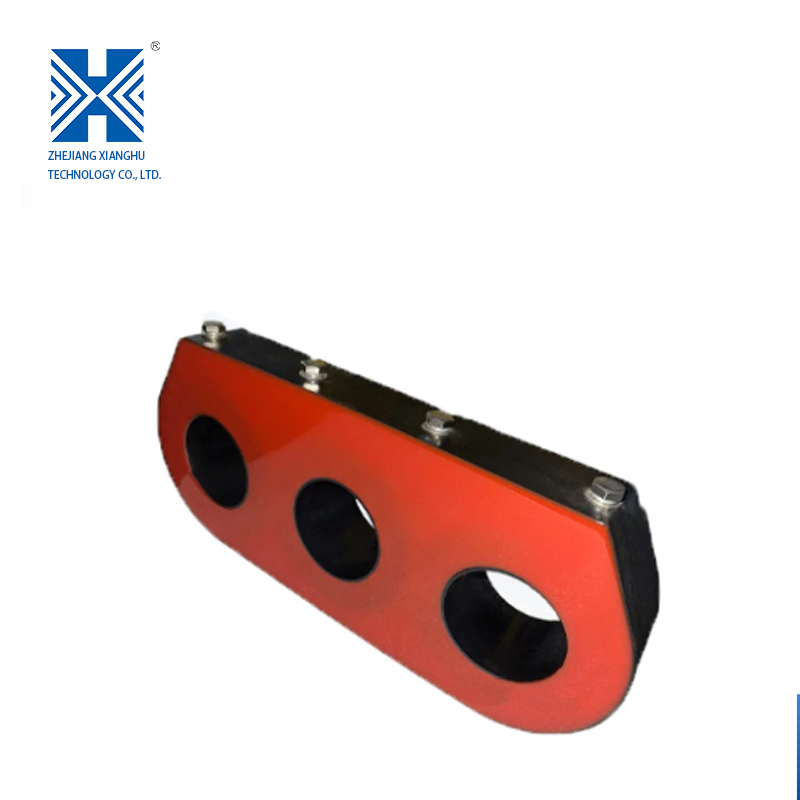

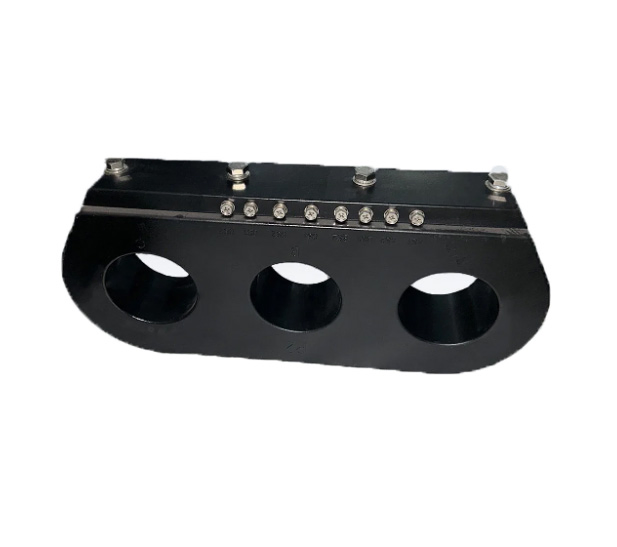

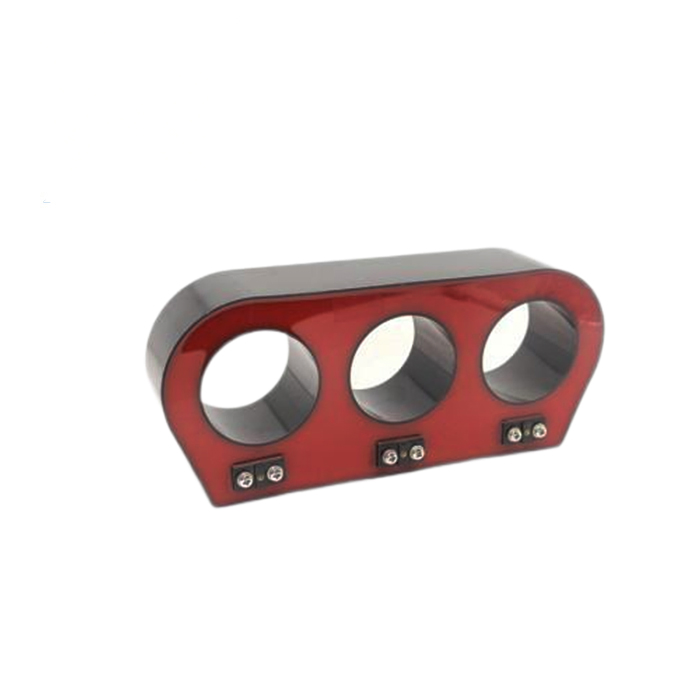

Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
1 / 5
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer
Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer

Lsy-10/120 Three Phase Integrated Current Transformer Zero Sequence Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️ Basic Product Information
Model NO.
Lsy-10
Phase
Three
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Epoxy Resin
Installation
Strut Type
Magnetic Circuit
Single Stage Type
Frequency
50/60 Hz
Ambient Temp
-20 to 80℃
Rated Capacity
10-35kv
Production Capacity
5000 Units/Month
📝 Product Description
Product Banner

This type of current transformer is a special transformer for ZW28-10 circuit breakers, composed of a protective mutual inductor and a zero sequence transformer. Simultaneously, the circuit breaker provides over-current protection and grounding protection. Featuring reliable quality, stable performance, and convenient installation, it is highly received by users.

📸 Detailed Photos

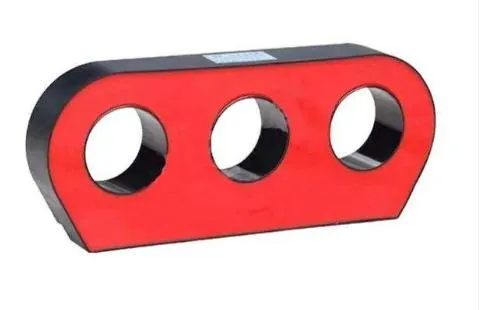

Detailed View 1

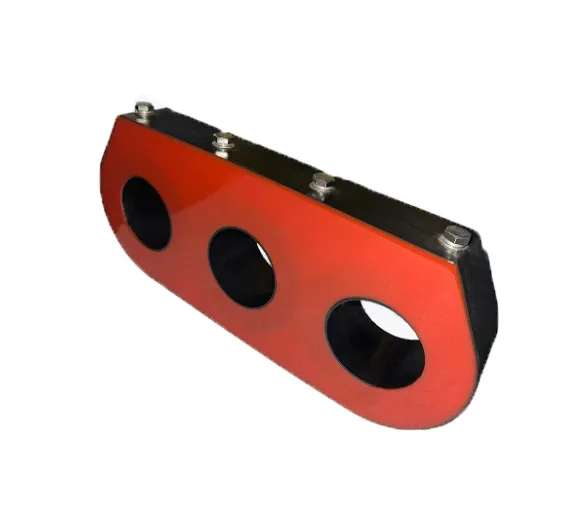

Detailed View 2
📊 Technical Parameters

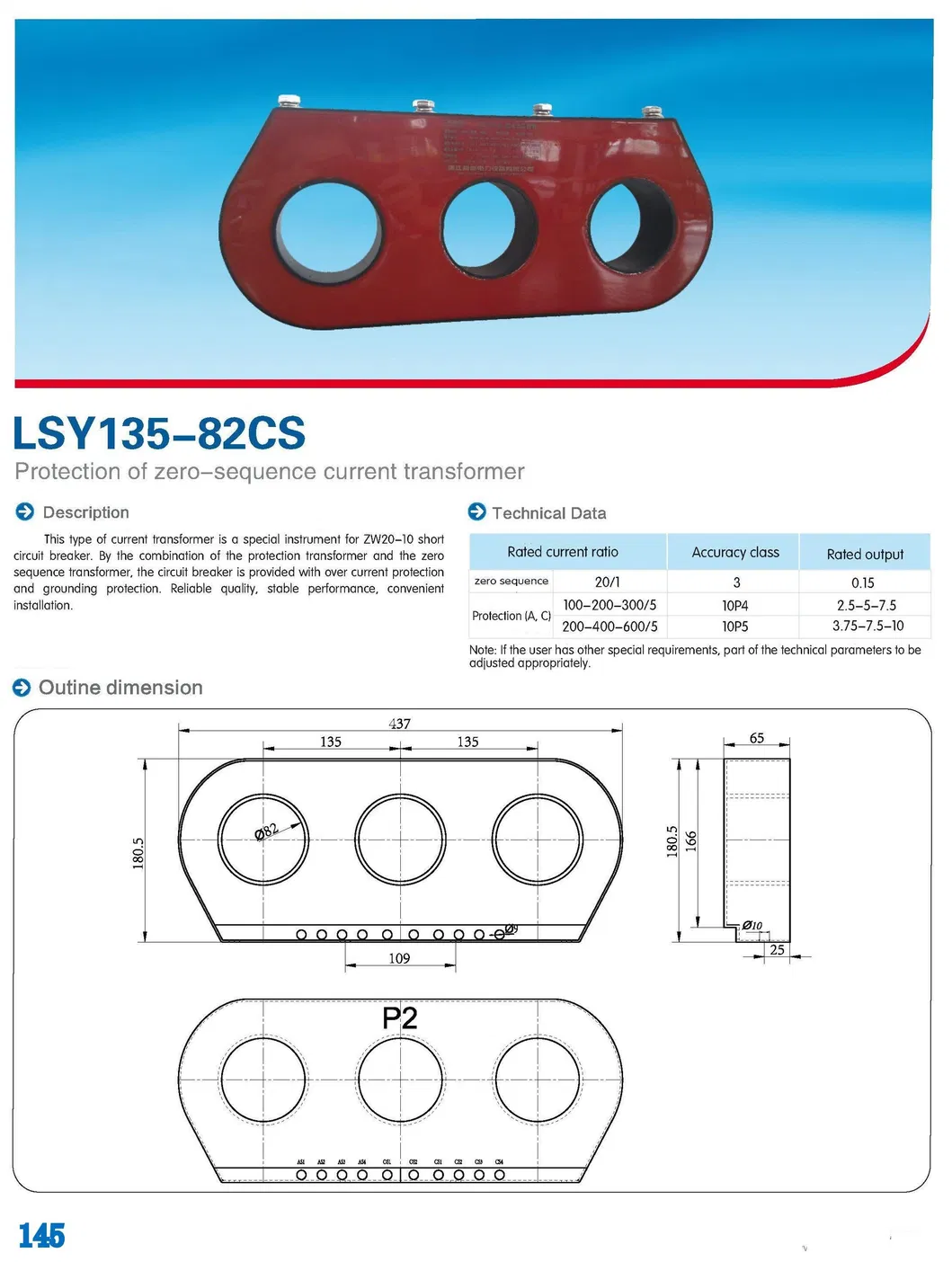

Parameter Chart
Component Rated Current Ratio Accuracy Class Rated Output (VA)
Zero Sequence CT 20/1 3 0.15
Protection CT (A, C) 100-200-300/5 10P4 2.5-5-7.5
200-400-600/5 10P5 3.75-7.5-10

💡 Ordering Requirements:

  1. Rated voltage (kV)
  2. Accurate phase and level combination
  3. Rated output and corresponding accurate level (VA)
🏗️ Production & Certification

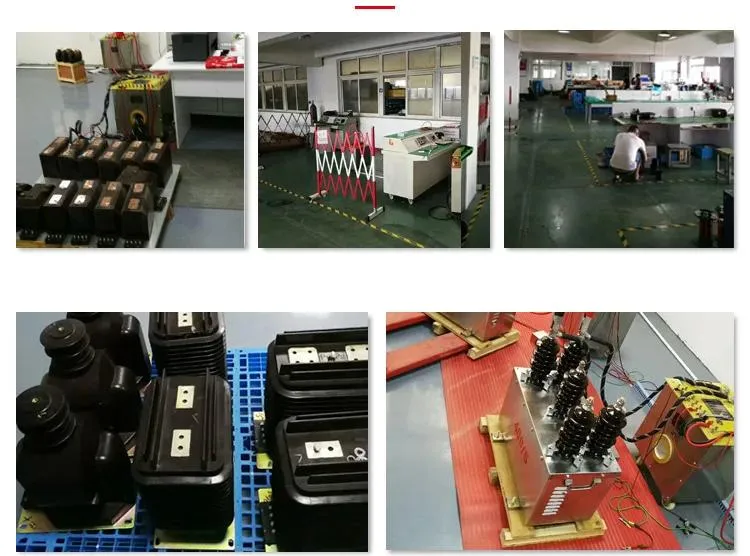

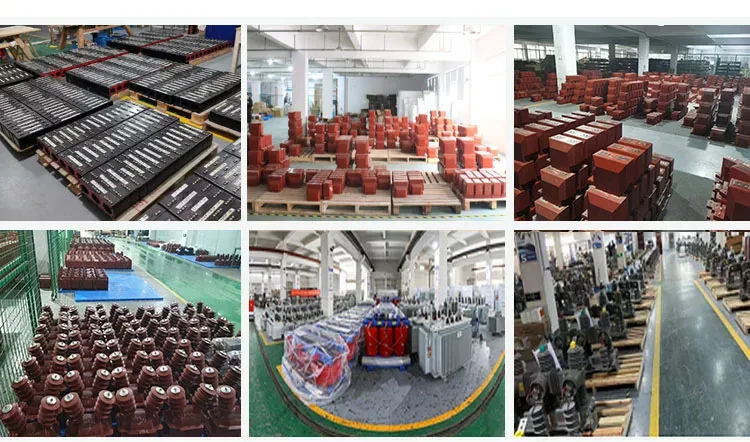

Workshop 1 Workshop 2 Certifications
📦 Packaging & Shipping
Packaging
Shipping
❓ Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A1: We are a professional factory with over 7 years of experience in high and low voltage power transformers, substations, and vacuum circuit breakers.
Q2: Do you accept customized services (OEM/ODM)?
A2: Yes, we offer OEM/ODM services and can print your logo on the product. Our technical team can provide projects based on your drawings and parameters.
Q3: What is your Minimum Order Quantity (MOQ)?
A3: Our MOQ is 1 piece.
Q4: How long is your delivery lead time?
A4: It depends on the quantity and specific requirements. Generally, lead time is 5 to 10 working days.
Q5: How do you handle quality problems?
A5: If quality issues occur, please provide detailed photos. Our technical and quality testing departments will analyze and provide a solution within 2 days.
Q6: What are your payment terms?
A6: We typically require 30% T/T in advance and 70% before shipment. West Union and L/C are also acceptable.
