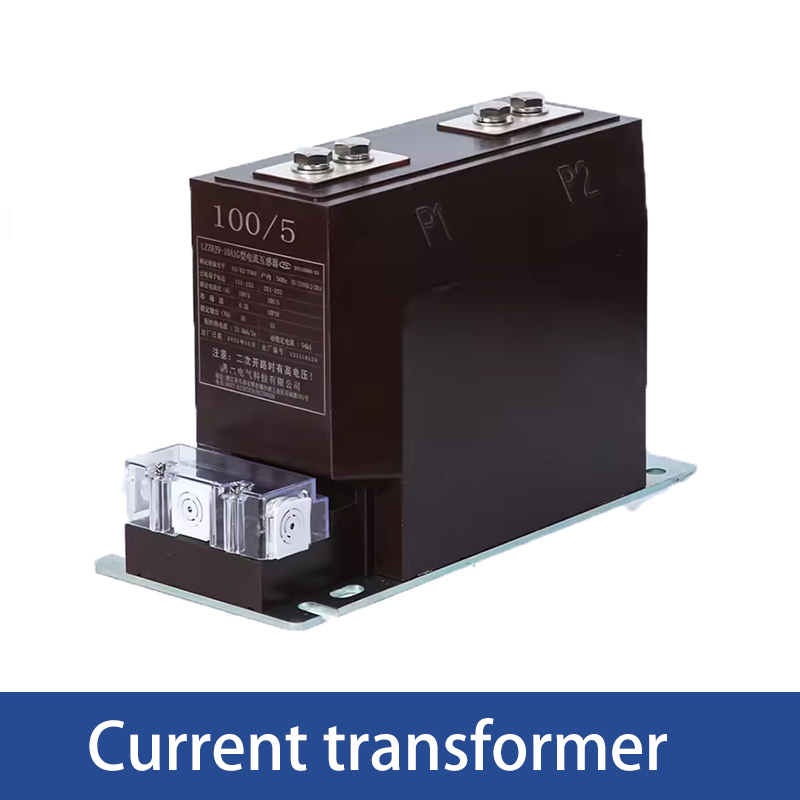

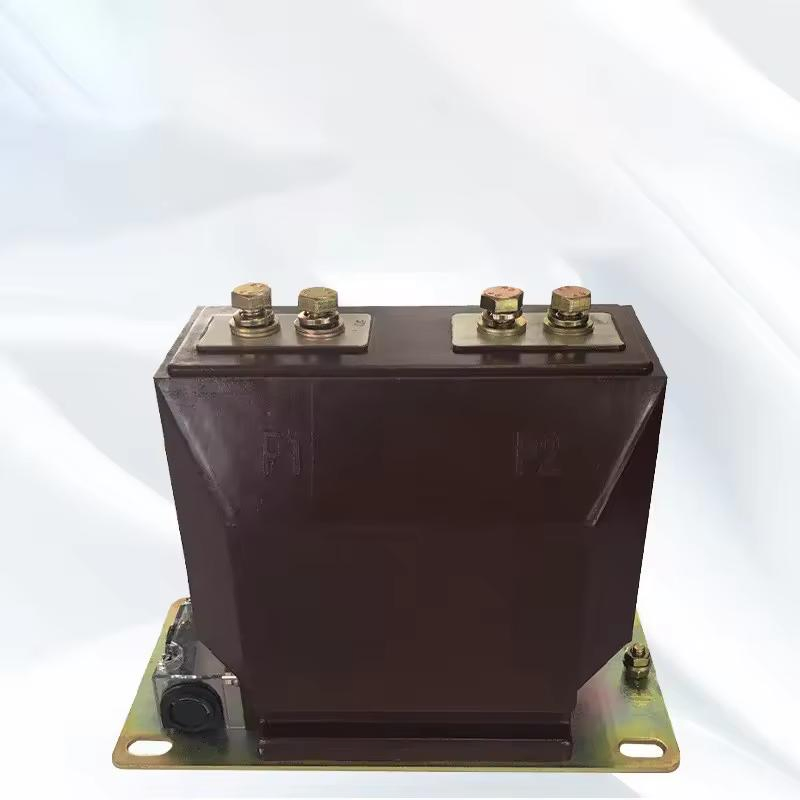

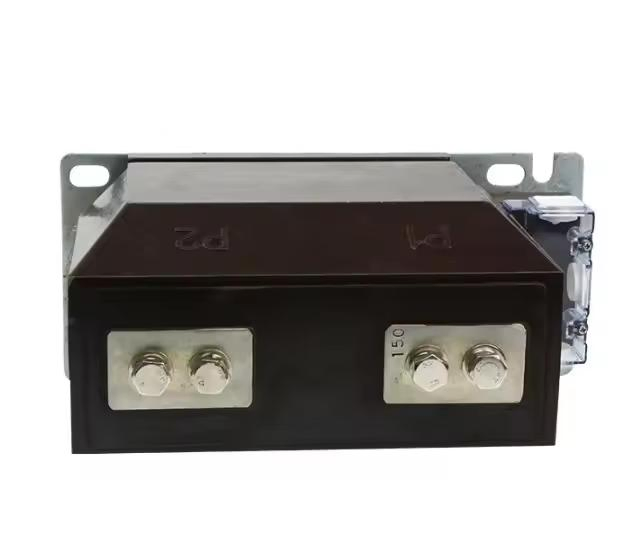

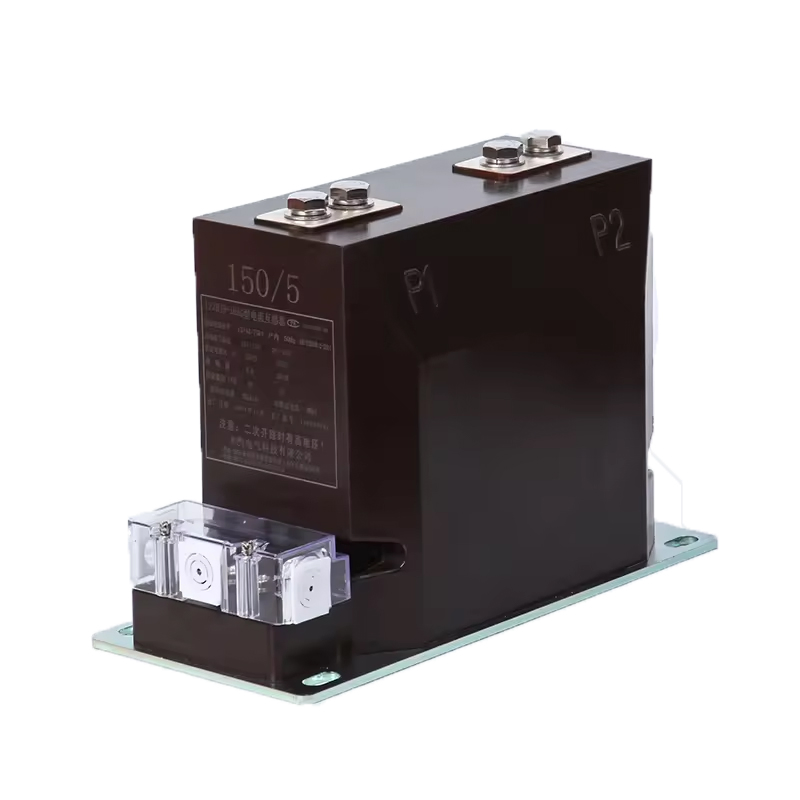

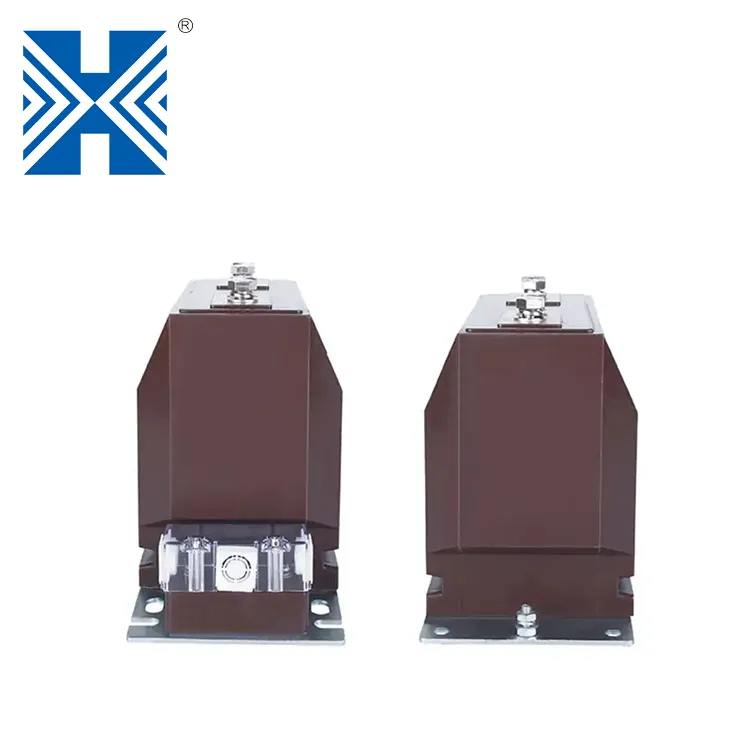

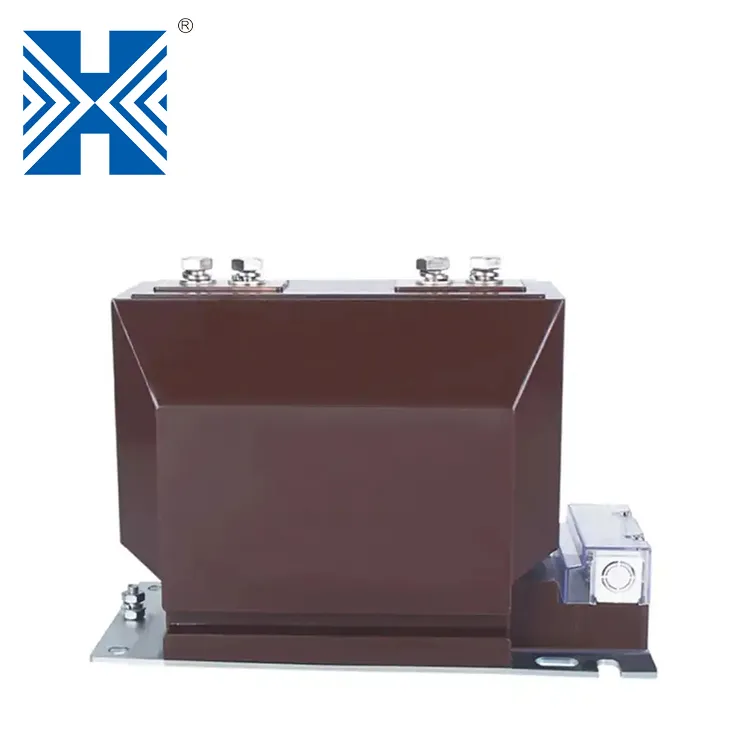

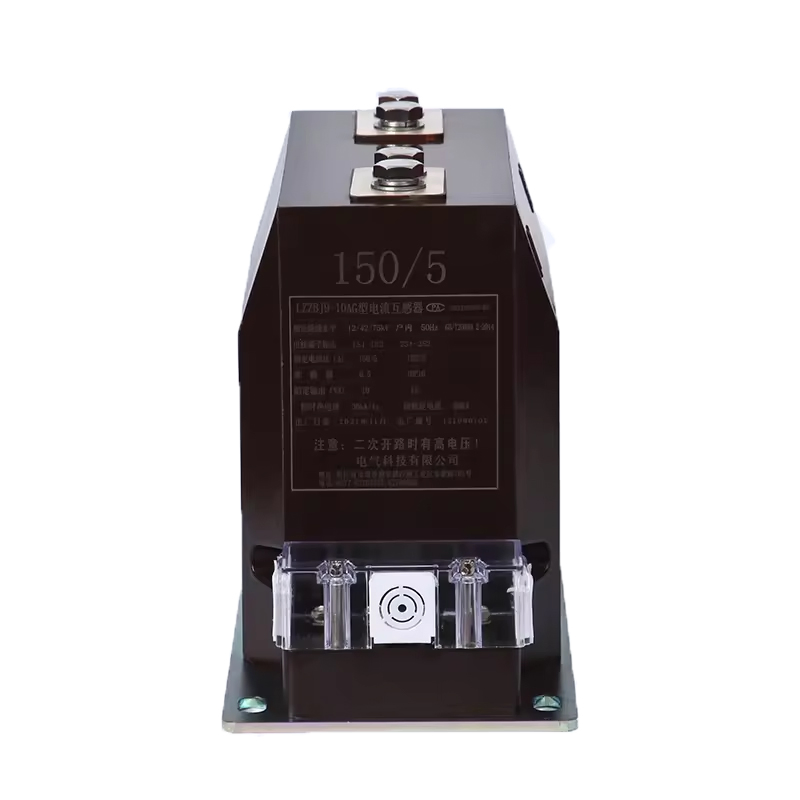

10kv Indoor High Voltage Current Transformer LZZBJ9-10
Experience the pinnacle of innovation with our 11kv Current Transformer, meticulously designed for indoor applications. Utilizing state-of-the-art epoxy-resin vacuum casting and a fully enclosed post structure, this transformer is ideal for power systems with a 50Hz or 60Hz rated frequency, and a voltage capacity of up to 10kV. Designed to excel in electric energy metering, precise current measurement, and robust relay protection, this versatile transformer offers the flexibility of an arbitrary combination of classes. Options available include premium quality classes of 0.2S, 0.2, 0.5, and 10P.
Our product steadfastly adheres to the national and international standards, specifically GB20840.1-2010, Instrument Transformers - Part 1: General Requirements, as well as GB 20840.2-2014, Instrument Transformers - Part 2: Additional Requirements for Current Transformers, and JJG 313-2010, Instrument Current Transformers, ensuring unparalleled quality and reliability.
Key Specifications:
| Model | Rated Primary Current (A) | Accuracy Level | Rated Output (VA) | Thermal Current (kA/s) |
|---|---|---|---|---|
| LZZBJ9-10(12)A1 | 5 - 50 | 0.2(S), 0.5(S), 10P10 | 10/15 | 0.5 - 5.0 |
| 75 - 150 | 7.5 - 15 | |||
| 200 - 1200 | 45 - 63 | |||
| 1500 - 3000 | 80 |

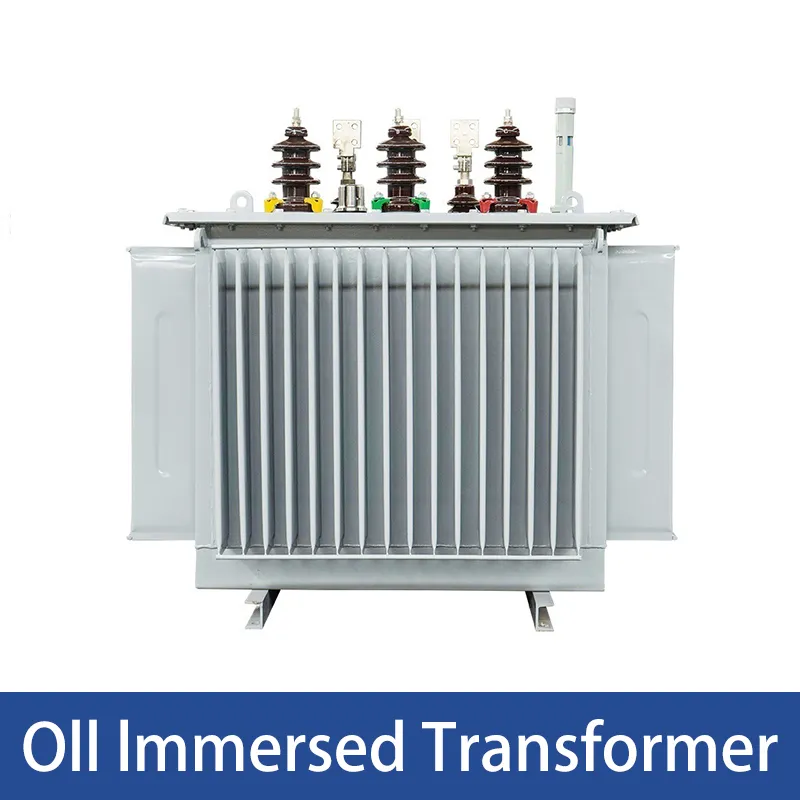

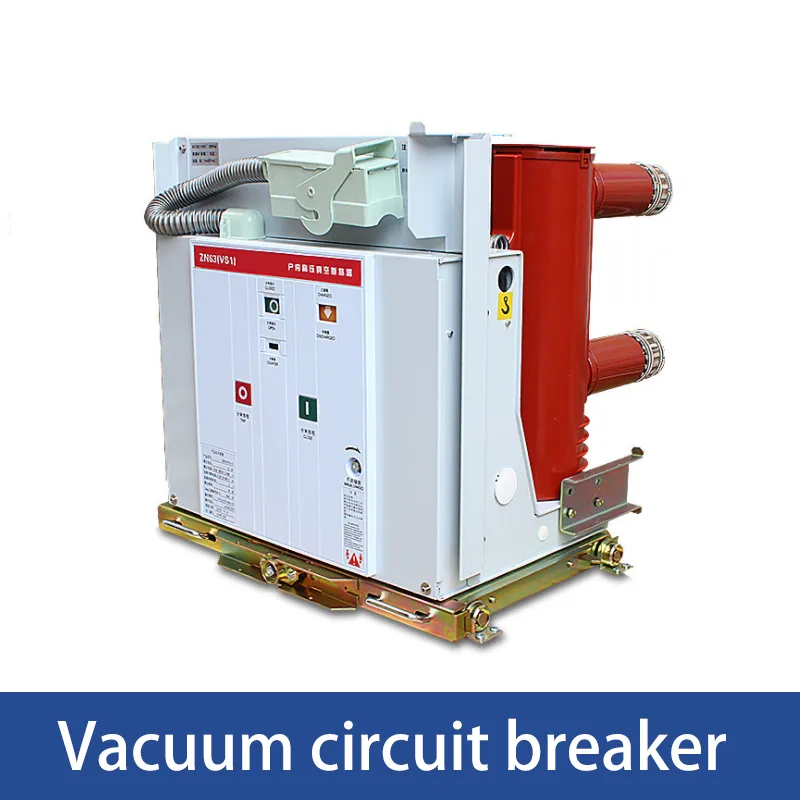

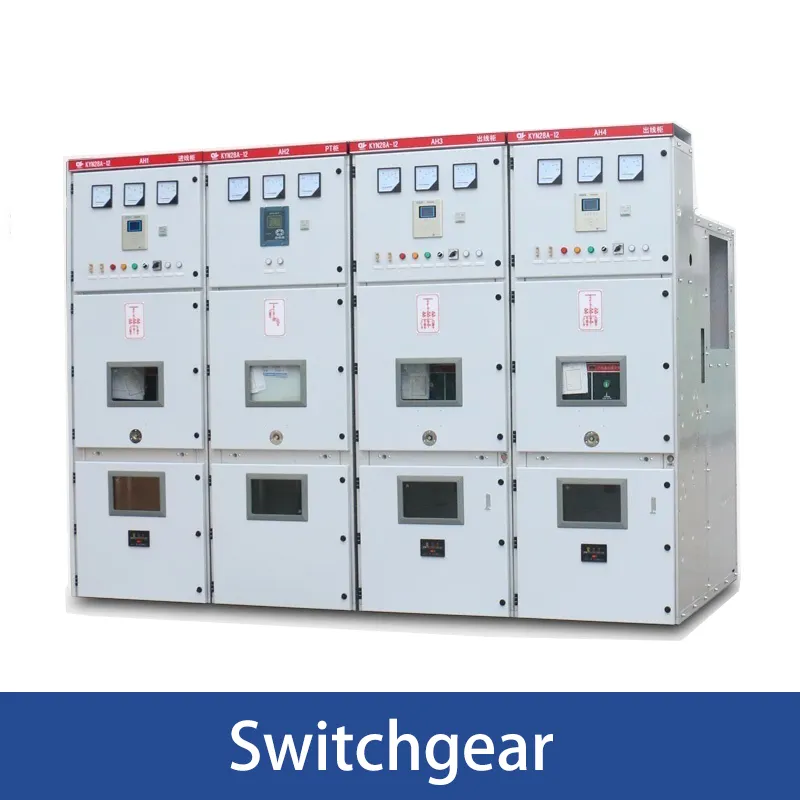

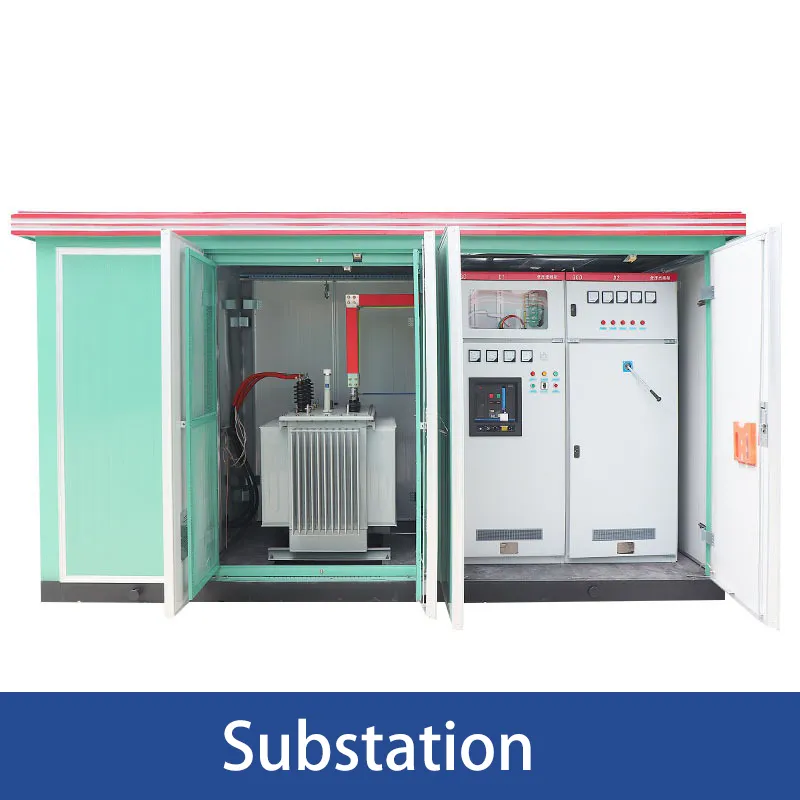

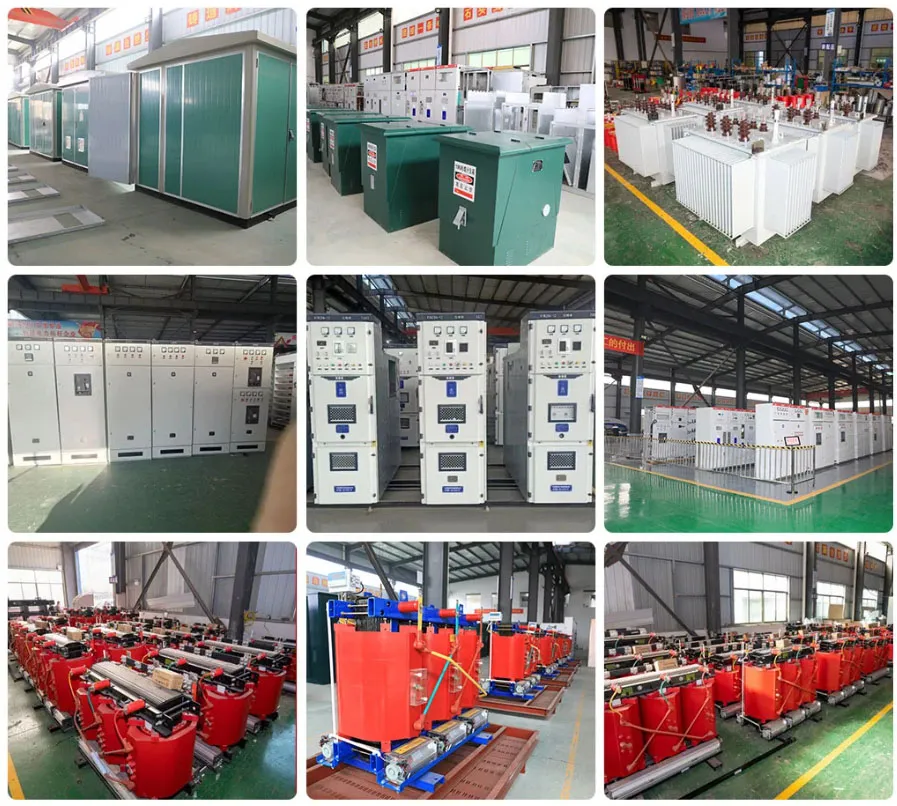

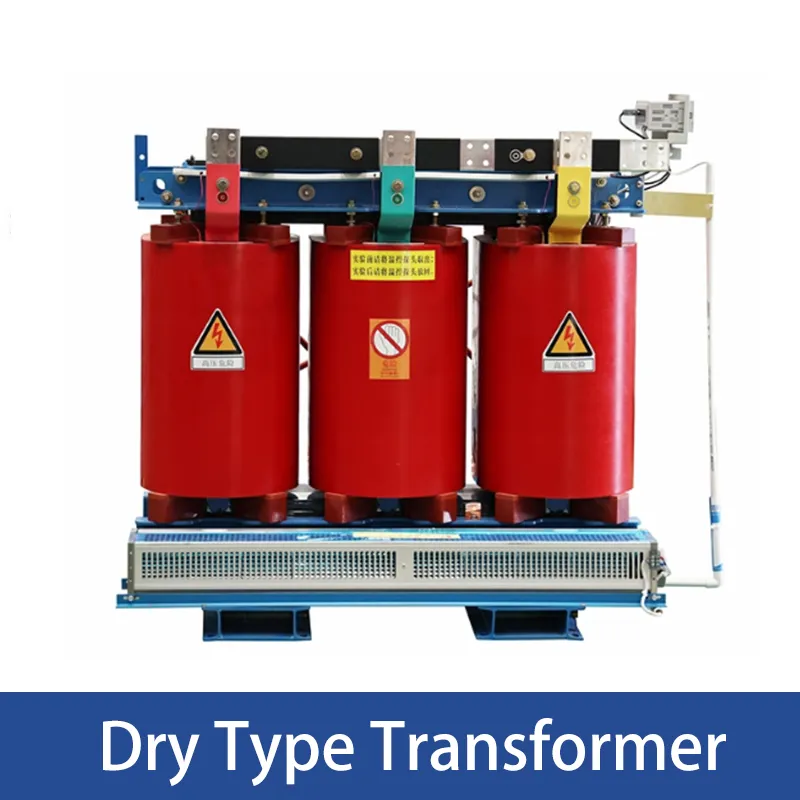

We proudly offer a diverse array of other instrument transformers and power equipment to cater to varied industrial needs.
Our credentials are bolstered by the acclaimed ISO certification. Additionally, we possess an extensive collection of diverse type test reports that exemplify the unparalleled quality and reliability of our products.

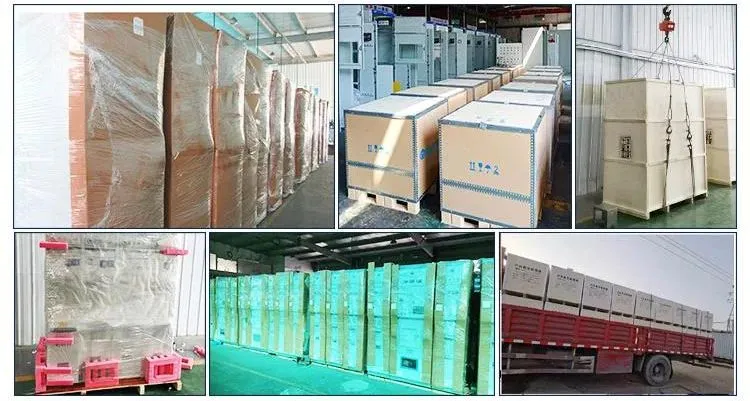

Our dedicated packaging team excels in customizing exquisite wooden boxes, crafting distinctive logos, and designing unique labels tailored precisely to meet your requirements. We ensure that each product is impeccably packaged, safeguarding its integrity.
