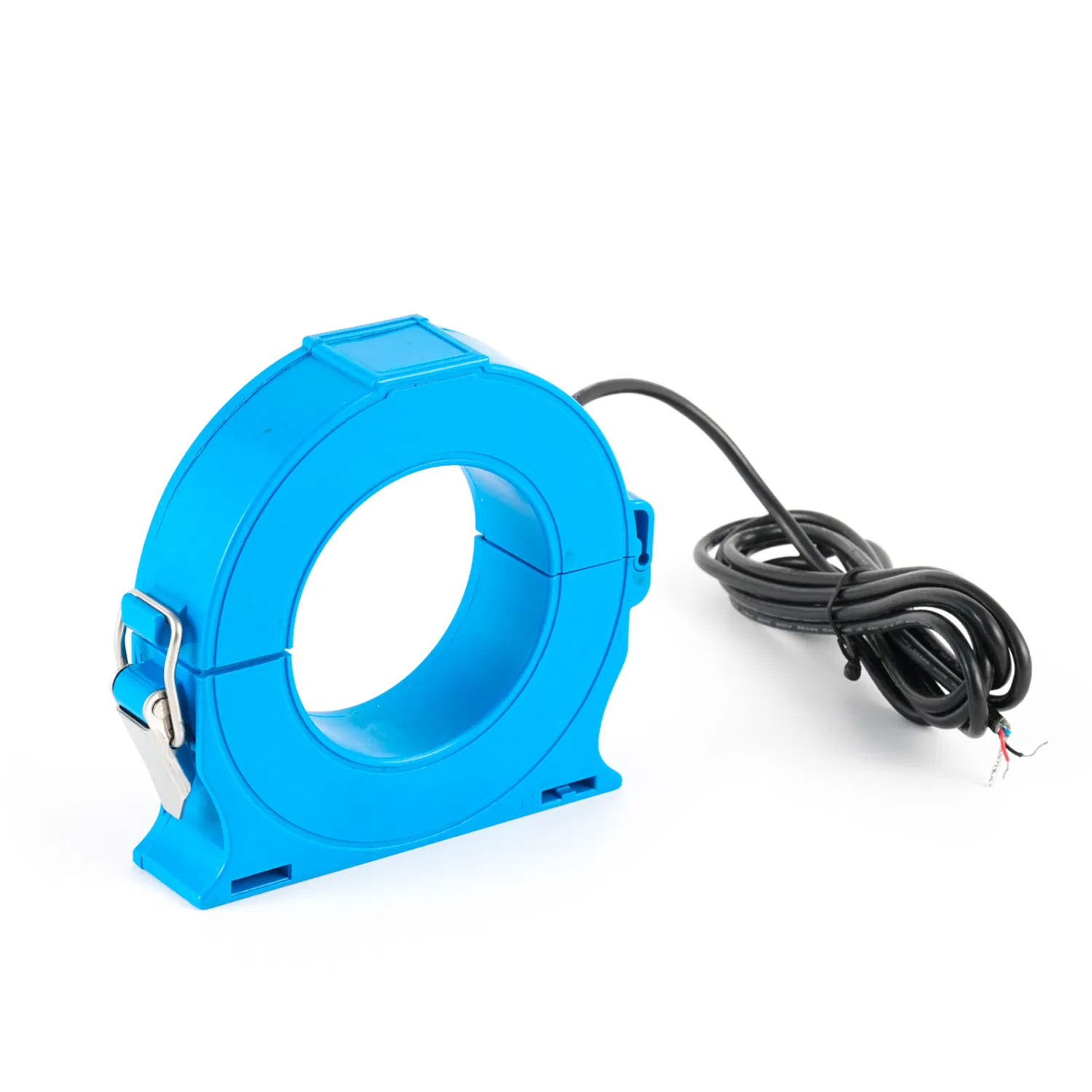

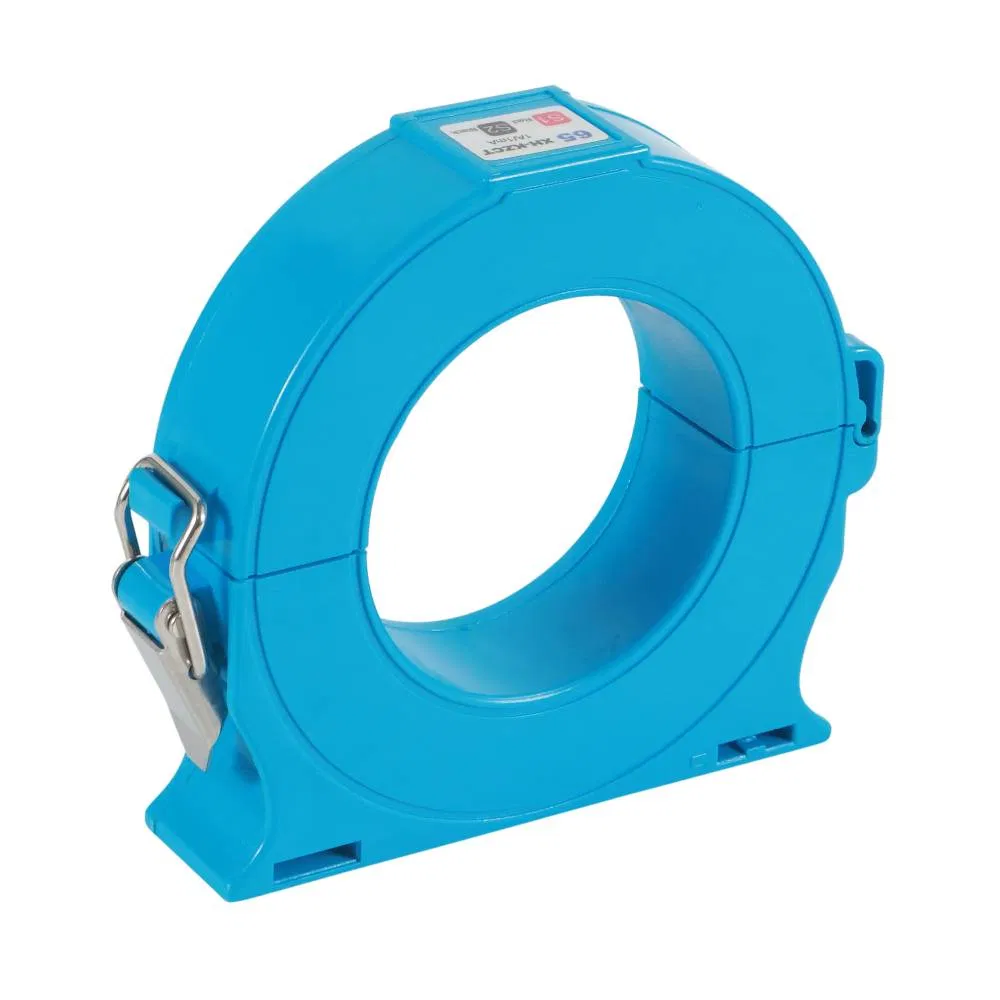

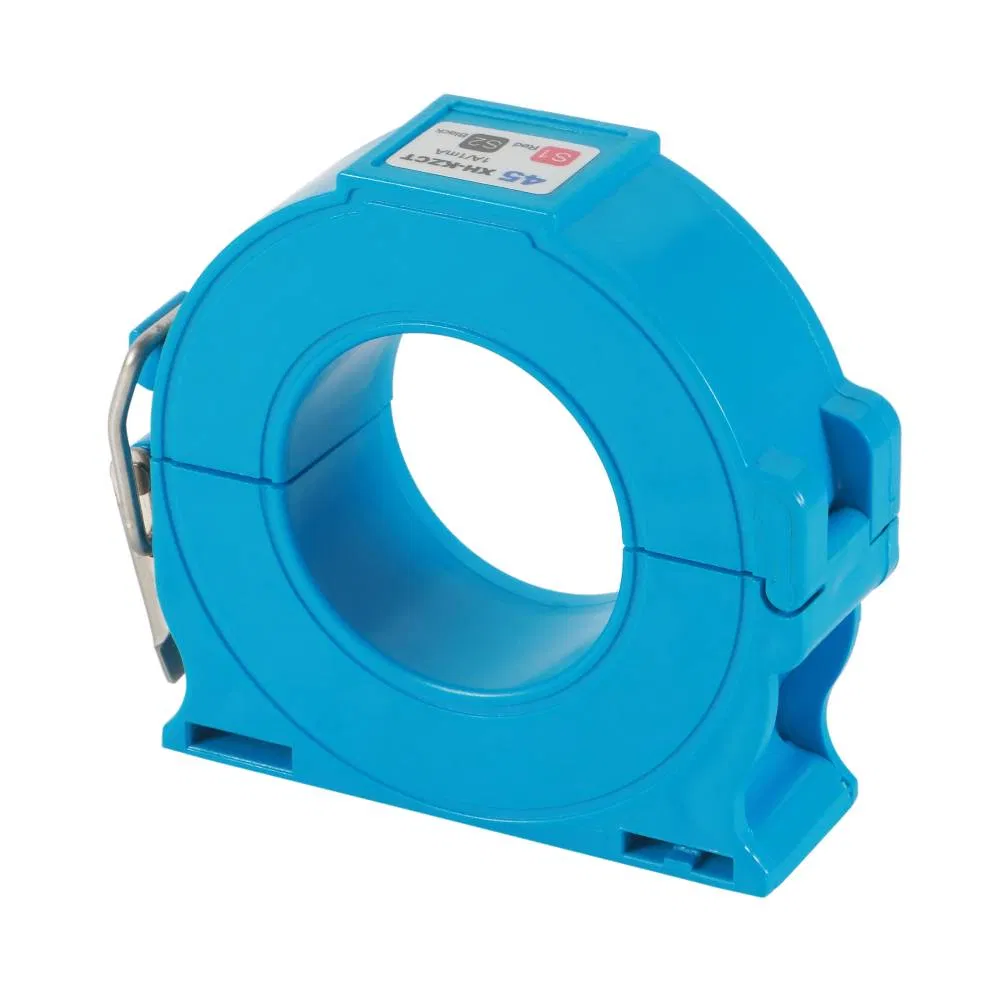

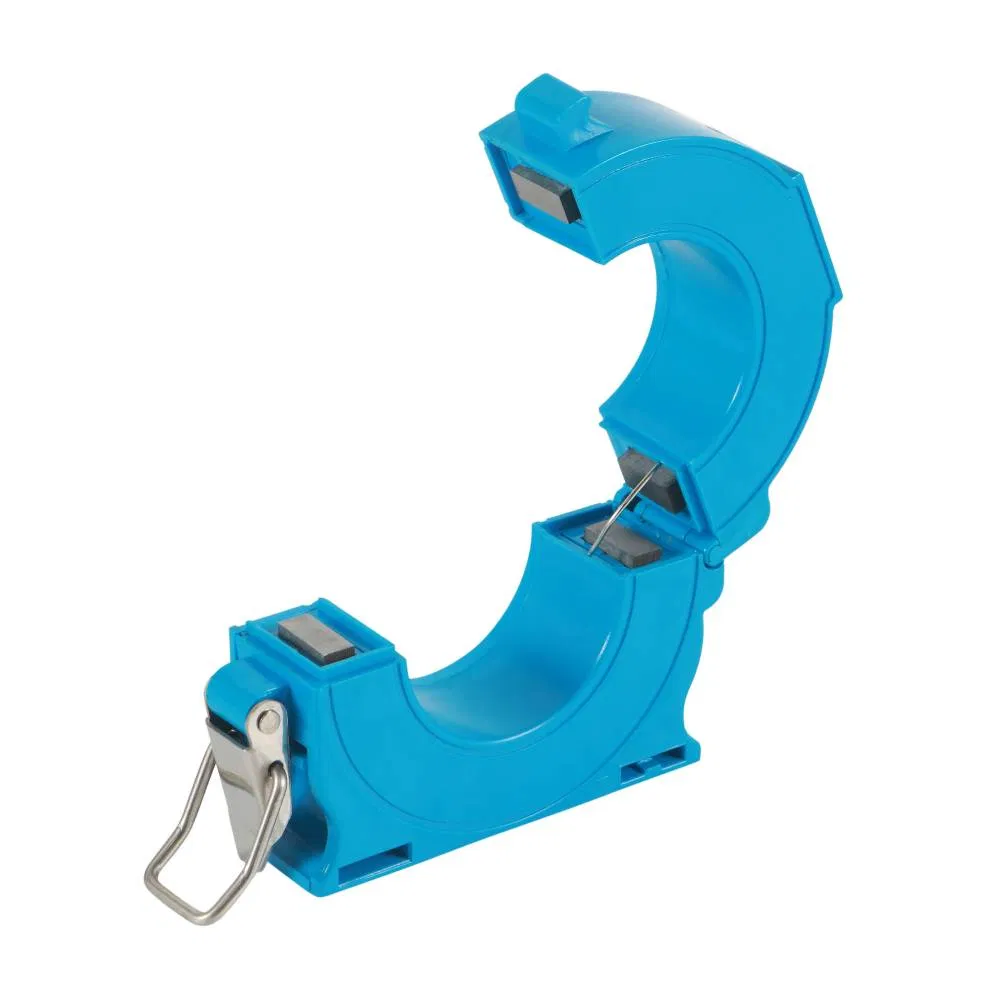

Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
1 / 5
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA
Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA

Split Core Zero Phase Current Transformer Zct45 200mA /1.5mA

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
ZCT45
Phase
Single
Operation
Indoor / Outdoor
Usage
Protection, Measurement
Winding Form
Multilayer Honeycomb
Insulation
UL 94-V0 Housing
Installation
Split Core / Extension Type
Voltage Principle
Electromagnetic Type
Current Rating
5-600A
Hole Size
45mm
Current Error
0.5 Class
Capacity
500,000 PCS/Month

Product Overview

Split Core Zero Phase Current Transformer

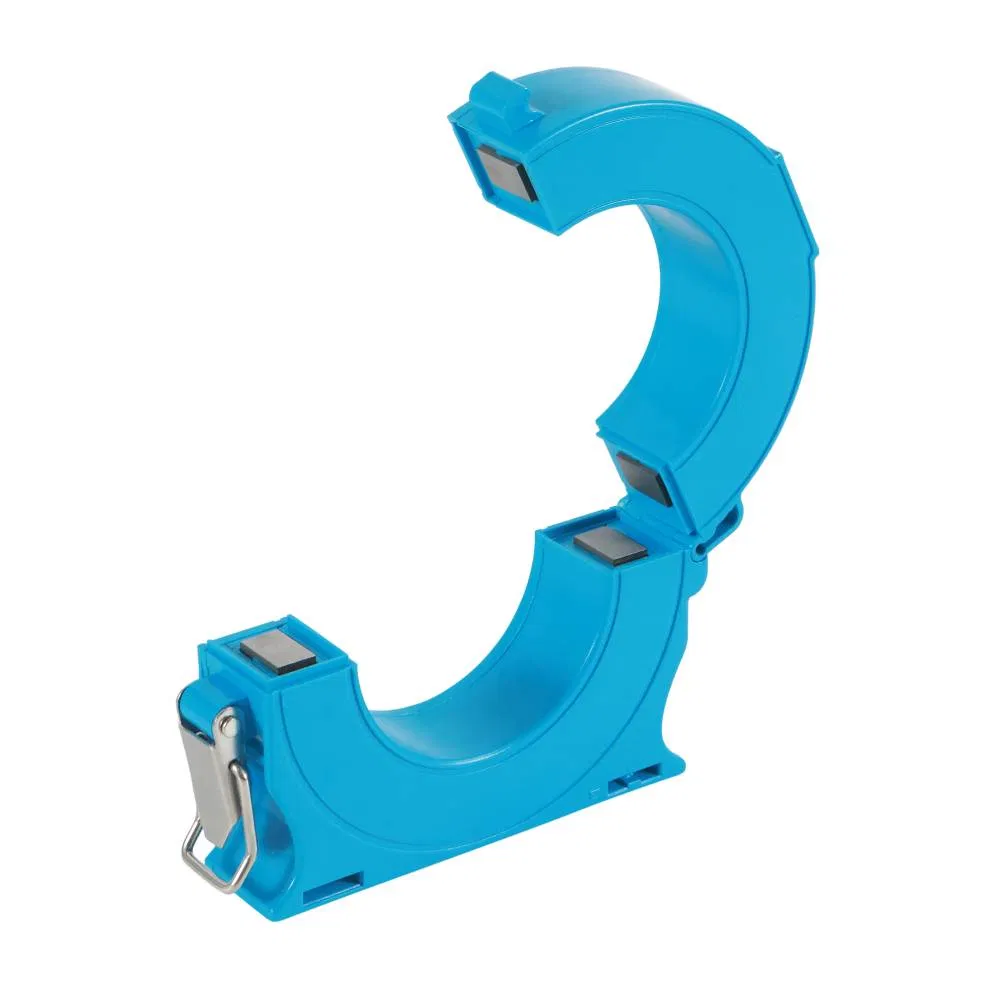

The series of split core Zero phase current transformers are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.

This method permits a safer, easy, and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

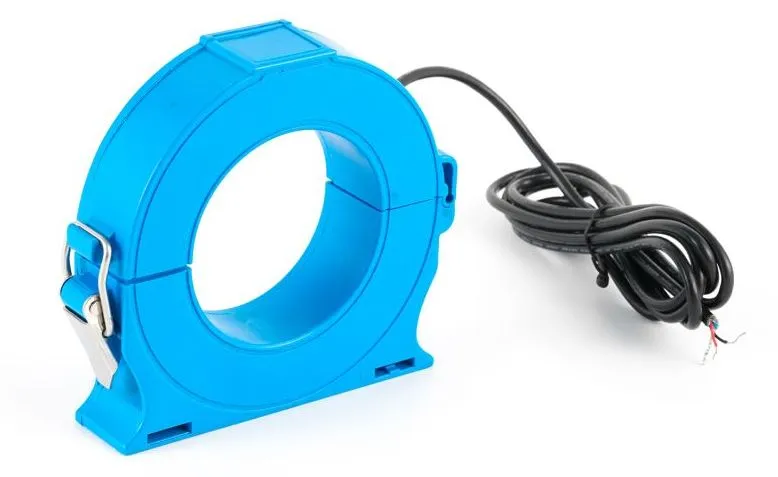

Split Core Zero Phase Current Transformer Zct45

Technical Features

  • Split core design; safer, easier installation, portable.
  • Rated current: 200mA | Ratio: 1000T | Output: 1.5mA
  • Hole Diameter: 45mm
  • Housing: Nylon material, UL 94-V0 grade
  • Operate Voltage: 0.66/0.75KV | Insulation Voltage: 3KV/1min
  • Rated Frequency: 50/60 Hz
  • Operating Temperature: -40ºC to 70ºC
  • Applicable primary current: up to 600A
Model KZCT45-1A/1mA KZCT45-10A/10mA
System Current 600A
Ratio 1A/1mA 10A/10mA
Rated Ratio Error ±2.0 ±1.0
Production Image 1
Production Image 2
Production Image 3
Application 1

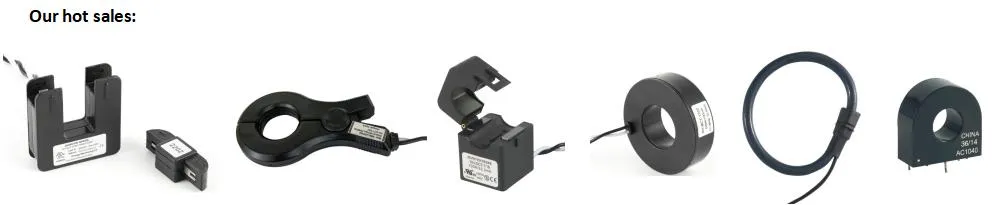

Hot Sales Display

Package Details

All CTs are securely packed with bubble wrap and white inner boxes before being placed in a sturdy shipping carton. We support neutral packing or customized labeling for OEM needs.

Packaging
Shipping

Shipping Info

Products are shipped via global expresses like UPS, DHL, FedEx, and TNT for door-to-door delivery. Large quantities can be shipped via air or sea. Lead time is usually 3-7 days for standard products under 1000 units.

Our Commitment

Warranty: 1-year warranty provided. Defective products must be reported within 3 days of receipt for replacement or refund consideration.

  • Factory Direct: Competitive pricing via direct sales.
  • 20+ Years Experience: Ensured quality based on industry expertise.
  • Fast Response: Technical support and replies within 24 hours.

Frequently Asked Questions

What is the main benefit of the split core design?
The split core design allows for non-contact measurement without disconnecting the primary wire, making installation fast, safe, and portable.
Is the ZCT45 suitable for high-current applications?
Yes, the ZCT45 is applicable for primary currents up to 600A with a 45mm hole diameter to accommodate various cable sizes.
What is the fire resistance rating of the housing material?
The housing is made of high-quality nylon material that meets the UL 94-V0 fire resistance grade.
Do you provide samples for testing?
Yes, we provide free samples for testing. Please contact our team to apply for a free trial before making a purchase.
What certifications do your transformers have?
Our current transformers are certified by ISO9001, UL, CE, RoHS, and TUV, ensuring international quality standards.
Can I customize the cable length?
Yes, we offer customization for cable output types and lead lengths based on your specific technical requirements.
