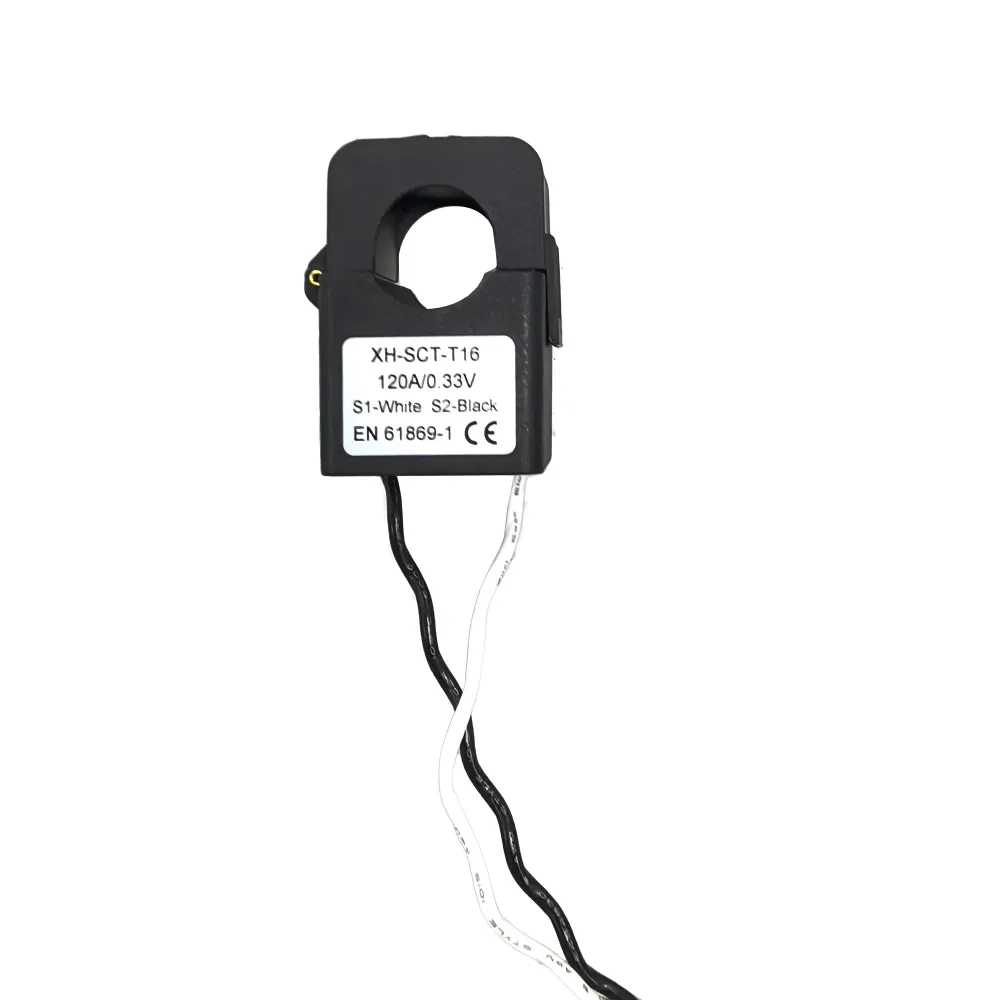

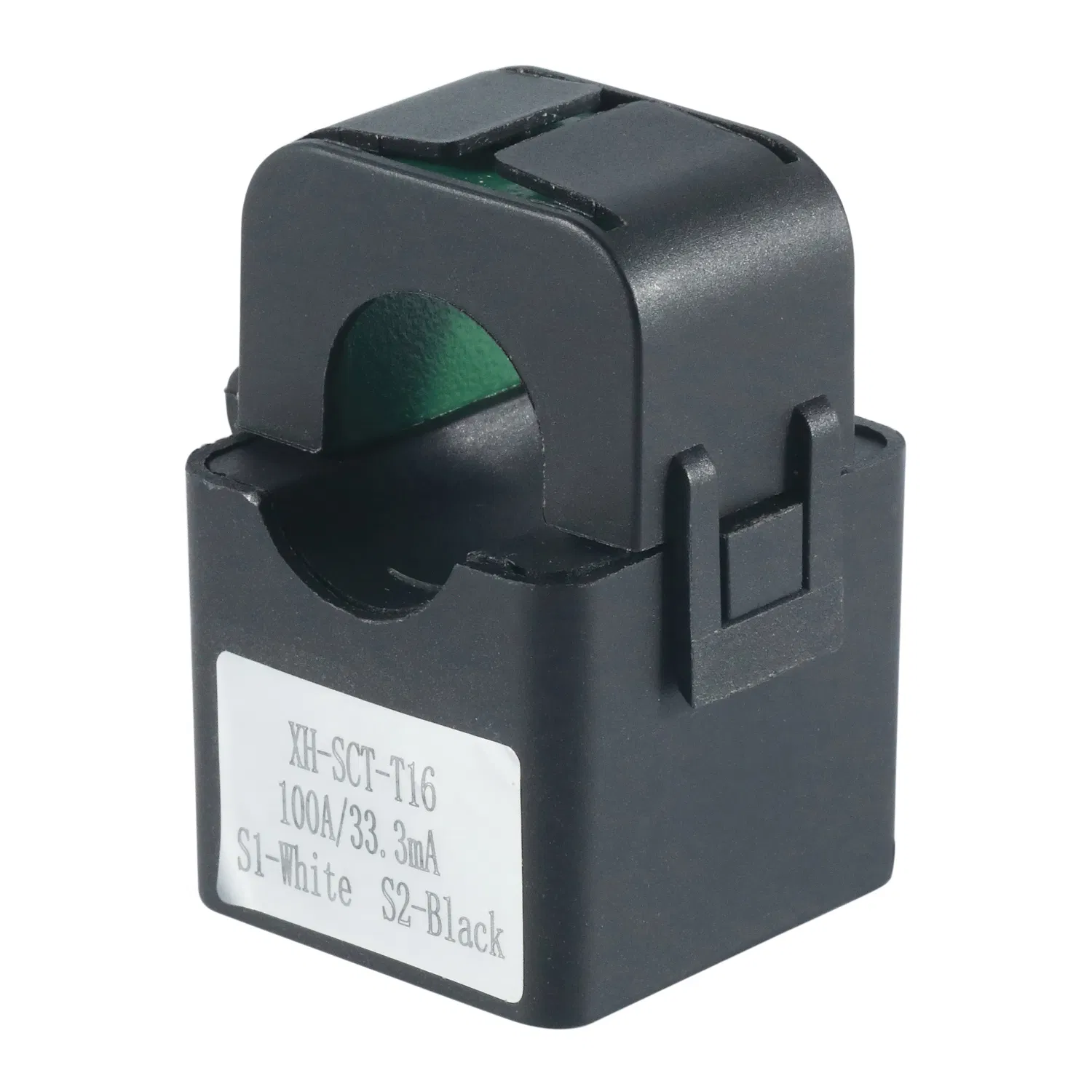

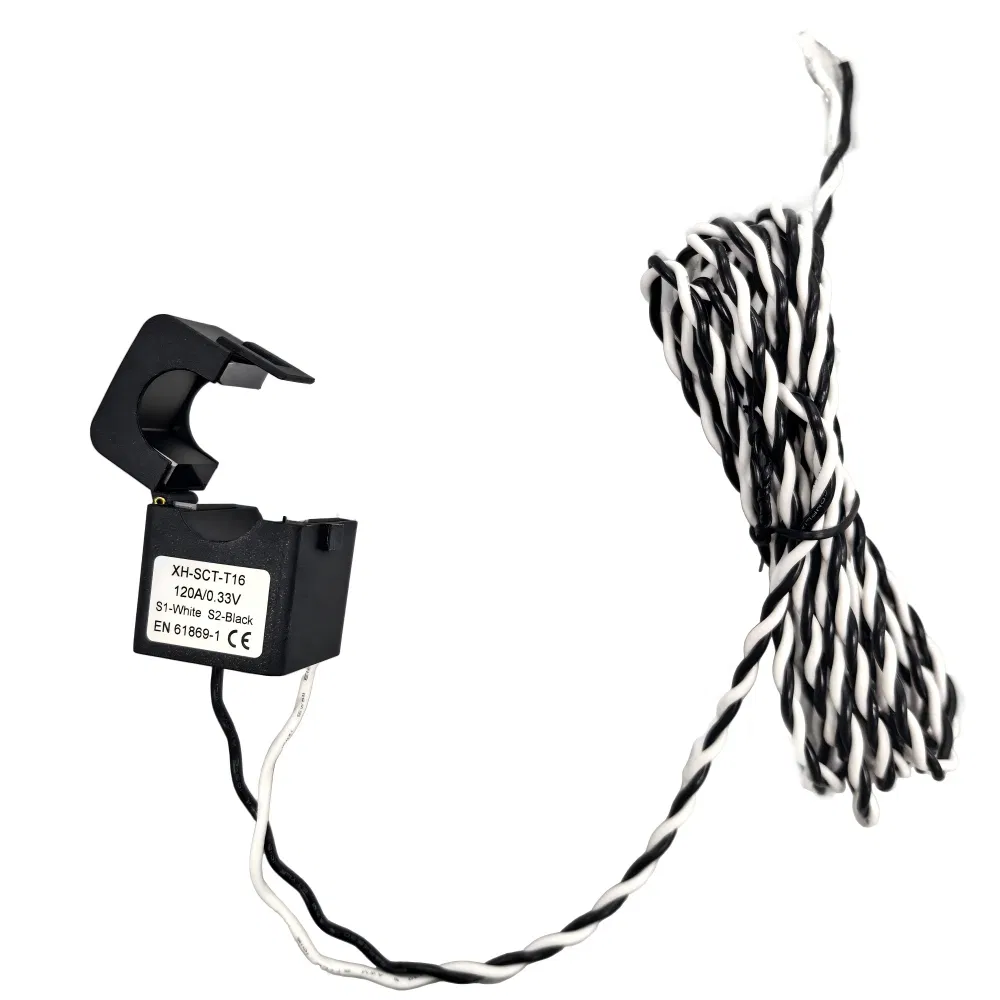

Sct-T16 Split Core Current Transformer Hinged CT 120A 333mv

1 / 5

Sct-T16 Split Core Current Transformer Hinged CT 120A 333mv

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.

SCT-T16

Phase

Single

Operation

Indoor

Winding Form

Multilayer Honeycomb Type

Rated Input

120A

Rated Output

333mv

Accuracy

0.5%

Certificate

UL, CE, RoHS

Origin

China

HS Code

8504

Product Description

Key Features:

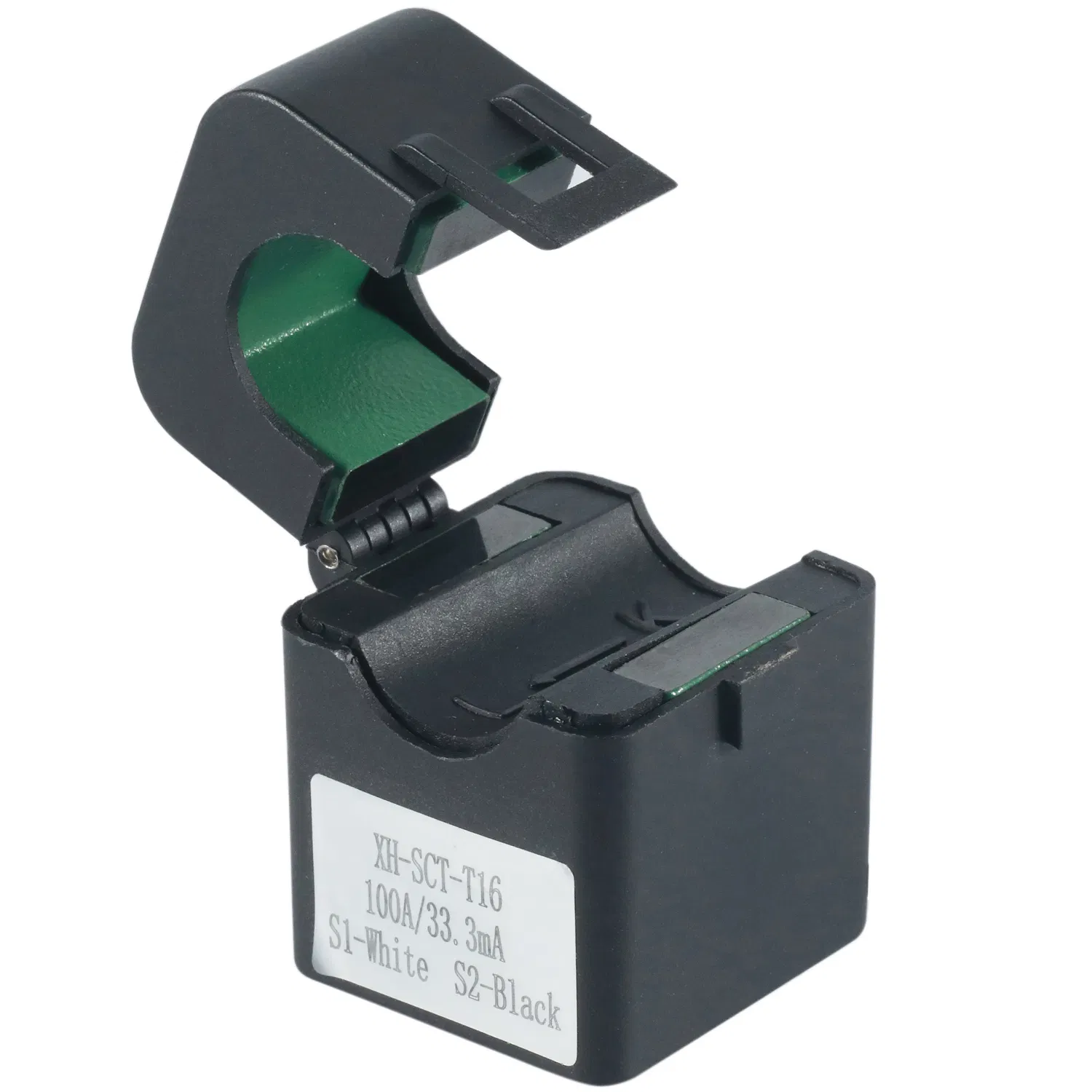

Split-core design for fast and easier installation.
No need to remove existing cables.
Clip-on open type, one-hand operation.
Excellent Linearity & Low Phase Angle Error.
UL Listed, CE mark and RoHS compliant.

Technical Specifications

Part Number	Max Primary A	Secondary Output	Cable Leads
XH-SCT-T16-50A	120A	Current: 33.3mA, 40mA, 25mA Voltage: 0.333V, 0.325V, 1V, 2V, 5V Customizable	UL1015 Twist, Sheath, or Customized
XH-SCT-T16-80A
XH-SCT-T16-90A
XH-SCT-T16-100A
XH-SCT-T16-120A
XH-SCT-T16-Customized

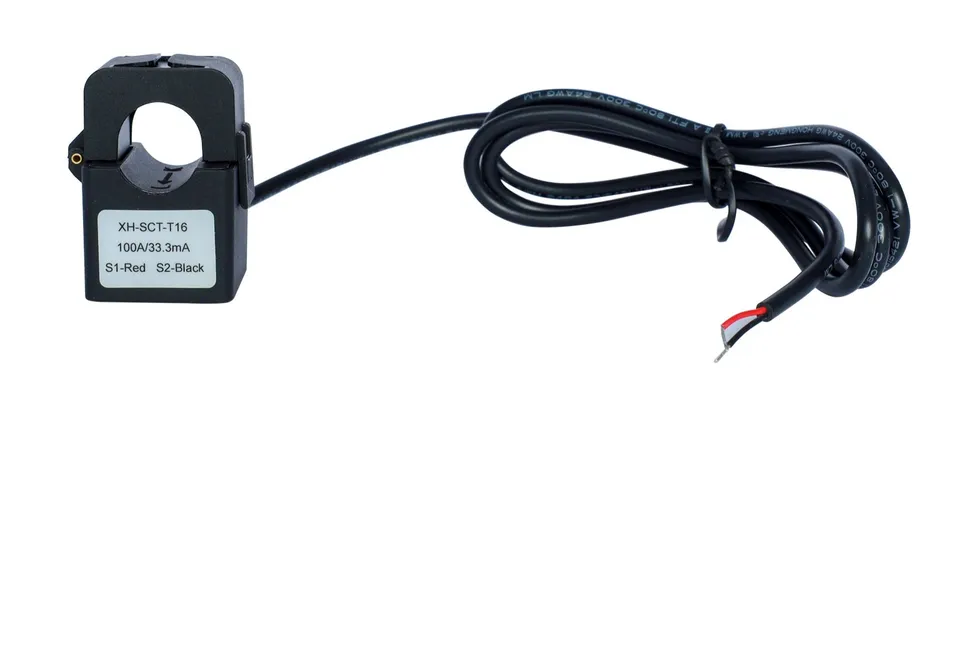

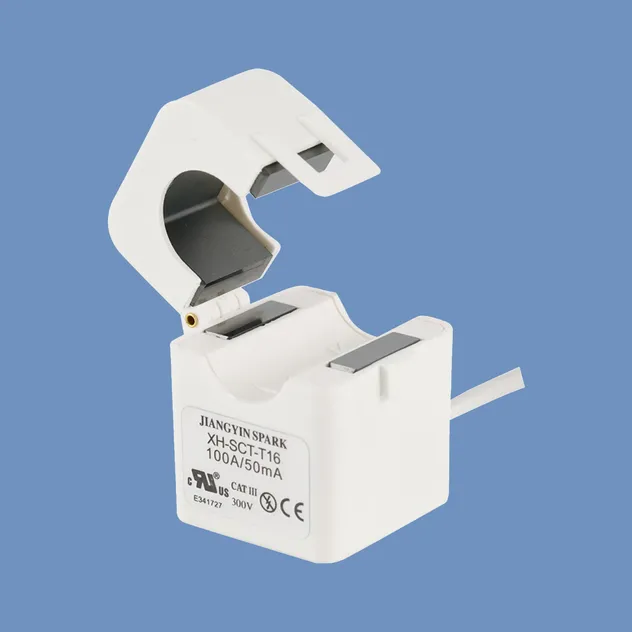

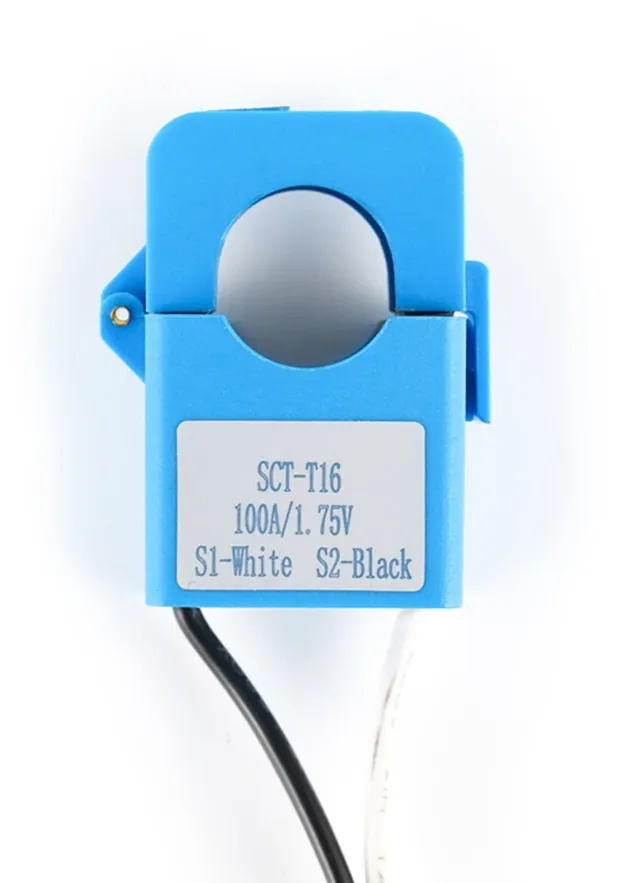

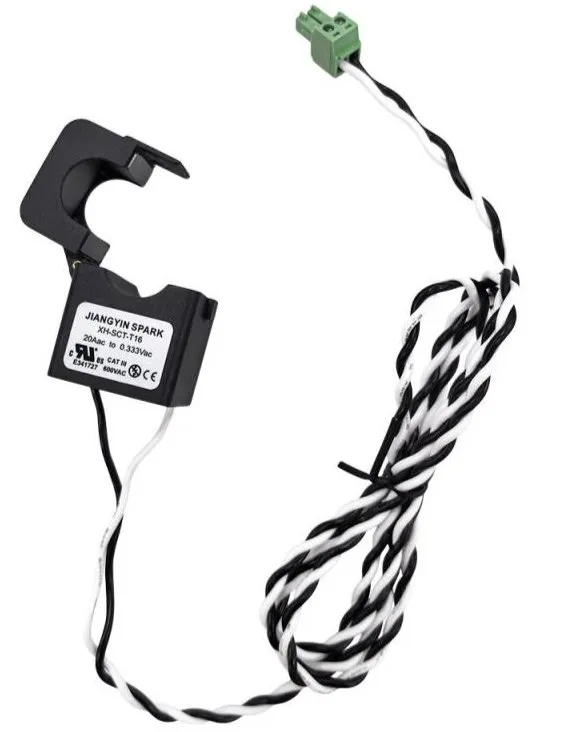

Products Display

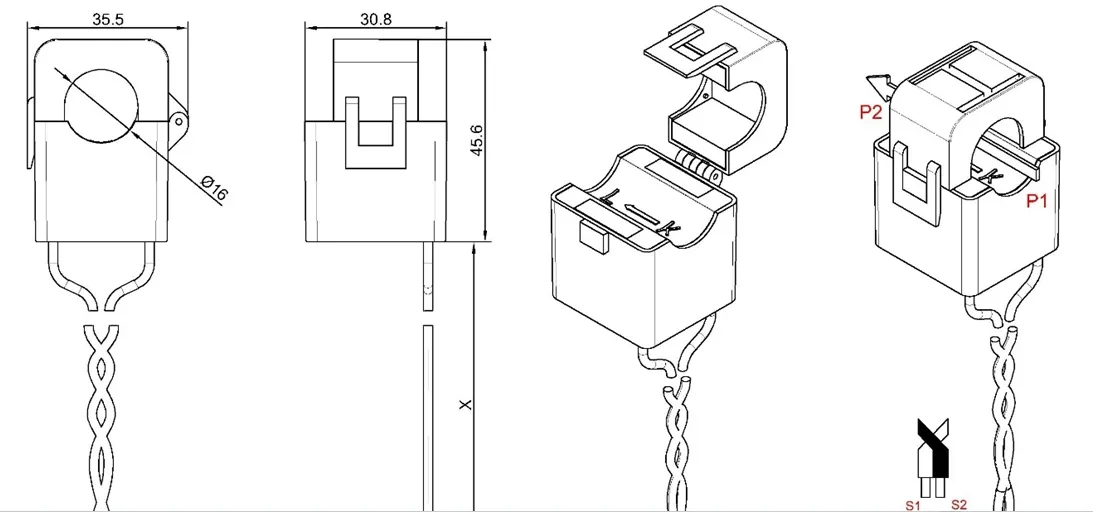

Drawings & Dimensions

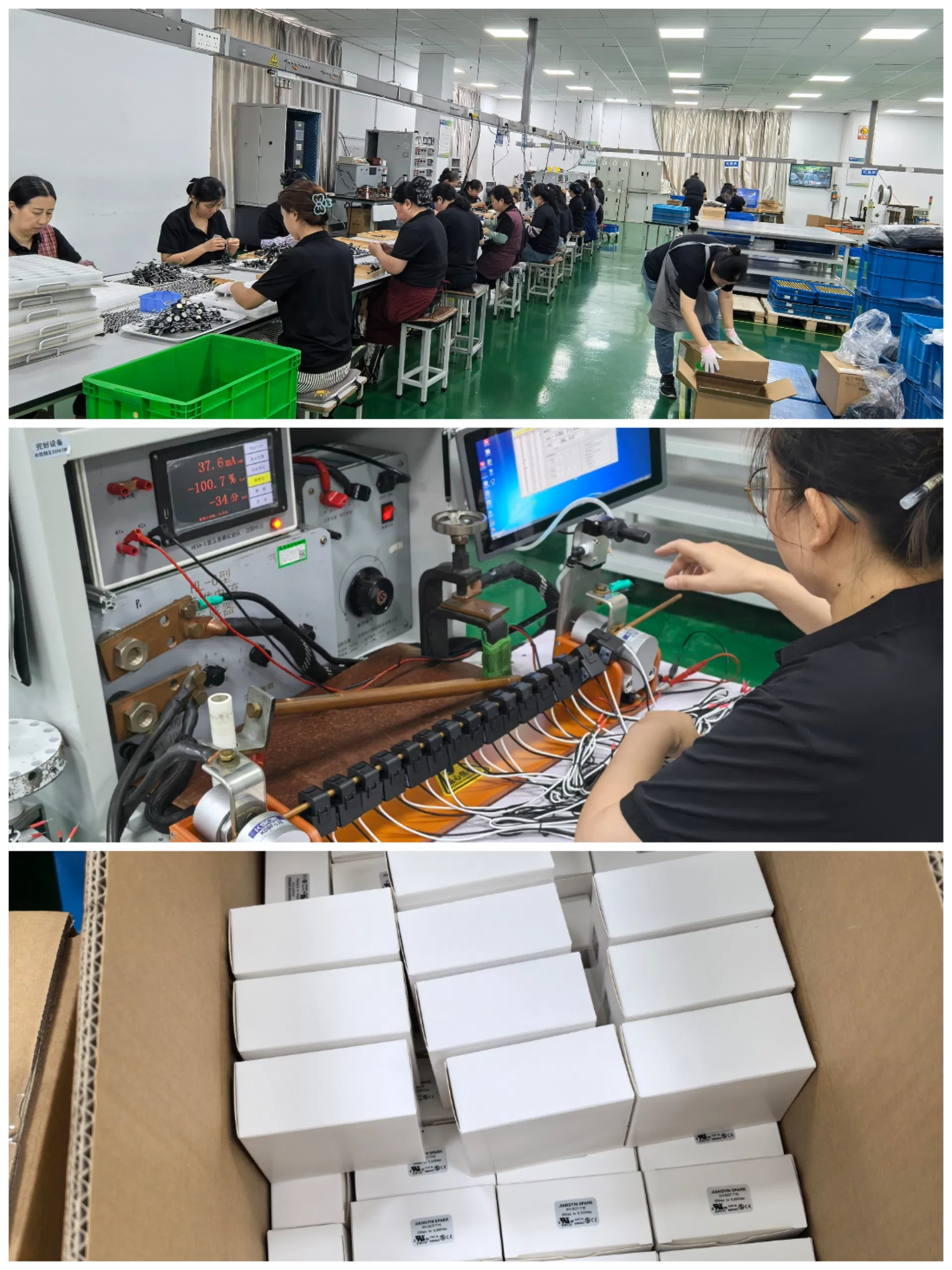

Factory & Exhibition

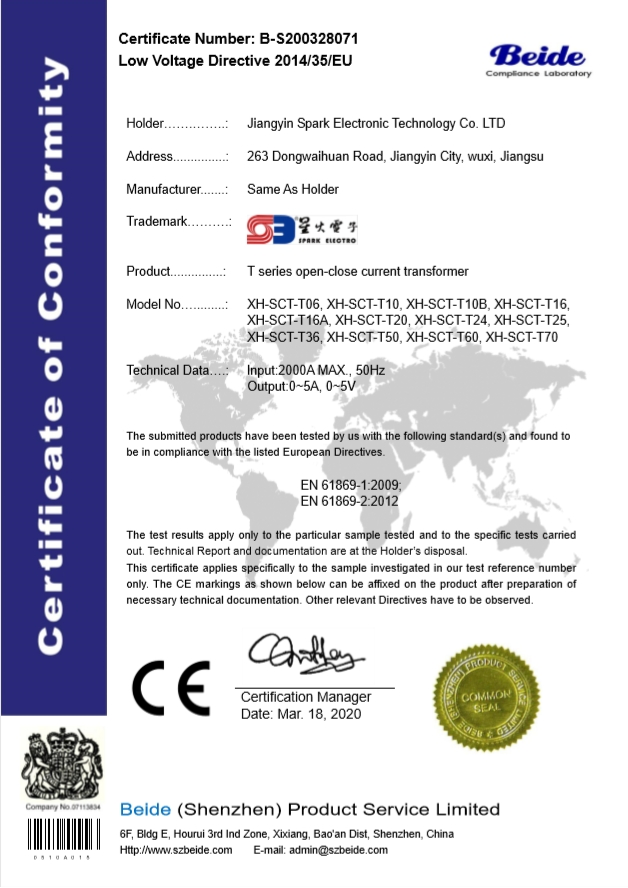

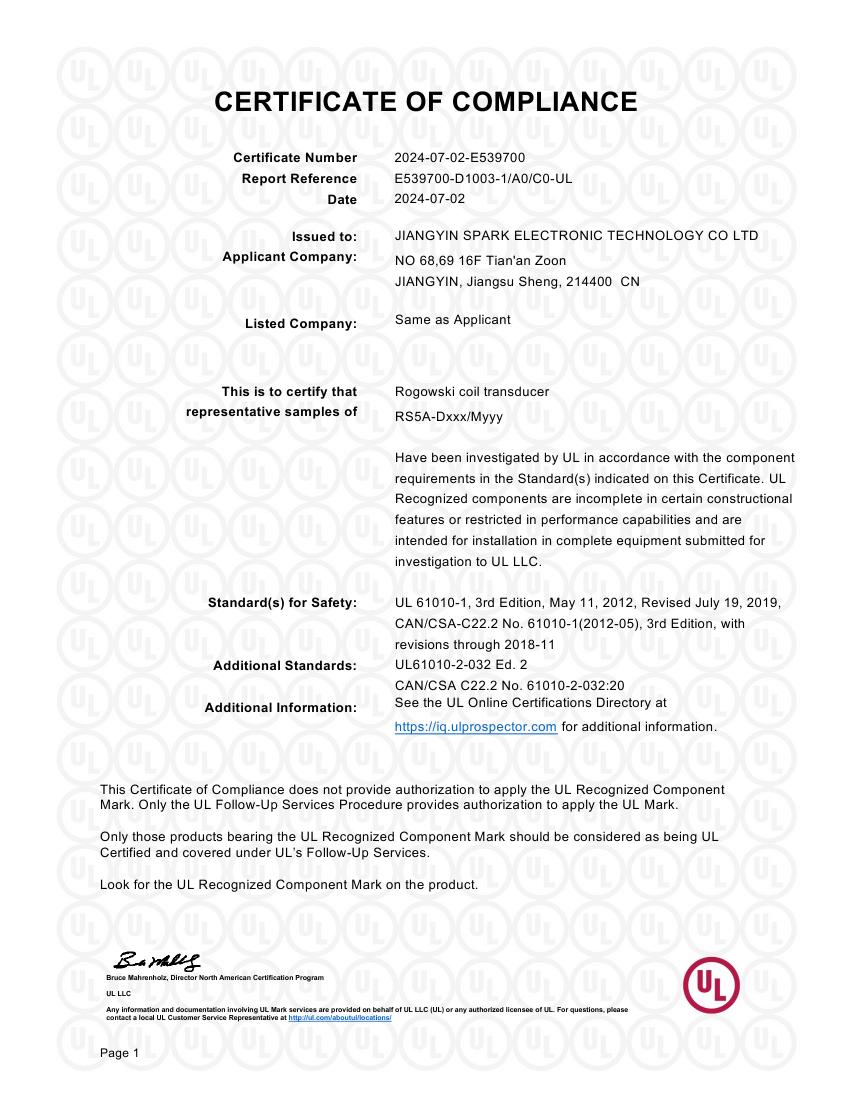

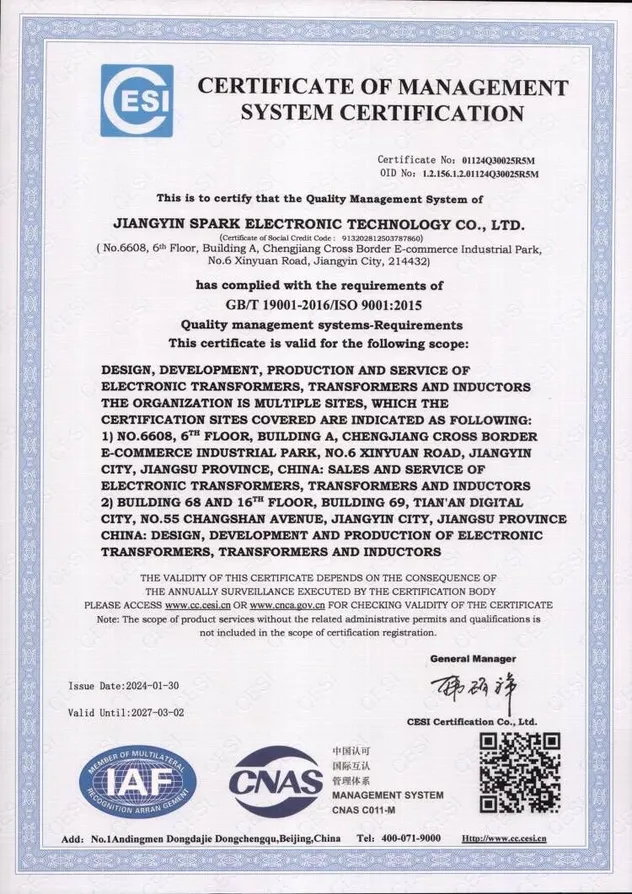

Certificates

About Our Technology

We are a professional manufacturer in China devoted to the research, design, and production of flexible Rogowski coils, split-core current transformers, solid-core current transformers, Hall effect current sensors, mini voltage transformers, and mini PCB current transformers.

We make continuous efforts to enhance our production and research development, actively working to keep up with industry trends. We persistently promote mechanization upgrades and digitalization strategies, demanding ourselves to meet the highest industry standards.

Established

1995

Employees

125

Factory Area

3000 m²

Business Type

Manufacturer

Frequently Asked Questions

What is the main advantage of a split-core current transformer?

The split-core design allows for installation without disconnecting the primary cable or interrupting the power supply, making it ideal for retrofitting and energy monitoring.

What is the accuracy class of the SCT-T16?

The SCT-T16 offers high precision with an accuracy class of 0.5% or 1%, depending on the specific requirements.

Can the secondary output be customized?

Yes, the output can be customized to various voltage levels (e.g., 0.333V, 1V, 5V) or current levels (e.g., 33.3mA) to match your monitoring equipment.

Is this product suitable for outdoor installation?

The standard SCT-T16 is designed for indoor operation conditions. For outdoor applications, please contact us for specialized weather-resistant models.

What certifications does the SCT-T16 hold?

This model is UL listed, CE marked, and fully compliant with RoHS standards, ensuring safety and quality for international markets.

What is the frequency range for this transformer?

The SCT-T16 operates effectively within a frequency range of 50Hz to 400Hz.
