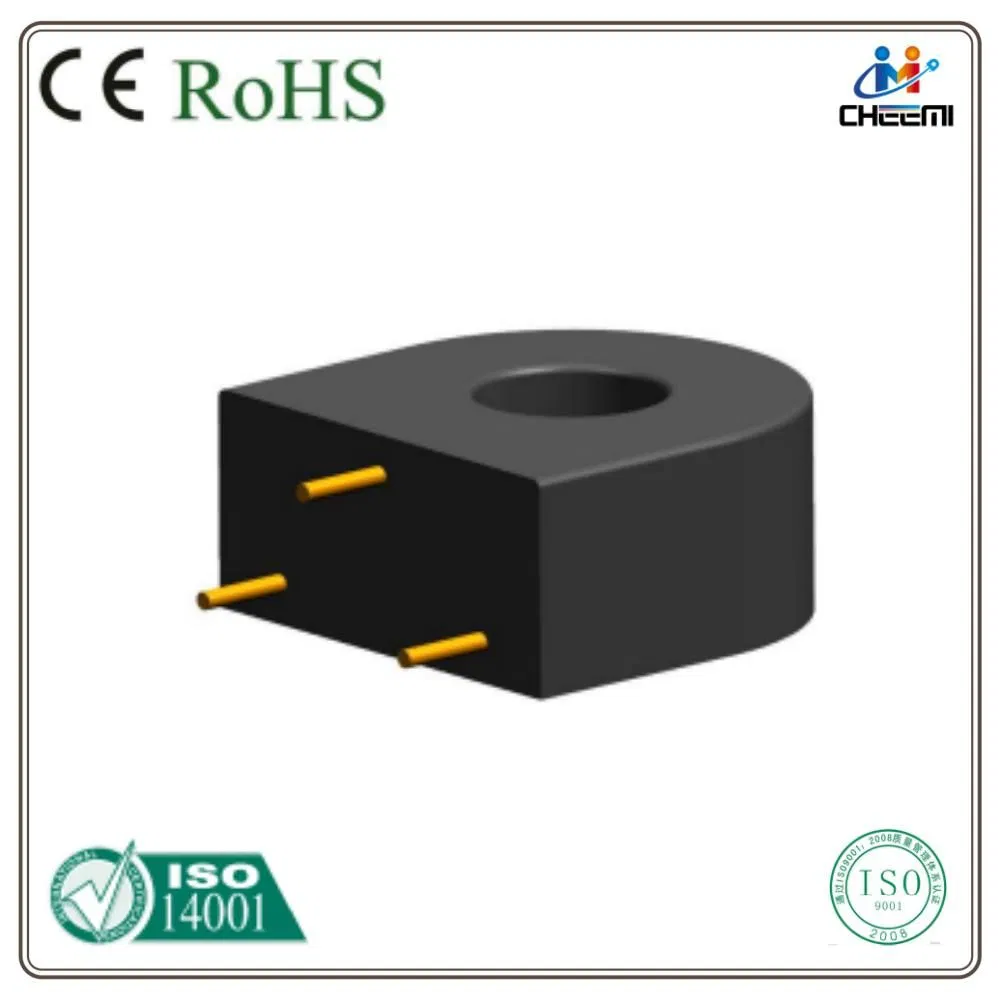

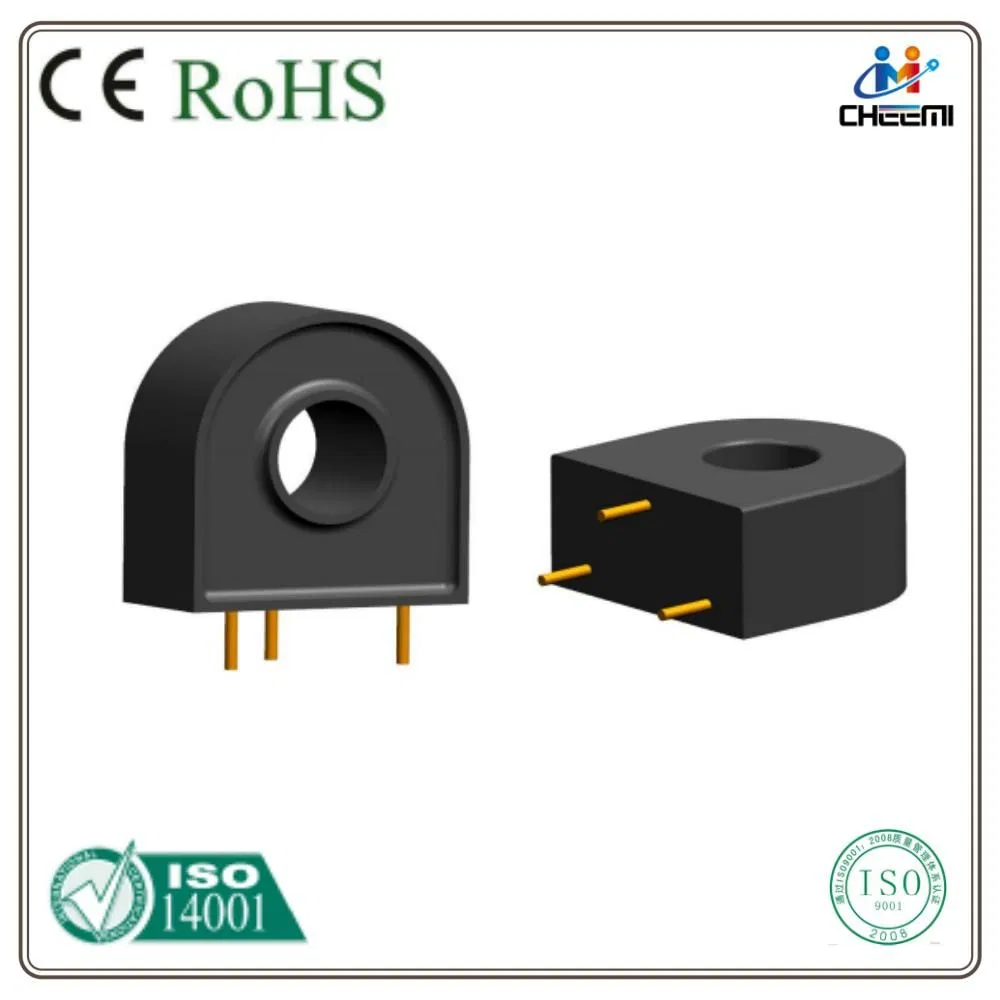

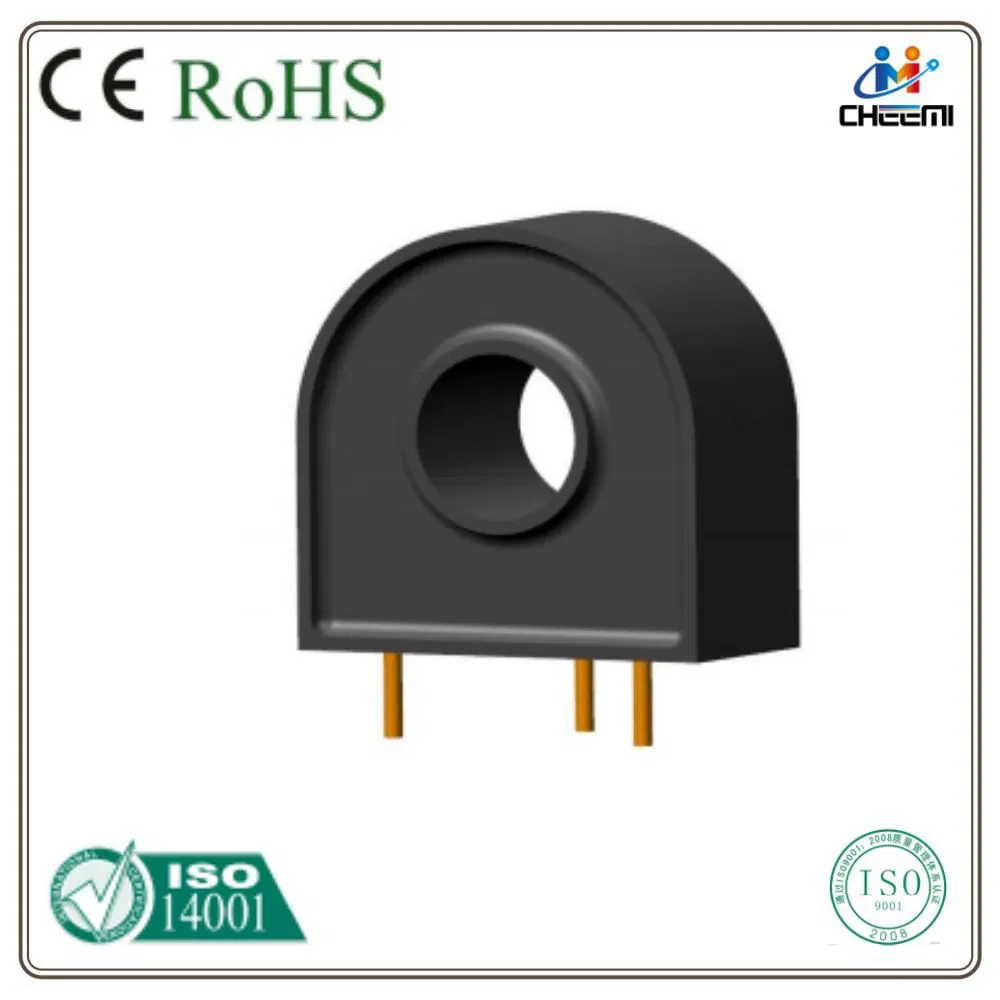

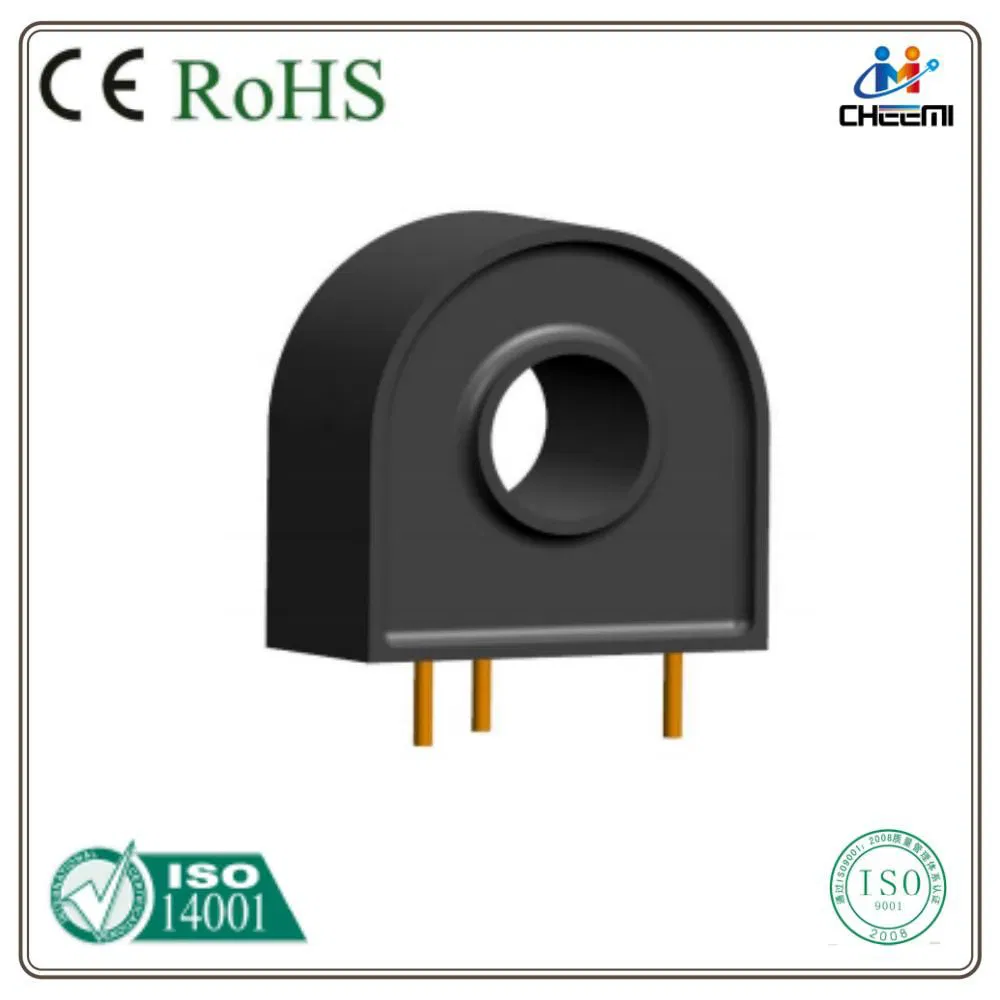

Reliable PCB Mount Current Transformer for Industrial Power Monitoring

i

Basic Specifications

Model NO.

CMCT-BH-9J5

Phase

Single

Operation Condition

Indoor

Usage

Measurement

Insulating Medium

Epoxy Resin

Installation

PCB Mounting(Pin Length>3mm)

Withstand Voltage

50Hz@RMS /1min/>3000 V

Working Frequency

45~10K Hz

Insulation Resistance

DC500V /1min/>500

Relative Humidity

≤95℃

HS Code

85043110

Production Capacity

10000PCS/Month

★

Product Features

This miniature current transformer converts primary input current into secondary milliampere current for precise sampling. Widely used in electronic energy meters, digital displays, and remote control data systems.

High magnetic permeability ultra-microcrystalline core
Working temperature: -40°C to +75°C
Pure copper enameled wire with high winding precision
Flame retardant shell (UL94V-0 compliant)
Epoxy resin potting for high pressure resistance
Excellent anti-interference ability and linearity

📊

Electrical Parameters

Project	B type 60A/60mA	C type 20A/10mA	Unit
Rated input current	60	20	A
Measuring range	1~90	1~24	A
Turn ratio (Np/Ns)	1:1000	1:2000	T
Secondary load	≤10	≤100	Ω
Ratio difference	≤+0.2	≤+0.1	%
Angle difference	≤+15	≤+10	'
Insulation & Frequency
Power frequency voltage	50Hz@rms /1min/>3000		V
Working frequency	45~10K		HZ

✔

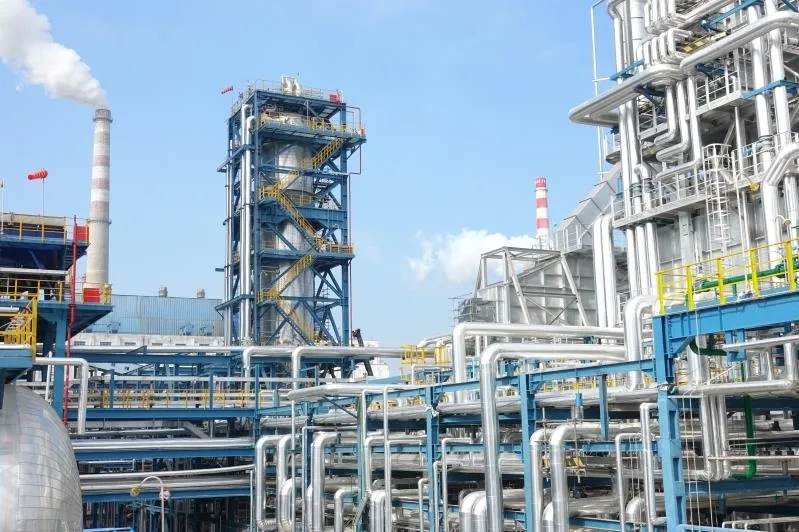

Industrial Applications

Our products are engineered for versatility across various industrial monitoring and power measurement scenarios.

⚙

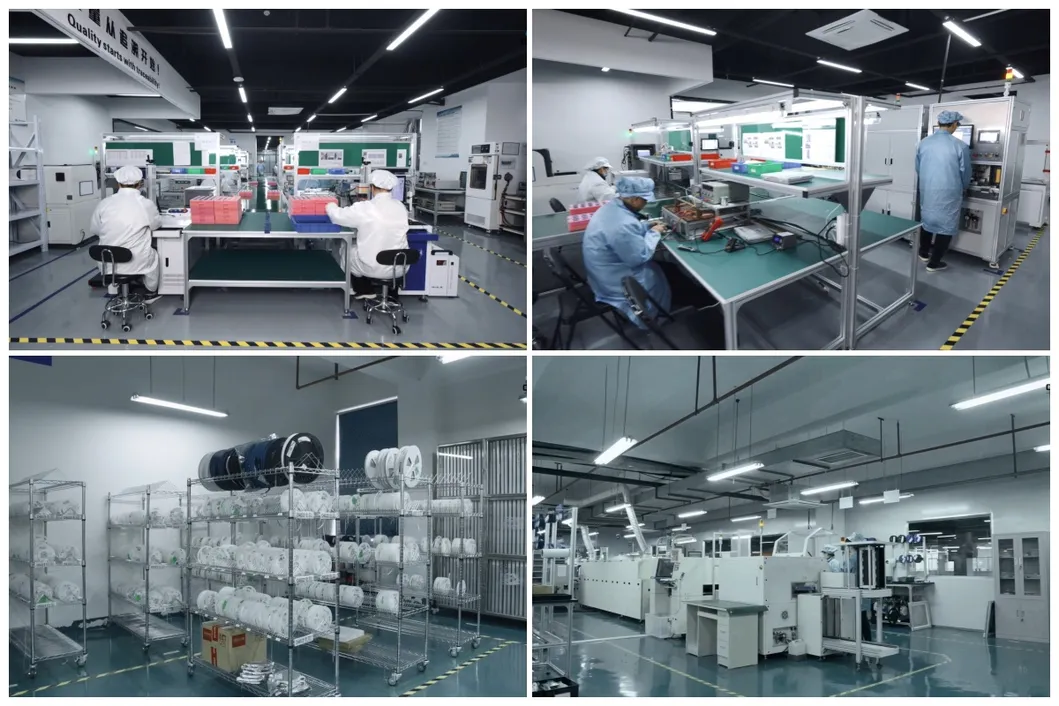

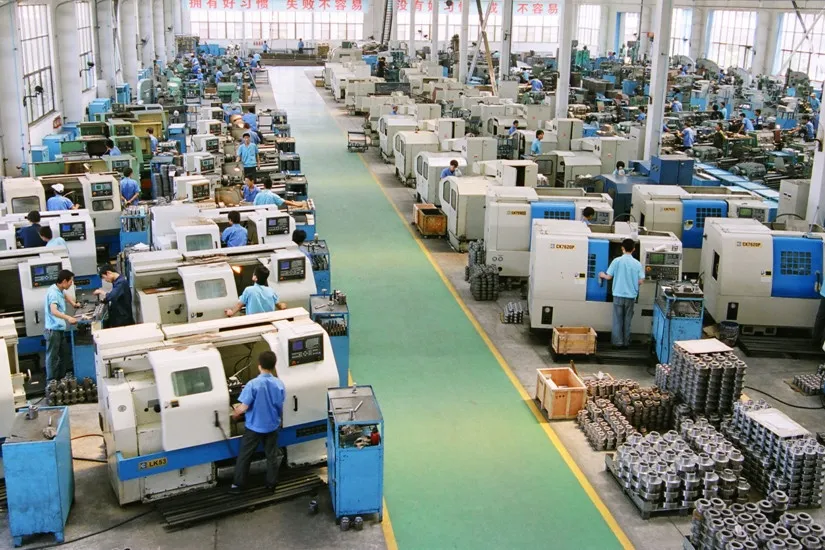

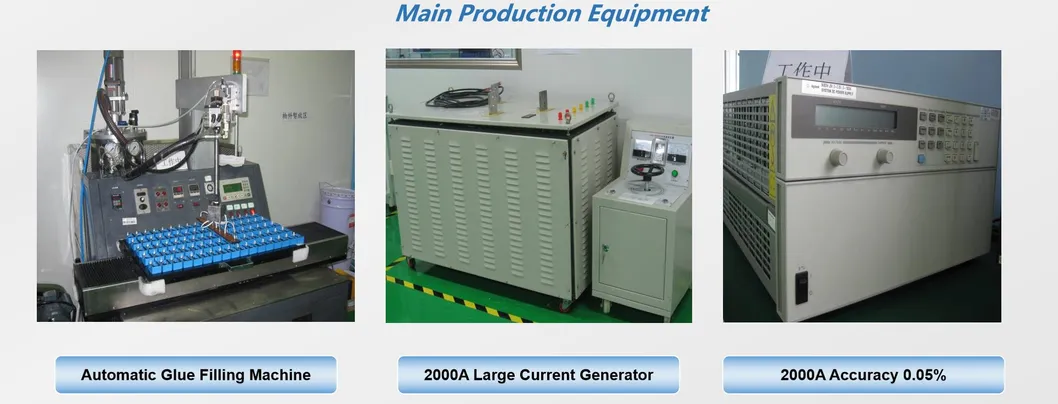

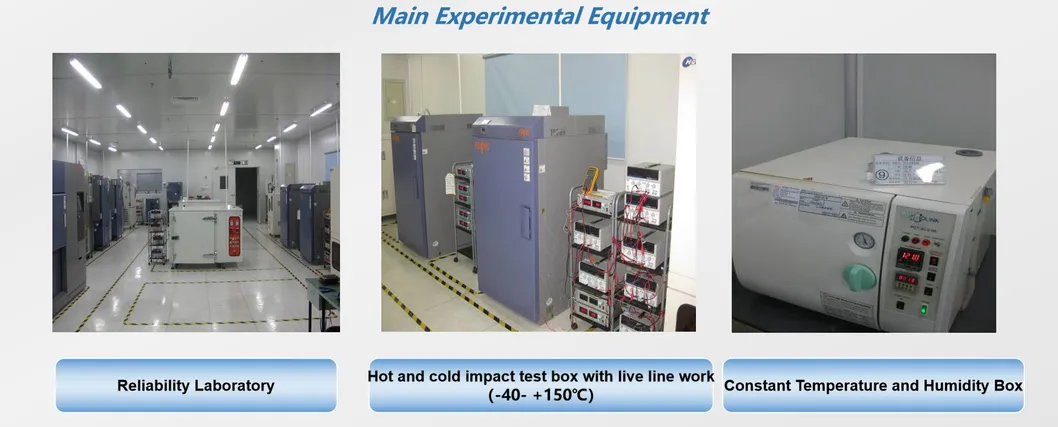

Production & Quality

📦

Packaging & Logistics

Secure Packaging: All sensors are packed with protective bubble wrap and robust cartons (Bubble packing → 4 small cartons → 1 large master carton).

Customization: Supports Screen Print or Laser Engraving labels. OEM/Neutral packing available.

Fast Shipping: Global delivery via DHL, UPS, FedEx, or TNT. Air and sea freight available for bulk orders. Lead time typically 3-7 days for standard quantities.

?

Frequently Asked Questions

Can I get a sample from you?

Yes, we can provide free samples for your testing. Please contact us to specify the product model you require.

Do you accept customization?

Yes, customization is acceptable. Please consult with our technical team regarding your specific requirements.

Can you provide technical support?

Certainly. We have over 10 years of R&D experience in the electronics industry and can assist with technical issues during your purchase or integration process.

Is there a discount for large quantities?

Yes, pricing is negotiable for high-volume orders.

What is the quality guarantee period?

Our standard warranty period is one year from the date of shipment.

Can I modify my order after it's placed?

Modifications are possible if the order has not yet entered the production line. Please notify us as soon as possible of any changes.
