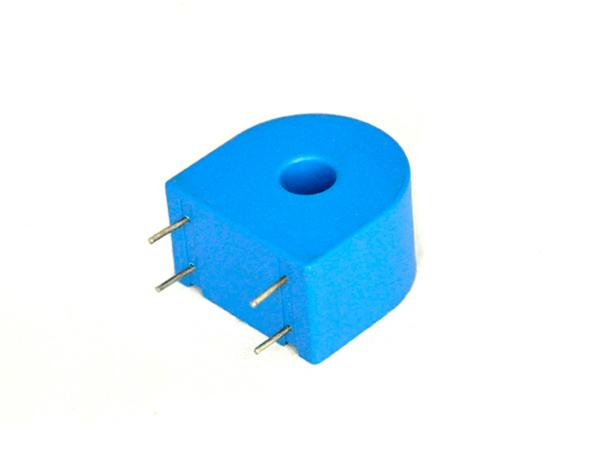

PCB Mounting Type Precision Miniature Current Transformer for Metering

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
GRT/WSD-703
Production Process
Sealed
Material
Plastic
Accuracy Grade
0.1
Application
Smart Energy Meter
Certification
RoHS
Max Current
60-120A
Primary Current
5~10A
Secondary Current
2~5mA
DC Immunity
Yes
Origin
China
Capacity
10,000,000 PCS Per Year
Product Parameters
Max. Current60~100A
Turns RatioCustomized
Primary Current5~20A
Secondary Current2~20mA
Accuracy Class0.1
Anti-magneticNo
DC immunityYes
Performance Specifications
Operating Temperature-25°C ~ +75°C
Storage Temperature-40°C ~ +85°C
Relative Humidity≤98% (25°C)
Isolation Resistance4000Vrms, 1min, No breakdown, No arcing
Load Resistance≥1000MΩ
Operating Frequency≤20Ω
Outer Case MaterialFlame retardant PBT
Environmental FeaturesROHS 2.0

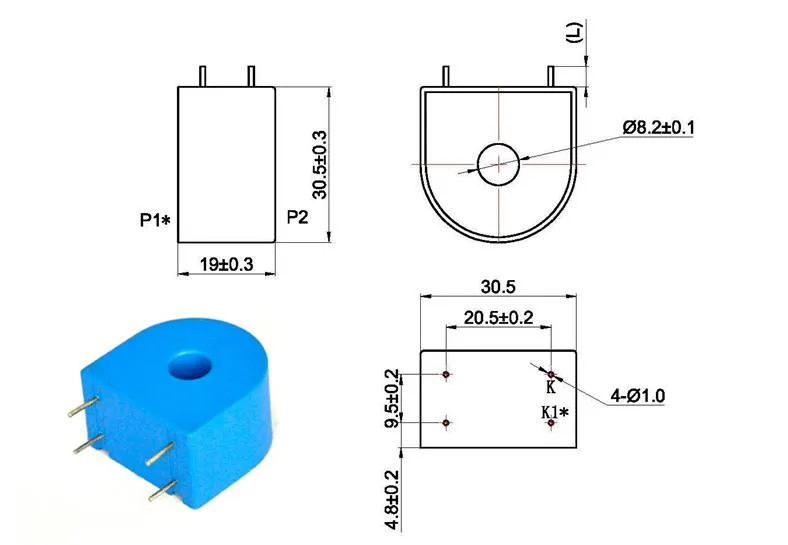

Technical Drawing
Precision Miniature Current Transformer Drawing
Our Advantages
  • National high-tech enterprise.
  • Established provincial R&D center for latching relay.
  • Main products have passed CQC, VDT, TUV, UL and RoHS etc.
  • Focusing on the R&D of latching relay and current transformer for nearly 20 years.
  • One of the drafters of industrial standard of "latching relay used in electrical energy meters".

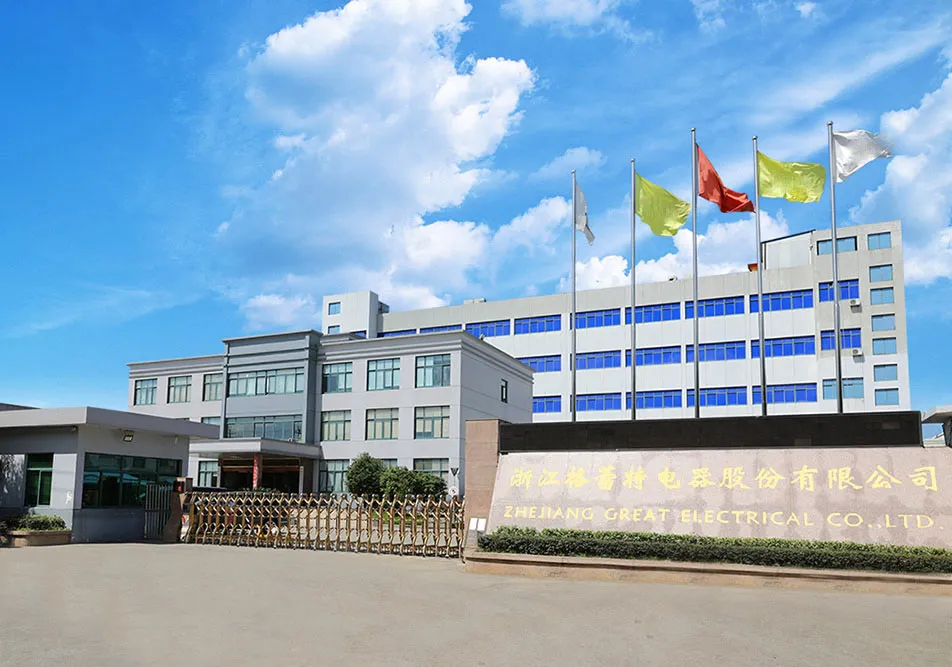

R&D Center
Trade Show & Honor
Trade Show
Honors
Certificates
Certificate 1
Certificate 2
Frequently Asked Questions
What are the application fields of your products?
Our products are mainly used in smart meter, smart home, load control, synchronous switch, leakage protection and other applications.
Can you provide custom products?
Absolutely. Since most of our products need to be customized, you can send us your drawings or requirements, and our technical staff will assist you in development.
Which countries do you export to?
At present, our products are mainly exported to Denmark, Japan, Spain, South Korea, Ukraine, Russia and other countries.
Do you have requirements for MOQ?
There is no limitation for MOQ except for special conditions of your products. Our sales team will inform you in advance if an MOQ exists.
What kind of payment methods do you accept?
We accept TT, L/C, and Western Union as payment methods.
Can you offer samples? Do we need to pay for them?
As long as there are no special requirements, we can offer 5~10pcs free samples for testing. However, the customer is responsible for the shipping costs.
