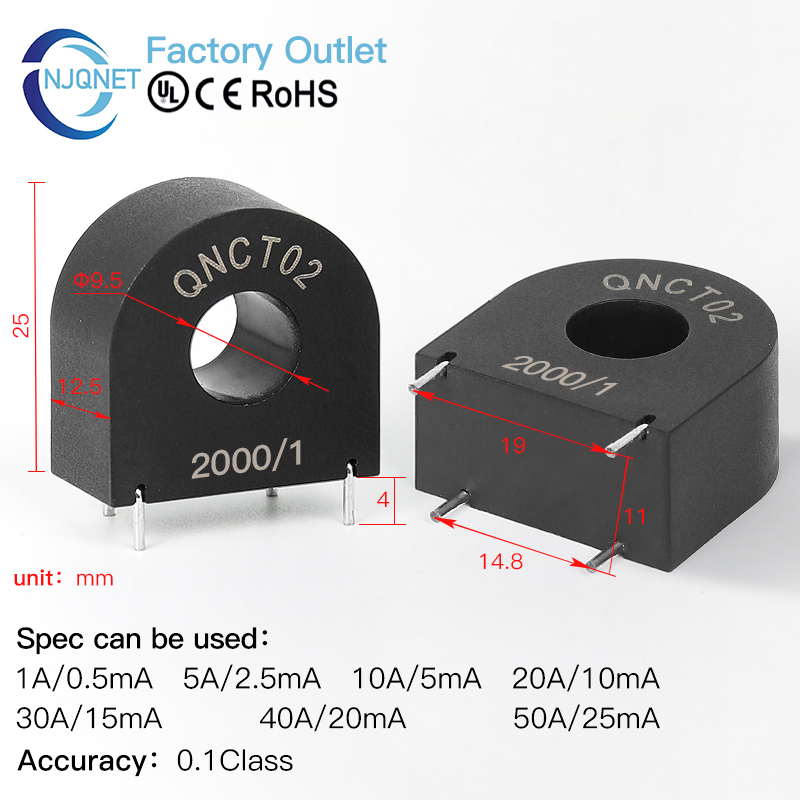

Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
1 / 5
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer
Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer

Qnct02 10A 10mA 50A 25mA 20A 20mA 1000/1 2000/1 Micro Current Sensor PCB Mount CT Miniature Precision AC Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
QNCT02
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Common Insulating Materials
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation
Electromagnetic Type
Rated Input
1A 5A 10A 20A ~ 50A
Rated Output
1mA 2.5mA, 5mA, 10mA, 25mA
Turns Ratio
1:1000 1:2000
Accuracy
0.1 Class 0.2 Class
Linearity
0.1% 0.2%
Compressive Strength
3kv/50Hz/1min
Operating Temperature
-40℃~+85℃
Flame Retardant
UL94-V0
HS Code
8504311000
📦

Packaging & Delivery

Package Size
20.00cm * 15.00cm * 4.00cm
Gross Weight
1.600kg
Lead Time
7 days (1 - 1000 Pcs), Negotiable (> 1000 Pcs)
🛠️

Product Description

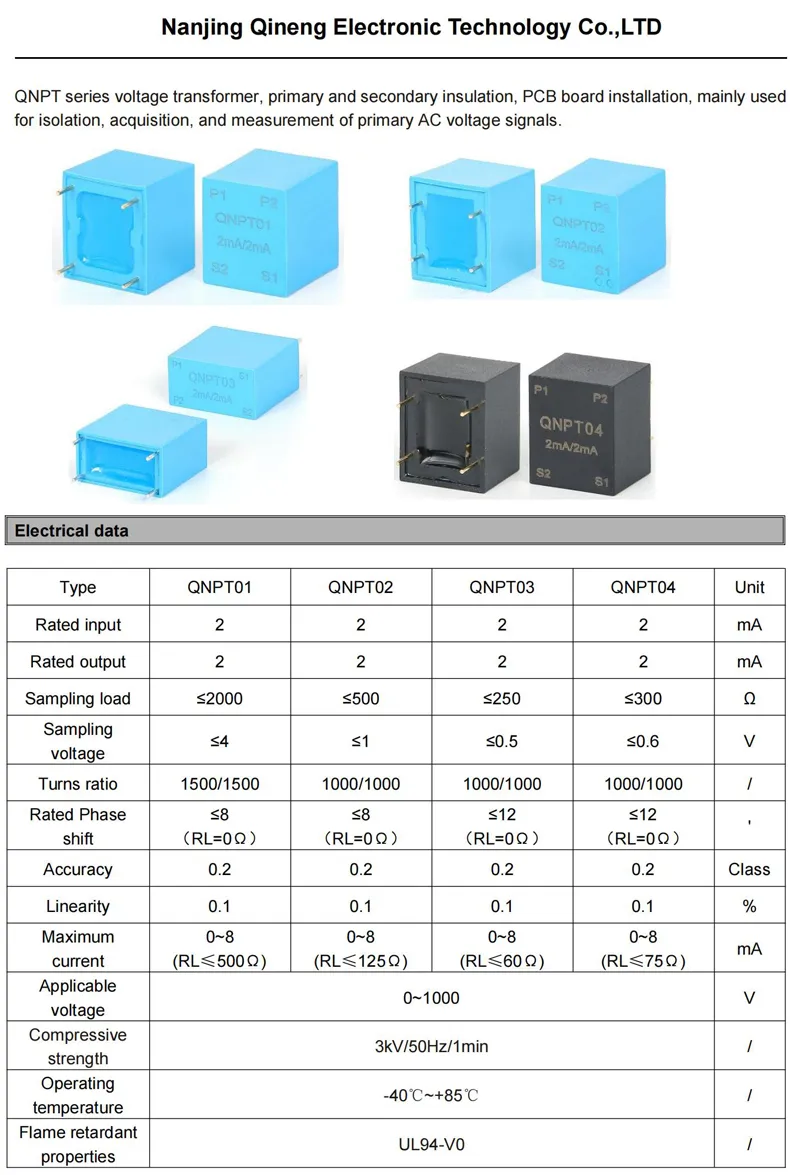

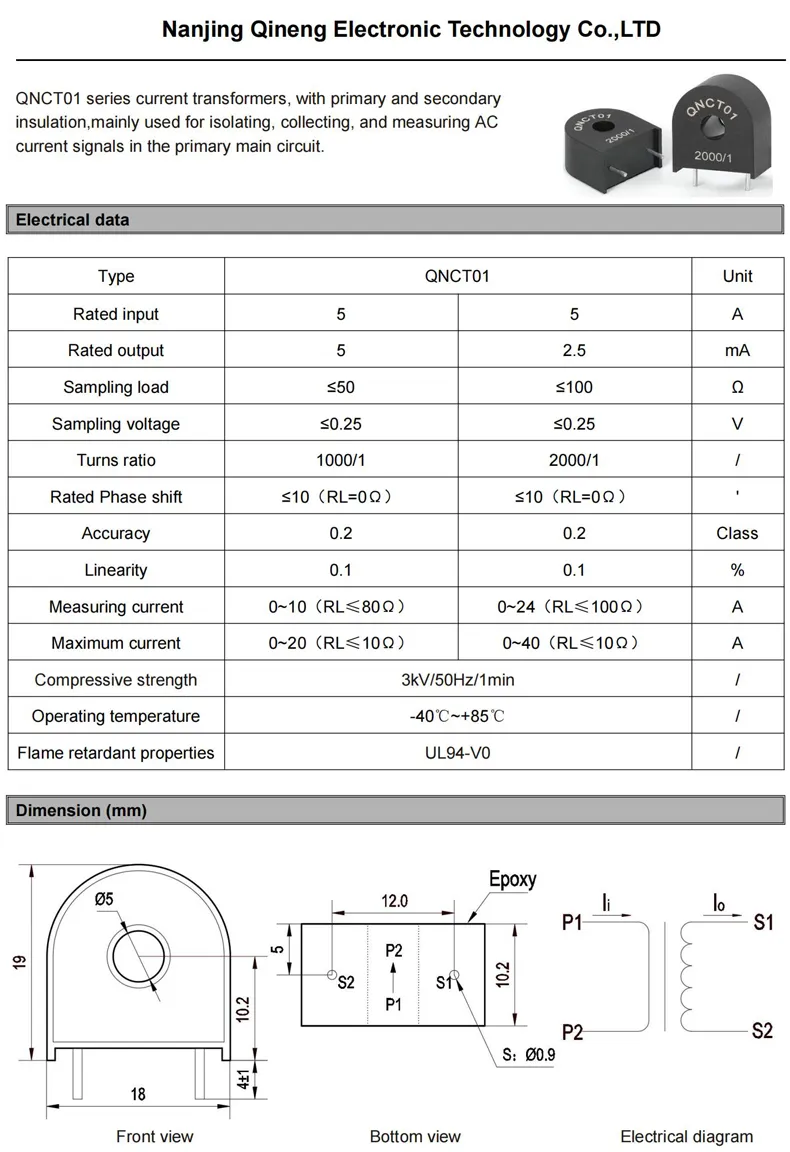

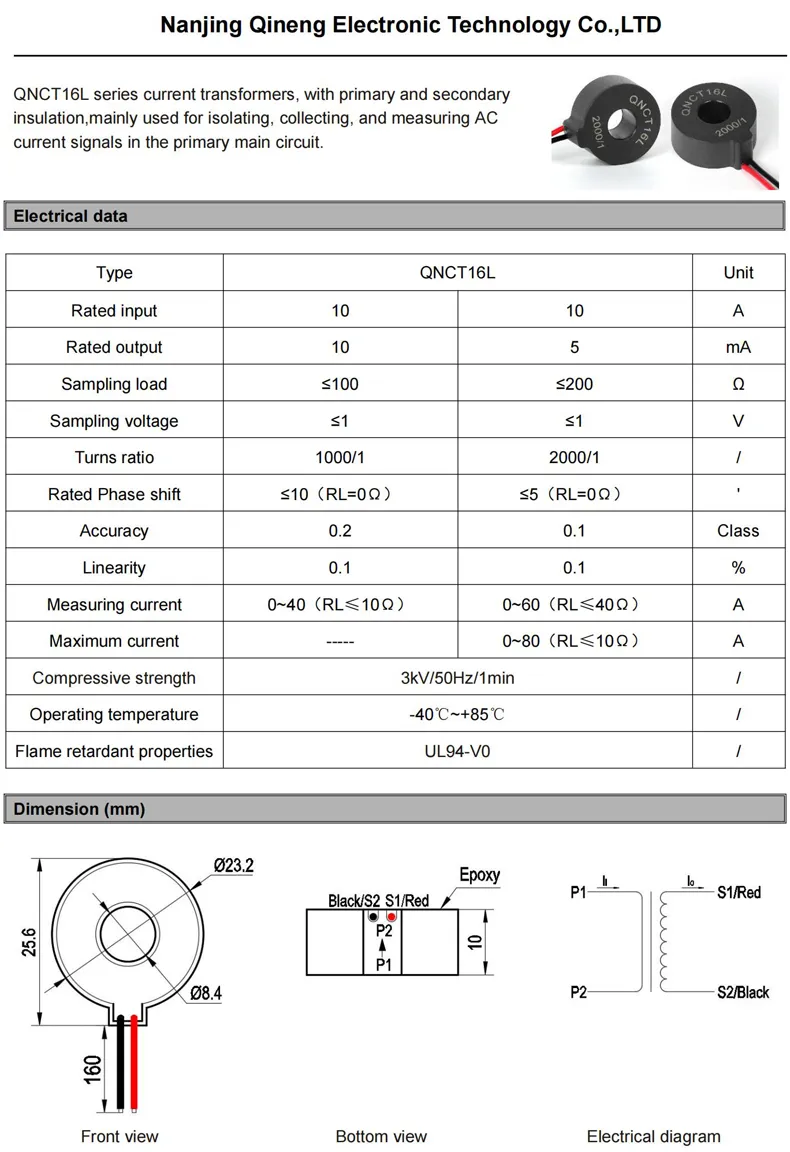

Current transformers with primary and secondary insulation are mainly used for isolating, collecting, and measuring AC current signals in the primary main circuit. The QNPT series voltage transformer features PCB board installation for primary AC voltage signal acquisition. Split core current transformers apply the principle of electromagnetic induction to measure AC signal current under electrical isolation conditions.

🔥 Flame Retardant
UL94-V0 Standard
⚡ High Strength
2kV/50Hz/1min
🌡️ Wide Range
-40℃ to +85℃

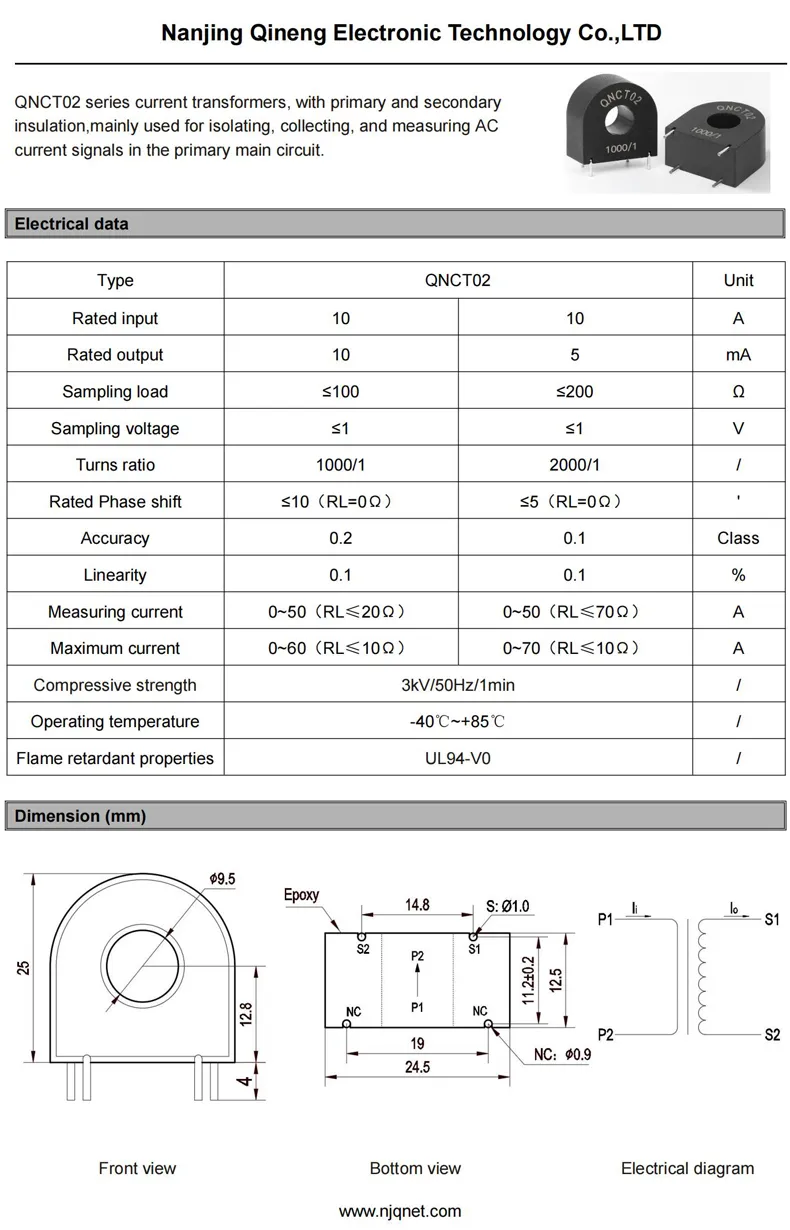

Current Sensor PCB Mount
Micro Current Sensor
Precision AC Current Transformer
Miniature Current Transformer
PCB Mount CT
Micro Current Transformer

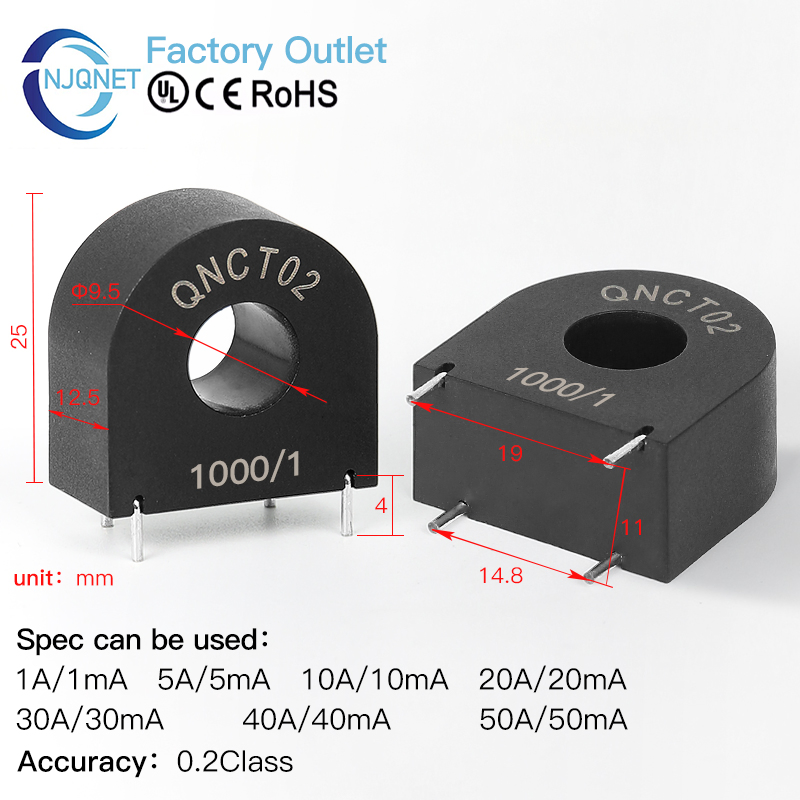

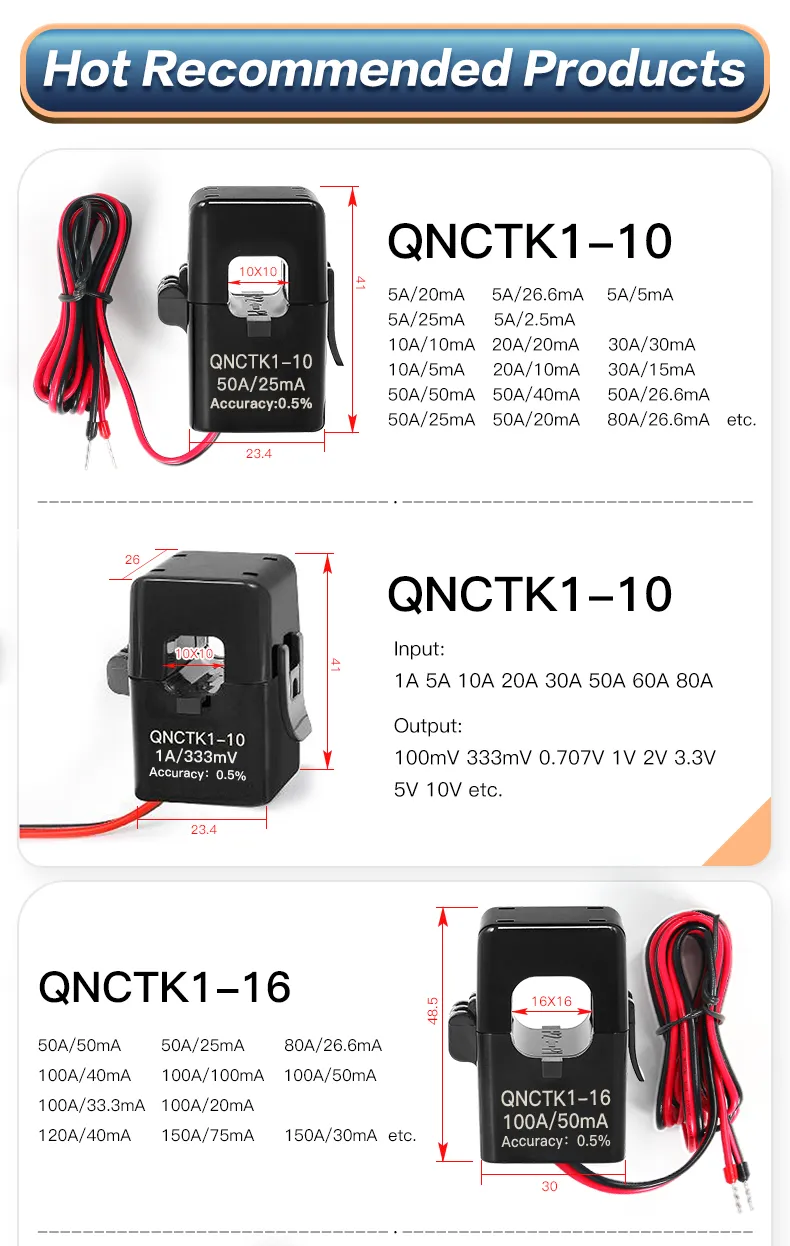

Technical Drawing

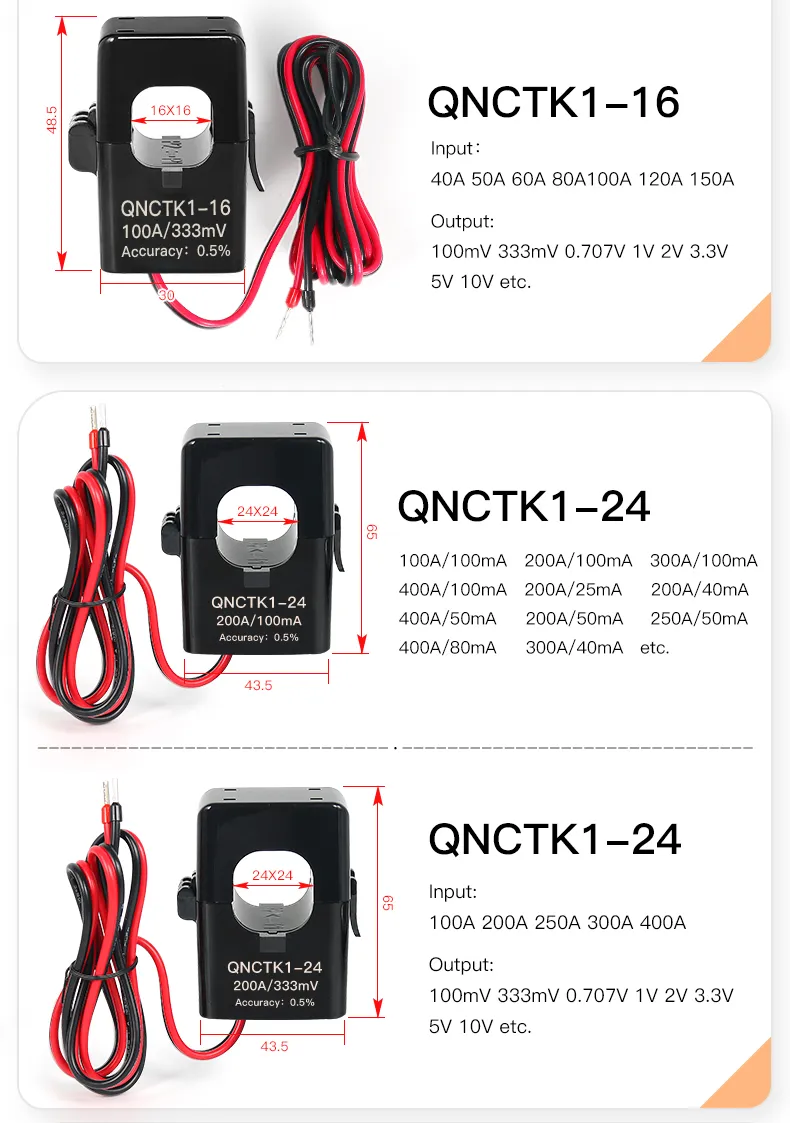

Specifications Table

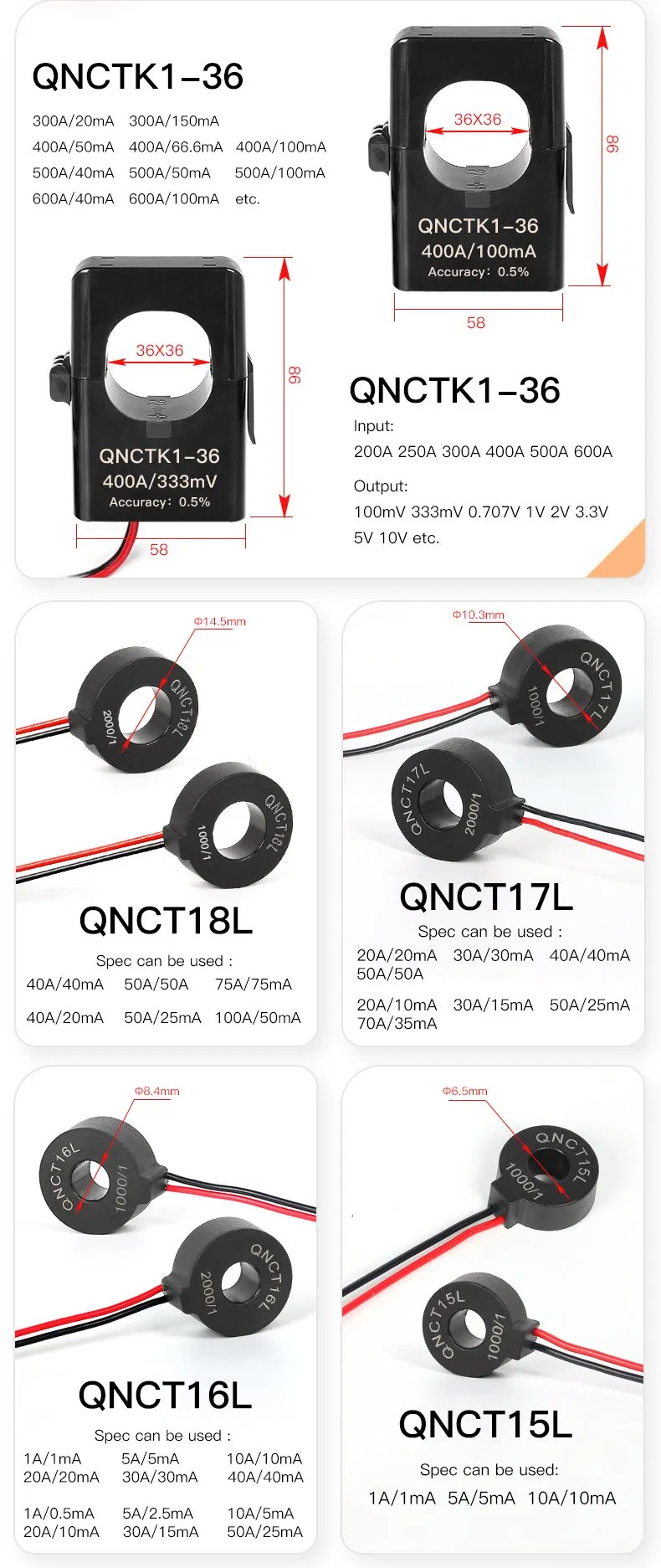

Current Transformer Details

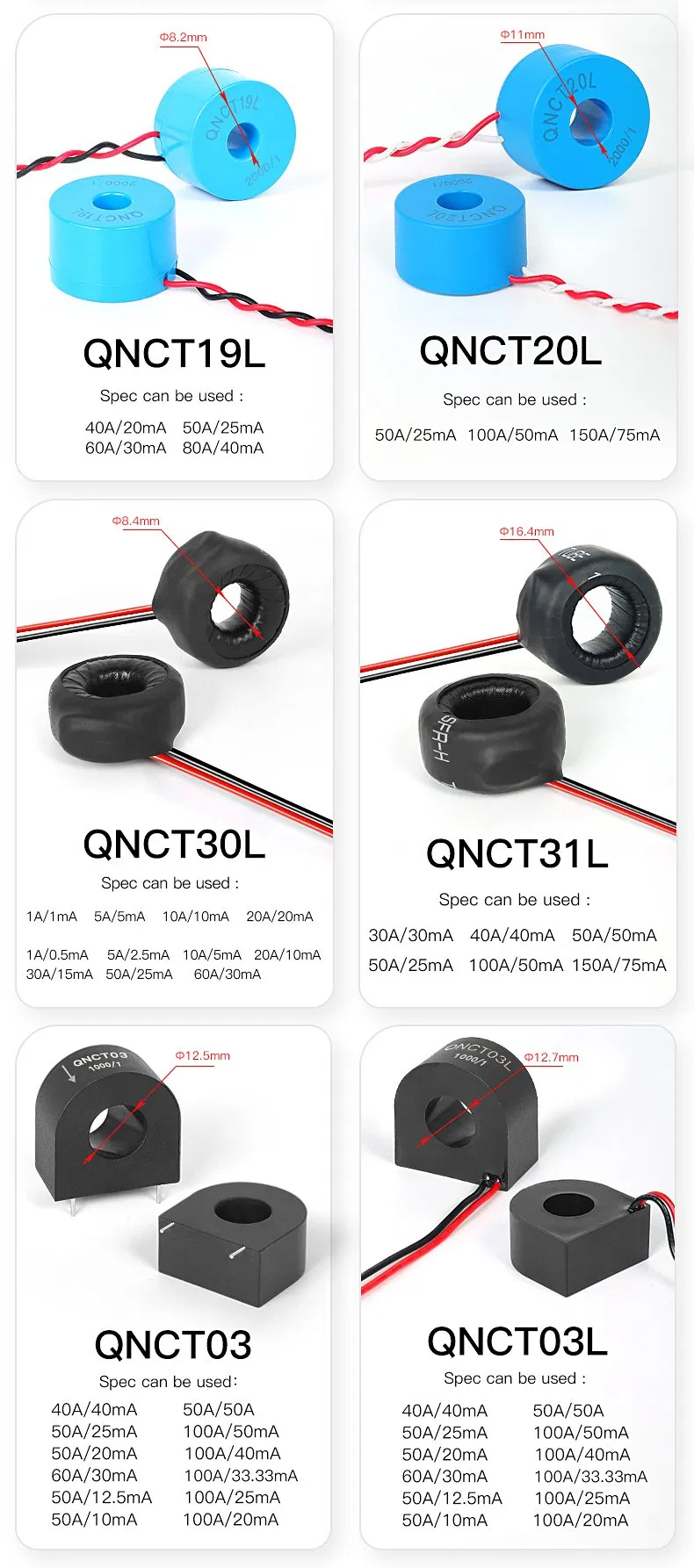

Mounting Details

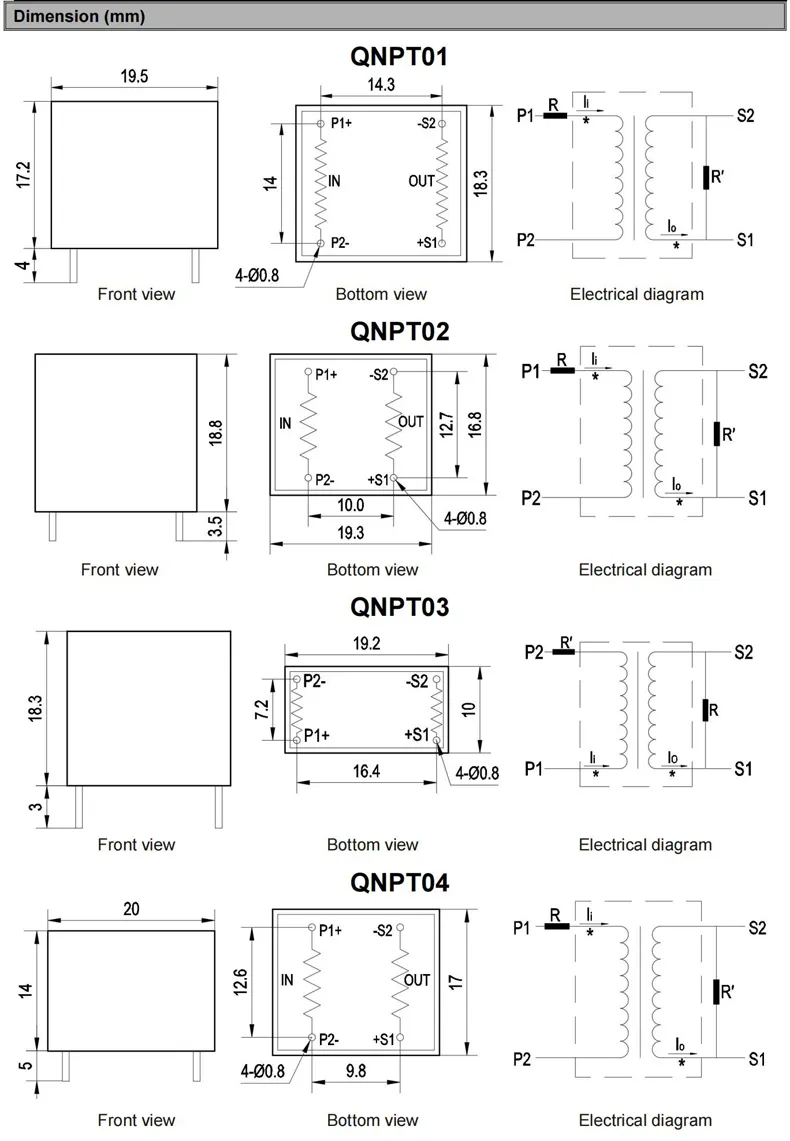

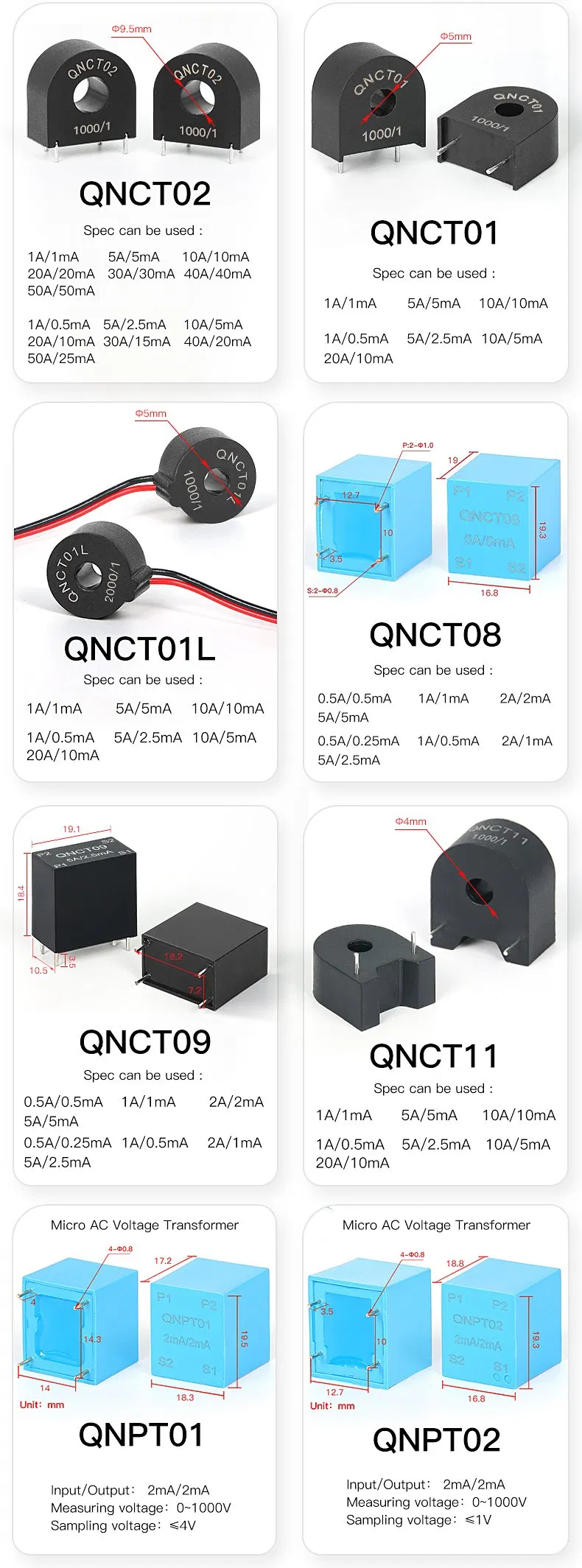

Sensor Dimensions

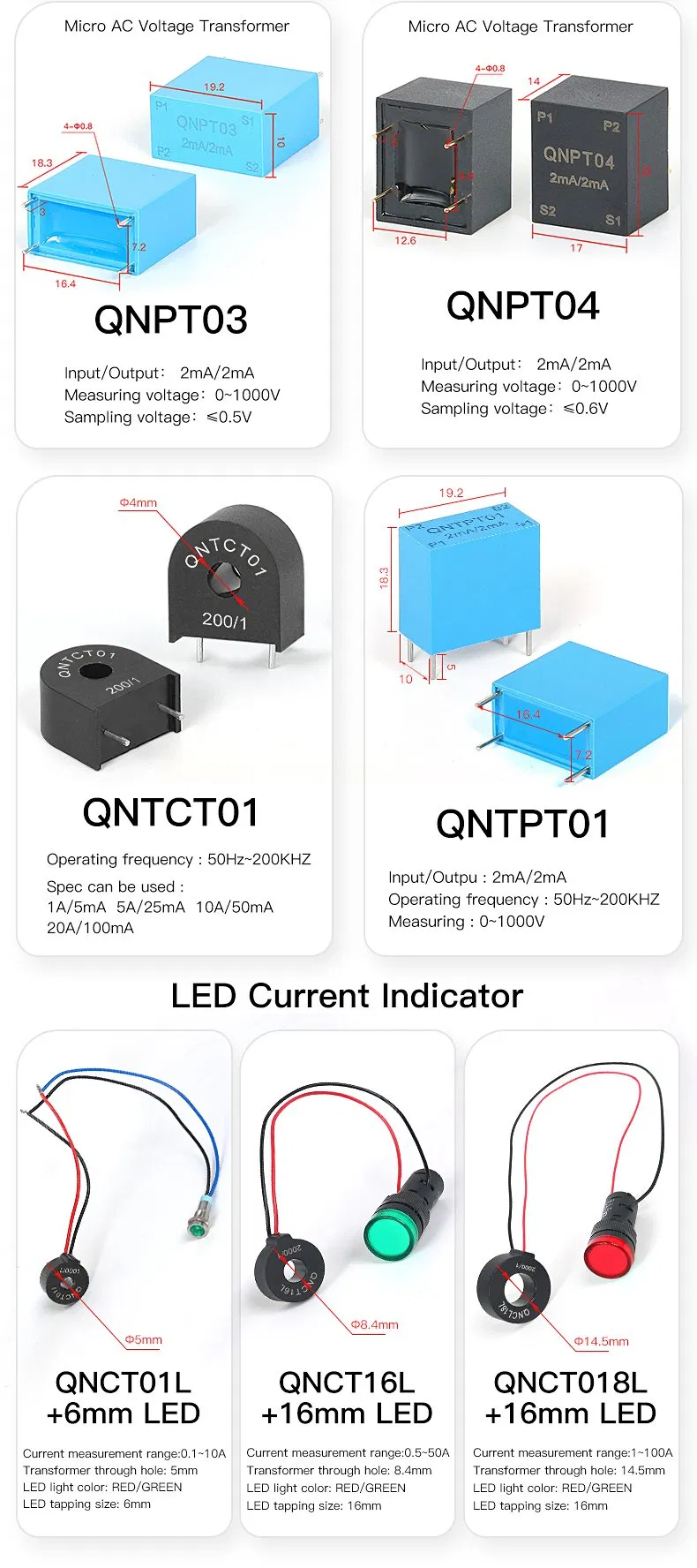

Wiring Diagram

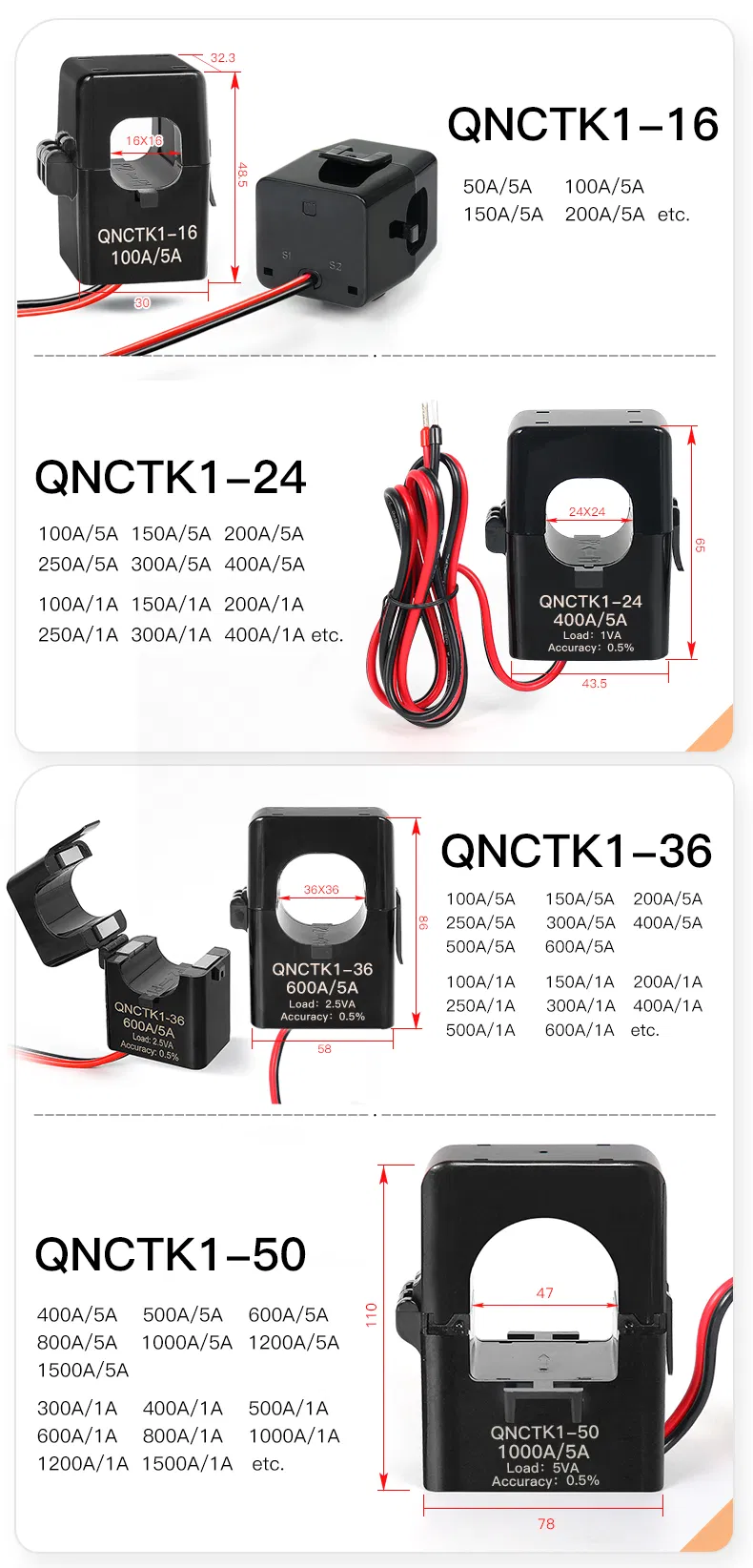

Frequency Response

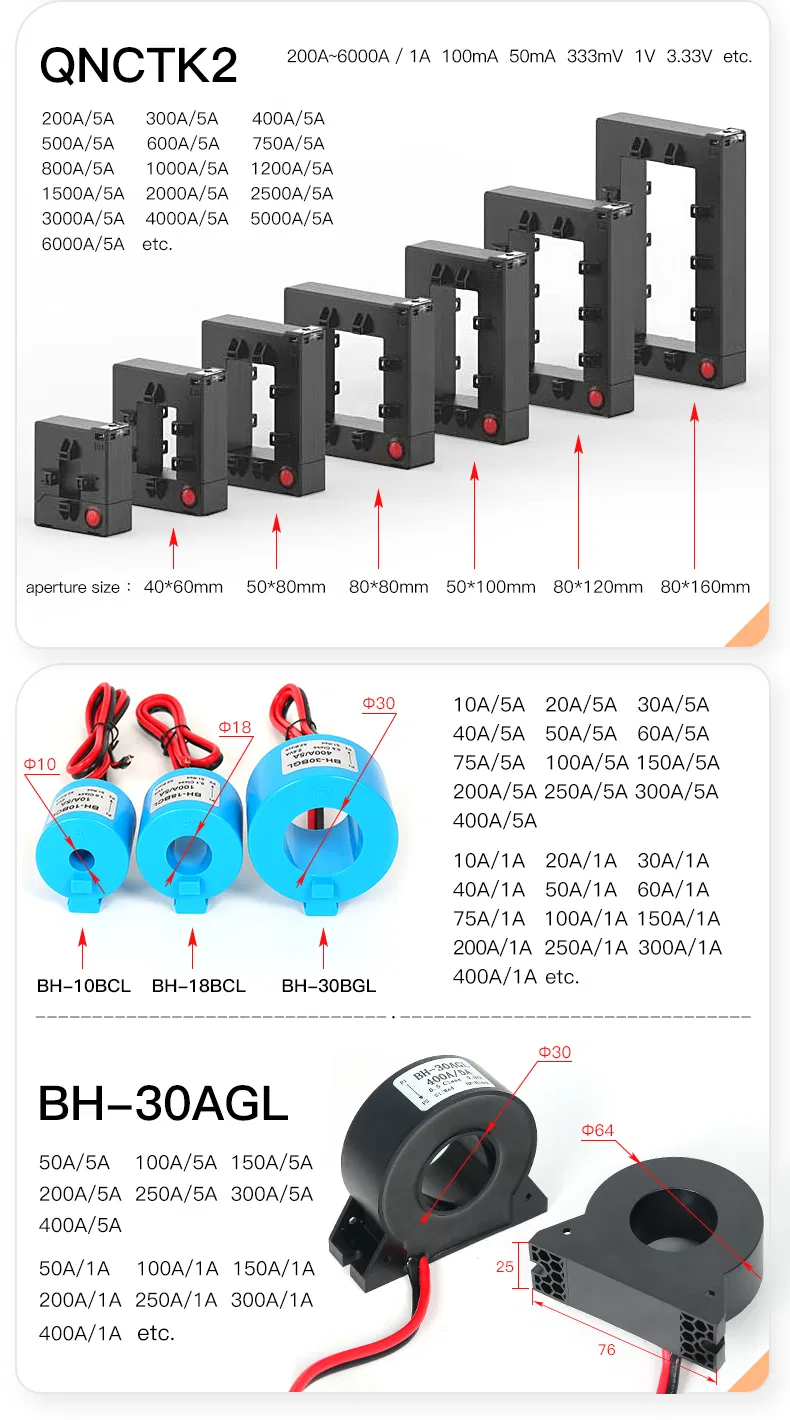

Application Scenario
🏢

Company Profile

Factory Overview
❓

Frequently Asked Questions

Why choose us?
We are professional current transformer and current sensor manufacturers with more than 10 years of experience.
Could I have a sample for testing?
Sure, we can offer free samples, but the shipping expense needs to be covered by the customer.
How about your products' quality inspection?
We have professional QA and QC teams. 100% quality inspection is performed before packing.
How long is your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific time depends on items and quantity.
Do you provide OEM/ODM services?
Yes, we provide both OEM and ODM services and can print your own brand on the products.
What is your after-sale service policy?
We provide a 1-year warranty for every product, along with 24/7 technical support and free spare parts for replacement within the warranty period.
