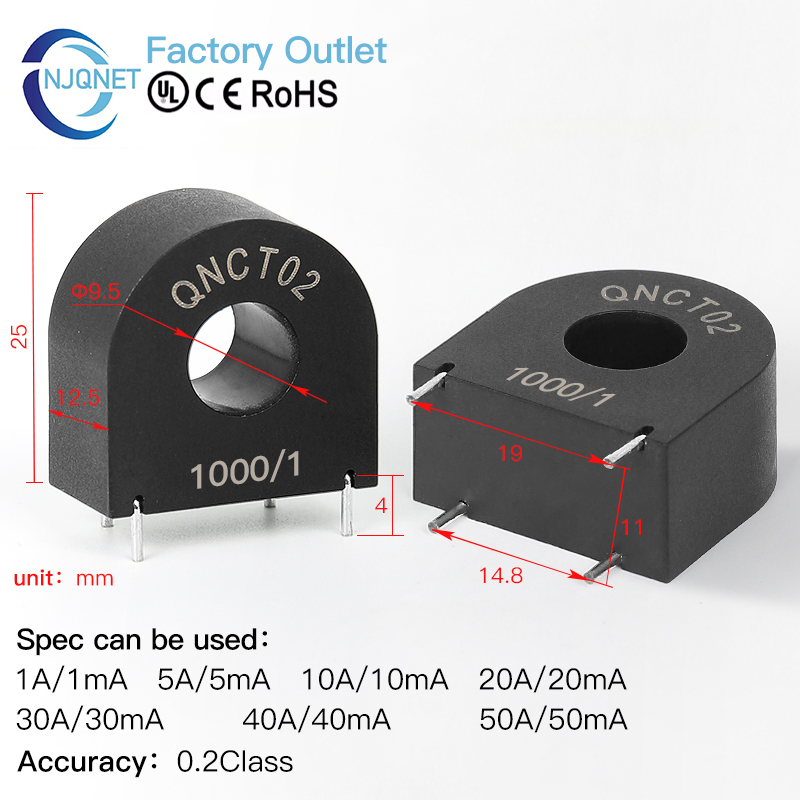

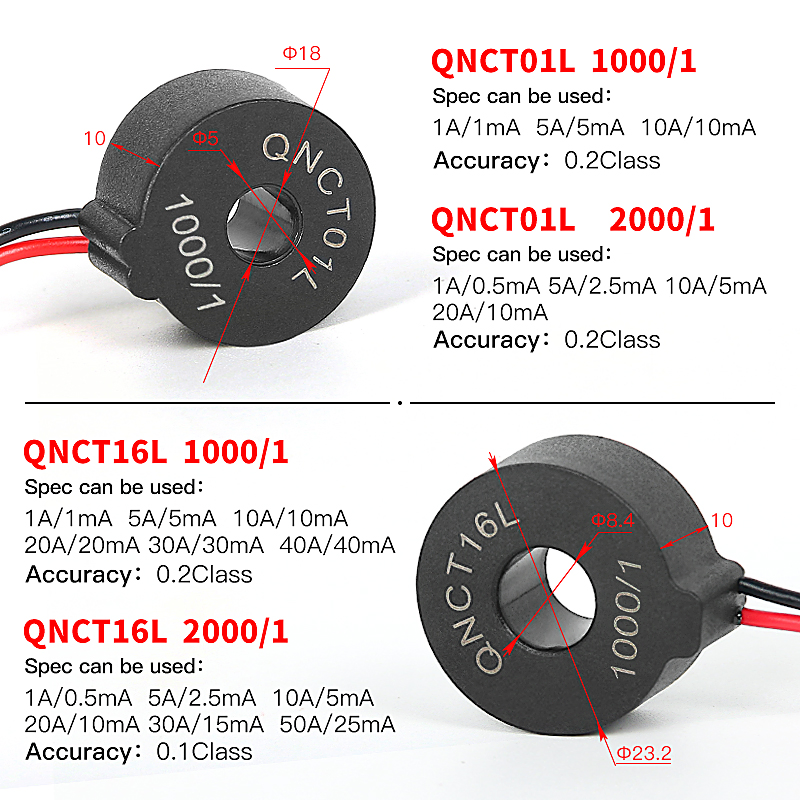

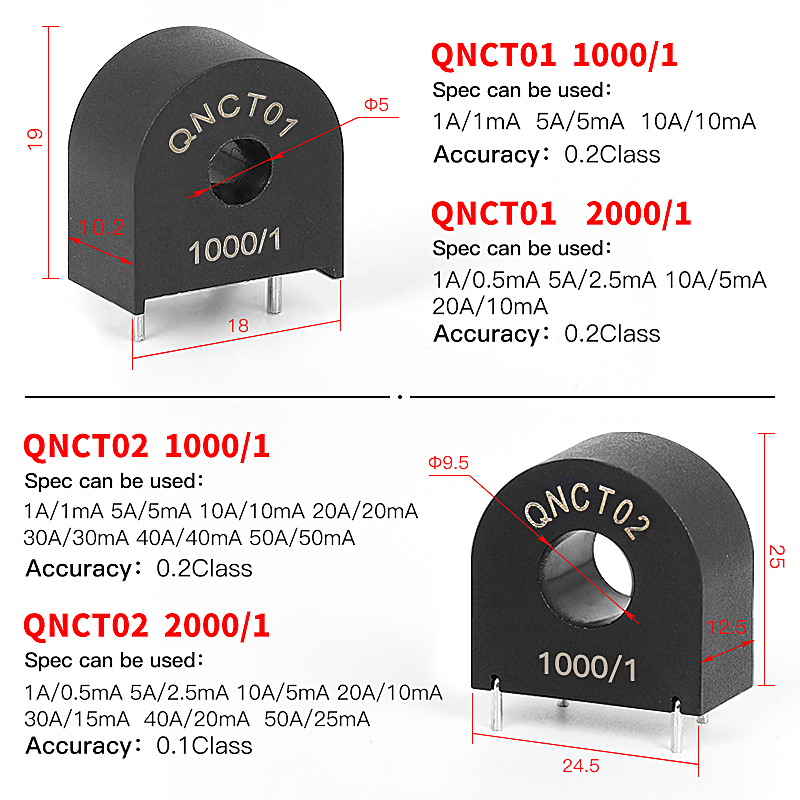

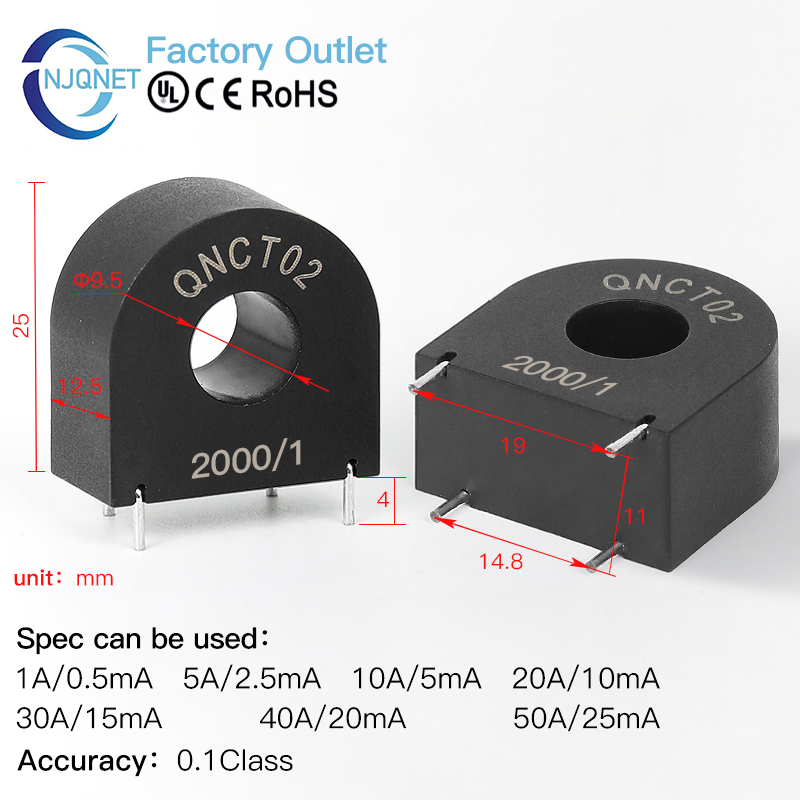

Qnct02 10A 5mA 50A/25mA 20A 10mA 40A 20mA 100A PCB Mount CT Miniature Precision AC Current Transformer Micro Current Transducer

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Specifications

Model NO.
QNCT02
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Common Insulating Materials
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation
Electromagnetic Type
Rated Input
1A 5A 10A 20A ~ 50A
Rated Output
1mA 2.5mA, 5mA, 10mA, 25mA
Turns Ratio
1:1000 1:2000
Accuracy
0.1 Class 0.2 Class
Linearity
0.1% 0.2%
Compressive Strength
3kv/50Hz/1min
Operating Temp
-40℃~+85℃
Flame Retardant
UL94-V0
Origin
China
📦

Packaging & Delivery

Package Size
20.00cm * 15.00cm * 4.00cm
Gross Weight
1.600kg
Lead Time
7 days (1 - 1000 Pieces)
🔍

Product Description

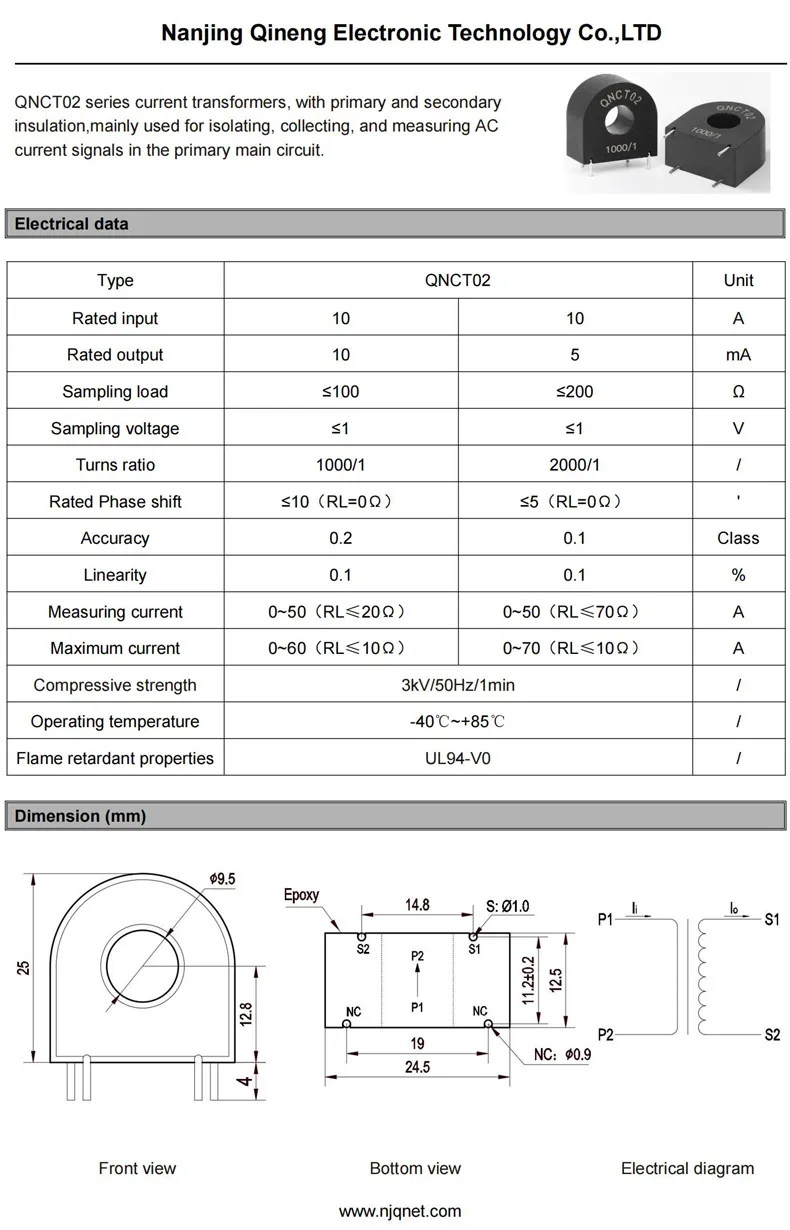

Current transformers with primary and secondary insulation, mainly used for isolating, collecting, and measuring AC current signals in the primary main circuit. Features include PCB board installation, flame retardant properties (UL94-V0), and high compressive strength (2kV/50Hz/1min). Ideal for power project renovation, power monitoring, and load current detection.
🏢

Production Capability

Frequently Asked Questions

Why choose us?
We are professional current transformer and current sensor manufacturers with over 10 years of industry experience.
Could I have a sample for testing?
Sure, we can offer free samples, but the shipping expense needs to be covered by the customer.
How about your products' quality inspection?
We have professional QA and QC teams. 100% quality inspection is performed before packing to ensure high standards.
How long is your delivery time?
Generally, it takes 30 to 60 days after receiving advance payment. Specific time depends on items and order quantity.
Do you provide OEM/ODM services?
Yes, we provide both OEM and ODM services. We can print your brand on the products and customize designs.
What is the after-sale service for your products?
We provide a 1-year warranty for every product. Our customer service team offers 24/7 technical support and troubleshooting.
