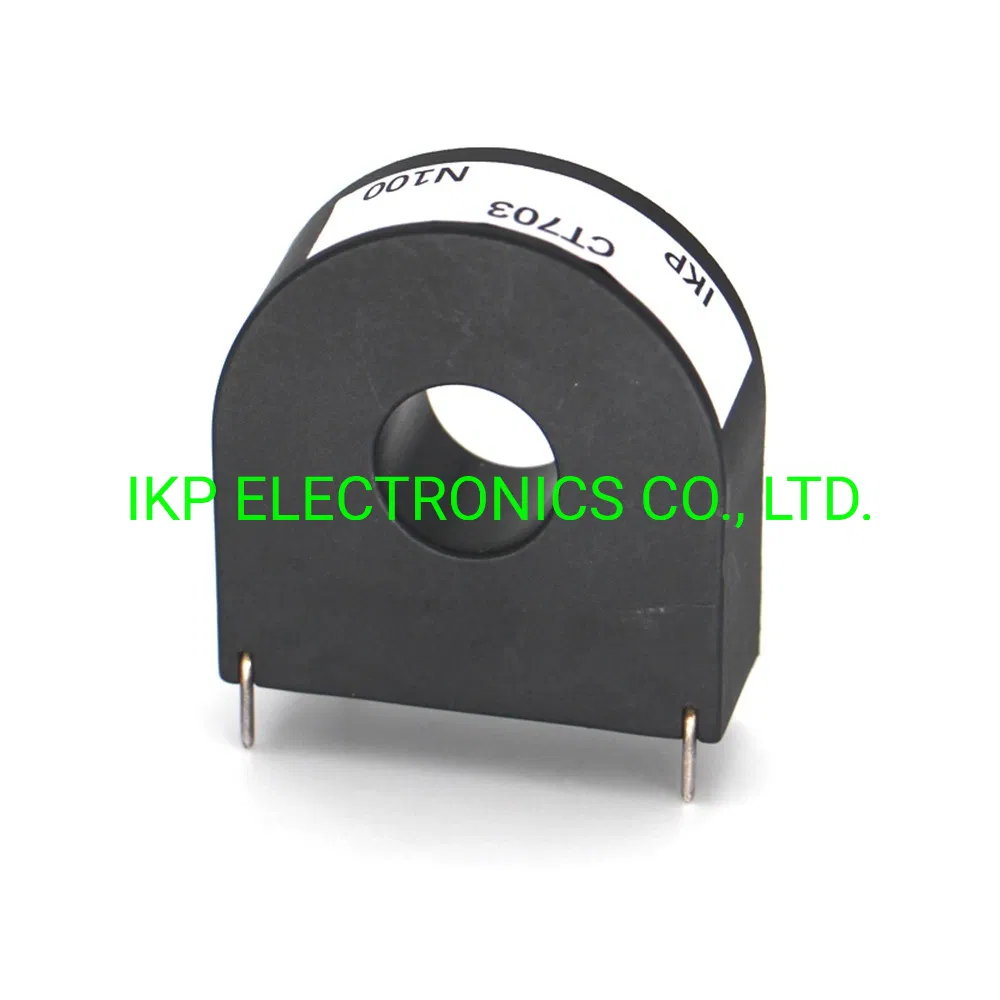

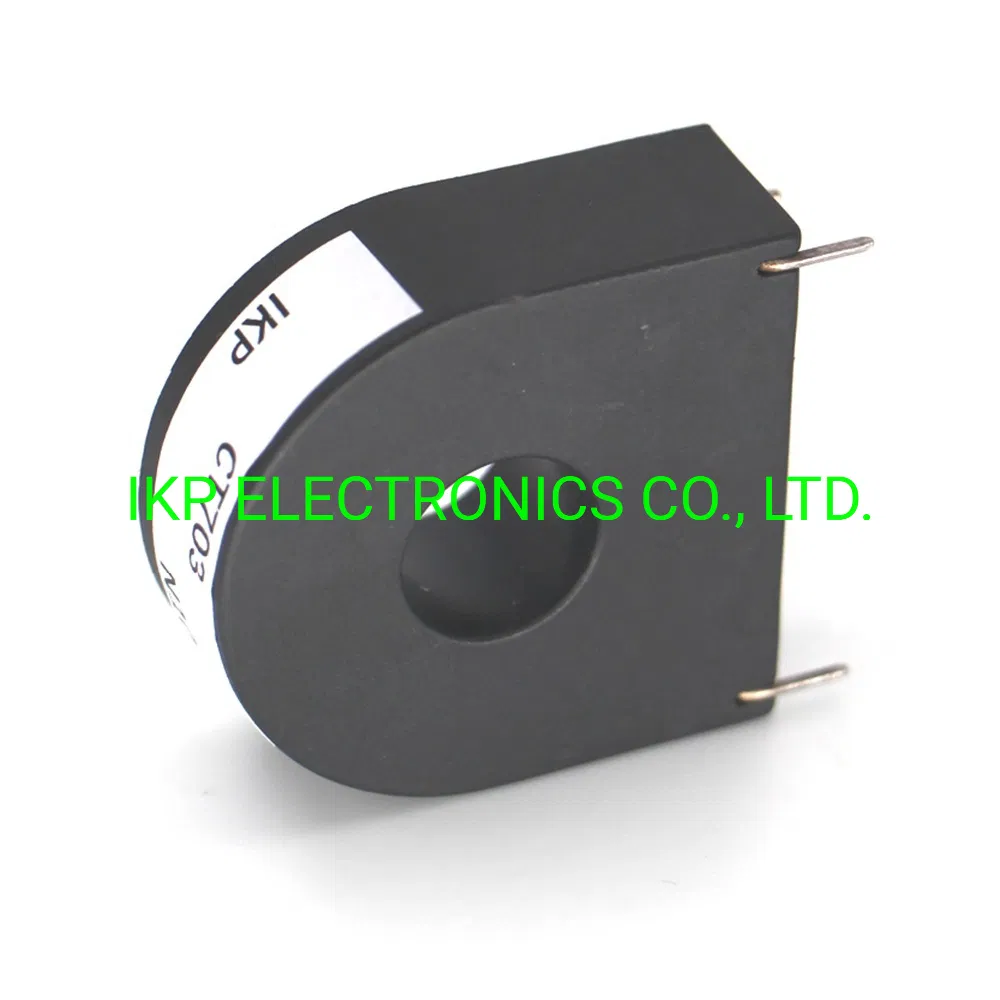

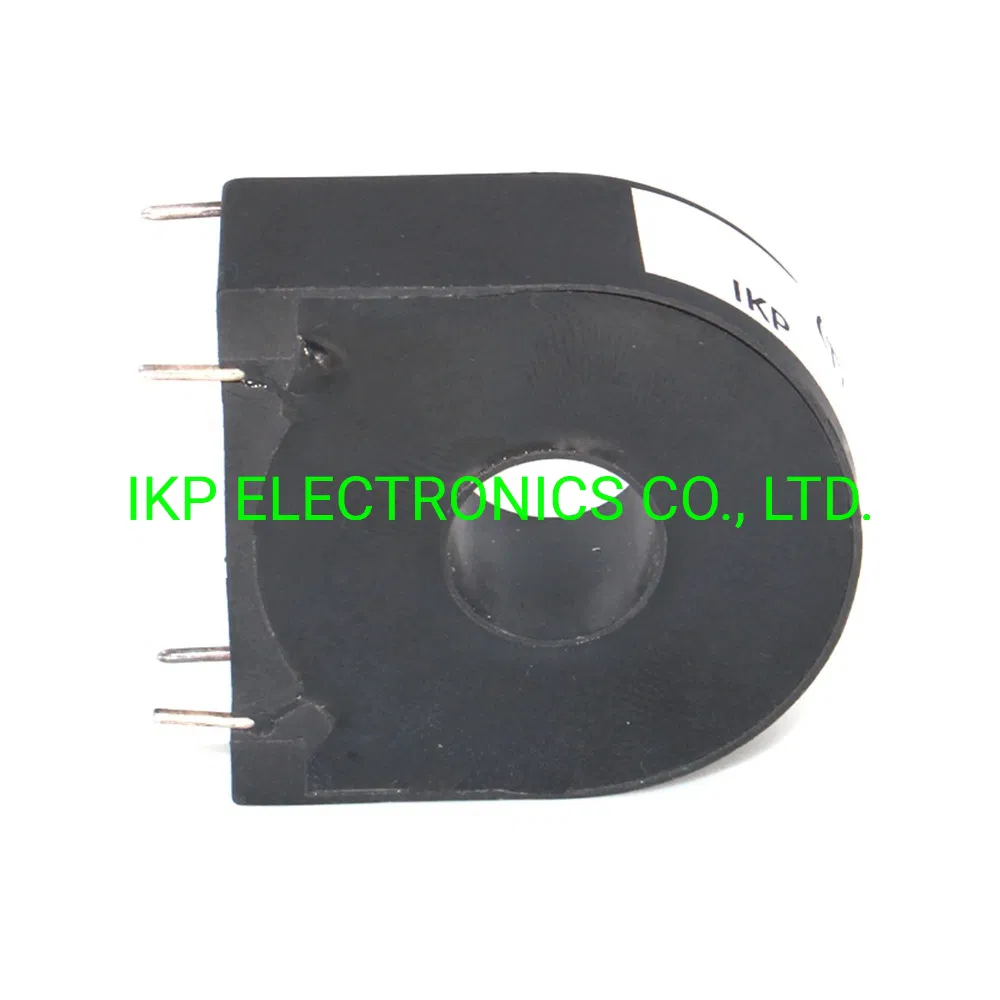

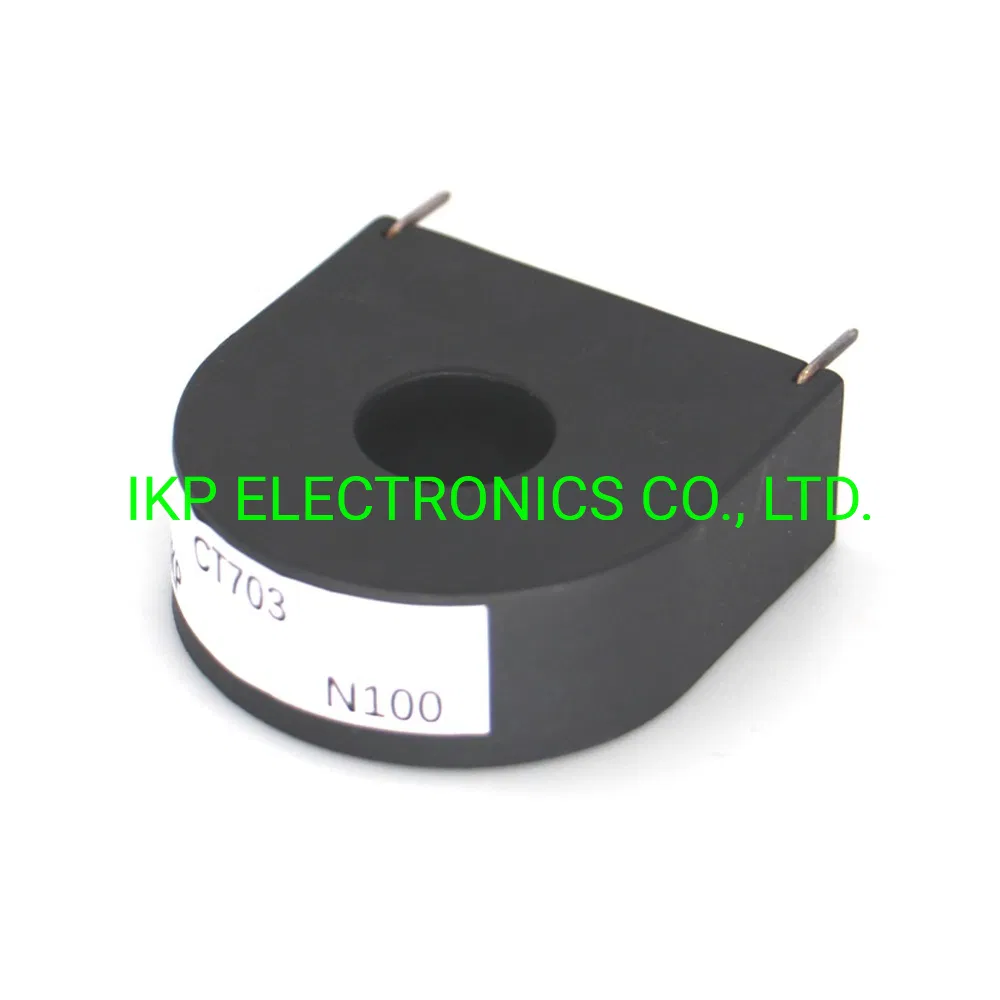

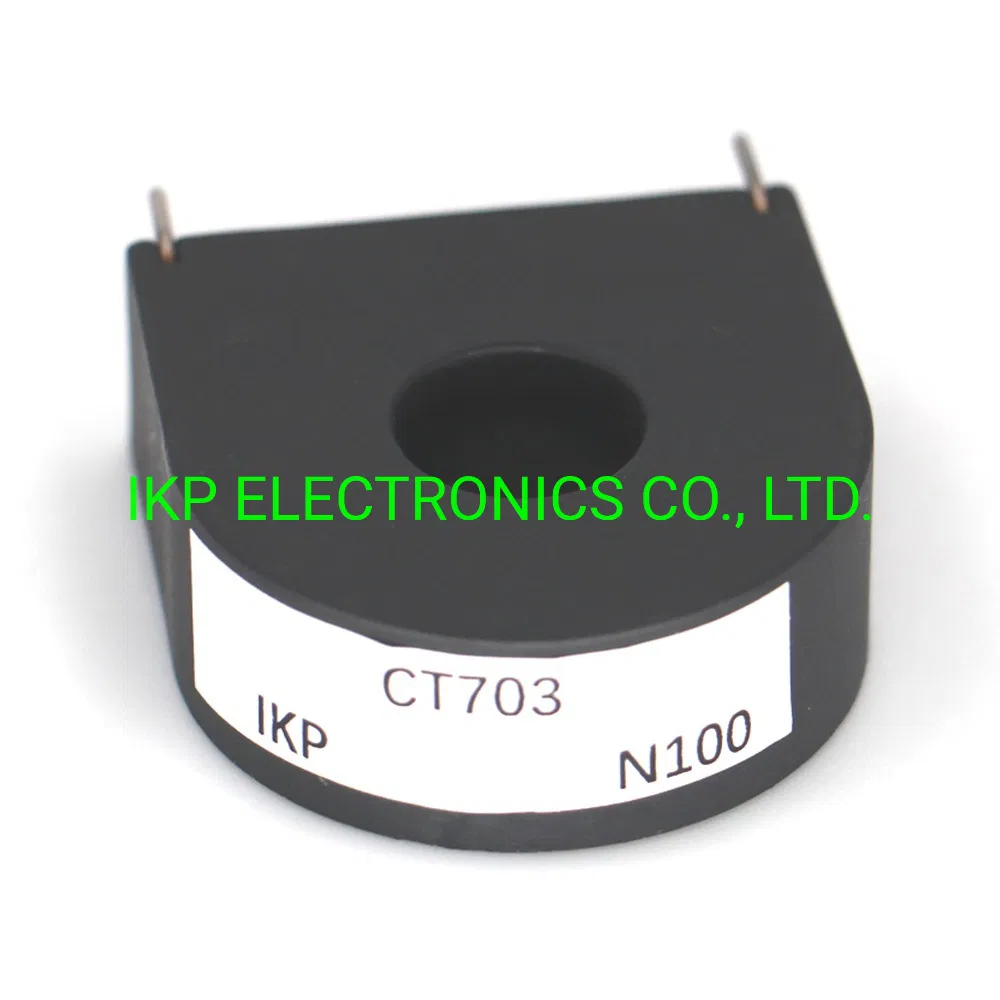

PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
1 / 5
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)
PCB Mounting Micro Electrical Precision Current Transformer (PCT703)

PCB Mounting Micro Electrical Precision Current Transformer (PCT703)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
IKP-PCT703
Production Process
Injection
Material
Metal
Accuracy Grade
0.1G
Application
Measuring Meters
IP Rating
IP20
Customized
Customized
Transport Package
CTN
Specification
CT703-1
Origin
China
HS Code
85045000
Production Capacity
80,000,000 pieces/Year
Product Overview

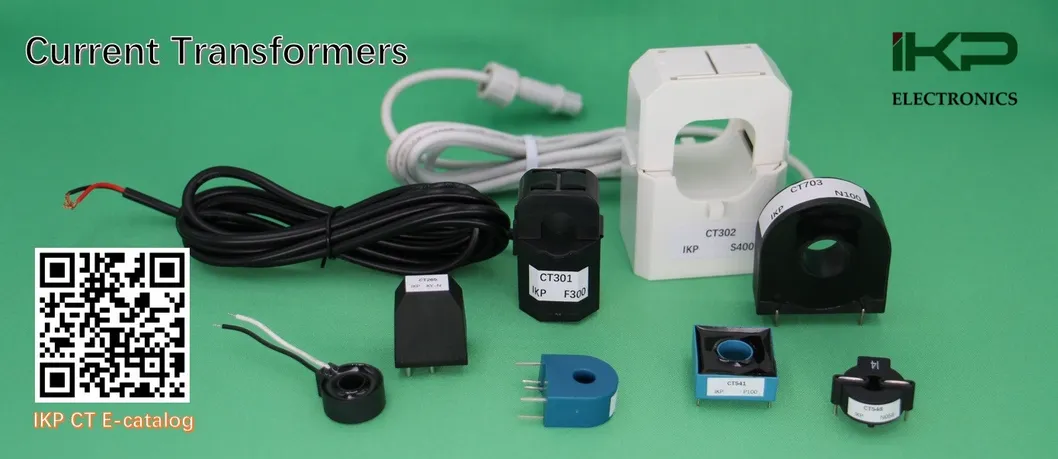

Precision Current Transformer Layout

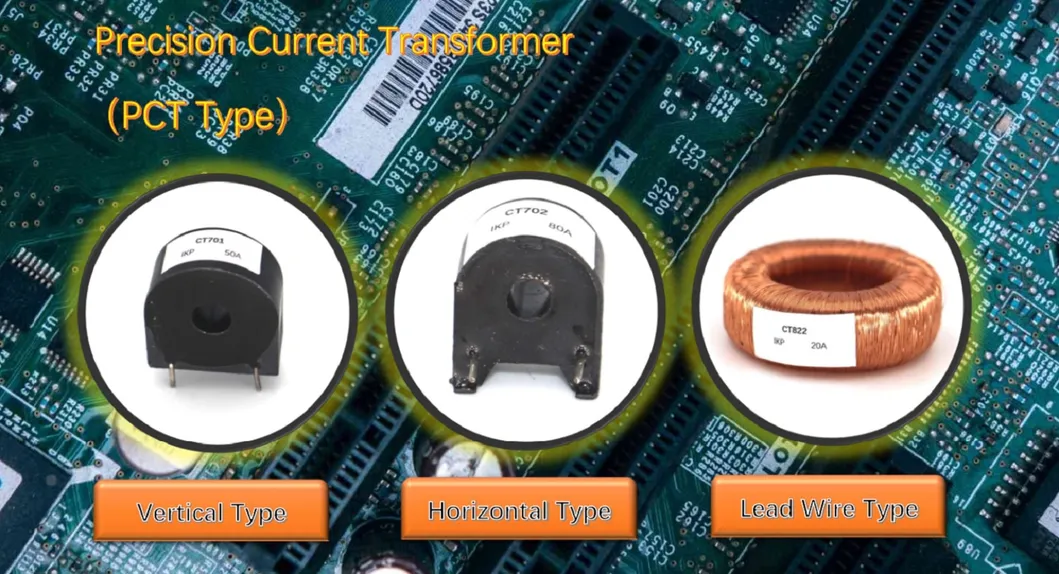

Current Transformer Specifications
KEY FEATURES
  • High precision, wide linearity range for output current
  • High potential voltage (4000Vac/1min), outstanding stability
  • Operation Frequency: 20--400Hz
  • High linearity with DC immunity characteristics
  • Low profile, elegant looking
  • Directly installed to PCB
  • Meet the standard of IEC62053 and ANSI12.20
  • Meet ROHS requirements
APPLICATIONS
  • Electronic energy meter
  • Power transducer
  • Precision power meter and monitoring devices
  • Over current protection circuits for motors and appliances

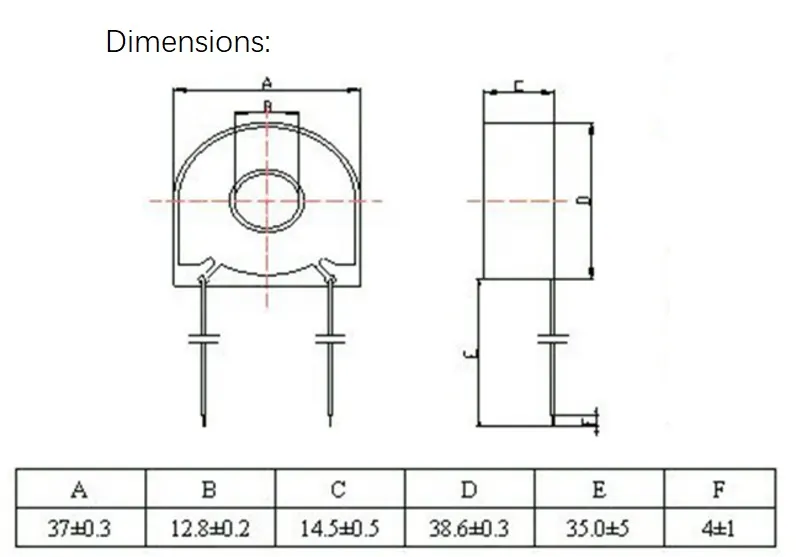

Technical Dimensions
PCT703 Technical Drawing
Technical Parameters
MODEL RATED CURRENT (A) CURRENT RATIO ACCURACY CLASS LOAD RES. (Ω) FREQ. (Hz) DIMENSIONS (mm)
ID OD HT
PCT21550500~3500:10.1~2%3050/6015.43010
PCT21660500~3500:10.1~2%3050/608.629.213
PCT52720500~3500:10.1~2%4050/607.6188
PCT53125500~3500:10.1~2%1050/60--15.5
PCT70160500~3500:10.1~2%2050/60723.411
PCT70280500~3500:10.1~2%3050/608.726.417
PCT703130500~3500:10.1~2%5050/6012.837.214
PCT70460500~3500:10.1~2%1050/60824.211.8
PCT71010500~3500:10.1~2%3050/6082411.8
PCT80150500~3500:10.1~2%10050/60284517.2
PCT802100500~3500:10.1~2%4050/603533.529.2
PCT82220500~3500:10.1~2%5050/6021318
PCT83150500~3500:10.1~2%3050/6010.623.913.6
PCT842100500~3500:10.1~2%10050/607.52217.5
PCT84310500~3500:10.1~2%4050/601831.523
PCT90110500~3500:10.1~2%2050/6018.55020
Manufacturing & Quality Control

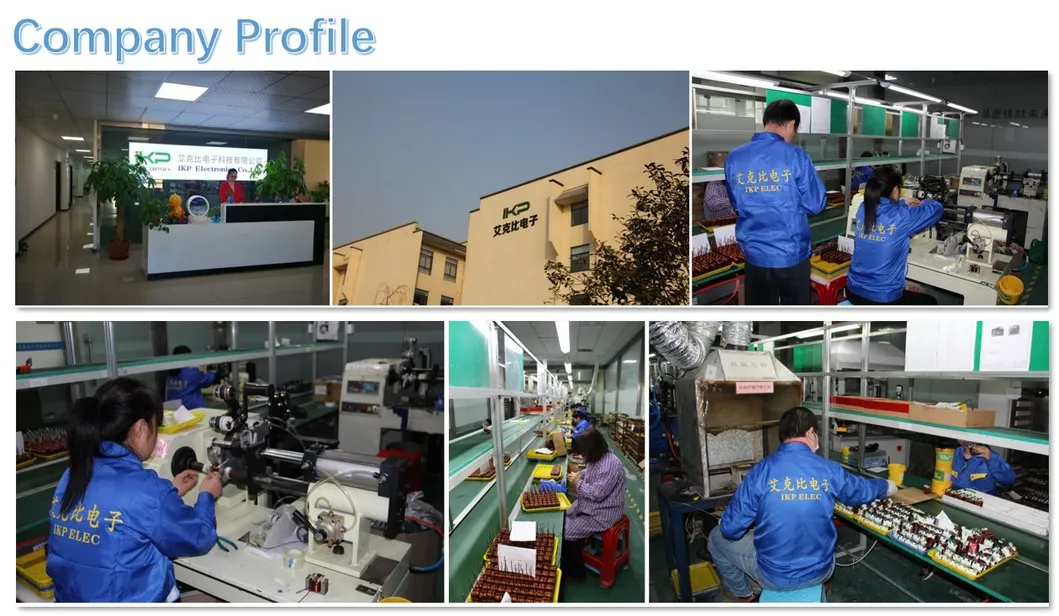

Production Process 1
Production Process 2
Production Process 3
Quality Testing
Final Product Inspection
Frequently Asked Questions
What are the primary applications for the PCT703 series?
The PCT703 current transformers are widely used in electronic energy meters, power transducers, precision power meters, and over-current protection circuits for various electrical appliances.
Does this current transformer support PCB mounting?
Yes, the PCT703 series is specifically designed for direct installation onto PCBs, featuring a low-profile and compact design for easy integration.
What is the accuracy grade of these transformers?
These transformers offer high precision with an accuracy class ranging from 0.1 to 2%, meeting IEC62053 and ANSI12.20 standards.
What is the isolation voltage capacity?
The series provides high potential voltage protection of up to 4000Vac for 1 minute, ensuring outstanding stability and safety during operation.
Is the PCT703 environmentally compliant?
Yes, all products in this series meet ROHS requirements, ensuring they are environmentally friendly and safe for global distribution.
Can these transformers handle DC components?
The PCT703 series features high linearity with DC immunity characteristics, making them reliable for complex power monitoring environments.
