PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
1 / 5
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers
PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers

PCB Mounting Current Transformer 1A-1000A Wide Range Measure Split Core Current Transformers

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
HMQP5
Phase
Single
Operation
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer
Insulating
Epoxy Resin
Primary Input
-600A~+600A
High Precision
0.2/0.5
Turns Ratio
2000t
Core
Silicon Steel
Capacity
500,000 PCS/Year
HS Code
8504311000
🔍 Product Description

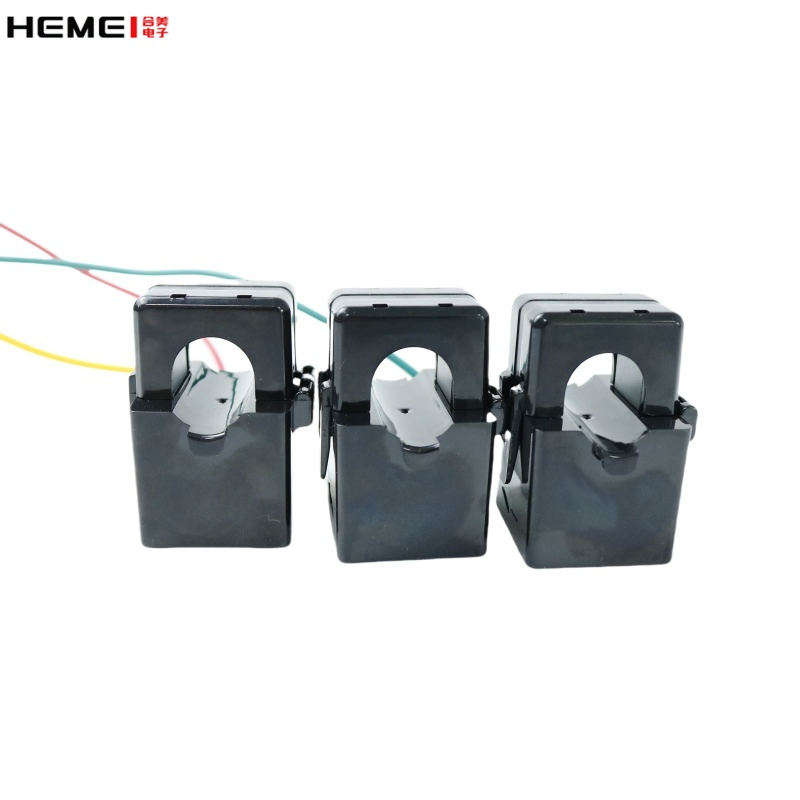

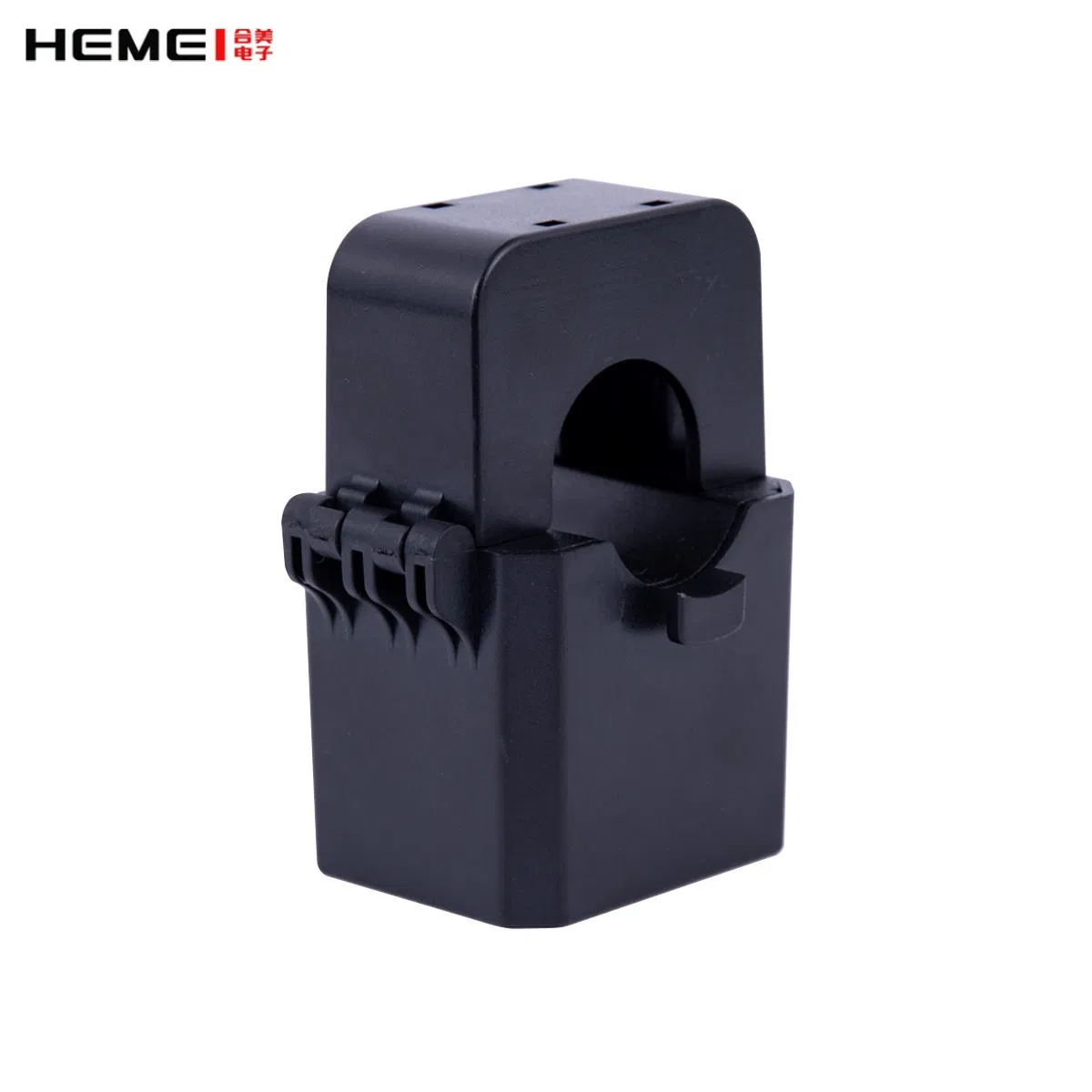

Split Core Current Transformer
The split core current transformers are designed for fast and easy installation. They are ideal for installation on existing electrical cables by clamping on the conductor. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

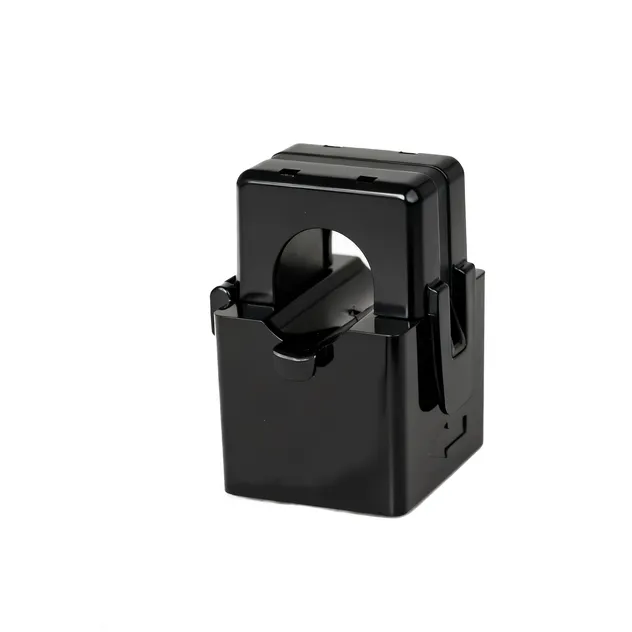

Split Core Current Transformer View 1

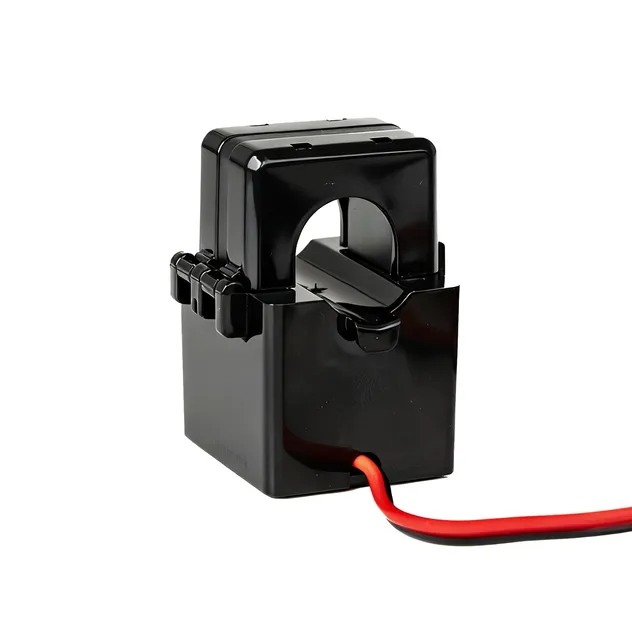

Split Core Current Transformer View 2

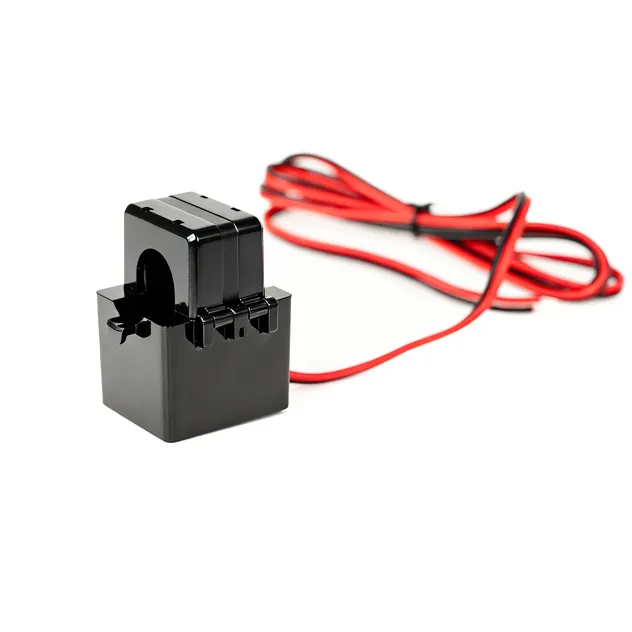

Split Core Current Transformer View 3
⚙️ General Technical Indicators
Technical Indicators Indicator Parameters
Operating voltage≤0.72KV
Operating frequency50Hz~1KHz
Rated accuracy level0.2%/0.5%/1.0%
Input current0A~600A
Rated short-time thermal current60 times rated current @1sec
Insulation resistance≥1M ohms@500Vdc
Power frequency withstand voltage3500V@2mA\1min\50Hz
Flame retardant levelUL94-V0
Insulation heat resistanceE level
📊 Product Parameters
Model Inner Diameter Turns Ratio Input Current Accuracy
HM-CTSC-1010mm500/1 - 3000/10A~70A0.2% / 0.5%
HM-CTSC-1616mm500/1 - 3000/10A~150A0.2% / 0.5%
HM-CTSC-2424mm500/1 - 3000/10A~300A0.2% / 0.5%
HM-CTSC-3535mm500/1 - 3000/10A~600A0.2% / 0.5%
🚀 Application Scenarios
Application Scenarios
🏭 Production & Quality
Product Range
Facility Overview
Workshop
Certifications
📦 Packaging & Shipping
Packaging Details
❓ Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a professional manufacturer.
2. Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Sample fees and freight costs apply.
3. Do you accept customized products and OEM services?
Yes, our R&D department has over 10 years of experience in the electric industry. We offer personalized services including OEM, ODM, and OPM.
4. How long will it take to receive my order?
For customized products, it usually takes 10-15 days, depending on your specific design and quantity.
5. What is your quality control system?
All production processes follow ISO9001 standards. Each process has technical instructors and QC supervisors who inspect production regularly. Performance and comprehensive quality tests are conducted upon completion.
