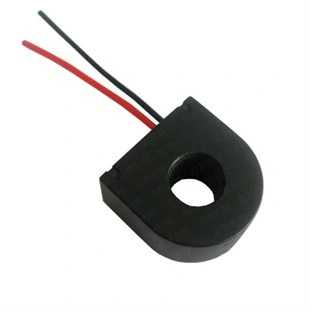

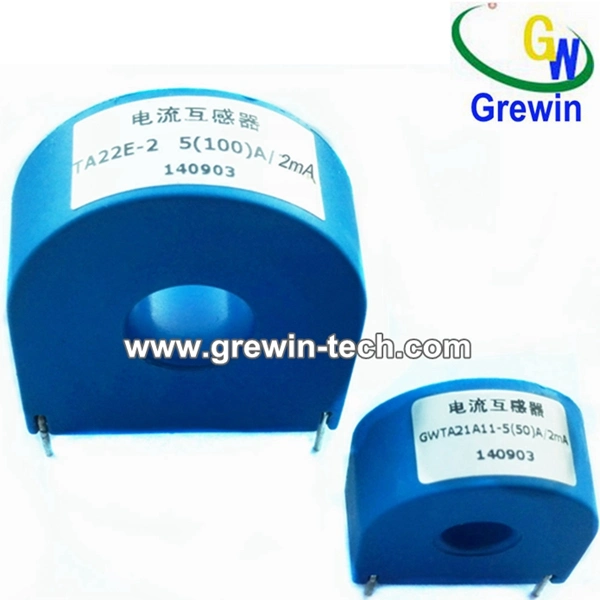

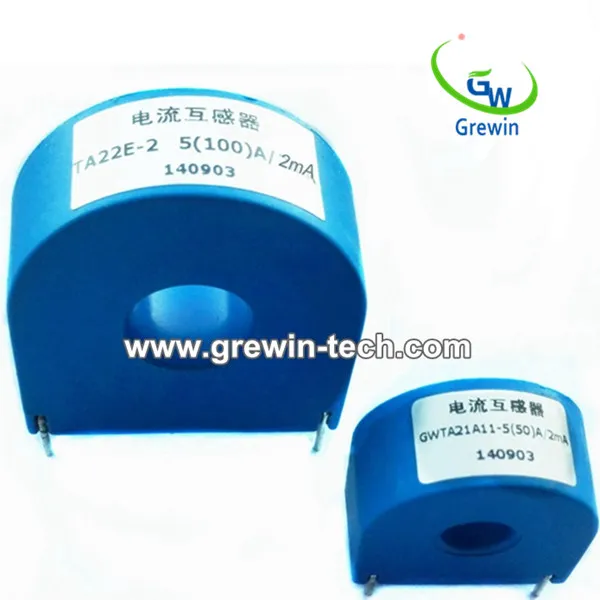

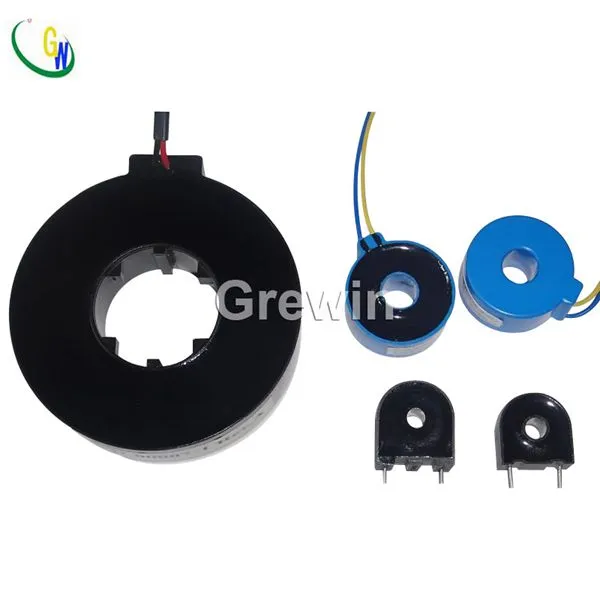

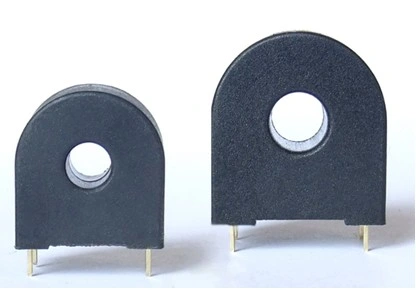

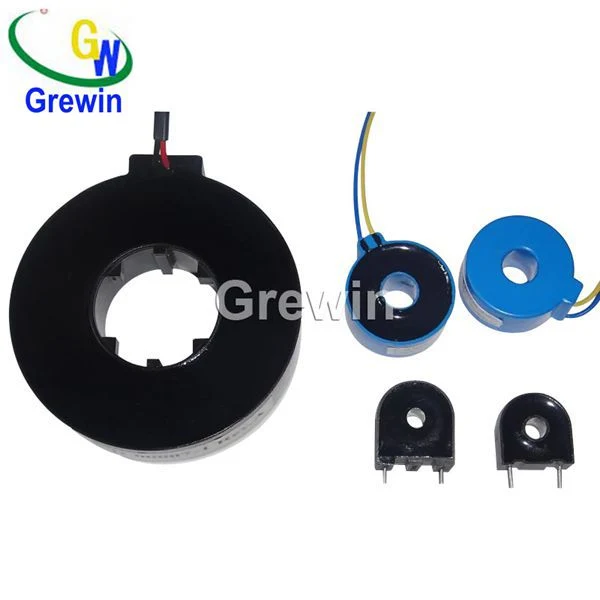

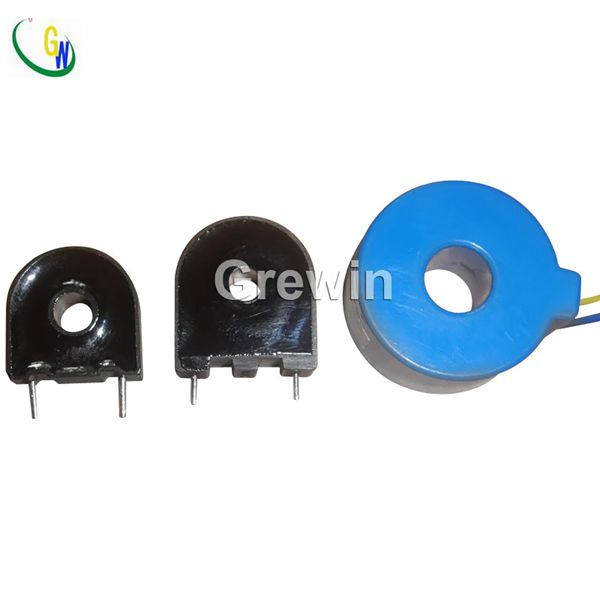

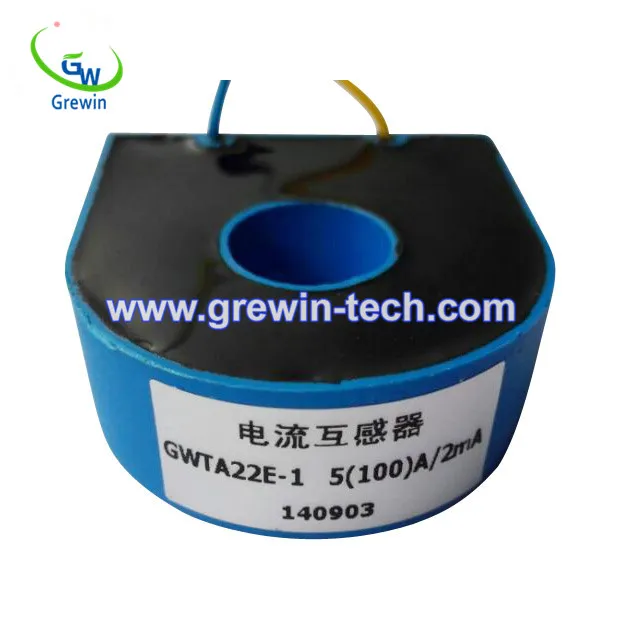

Product Name: 5A 15A Input Mini Current Transformer Micro CT for Electronics
Key Features:
Primary Applications:
| Parameter | Technical Data |
|---|---|
| Exterior Material | PBT Resin UL flame retardant rating 94-V0 |
| Interior Insulation | Epoxy Encapsulated |
| Isolation Voltage | 2500 Vrms for 1 minute |
| Dielectric Resistance | 1000 M Ohms @ 500 Vdc |
| Surge Withstand | 5000V (1.2/50μs standard shock wave) |
| Rated Load Resistance | 100K Ohms |
| Operating Temperature | -25 to +55ºC (Optional -40 to +85ºC) |
| Frequency Range | 50 to 400 Hz |
| Accuracy Class | Defined in IEC 60044-1 Part 1 (Class 0.1, 0.2) |
| Certification | RoHS Compliant, CE Approved |

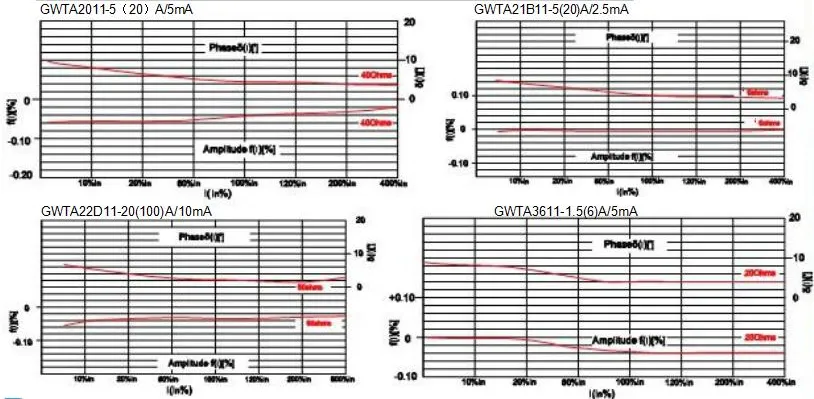

Impedance Dependence Errors:

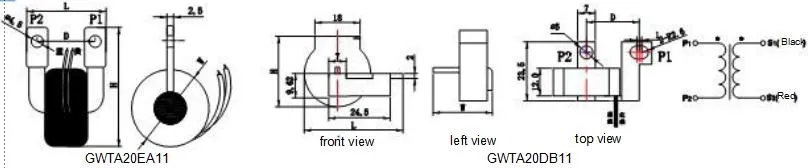

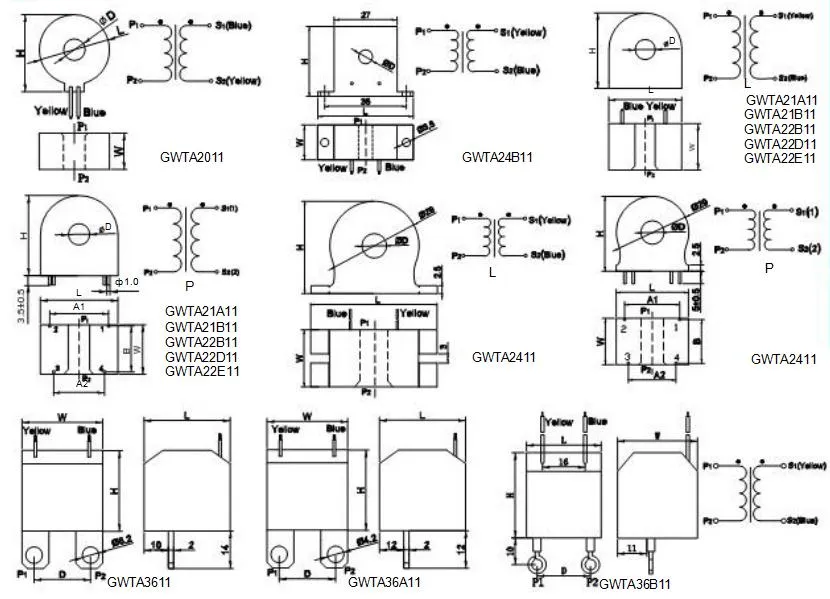

Outline Drawings:

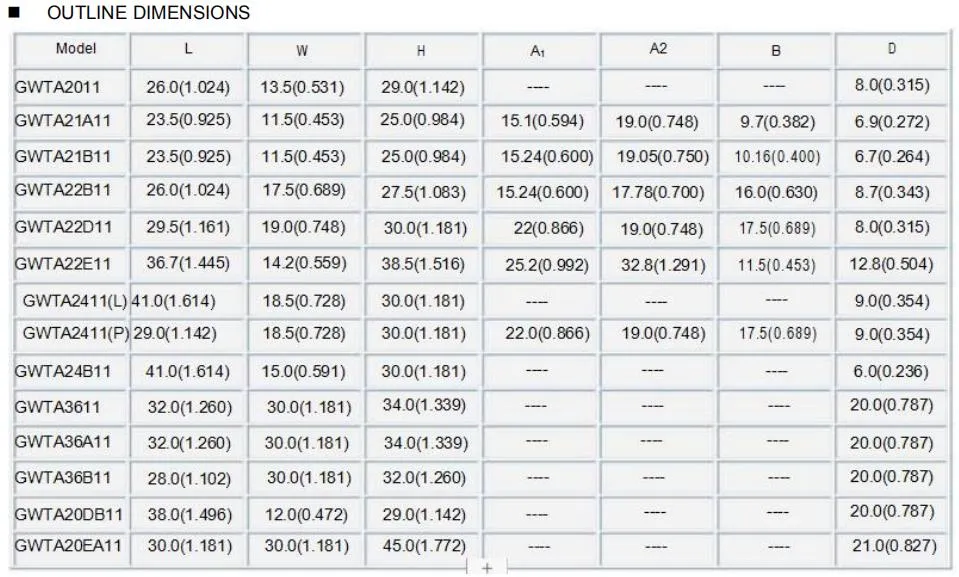

Dimensions:

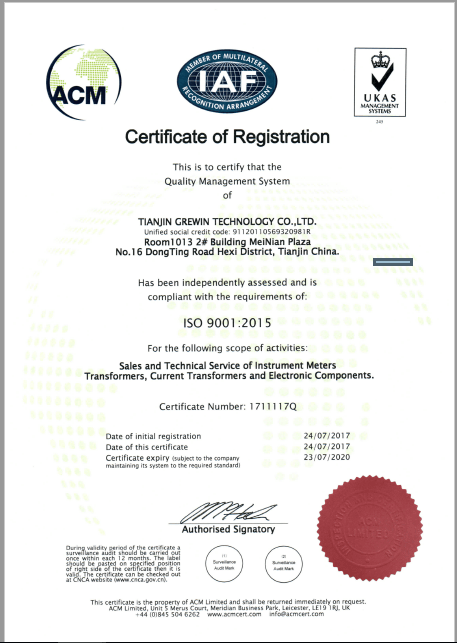

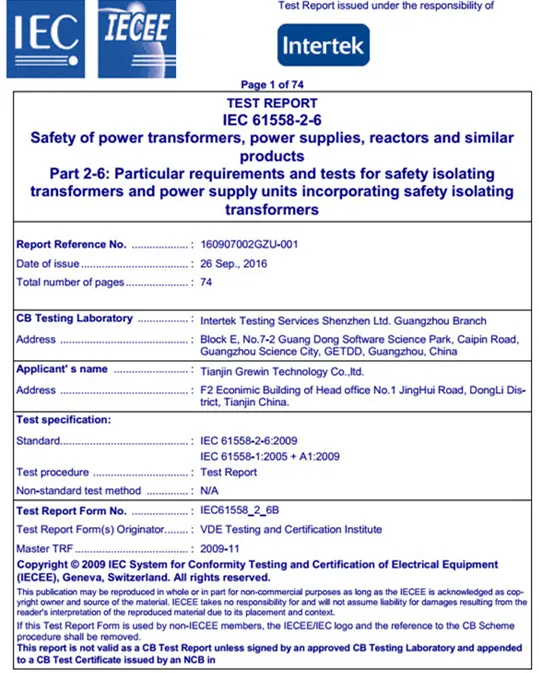

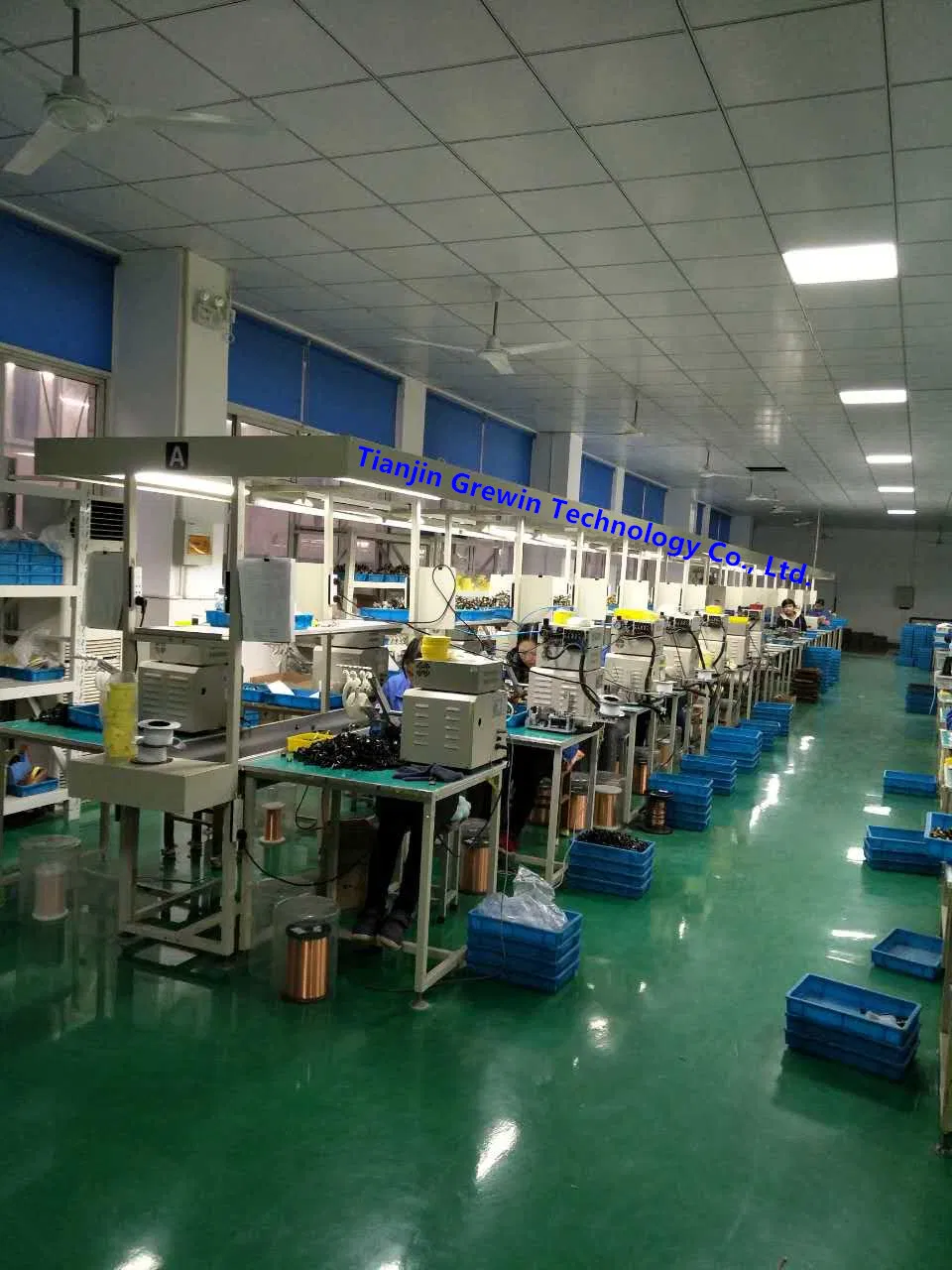

With over 20 years of focus on transformer technology, we adhere to ISO9001:2015, CB, IEC, and CE standards. Our philosophy centers on "Quality and Honesty First."
Our core product range includes: miniature voltage transformers, miniature current transformers, instrument CTs, clamp-on CTs, split-core CTs, three-phase CTs, and zero-flux CTs. These are widely utilized in telecommunications, electronics, metering, industrial controls, and medical equipment.
