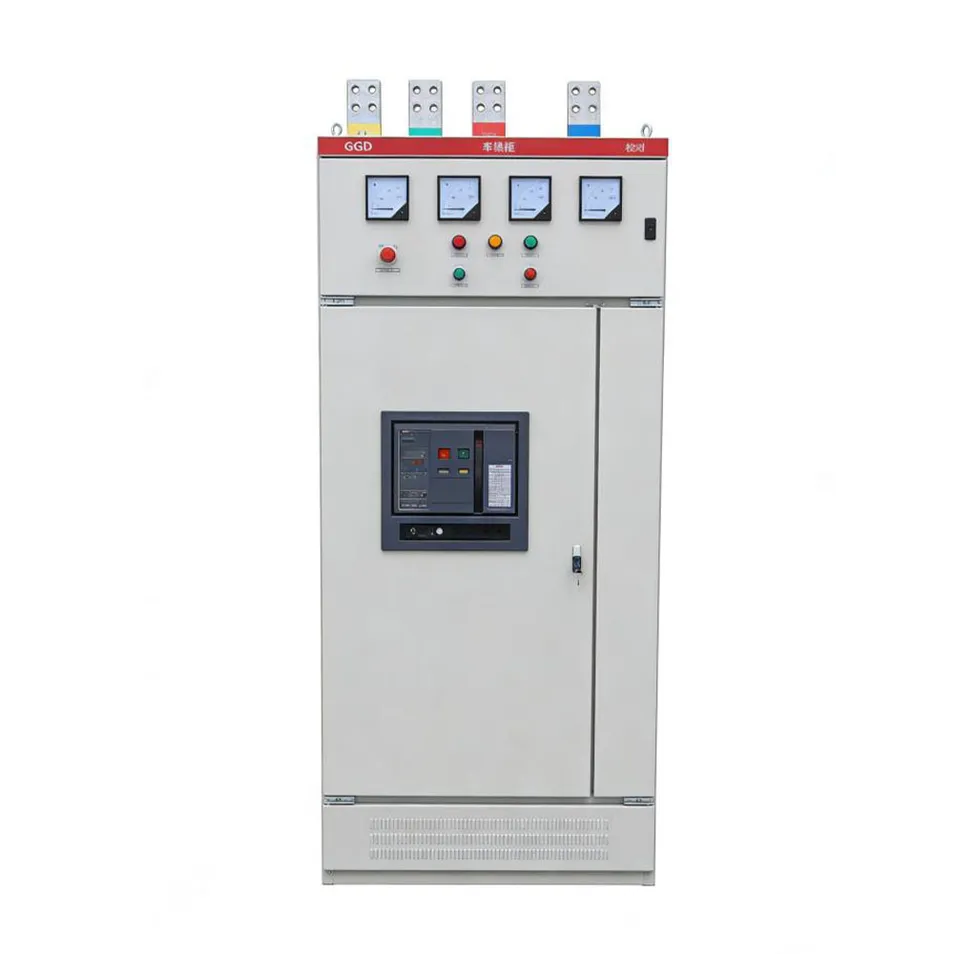

The GGD Type AC Low-Voltage Switchgear is suitable for power distribution systems in power plants, substations, factories, mines, and other industrial facilities. It operates on 50Hz AC power with a rated working voltage of 380V and a rated working current up to 3150A. It serves as equipment for power conversion, distribution, and control for power, lighting, and distribution systems.

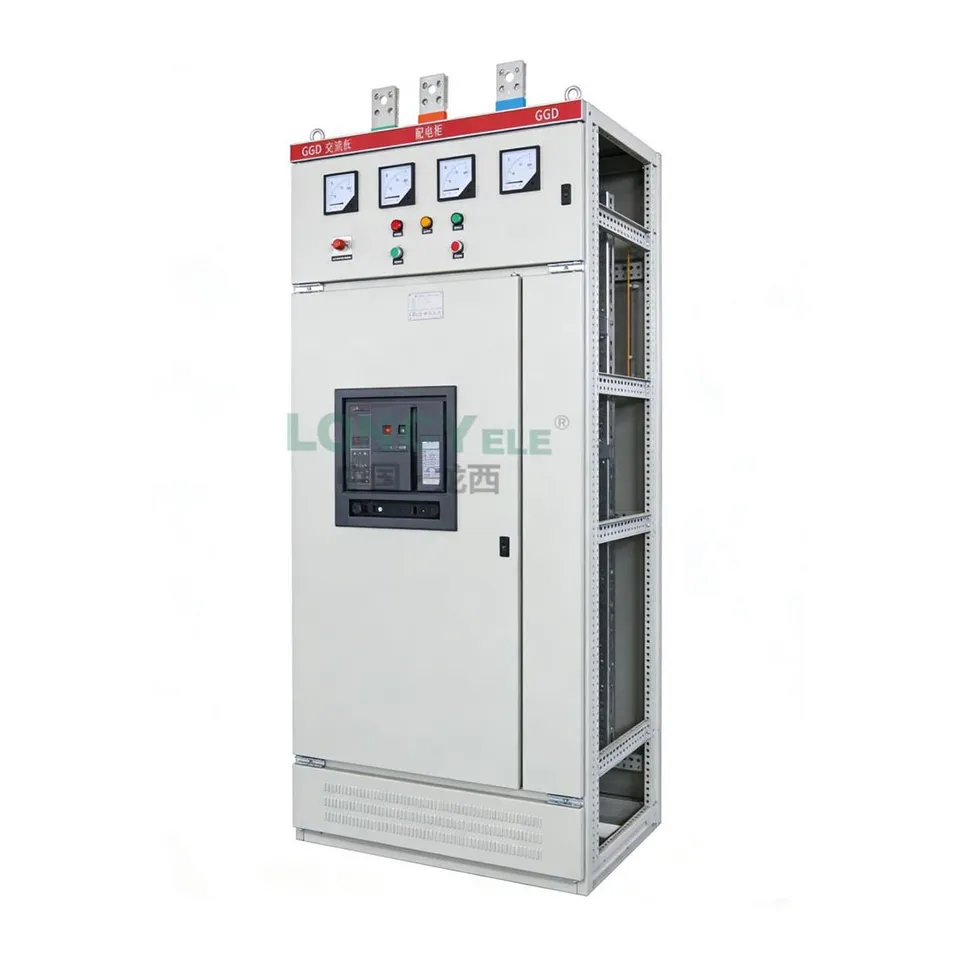

The GGD AC low-voltage switchgear cabinet is a new-generation low-voltage distribution cabinet designed adhering to principles of safety, economy, rationality, and reliability. The product features high breaking capacity, excellent dynamic and thermal stability, and high protection rating.
| Model | Rated Voltage (V) | Current Type | Rated Current (A) | Breaking Capacity (kA) | Withstand Current (1s) | Peak Withstand (kA) |
|---|---|---|---|---|---|---|
| GGD1 | 380 | A | 1000 | 15 | 15 | 30 |
| B | 600(630) | |||||
| C | 400 | |||||
| GGD2 | 380 | A | 1500(1600) | 30 | 30 | 65 |
| B | 1000 | |||||
| C | 600 |

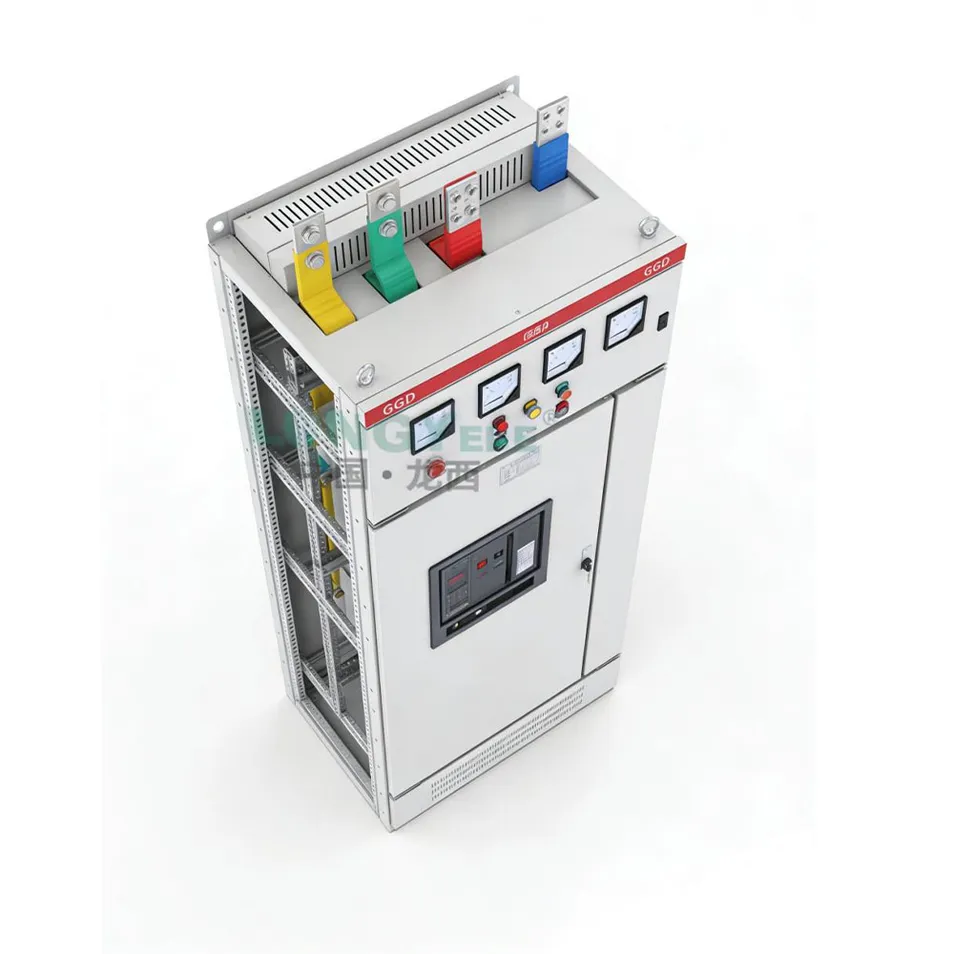

1. Universal Design: Assembled through partial welding of 8MF cold-formed steel sections with 20-module mounting holes for high compatibility.
2. Heat Dissipation: Multiple ventilation slots at top and bottom create a natural ventilation pathway for effective cooling.
3. Protection & Finish: Polyester orange-baked paint finish with IP30 rating (customizable IP20-IP40). Doors feature V-shaped rubber-plastic strips for sealing.

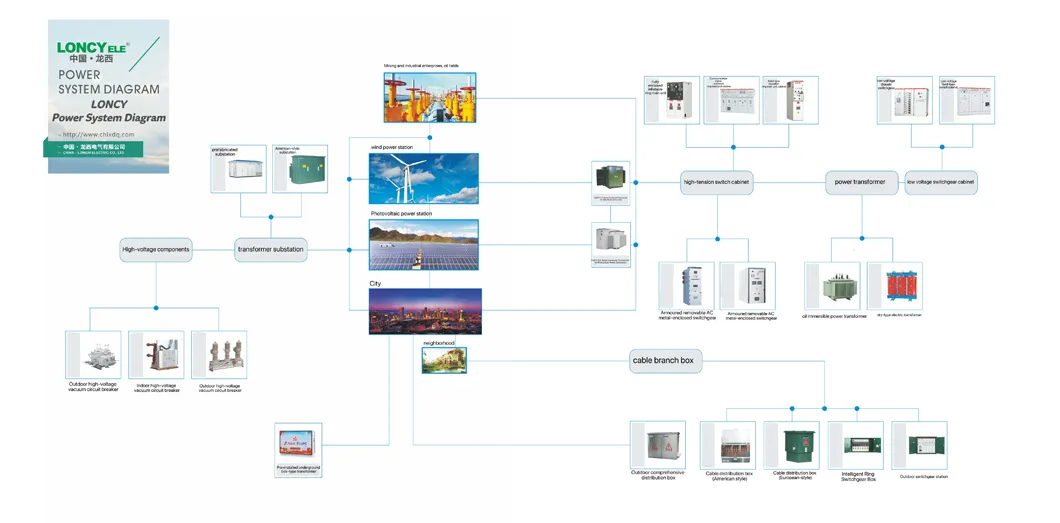

Focusing on global new energy and infrastructure sectors, providing integrated photovoltaic energy storage, high/low voltage switchgear, intelligent circuit breakers, and power transformers. We offer customized solutions tailored to regional standards and specific project budgets.
