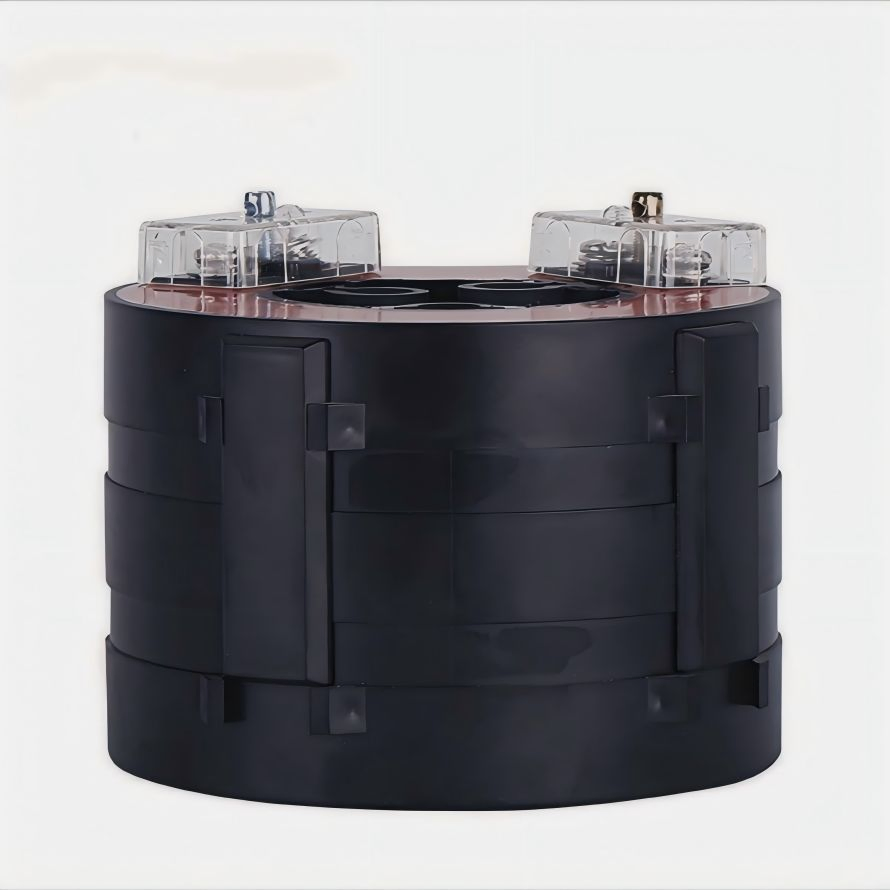

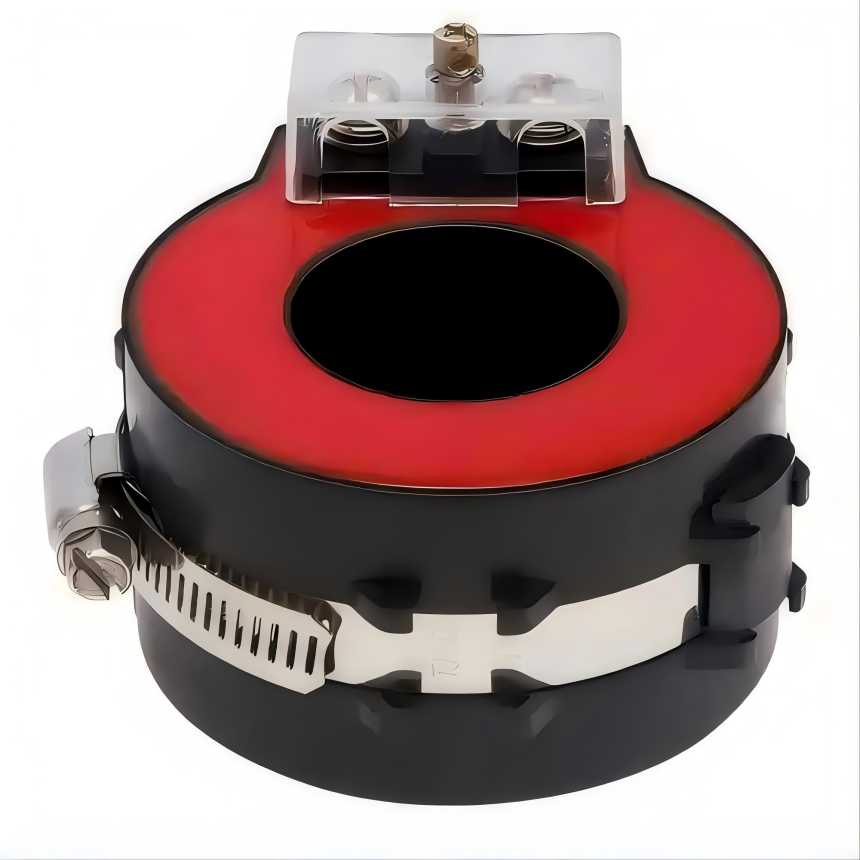

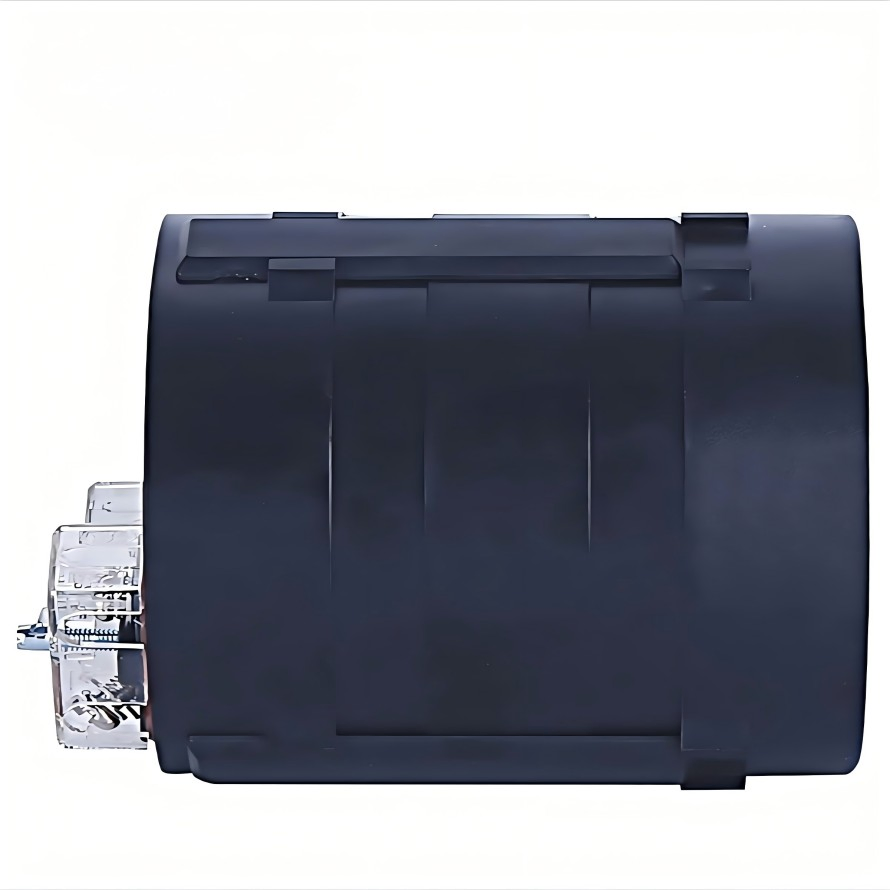

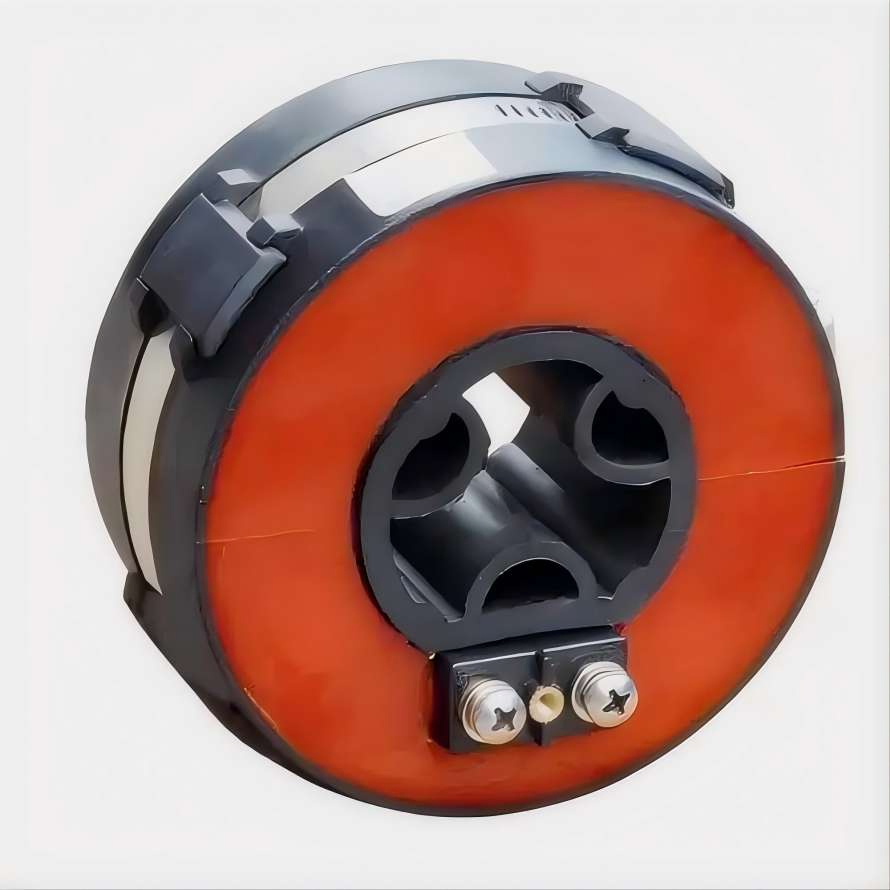

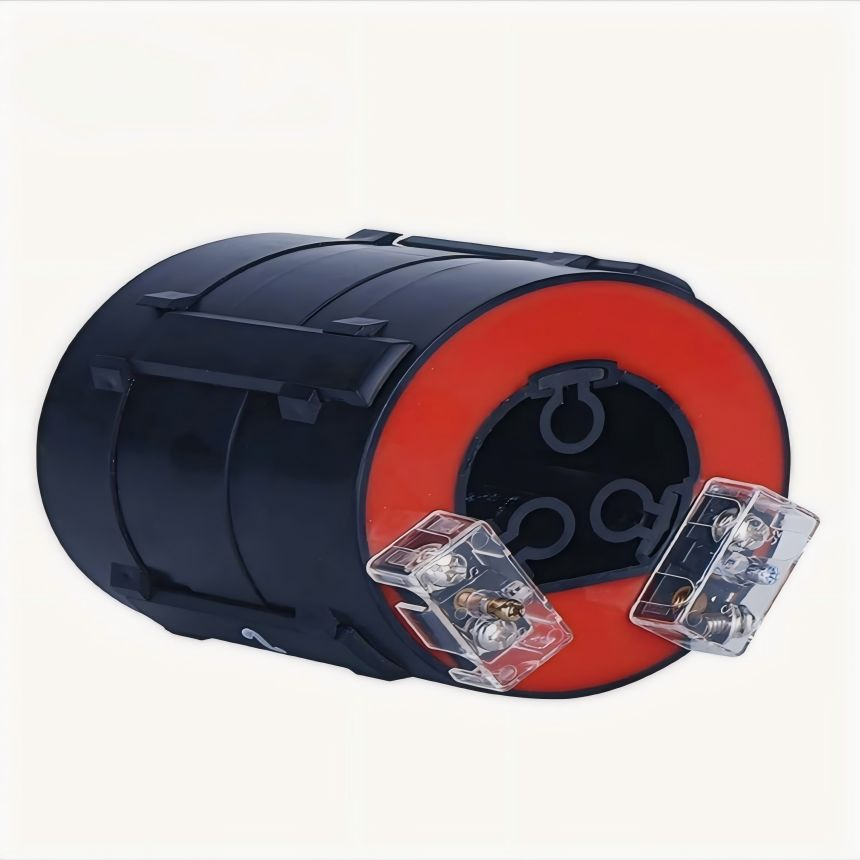

Indoor Single Phase Open Type 6kv 10kv Current Transformer
Indoor Single Phase Open Type 6kv 10kv Current Transformer
Indoor Single Phase Open Type 6kv 10kv Current Transformer
Indoor Single Phase Open Type 6kv 10kv Current Transformer
Indoor Single Phase Open Type 6kv 10kv Current Transformer
1 / 5
Indoor Single Phase Open Type 6kv 10kv Current Transformer
Indoor Single Phase Open Type 6kv 10kv Current Transformer
Indoor Single Phase Open Type 6kv 10kv Current Transformer
Indoor Single Phase Open Type 6kv 10kv Current Transformer
Indoor Single Phase Open Type 6kv 10kv Current Transformer

Indoor Single Phase Open Type 6kv 10kv Current Transformer

Customization: Available
Application: Electronic, Instrument, Position Sensor, Audio, Lighting
Type: Current Transformer
Send Inquiry

Product Description

Basic Information
Model NO.
LMZK 50-800/5A 600/1A
Phase
Single
Condition
Indoor
Usage
Protection, Measurement
Winding Form
Small Fixed Type
Insulating
Epoxy Resin
Installation
Penetration Type
Rated Frequency
50Hz 60Hz
Insulation Level
12/42/75kv 7.2/30/60kv
Standard
IEC61869-1.3
Package Size
10.00cm * 20.00cm * 10.00cm
Gross Weight
3.000kg
Product Description
Current Transformer 1 Current Transformer 2 Current Transformer 3
Company Profile

A comprehensive enterprise focused on the electric power industry, specializing in the development and manufacturing of transformers and high voltage products. With an international development orientation, we rely on professional R&D teams and a comprehensive quality management system to provide one-stop solutions for power distribution systems.

Our products serve a wide range of industries including metallurgy, power plants, petrochemicals, mining, data centers, and renewable energy sectors, ensuring safety and excellent performance in power control.

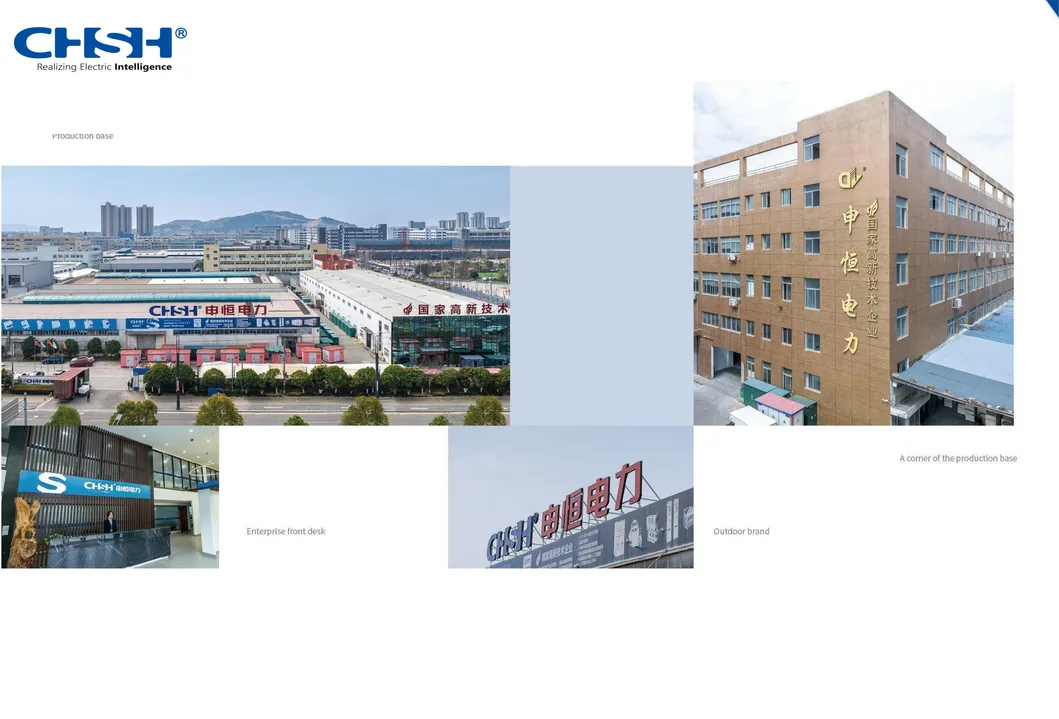

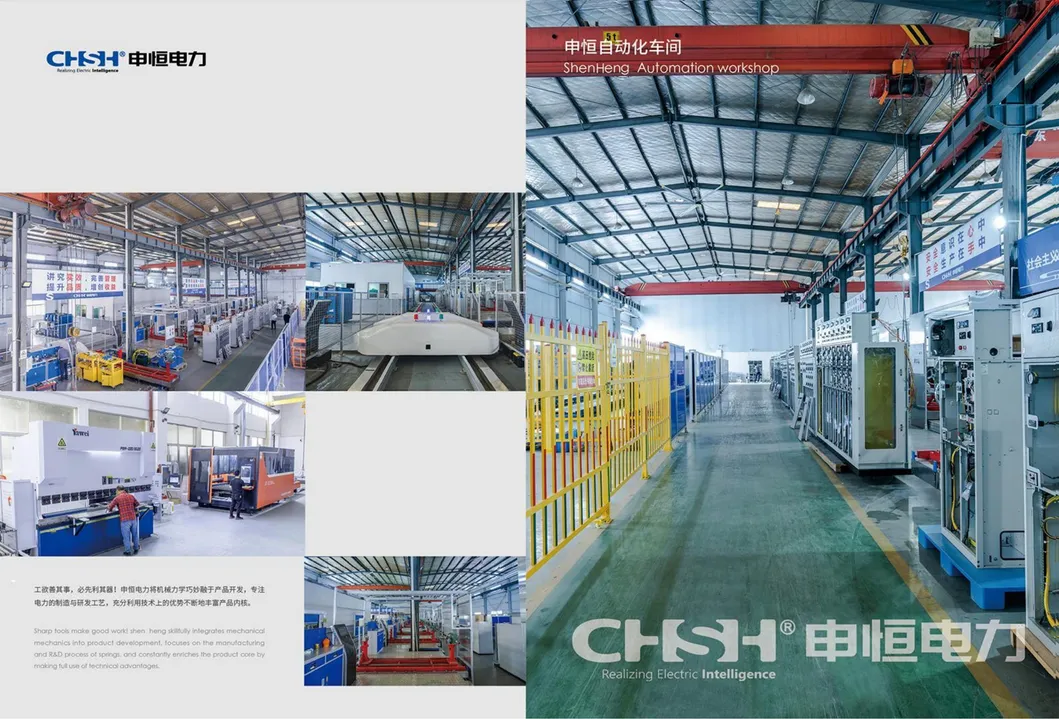

Production Facility 1 Production Facility 2
Founded
2012
Total Area
30,000 square meters
Employee Count
Over 300
Certifications
Certificates
Product Parameters

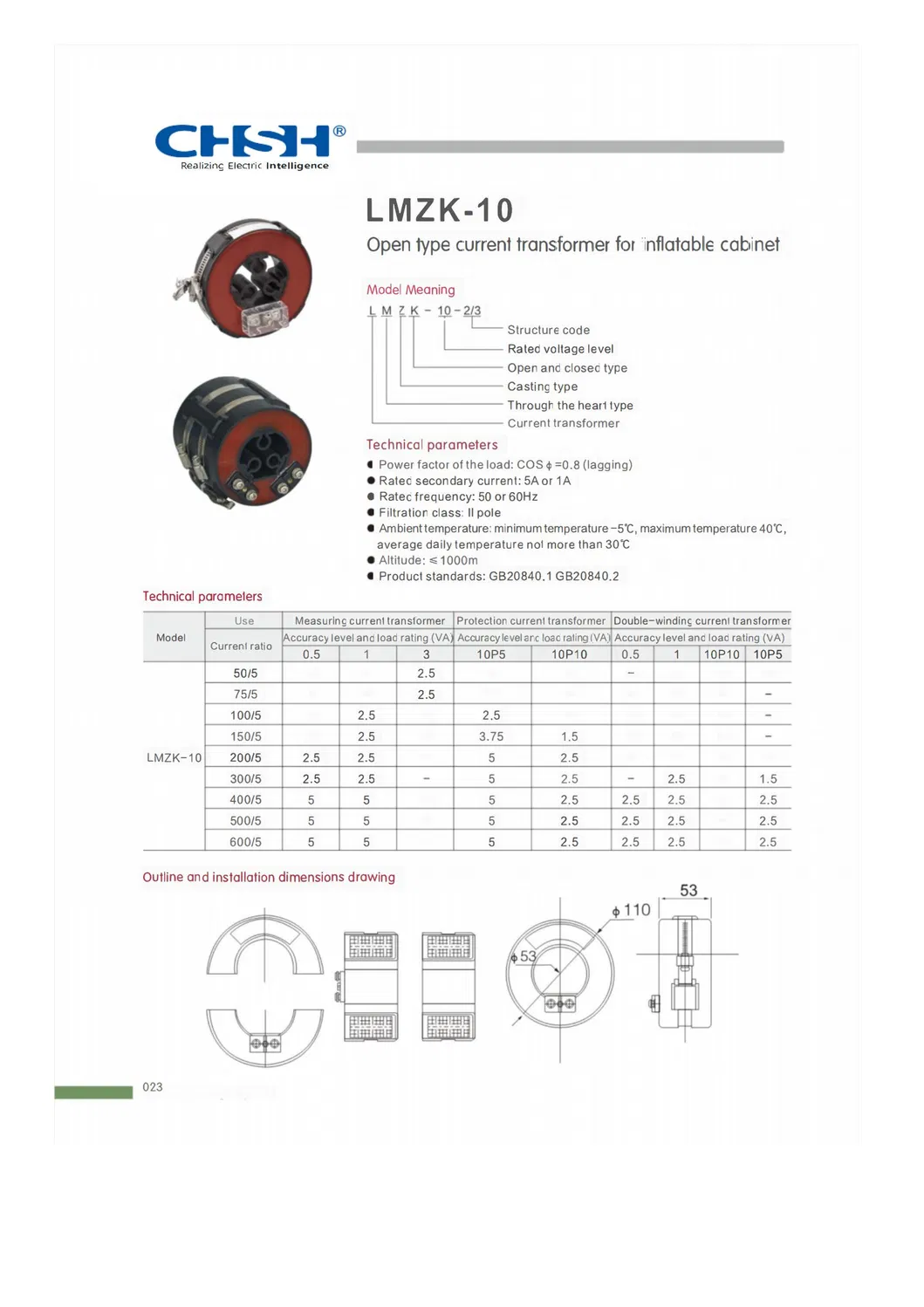

Data Sheet
Parameter Value/Description
Rated Voltage10kV
Rated Frequency50Hz
Rated Primary Current50A-1000A (e.g., 100/5A, 200/5A)
Accuracy ClassMetering: Class 0.5, 1; Protection: 10P10, 10P20
Rated Burden (VA)10VA, 15VA, 20VA
Insulation LevelPower frequency withstand: 42kV; Lightning impulse: 75kV
Ambient Temperature-25ºC to +40ºC
Casing MaterialEpoxy resin cast
Our Advantages
  • Over 10 years of professional manufacturing experience in the electric industry.
  • ISO9001 Quality System International Certification and multiple technology patents.
  • Advanced production equipment, innovative testing technology, and epoxy pouring processes.
  • Professional R&D team and dedicated after-sales support.
  • Comprehensive OEM & ODM service capabilities tailored to global standards.
Frequently Asked Questions
Q1: Are you a manufacturer or trading company? We are a dedicated manufacturer specialized in the design and production of high-quality transformers, switchgears, and power substations customized for various international standards.
Q2: How do you ensure quality control and after-sales support? 100% of products are checked and tested before delivery. We provide inspection videos to customers and offer online after-sale services for maintenance and troubleshooting.
Q3: How soon can I receive a price quote? Typically, we quote within 1 hour of receiving an inquiry. For customized designs, a detailed specification and quote are provided within 12 hours.
Q4: What is the warranty period for your products? Every product comes with a 2-3 year quality warranty under correct operational usage.
Q5: What certifications do your products hold? Our products are certified with CE, 3C, and CQC. We can also assist in applying for other specific certificates as required.
Q6: What payment methods are accepted? We accept payments via T/T (Telegraphic Transfer) and L/C (Letter of Credit).
