Hv Zero-Sequence Current Transformer Single Phase Epoxy-Resin

1 / 5

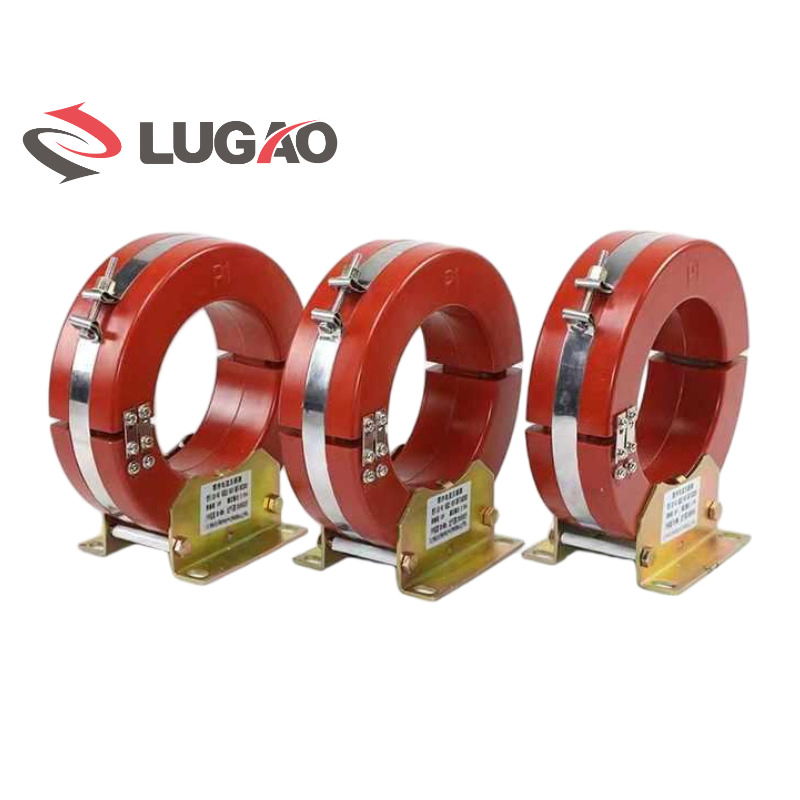

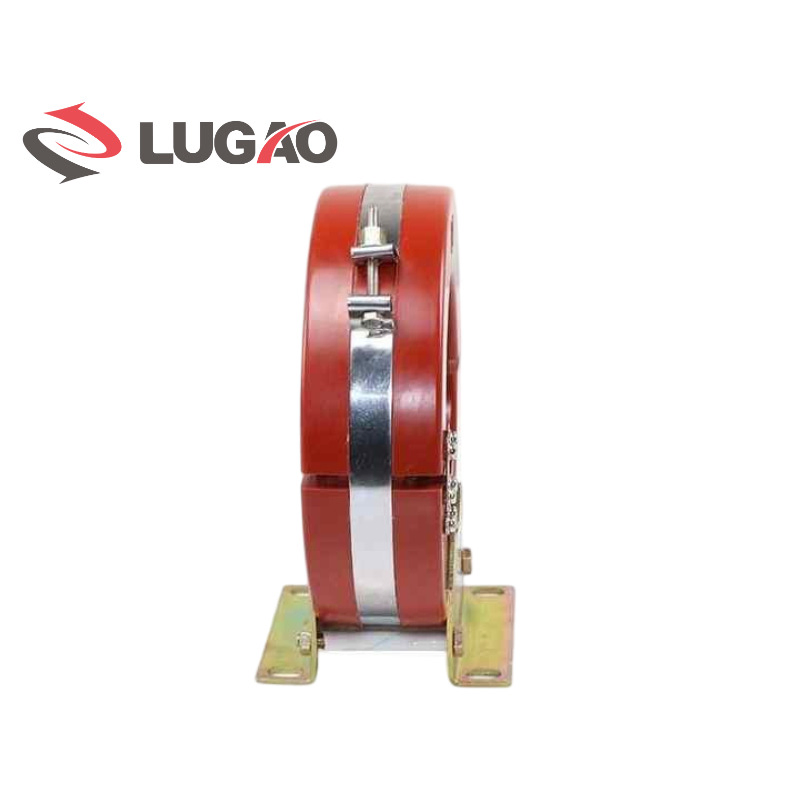

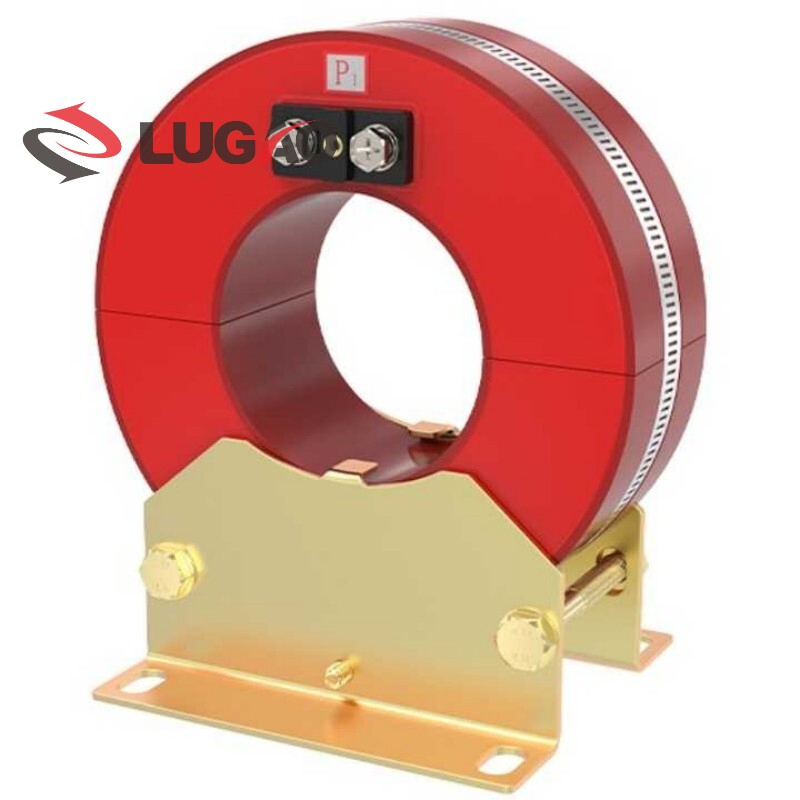

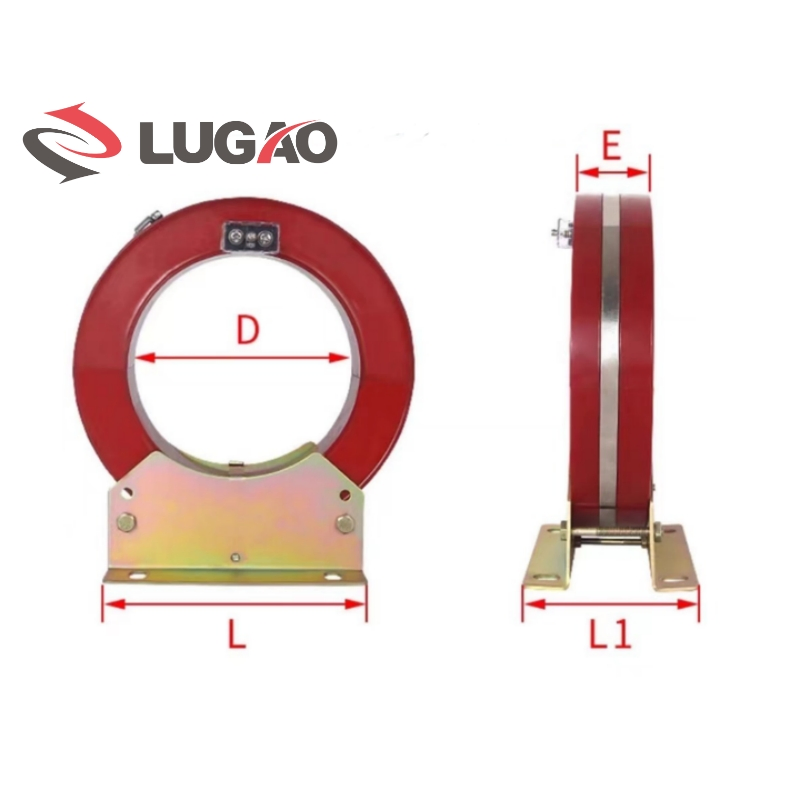

Hv Zero-Sequence Current Transformer Single Phase Epoxy-Resin

Customization:	Available
Application:	Low-voltage
Type:	B Type Insulator

Send Inquiry

Product Description

Basic Specifications

Model NO.

Lxk

Connection Method

Spherical Type

Certification

CE, ISO9001

Color

Red

Insulating Medium

Epoxy Resin

Installation

Strut Type

Voltage Transformation

Electromagnetic Type

Rated Frequency

50/60Hz

Rated Output

1.0-15va

Specification

150*120*185

Package Size

150.00cm * 120.00cm * 185.00cm

Gross Weight

100.000kg

Product Description

PRODUCT INTRODUCTION: The zero-sequence current transformer is suitable for small grounding current systems with rated frequency of 50/60Hz and rated voltage of 35kV and below. It is used in conjunction with relay protection and signal devices for residual (zero-sequence) current detection and grounding protection. At the same time, it activates the device components to achieve protection and monitoring.

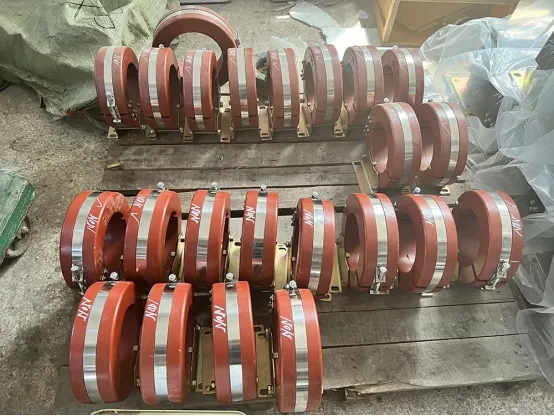

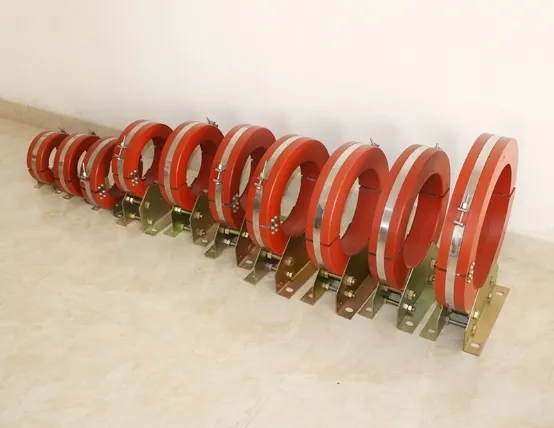

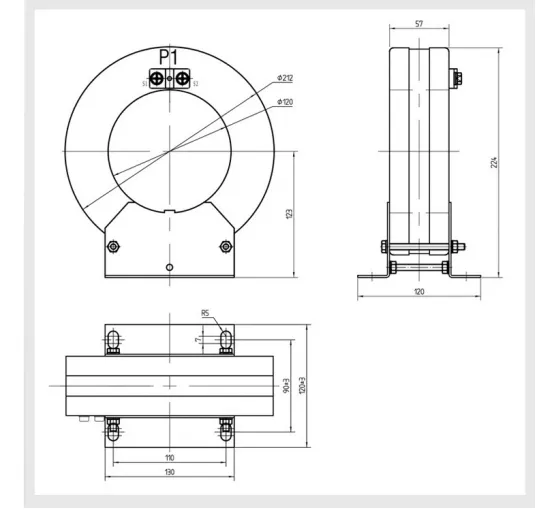

The zero-sequence current transformer is a cable-type resin-cast insulated indoor product. This series features an open-closed type and epoxy resin-cast structure. They can be divided into two parts and then combined into one during installation, which is highly convenient for field setup.

Company Profile

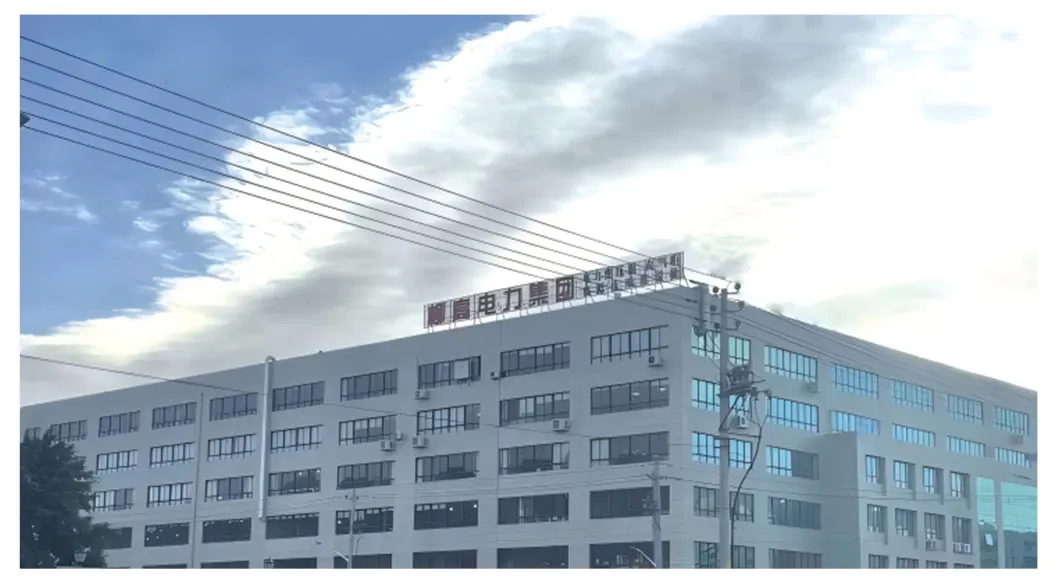

Founded in 2009, we are an international high-tech enterprise specializing in the R&D, production, and sales of high-voltage, medium-voltage and low-voltage transmission and distribution equipment. We provide one-stop solutions for global power infrastructure projects. With decades of pioneering innovation, we continuously enhance capabilities by integrating cutting-edge production technologies supported by rigorous quality control systems.

Certifications

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a leading and professional manufacturer specializing in power transmission and distribution equipment.

What is your after-sales service policy?

We provide 24-hour online support to answer technical questions, a 1-3 year quality guarantee, and international approvals such as CE, RoHS, and KEMA.

What are your standard payment terms?

Typically, we require 30% T/T in advance as a deposit, with the balance due before shipment. Irrevocable L/C at sight is also accepted for large orders.

Is this zero-sequence current transformer easy to install?

Yes, it features an open-closed type structure that can be divided into two parts and recombined, making it very convenient for existing cable installations.

What systems is this transformer suitable for?

It is designed for small grounding current systems with a rated frequency of 50/60Hz and rated voltages of 35kV and below.

Can I request an invitation letter for a factory visit?

Certainly. If you plan to visit our facilities for business development, we can provide the necessary invitation letters for your travel arrangements.
