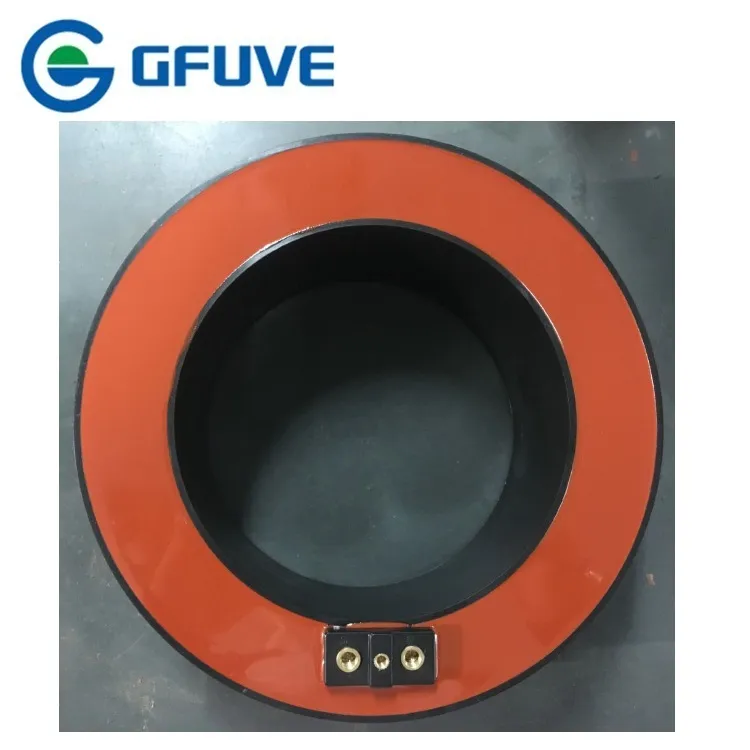

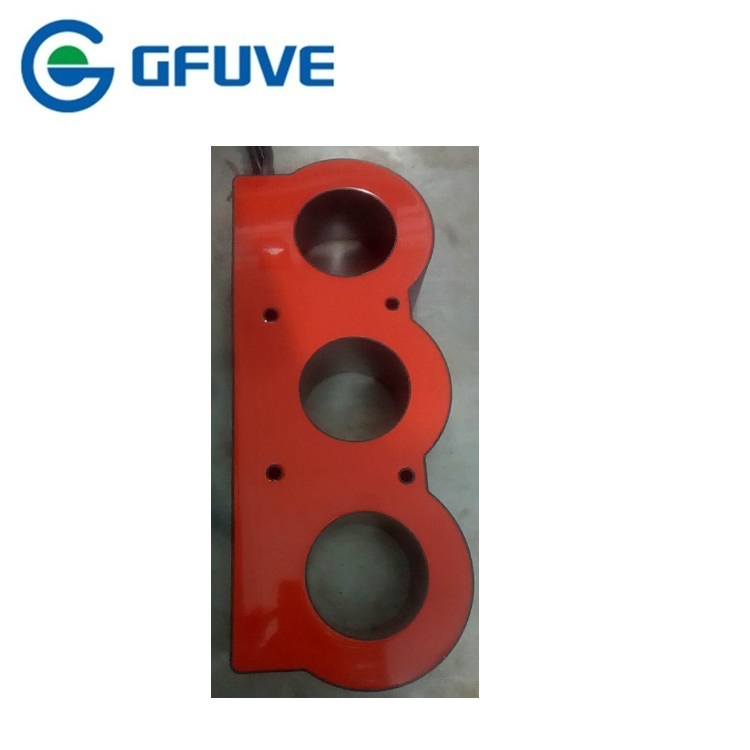

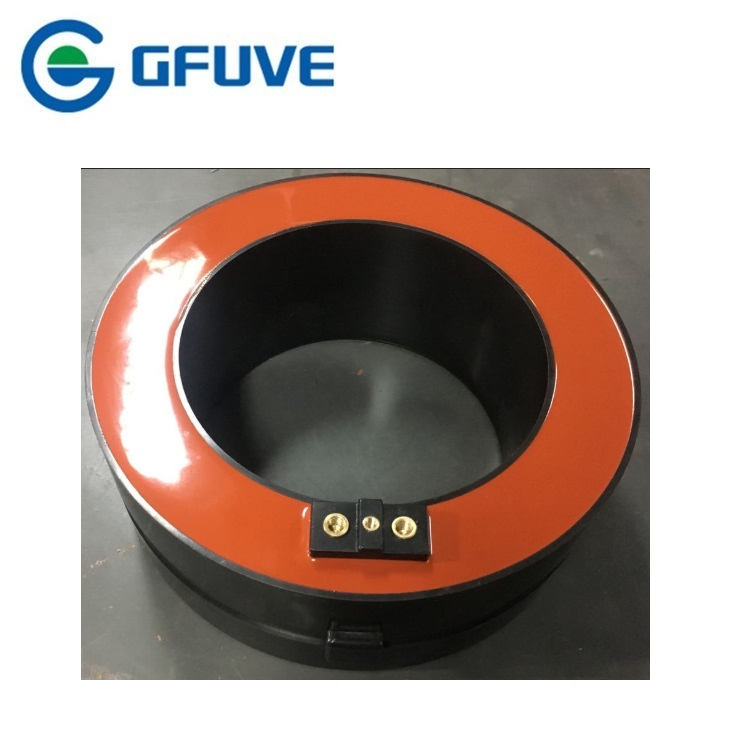

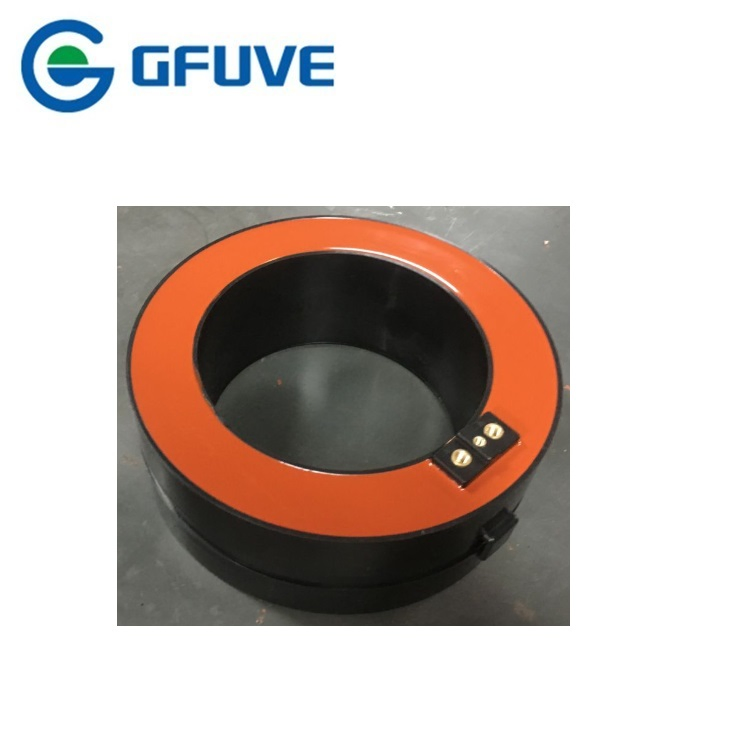

LZCK2502-10 Epoxy resin three phase protection 5P20 zero phase current transformer is specifically designed for protection devices in power systems.
The LZCK2502-10 protection 5P20 zero phase current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power systems. It is widely used in compact fully insulated ring network switchgears and cable distribution boxes. The current transformer can be directly installed at the inlet and outlet cables. The slice is imported silicon material. The semicircular ring core and secondary windings are vacuum poured by insulated resin.
100A Zero Phase Current Transformer: Applied to small current monitored circuits. When the monitored circuit fails, it can turn 100A input current into zero phase current ranging from 10mA to 1,000A and control the switching of circuits.
This zero phase current transformer detects the difference between the currents flowing in a number of conductors. The current flowing to a load must equal the current flowing back from the load. If this is not the case, a potentially dangerous residual current will be flowing somewhere in the installation.

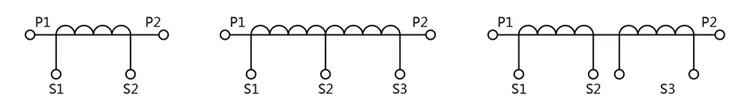

●P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
●P2, S2 is homonymous terminals (subtractive polarity).
| Standard & Electrical Specifications | |
|---|---|
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13; GB1208-2006 |
| Rated primary current | 50-3000A |
| Rated load | ≤30VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Instrument security factor | FS≤10 |
| Dimensions (W×D×H) (mm) | φ160xφ225x100 |
| Operating temperature | -35°C to +55°C |
| Altitude | <3500 meters |
| Model | Primary Current | Rated Load | Aperture (mm) | Material | Water-proof |
|---|---|---|---|---|---|
| LZCK-55 | 100-1500A | ≤10VA | φ55 | ABS+Resin | IP65 |
| LMCK185-10 | 300-3000A | ≤25VA | φ185 | ABS+Resin | IP65 |
| LZCK310-10 | 300-600A | ≤10VA | φ50 | Resin | Option |
| LZCK720-10 | 20-1000A | ≤25VA | φ60 | Resin | Option |
| LZCK2500-10 | 50-5000A | ≤20VA | φ160 | Resin | Option |
Please confirm the type, current ratio, accuracy class, rated load, and application when placing an order. Special specifications can be customized to meet your specific requirements.
